Fabricating a Bed Rack

Discussion in '2nd Gen. Tacomas' started by OutbackHack, Feb 27, 2013.

  1. Feb 27, 2013 at 12:03 PM
    #1
    OutbackHack

    OutbackHack [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26963
    Messages:
    260
    Gender:
    Male
    First Name:
    Mike
    Seattle, WA
    Vehicle:
    2010 DCSB V6 6sp TRD-Sport
    $$$

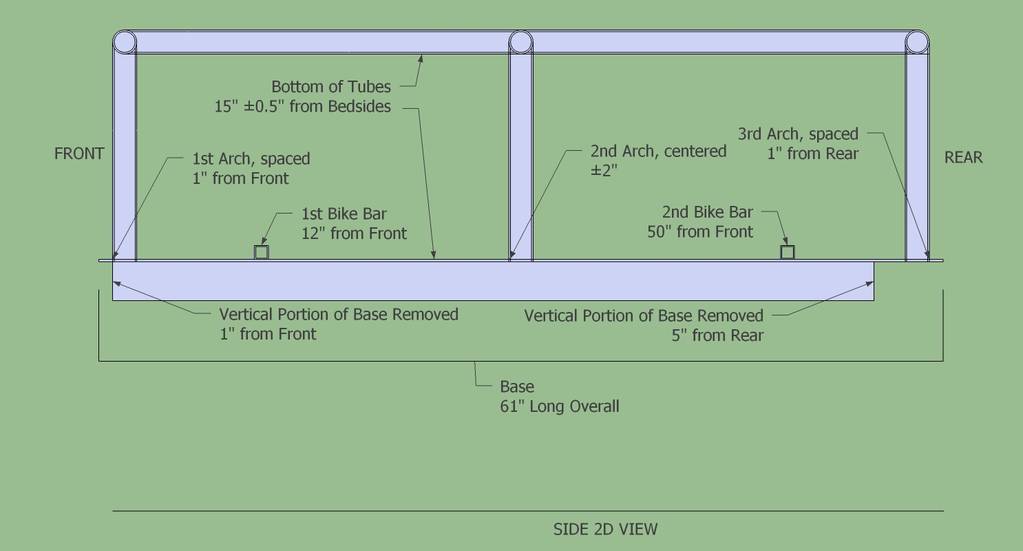

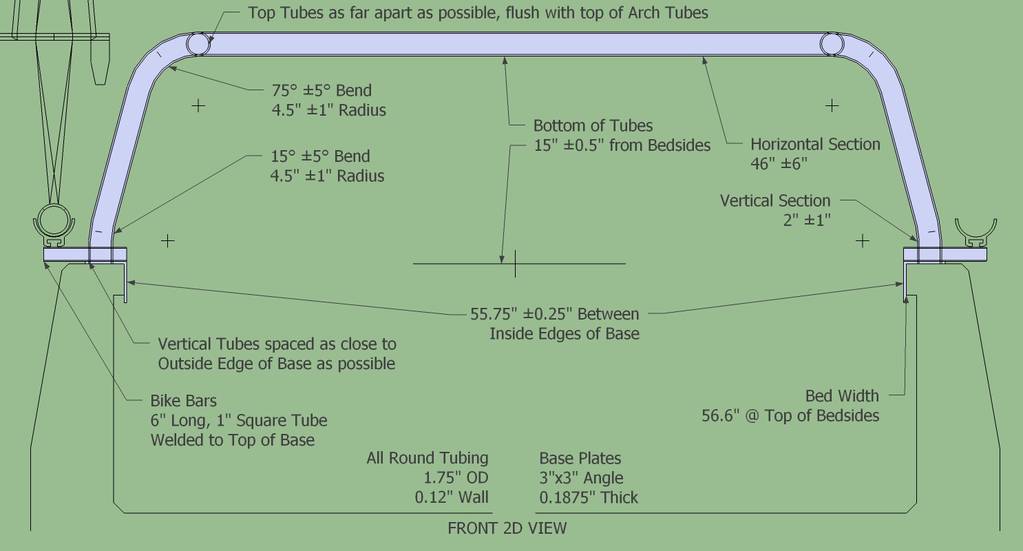

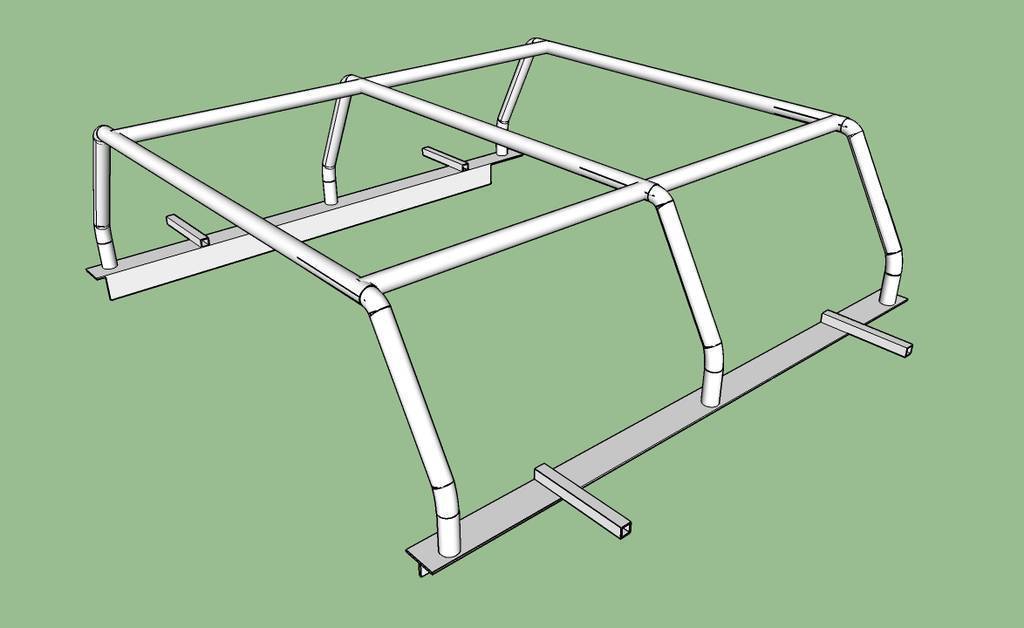

    About to start fabricating a bed rack for bikes, kayaks, maybe an RTT down the road, etc. Based my design on a bunch of members' racks and it seems like a good idea. I'd appreciate any feedback before I start cutting metal.
    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Mar 4, 2013
  2. Feb 27, 2013 at 12:14 PM
    #2
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,924
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    If I were to build a bed rack and had plans for a RTT, I would make the top of the rack lower than the top of the cab so the top of the tent when collapsed would be level with the top of the cab. That would make it better for long trips (less drag and wind noise). But, if you need the cargo space, that's a decision you'll have to make. Just my $0.02. I like the idea!

  3. Feb 27, 2013 at 1:06 PM
    #3
    OutbackHack

    OutbackHack [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26963
    Messages:
    260
    Gender:
    Male
    First Name:
    Mike
    Seattle, WA
    Vehicle:
    2010 DCSB V6 6sp TRD-Sport
    $$$
    Good Point. My current design is a bit of compromise, 15" (instead of 16" in the latest drawing) would still let me see out the back and give just enough room for a 33" tire to be rolled in vertically. The top of the rack should be 3-4" below the cab roof line, so only 2/3 of a RTT would stick up in the wind. It should be just high enough that I can get a canoe or kayak to clear the roof with some sort of mount, and let me almost stand up under the RTT awning when open.

  4. Feb 27, 2013 at 5:24 PM
    #4
    Monkeyboy

    Monkeyboy Well-Known Member

    Joined:
    Sep 16, 2011
    Member:
    #63637
    Messages:
    501
    Gender:
    Male
    Grand Junction, CO
    Vehicle:
    2012 AC TRD Sport
    The trouble is - it's hard to get it low enough to matter and at the same time, keep the tent high enough to use an annex, or have sufficient access to cargo space.

    Truth told, the RTT didn't have that great an effect on my MPG - if you have enough of a gap between it and the cab, it's not a huge drag. I lost far more MPG going with an aggressive-ish tire (BFG AT KO) and a lift.

    In my view, the main trouble with having the RTT up that high is bugs. I installed a roof rack and a fairing to resolve that problem.

  5. Feb 27, 2013 at 5:37 PM
    #5
    kai38`

    kai38` Well-Known Member

    Joined:
    Dec 9, 2007
    Member:
    #3778
    Messages:
    570
    Good looking rack, I'm having one built now to carry my RTT.
    I have a AutoHome Columbus http://www.autohomeus.com/rooftop/columbus.php
    that is longer then my short bed, I don't want a 2ft overhang on the rear so the rack is being made a little taller the the roof so I can extend it 1-1.5 ft over the cab.
    You might think about adding rear & side light mounts and antenna mounts for future CB or HAM install

  6. Feb 27, 2013 at 5:46 PM
    #6
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,924
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    That's a good idea with the fairing. :thumbsup:

  7. Feb 27, 2013 at 5:55 PM
    #7
    Monkeyboy

    Monkeyboy Well-Known Member

    Joined:
    Sep 16, 2011
    Member:
    #63637
    Messages:
    501
    Gender:
    Male
    Grand Junction, CO
    Vehicle:
    2012 AC TRD Sport

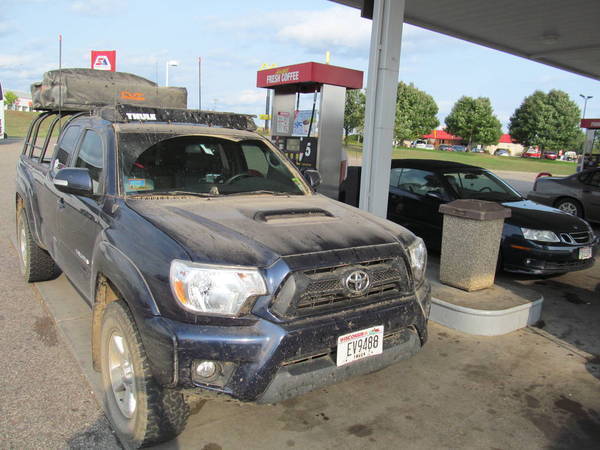

    Works, too!

    [​IMG]

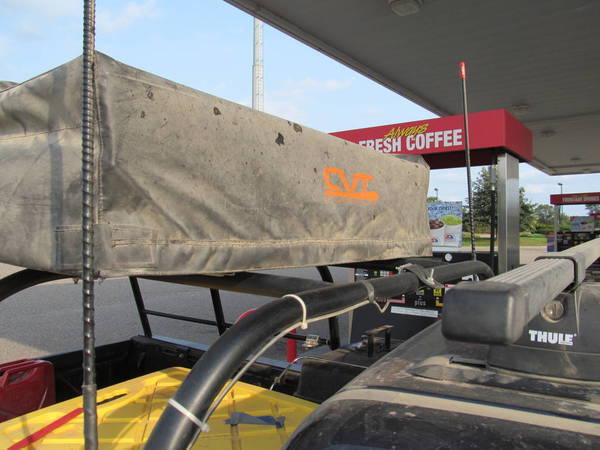

    See ma! No bugs!!!

    [​IMG]

  8. Feb 27, 2013 at 6:01 PM
    #8
    Spoonman

    Spoonman Granite Guru

    Joined:
    Sep 11, 2011
    Member:
    #63328
    Messages:
    7,830
    Gender:
    Male
    First Name:
    Jamie
    Calgary
    Vehicle:
    2006 Campster Mobile
    My truck is MAGIC
    Looking good. I'd like to see how this turns out.

  9. Feb 27, 2013 at 8:51 PM
    #9
    ChiveOn

    ChiveOn City Slickin' Redneck, I wear a suit with a mullet

    Joined:
    Dec 27, 2012
    Member:
    #93819
    Messages:
    1,136
    Gender:
    Male
    A BC Boy in Calgary
    Vehicle:
    2013 MGM DCSB TRD Sport 6spd
    Plasti-Dipped Emblems, Tonnopro Tri-fold toneau cover (for winter use only), AVS in-channel visors, Ultra Gauge, Tepui Kukenam RTT, Muteki Trail Hog 285/70/17, Pop N' Lock, Bilstein 5100's in the front set at .85 with Eibach coils, Bilstein 5100's in the rear with a Toytec AAL. Toytec drivers side spacers, Toytec diff drop kit. All Pro u-bolt flip kit, TJM Compressor (permanently mounted), Custom rack for the RTT over the bed, Tepui Kukenam RTT, Toyota Bed Mat, Cobra 75 WX ST CB Radio, and a lot of gear behind the seats.
    What rack is this RTT on?

    Please keep us posted, I love your ideas for a rack.

  10. Feb 27, 2013 at 9:05 PM
    #10
    Spoonman

    Spoonman Granite Guru

    Joined:
    Sep 11, 2011
    Member:
    #63328
    Messages:
    7,830
    Gender:
    Male
    First Name:
    Jamie
    Calgary
    Vehicle:
    2006 Campster Mobile
    My truck is MAGIC
    Looks like a Thule type rack. You can see the bikes are mounted on the same bars as the tent.

  11. Feb 27, 2013 at 9:07 PM
    #11
    Tactical Tacoma

    Tactical Tacoma Well-Known Member

    Joined:
    Aug 4, 2009
    Member:
    #20639
    Messages:
    1,064
    Gender:
    Male
    First Name:
    Seth
    McKinney, TX
    Vehicle:
    '12 MGM DCSB Sport 4WD
    ARB air compressor, ARB rear air locker, sPOD switch panel in sunglass holder, OME Front & rear shocks, 885x coils, Dakar leaf springs, Icon tubular UCA's, Flowmaster 40 Series Exhaust, aFe Pro Dry, TRD Sport wheels powder coated anthracite, FJ TRD center caps, Thule roof rack, 886 fog lights for reverse light mod, CSjumper LED DTRL's, Nokya Yellow fogs, plastidipped lower valence, Weathertechs, Wet Okoles. And MANY MORE MODS, READ BUILD!
    Nice design man. I'm looking to have one built and have been doing like you....browsing other designs and integrating ideas from different racks into my design.

  12. Mar 14, 2013 at 3:36 PM
    #12
    OutbackHack

    OutbackHack [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26963
    Messages:
    260
    Gender:
    Male
    First Name:
    Mike
    Seattle, WA
    Vehicle:
    2010 DCSB V6 6sp TRD-Sport
    $$$
    Picked it up from the fabricator today. Happy with how it turned out. Only thing I would change so far if I was doing it again would be to make it an inch shorter. Now it just needs to warm up so I can clean it up and paint it.

    [​IMG]

    [​IMG]

    [​IMG]

  13. Mar 14, 2013 at 3:44 PM
    #13
    medic2230

    medic2230 Ditch Doctor

    Joined:
    Oct 13, 2008
    Member:
    #9942
    Messages:
    10,771
    Gender:
    Male
    First Name:
    Murph
    Columbus, Ga
    Vehicle:
    2011 Taco 4x4 DCLB
    20% Tint, OME 3"complete lift with Dakar's, Light Racing UCA's, 285/75/16 Nitto Terra Grapplers, 10 HP TW sticker, Ultraguage, B.A.M.F. Rock Sliders, MedicFab Bed Rack, Relentless front bumper
    Looks good!!! :thumbsup:

    Don't forget to put some cap foam between the bedside and the rack so it doesn't mess up the plastic caps.

  14. Mar 14, 2013 at 3:45 PM
    #14
    kai38`

    kai38` Well-Known Member

    Joined:
    Dec 9, 2007
    Member:
    #3778
    Messages:
    570
    What are the 1x1 pieces sticking out on the side for?
    Never mind I scrolled up and saw the plans for bike mounts.

  15. Mar 15, 2013 at 4:50 AM
    #15
    OutbackHack

    OutbackHack [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26963
    Messages:
    260
    Gender:
    Male
    First Name:
    Mike
    Seattle, WA
    Vehicle:
    2010 DCSB V6 6sp TRD-Sport
    $$$
    I think I'm going to take some cues from this approach:
    http://www.tacomaworld.com/forum/2nd-gen-tacomas/143789-bed-rack-idea.html#post3390818

    and just ditch the plastic caps completely. Should make the rack sit almost an inch lower (which is a good thing) and I can just snap the caps back on when I remove the rack.

  16. Mar 15, 2013 at 8:07 PM
    #16
    Hunter.V.White

    Hunter.V.White Well-Known Member

    Joined:
    Jun 1, 2010
    Member:
    #38199
    Messages:
    500
    Gender:
    Male
    First Name:
    Hunter
    Fairbanks, AK
    Vehicle:
    2013 DC 4WD TRD-Off Road
    Pioneer AVIC-Z140BH, Famous Fabrication Sliders, Console Vault, Hitch Safe, OME 3" Lift, 886x coils, Dakar Leaf Packs, TC UCA's, SS Rear Brake Lines, U-Bolt Flip, Sway Bar Relocate, Fuel D551 Wheels, 285/70/R17 Duratracs, WeatherTech Floor Liners. Spartan Tactical VMP-C, Blue Ridge Overland Gear Molle Seat Panel, Uniden Bearcat 680 CB Radio.
    That looks really good; good job!

  17. Mar 26, 2013 at 10:25 AM
    #17
    OutbackHack

    OutbackHack [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26963
    Messages:
    260
    Gender:
    Male
    First Name:
    Mike
    Seattle, WA
    Vehicle:
    2010 DCSB V6 6sp TRD-Sport
    $$$

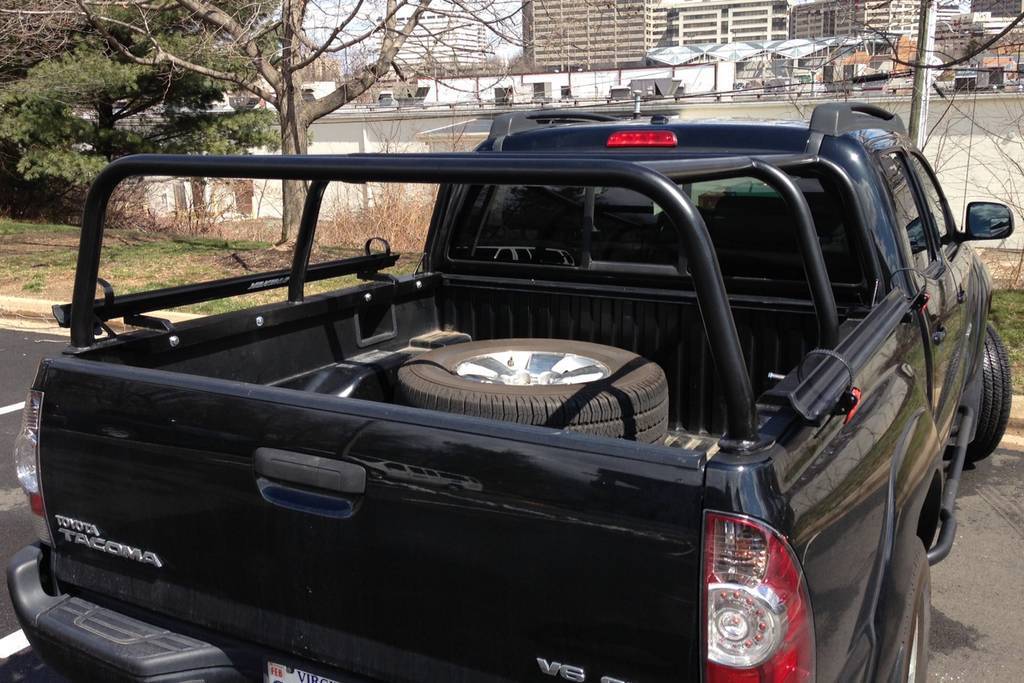

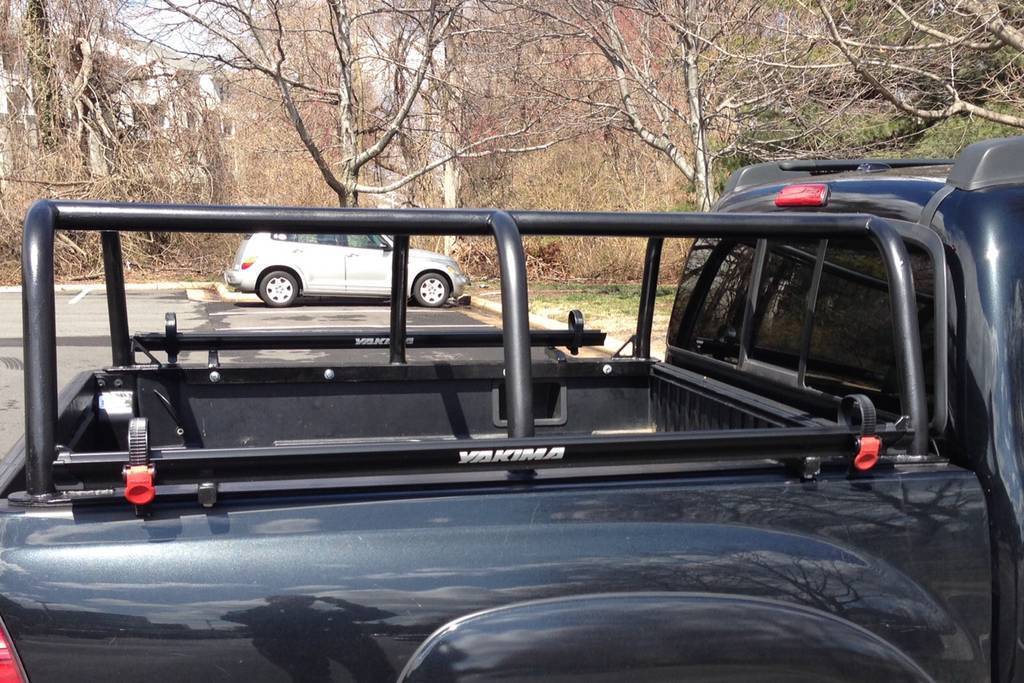

    Cleaned it up, drilled some mounting holes to bolt it into the bed rails, and threw a few coats of bedliner on it. Ended up removing the plastic bedside caps to get the rack to sit lower. Covered the tops of the bedsides with 3m vinyl wrap and put some weatherstripping-type foam on the underside of the rack. Hopefully that'll keep things protected, but I'll pull it off in a week or two to see if anything is wearing through. It's bolted down pretty solid though, so shouldn't be too much friction from movement.

    [​IMG]

    [​IMG]

    [​IMG]

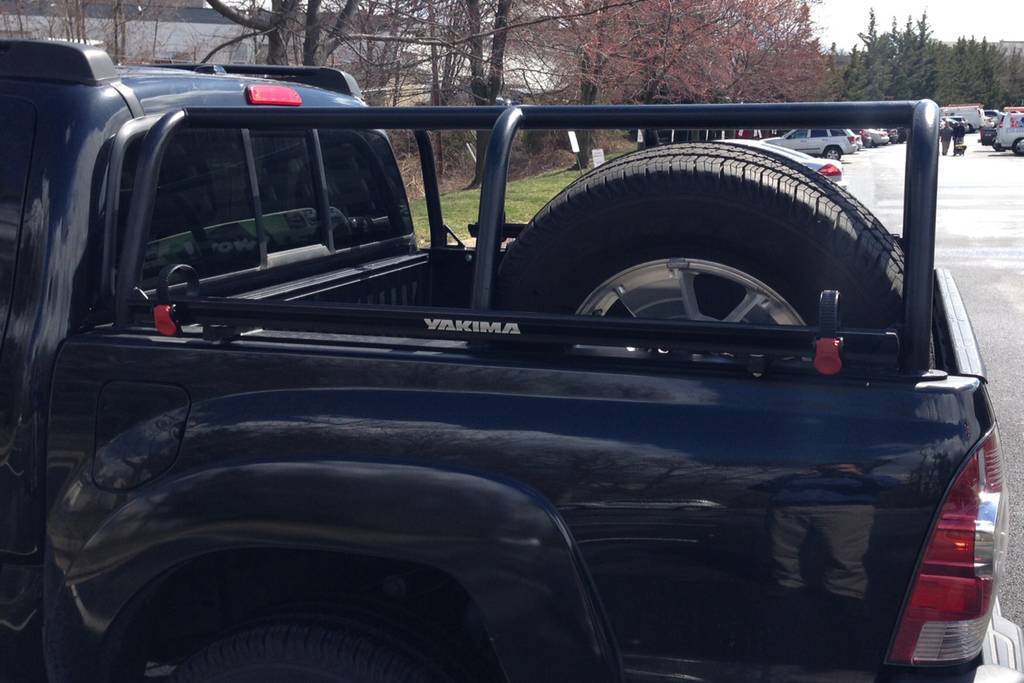

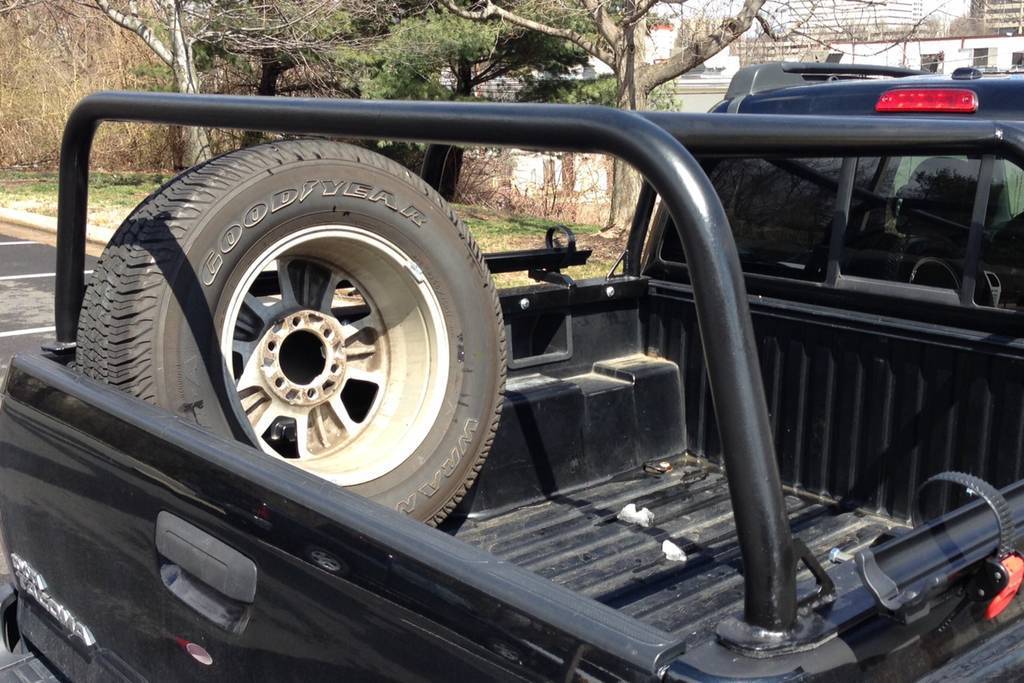

    Thinking of mounting the spare (which doesn't fit well in the stock location anymore) upright in the rear-left corner of the bed.

    [​IMG]

    [​IMG]

  18. Mar 26, 2013 at 10:29 AM
    #18
    Brunes

    Brunes abides. Staff Member

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,801
    Gender:
    Male
    First Name:
    Rotorhead
    Big Easy, USA
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit Upcoming: ATO Gas Tank Skid and Sliders w/ kickout. ATO Shackle Flip Kit. Down the line: Front/Rear ARB Lockers w/ OBA. 4.56 Gears
    NICELY DONE!!!

  19. Mar 26, 2013 at 8:42 PM
    #19
    kbraunphoto

    kbraunphoto mountain bike haulin' & off camping

    Joined:
    Oct 23, 2011
    Member:
    #65729
    Messages:
    317
    Gender:
    Male
    First Name:
    Kevin
    Atlanta, GA
    Vehicle:
    '10 TRD OR
    Nice,

    Can you take closer photos from the rear in relation to the distance the bike racks stick out from the truck?

    I'm doing the exact same thing and was working on how to mount them.
    Have Yakima stuff as well...

  20. Mar 29, 2013 at 9:29 AM
    #20
    OutbackHack

    OutbackHack [OP] Well-Known Member

    Joined:
    Dec 3, 2009
    Member:
    #26963
    Messages:
    260
    Gender:
    Male
    First Name:
    Mike
    Seattle, WA
    Vehicle:
    2010 DCSB V6 6sp TRD-Sport
    $$$

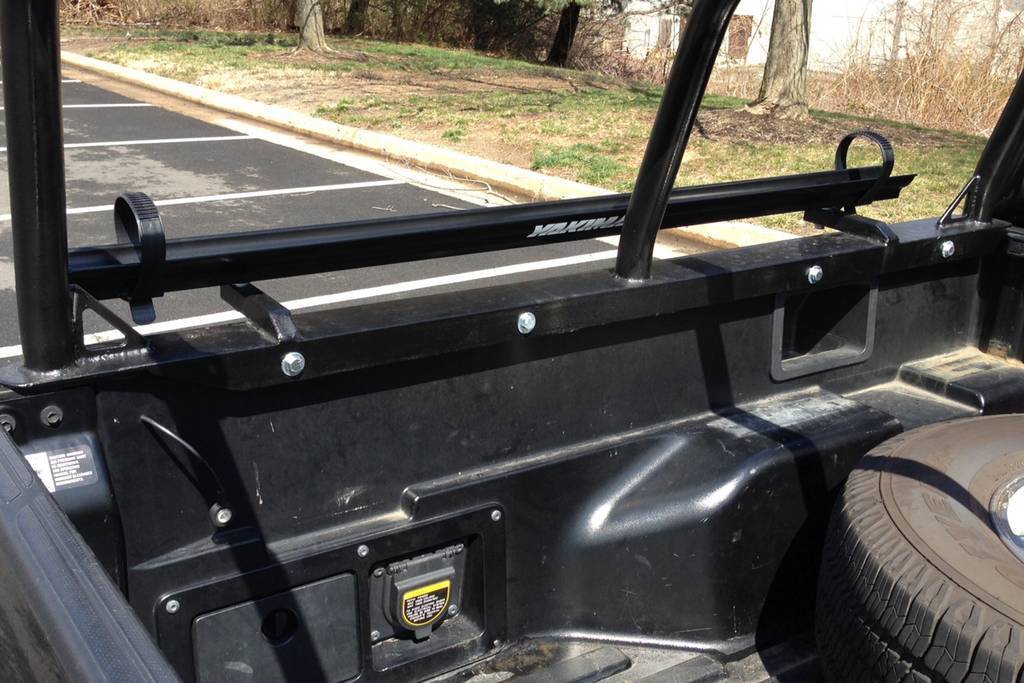

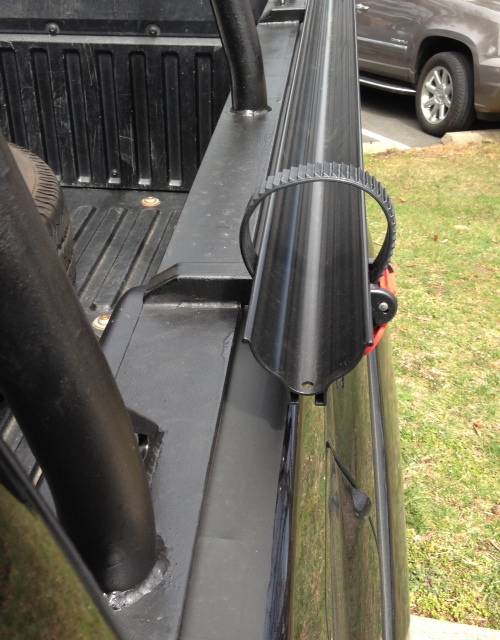

    Don't know if this helps. The mounting arms I'm using are 1" square hollow steel and extend around 4" past the top of the bedside at the front. The front and back are the same length, but because the bedside is narrower towards the rear, they have a bit more clearance back there.

    [​IMG]
