Fender apron and core support replacement

Discussion in '1st Gen. Tacomas (1995-2004)' started by 02dubcab, Oct 14, 2018.

  1. Oct 14, 2018 at 12:06 AM
    #1
    02dubcab

    02dubcab [OP] Well-Known Member

    Joined:
    Jun 14, 2018
    Member:
    #256411
    Messages:
    58
    Gender:
    Male
    First Name:
    Zach
    Cameron Park, Ca
    Vehicle:
    2002 tacoma double cab 4X4
    N/A

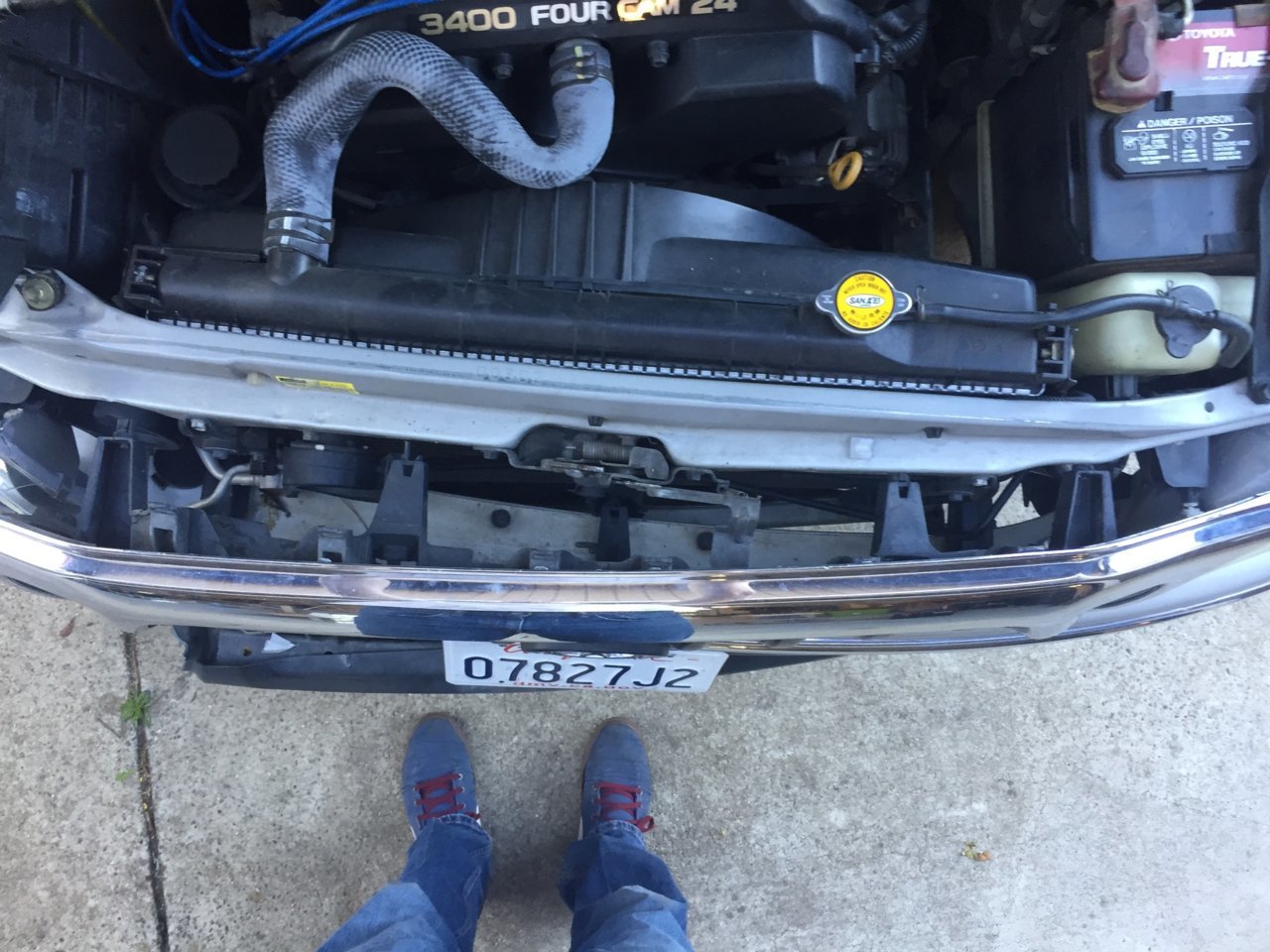

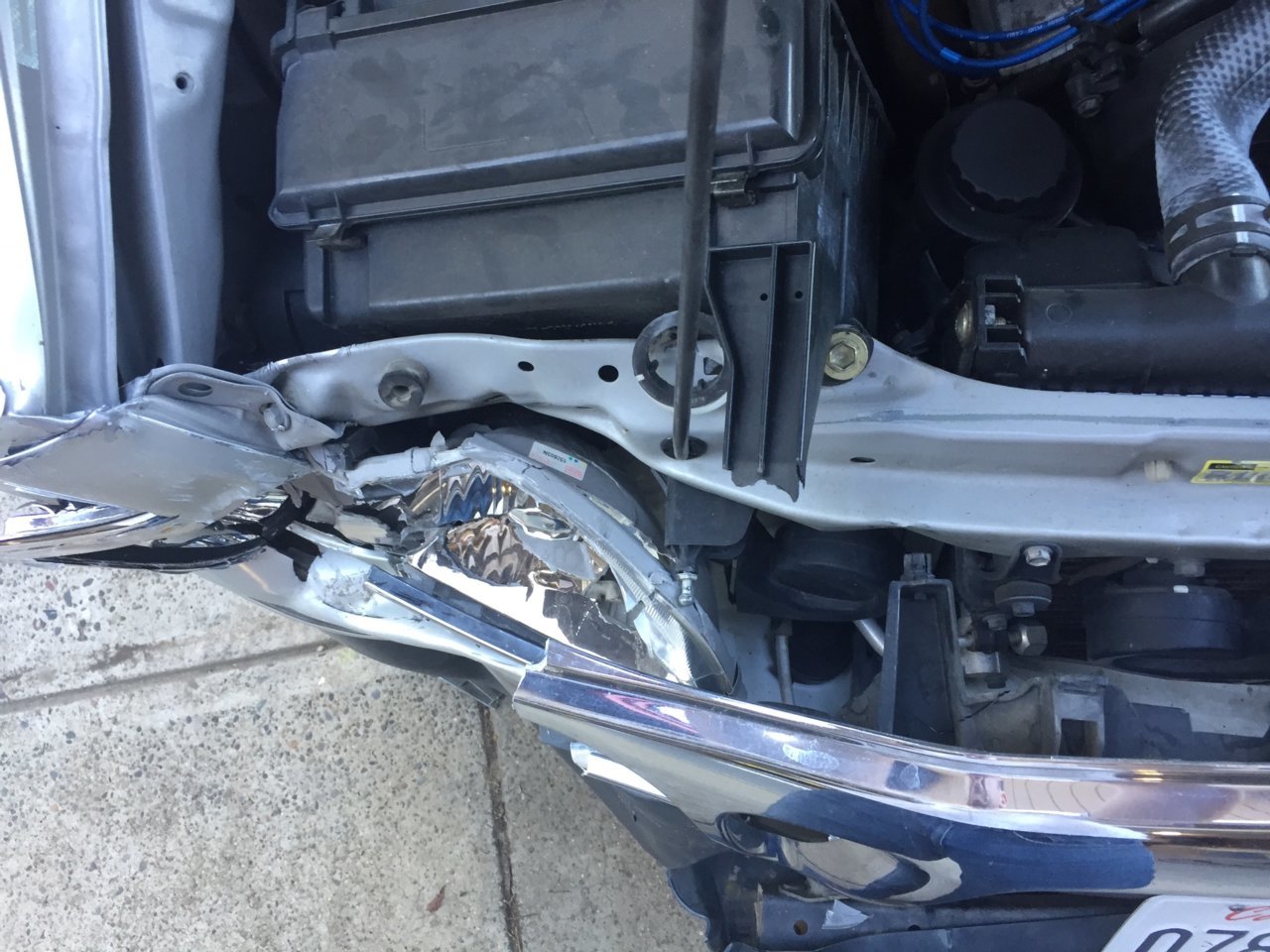

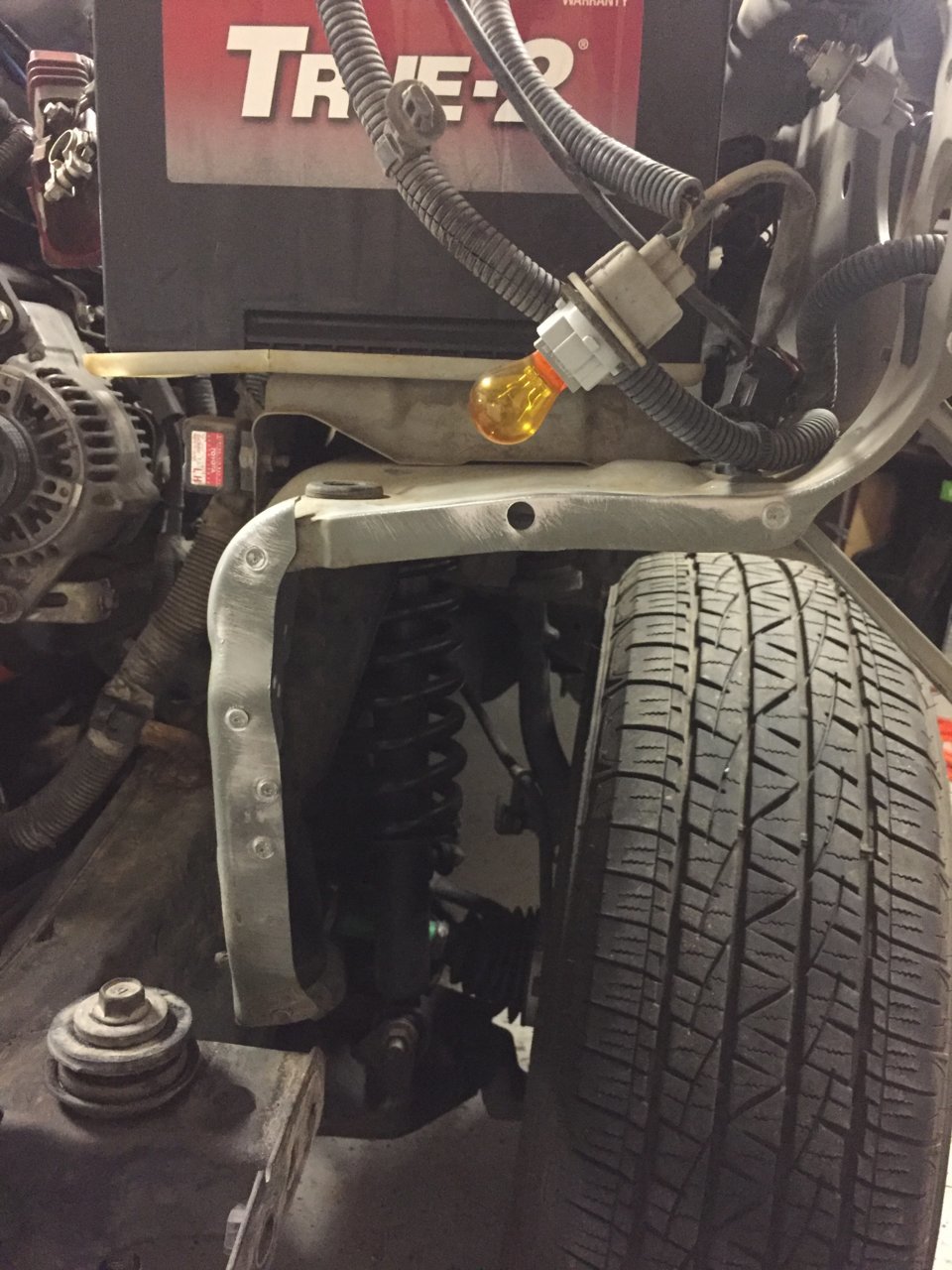

    I know some of you have done this and I’ve seen bits and pieces around but not a complete start to finish replacement.

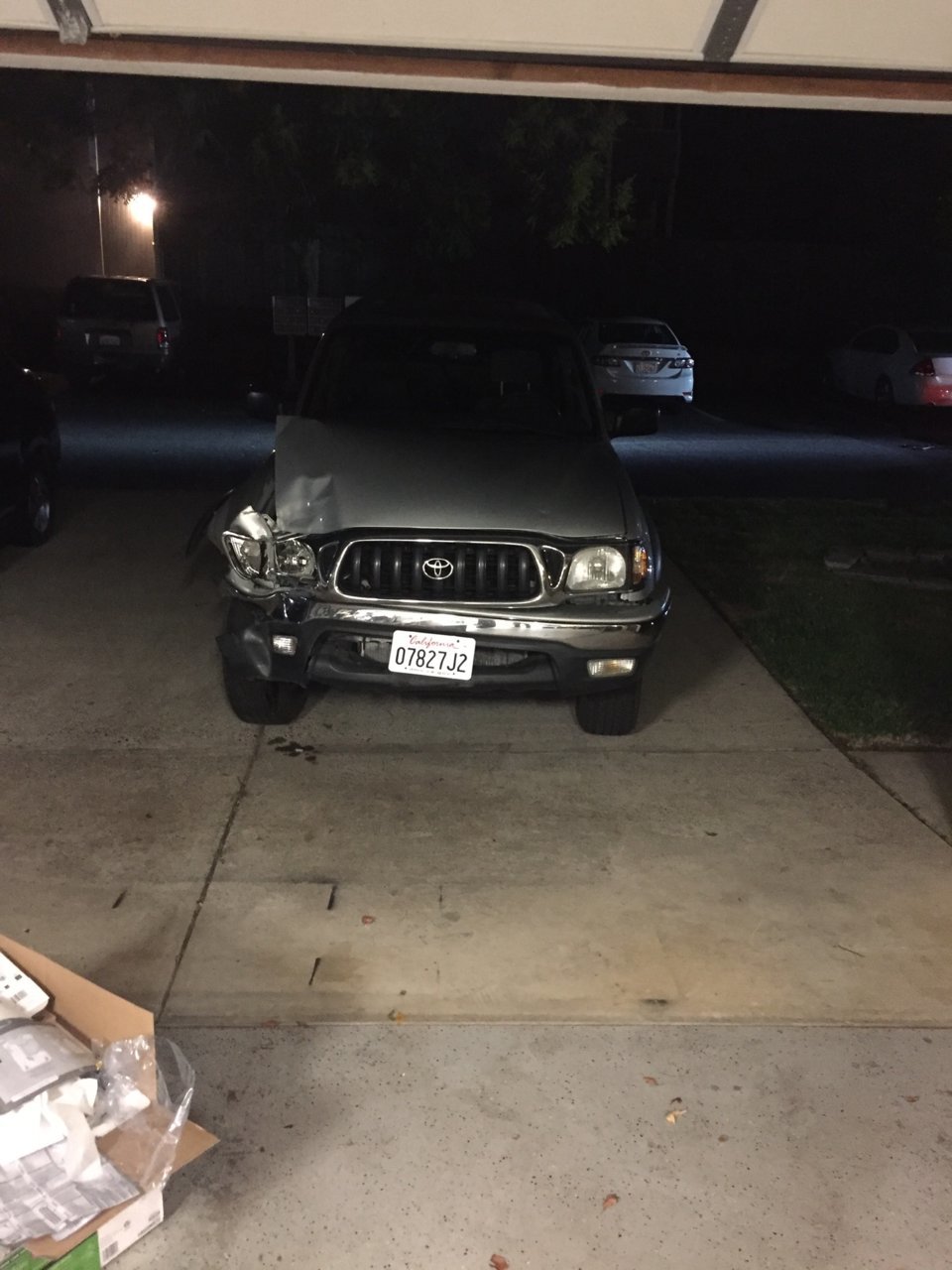

    90E63455-F32F-41FC-A97D-B5291B2980A9.jpg FAF93D1F-487F-4F50-8AD9-2457EDEE2DAD.jpg 8120D618-4017-4556-8AE2-B9C33F960A62.jpg 82AD6758-C814-4365-83D6-8604A9829BCF.jpg

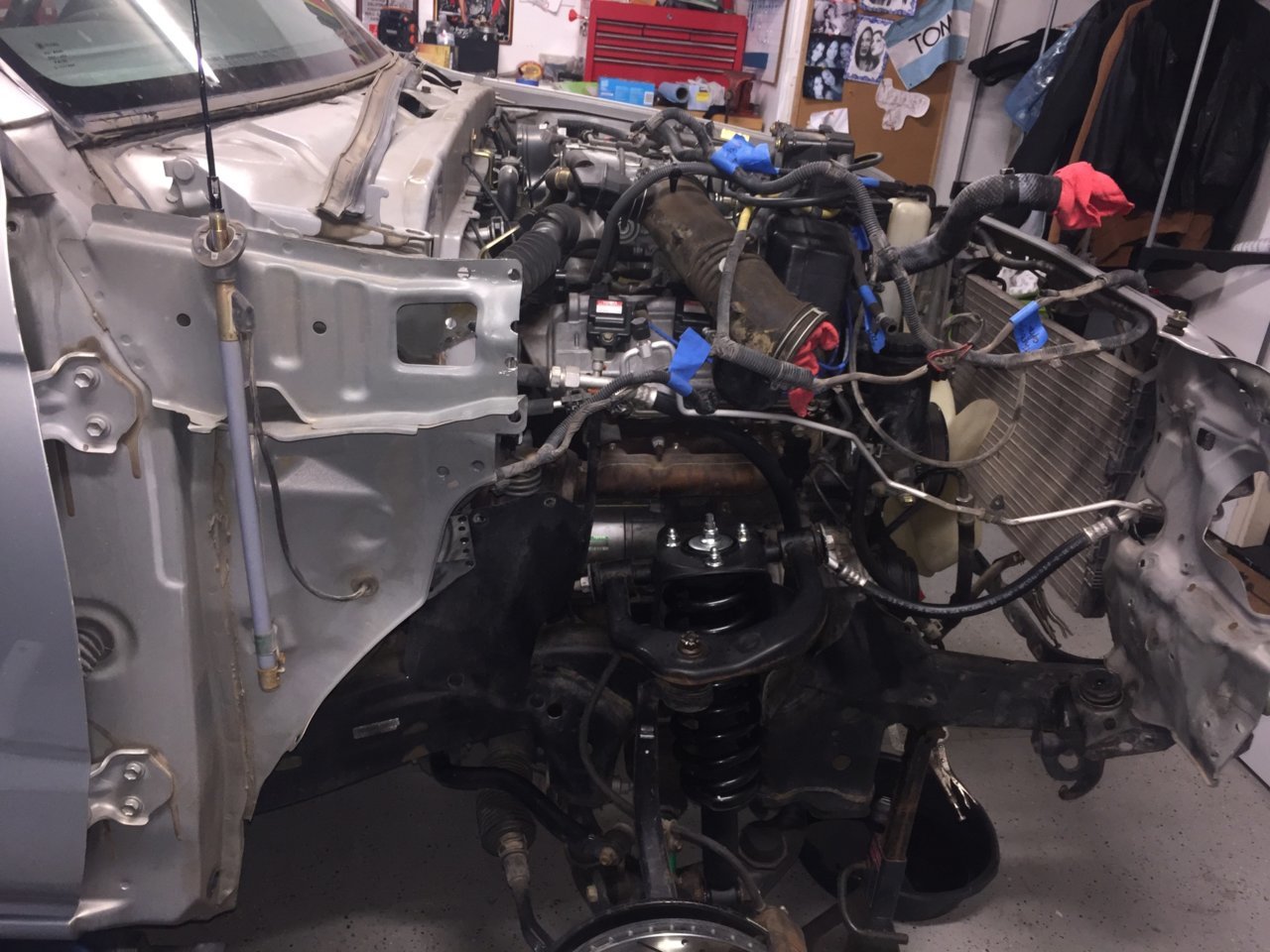

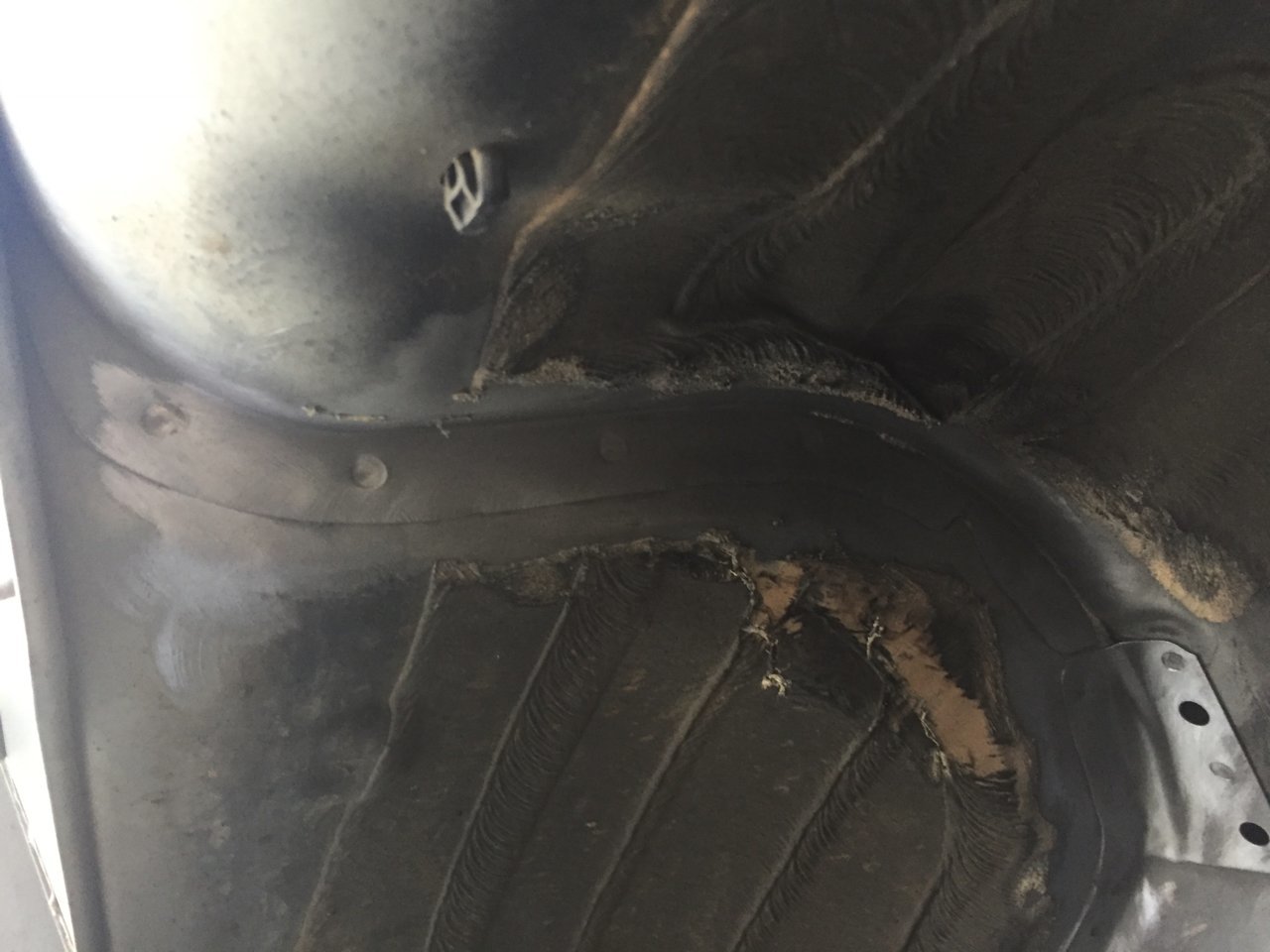

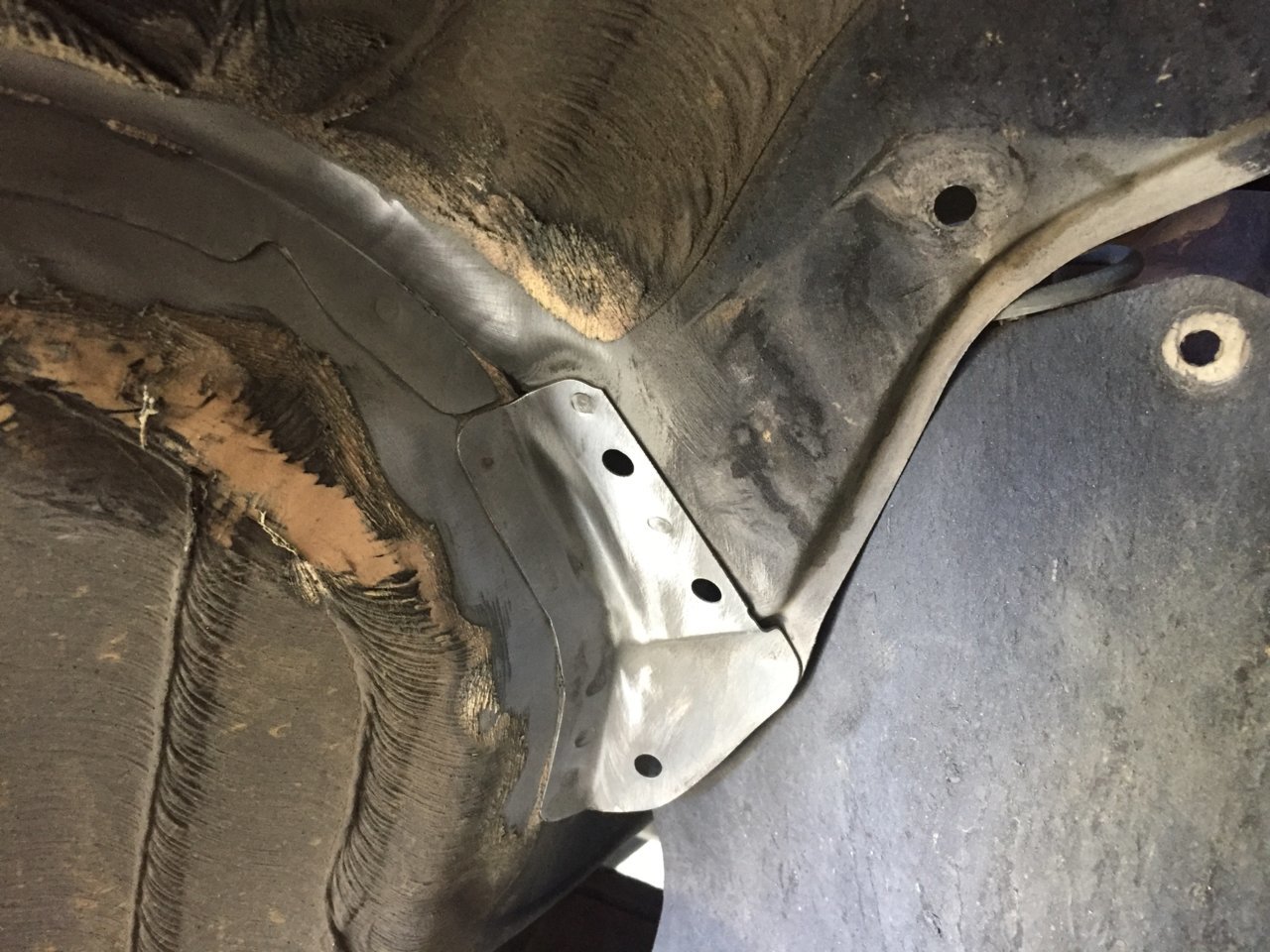

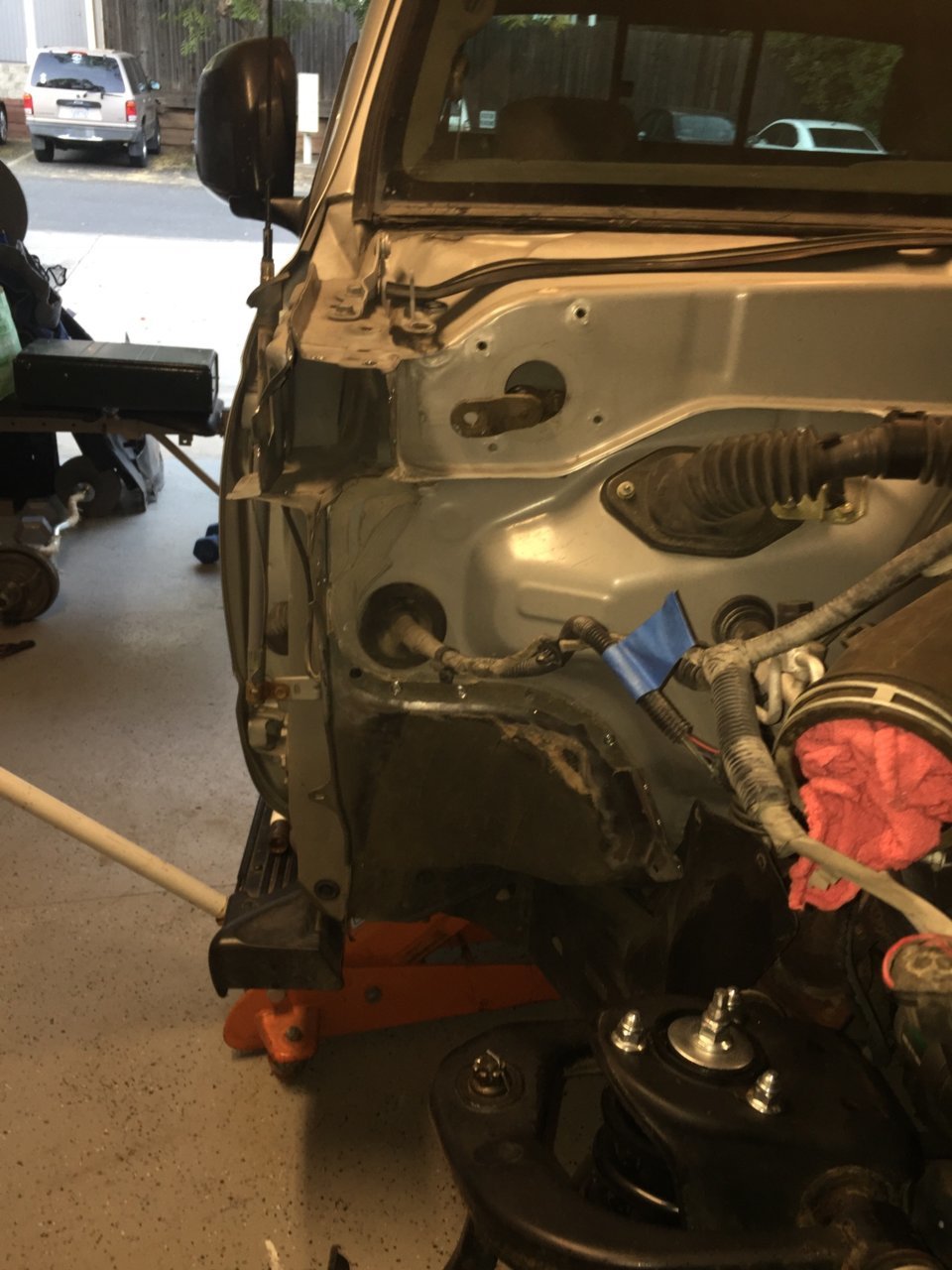

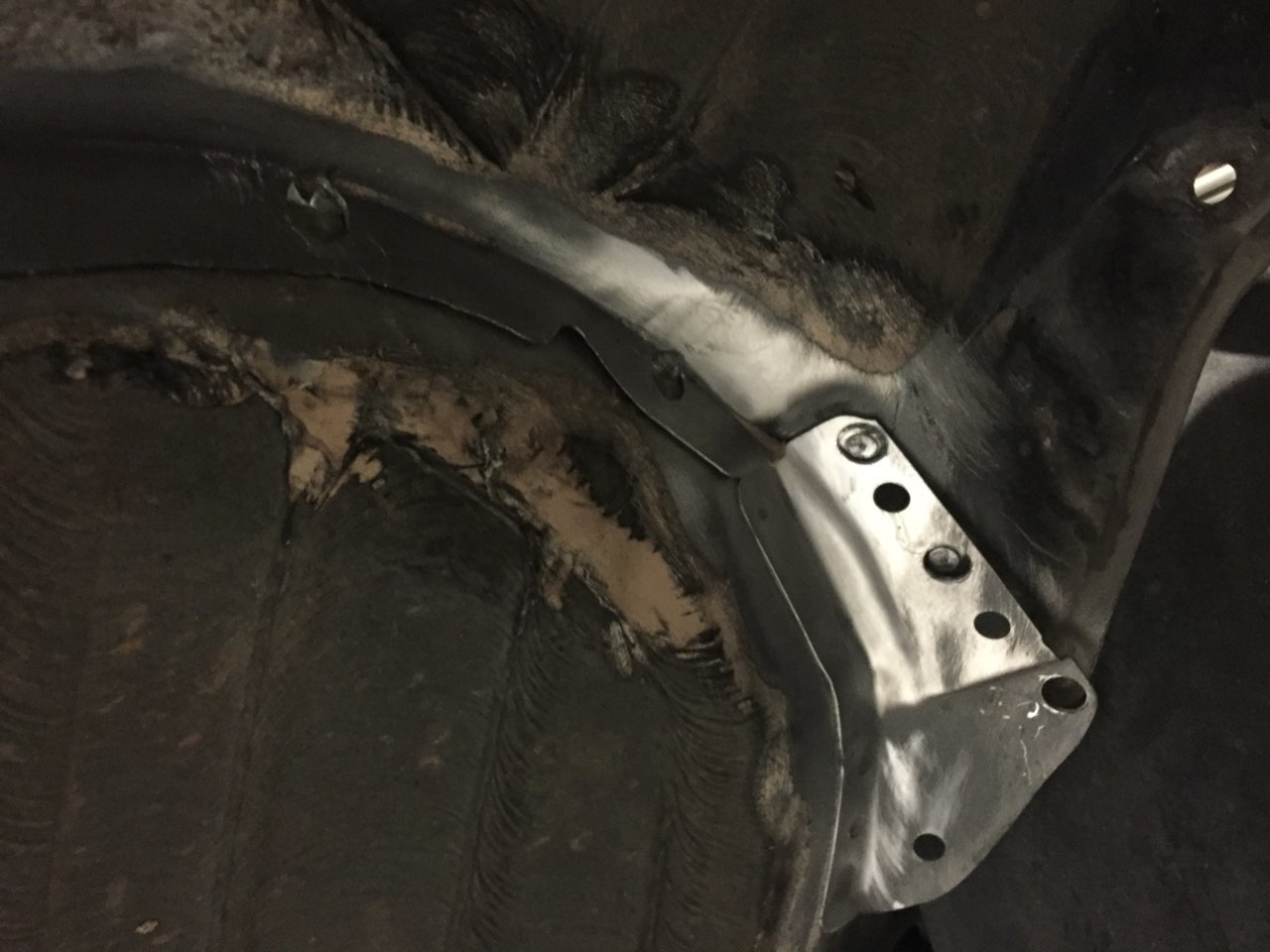

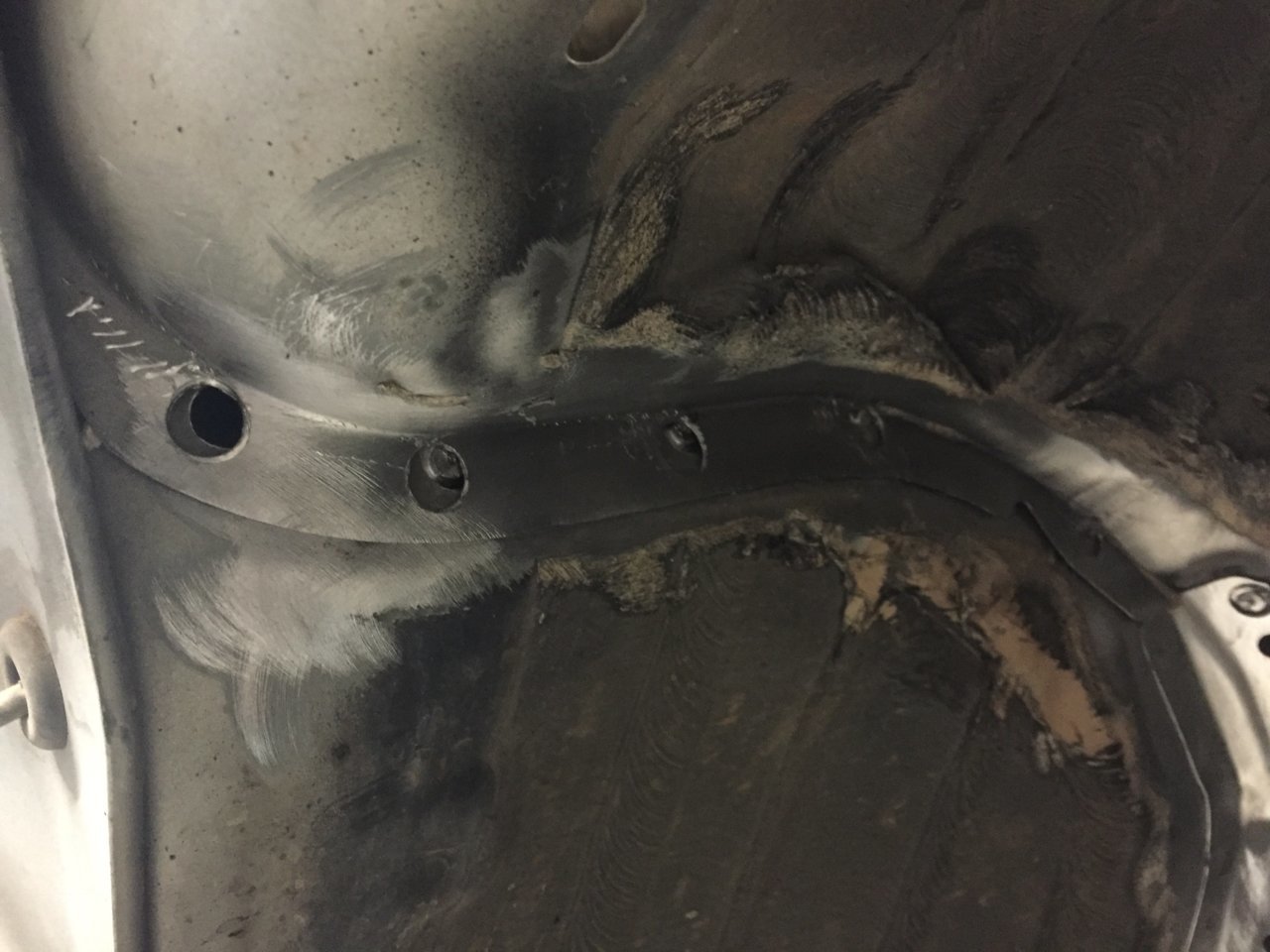

    I drilled the spot welds out that connect the apron to the cab and the core support.
    F81779F3-6946-4890-B3CD-5890D75F4041.jpg 214AC091-3074-4DAF-A243-C9DE62F4F260.jpg 4E7AD8C4-468C-45A0-BA05-A9FE72A264E5.jpg 7ACD2560-E378-47A0-9440-801C69831D38.jpg A0859CEA-407C-4072-959E-E391B0FB231E.jpg


    I was hoping I could get someone’s opinion on the aftermarket aprons you can got online for like 300 bucks same with the core supports. I live near a few Toyota auto reyclers but the aftermarket parts are still usually cheaper.


    Attached Files:

    Last edited: Oct 14, 2018
    Currygoat and tacopashka like this.
  2. Oct 14, 2018 at 8:02 PM
    #2
    02dubcab

    02dubcab [OP] Well-Known Member

    Joined:
    Jun 14, 2018
    Member:
    #256411
    Messages:
    58
    Gender:
    Male
    First Name:
    Zach
    Cameron Park, Ca
    Vehicle:
    2002 tacoma double cab 4X4
    N/A

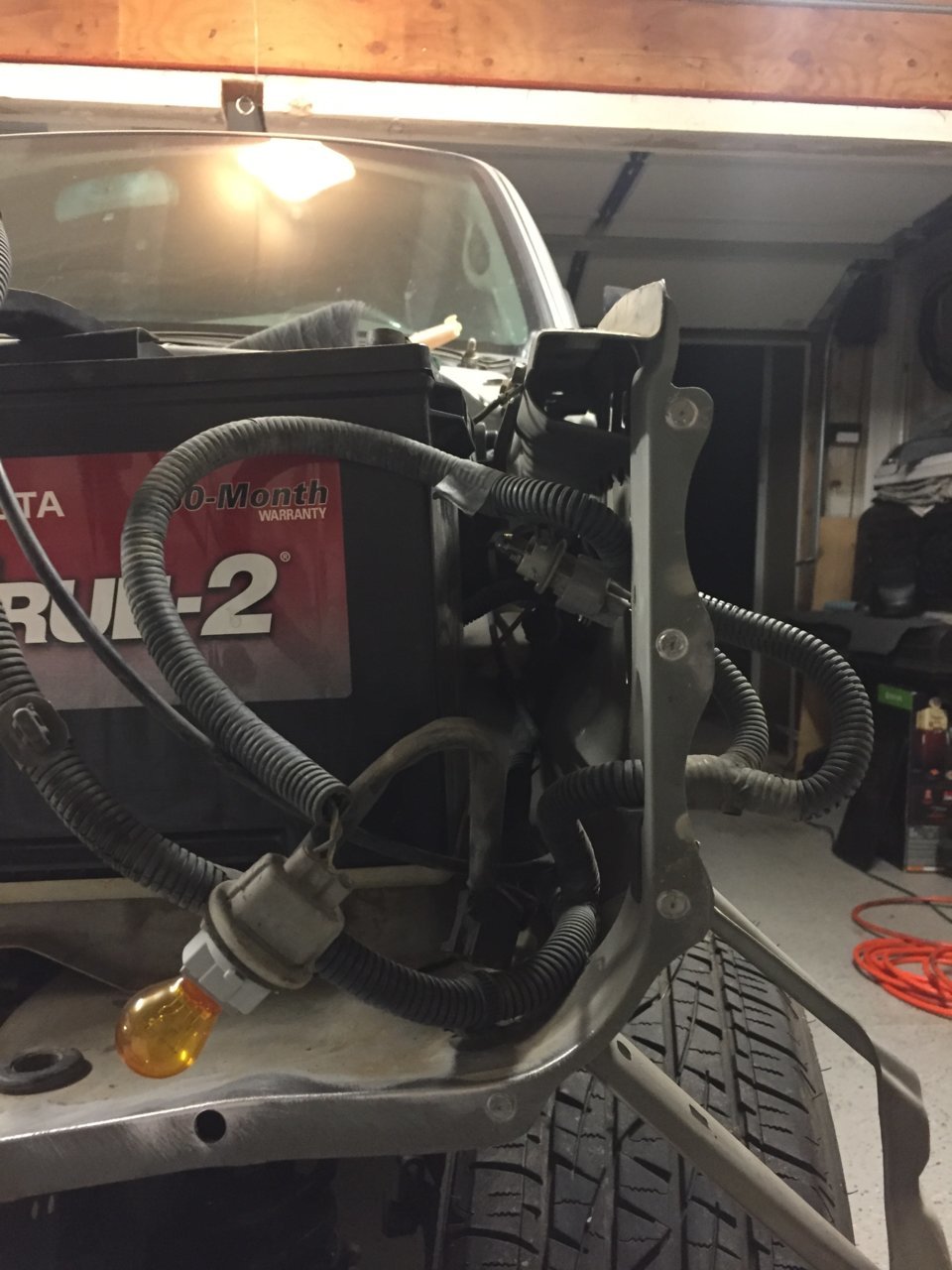

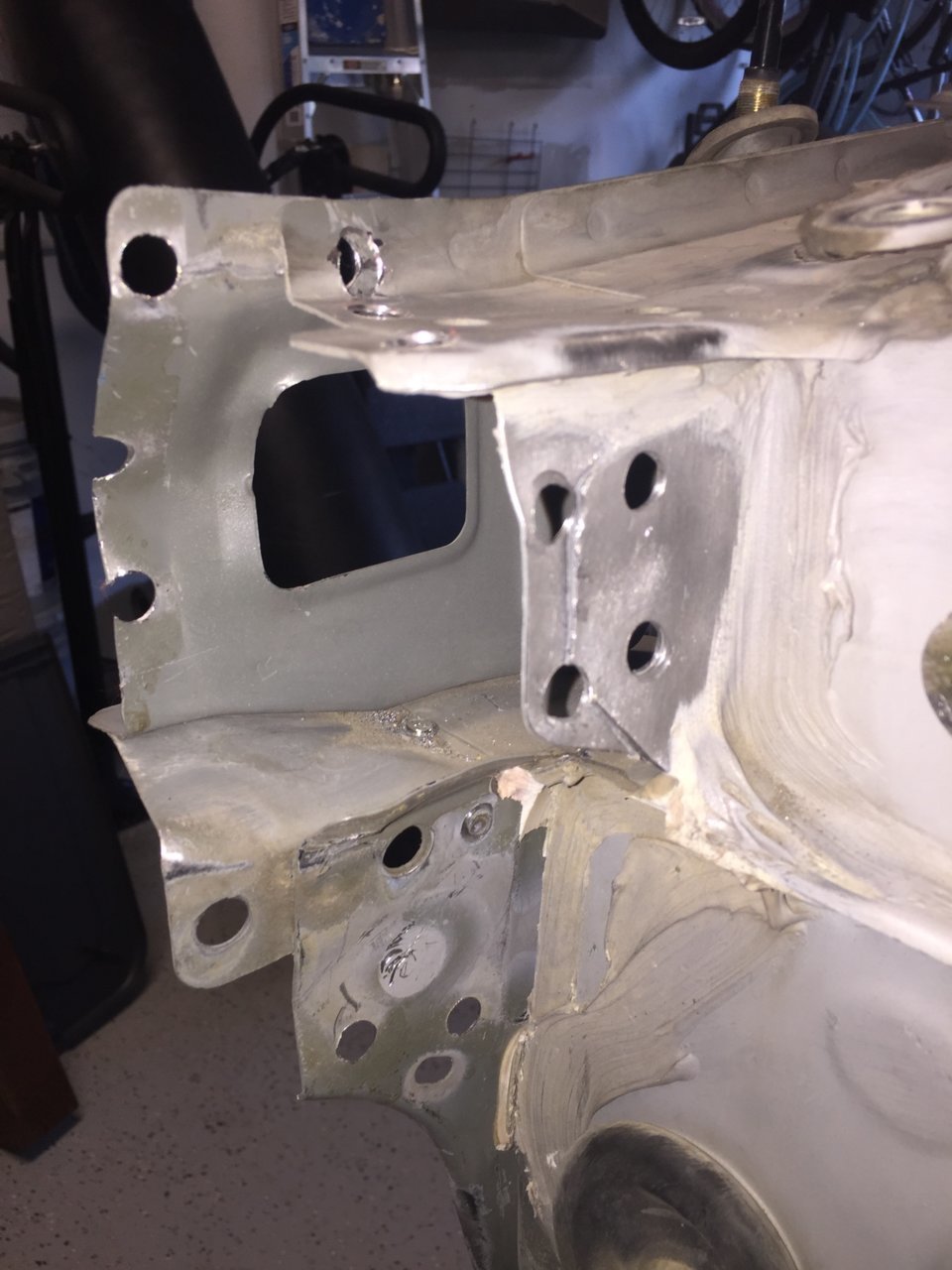

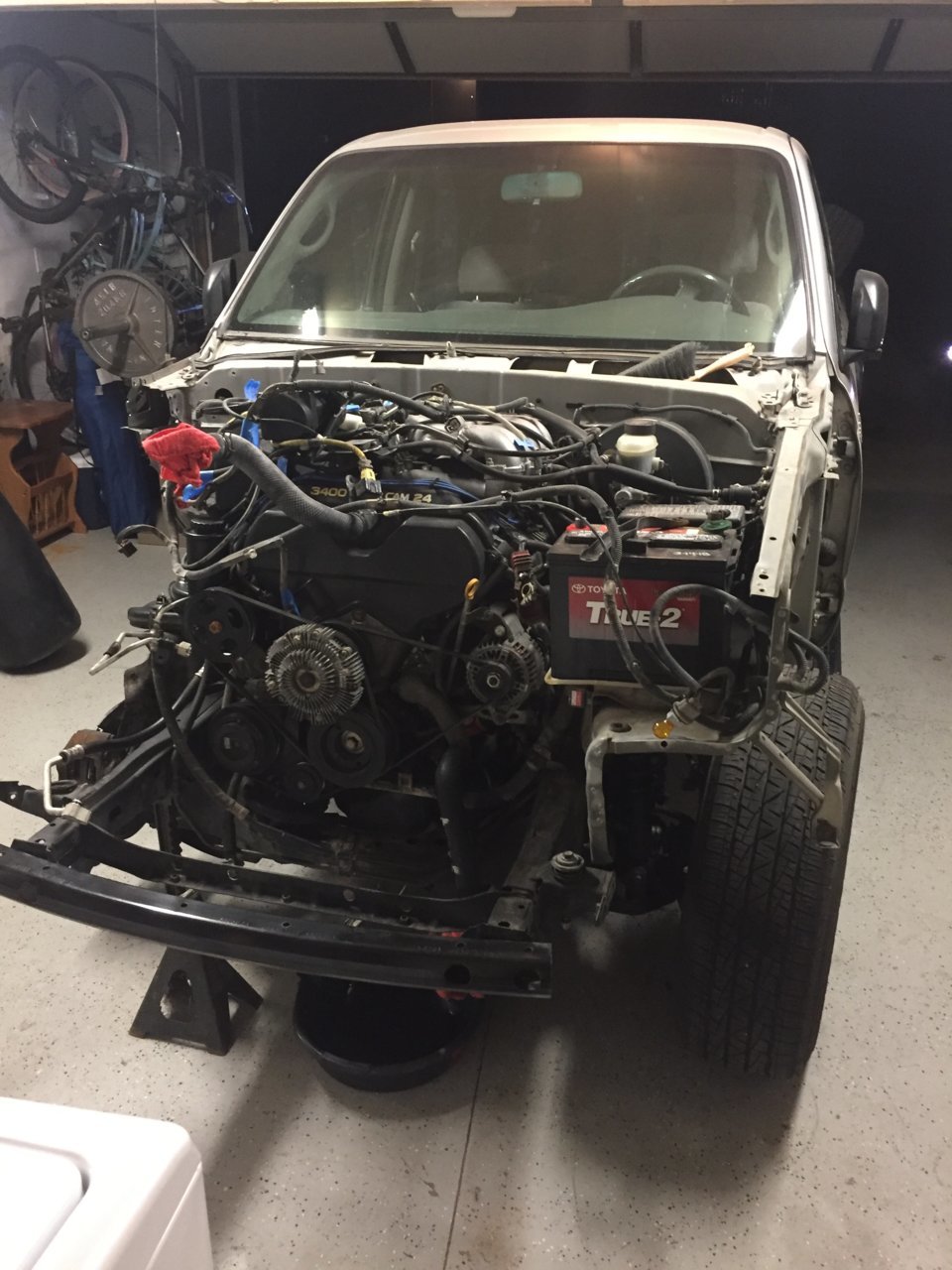

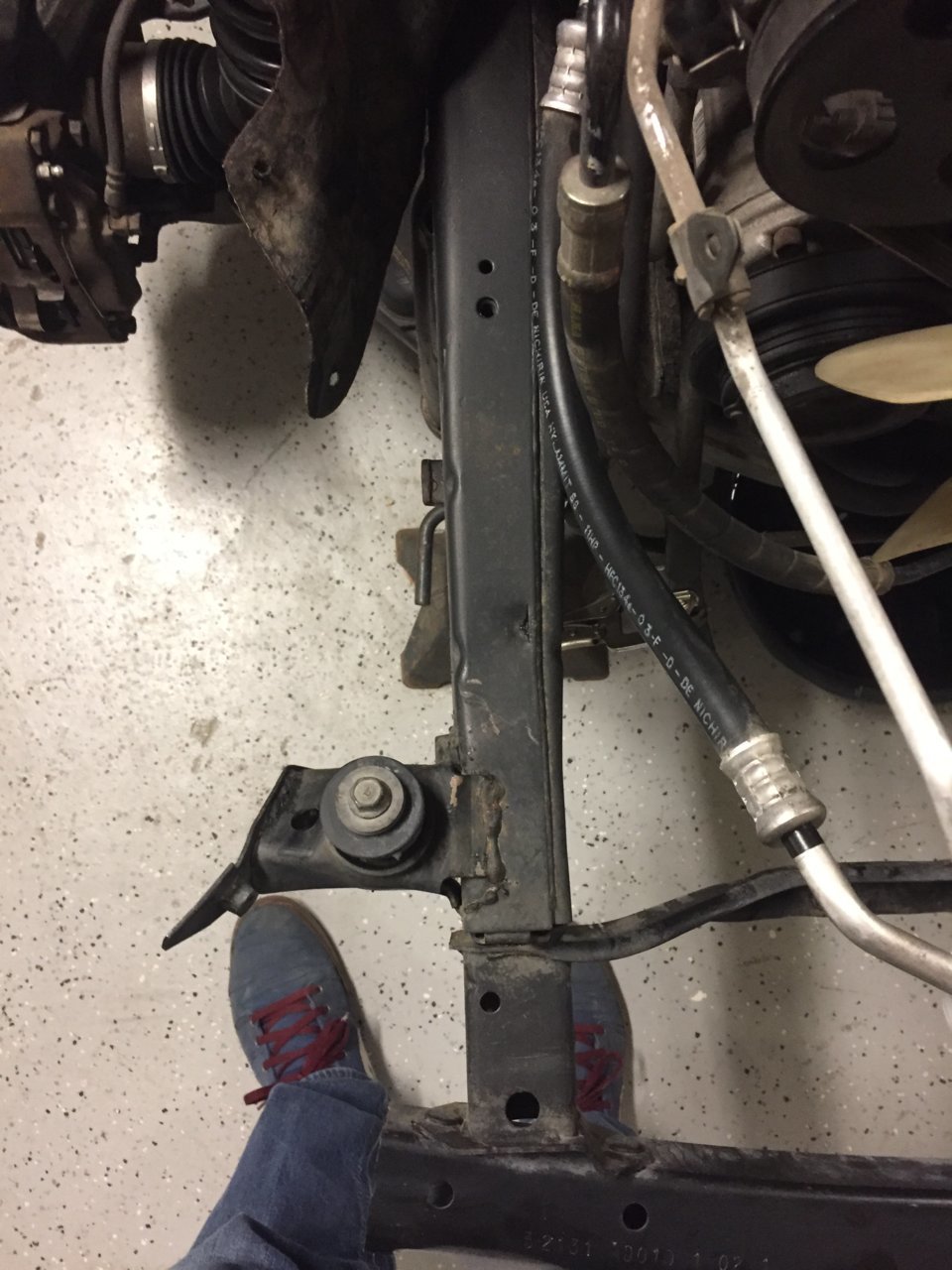

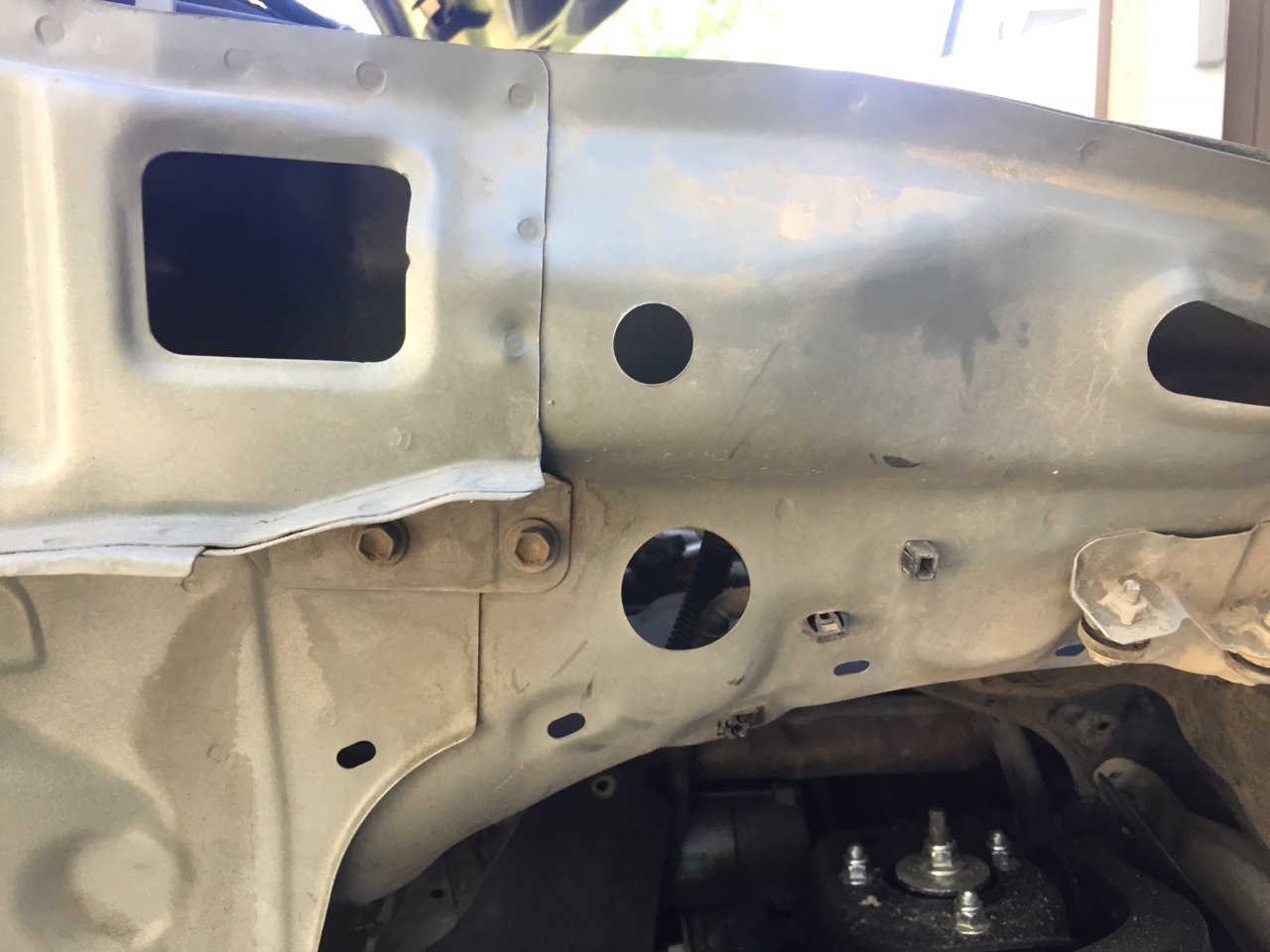

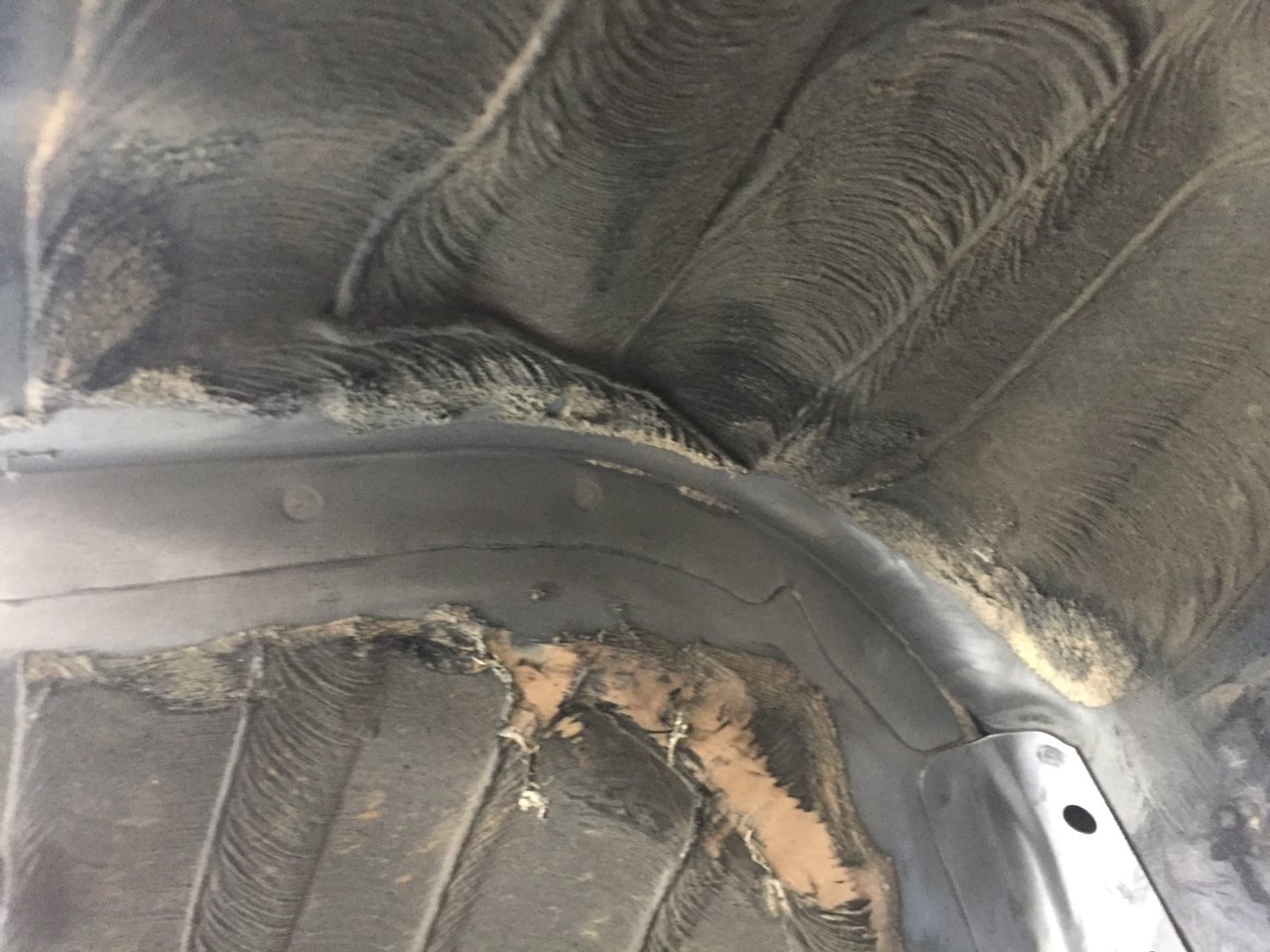

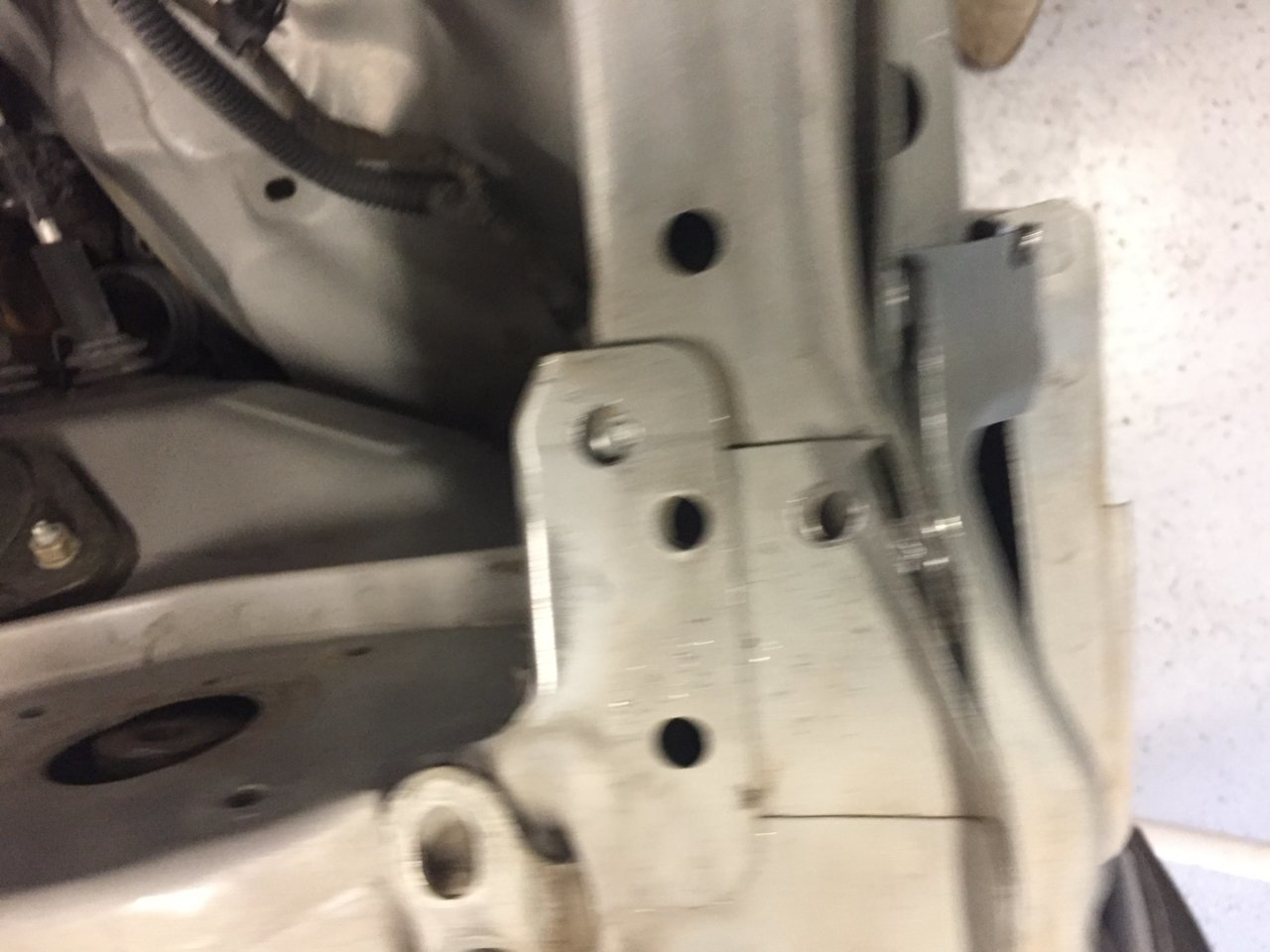

    I finished drilling out the welds on the core support and got that out of the way I just need to straighten out the mount for the support and then order the replacement support and apron, no suggestions?

    805FC124-BA03-43C1-A052-D955D0D6BF74.jpg 23585B30-BCED-4687-A5D6-D89581804E24.jpg 00C64F57-06F5-413B-B422-E64758FEB472.jpg 13E59C88-2262-400A-9A41-511CBE60813F.jpg

    Currygoat, CS_AR and OneWheelPeel like this.
  3. Oct 15, 2018 at 4:58 PM
    #3
    pairodice

    pairodice Well-Known Member

    Joined:
    Jul 8, 2009
    Member:
    #19456
    Messages:
    1,354
    Gender:
    Male
    First Name:
    Jay
    SF NM
    Vehicle:
    02 DCSB prerunner 4x4 manual
    Use sheet metal screws to fit all the panels then hang fenders and hood and check fitment. Usually a hit like that willknock it out of alignment and need to be put on the frame machine

  4. Oct 16, 2018 at 6:26 AM
    #4
    Wsidr1

    Wsidr1 Well-Known Member

    Joined:
    Jul 11, 2018
    Member:
    #259004
    Messages:
    1,935
    Gender:
    Male
    Indiana
    Vehicle:
    2 x 95.5 Ext 2.7L & 3.4L A/T 4x4
    @02dubcab

    First off, I am strictly an amateur trying to save a truck that had already arrived at the salvage yard and would have become buzzard food. I am not making a show truck here, just going for a solid repair. I have a minor bendin the bumper mount portion of the frame (not repairing), but nothing affecting front suspension.

    I am rehabing a 1995 with a very similar hit on the LH side. Since the truck is a 95, I am trying to control costs by heatin and beatin out the parts that are basically hidden from view. I am at about $800 in parts. My radiator was pushed back almost exactly like yours. I did not remove the apron as you have CORRECTLY done. I am just trying to go as cheap as possible.

    I have however ordered and received the following

    Amazon:
    [​IMG]
    CarPartsDepot FRONT BUMPER VALANCE APRON DEFLECTOR AIR DAM 95-97 TOYOTA TACOMA 4WD V6 4X4 NEW

    Sold by: Make Auto Parts Manufacturing
    $37.61

    [​IMG]
    Depo 312-1515L-AS2 Toyota Tacoma Driver Side Replacement Parking/Side Marker Lamp Assembly

    Sold by: Amazon.com Services, Inc
    Return eligible through Nov 11, 2018
    $29.82

    [​IMG]
    Depo 312-55027-301 Shroud

    Sold by: Amazon.com Services, Inc
    Return eligible through Nov 1, 2018
    $48.95

    [​IMG]
    Denso 221-3138 Radiator

    Sold by: Amazon.com Services, Inc
    Return eligible through Nov 4, 2018
    $104.84


    Chrome on this bumper was good quality (from Taiwan).
    [​IMG]
    Evan-Fischer EVA17372010320 Bumper for Toyota Tacoma 95-97 Front Bumper Chrome 4WD

    Sold by: AUTO PARTS VALLEY Product question? Ask Seller
    $102.48

    [​IMG]
    DAT 95-97 TOYOTA TACOMA 4WD BLACK FRONT UPPER BUMPER FILLER LEFT DRIVER SIDE TO1088106

    Sold by: DAT AUTO PARTS
    Return eligible through Oct 30, 2018
    $11.07

    Remaining parts from Rock Auto

    Bought "Certified" fender. I was not impressed since the front wrap around below the side marker lamp does not appear to have correct curvature. It doesn't match the curve of the bumper.

    Also bought my grille, AC condenser, marker lamp, and headlamp assy (with backing bracket) from RA. All good. Be aware the side marker lights do not have chrome around the border. It is a flat silver colored finish. Does not match my original.

    I was able to straighten out the body mount bracket and weld it back in place. I relocated it slightly to account for the down bend in that area on the frame.

    My relay box got crushed but I have repaired the wiring, just not the bottom half of the plastic box structure. I'll be fixing, not replacing since that would mean the entire engine room main harness. Too costly.

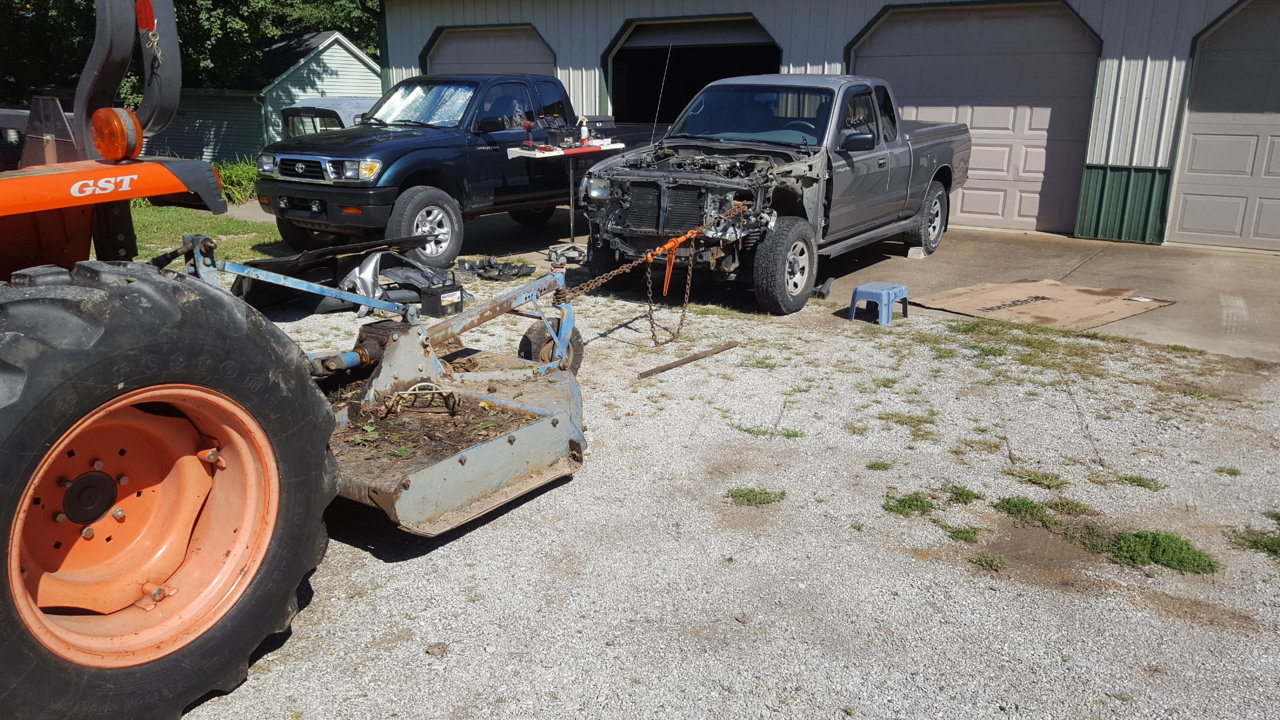

    I use my tractor as an anchor, hook a chain with a ratchet boomer, and hook to the front of the smashed area. I welded on a chain hook on the top rail near the front end of the fender and pulled mainly there and in the headlight opening. Heat with torch and crank on the chain.

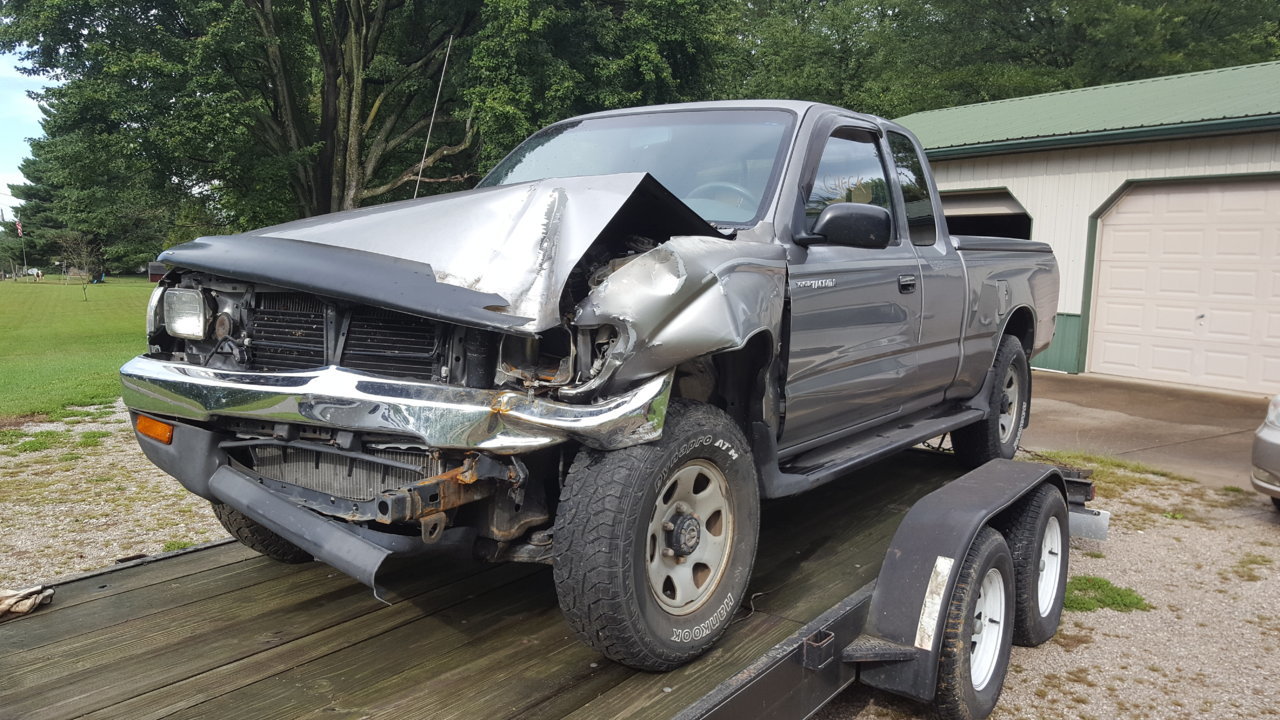

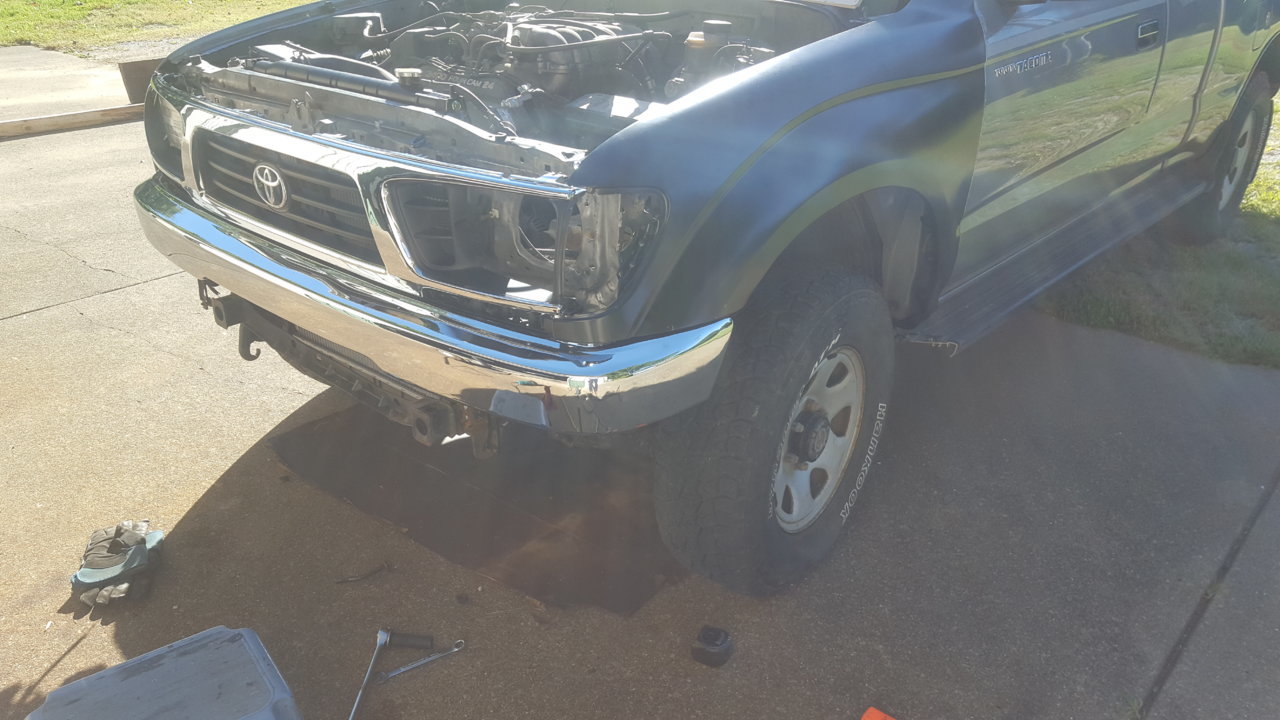

    I still have a ways to to, but you can see I am making progress. Those parts will be coming back off but are getting real close on alignment. I have about 15hrs labor in this so far.


    Currygoat, burntkat and CS_AR like this.
  5. Oct 16, 2018 at 8:41 AM
    #5
    02dubcab

    02dubcab [OP] Well-Known Member

    Joined:
    Jun 14, 2018
    Member:
    #256411
    Messages:
    58
    Gender:
    Male
    First Name:
    Zach
    Cameron Park, Ca
    Vehicle:
    2002 tacoma double cab 4X4
    N/A
    @Wsidr1 Thanks for the input, sounds like we are in the same boat. I am also nothing close to a professional and on a budget. I have done the same repair on a Land Cruiser and it wasn't that bad and the Tacoma seems pretty straight forward. I tried the "heat and beat" method and wasn't getting where I wanted so I decided to cut out the core support because they are like $40 online. How did you like the fitment of the aftermarket fender? I am debating on whether or not I want to go to the wrecking yard and try and get some OEM stuff or just order a bunch of aftermarket parts online.

    Last edited: Nov 12, 2018
  6. Oct 16, 2018 at 7:50 PM
    #6
    Wsidr1

    Wsidr1 Well-Known Member

    Joined:
    Jul 11, 2018
    Member:
    #259004
    Messages:
    1,935
    Gender:
    Male
    Indiana
    Vehicle:
    2 x 95.5 Ext 2.7L & 3.4L A/T 4x4
    The aftermarket fender was a disappointment. I paid extra on Rock Auto for the confirmed fit version, but the front portion is not aligning so well to the bumper. This problem is not a result of the crash damage. The dimensions of the part are just not exactly like OEM.

    All my other parts are working well as delivered. Fender, usable, but not without effort.

  7. Oct 21, 2018 at 6:39 PM
    #7
    02dubcab

    02dubcab [OP] Well-Known Member

    Joined:
    Jun 14, 2018
    Member:
    #256411
    Messages:
    58
    Gender:
    Male
    First Name:
    Zach
    Cameron Park, Ca
    Vehicle:
    2002 tacoma double cab 4X4
    N/A
    I ended up deciding to get a core support and fender apron off a 2001 2wd single cab tacoma at pick and pull in ranch Cordova, ca for $82.95. Although I was drilling spot wends for an hour and a half it seems to fit pretty good and beats the $400 plus shipping I would have paid for factory and aftermarket parts. I was wondering if anyone had a recommendation on the grey body paint for the fender apron id like it to match the rest of the truck as much as possible. FEC46153-C25F-4FA5-B21C-0C53EFEFB2D6.jpg

    tacopashka likes this.
  8. Nov 12, 2018 at 8:56 PM
    #8
    02dubcab

    02dubcab [OP] Well-Known Member

    Joined:
    Jun 14, 2018
    Member:
    #256411
    Messages:
    58
    Gender:
    Male
    First Name:
    Zach
    Cameron Park, Ca
    Vehicle:
    2002 tacoma double cab 4X4
    N/A
    So the 01 core support wasn’t the best idea, in reality the right part was an 02-04 core support. The 01 seems to work fine I just and to remove a few tabs and weld on a tab for a fender mount or either side. Other than that I found a replacement hood and fender on Craigslist and wrecking yards and got new repop headlight and corner markers. I just need a grill and bumper and body work is done and I will just need to install the radiator and ac condenser and then get an air box and wiper fluid reservoir.


  9. Nov 16, 2018 at 5:47 PM
    #9
    Jon G

    Jon G Hoarding Tacomas one at a time,

    Joined:
    Jan 25, 2017
    Member:
    #208594
    Messages:
    1,777
    Gender:
    Male
    First Name:
    Jon
    St John's Newfoundland Canada
    Vehicle:
    02, 04 & 07 Tacoma
    Magnaflow 2.5 Catback Exhaust K&N filter
    AWSOME

  10. Dec 3, 2018 at 1:02 PM
    #10
    02dubcab

    02dubcab [OP] Well-Known Member

    Joined:
    Jun 14, 2018
    Member:
    #256411
    Messages:
    58
    Gender:
    Male
    First Name:
    Zach
    Cameron Park, Ca
    Vehicle:
    2002 tacoma double cab 4X4
    N/A

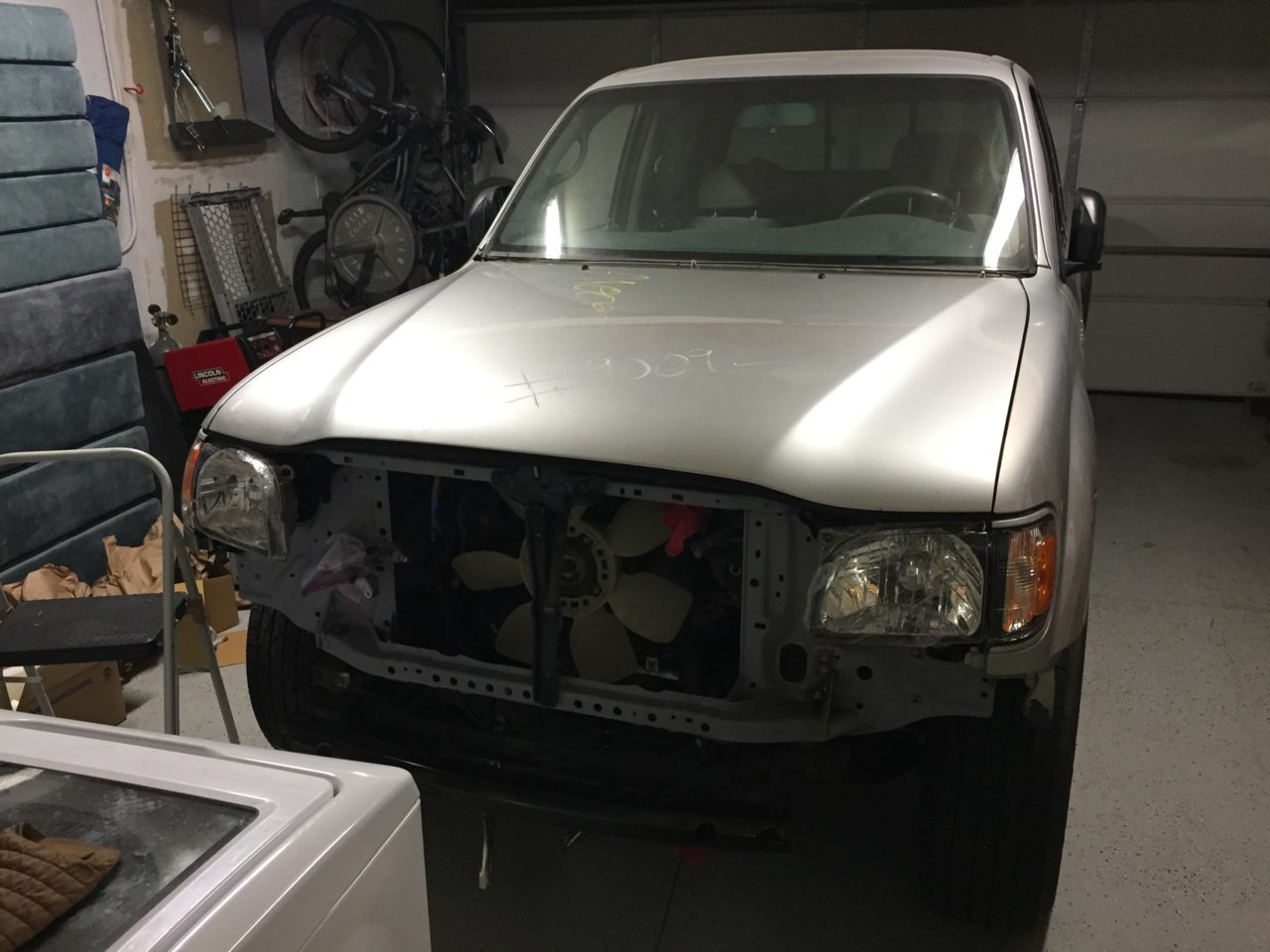

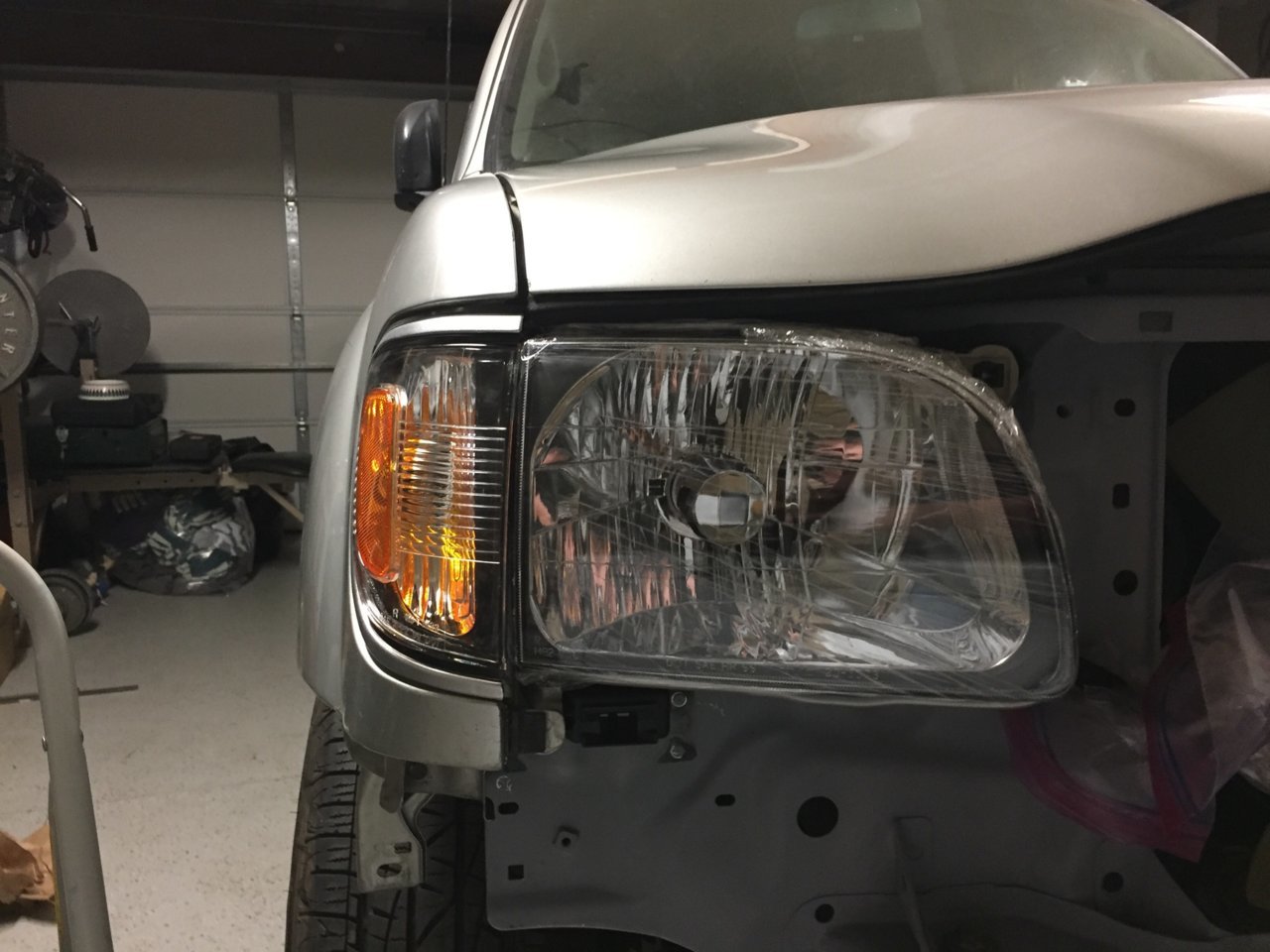

    Got the grill and the lights back on I’m just waiting on a bumper and it will be about done. I had to take the dash out to weld the apron to the cab which added a lot of work but other than that and getting the wrong core support the repair wasn’t too bad.


    Tour991 and CS_AR like this.
  11. May 20, 2019 at 8:39 PM
    #11
    02dubcab

    02dubcab [OP] Well-Known Member

    Joined:
    Jun 14, 2018
    Member:
    #256411
    Messages:
    58
    Gender:
    Male
    First Name:
    Zach
    Cameron Park, Ca
    Vehicle:
    2002 tacoma double cab 4X4
    N/A

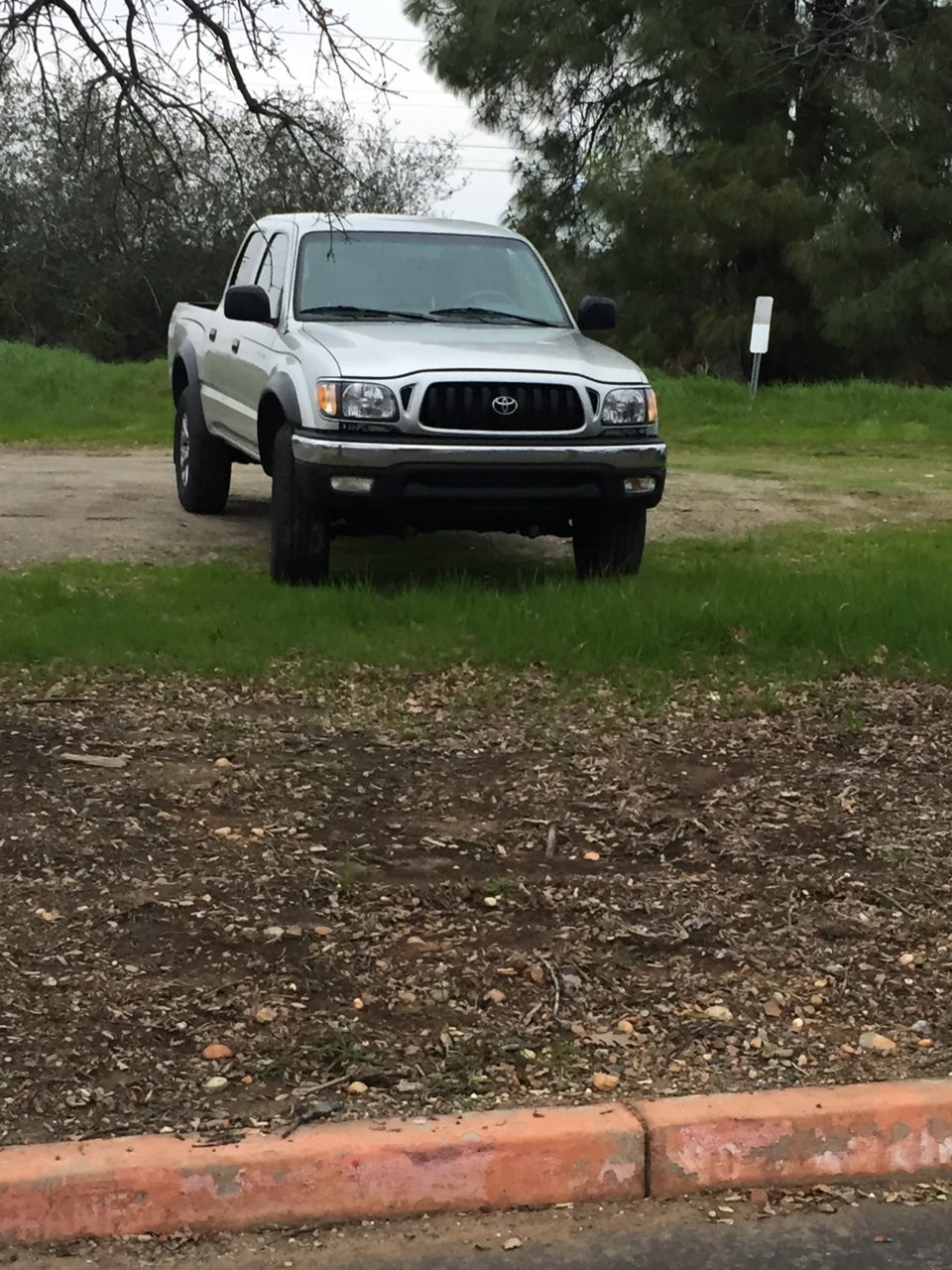

    Been finished and put about 2,500 miles on it and it runs like before just a little less dash rattle now that I got to tighten all the bolts down after 250,000 miles. Only thing still missing is the fillers under the lights.


    Currygoat, 12TRDTacoma, CS_AR and 2 others like this.
  12. May 20, 2019 at 10:27 PM
    #12
    RedManRocket

    RedManRocket Well-Known Member

    Joined:
    Mar 18, 2015
    Member:
    #151238
    Messages:
    2,102
    Gender:
    Male
    First Name:
    Red
    Sonora, Central Cali
    Vehicle:
    2002 Double Cab LT
    Esb 5.5 with Kings Mcneil 6.5 fenders Other stuffs
    Looks great, well done :thumbsup:
    I'll be doing the same here soon
    The core support should've been the same between 1998-2004 if I remember correctly.
    Also what spot weld driller did you use? When I drilled out my bedsides for my prerunner it took FOREVVEERRR just seeing if yours might be any better.

    CS_AR likes this.
  13. May 21, 2019 at 8:27 AM
    #13
    hubcapsc

    hubcapsc Un-Known Stranger

    Joined:
    May 10, 2018
    Member:
    #253064
    Messages:
    341
    Gender:
    Male
    First Name:
    Mike
    Upstate South Carolina
    Vehicle:
    2002 6cyl 4x4 manual
    This was a fun post to read, job well done :thumbsup:

    -Mike

    12TRDTacoma likes this.
  14. May 21, 2019 at 3:31 PM
    #14
    02dubcab

    02dubcab [OP] Well-Known Member

    Joined:
    Jun 14, 2018
    Member:
    #256411
    Messages:
    58
    Gender:
    Male
    First Name:
    Zach
    Cameron Park, Ca
    Vehicle:
    2002 tacoma double cab 4X4
    N/A
    The core support is pretty much the same, there are just a few tabs that are different because of the different headlights on the 02-04 if I remember correct. I ended up just cutting them off the old support because they were still in good shape and welding them on the new one and it worked perfect. I just bought 5-6 harbor freight spot weld drill bits and they did great, I would just recommend using a center punch before you start drilling so the bit doesn't walk around on you. Also I would recommend pulling the dash and heater box out when you weld the new clip on because I almost caught the truck... and my house on fire welding the new clip on.

    Last edited: May 21, 2019
  15. May 21, 2019 at 3:54 PM
    #15
    RedManRocket

    RedManRocket Well-Known Member

    Joined:
    Mar 18, 2015
    Member:
    #151238
    Messages:
    2,102
    Gender:
    Male
    First Name:
    Red
    Sonora, Central Cali
    Vehicle:
    2002 Double Cab LT
    Esb 5.5 with Kings Mcneil 6.5 fenders Other stuffs
    Okay cool, same one I was using. And I might just bolt everything on. Might be useful later if I need to get to some hard to reach areas

  16. May 21, 2019 at 4:15 PM
    #16
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    40,803
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    burntkat likes this.
  17. May 21, 2019 at 4:22 PM
    #17
    RedManRocket

    RedManRocket Well-Known Member

    Joined:
    Mar 18, 2015
    Member:
    #151238
    Messages:
    2,102
    Gender:
    Male
    First Name:
    Red
    Sonora, Central Cali
    Vehicle:
    2002 Double Cab LT
    Esb 5.5 with Kings Mcneil 6.5 fenders Other stuffs
    Yeah when I did my bed it was definitely struggling at the end. Should've just used another one but meh..
    I'll probably get those ones then, anything to make it last longer and go faster, especially since in the scrapyard I'll have to use an electric drill.

    burntkat likes this.
  18. May 21, 2019 at 4:24 PM
    #18
    RedManRocket

    RedManRocket Well-Known Member

    Joined:
    Mar 18, 2015
    Member:
    #151238
    Messages:
    2,102
    Gender:
    Male
    First Name:
    Red
    Sonora, Central Cali
    Vehicle:
    2002 Double Cab LT
    Esb 5.5 with Kings Mcneil 6.5 fenders Other stuffs
    Another issue I had was the bit not being quite big enough like there was still some metal keeping it from detaching, I probably just wasn't centered on the weld correctly

    burntkat likes this.
  19. May 21, 2019 at 4:30 PM
    #19
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    40,803
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
    Has to be perfectly centered or you get that issue.

    RedManRocket likes this.
  20. May 21, 2019 at 4:33 PM
    #20
    RedManRocket

    RedManRocket Well-Known Member

    Joined:
    Mar 18, 2015
    Member:
    #151238
    Messages:
    2,102
    Gender:
    Male
    First Name:
    Red
    Sonora, Central Cali
    Vehicle:
    2002 Double Cab LT
    Esb 5.5 with Kings Mcneil 6.5 fenders Other stuffs
    Thought so
