Finally finished LEDS - cupholders, console, and bed lights

Discussion in 'Lighting' started by Oregon TRD, Jan 27, 2012.

  1. Jan 27, 2012 at 3:09 PM
    #1
    Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    11,011
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
    [​IMG]


    Now I can finally see shit at night!!!

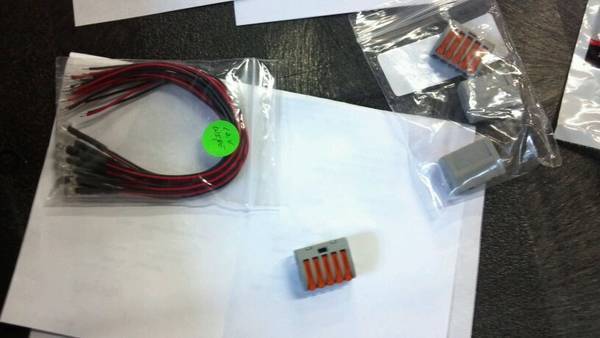

    The shit:

    [​IMG]

    [​IMG]

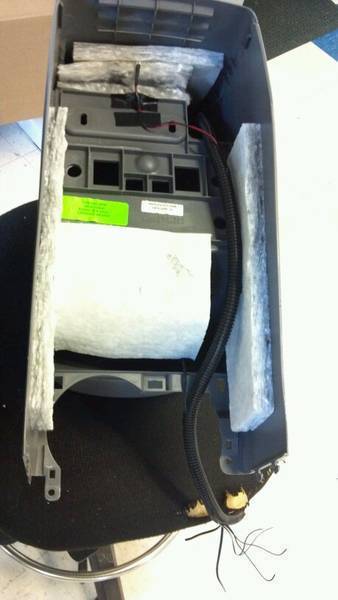

    4 different LEDS run thru the center console and tucked in wire loom and ready for install...

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

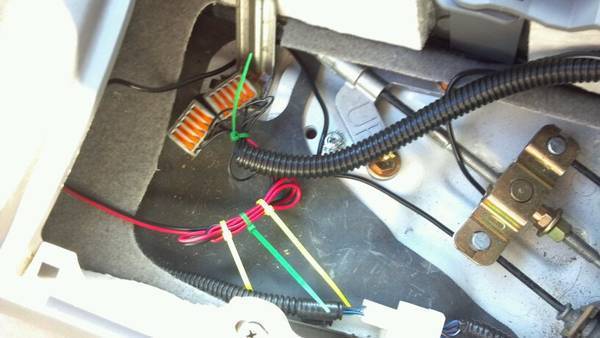

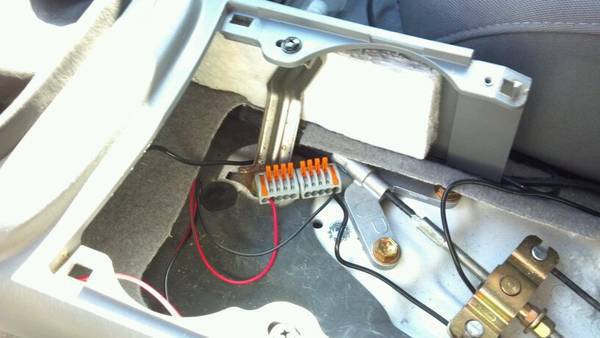

    Wires ran to the WAGO's and then cleaned up with ZIP ties and ready for center console to go in then PLUG n PLAY:

    [​IMG]

    [​IMG]

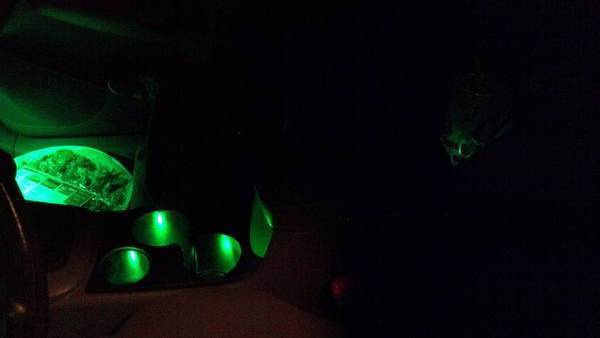

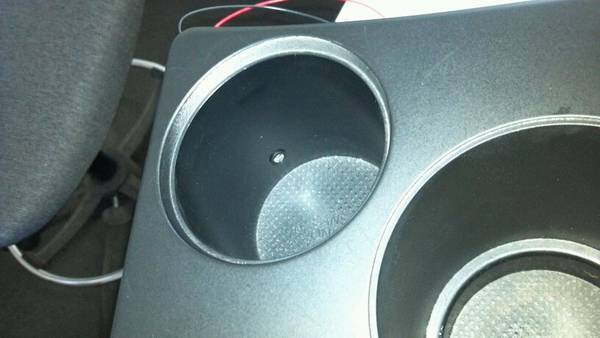

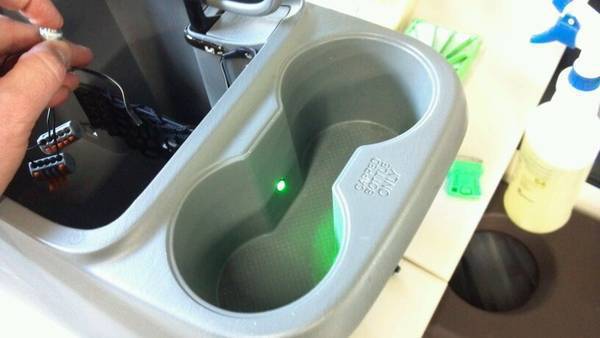

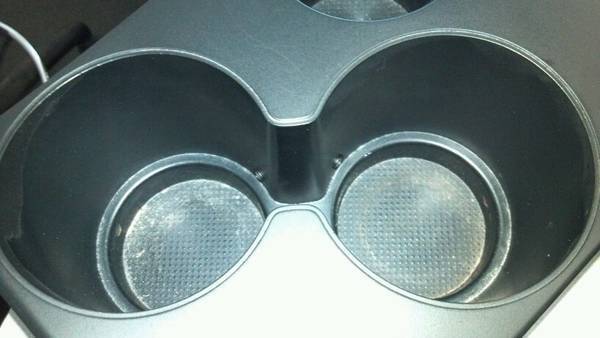

    Now cupholders are done:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Done installing the shit:

    [​IMG]

    [​IMG]

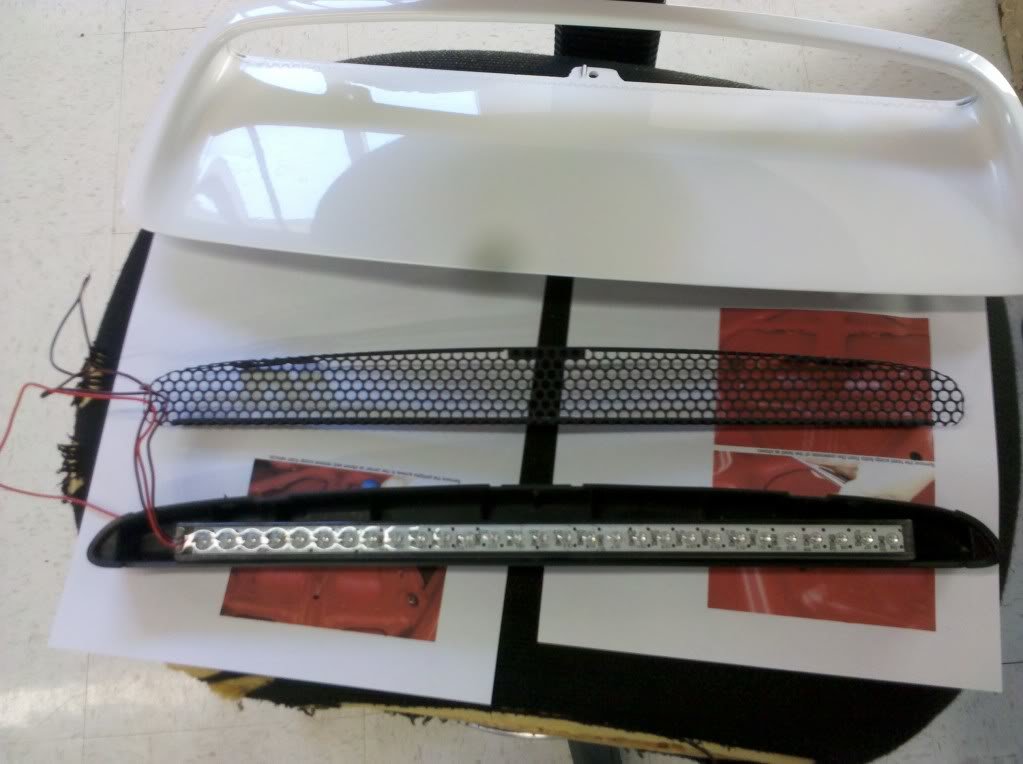

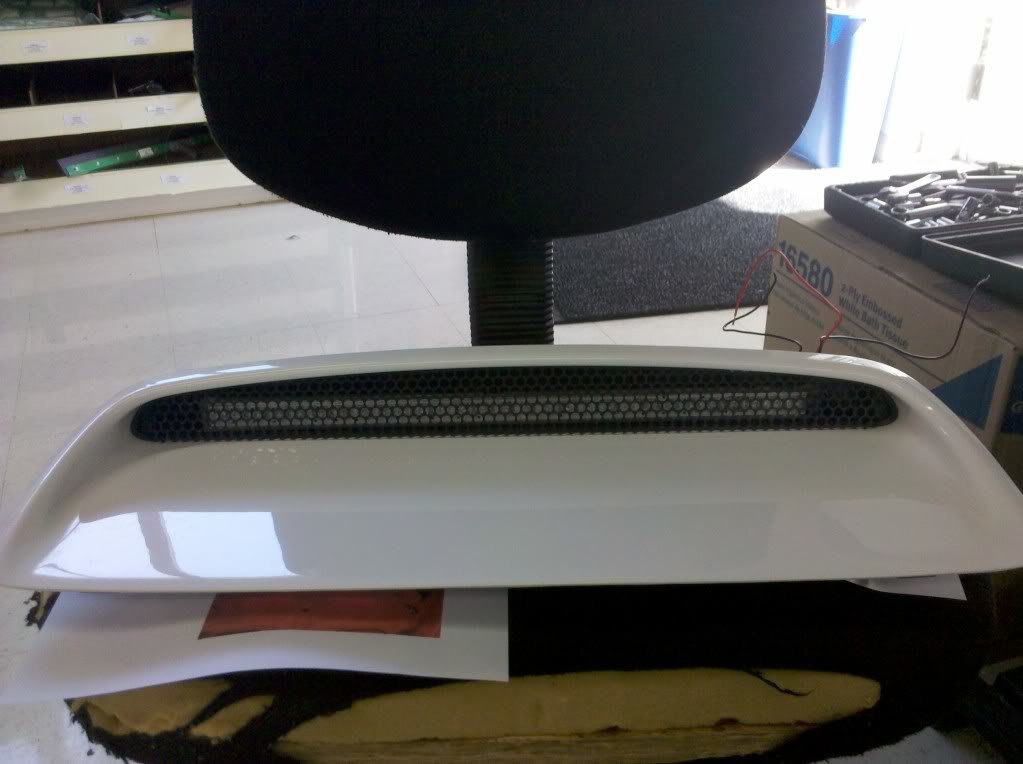

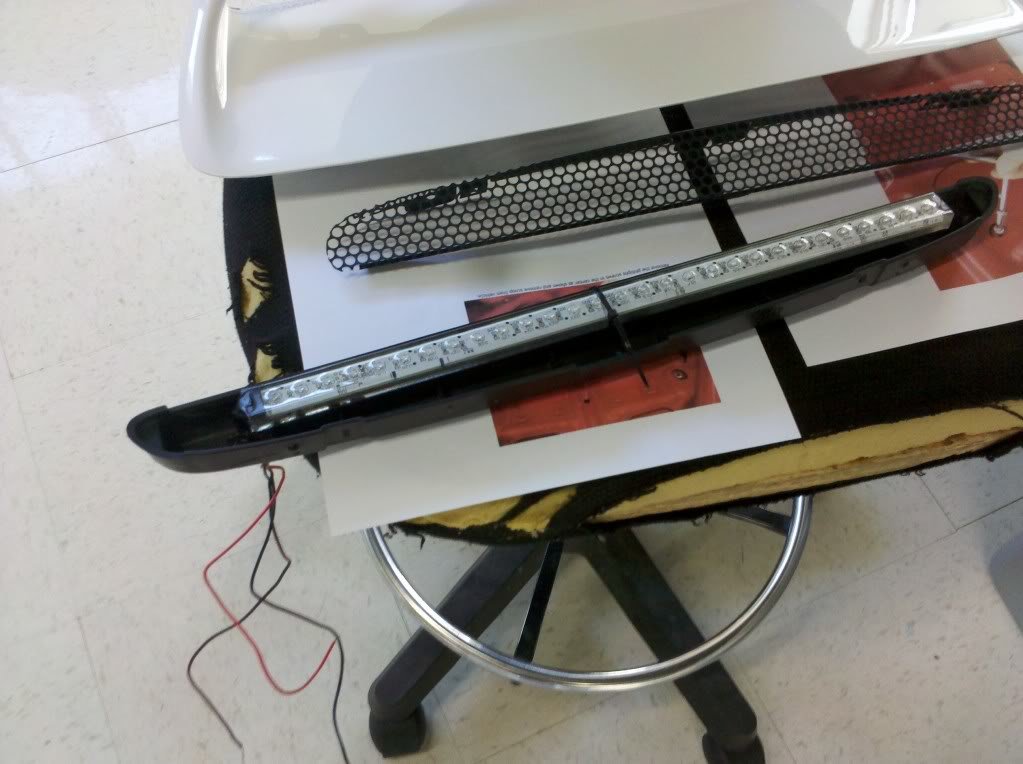

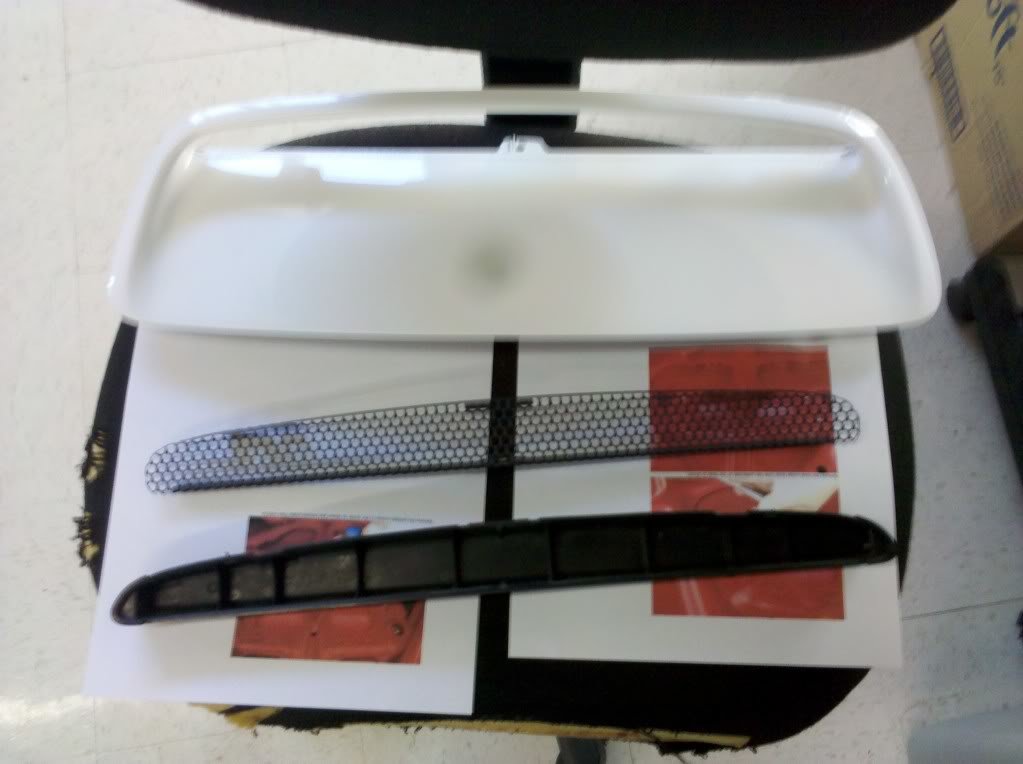

    Took the hoodscoop apart:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

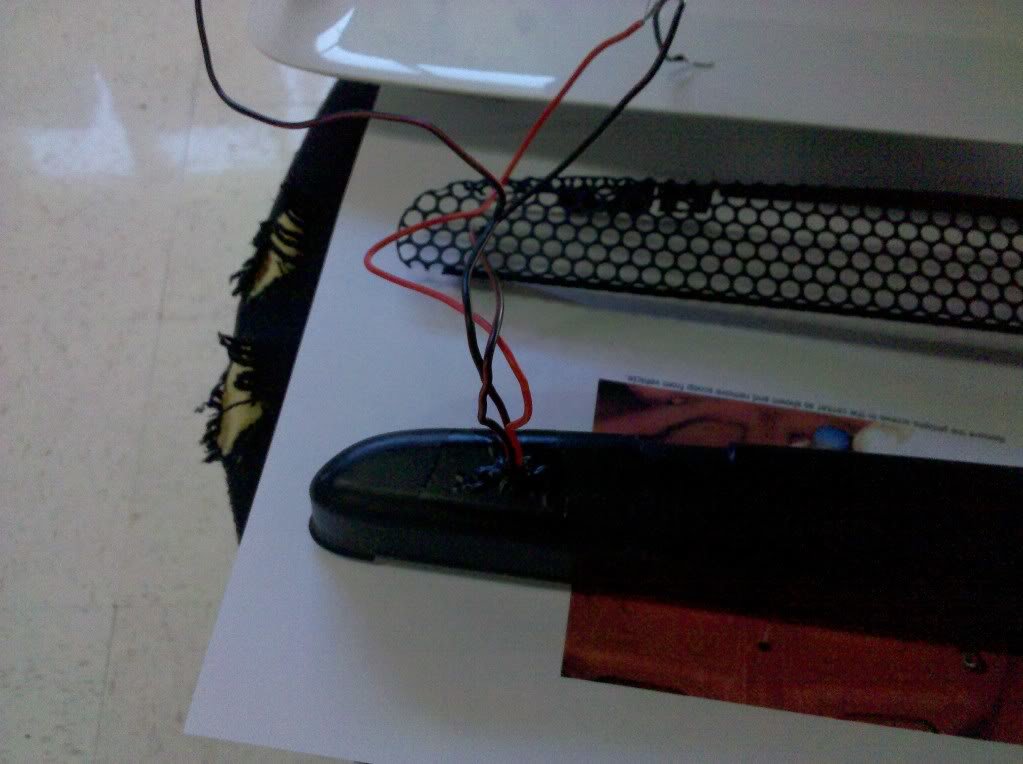

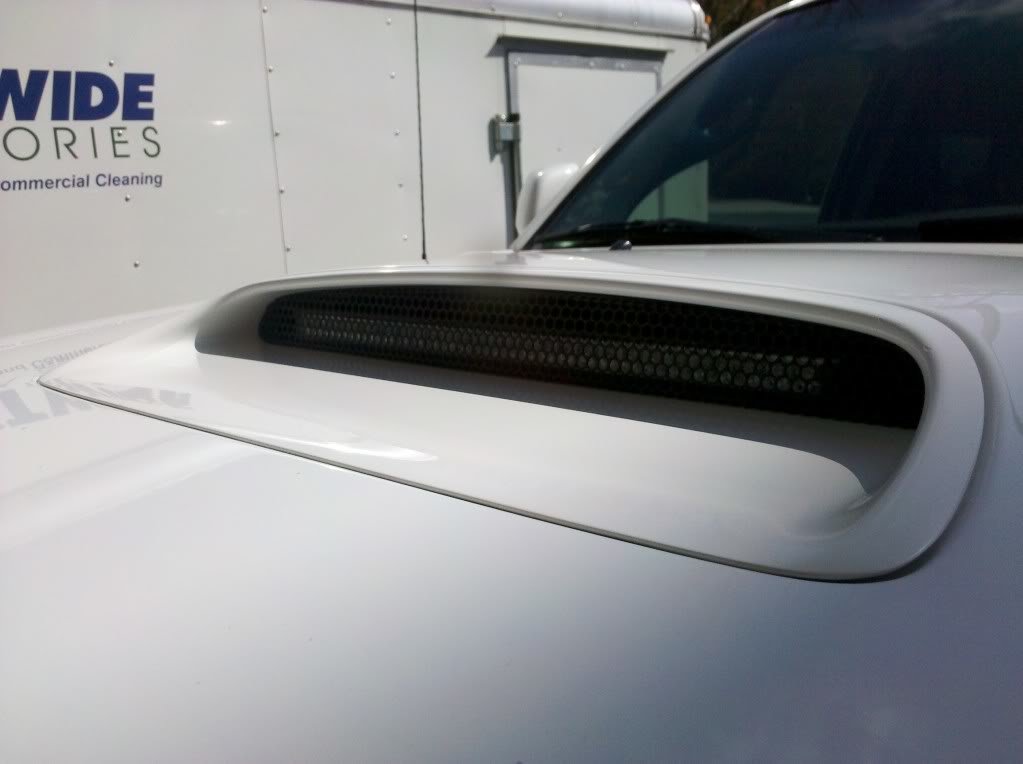

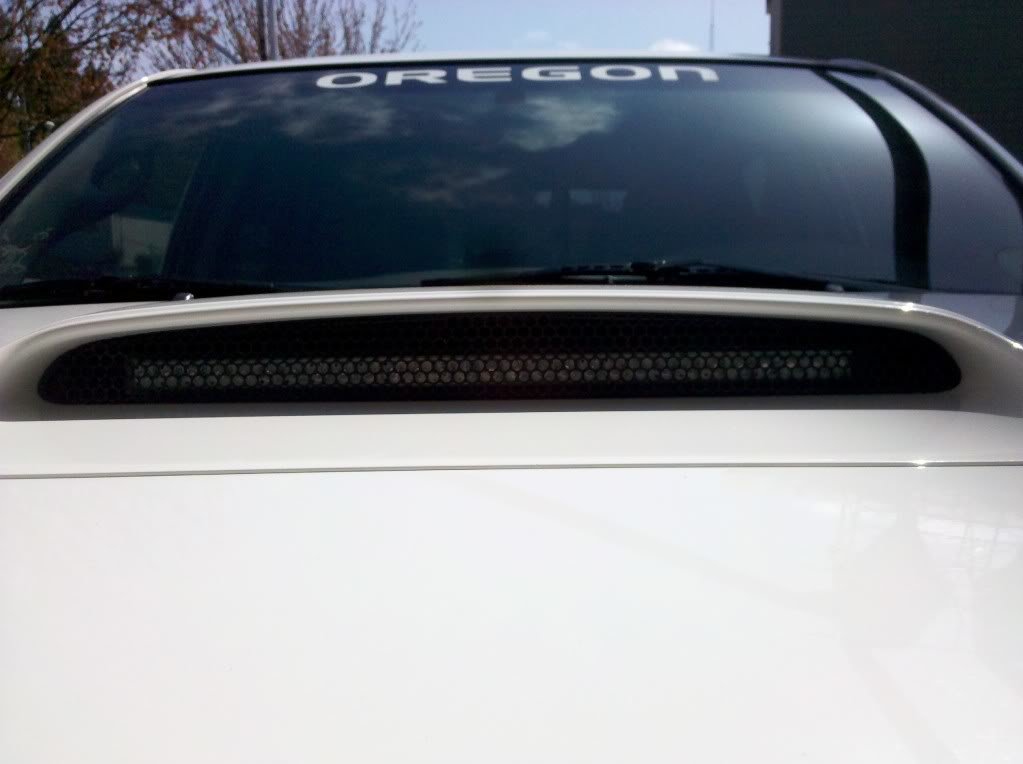

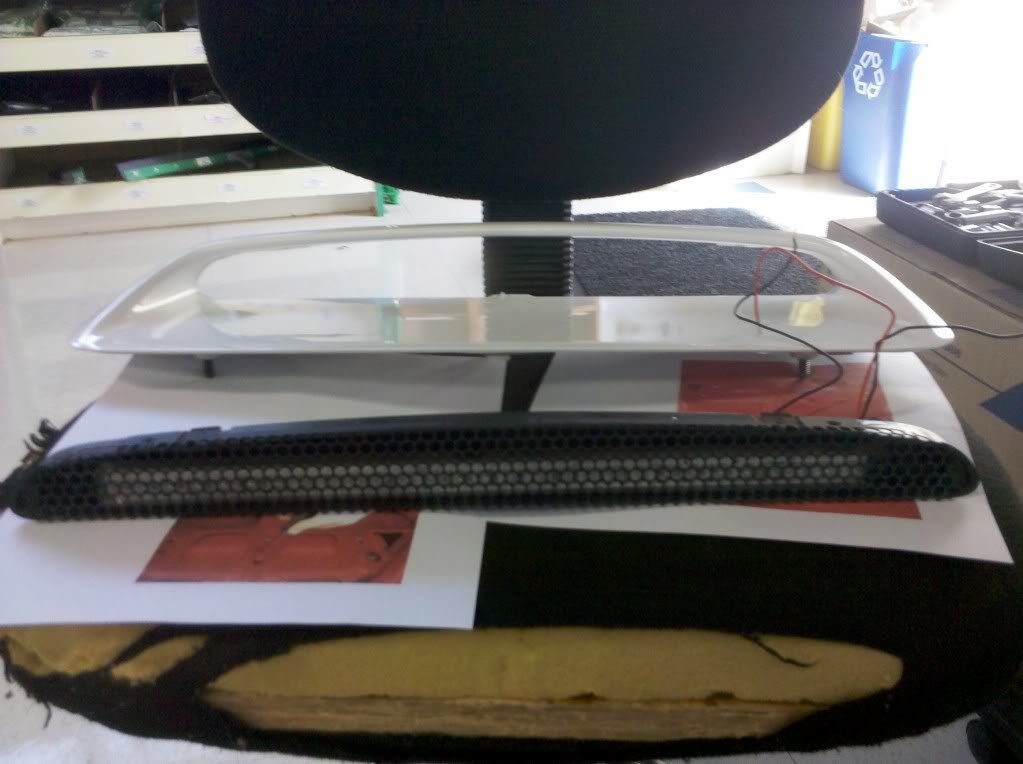

    Got light put in and got the scoop back on the truck:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

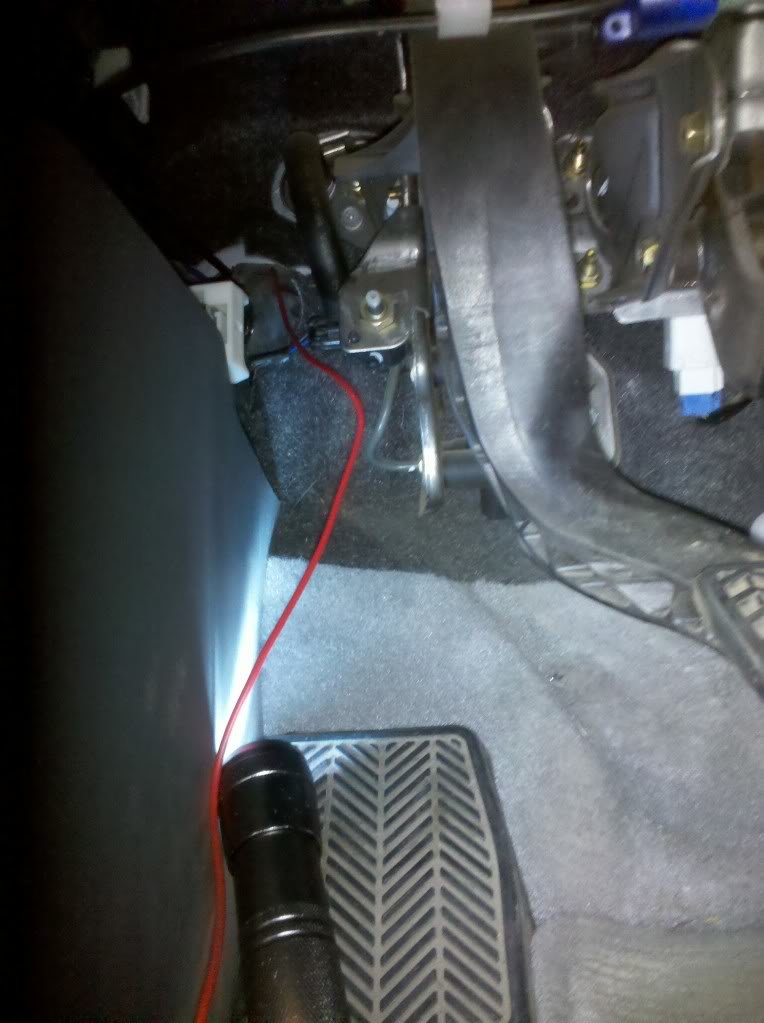

    To find an opening without cutting or poking, I put an LED flashlight in the engine bay pointed at the boot, then I got inside the truck and saw the light shining thru a small opening. I pushed the wire thru and it was perfect! I taped other wires to the red power wire and drug them thru with no problems or hangups.

    [​IMG]

    [​IMG]

    [​IMG]

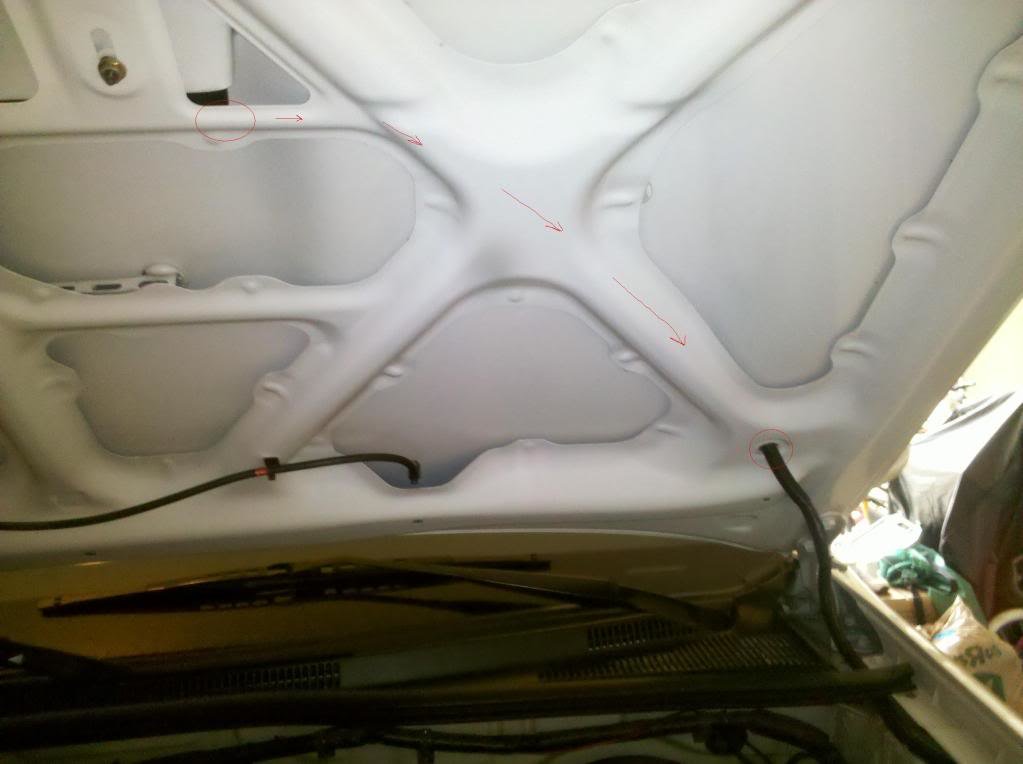

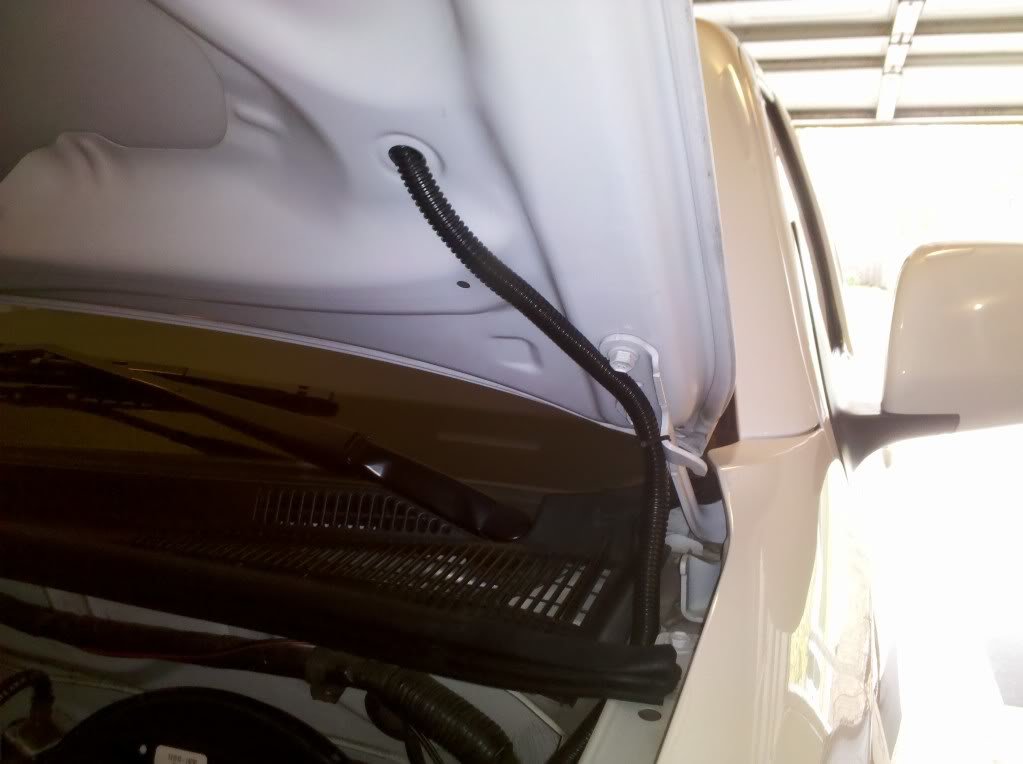

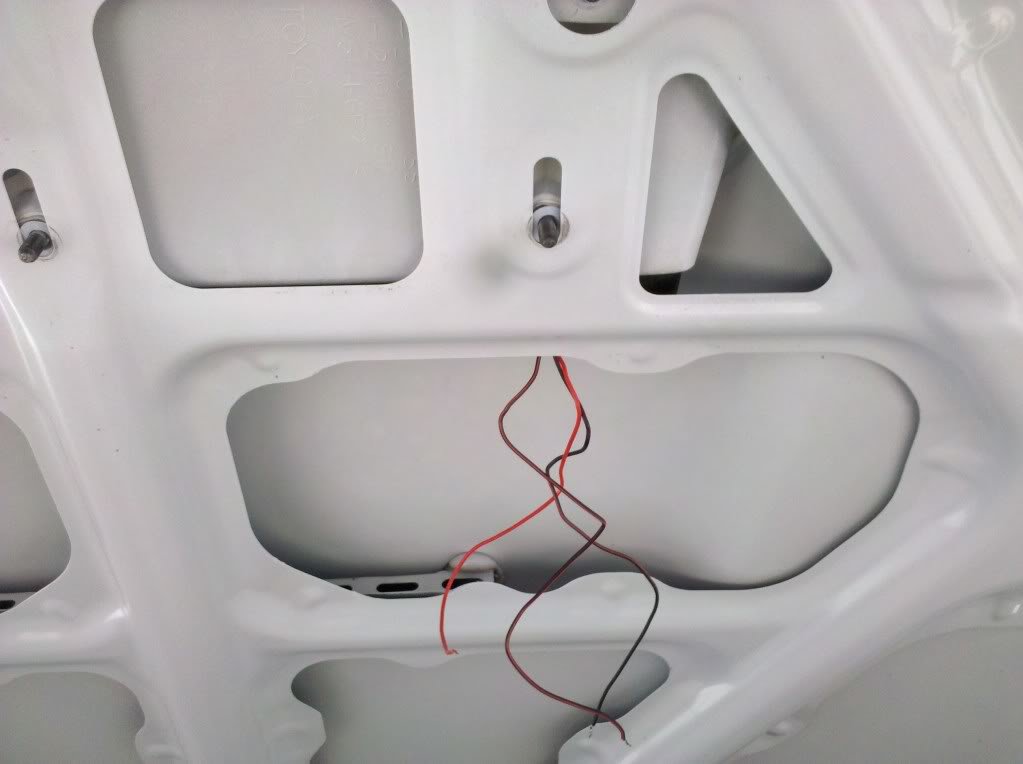

    Ran wires from hoodscoop thru the hood down into some wireloom:

    [​IMG]

    [​IMG]

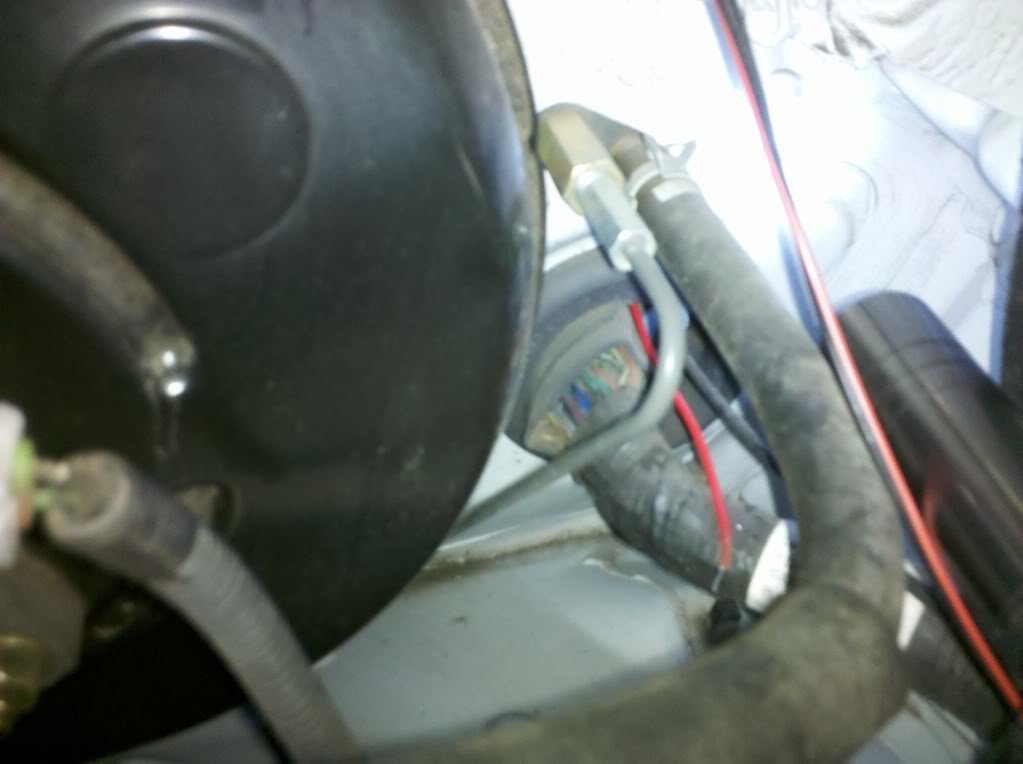

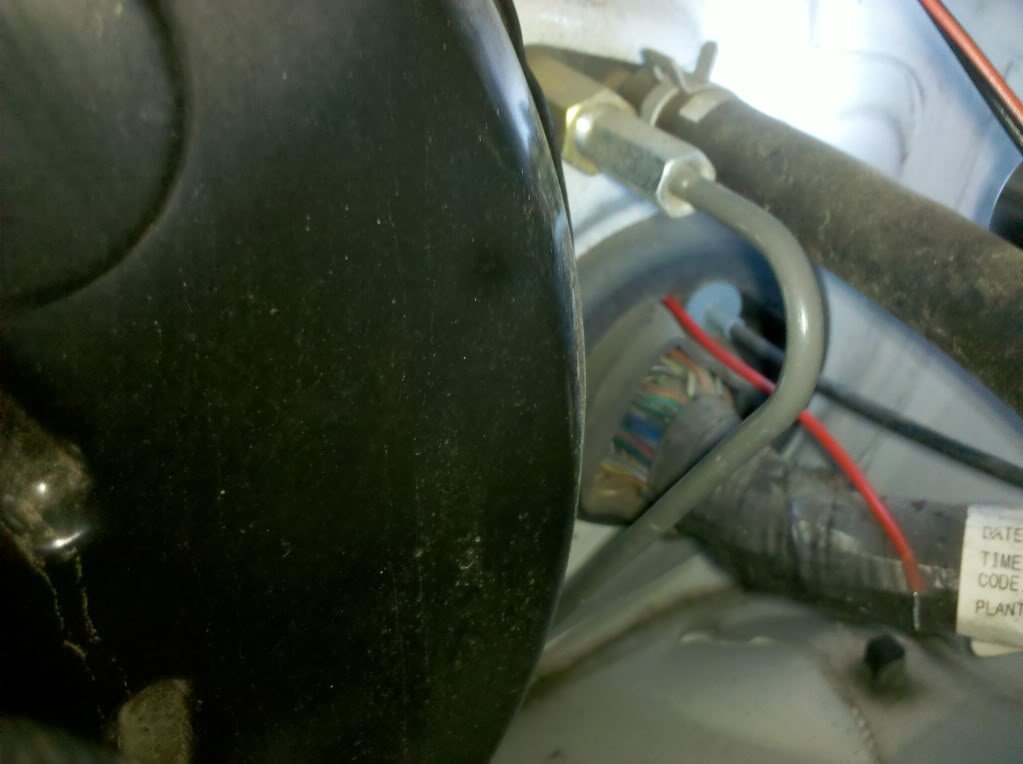

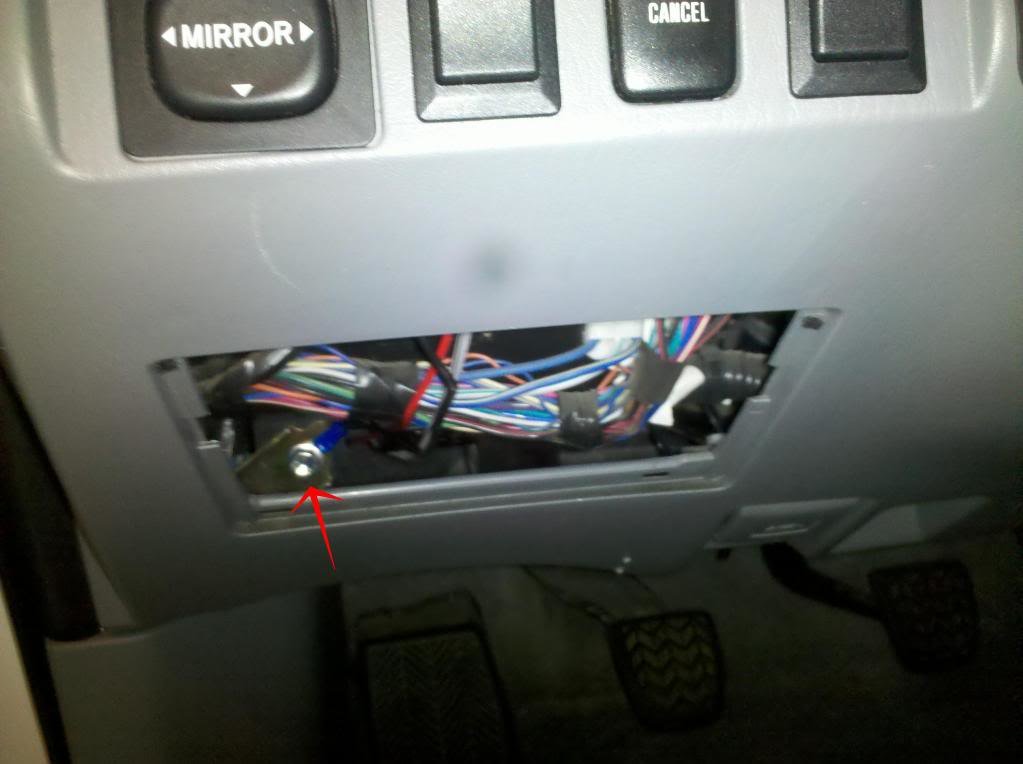

    Excellent ground for all this shit:

    [​IMG]

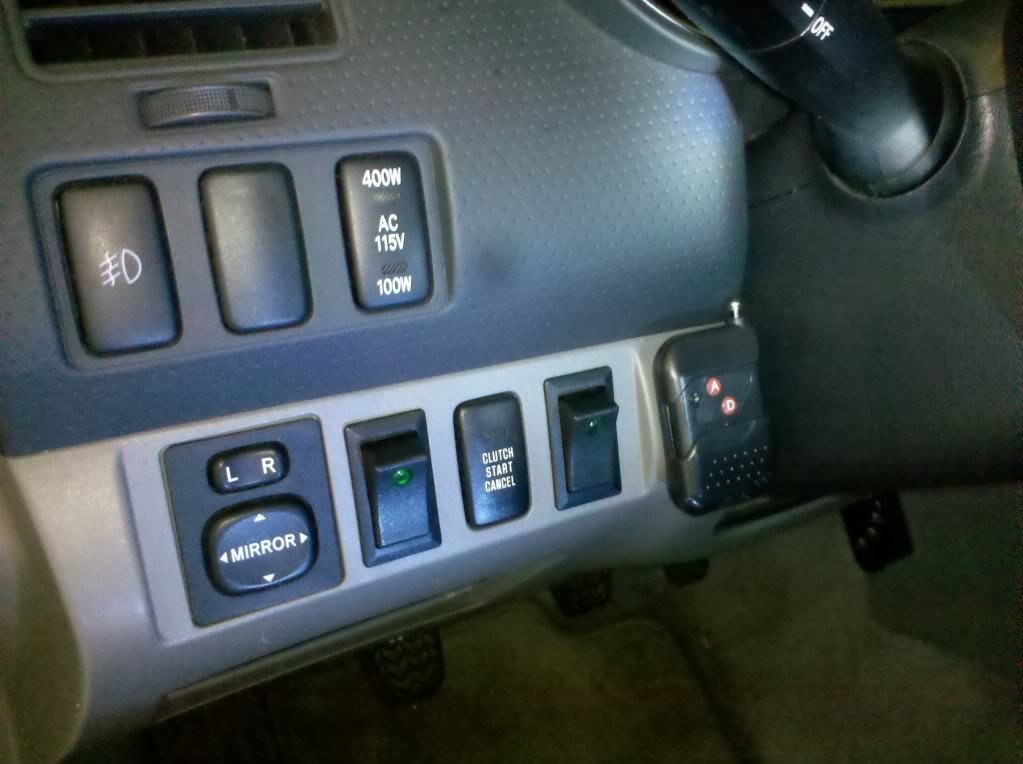

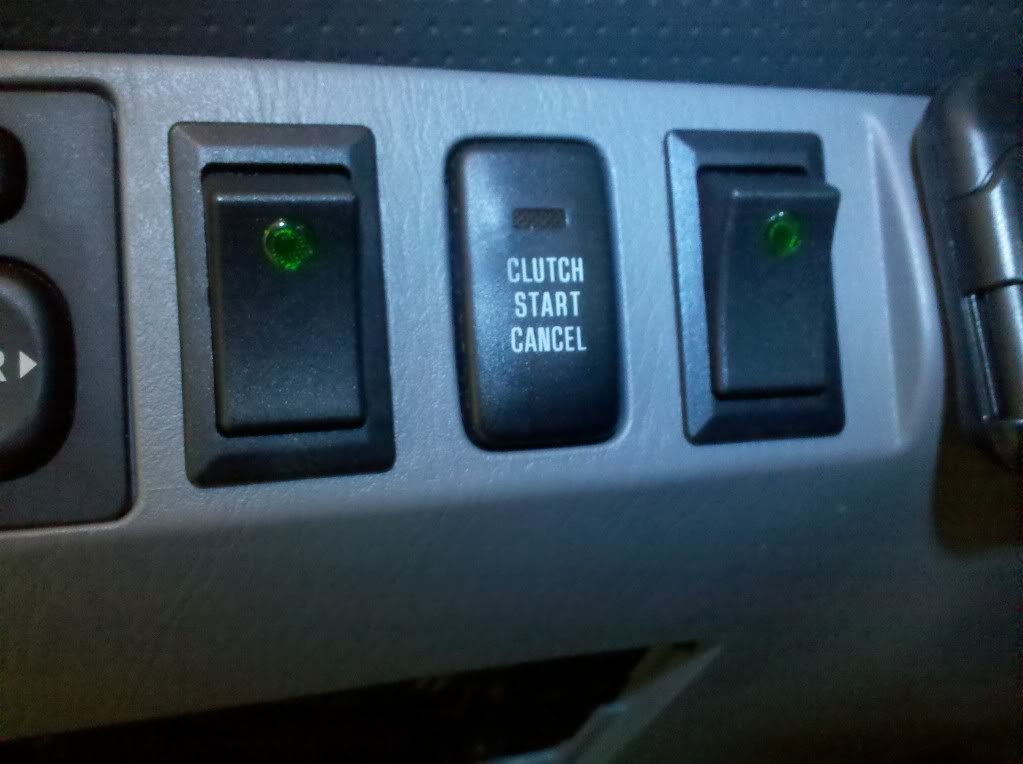

    Bought 2 of these http://www.oznium.com/scion-switch-led
    1 for the scanner and the other one for the LED's under my foot wells and under both seats.

    They are for a Scion but they fit AMAZING and look factory. I had to take a razor blade and shave off the left side plastic in the hole. Then they went in perfect.

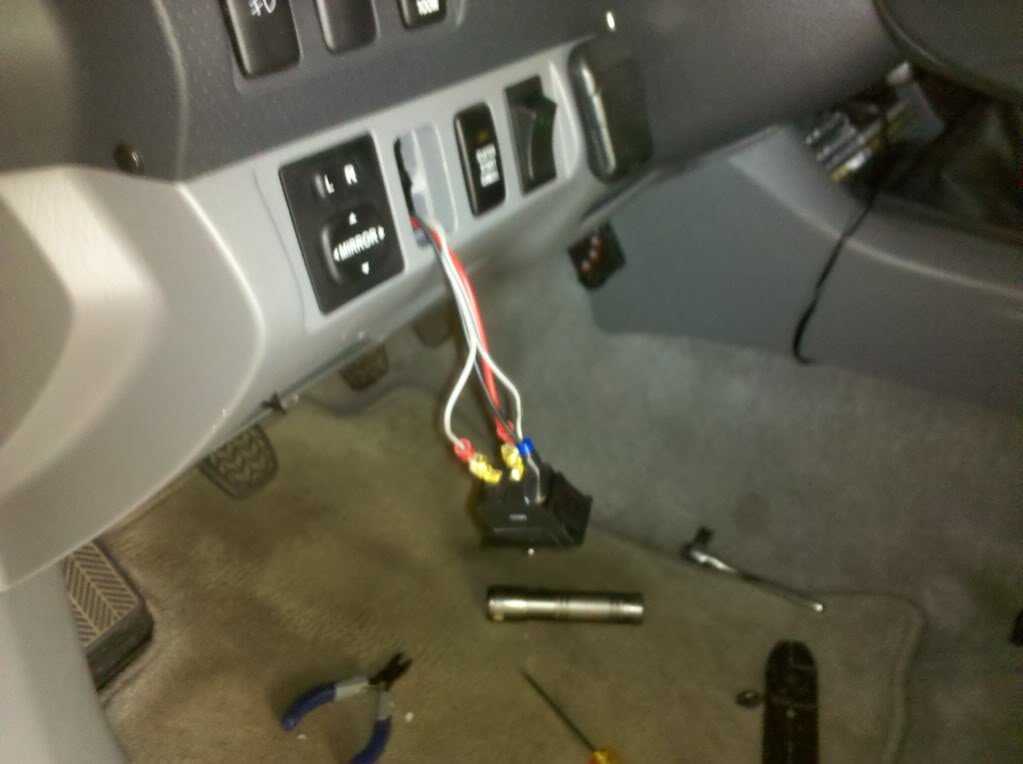

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

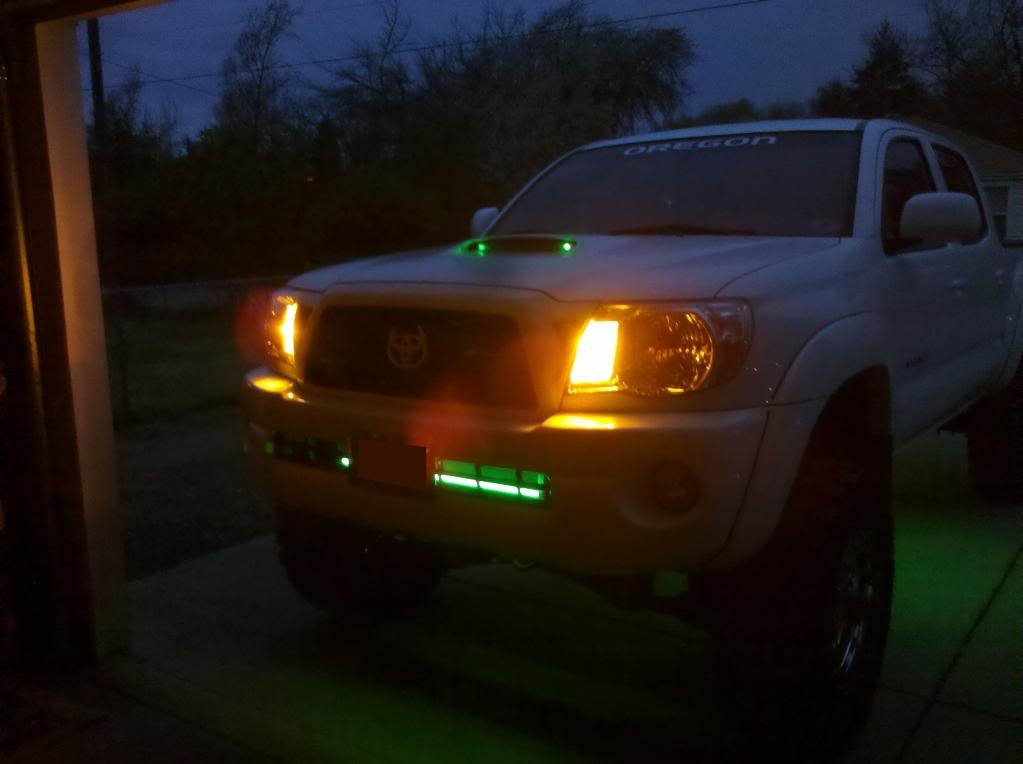

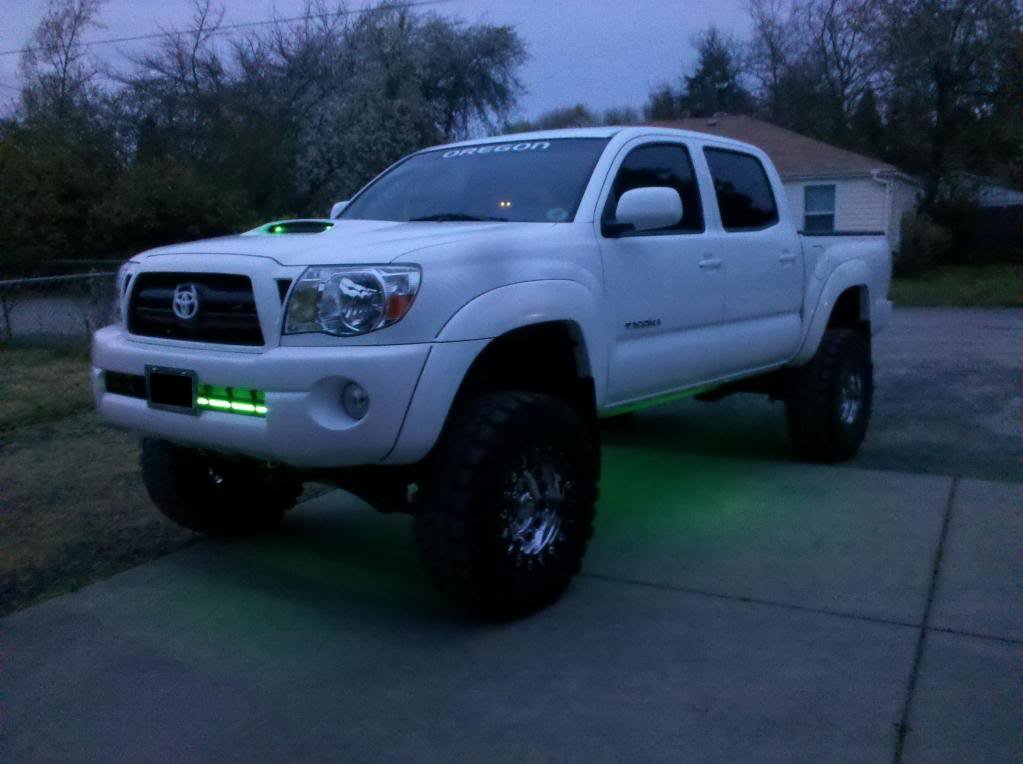

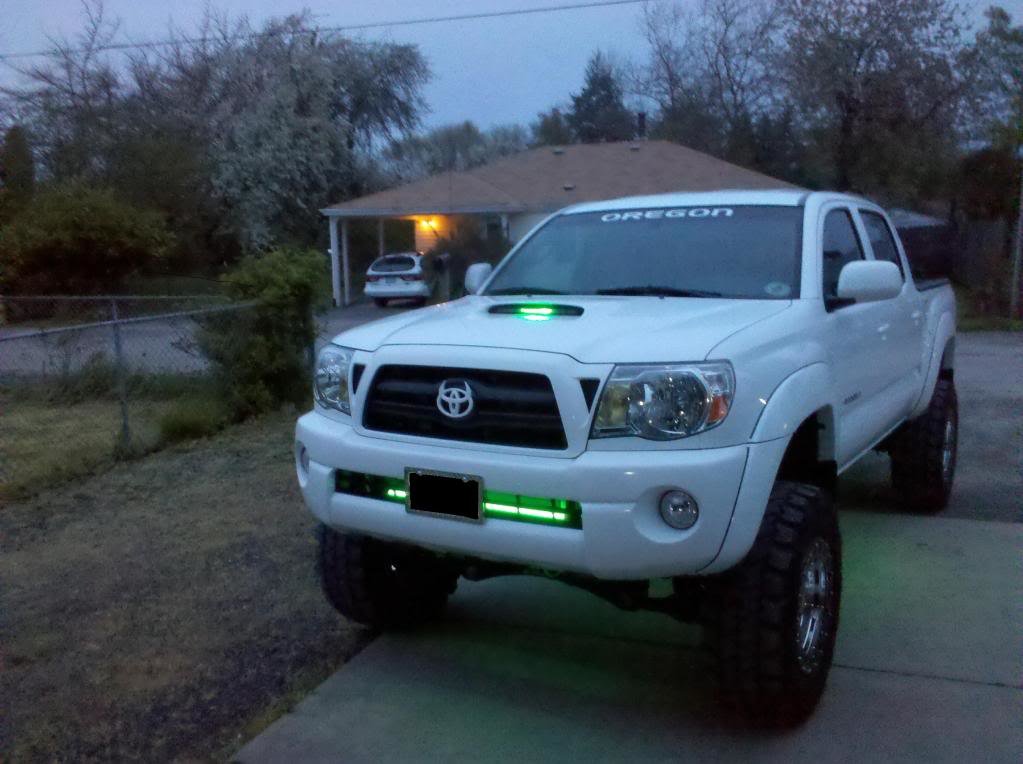

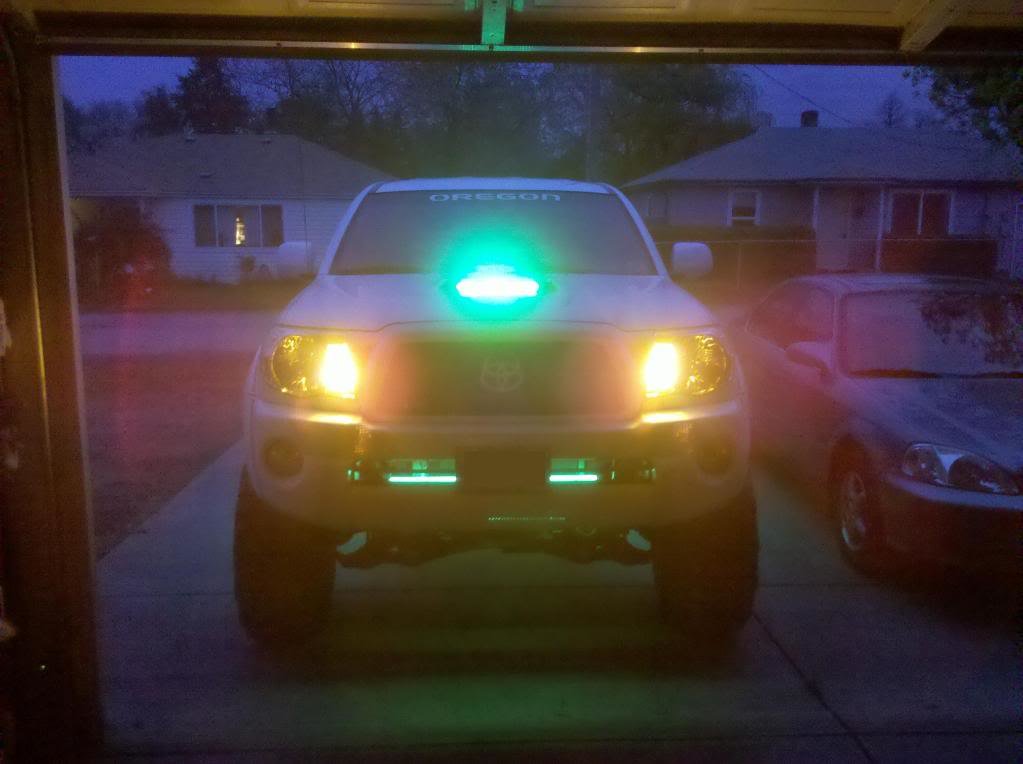

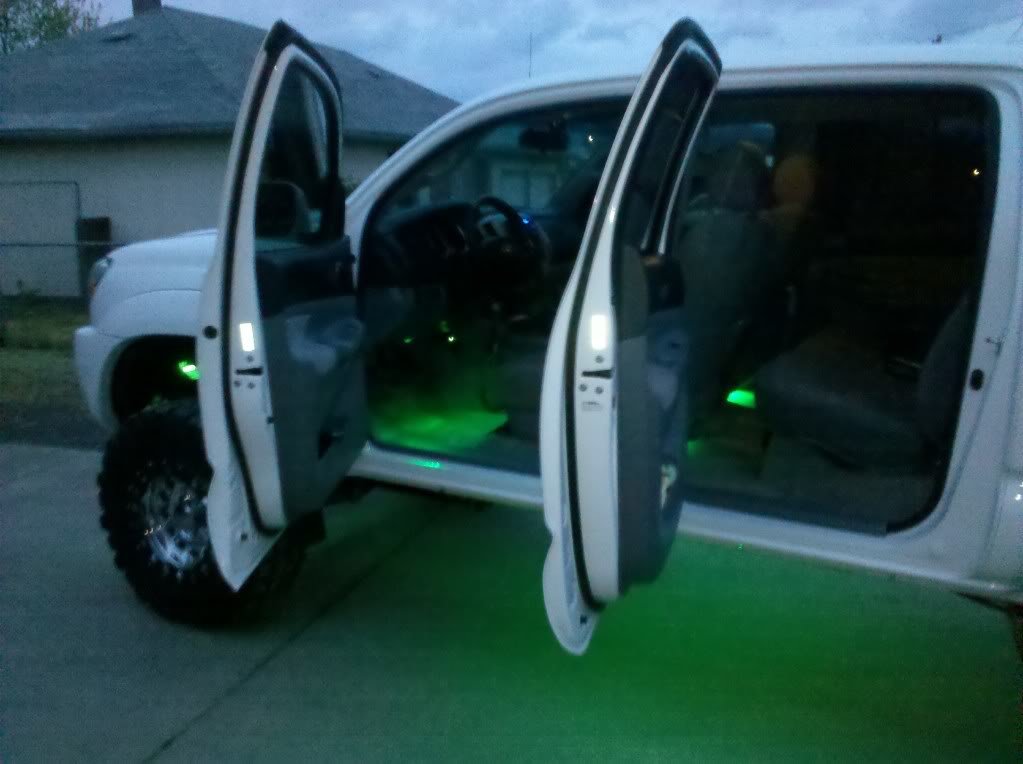

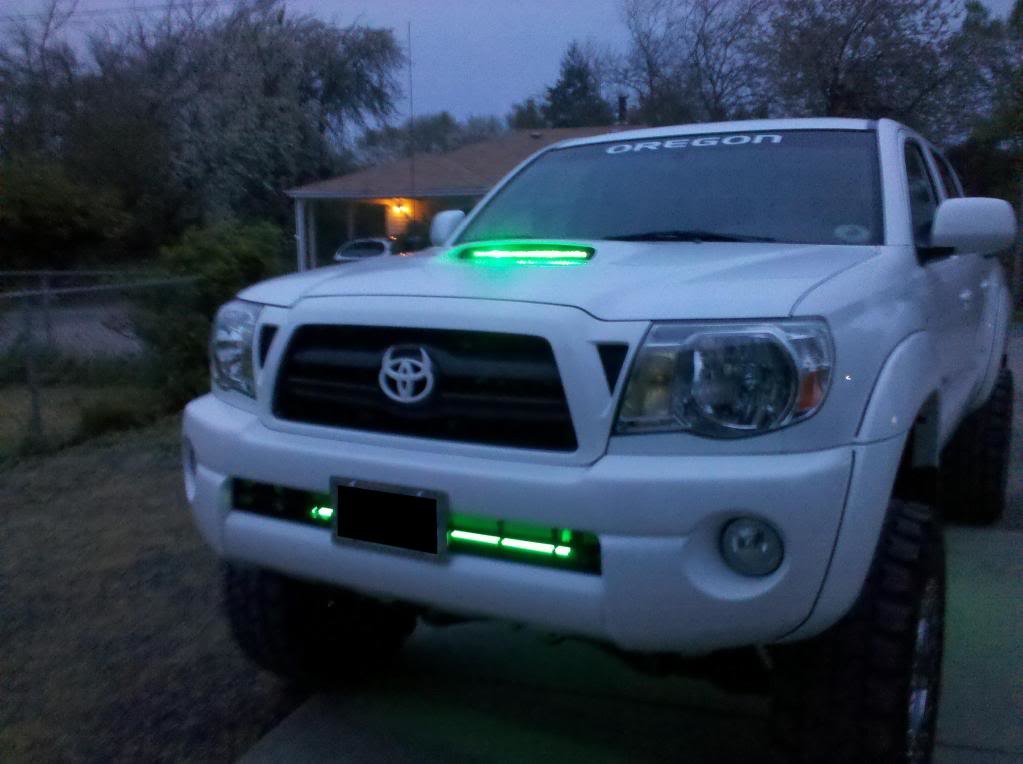

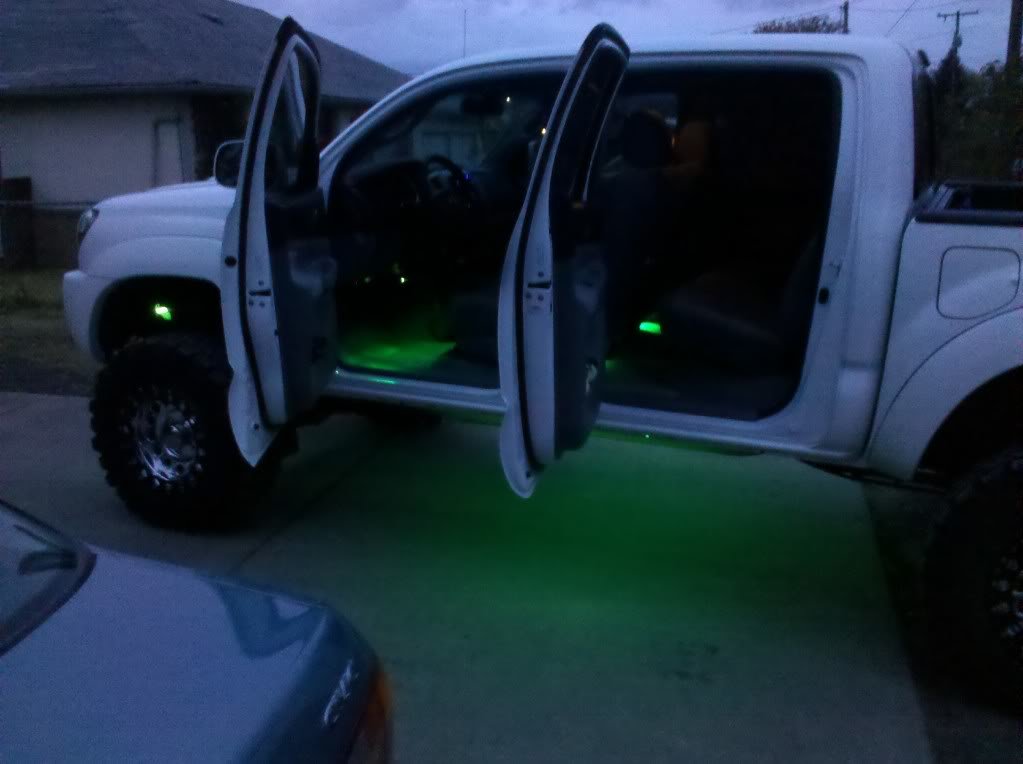

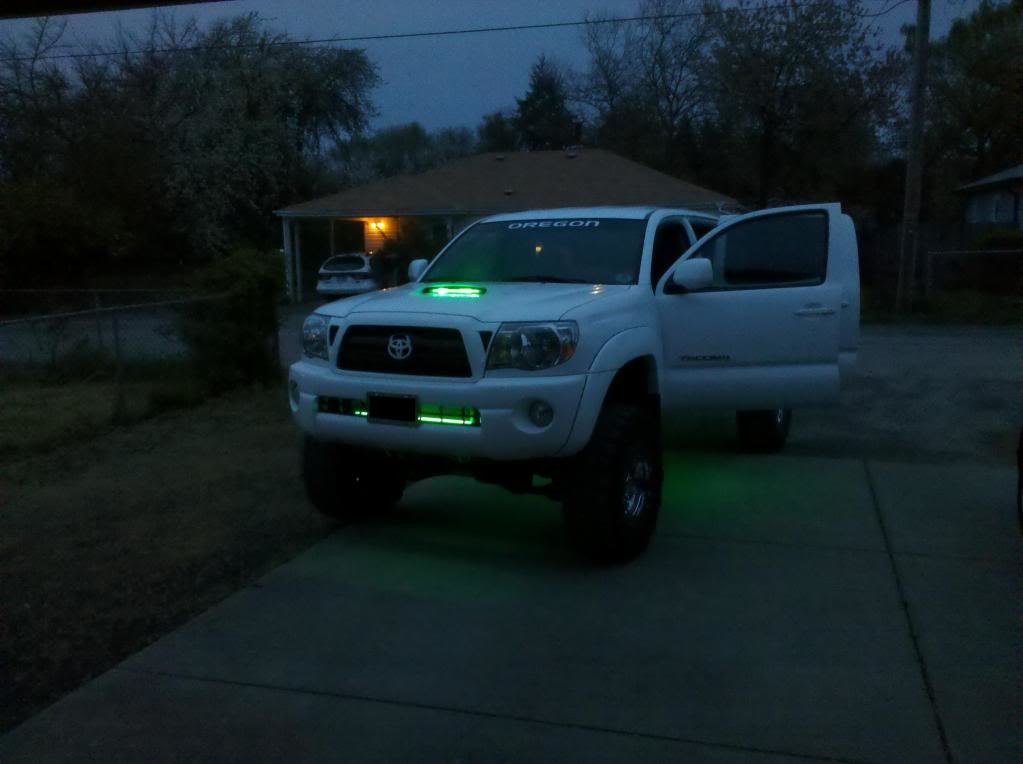

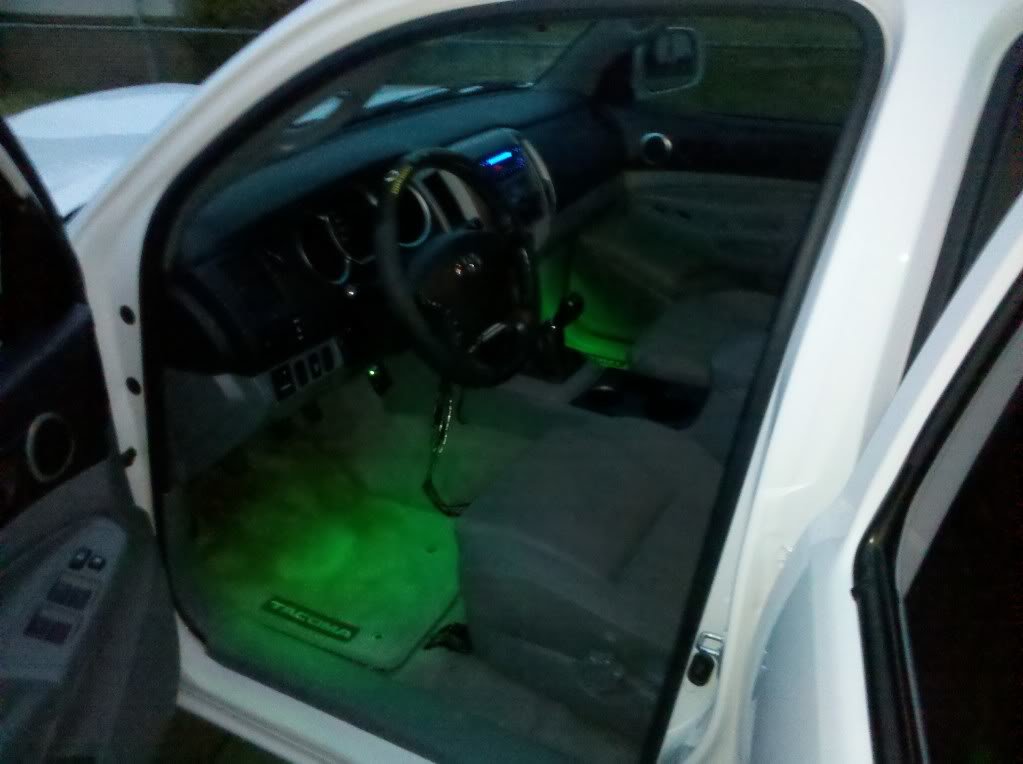

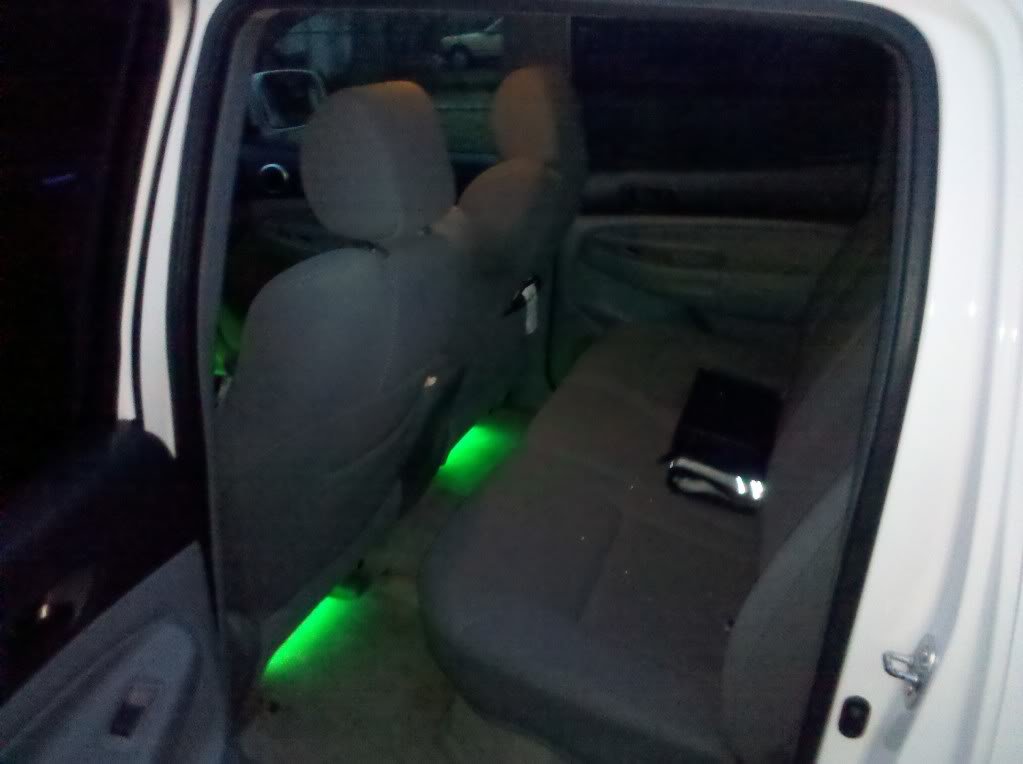

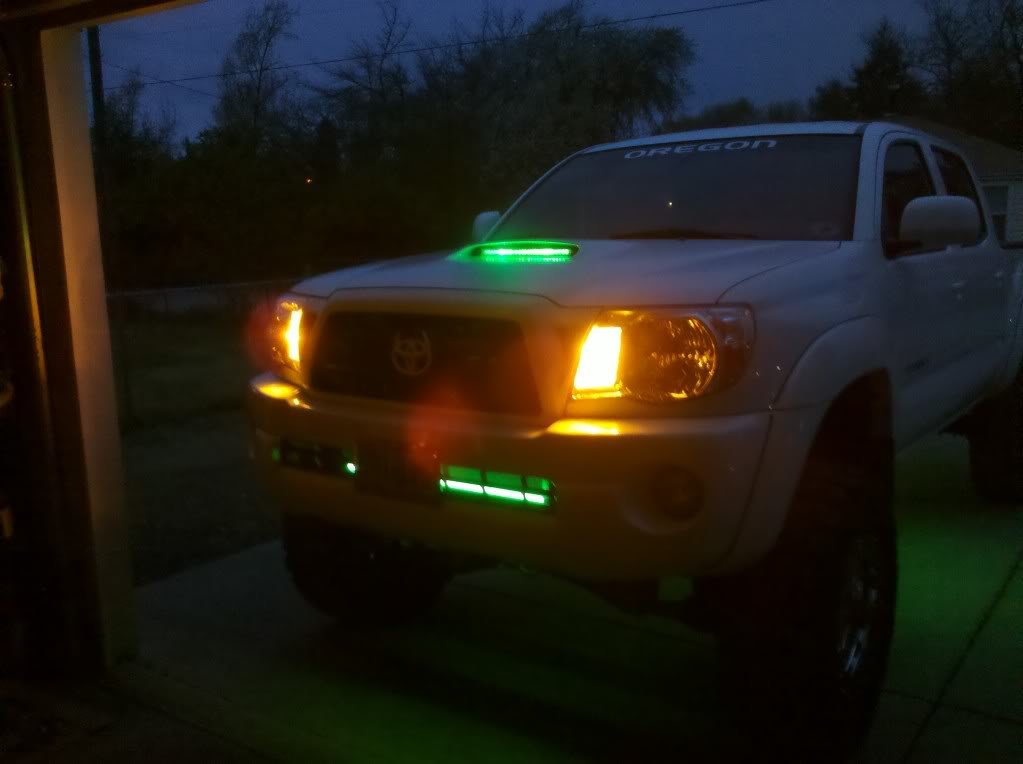

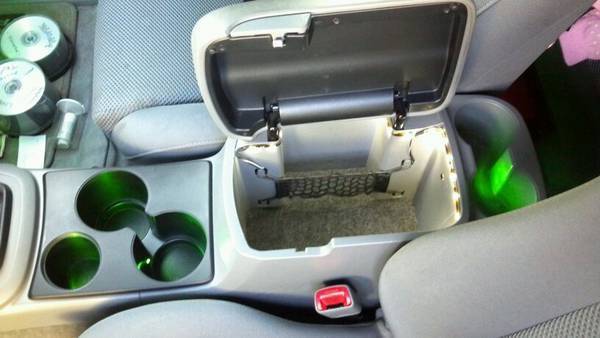

    DONE! Now for the finished "RICE":

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Apr 13, 2015
  2. Jan 27, 2012 at 5:11 PM
    #2
    udy2554

    udy2554 NORTHERN RED-NECK

    Joined:
    Nov 19, 2010
    Member:
    #46394
    Messages:
    1,874
    Gender:
    Male
    First Name:
    John
    Naples, NY
    Vehicle:
    '06 Tacoma TRD Sport
    Toytec ULK, Light Racing UCA's, OME Dakar rear leaves, ARB Bumper with XRC8 winch, Good Year Duratracs 285/70/17's on 17x9" Level 8 Strike 6's. Leer cap in the winter. Pioneer Double Din with BT, iPod, etc. Boston Acoustic components in all 4 doors with a Sony amp, powered 8" sub. Ultra gauge, Tom Tom...
    NICE!:thumbsup: Are they switched independently or just off the dash lights?

  3. Jan 27, 2012 at 5:15 PM
    #3
    maser

    maser Hello, my name is Maser... and I'm an alcoholic

    Joined:
    Jan 4, 2011
    Member:
    #48695
    Messages:
    260
    Gender:
    Male
    First Name:
    Chris
    Fort Worth, TX
    Vehicle:
    06 PreRunner Dbl Cab
    fog light mod,DTRL mod,alternating turn signal mod, BHLM, pioneer pt 3200dvd, fosgate speakers all 4 doors,AFE CAI, Magnaflow turndown exhaust, satoshi'd grill, Procomp 6 in lift, 2 Diamond audio 10's w/ 600w amp..........
    Nice work man. Cool ambient lighting, and what looks to be a clean job.:thumbsup:

  4. Jan 27, 2012 at 5:16 PM
    #4
    maser

    maser Hello, my name is Maser... and I'm an alcoholic

    Joined:
    Jan 4, 2011
    Member:
    #48695
    Messages:
    260
    Gender:
    Male
    First Name:
    Chris
    Fort Worth, TX
    Vehicle:
    06 PreRunner Dbl Cab
    fog light mod,DTRL mod,alternating turn signal mod, BHLM, pioneer pt 3200dvd, fosgate speakers all 4 doors,AFE CAI, Magnaflow turndown exhaust, satoshi'd grill, Procomp 6 in lift, 2 Diamond audio 10's w/ 600w amp..........
    Oh, and S.O.A....FTW!!

  5. Jan 27, 2012 at 5:18 PM
    #5
    Twistedfreedom

    Twistedfreedom welcome to the incredibuild

    Joined:
    Sep 12, 2011
    Member:
    #63386
    Messages:
    8,813
    Gender:
    Male
    First Name:
    Adam
    Spokane, WA
    Vehicle:
    incredibuild in progress
    modded the F*ck out
    does the center console just pull out after you take the upholders and the two screws out?
    Looks good BTW I like it!

  6. Jan 27, 2012 at 8:18 PM
    #6
    Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    11,011
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
    thank you..... They are on an Oznium toggle switch with the LEDs that are under the dash and under the seats... All 11 leds come on with a flick of a switch. My led bed lights are next...i have them just haven't done it yet.

  7. Jan 27, 2012 at 8:22 PM
    #7
    Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    11,011
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
    Take out cup holder, unscrew 2 screws, then........ Open console, gently stick small flathead screwdriver...i used one for my sunglasses..... And pull up the carpet piece thats at bottom of center console... Under that is 2 10mm bolts... Take those out and it pulls right up.... Easy easy....it also allowed me to clean all down in between seats :D

  8. Jan 27, 2012 at 8:25 PM
    #8
    Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    11,011
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
    If anyone needs details or info or pics.... Let me know. It was a fun as hell project. IM a neat freak so it all came out extra clean.......i might put more lights somewhere..i got 5 more. I got some night pics to.... Ill post later

  9. Jan 27, 2012 at 8:26 PM
    #9
    DOUBLLD

    DOUBLLD Well-Known Member

    Joined:
    Sep 24, 2011
    Member:
    #64052
    Messages:
    1,180
    Gender:
    Male
    First Name:
    Daniel
    Sterling, VA
    Vehicle:
    05 tacoma ls swap twin turbo
    icon lift, total chaos control arms. ls swap twin turbo in progress.
    i have this done also i have all blue. cup holders under dash under the rear seats and in a few different places all on a lighted led toggle!! looks sick i have a few crappy pics in my profile

  10. Jan 27, 2012 at 8:28 PM
    #10
    Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    11,011
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
    :headbang:

    Best show on tha mutha fuckin planet

  11. Jan 27, 2012 at 8:44 PM
    #11
    Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    11,011
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
  12. Jan 28, 2012 at 7:00 AM
    #12
    cverneau

    cverneau Well-Known Member

    Joined:
    Feb 22, 2011
    Member:
    #51619
    Messages:
    260
    Gender:
    Male
    First Name:
    Craig
    Cheshire, CT.
    Vehicle:
    11 Access Cab 4cyl 4x4 Auto
    AVS In-Channel Window Deflectors, AVS Rear Window Sun/Rain Deflector, EGR Front Hood Deflector, Weathertech Digital Fit Floor Liners, TonnoPro Tri-Fold Cover, Coverking Black Neoprene Front Seats & Center Console Cover, Devil Horns Of Fire On Satoshi, Pop N Lock 5300, Seatbelt Chime Off, Interior & Exterior Led's, Cubby & Drink Holder Amber LED's, Infinity Reference #9633 6X9 Speakers, Solar-Gard HP Smoke 35% Tint, De-badged & Pinstripe Removal, Sun Visor Stickers Removed, Illuminated 4x4 Switch, ImMrYo Rear-View Mirror Lift Bracket, Ultragauge, Bed Storage Cubby Locks Mod, Additional D-Rings In Bed, Intermittent Wiper Stalk, Black Vinyl Arm Rest Mod, Secondary Air Filter Removal Mod, Spare Tire Rod Alignment Tube Mod, 14" Antenna Mod, Tailgate Theft Mod, DTRL Wire Jumper Mod, Parking Lights As Turn Signals Mod, 30 Watt Reverse Bulbs, PIAA 510's In Fog Locations, Burner Bedlights In Bed Cubby's, GoRhino Dominator II Side Steps, Avid Light Bar, Horn Relocation Mod, Rear TSB Springs, Bilstein 5100's on all four corners - front set at 0.85", Cooper Discoverer ATP - 265-75R/16.
    Which LED's are those and did you use holders or bushings for them?? They don't look loke they stick out very far which is what I'm looking for.

  13. Jan 28, 2012 at 8:12 AM
    #13
    Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    11,011
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
    They are ridiculously flush...i was way impressed how they barely stick out. I got 5mm wide angle leds... With holders. I got links to this stuff if needed.

  14. Jan 28, 2012 at 8:19 AM
    #14
    Zombie Runner

    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,111
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    Tundra, double cab.
    LED interior lights, stubby antenna, Pioneer in dash screen
    When I ordered my LEDs from them they didn't send me the little black led holders! I need to get some so I can finish mine

  15. Jan 28, 2012 at 1:21 PM
    #15
    Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    11,011
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
    they make a huge difference.... Radio shack 5 of em for $1 n change

  16. Jan 28, 2012 at 1:25 PM
    #16
    Twistedfreedom

    Twistedfreedom welcome to the incredibuild

    Joined:
    Sep 12, 2011
    Member:
    #63386
    Messages:
    8,813
    Gender:
    Male
    First Name:
    Adam
    Spokane, WA
    Vehicle:
    incredibuild in progress
    modded the F*ck out
    I'm thinking red for my truck can you post links to where you got the lights please:

  17. Jan 28, 2012 at 1:29 PM
    #17
    Rusty 06 4x4

    Rusty 06 4x4 NBHNC

    Joined:
    Sep 26, 2011
    Member:
    #64142
    Messages:
    2,195
    Gender:
    Male
    First Name:
    Rusty
    West Georgia
    Vehicle:
    2006 4x4 Tacoma TRD DCSB
    was it hard and have you done anything like this before.. I would love to do something like this but have no experience with electrical type stuff

  18. Jan 28, 2012 at 1:30 PM
    #18
    Rusty 06 4x4

    Rusty 06 4x4 NBHNC

    Joined:
    Sep 26, 2011
    Member:
    #64142
    Messages:
    2,195
    Gender:
    Male
    First Name:
    Rusty
    West Georgia
    Vehicle:
    2006 4x4 Tacoma TRD DCSB
    he posted radio shack dude

  19. Jan 28, 2012 at 1:35 PM
    #19
    Twistedfreedom

    Twistedfreedom welcome to the incredibuild

    Joined:
    Sep 12, 2011
    Member:
    #63386
    Messages:
    8,813
    Gender:
    Male
    First Name:
    Adam
    Spokane, WA
    Vehicle:
    incredibuild in progress
    modded the F*ck out
    He said he got the holder at Radioshack nothing about the lights them selves. :cool:

  20. Jan 28, 2012 at 3:20 PM
    #20
    Oregon TRD

    Oregon TRD [OP] "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    11,011
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    05 Tacoma 6" Fabtech 35x12.50/17 Fierce M/T
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
    When I get to work Monday morning ...i will post up everything I used with links, tips, and what to buy.....

    For those asking about "was it easy" .... Yeah... I've been hooking up stereo systems, lighting,etc....and blah blah since high school but....... This shit is easy for a beginner and I can walk you thru it..... It was fun as fuck to do actually.... Those WAGO clamps are money for wiring.... They kick ass and make it easier than it already is.....i got LEDs, holders,WAGO clamps,etc for awesome pricing........... All this I did was around $20 total and an hour n half of time....... More info for ya'll Monday.
