First time posting. Thought I would include my wheel spacer install.

Discussion in 'New Members' started by mirraman, May 21, 2011.

  1. May 21, 2011 at 9:56 PM
    #1
    mirraman

    mirraman [OP] Well-Known Member

    Joined:
    May 17, 2011
    Member:
    #56818
    Messages:
    308
    Gender:
    Male
    First Name:
    Tim
    Ventura
    Vehicle:
    98 4Runner Limited 4X4 e-locker :-)
    99 4Runner springs all around: 1" over factory.
    Hello Everyone,

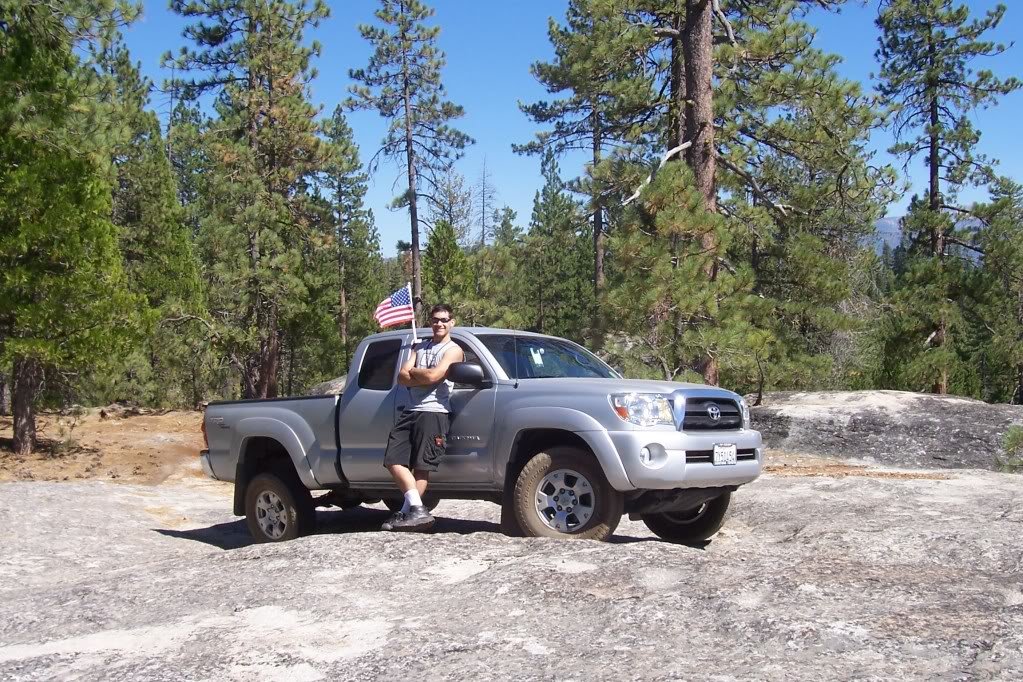

    This is the first time I have ever posted in a forum, so I thought I'd include The wheel spacer install I just finished. For startes I have a 2006 Tacoma Prerunner TRD O/R. I have installed a 2" lift and level kit and bought some LT285/75/16 Definity Dakota AT's. I found that the larger tires rubbed on the UCA since I went with the stock rims. I bought some wheel spacers to solve the problem and found out that the stock wheel studs only allow about 1/4" of thread when mounting. Serious problem! Nobody wants to hit a bumb on the freeway and have a tire snap off!!! So I did some research and found that rear wheel stud replacements for a 2003 Toyota Matrix have the same dimentions as the tacoma studs, but are about a 1/2" longer. Perfect for the 1.5" spacers I put on. :) Here's a pick of my truck the first time I took it off road:
    [​IMG]

    Now on to the spacers!


    First, there are some tools you will need:
    1. 7"-21" hydralic jack or similar
    2. 1/2" torque wrench
    3. 1/2" socket wrench extention
    4. 12mm, 17mm, 19mm, and 22mm sockets
    5. 5/8" box end wrench
    6. 2lb sledge hammer or similar
    7. Three 9/16" ID X 1 3/8" OD grade 5 washers
    8. Throw away lug nut
    9. Silicone spray lubricant
    [​IMG]

    First you will need to remove the wheel, brake caliper, and brake rotor. This is what the 12mm and 17mm sockets are for. DO NOT HANG THE BRAKE CALIPER BY THE BRAKE LINES!! Use some metal wire to hang it out of the way. Sorry I don't have any pick for this. :-(

    Next you will need to use the hammer to tap out the stock stud. Only remove one at a time. The reasoning for this will be explaned shortly. Once the old stud is removed, insert the new one at the 6 o'clock position. This is the only position that allows enough clearance to get the new stud in.
    [​IMG]

    Side view of new stud insert:

    [​IMG]

    Next, place on, in this order, the box end wrench, then the washers, then the throw away lug nut. Before putting on the last washer spray it with the silicone lubricant. This will make the whole procedure easier. Here is a pic of the setup showing the metal bar in place:

    [​IMG]
    LOL I spelled hydralic wrong!

    Then using the toque wrench, or a large socket wrench, tighten the lug nut until the new stud mounts completely. The mushroom head of the stud will come in contact with the back of the spindal wheel and tightening force neede will spike.

    Repeat these steps for all six studs.

    Now we move on to the spacer.

    First, reinstall the brake rotor and caliper.

    Next, set the spacer in place and hand tighten all the mounting lug nuts. Then use the torque wrench and metal bar to lightly tighten them even more. After this I torqued each stud to 100 ft-lbs.

    [​IMG]

    When you are sure that every thing has been torqued correctly mount the tire back on.

    Finished!

    Here are some related pics:

    new stud compared to old one
    [​IMG]

    Just barely even with my mud flap :)
    [​IMG]

    Side view of the spacer:
    [​IMG]

    Well, that's about it. I'm a budget builder so all my stuff is low end. I take care to purchase safe quality stuff, and do all the installs myself. Why pay someone to do something that I can do myself? If you have any questions please let me know. If you think I could have done something better, please tell me.

    Thanks for reading!

    Tim

    Also, everything posted here is what I did. It is not what I think you shoud do. I will not be held accountable for what happens to you, your vehicle, or anything else.

  2. May 21, 2011 at 10:12 PM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Moderator

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    106,195
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Welcome to TW! Great first post! :)

  3. May 21, 2011 at 10:14 PM
    #3
    himmie

    himmie Well-Known Member

    Joined:
    Sep 6, 2010
    Member:
    #42841
    Messages:
    3,583
    Gender:
    Female
    First Name:
    Sarah
    AZ-WI
    Vehicle:
    08 TRD Off Road 4x4
    Visit the Build.
    Welcome to TW!

  4. May 22, 2011 at 1:25 AM
    #4
    RLDTACO

    RLDTACO Well-Known Member

    Joined:
    Aug 2, 2010
    Member:
    #41121
    Messages:
    11,983
    Gender:
    Male
    First Name:
    Bob
    Houston Tx.
    Vehicle:
    2010 DCLB PreRunner SR5
    Debadged,Tailgate theft mod,Extra D-rings,OEM bed mat,TRD exhaust, 5100 Billys@ 4 corners set@ 0 with Eibach springs, rear TSB springs.N-Fab tube Steps. TRD FJ SE wheels and Michelin LTX A/T 2's
    Welcome!

  5. May 22, 2011 at 1:36 AM
    #5
    BulletToothTony

    BulletToothTony Space for rent

    Joined:
    Feb 20, 2008
    Member:
    #4833
    Messages:
    12,934
    First Name:
    You can call me Susan if it makes you happy.
    nice first post and welcome to tw.

  6. May 22, 2011 at 6:38 PM
    #6
    hendooman

    hendooman The Stroker Ace

    Joined:
    Mar 6, 2009
    Member:
    #14421
    Messages:
    3,040
    Gender:
    Male
    First Name:
    Jeff
    KC
    Vehicle:
    2015 TRD PRO 4Runner
    Nice first post, I like your trick with the jack handle. Ever bend a lug doing it that way?

  7. May 22, 2011 at 6:50 PM
    #7
    Sheppymach

    Sheppymach Well-Known Member

    Joined:
    Nov 23, 2010
    Member:
    #46617
    Messages:
    552
    Gender:
    Male
    First Name:
    Sheppy
    Philadelphia, Pa
    Vehicle:
    2014 4Runner trail edition
    BLU LOGIC bt, avid, weather tech mats & rain guards, 285/70/17, BenWA's totally AWESOME power sliding window mod.
    Welcome from the east coast. All pro spacers +1

  8. May 22, 2011 at 6:51 PM
    #8
    Andrew H

    Andrew H What is this "search" you speak of?

    Joined:
    Nov 6, 2008
    Member:
    #10545
    Messages:
    4,281
    Gender:
    Male
    Dirty Tucson
    Vehicle:
    2010DCSB4X4TRDORMGM
    See build thread.
    Nice man.

    Love the US flag being flown on your truck.

  9. May 22, 2011 at 7:03 PM
    #9
    Average JOE

    Average JOE Well-Known Member

    Joined:
    Nov 26, 2010
    Member:
    #46747
    Messages:
    223
    Gender:
    Male
    First Name:
    Matt
    San Diego
    Vehicle:
    PreRunner
    3'lift,Upgraded sound system,Dyanamat interior flowmaster,K&N,
    Great Post! Nice Write up. +1 for you Sir.

  10. May 22, 2011 at 7:13 PM
    #10
    wing103

    wing103 Well-Known Member

    Joined:
    Jul 8, 2008
    Member:
    #7807
    Messages:
    1,130
    Gender:
    Male
    Boston
    Vehicle:
    Tacoma TRD Sport / Dark Gray
    Grill Craft upper & Lower Grill WetOK Seat Cover, Devil Horn, Bug, Windows Deflector, Side step Bar, HID 55W 8000K Headlight, HID 35W 4000K Foglight, Fog Light Mod, Interior LED Map Light Mod, Electric Tail Gate Lock, Leer Cab, Key ring light, Bed LED lights Mod, Kenwood DNX5120, Signal Mirror with Heat
    Nice write up for sure. I will do it later when I get my new wheels and tires

  11. Oct 23, 2011 at 5:39 PM
    #11
    FREAKNAWESOME

    FREAKNAWESOME Member

    Joined:
    Oct 23, 2011
    Member:
    #65719
    Messages:
    16
    Gender:
    Male
    First Name:
    Blair
    kitchener,on
    Vehicle:
    2006 access cab
    HI.
    LIKE TO ADD MY EXPERIENCE .
    DID THE SAME THING ON MY 97' 4 RUNNER.
    NOW THE SAME ON MY 2006 TACOMA.
    THE ONLY THING DIFFERENT IS I USED AN IMPACK GUN TO PULL THE STUDS IN.
    WORKS AWESOME AS LONG AS YOU KNOW WHEN TO STOP...lol.
    CHEERS EVERONE.

  12. Oct 23, 2011 at 5:53 PM
    #12
    TheGloryFades

    TheGloryFades Well-Known Member

    Joined:
    Aug 17, 2011
    Member:
    #61861
    Messages:
    1,227
    Gender:
    Male
    First Name:
    Seth
    Arizona
    Vehicle:
    '13 toaster
    Welcome to TW from Az. Yea an impact gun and a short socket that fits around the stud works well instead of washers.

  13. Oct 24, 2011 at 8:33 AM
    #13
    FREAKNAWESOME

    FREAKNAWESOME Member

    Joined:
    Oct 23, 2011
    Member:
    #65719
    Messages:
    16
    Gender:
    Male
    First Name:
    Blair
    kitchener,on
    Vehicle:
    2006 access cab
    Thanks.
    Are the 2003 matrix studs off a front wheel drive? or all wheel drive/?
    Just i have the 1.25' spacers that i took off my 4 runner and planning to put them on my tacoma soon..Curious that the matrix studs maybe a shade too long for 1.25' spacers?
    Ok did some looking for studs .
    The toyota matrix studs are the same as the tacoma?
    IM COMFUsED...lol..

  14. Oct 24, 2011 at 1:11 PM
    #14
    tacowestley

    tacowestley Khmer Member

    Joined:
    Sep 28, 2011
    Member:
    #64325
    Messages:
    782
    Gender:
    Male
    First Name:
    Wes
    562/626, CA
    Vehicle:
    05 DC Prerunner OR
    8k HIDs, flowmaster, bora wheel spacers 1.25'', debadged tailgate, DRL and foglight anytime mod, BHLM, 09+ LED tailights, painted valence black, mickey thompson classics 16'', switchback LEDs, reverse LEDs, tailgate clamp
    Welcome to TW man! And nice write up too
