FJ Auxiliary Light Switch Install? Diy? Part Numbers?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by steveo27, Jan 26, 2017.

  1. Jan 26, 2017 at 8:36 PM
    #1
    steveo27

    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    4,962
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.

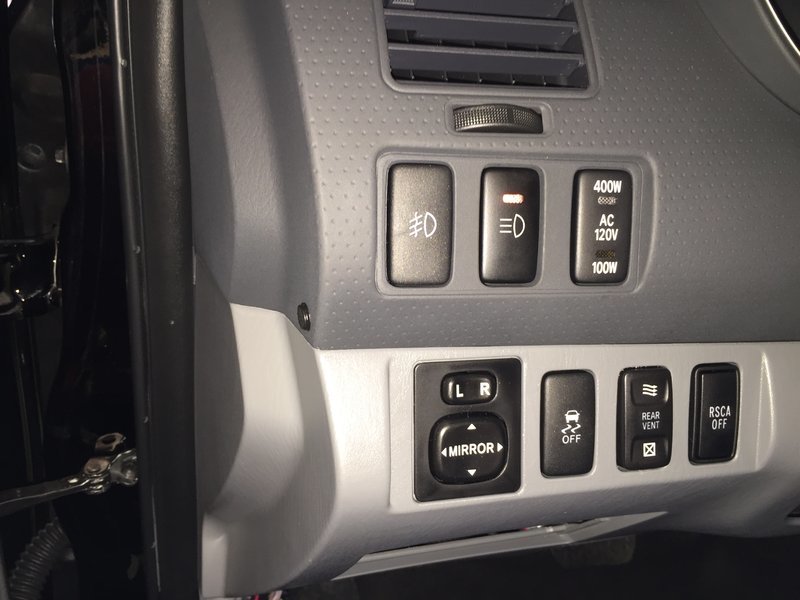

    After some debate, I think I finally figured out what I wanna do for my light bar switch. The Ch4x4 and Mictuning switches all look cheap and dont match enough to pass as OEM. The solution is an OEM auxiliary driving light switch. Its an OEM part so itll match 100%.

    Said switch -

    [​IMG]

    Im working on putting together a list of parts to do the install.

    Parts List -

    - AUXILIARY DRIVING LIGHT SWITCH - PT297-35070-AS
    - HOUSING, CONNECTOR, FEMALE - 90980-10933
    - FEMALE TERMINALS - ????


    I need to source female terminals still. Toyota sells repair wires, but Id much rather crimp new connectors on the existing harness to complete the job.

    I believe these are the correct terminals Sumitomo TS / SL Female Terminal 0.5 - 1.25 mm2 ( 20 - 16 AWG ) These terminals are used for the heated mirror switches and I believe they are the same for the light switch plugs

    Can anyone verify these are correct?


    Ill update this thread with more info once I have the correct terminals found and ordered
