Fog light aftermarket switch/ adding fog lights

Discussion in '2nd Gen. Tacomas (2005-2015)' started by cb.eng, Nov 20, 2019.

  1. Nov 20, 2019 at 5:14 AM
    #1
    cb.eng

    cb.eng [OP] Member

    Joined:
    Nov 20, 2019
    Member:
    #311224
    Messages:
    14
    Gender:
    Male
    First Name:
    Connor
    Lafayette, Louisiana
    Vehicle:
    2010 DCSB Prerunner
    4" Spindle, 5100's/B110, AAL
    Hey so I ended up just ordering a new harness and fog light assembly for the truck, installing said harness led to me discovering that the truck was prewired for the fogs. Only problem is a OEM switch is like 42$ and although that isn't a whole lot of money the idea of spending it when I have a perfectly good one kinda irks me. I pulled the male connections out from behind the little button cover on the dash and none of them fit the switch I have. Any way to splice something up to make it fit?
    Also, I have those two old fog light housings and conveniently a unused wiring harness. Could I wire that up where all 4 fog lights would come on using the same switch? I figured you guys would know, thanks

  2. Nov 20, 2019 at 5:18 AM
    #2
    koditten

    koditten Well-Known Member

    Joined:
    Sep 8, 2013
    Member:
    #112077
    Messages:
    14,636
    Gender:
    Male
    First Name:
    Kirk
    Central Michigan
    Vehicle:
    04 trd x-cab 4 x 4 3.4l
    Reserected from the dead.
  3. Nov 20, 2019 at 5:42 AM
    #3
    gotoman1969

    gotoman1969 Well-Known Member

    Joined:
    May 30, 2018
    Member:
    #254966
    Messages:
    3,968
    Gender:
    Male
    First Name:
    Steve
    San Antonio, TX United States
    Vehicle:
    2015 Silver Tacoma PreRunner
    3" ToyTec coilovers, JBA UCA's, Bilstein 5100's
    I like to use the factory connections when possible, by the time you splice in and solder and heat shrink correctly. The time you spent and materials you could have just plugged in the factory switch. Pretty much break even imo and there are plenty of companies not that make the harness with the factory connection on the fog harness so you can use the factory connection that’s there already.

  4. Nov 20, 2019 at 5:51 AM
    #4
    4xdog

    4xdog Well-Known Member

    Joined:
    May 10, 2018
    Member:
    #253074
    Messages:
    454
    Gender:
    Male
    Saint Louis MO
    Vehicle:
    2003 Tacoma DC 4WD TRD, 2015 Tacoma DC 4x4 TRD
    Boy, I'd pop for the OEM switch and consider myself lucky.

    The combination of wiring quality of the factory loom and the time required to bypass it makes the cost of the switch look like a bargain.

    Muddinfun and gotoman1969 like this.
  5. Nov 20, 2019 at 5:55 AM
    #5
    cb.eng

    cb.eng [OP] Member

    Joined:
    Nov 20, 2019
    Member:
    #311224
    Messages:
    14
    Gender:
    Male
    First Name:
    Connor
    Lafayette, Louisiana
    Vehicle:
    2010 DCSB Prerunner
    4" Spindle, 5100's/B110, AAL
    Thanks for the advice

  6. Nov 20, 2019 at 9:15 AM
    #6
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,079
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

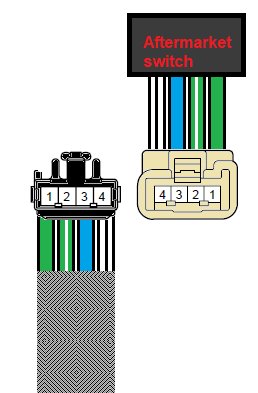

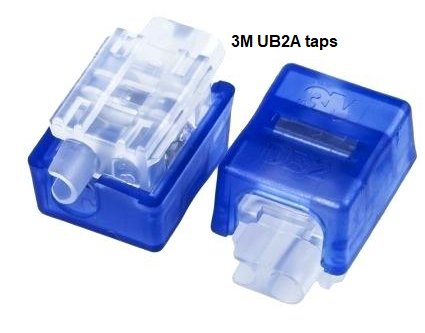

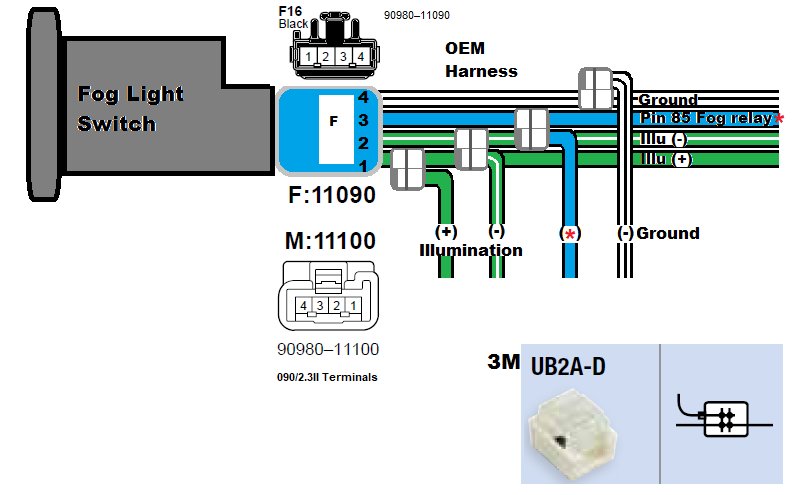

    You could get connector 90980-11100 (male) and place the male terminals then mate to OEM connector (F16) then the wires from the male connector to your switch. Or get the 3M T-taps and go that route...

    Last edited: Nov 20, 2019
  7. Nov 20, 2019 at 9:40 AM
    #7
    mray

    mray Well-Known Member

    Joined:
    Mar 25, 2014
    Member:
    #126157
    Messages:
    200
    Gender:
    Male
    Colorado
    Vehicle:
    2011 4cyl Base Access Cab 4x4
    Just go for the factory switch and not worry about cutting/splicing/soldering. You can find used ones on ebay, or new on ebay or Amazon

    Added bonus, the light color will match all your other switches/dash lights

    Peace of mind has a price and in this case, it's not that high.

  8. Nov 20, 2019 at 9:42 AM
    #8
    JustAddMud

    JustAddMud Professional Grease Monkey

    Joined:
    Aug 20, 2012
    Member:
    #85169
    Messages:
    938
    Gender:
    Male
    First Name:
    J
    Summerville SC
    Vehicle:
    12 4x4 TRD OR
    Yes

    Off topic: @caribe makaira what program are you using to pull those wire diagrams?

    -J

  9. Nov 20, 2019 at 9:45 AM
    #9
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,079
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Pull?...Adobe Acrobat Reader and MSPaint.

    JustAddMud likes this.
  10. Nov 20, 2019 at 9:56 AM
    #10
    JustAddMud

    JustAddMud Professional Grease Monkey

    Joined:
    Aug 20, 2012
    Member:
    #85169
    Messages:
    938
    Gender:
    Male
    First Name:
    J
    Summerville SC
    Vehicle:
    12 4x4 TRD OR
    Yes
    Dang, I thought you had some program because your wiring diagrams are on point.

    -J

  11. Nov 20, 2019 at 10:08 AM
    #11
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,461
    Aftermarket switches are internally connected differently than OEM fog switches. Here's a thread that goes into detail about the problems with trying to use an aftermarket switch with OEM wiring. Buy an OEM switch and plug it in. If you want to get something cool for your money, buy a FJ cruiser switch and a 6 terminal connector body. Depin the Tacoma connector, plug the 4 wires into the FJ connector, add 2 more wires, and you will end up with a fog switch with an indicator light that tells you when the fogs are on.

    https://www.tacomaworld.com/threads...o-existing-foglight-wires-2013-tacoma.630567/
