Fog light help

Discussion in '3rd Gen. Tacomas (2016+)' started by pinktaco808, Apr 12, 2021.

  1. Apr 12, 2021 at 8:32 AM
    #1
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,418
    Gender:
    Male
    Have 2021 tacoma access cab sr. It never came with fog light. I bought fog light kit and needed help with the wiring . There 3 wires. what and where do I tap or wire it into. Red white and black. The black ground. Red power and white turn on? Where I tap into or it was pre wired from the f a CT r y. Please help thanks...post pic and diagrams thanks.



    Mods please move to 3rd gen thread thanks

  2. Apr 12, 2021 at 8:37 AM
    #2
    brandon78lusch

    brandon78lusch Well-Known Member

    Joined:
    Oct 22, 2019
    Member:
    #308678
    Messages:
    2,686
    Gender:
    Male
    First Name:
    Brandon
    Mooresville NC --> Greenville NC
    Vehicle:
    2019 TRD Sport DCSB 4x4 AT Super White
    I might be wrong but if that is coming from the fuse, you'll have to buy those ring terminals. Red is positive and will connect to the battery, black is always negative/ground and will ground next to the battery, and im not sure about the white

    pinktaco808 [OP] likes this.
  3. Apr 12, 2021 at 8:40 AM
    #3
    Taco_Coma

    Taco_Coma That's a lovely accent you have. New Jersey?

    Joined:
    Oct 30, 2018
    Member:
    #271144
    Messages:
    2,594
    Gender:
    Male
    South NJ
    Vehicle:
    2018 DCSB SR5
    Where did you get this kit from

  4. Apr 12, 2021 at 8:43 AM
    #4
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,418
    Gender:
    Male
  5. Apr 12, 2021 at 8:45 AM
    #5
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,418
    Gender:
    Male

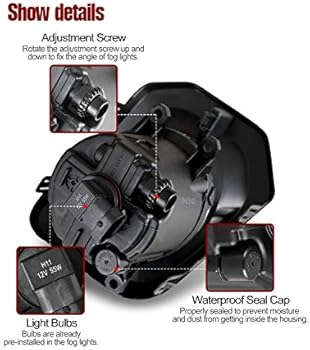

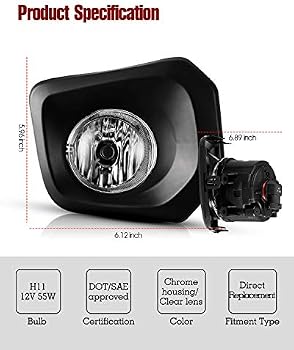

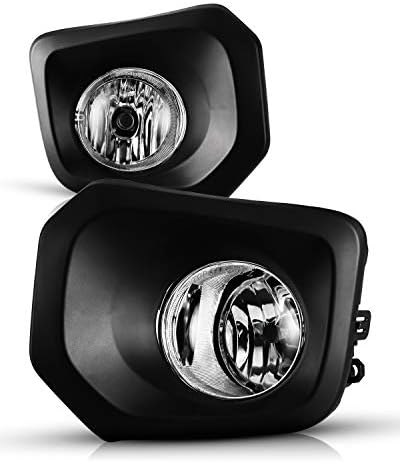

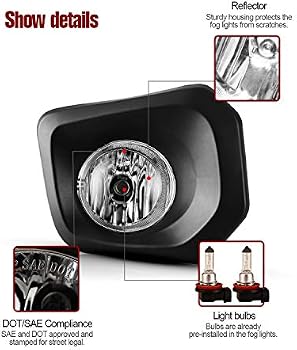

    Search auto wiki

    Fog Light Assembly For Toyota Tacoma 2016-2021 (Fits SR, SR5 Model Only) With Clear Lens 2PCS AUTOWIKI



    1. [​IMG]
    2. [​IMG]
    3. [​IMG]
    4. [​IMG]
    5. [​IMG]
    6. [​IMG]
    7. [​IMG]

  6. Apr 12, 2021 at 9:01 AM
    #6
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,418
    Gender:
    Male
    EASY 2016-20 3rd Gen Tacoma SR Fog Light Install: NO SWITCH/STALK

  7. Apr 12, 2021 at 9:07 AM
    #7
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,418
    Gender:
    Male
  8. Apr 12, 2021 at 9:12 AM
    #8
    TenBeers

    TenBeers Well-Known Member

    Joined:
    Jun 5, 2009
    Member:
    #18067
    Messages:
    5,605
    Gender:
    Male
    First Name:
    Rich
    Bentonville, AR
    Vehicle:
    2018 TRD Pro Cavalry Blue
    CBI bed rack and sliders, CVT Mt. Shasta, Uniden 520XL, WeatherTechs, TRD CAI, 1Up USA hitch rack, speaker upgrade, Total Chaos bed stiffeners, Warn Hidden Winch Bumper and winch

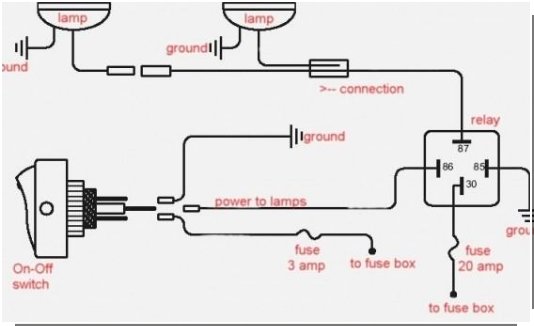

    If the kit came with wiring and a switch, it should have a little black box that is a relay. Below is a simple diagram of how this would get wired up.



  9. Apr 12, 2021 at 9:18 AM
    #9
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,418
    Gender:
    Male
  10. Apr 12, 2021 at 9:22 AM
    #10
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,418
    Gender:
    Male

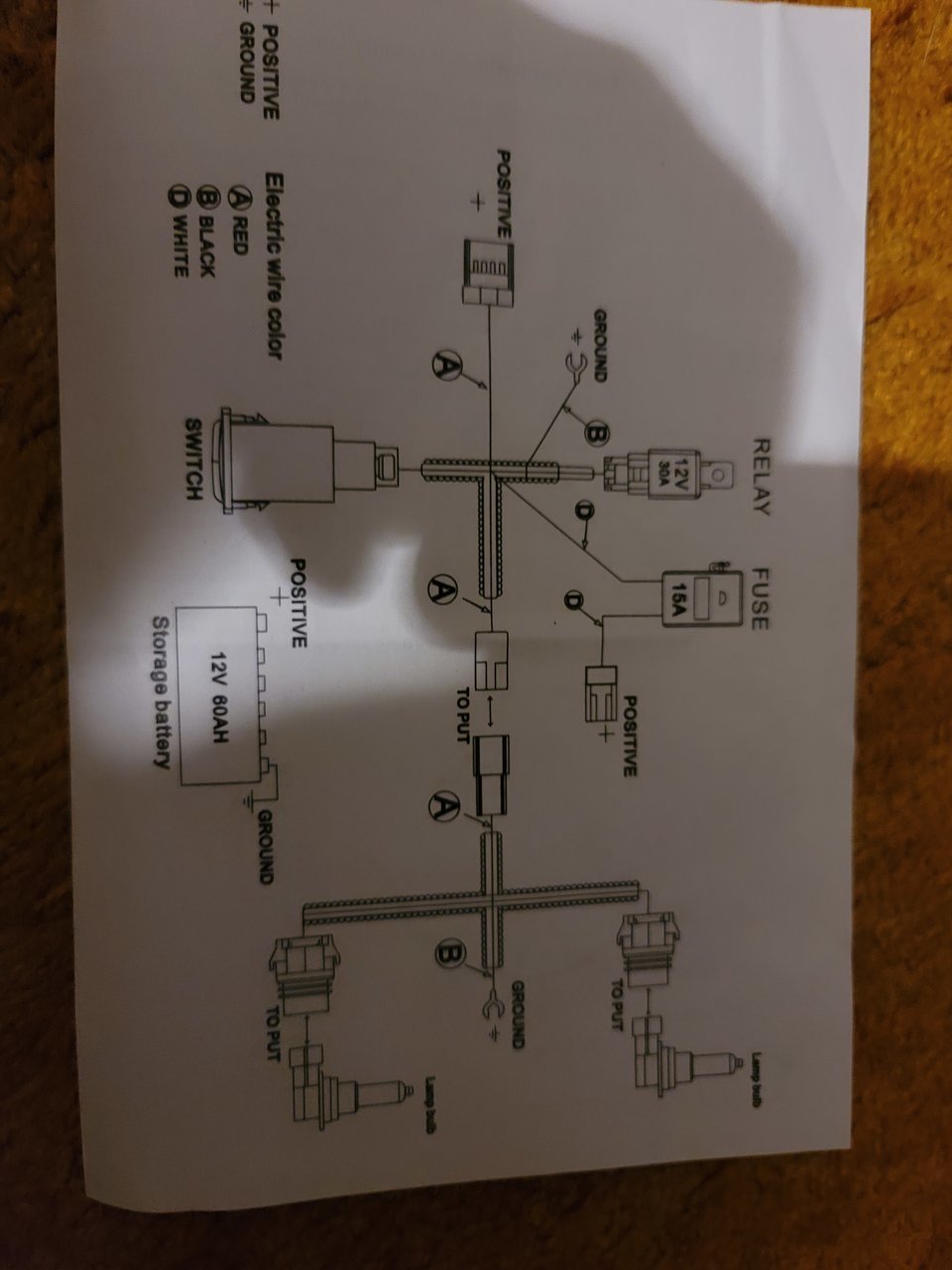

    I'm still lost because there 3 wire by the switch side in my picture

    A ground , power , and the white one which has a fuse in line.

  11. Apr 12, 2021 at 9:24 AM
    #11
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,418
    Gender:
    Male
    I trying to figure the white one, I'm gonna get the bushman add a fuse it said to tap into the low beam wire?

  12. Apr 12, 2021 at 9:25 AM
    #12
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,418
    Gender:
    Male
  13. Apr 12, 2021 at 9:26 AM
    #13
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,418
    Gender:
    Male
    Any help from this ???


  14. Apr 12, 2021 at 9:43 AM
    #14
    TenBeers

    TenBeers Well-Known Member

    Joined:
    Jun 5, 2009
    Member:
    #18067
    Messages:
    5,605
    Gender:
    Male
    First Name:
    Rich
    Bentonville, AR
    Vehicle:
    2018 TRD Pro Cavalry Blue
    CBI bed rack and sliders, CVT Mt. Shasta, Uniden 520XL, WeatherTechs, TRD CAI, 1Up USA hitch rack, speaker upgrade, Total Chaos bed stiffeners, Warn Hidden Winch Bumper and winch
    Well, their diagram sucks. The one on the product page at Amazon showing the actual harness makes more sense.

    The switch needs positive and negative hooked to power and ground, any switched circuit. I personally would use an add-a-circuit on the fuse box (red +), and ground to the bolt that holds the fuse box (black -). The white or yellow wire from the switch then goes to the part of the harness with the relay. The relay also needs power and ground, going through a higher-amp fuse (looks like they have on in-line already). Basically your switch turns on the relay (another switch), which powers the lights without pulling through your standard fuses.

    pinktaco808 [OP] likes this.
  15. Apr 12, 2021 at 9:48 AM
    #15
    brandon78lusch

    brandon78lusch Well-Known Member

    Joined:
    Oct 22, 2019
    Member:
    #308678
    Messages:
    2,686
    Gender:
    Male
    First Name:
    Brandon
    Mooresville NC --> Greenville NC
    Vehicle:
    2019 TRD Sport DCSB 4x4 AT Super White
    that sounds about right

    pinktaco808 [OP] likes this.
  16. Apr 12, 2021 at 10:34 AM
    #16
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,418
    Gender:
    Male
    Sorry so where do I hook up the white wire too?

  17. Apr 12, 2021 at 10:43 AM
    #17
    TenBeers

    TenBeers Well-Known Member

    Joined:
    Jun 5, 2009
    Member:
    #18067
    Messages:
    5,605
    Gender:
    Male
    First Name:
    Rich
    Bentonville, AR
    Vehicle:
    2018 TRD Pro Cavalry Blue
    CBI bed rack and sliders, CVT Mt. Shasta, Uniden 520XL, WeatherTechs, TRD CAI, 1Up USA hitch rack, speaker upgrade, Total Chaos bed stiffeners, Warn Hidden Winch Bumper and winch
    Well, I'm assuming you are using the entire harness that came with the kit. The white wire from the switch would go to the light harness. There should be power, ground, and a white or yellow on the harness that connects to the actual lights. Hook the white from the switch to that white/yellow.

    If you were pre-wired for fogs and are trying to use that wiring, this is a whole different conversation.

    pinktaco808 [OP] likes this.
  18. Apr 12, 2021 at 10:55 AM
    #18
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,418
    Gender:
    Male
    Noo there another harness that clips to the wires. There no bare wire that why. Beside another g r ound for the lights

  19. Apr 12, 2021 at 10:56 AM
    #19
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,418
    Gender:
    Male
    I'll take a pic of the entire harness when I get home

  20. Apr 12, 2021 at 1:16 PM
    #20
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,418
    Gender:
    Male
