Fog light help

Discussion in '3rd Gen. Tacomas (2016-2023)' started by pinktaco808, Apr 12, 2021.

  1. Apr 12, 2021 at 3:01 PM
    #21
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,659
    Gender:
    Male

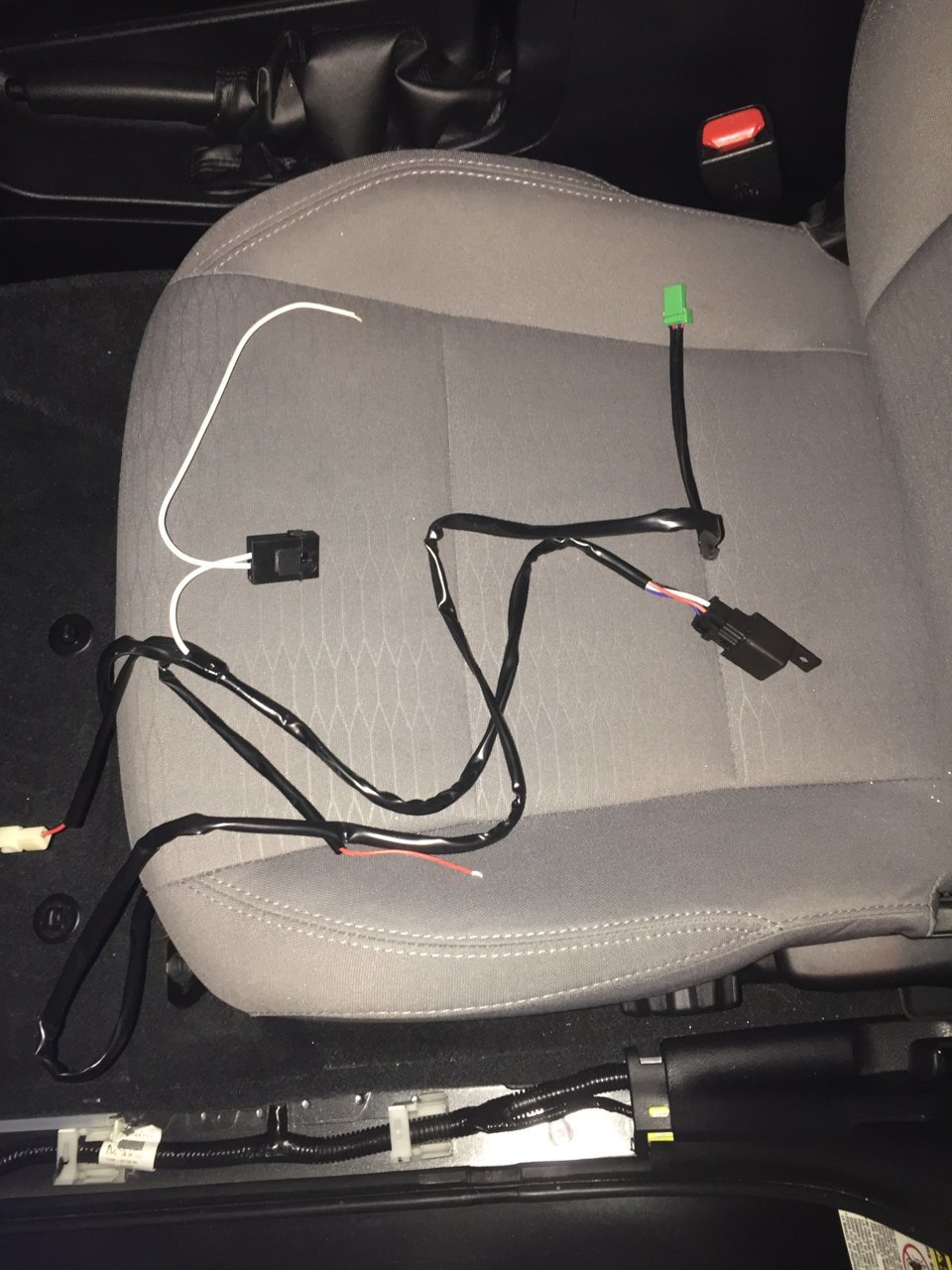

    So where does the white wire connect too?


  2. Apr 12, 2021 at 3:54 PM
    #22
    TenBeers

    TenBeers Well-Known Member

    Joined:
    Jun 5, 2009
    Member:
    #18067
    Messages:
    7,212
    Gender:
    Male
    First Name:
    Rich
    Bentonville, AR
    Vehicle:
    2018 TRD Pro Cavalry Blue
    Yeah.
    Based on your diagram, directly to the battery.

  3. Apr 12, 2021 at 4:04 PM
    #23
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,659
    Gender:
    Male
    Ok

  4. Apr 12, 2021 at 4:14 PM
    #24
    TenBeers

    TenBeers Well-Known Member

    Joined:
    Jun 5, 2009
    Member:
    #18067
    Messages:
    7,212
    Gender:
    Male
    First Name:
    Rich
    Bentonville, AR
    Vehicle:
    2018 TRD Pro Cavalry Blue
    Yeah.
    That white wire goes to what should be a fuse holder (15A). That then goes to the relay that provides power to the lights. Do NOT connect that through another circuit or you may overload another fuse in your system.

  5. Apr 12, 2021 at 5:12 PM
    #25
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,659
    Gender:
    Male
    Waite, don't connect it directly to the battery. Or I do?

  6. Apr 12, 2021 at 5:46 PM
    #26
    TenBeers

    TenBeers Well-Known Member

    Joined:
    Jun 5, 2009
    Member:
    #18067
    Messages:
    7,212
    Gender:
    Male
    First Name:
    Rich
    Bentonville, AR
    Vehicle:
    2018 TRD Pro Cavalry Blue
    Yeah.
    Sorry, yes, directly to the battery, not through a fuse panel. Like straight to the battery.

  7. Apr 12, 2021 at 6:03 PM
    #27
    HyTrojan

    HyTrojan Well-Known Member

    Joined:
    Feb 12, 2007
    Member:
    #895
    Messages:
    143
    Gender:
    Male
    First Name:
    Jared
    South Louisiana
    Vehicle:
    2020 MGM Sport AT DCSB
    Nfab running boards, PapaRee Tune, T4R Pro SEMA rims
    That white wire goes to the red post on your battery

  8. Apr 14, 2021 at 1:05 AM
    #28
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,659
    Gender:
    Male
    Is the add a fuse a reg or mini?

  9. Apr 14, 2021 at 4:03 AM
    #29
    HyTrojan

    HyTrojan Well-Known Member

    Joined:
    Feb 12, 2007
    Member:
    #895
    Messages:
    143
    Gender:
    Male
    First Name:
    Jared
    South Louisiana
    Vehicle:
    2020 MGM Sport AT DCSB
    Nfab running boards, PapaRee Tune, T4R Pro SEMA rims
  10. Apr 14, 2021 at 7:29 AM
    #30
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,659
    Gender:
    Male
    Shit bought the wrong one lol

  11. Apr 14, 2021 at 10:30 AM
    #31
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,659
    Gender:
    Male
    So where dies everyone plug the add a fuse to under the dash? Which opening everyone uses? I seen 3 different ones. Which is best? Or preferred?

  12. Apr 14, 2021 at 11:00 AM
    #32
    TenBeers

    TenBeers Well-Known Member

    Joined:
    Jun 5, 2009
    Member:
    #18067
    Messages:
    7,212
    Gender:
    Male
    First Name:
    Rich
    Bentonville, AR
    Vehicle:
    2018 TRD Pro Cavalry Blue
    Yeah.

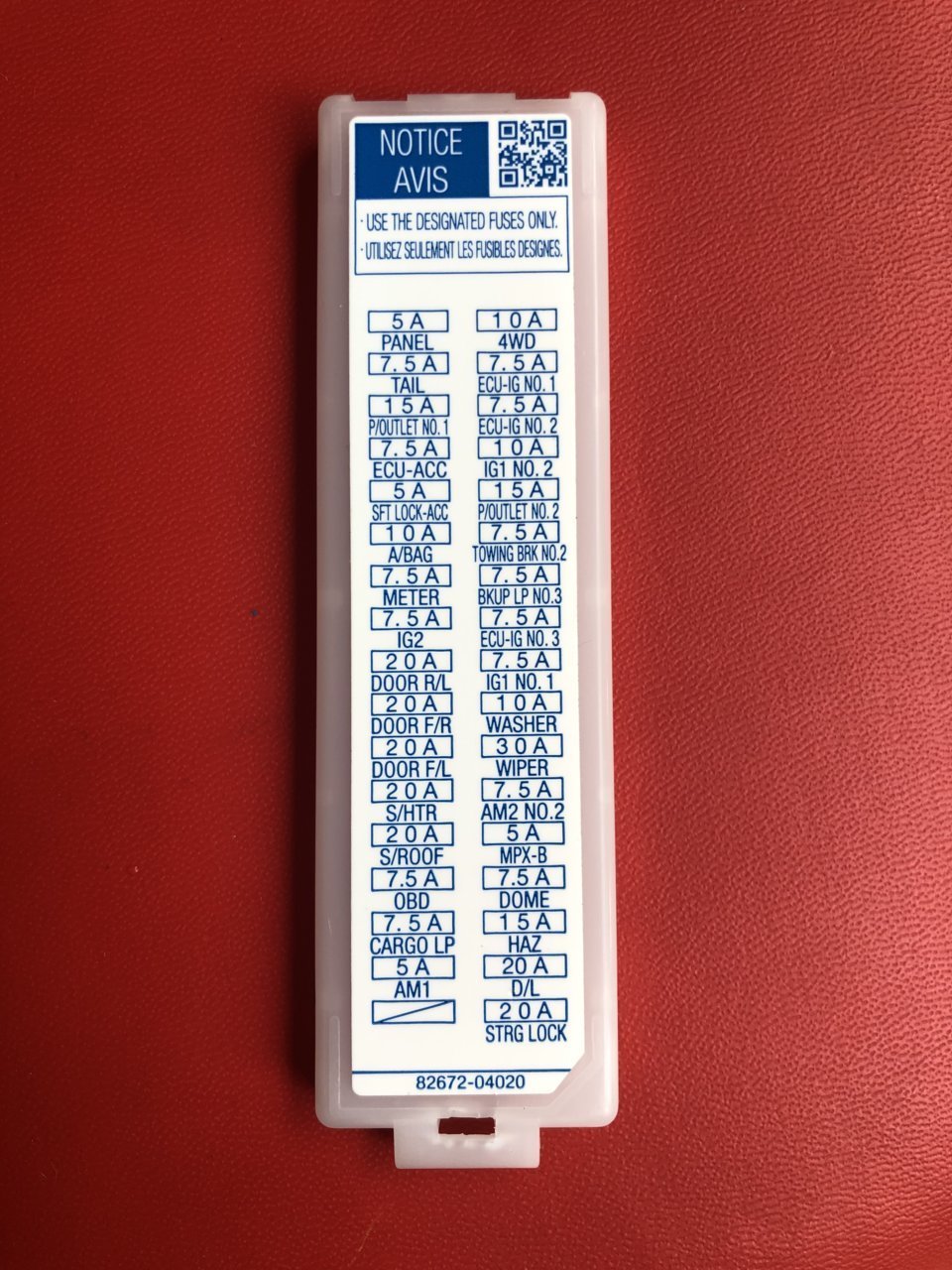

    You likely want one that is only hot when Acc or Ignition is on, not on all the time. I didn't have any open spots for my radio and just tagged on to an existing one. Got a pic of the fuse cover?

  13. Apr 14, 2021 at 8:42 PM
    #33
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,659
    Gender:
    Male

  14. Apr 15, 2021 at 5:04 AM
    #34
    TenBeers

    TenBeers Well-Known Member

    Joined:
    Jun 5, 2009
    Member:
    #18067
    Messages:
    7,212
    Gender:
    Male
    First Name:
    Rich
    Bentonville, AR
    Vehicle:
    2018 TRD Pro Cavalry Blue
    Yeah.
    I'd personally use P/OUTLET NO.1 or P/OUTLET NO.2.

    pinktaco808[OP] likes this.
  15. Apr 15, 2021 at 7:32 AM
    #35
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,659
    Gender:
    Male
    Please explain, just wondering

  16. Apr 15, 2021 at 7:40 AM
    #36
    TenBeers

    TenBeers Well-Known Member

    Joined:
    Jun 5, 2009
    Member:
    #18067
    Messages:
    7,212
    Gender:
    Male
    First Name:
    Rich
    Bentonville, AR
    Vehicle:
    2018 TRD Pro Cavalry Blue
    Yeah.
    Those are the fuses/circuits for your power outlets (phone/device charging). They shouldn't stay on when the vehicle is off, and if something goes wrong you haven't blown a fuse that might affect your safety.

    The actual switch just turns the relay on and shouldn't draw much power at all, but still . . .

  17. Apr 19, 2021 at 8:18 PM
    #37
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,659
    Gender:
    Male
    Last question how I attach the fog bulb to the bumper? I go from the back side? Which corner I use because it only came with 4 or need all 4 corners?

  18. Apr 19, 2021 at 9:46 PM
    #38
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,659
    Gender:
    Male

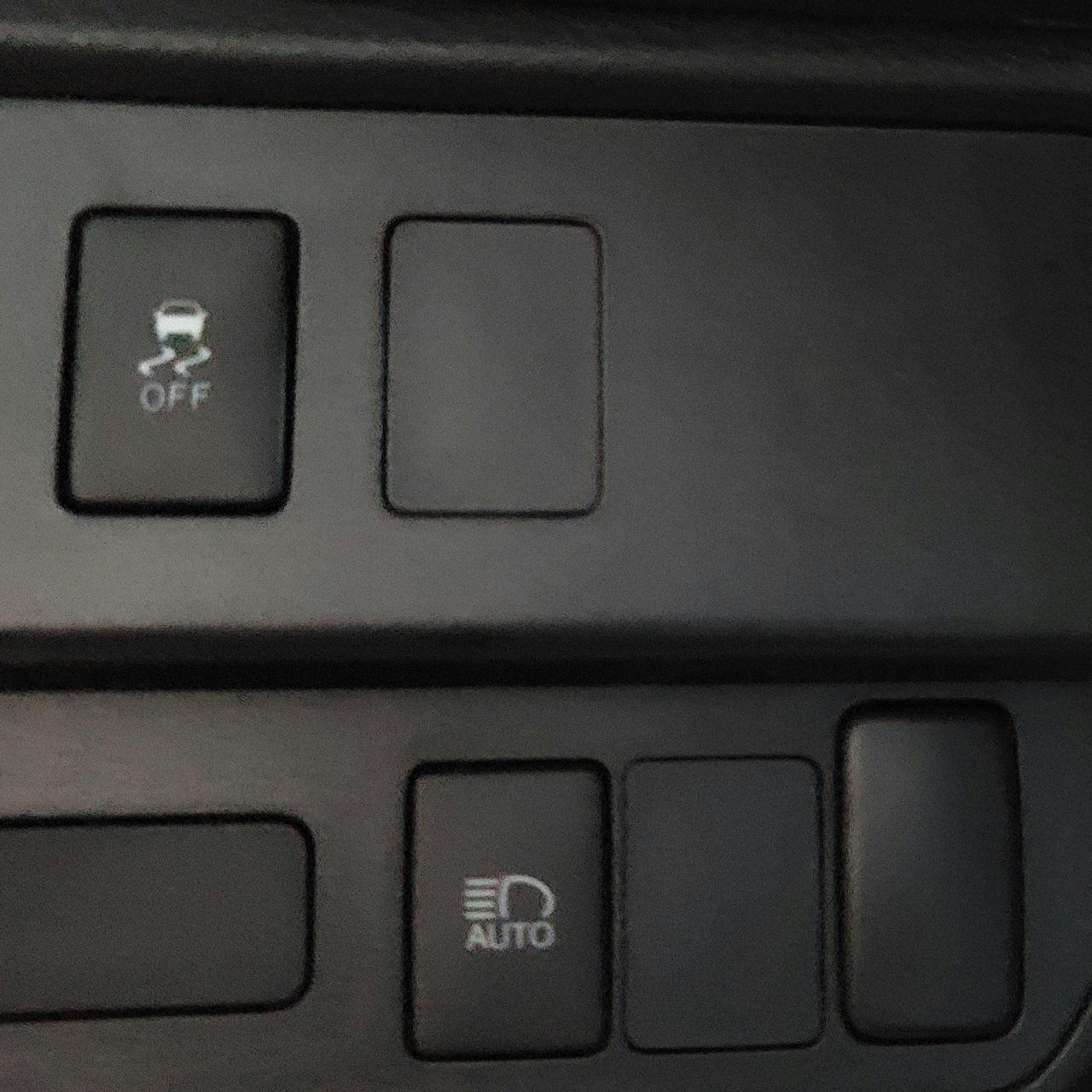

    Anyone know what this switch is for? It prewired?

  19. Apr 19, 2021 at 10:08 PM
    #39
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,659
    Gender:
    Male
  20. Apr 20, 2021 at 1:23 AM
    #40
    pinktaco808

    pinktaco808 [OP] Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    4,659
    Gender:
    Male
