Fog Light Install Help SR

Discussion in '3rd Gen. Tacomas (2016+)' started by Forge, Apr 28, 2018.

  1. Apr 28, 2018 at 5:02 PM
    #1
    Forge

    Forge [OP] Well-Known Member

    Joined:
    Jun 18, 2017
    Member:
    #221832
    Messages:
    294
    Gender:
    Male
    First Name:
    Rick
    Hello everyone. Getting ready to install my fogs in my SR tomorrow. Was going to use @Nitori method but the fam actually was listening when I mentioned I wanted fogs lights for truck. I appreciate them for listening. They bought me this set from ebay [​IMG]$69 2016-2017 TOYOTA TACOMA BUMPER DRIVING FOG LIGHTS LAMP YELLOW W/BLACK BEZEL+BULBhttps://www.ebay.com/itm/2016-2017-...e=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

    I also read @moe2o4 writeup and watched Youtube videos on installing lights ---(only found one SR fog install (linked) and the rest are light bar vids) This kit comes with the lights (H11), bezel, OEM style switch, wiring harness. The harness has an inline fuse and relay...(I assume that will handle the power to lights)?? I am pre-wired but realize that ship has sailed with this kit.

    Am I correct in thinking all I need to buy is fusetap and fuse (at switch)? Do I need a 5 amp fuse? Also what fuse do you recommend I tap into from inside the truck?

    Thanks for any advice you can give have...I not messed with wiring in a long time.

    2017 DCSB SR,Intermittent Wipers, 4Runner Trail Edition wheels/Hankook Dynapro ATM 265/70R17, LED lights ins

    moe2o4 likes this.
  2. Apr 28, 2018 at 5:36 PM
    #2
    Pickupman2007

    Pickupman2007 Well-Known Member

    Joined:
    Mar 27, 2016
    Member:
    #182547
    Messages:
    416
    Gender:
    Male
    First Name:
    Kenneth
    Murfreesboro, TN
    Vehicle:
    2017 DCSB TRDOR V6 6MT 4x4
    Morimoto 5500k HID, OEM Audio Plus System 500Q + Aftermarket JBL door speakers, Morimoto XB LED Fog lights, LED bed lights, T-Rex Grille, Amber rear signals, Shift knob (non OE), DEI aftermarket auto lamps, Fortin EVO One remote start OVTune MT ADM
    Yes your fog lights will be powered through the inline fuse and relay from the battery. The switch will only power the relay coil which requires very little power. I would use an add-a-fuse like this: https://www.amazon.com/Add-Fuse-same-function-Bussmann/dp/B007FFG5YI instead of a tap which will spread your existing contacts. I'd look for a fuse that is switched with your ignition or taillights so you can't accidentally leave your fog lights on and drain your battery. If you use the add a fuse your fuse box cover won't fit anymore so I recommend checking this out if you still want a cover: https://www.tacomaworld.com/threads/custom-fuse-cover-extended-height.519448/

    Forge [OP] likes this.
  3. Apr 28, 2018 at 5:42 PM
    #3
    Pickupman2007

    Pickupman2007 Well-Known Member

    Joined:
    Mar 27, 2016
    Member:
    #182547
    Messages:
    416
    Gender:
    Male
    First Name:
    Kenneth
    Murfreesboro, TN
    Vehicle:
    2017 DCSB TRDOR V6 6MT 4x4
    Morimoto 5500k HID, OEM Audio Plus System 500Q + Aftermarket JBL door speakers, Morimoto XB LED Fog lights, LED bed lights, T-Rex Grille, Amber rear signals, Shift knob (non OE), DEI aftermarket auto lamps, Fortin EVO One remote start OVTune MT ADM
    You can get the add a fuse local like auto zone, but my auto zone link wouldn't work so I found another.

  4. Apr 28, 2018 at 5:44 PM
    #4
    Forge

    Forge [OP] Well-Known Member

    Joined:
    Jun 18, 2017
    Member:
    #221832
    Messages:
    294
    Gender:
    Male
    First Name:
    Rick
    Thanks for the reply. Link still not working...you have a part name and model ?...I can look up that way. Thanks again.

  5. Apr 28, 2018 at 5:45 PM
    #5
    Pickupman2007

    Pickupman2007 Well-Known Member

    Joined:
    Mar 27, 2016
    Member:
    #182547
    Messages:
    416
    Gender:
    Male
    First Name:
    Kenneth
    Murfreesboro, TN
    Vehicle:
    2017 DCSB TRDOR V6 6MT 4x4
    Morimoto 5500k HID, OEM Audio Plus System 500Q + Aftermarket JBL door speakers, Morimoto XB LED Fog lights, LED bed lights, T-Rex Grille, Amber rear signals, Shift knob (non OE), DEI aftermarket auto lamps, Fortin EVO One remote start OVTune MT ADM
    busman BP-HHH-RP

    Forge [OP] likes this.
  6. May 5, 2018 at 6:45 PM
    #6
    Forge

    Forge [OP] Well-Known Member

    Joined:
    Jun 18, 2017
    Member:
    #221832
    Messages:
    294
    Gender:
    Male
    First Name:
    Rick

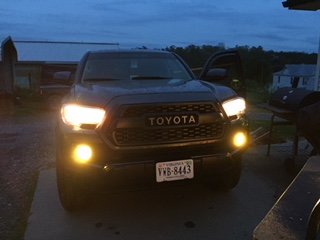

    Got the fog lights installed on my SR. Went ahead and put china pro grill on also. The kit is pretty straight forward. The light trim fits pretty good but not as tight as a stock one would. H11 bulb seems to work good...also like the color of light also. Will keep an eye out for OEM light trim. Only cause I can be picky at times. Taking the old trim off was pain in butt... Had to shove arm in from top and feel around to get the snaps out. Also fished the wire thru the bumper (internal bumper not cover) using two metal coat hangers. Used add a circuit and connected to switch fuse so won't accidentally leave on and drain battery. Would have been a quicker install had it not started raining on me. Had to stop for a while..a couple times.

    Last edited: May 6, 2018
    TheloniusFunk, RocTaco and Cole man like this.
  7. May 5, 2018 at 8:38 PM
    #7
    RocTaco

    RocTaco Habitual line stepper

    Joined:
    Nov 12, 2016
    Member:
    #202199
    Messages:
    1,613
    First Name:
    Pete
    Rochester NY
    Vehicle:
    2017 Tacoma SR 2.7L 5-spd 4x4
    Looks good. Hands down getting the old covers out was the hardest part of this install for me. So many clips for a 4"x5" bit of plastic.

    Forge [OP] likes this.
