Fog Light Switch Question

Discussion in '1st Gen. Tacomas (1995-2004)' started by bigwill837, Jan 11, 2017.

  1. Jan 11, 2017 at 11:17 AM
    #1
    bigwill837

    bigwill837 [OP] Well-Known Member

    Joined:
    Mar 9, 2016
    Member:
    #180732
    Messages:
    269
    Gender:
    Male
    First Name:
    Will
    Austin, TX
    Vehicle:
    2019 Silver Tacoma TRD Off Road 4x4
    I am wiring a set of Hella 500 series driving lights and PIAA 510 fog lights to my new Relentless Fab bumper.

    I think I've got all of the wiring figured out, I am just not sure about the OEM rocker switch.

    Which prongs are for power, ground, and relay/trigger? I have read elsewhere that the top prong is ground, the middle prong is 12v power, and the bottom prong is trigger/relay switch (https://www.tacomaworld.com/threads/oem-fog-light-install-prewired.121903/).

    Can anyone confirm this?


    Thx holeinone604 for hosting.

  2. Jan 11, 2017 at 1:35 PM
    #2
    frizzman

    frizzman Well-Known Member

    Joined:
    Sep 25, 2013
    Member:
    #113212
    Messages:
    4,284
    Gender:
    Male
    Pittsburgh, PA
    Vehicle:
    04 XCab 4x4 TRD/OR
    OME 3", Tundra 17's, Cooper S/T Maxx 255/75-17, hitch w/ 7-pin, Leer cap, JVC head unit w/BT, LED lights
    sub'd, I've had one of these for years

  3. Jan 11, 2017 at 2:05 PM
    #3
    SEAMONSTER401

    SEAMONSTER401 Well-Known Member

    Joined:
    May 27, 2016
    Member:
    #188082
    Messages:
    266
    Gender:
    Male
    First Name:
    Zach
    Charlotte, NC
    Vehicle:
    04 Tacoma 4x4

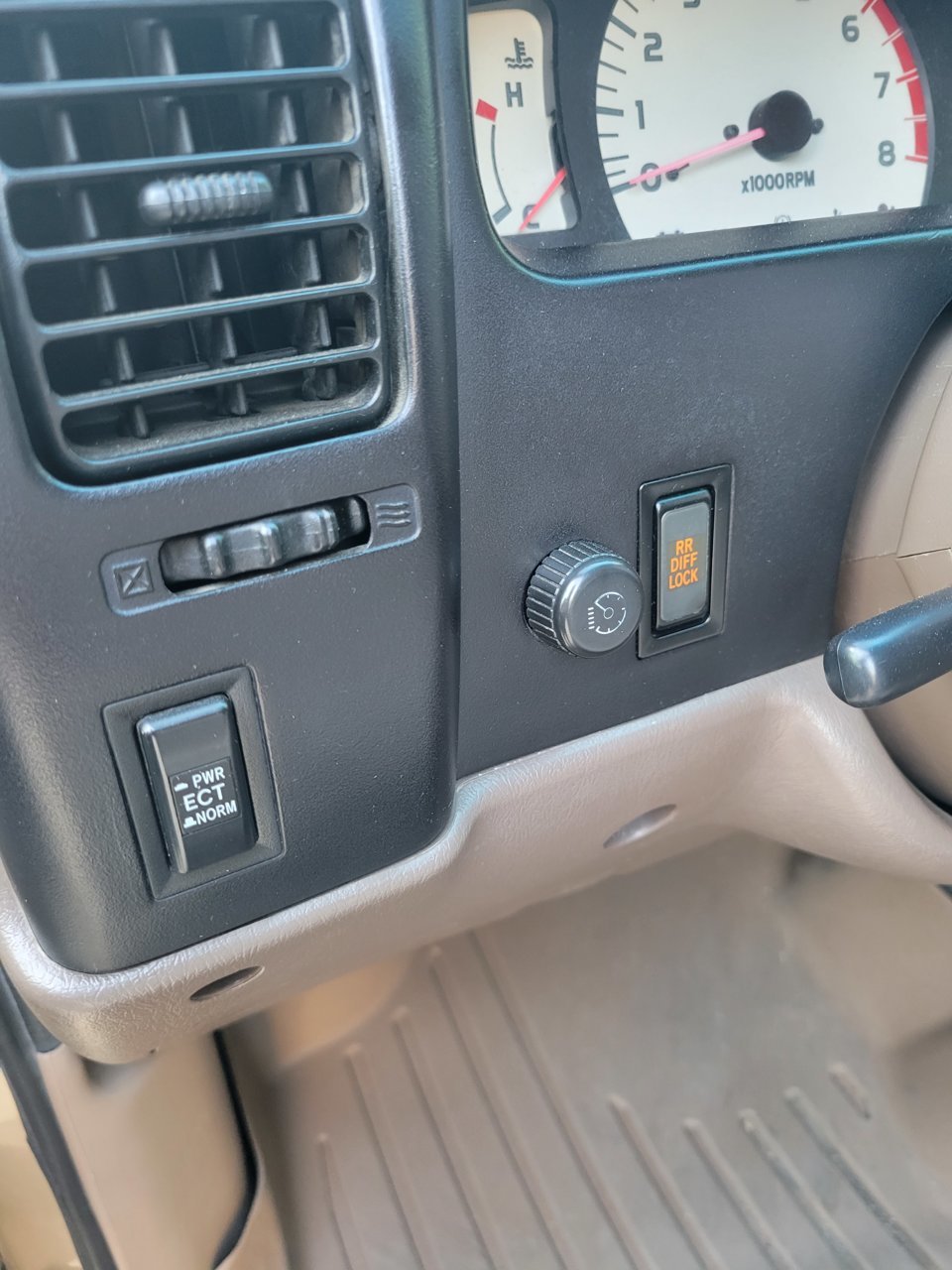

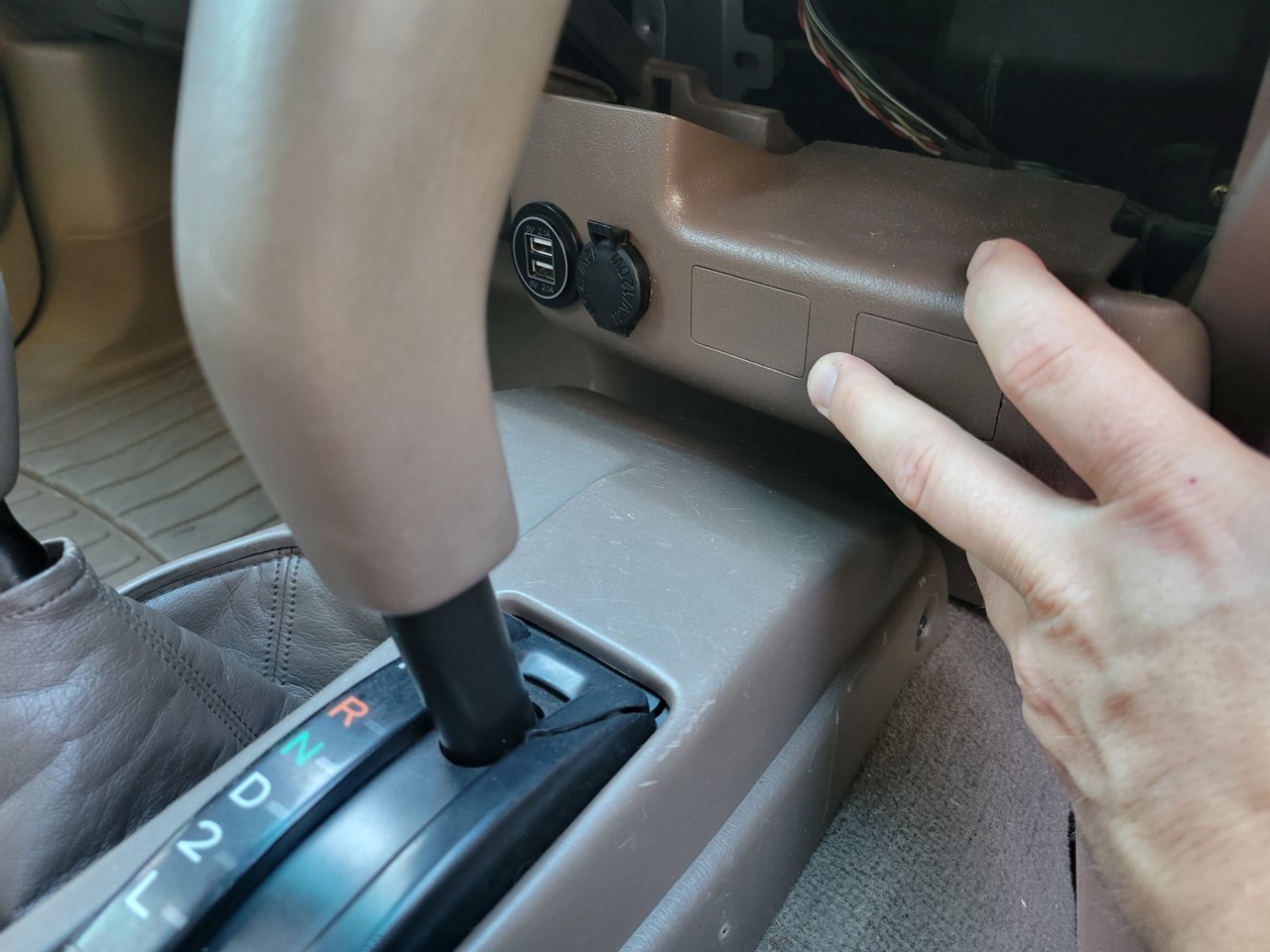

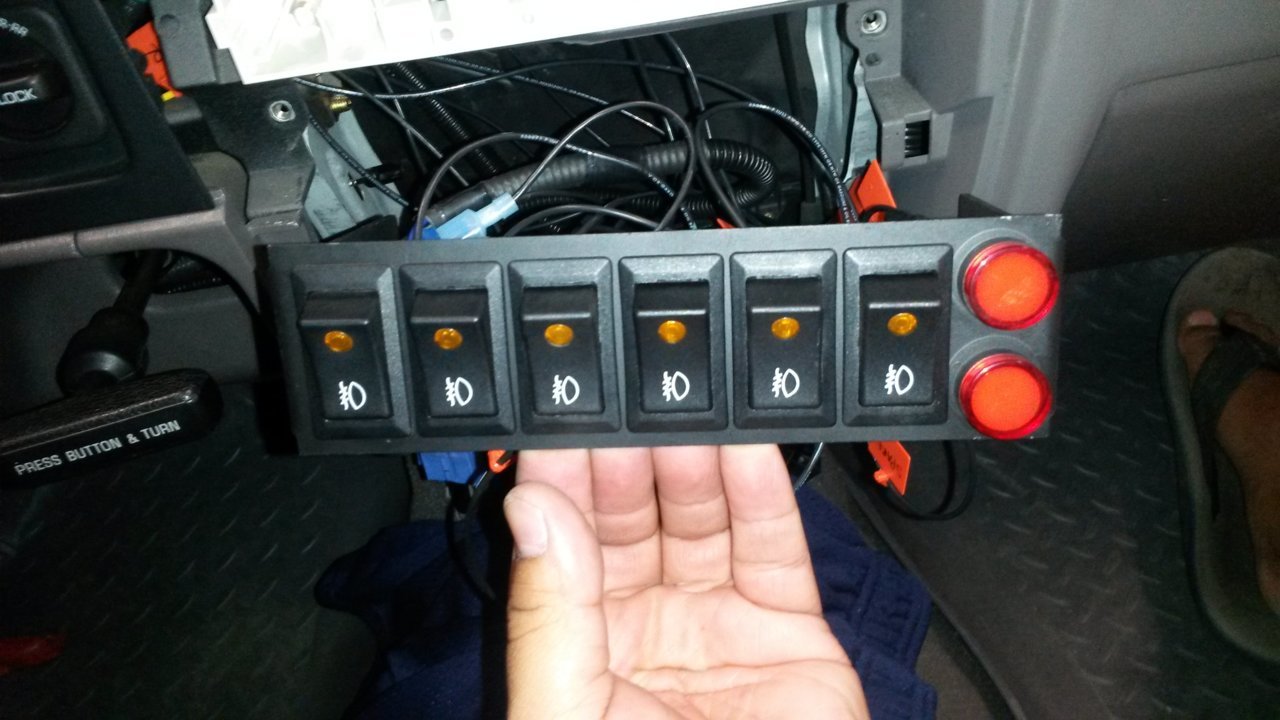

    I'm wiring up a 20" bar for my bumper. Where did you get that switch, I'd like to have one? I looked all over and couldn't find one to fit the slots in my dash. So I had to rig one up to the filler that sticks in there.

  4. Jan 11, 2017 at 3:50 PM
    #4
    jammer

    jammer 2003 Toyota PreRunner 3.4L

    Joined:
    Jan 23, 2014
    Member:
    #121272
    Messages:
    719
    Gender:
    Male
    First Name:
    Ben
    Bentonville, AR
    Vehicle:
    2003 Lunar Mist Tacoma PreRunner
    Bilstein 5100's front / 5125's rear
  5. Jan 11, 2017 at 4:37 PM
    #5
    SEAMONSTER401

    SEAMONSTER401 Well-Known Member

    Joined:
    May 27, 2016
    Member:
    #188082
    Messages:
    266
    Gender:
    Male
    First Name:
    Zach
    Charlotte, NC
    Vehicle:
    04 Tacoma 4x4
  6. Jan 11, 2017 at 8:18 PM
    #6
    digitalferg

    digitalferg Well-Known Member

    Joined:
    Aug 10, 2012
    Member:
    #84494
    Messages:
    353
    Gender:
    Male
    Southern Utah
    Vehicle:
    06 Tacoma DC 4x4 TRD OR

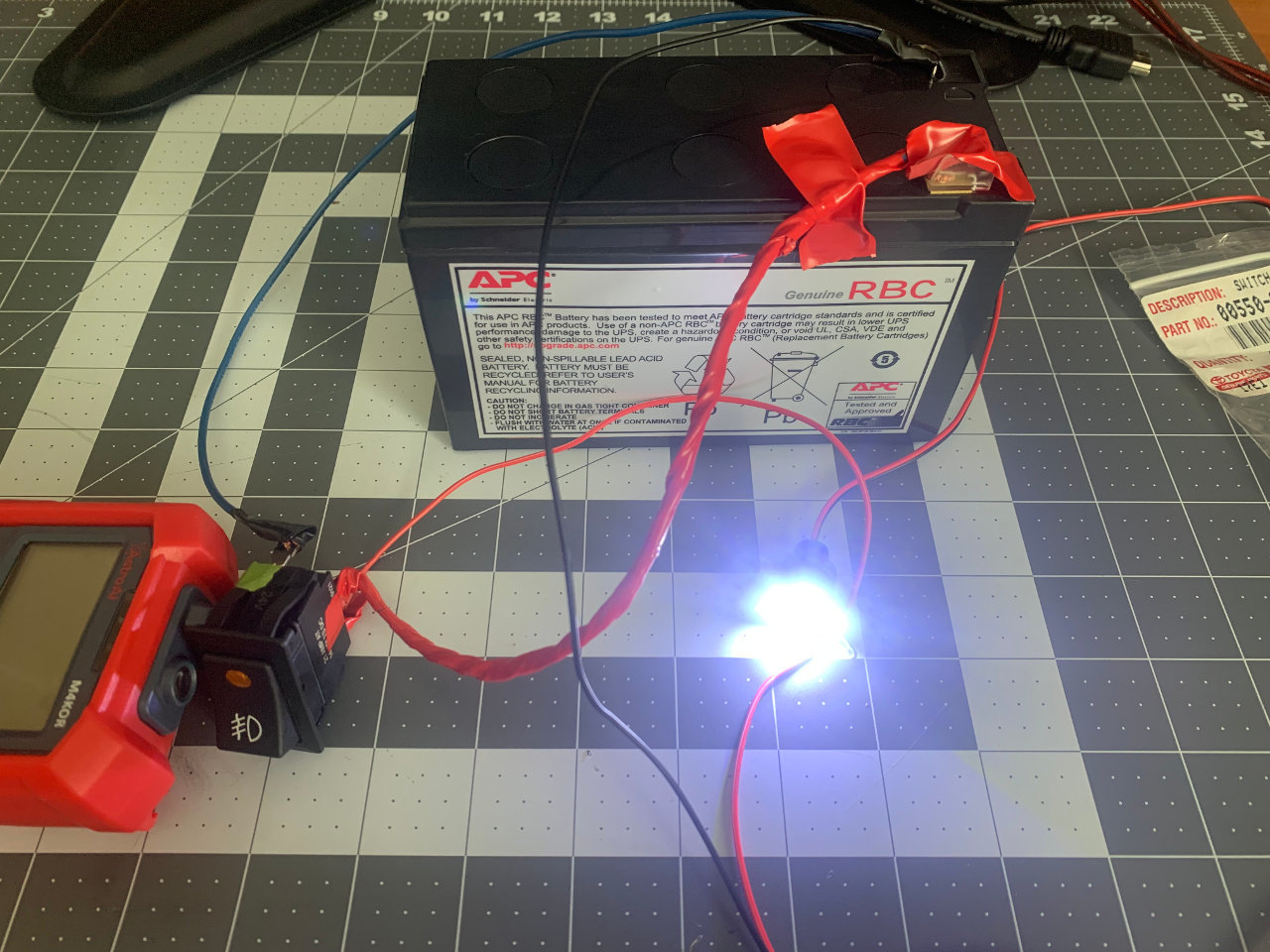

    I just wired up some PIAAs with this exact switch a couple days ago. I can confirm that with the LED on top (like in your pic) the prongs on the back are wired as you listed: top=ground, middle=12v power, and bottom=relay.

    -Ferg

  7. Jan 11, 2017 at 8:21 PM
    #7
    bigwill837

    bigwill837 [OP] Well-Known Member

    Joined:
    Mar 9, 2016
    Member:
    #180732
    Messages:
    269
    Gender:
    Male
    First Name:
    Will
    Austin, TX
    Vehicle:
    2019 Silver Tacoma TRD Off Road 4x4
    Thank you, sir!
