"FOG LIGHTS ON W/PARKING...LOW BEAM...HIGH BEAM..."

Discussion in 'Lighting' started by "OLYMPIC VIEW", Jan 9, 2011.

Page 4 of 21
  1. Feb 26, 2011 at 7:25 AM
    #61
    Erik

    #61
    Erik That smells like pure gasoline

    Joined:
    Feb 26, 2011
    Member:
    #51865
    Messages:
    182
    Gender:
    Male
    First Name:
    Erik
    Nashua, NH
    Vehicle:
    10'TRD off-road
    Shrockworks bumper+ IFS skid, 4xInnovations rock sliders, Toytec Bilstein/Eibach 5100 @ 2.5", 3" All-pro leaf pack w/Bilstein 5100, PIAA 510SMR, PIAA 1500, Python LC3 2-way Auto-start, Fog lights on w/Parking lights, ATRAC Hack, Diff breather mod

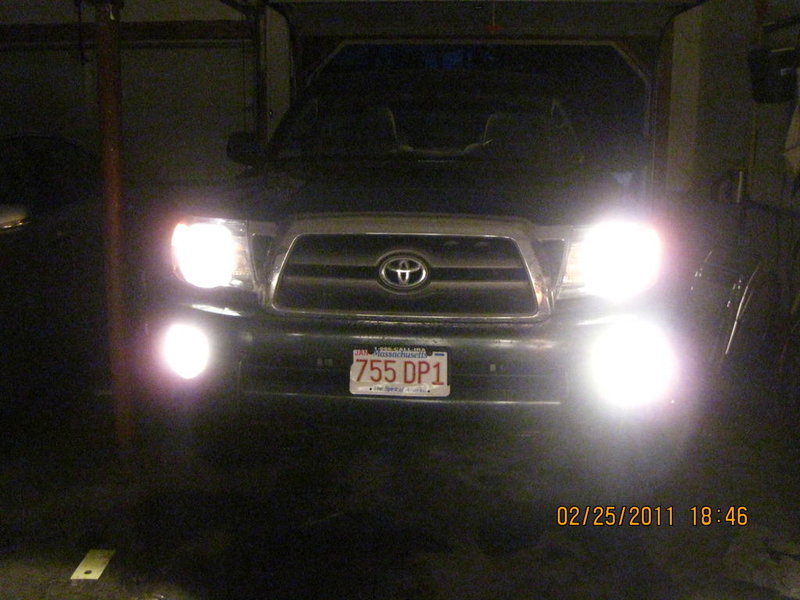

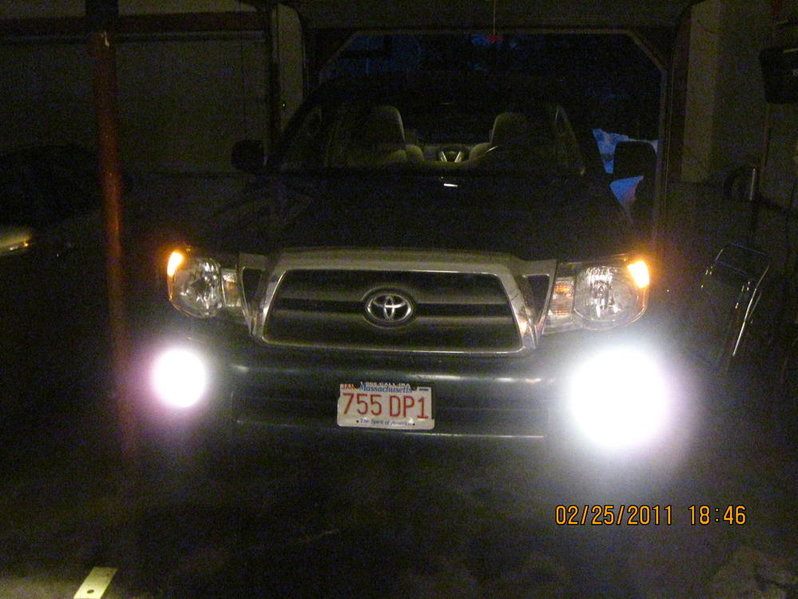

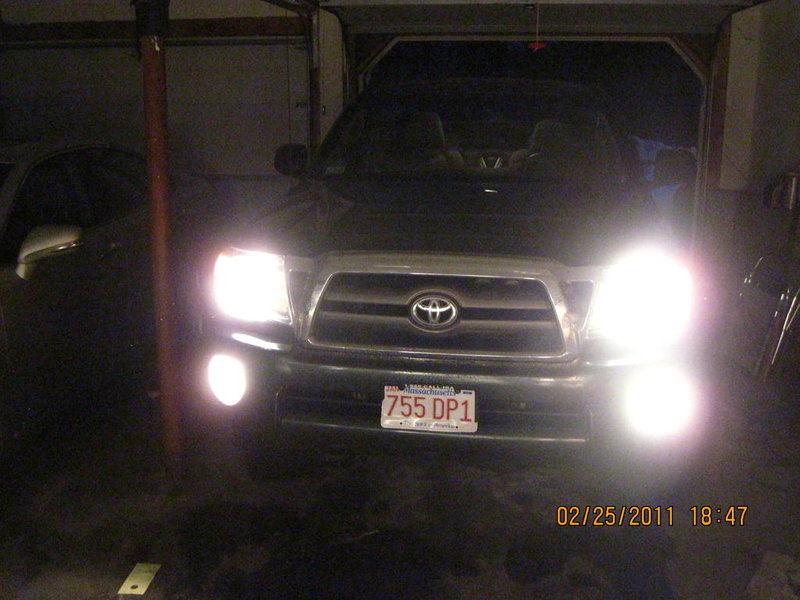

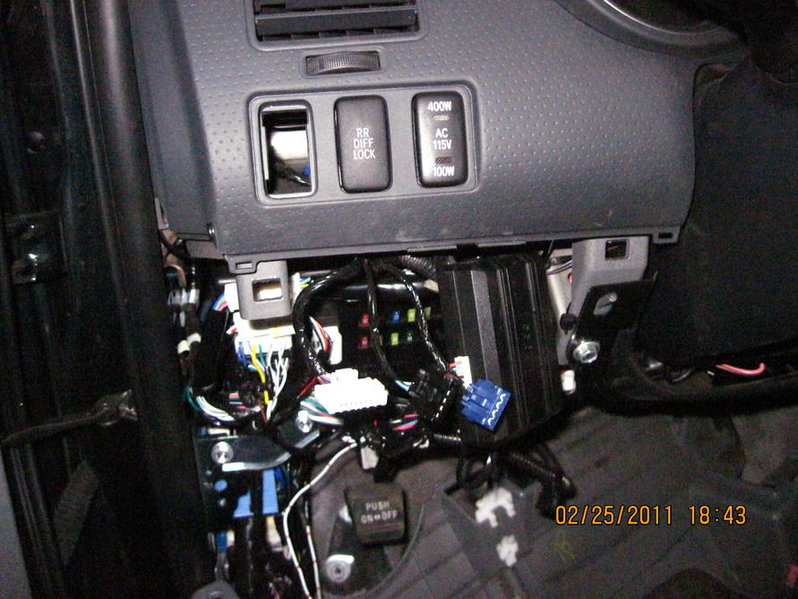

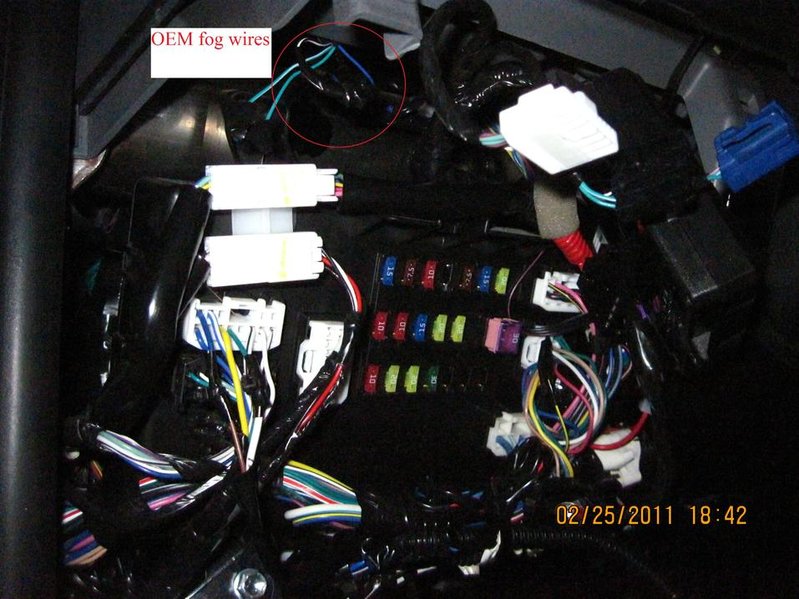

    I did this mod last night and I really did spend more time looking for the connector and the wire than actually wiring it up.

    I am getting some driving lights soon and I do not have any open slots on my switch panels. I was trying to figure out some way of hooking up my fog lights and the new driving lights to the same switch without losing independent control of either set of lights.

    I had just installed some PIAA backup lights and I took the OEM fog switch and mounted it next to the A-trac. After doing the fog relay mod, I checked the fog wires with the multi-tester at the switch and found out that the switch power came on with the stick.

    I just connected the black w/white stripe wire and the blue wire (switch ground and switch hot from the OEM fog switch) and they worked the same way.

    Now I have an open slot to mount my driving light switch.


    Erik, Feb 26, 2011
    #61
  2. Feb 26, 2011 at 10:26 AM
    #62
    "OLYMPIC VIEW"

    #62
    "OLYMPIC VIEW" [OP] Well-Known Member

    Joined:
    Mar 8, 2010
    Member:
    #32829
    Messages:
    106
    Gender:
    Male
    WHIDBEY ISLAND, WA
    Vehicle:
    2011 TRD SPORT D/C LB...1987 SR-5 4WD XCAB
    Good work...looks great, good way to create open slot for future driving light switch...glad the relay mod worked well for you:cheers:

    "OLYMPIC VIEW", Feb 26, 2011
    #62
  3. Feb 26, 2011 at 10:26 AM
    #63
    easyeatlanta

    #63
    easyeatlanta Artificial Intelligence beats natural stupidity

    Joined:
    Aug 10, 2010
    Member:
    #41518
    Messages:
    1,253
    Gender:
    Male
    First Name:
    Eric
    Memphis
    Vehicle:
    14 DC Trd Off Road
    x2 what do i do

    easyeatlanta, Feb 26, 2011
    #63
  4. Feb 26, 2011 at 10:56 AM
    #64
    mach1man001

    #64
    mach1man001 eh whatever

    Joined:
    Nov 4, 2009
    Member:
    #25415
    Messages:
    22,307
    Gender:
    Male
    First Name:
    Rob
    Bellingham, MA
    Vehicle:
    2024 Tundra Limited
    I love my new truck but miss my Tacoma
    Read post #56

    mach1man001, Feb 26, 2011
    #64
  5. Feb 27, 2011 at 9:28 PM
    #65
    RTG

    #65
    RTG Well-Known Member

    Joined:
    Dec 18, 2009
    Member:
    #27763
    Messages:
    176
    Gender:
    Male
    League City, TX
    Vehicle:
    06 PreRunner TRD Sport SRR5, Long Bed
    6" Fabtech Dirt Logic, PA15-TOY IPOD adapter, UltraGauge, CravenSpeed 2" antena, 17x9 Moto Metal Wheels, 35sx12.5 Yokohama Geolander M/T tires, Removed second filter, Pop&Lock, Bed Extender, Bug Deflector, Grill Craft, Two 12" Rockford Fosgate punch sub enclosure, Kicker Amp, 5902 Viper Remote start, Tint (20% all around), Power Slot Rotor, NFAB Step Bars, AFE Pro Dry S Air Filter, Wet Okole seat covers, akebono brake pads, Foglights Mod,Bushwacker fender flares,Homeblaster trainhorn.

    RTG, Feb 27, 2011
    #65
  6. Feb 27, 2011 at 9:54 PM
    #66
    Drunknsloth

    #66
    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,126
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Glad I could help bro

    Drunknsloth, Feb 27, 2011
    #66
  7. Apr 22, 2011 at 7:54 PM
    #67
    fubar718

    #67
    fubar718 Well-Known Member

    Joined:
    Jun 6, 2010
    Member:
    #38458
    Messages:
    180
    Gender:
    Male
    First Name:
    Jose
    NJ
    Vehicle:
    2010 double cab, TRD offroad
    saving this page for this weekend

    fubar718, Apr 22, 2011
    #67
  8. Apr 23, 2011 at 12:38 PM
    #68
    XPOTRON

    #68
    XPOTRON Is LIVE on the GRID.

    Joined:
    Feb 1, 2011
    Member:
    #50358
    Messages:
    6,808
    Gender:
    Male
    First Name:
    Stefen
    Chandler, Arizona
    Vehicle:
    IG: @ST3F3NS
    DUROBUMPS Use TRON10 for 10% Off & Free Shipping
    OV, YOU SIR ARE DA MAN! Just did this mod and I'm still amazed at how easy this was, thx dude!

    XPOTRON, Apr 23, 2011
    #68
  9. Apr 23, 2011 at 1:21 PM
    #69
    pudge151

    #69
    pudge151 Well-Known Member

    Joined:
    Apr 4, 2010
    Member:
    #34558
    Messages:
    4,066
    Gender:
    Male
    First Name:
    Sean
    Connecticut
    Vehicle:
    2015 Tundra Platinum
    the 9005 would be plug and play?

    no issues with the 55w? i have laminex on my fogs.

    pudge151, Apr 23, 2011
    #69
  10. Apr 25, 2011 at 9:13 PM
    #70
    "OLYMPIC VIEW"

    #70
    "OLYMPIC VIEW" [OP] Well-Known Member

    Joined:
    Mar 8, 2010
    Member:
    #32829
    Messages:
    106
    Gender:
    Male
    WHIDBEY ISLAND, WA
    Vehicle:
    2011 TRD SPORT D/C LB...1987 SR-5 4WD XCAB
    You betcha--glad the mod worked well for you!!

    "OLYMPIC VIEW", Apr 25, 2011
    #70
  11. Apr 25, 2011 at 11:25 PM
    #71
    tanzak88

    #71
    tanzak88 Well-Known Member

    Joined:
    Oct 3, 2010
    Member:
    #44180
    Messages:
    795
    Gender:
    Male
    Doing this tomorrow fasho.

    tanzak88, Apr 25, 2011
    #71
  12. Apr 27, 2011 at 6:49 PM
    #72
    TonkaToyTaco

    #72
    TonkaToyTaco Hope you can run faster than 965 FPS

    Joined:
    Feb 2, 2011
    Member:
    #50428
    Messages:
    1,671
    Gender:
    Male
    First Name:
    Louie
    Vehicle:
    11 Tacoma TRD DCLB 4X4
    Fox 2.0 Coilovers cranked up with JBA UCA, Rear OME 2" leaf pack with Ride Rite air bags, SCS Steath 6 matte black rims wrapped in 285/75/17 Cooper ST MAXX, Blacked out emblems, Debaged tailgate, Tinted windows (5% in rear, 5% up front and 40% on windsheild), Retro color matched HID headlights with Amber Halo, Projector LED Foglight, Custom LED Taillight and 3rd brake light, T-Rex 2 eyelids color matched, Fog light anytime MOD, All LED interior and exterior ligths, Volant CAI With forced Ram, JET throttle body spacer, Aero Turbine SS Muffler, Aero Turbine SS 4inch tip dumped after axel, URD MAF Calibrator, LED bed lights, 4X4 light mod, Satoshi Grill with matching scoop and lower Valance, 20" LED bar and 2 LED Pods behind Satoshi, Diff breather mod, Sea Blu secondary fuse box with 100A breaker, Outlaw Train Horns with dual Air Compressors and 5 Gal tank, Ultraguage, Andre Devil Horns, Pedal Commander
    awesome mod dude, I have been wanting to do this for a while and that was the easiest way. Thank you

    TonkaToyTaco, Apr 27, 2011
    #72
  13. Apr 27, 2011 at 6:51 PM
    #73
    TonkaToyTaco

    #73
    TonkaToyTaco Hope you can run faster than 965 FPS

    Joined:
    Feb 2, 2011
    Member:
    #50428
    Messages:
    1,671
    Gender:
    Male
    First Name:
    Louie
    Vehicle:
    11 Tacoma TRD DCLB 4X4
    Fox 2.0 Coilovers cranked up with JBA UCA, Rear OME 2" leaf pack with Ride Rite air bags, SCS Steath 6 matte black rims wrapped in 285/75/17 Cooper ST MAXX, Blacked out emblems, Debaged tailgate, Tinted windows (5% in rear, 5% up front and 40% on windsheild), Retro color matched HID headlights with Amber Halo, Projector LED Foglight, Custom LED Taillight and 3rd brake light, T-Rex 2 eyelids color matched, Fog light anytime MOD, All LED interior and exterior ligths, Volant CAI With forced Ram, JET throttle body spacer, Aero Turbine SS Muffler, Aero Turbine SS 4inch tip dumped after axel, URD MAF Calibrator, LED bed lights, 4X4 light mod, Satoshi Grill with matching scoop and lower Valance, 20" LED bar and 2 LED Pods behind Satoshi, Diff breather mod, Sea Blu secondary fuse box with 100A breaker, Outlaw Train Horns with dual Air Compressors and 5 Gal tank, Ultraguage, Andre Devil Horns, Pedal Commander
    Does anyone know anything about HID lights on a 2011 tacoma. I installed a set of high/lows and they are giving me some trouble.

    TonkaToyTaco, Apr 27, 2011
    #73
  14. May 6, 2011 at 5:12 PM
    #74
    tombiosis

    #74
    tombiosis Well-Known Member

    Joined:
    Jan 20, 2011
    Member:
    #49571
    Messages:
    705
    Gender:
    Male
    First Name:
    T
    Ottawa Canada
    Vehicle:
    2016 TRD offroad access
    2016 Tacoma Access Cab, Super White, TRD Off Road package,//OEM Running Boards//TriFold2.0 Tonneau Cover//FJ Cruiser TRD SE Black TrailTeams replca wheels!
    ok this might be a stupid question, but I have done the fog light mod with the wire going from the blade connector to the green wire splice, not the towing relay. Is the difference here that you can have the side marker lights, and the running amber lights with the fogs?
    Any reason to be concerned with the green wire method?

    tombiosis, May 6, 2011
    #74
  15. May 6, 2011 at 5:13 PM
    #75
    brutalguyracing

    #75
    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,052
    Gender:
    Male
    F.U> GUYZ
    broken mods
    whats the problem?
    what brand you have?

    brutalguyracing, May 6, 2011
    #75
  16. May 7, 2011 at 9:12 AM
    #76
    tombiosis

    #76
    tombiosis Well-Known Member

    Joined:
    Jan 20, 2011
    Member:
    #49571
    Messages:
    705
    Gender:
    Male
    First Name:
    T
    Ottawa Canada
    Vehicle:
    2016 TRD offroad access
    2016 Tacoma Access Cab, Super White, TRD Off Road package,//OEM Running Boards//TriFold2.0 Tonneau Cover//FJ Cruiser TRD SE Black TrailTeams replca wheels!
    bump

    tombiosis, May 7, 2011
    #76
  17. May 7, 2011 at 10:44 AM
    #77
    Drunknsloth

    #77
    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,126
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    No this method means that you have to have at least the side marker lights on to have the fog lights on. The green wire one I believe is to the ignition so the fog lights come on with the ignition and do not need the side marker lights. The running amber lights are a separate component that either came with the truck or you need to do the DIY.

    Drunknsloth, May 7, 2011
    #77
  18. May 9, 2011 at 9:58 PM
    #78
    "OLYMPIC VIEW"

    #78
    "OLYMPIC VIEW" [OP] Well-Known Member

    Joined:
    Mar 8, 2010
    Member:
    #32829
    Messages:
    106
    Gender:
    Male
    WHIDBEY ISLAND, WA
    Vehicle:
    2011 TRD SPORT D/C LB...1987 SR-5 4WD XCAB
    This mod is also "fuse protected" unlike the blade/green-wire on anytime mod...unless you use an inline fuse--this mod also works with your factory lights-off timer switch--

    "OLYMPIC VIEW", May 9, 2011
    #78
  19. May 9, 2011 at 10:12 PM
    #79
    achirdo

    #79
    achirdo I Weld!

    Joined:
    Apr 7, 2010
    Member:
    #34819
    Messages:
    10,264
    Gender:
    Male
    First Name:
    Adam
    North DFW
    Vehicle:
    06 dodge ram 3500 5.9 cummins
    Subbed for use tomorrow

    achirdo, May 9, 2011
    #79
  20. May 10, 2011 at 5:46 AM
    #80
    Zombie Runner

    #80
    Zombie Runner Are these black helicopters for me?

    Joined:
    Mar 13, 2008
    Member:
    #5246
    Messages:
    15,070
    Gender:
    Male
    First Name:
    Kevin
    Wichita Falls, TX
    Vehicle:
    2011 taco, sport 4x4
    oil change...
    its sooo easy. I did it in litteraly 3 mins :D

    Zombie Runner, May 10, 2011
    #80
