"FOG LIGHTS ON W/PARKING...LOW BEAM...HIGH BEAM..."

Discussion in 'Lighting' started by "OLYMPIC VIEW", Jan 9, 2011.

  1. Nov 16, 2011 at 8:01 AM
    #141
    "OLYMPIC VIEW"

    "OLYMPIC VIEW" [OP] Well-Known Member

    Joined:
    Mar 8, 2010
    Member:
    #32829
    Messages:
    105
    Gender:
    Male
    WHIDBEY ISLAND, WA
    Vehicle:
    2011 TRD SPORT D/C LB...1987 SR-5 4WD XCAB
    The routing of the wire in POST # 140 is what I'm descibing in the video---fuse protected and your lights still go off with the stock timer off switch--OLY

  2. Nov 16, 2011 at 9:24 AM
    #142
    munkeeboi

    munkeeboi Well-Known Member

    Joined:
    Jun 28, 2011
    Member:
    #58990
    Messages:
    284
    Gender:
    Male
    Burbank
    I'm on it. That was a quick fix at 11 at night. Thanks for everything

  3. Nov 16, 2011 at 4:01 PM
    #143
    Overland Hadley

    Overland Hadley Well-Known Member

    Joined:
    Mar 16, 2010
    Member:
    #33366
    Messages:
    168
    Gender:
    Male
    Had a few minutes before work this morning, so I wired it up then. Works great! Thanks again for the info.

  4. Nov 17, 2011 at 9:58 PM
    #144
    "OLYMPIC VIEW"

    "OLYMPIC VIEW" [OP] Well-Known Member

    Joined:
    Mar 8, 2010
    Member:
    #32829
    Messages:
    105
    Gender:
    Male
    WHIDBEY ISLAND, WA
    Vehicle:
    2011 TRD SPORT D/C LB...1987 SR-5 4WD XCAB
    Read my first post, I have a 2011...step by step instructions as well as photos/relay diagram are all there for you...I have made up some female blade connectors attached to 18g wire with stripped end ready to go for this mod...PM me with address and I will drop one in the mail to you...you'll have to pay me to shoot another video of this mod...:hungry:--OLY

  5. Nov 17, 2011 at 9:58 PM
    #145
    munkeeboi

    munkeeboi Well-Known Member

    Joined:
    Jun 28, 2011
    Member:
    #58990
    Messages:
    284
    Gender:
    Male
    Burbank
    Caribe makaira thought of even a cleaner way to wire it up for 2012 tacos.

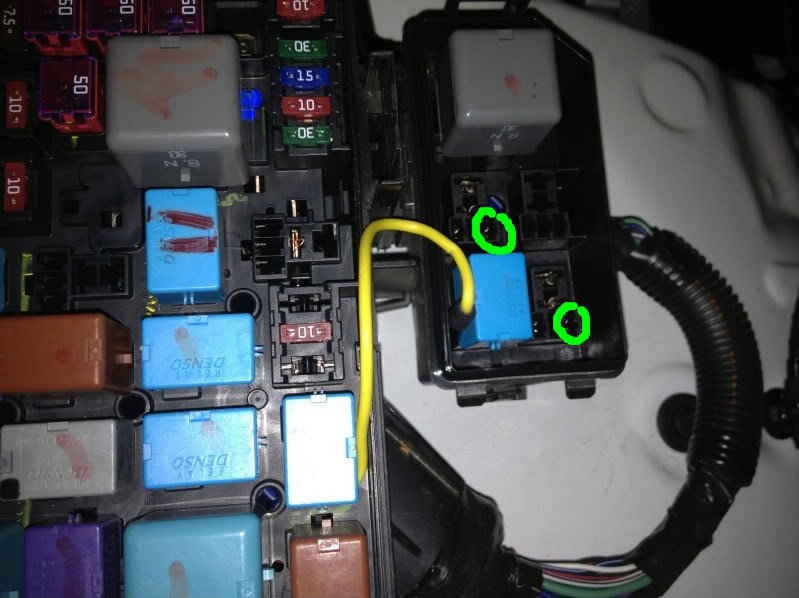

    There is no need to run the wire out of the small fuse box where the fog relay is since there are already 2 slots that are wired to ign power. They are the #2 slot (circled in green) and turn on/off with the ignition so you don't drain your battery. Suggested you use an inline fuse (1A will do) for extra protection.

    So instead of running it to the Tail light relay in the large fuse box. just plug it into one of the available slots near the fog relay


  6. Nov 17, 2011 at 10:15 PM
    #146
    "OLYMPIC VIEW"

    "OLYMPIC VIEW" [OP] Well-Known Member

    Joined:
    Mar 8, 2010
    Member:
    #32829
    Messages:
    105
    Gender:
    Male
    WHIDBEY ISLAND, WA
    Vehicle:
    2011 TRD SPORT D/C LB...1987 SR-5 4WD XCAB
    :threadjacked:

    The title of the OP is "Fog Lights On W/Parking...Low Beam...High Beam"...

    The method of this mod has nothing to do with an in-line fuse, splicing, or cramming a male blade into anything hot when the ignition is on...it is the most simplistic way of turning on your fogs while running your parking lights, your low beams, or your high beams...it is fuse protected and reversible...a la caribes mod is fine, but is entirely different from the one I describe in the original post...if you have a short and your 1A fuse blows you better have a fire extinguisher in your rig...I would go overkill on the ampere rating of your in-line fuse--OLY

  7. Nov 17, 2011 at 10:31 PM
    #147
    "OLYMPIC VIEW"

    "OLYMPIC VIEW" [OP] Well-Known Member

    Joined:
    Mar 8, 2010
    Member:
    #32829
    Messages:
    105
    Gender:
    Male
    WHIDBEY ISLAND, WA
    Vehicle:
    2011 TRD SPORT D/C LB...1987 SR-5 4WD XCAB
  8. Nov 17, 2011 at 10:50 PM
    #148
    munkeeboi

    munkeeboi Well-Known Member

    Joined:
    Jun 28, 2011
    Member:
    #58990
    Messages:
    284
    Gender:
    Male
    Burbank
    didn't mean to step on any toes. Just thought I'd share a a different version of Your mod for the 2012 owners since wiring between the fuse boxes is less than ideal. I believe wiring it to the Seat heater relay is fused upstream just as much as the taillight relay is, so there shouldn't be a problem.

    sorry again for going slightly off-topic.

  9. Nov 18, 2011 at 1:39 PM
    #149
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,129
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Listen to caribe makaira, he knows what he's talking about :)

  10. Nov 18, 2011 at 5:21 PM
    #150
    nut

    nut she'll ride

    Joined:
    Nov 6, 2011
    Member:
    #66555
    Messages:
    1,634
    Gender:
    Male
    First Name:
    Patrick
    Arizona
    Vehicle:
    Totaled
    TRD SKEWP DCSB 4x4 Silver Mica | URD TCAI/MAF CAL | BHLM | GrillCraft | FF Sliders | LED's All Around | 12v Constant On | EGR In Channel | 15% Tint | Trimmed mud flaps | Fog Light Anytime Mod | Debadged | Tailgate Hoseclamp | DTRL Switch | Disabled Lock Beep/Seatbelt Chime | Husky Liners | HID's | BedRug | WO Seat Covers | ABS Kill Switch | Oil Catch Can | Viper 5704 | Custom Carbon Cabin Filter | Backup Camera Anytime | 400W Anytime | In Cab Outlet W/USB | Firestone Ride Rites | Ams Oil All Around | 32" LED In Lower Grill | BlackVue DR500GW-HD |

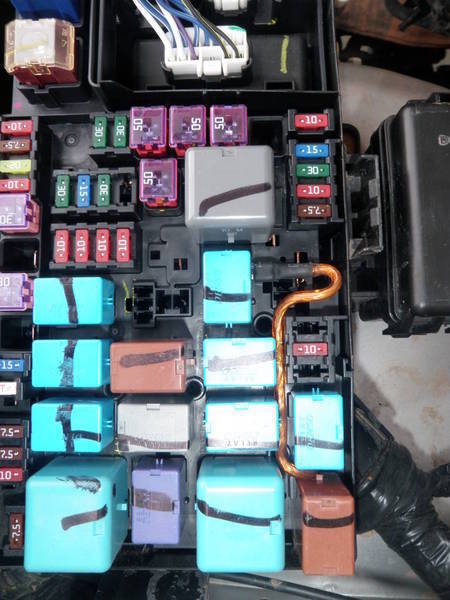

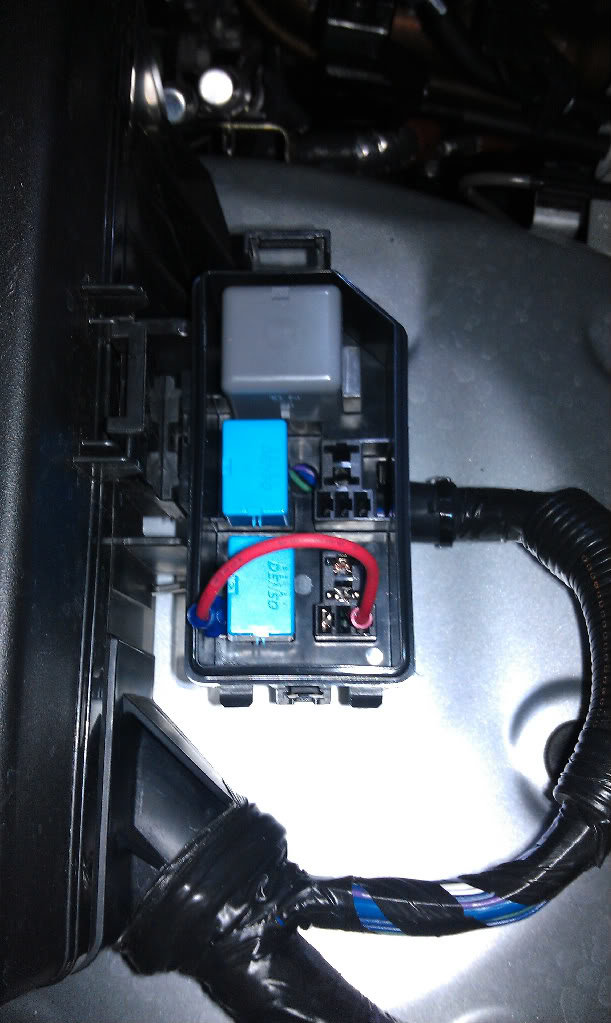

    Edit: here is a pic of mine, works great. i figured it out on my own, but appears everyone else has already beaten me to it ;-)

  11. Nov 20, 2011 at 2:20 PM
    #151
    RideFast

    RideFast on the flats.

    Joined:
    Jul 31, 2009
    Member:
    #20433
    Messages:
    1,147
    Gender:
    Male
    First Name:
    Jesse
    Albuquerque New Mexico
    Vehicle:
    Tacoma
    ...
    It took longer to take the tools out than it took to do the mod! Thanks OP!!!

    Ill check my 4runner to see if its the same

  12. Nov 20, 2011 at 4:36 PM
    #152
    CrisDe

    CrisDe Member

    Joined:
    Nov 20, 2011
    Member:
    #67403
    Messages:
    19
    Gender:
    Male
    First Name:
    Chris
    Saratoga Springs, Utah
    Vehicle:
    4x4 TRD Off-Road
    Old Man Emu 2.5" Suspension Lift,V-Tec Wheels, BF Goodrich A/T KO 285/75/16, Demello Offroad Sliders,Line-X,Nokya HyperYellow Fog Lights, Anytime Fog Mod,Interior LEDs,K&N Airfilter, WeatherTech All-Weather Floor Mats
    Olympic View's fog light mod worked perfectly on my 2011. Super easy! With the blinding snow in Utah, sometimes it's nice to turn off the head lights and get effective lighting as low to the ground as possible.

    Thanks
    [​IMG]

  13. Nov 20, 2011 at 8:07 PM
    #153
    RideFast

    RideFast on the flats.

    Joined:
    Jul 31, 2009
    Member:
    #20433
    Messages:
    1,147
    Gender:
    Male
    First Name:
    Jesse
    Albuquerque New Mexico
    Vehicle:
    Tacoma
    ...
    Heck yea crisde!

    How much of a difference does changing the bulb color make?

  14. Nov 20, 2011 at 8:16 PM
    #154
    PAlittlematty

    PAlittlematty "the soulless ginger"

    Joined:
    Dec 6, 2010
    Member:
    #47260
    Messages:
    4,046
    Gender:
    Male
    First Name:
    Matt
    Beech Creek, PA
    Vehicle:
    Casper the friendly Taco
    OME Lift, 885 Coils, 13MM Top Spacer, Dakar Leafs, DSM UCAs, Homeroshi Flush Mount Grille, WeatherTech Digifit Mats, Bestop Super Top, Toyota Bed Extender, Clevice Receiver 1990 SR5 3.slow SAS 5” Leafs, high pinion diff, 37” PBRs, MC rear, AP front bumpers, 5.29s, locked
    Fred did mine so don't ask me what or how it was done

  15. Nov 20, 2011 at 8:29 PM
    #155
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,129
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
    Hey man, welcome! Check out some of the Utah threads

  16. Nov 21, 2011 at 11:28 AM
    #156
    CrisDe

    CrisDe Member

    Joined:
    Nov 20, 2011
    Member:
    #67403
    Messages:
    19
    Gender:
    Male
    First Name:
    Chris
    Saratoga Springs, Utah
    Vehicle:
    4x4 TRD Off-Road
    Old Man Emu 2.5" Suspension Lift,V-Tec Wheels, BF Goodrich A/T KO 285/75/16, Demello Offroad Sliders,Line-X,Nokya HyperYellow Fog Lights, Anytime Fog Mod,Interior LEDs,K&N Airfilter, WeatherTech All-Weather Floor Mats
    Thanks. yeah, i'll have to check out the Utah section to see what the locals are doing. At some point i'll have to upload some photos.

  17. Nov 22, 2011 at 12:33 PM
    #157
    blenderdriver

    blenderdriver Inflamed Member

    Joined:
    Mar 12, 2010
    Member:
    #33076
    Messages:
    54
    Gender:
    Male
    First Name:
    Todd
    texAss
    Vehicle:
    Magnetic Grey 2010 4 Door, 4X4, Long bed.
    Powered by one tailgate mounted CFM56–7 engine. The engine is a dual–rotor, axial–flow turbofan engine capable of producing 27,000lbs of thrust. Why yes, my tailgate is slightly bowed in.
    Just did this mod on my 2010, super easy, worked like a charm first try, thank you OP.

  18. Nov 22, 2011 at 12:59 PM
    #158
    mbrogz3000

    mbrogz3000 Well-Known Member

    Joined:
    Oct 11, 2011
    Member:
    #65009
    Messages:
    1,087
    Gender:
    Male
    First Name:
    Matt
    Northern NJ
    Vehicle:
    2020 Toyota 4Runner Limited
    I did this too and its works great. Hardest part is removing the relays, but at least you don't need to remove the battery power. One just needs to remember to turn off their fogs in traffic conditions when the highbeams are on.

  19. Dec 1, 2011 at 1:28 PM
    #159
    DigB

    DigB Go Jets GO!!!!!!

    Joined:
    May 12, 2010
    Member:
    #37000
    Messages:
    435
    Gender:
    Male
    Winnipeg
    Vehicle:
    DCLB TRD Sport
    Air Freshener mod
    Sub'd

  20. Dec 3, 2011 at 10:27 AM
    #160
    nwb3160

    nwb3160 Well-Known Member

    Joined:
    May 15, 2011
    Member:
    #56703
    Messages:
    246
    Gender:
    Male
    First Name:
    Nick
    Cartersville, Ga
    Vehicle:
    2008 Tacoma TRD Sport
    5100s OME 885 2009 tail lights 6000K HID Pioneer 4400 DVD Viper Alarm/Remote Start Avid Offroad Bar/Side Steps Wet Okole Seat Covers Husky Floor Mats Toyo Open Country MT 265/70R17 BANKS Monster Exhaust Ultraguage
    ok i got a 08 and going to run the 18ga wire from the fog relay to the towing relay but I understand that this is just a bypass right? the 18ga wire itself is not going to get scalding hot and melt things right?
