Fog wiring question

Discussion in '2nd Gen. Tacomas (2005-2015)' started by cvisinho, Mar 20, 2018.

  1. Mar 20, 2018 at 11:30 AM
    #1
    cvisinho

    cvisinho [OP] Well-Known Member

    Joined:
    Jan 21, 2013
    Member:
    #95694
    Messages:
    872
    Gender:
    Male
    First Name:
    Chris
    Rhode Island
    Vehicle:
    2005 TRD Sport DCSB new frame edition
    Bilstein 5100's, Eibach springs, Cali Raised Amber fogs,Cali Raised side projecting ditch lights, 17" gunmetal trd pro reps w/ falken wildpeaks, MESO interior lighting, Alpine ilx Android auto head unit, rear view camera, blue sea fuse panel, mbrp cat back, Morimoto retros in Depos, Ranch cap, triple black clazzios, DIY thin lip satoshi with FJ letters, oem roof rack, AJT climate knobs, slim sub behind rear seat, fosgate speakers all around, thule cap rack

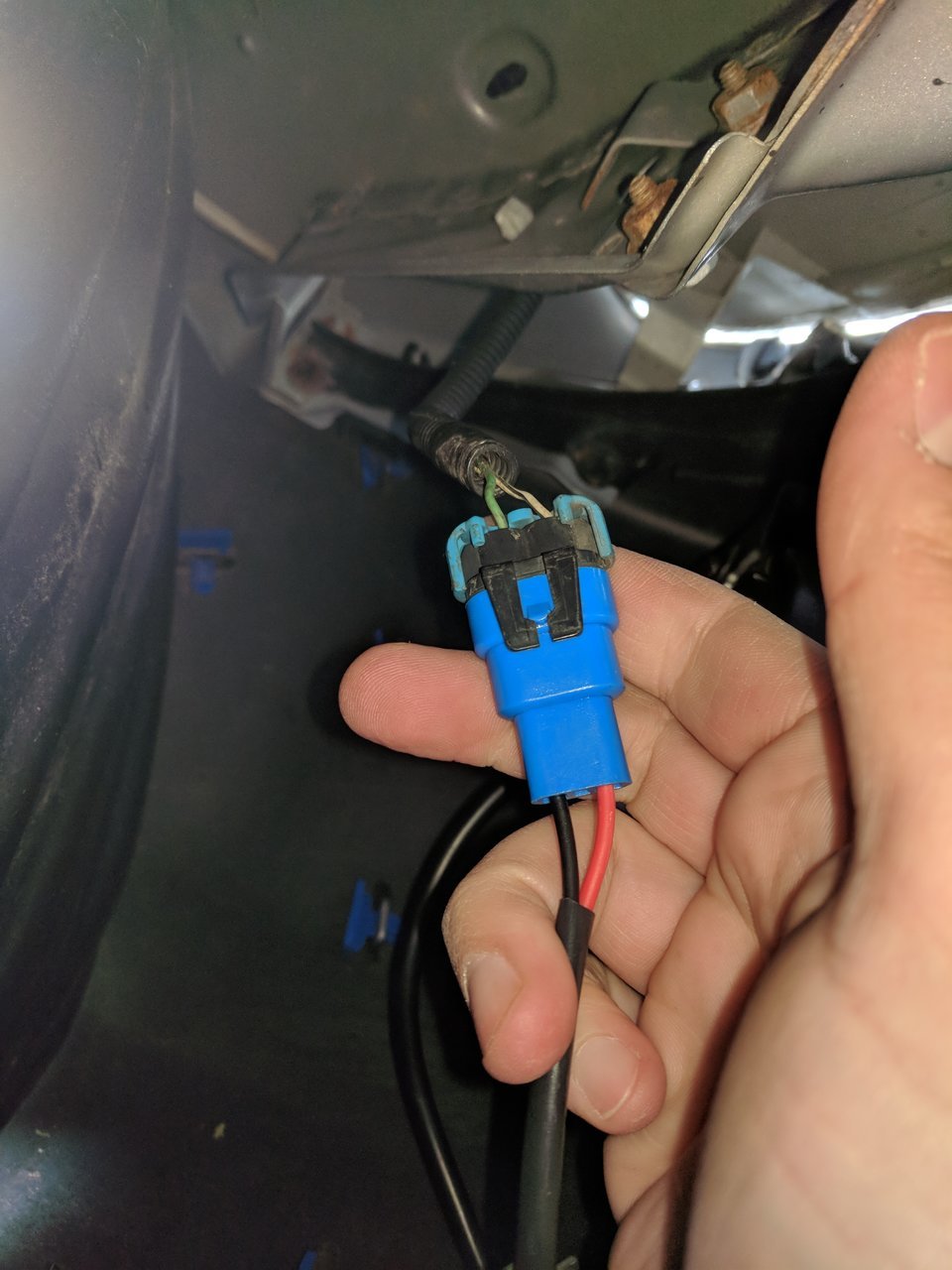

    Is the pigtail wired backwards?

    fogs dont work upon "plug and play"


    BEE-ROCK likes this.
  2. Mar 20, 2018 at 11:35 AM
    #2
    BEE-ROCK

    BEE-ROCK Well-Known Member

    Joined:
    Sep 27, 2017
    Member:
    #231281
    Messages:
    197
    Gender:
    Male
    First Name:
    Brock
    Dallas, TX
    Vehicle:
    2013 Tacoma TRD Sport
    TRD Pro Grille, Black Headlight Mod, Bilstein 5100's. More to come!
    I don't have a factory schematic. If you have a test light you can connect the ground of the test light on the frame and figure out which one of the wires is the positive. That should tell you if the pinout is backwards. That will also tell you if you are getting power to the pigtail. Make sure your headlight are on and not the running lights. I believe the fogs will only come on with the headlights.

  3. Mar 20, 2018 at 11:36 AM
    #3
    BEE-ROCK

    BEE-ROCK Well-Known Member

    Joined:
    Sep 27, 2017
    Member:
    #231281
    Messages:
    197
    Gender:
    Male
    First Name:
    Brock
    Dallas, TX
    Vehicle:
    2013 Tacoma TRD Sport
    TRD Pro Grille, Black Headlight Mod, Bilstein 5100's. More to come!
    Looking at it again, it appears wired backwards to me. You would think that the white/black would be a ground.

  4. Mar 20, 2018 at 11:42 AM
    #4
    cvisinho

    cvisinho [OP] Well-Known Member

    Joined:
    Jan 21, 2013
    Member:
    #95694
    Messages:
    872
    Gender:
    Male
    First Name:
    Chris
    Rhode Island
    Vehicle:
    2005 TRD Sport DCSB new frame edition
    Bilstein 5100's, Eibach springs, Cali Raised Amber fogs,Cali Raised side projecting ditch lights, 17" gunmetal trd pro reps w/ falken wildpeaks, MESO interior lighting, Alpine ilx Android auto head unit, rear view camera, blue sea fuse panel, mbrp cat back, Morimoto retros in Depos, Ranch cap, triple black clazzios, DIY thin lip satoshi with FJ letters, oem roof rack, AJT climate knobs, slim sub behind rear seat, fosgate speakers all around, thule cap rack
    that was my thought after the fact. Ill disconnect and see if i can swap pins when i get out of work.
    It is literally the only thing i can think of as to why it they wouldnt work.

  5. Mar 20, 2018 at 11:45 AM
    #5
    Mitch76

    Mitch76 Well-Known Member

    Joined:
    Nov 19, 2015
    Member:
    #170100
    Messages:
    3,533
    Gender:
    Male
    First Name:
    Mitch
    San Angelo, TX
    Vehicle:
    2015 DCSB PR
    Clazzios, 3G OR suspension, Debadged, TRD Skid, Kenwood HU.
    Have you checked the fuse?

  6. Mar 20, 2018 at 11:48 AM
    #6
    cvisinho

    cvisinho [OP] Well-Known Member

    Joined:
    Jan 21, 2013
    Member:
    #95694
    Messages:
    872
    Gender:
    Male
    First Name:
    Chris
    Rhode Island
    Vehicle:
    2005 TRD Sport DCSB new frame edition
    Bilstein 5100's, Eibach springs, Cali Raised Amber fogs,Cali Raised side projecting ditch lights, 17" gunmetal trd pro reps w/ falken wildpeaks, MESO interior lighting, Alpine ilx Android auto head unit, rear view camera, blue sea fuse panel, mbrp cat back, Morimoto retros in Depos, Ranch cap, triple black clazzios, DIY thin lip satoshi with FJ letters, oem roof rack, AJT climate knobs, slim sub behind rear seat, fosgate speakers all around, thule cap rack
    not yet.

  7. Mar 20, 2018 at 11:48 AM
    #7
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    52,289
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    Are they LED?

  8. Mar 20, 2018 at 11:49 AM
    #8
    cvisinho

    cvisinho [OP] Well-Known Member

    Joined:
    Jan 21, 2013
    Member:
    #95694
    Messages:
    872
    Gender:
    Male
    First Name:
    Chris
    Rhode Island
    Vehicle:
    2005 TRD Sport DCSB new frame edition
    Bilstein 5100's, Eibach springs, Cali Raised Amber fogs,Cali Raised side projecting ditch lights, 17" gunmetal trd pro reps w/ falken wildpeaks, MESO interior lighting, Alpine ilx Android auto head unit, rear view camera, blue sea fuse panel, mbrp cat back, Morimoto retros in Depos, Ranch cap, triple black clazzios, DIY thin lip satoshi with FJ letters, oem roof rack, AJT climate knobs, slim sub behind rear seat, fosgate speakers all around, thule cap rack
    yes. cali raised amber led pods. Worked perfectly fine prior to being swapped to fog location with these provided pigtails

  9. Mar 20, 2018 at 11:50 AM
    #9
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    52,289
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    Yeah swap the wires. LEDs are polarity specific. @CaliRaisedLed just posted a diagram the other day of how to swap. Lemme see if I can find it

  10. Mar 20, 2018 at 11:51 AM
    #10
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    52,289
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
  11. Mar 20, 2018 at 11:52 AM
    #11
    cvisinho

    cvisinho [OP] Well-Known Member

    Joined:
    Jan 21, 2013
    Member:
    #95694
    Messages:
    872
    Gender:
    Male
    First Name:
    Chris
    Rhode Island
    Vehicle:
    2005 TRD Sport DCSB new frame edition
    Bilstein 5100's, Eibach springs, Cali Raised Amber fogs,Cali Raised side projecting ditch lights, 17" gunmetal trd pro reps w/ falken wildpeaks, MESO interior lighting, Alpine ilx Android auto head unit, rear view camera, blue sea fuse panel, mbrp cat back, Morimoto retros in Depos, Ranch cap, triple black clazzios, DIY thin lip satoshi with FJ letters, oem roof rack, AJT climate knobs, slim sub behind rear seat, fosgate speakers all around, thule cap rack
    interesting, why would they ship pigtails out like this then without any notification?

  12. Mar 20, 2018 at 11:52 AM
    #12
    cvisinho

    cvisinho [OP] Well-Known Member

    Joined:
    Jan 21, 2013
    Member:
    #95694
    Messages:
    872
    Gender:
    Male
    First Name:
    Chris
    Rhode Island
    Vehicle:
    2005 TRD Sport DCSB new frame edition
    Bilstein 5100's, Eibach springs, Cali Raised Amber fogs,Cali Raised side projecting ditch lights, 17" gunmetal trd pro reps w/ falken wildpeaks, MESO interior lighting, Alpine ilx Android auto head unit, rear view camera, blue sea fuse panel, mbrp cat back, Morimoto retros in Depos, Ranch cap, triple black clazzios, DIY thin lip satoshi with FJ letters, oem roof rack, AJT climate knobs, slim sub behind rear seat, fosgate speakers all around, thule cap rack
  13. Mar 20, 2018 at 12:24 PM
    #13
    Boyk1182

    Boyk1182 Well-Known Member

    Joined:
    Oct 15, 2017
    Member:
    #233074
    Messages:
    4,435
    Gender:
    Male
    Timnath, CO
    Vehicle:
    2014 Toyota Tacoma 4x4
    Backwards, I just did mine with the Morimotos: Green ---> Red; Black ---> White.

    cvisinho [OP] likes this.
  14. Mar 20, 2018 at 1:53 PM
    #14
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    11,802
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
    Toyota vehicles - White Wire with Black Stripe is always ground.

    Sandman614 and BEE-ROCK like this.
  15. Mar 21, 2018 at 5:35 AM
    #15
    BEE-ROCK

    BEE-ROCK Well-Known Member

    Joined:
    Sep 27, 2017
    Member:
    #231281
    Messages:
    197
    Gender:
    Male
    First Name:
    Brock
    Dallas, TX
    Vehicle:
    2013 Tacoma TRD Sport
    TRD Pro Grille, Black Headlight Mod, Bilstein 5100's. More to come!
    That's been my experience with most 12v things. My motorcycle is the same way.
