Footwell, Cupholder, Console, Glove Compartment, Rear Seat LEDs

Discussion in 'Lighting' started by Tacown3d, Jan 17, 2012.

  1. Jan 17, 2012 at 9:35 PM
    #1
    Tacown3d

    Tacown3d [OP] Member

    Joined:
    Jan 1, 2012
    Member:
    #69768
    Messages:
    7
    Gender:
    Male
    Austin, TX
    Vehicle:
    09 PreRunner TRD Sport
    I spent all day rigging up my Taco the way Toyota should have. Behold! Light!

    [​IMG]

    [​IMG]

    [​IMG]

    The glove compartment light is brighter than the picture indicates...
    [​IMG]

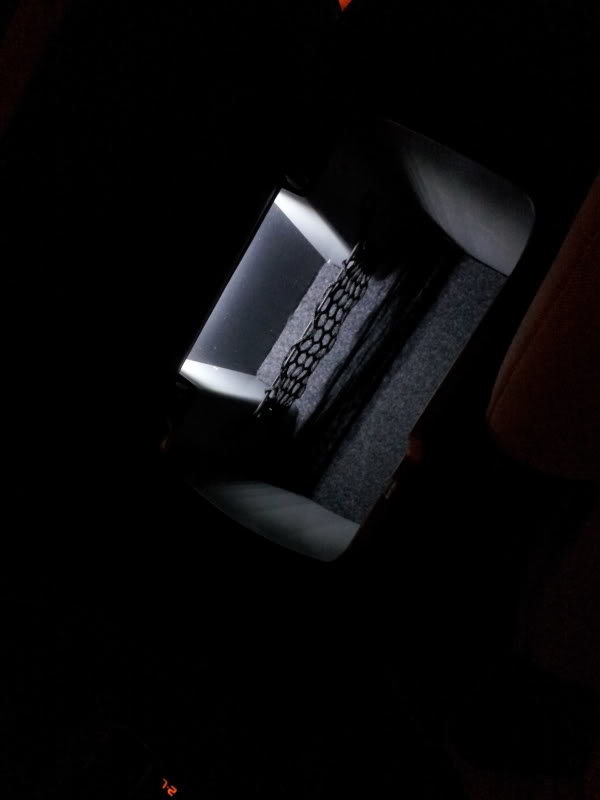

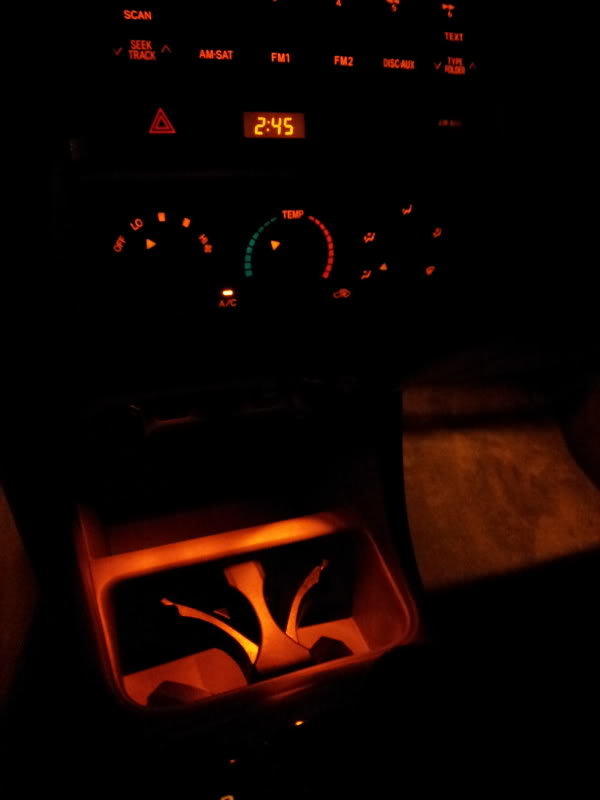

    These look great from above.
    [​IMG]



    All of the lights are tied in with the AirCon controls so they dim with the dash lights. I'll probably change the footwell and rear floor lights eventually since they aren't a match to the factory orange... oh well.

    Special thanks to Oznium and Super Bright LEDs for without their products, I would have been in the dark. Thank you to TW for the guidance in disassembling the dash, console, and the correct location to tap into the dash lights. My next lighting project will be entry lights that shine onto the ground below the door when the key fob unlock is pressed.

  2. Jan 17, 2012 at 9:47 PM
    #2
    pudge151

    pudge151 Well-Known Member

    Joined:
    Apr 4, 2010
    Member:
    #34558
    Messages:
    3,388
    Gender:
    Male
    First Name:
    Sean
    Connecticut
    Vehicle:
    08 TRD Sport
    5100's @ .85, Custom Grill, Debadged, Bestop Supertop, BHLM, DDM 4500k HID heads, Nokya 2500k fogs, LED interior lights, Weathertech Mats...
    very nice work

  3. Jan 17, 2012 at 9:49 PM
    #3
    wrxRome

    wrxRome Houston's Swamp Rat

    Joined:
    Aug 25, 2011
    Member:
    #62338
    Messages:
    5,880
    Gender:
    Male
    First Name:
    Brandon
    Covington, LA/Friendswood,TX
    Vehicle:
    06 SWB 4x4 trd off road
    the floor lights arent triggered with the doors? just when dash lights are on?

  4. Jan 18, 2012 at 3:24 AM
    #4
    OxyGuy

    OxyGuy Well-Known Member

    Joined:
    Jan 6, 2012
    Member:
    #70094
    Messages:
    94
    Gender:
    Male
    Conway, SC
    Vehicle:
    2007 PreRunner
    What lights did you use for the footwell and cupholders? Can you give a few details of how you done this?

  5. Jan 18, 2012 at 9:57 AM
    #5
    Tacown3d

    Tacown3d [OP] Member

    Joined:
    Jan 1, 2012
    Member:
    #69768
    Messages:
    7
    Gender:
    Male
    Austin, TX
    Vehicle:
    09 PreRunner TRD Sport
    When I tap into the dome light for my entry lights, I'm going to mount white LEDs under the dash that will come on when the door is open. I wanted the amber ones for driving.

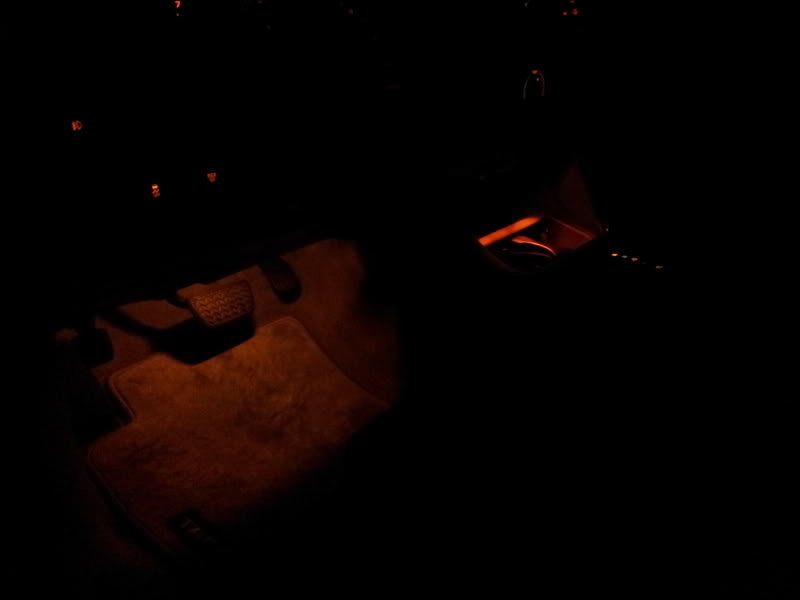

    Footwell lights in front:
    [​IMG]
    AM-RB-x6: AM series Miniature Rectangle Accent Light - Black from Super Bright LEDs

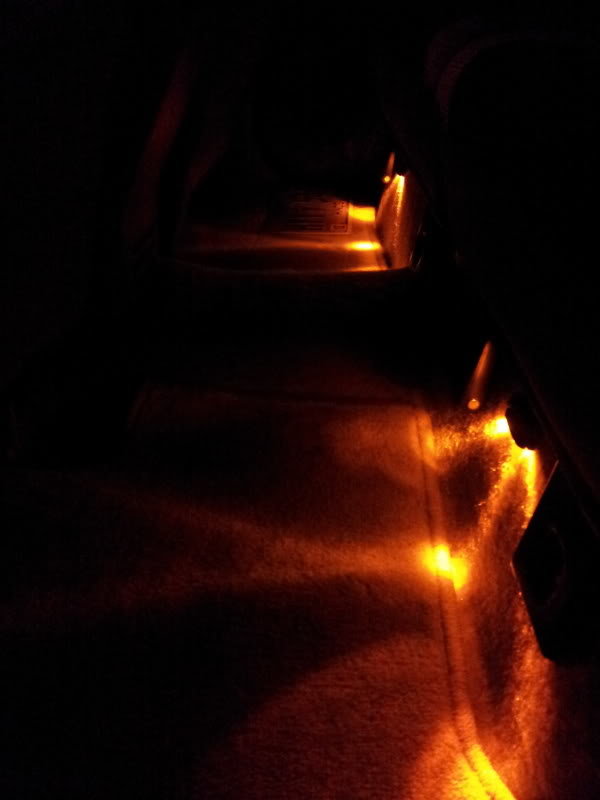

    Footwell in rear:
    [​IMG]
    ALM-RB-x3: ALM 3 LED Rectangular Accent Light Module from Super Bright LEDs

    Cupholder: 2 of these 5mm Orange
    http://www.oznium.com/prewired-leds

    For the cupholder lights, I removed the entire center console and disassembled the dash to remove the lower center dash area where the cigarette lighter and auxiliary port reside. I then drilled 2 holes for the LEDs and used LED holders from Radio Shack. The light inside the center console is a flexible self-stick ribbon from Super Bright LEDs... while I had the console out, I drilled a hole for the wires to pass through and stuck it under the lip on the edge. The rear floor lights were mounted to the hump that contains the under-seat storage box. I removed the box so I could run the wiring.

    All of the lights are tied into the power and ground coming from the AC selector switches. Green is power, green-white is ground.

  6. Jan 22, 2012 at 6:34 PM
    #6
    whopper

    whopper 2016 MGM 4x4 double cab

    Joined:
    Jun 18, 2011
    Member:
    #58464
    Messages:
    1,247
    Gender:
    Male
    First Name:
    wayne
    north carolina
    Vehicle:
    2016 tacoma double cab 4x4 MGM
    On going
    what circuit do i tap for dome on with the door open.where do i find it ? i put 6 led aftermarket liscese plate twin bulbs along the bed rail and just have them on a switch would like to have them on with the door open circuit and help would help (2010 taco)

  7. Feb 8, 2012 at 12:06 PM
    #7
    Oregon TRD

    Oregon TRD "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    15,497
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    2005 Mall Krawler
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks Naked girls in the bed 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box
  8. Feb 9, 2012 at 8:15 AM
    #8
    Oregon TRD

    Oregon TRD "GO DUCKS" Edition

    Joined:
    Oct 16, 2007
    Member:
    #3081
    Messages:
    15,497
    Gender:
    Male
    First Name:
    Ross
    Steel Panthers bathroom floor!
    Vehicle:
    2005 Mall Krawler
    6" Fabtech Lift, 35" Fierce M/T 17" Eagle Alloy Sim bead locks Naked girls in the bed 10.1" DVD head unit Two 7" Headrest Monitors PS2 in glove box

    I thought of doing this, putting my wide angle leds in the plastic under the door. But I have a full kit under my truck so i skipped it. Would work perfect though. I may do it anyway.:cool:
