Forced Induction Exhaust Setups & Discussion

Discussion in 'Performance and Tuning' started by Flake Boost, Mar 24, 2020.

  1. Mar 24, 2020 at 9:57 AM
    #1
    Flake Boost

    Flake Boost [OP] FORCED

    Joined:
    Mar 18, 2020
    Member:
    #322445
    Messages:
    207
    Post up PICS, DYNOS, Links etc. on what you have, plan on and sources, Sound Clips, installs, in progress.... whatever

    Putting some keywords here so its easier to find in a search

    Forced induction exhaust
    FI Exhaust
    Turbo exhaust
    SC Exhaust
    Supercharger Exhaust
    Centrifugal Exhaust

    Last edited: Mar 24, 2020
  2. Mar 24, 2020 at 10:04 AM
    #2
    Flake Boost

    Flake Boost [OP] FORCED

    Joined:
    Mar 18, 2020
    Member:
    #322445
    Messages:
    207

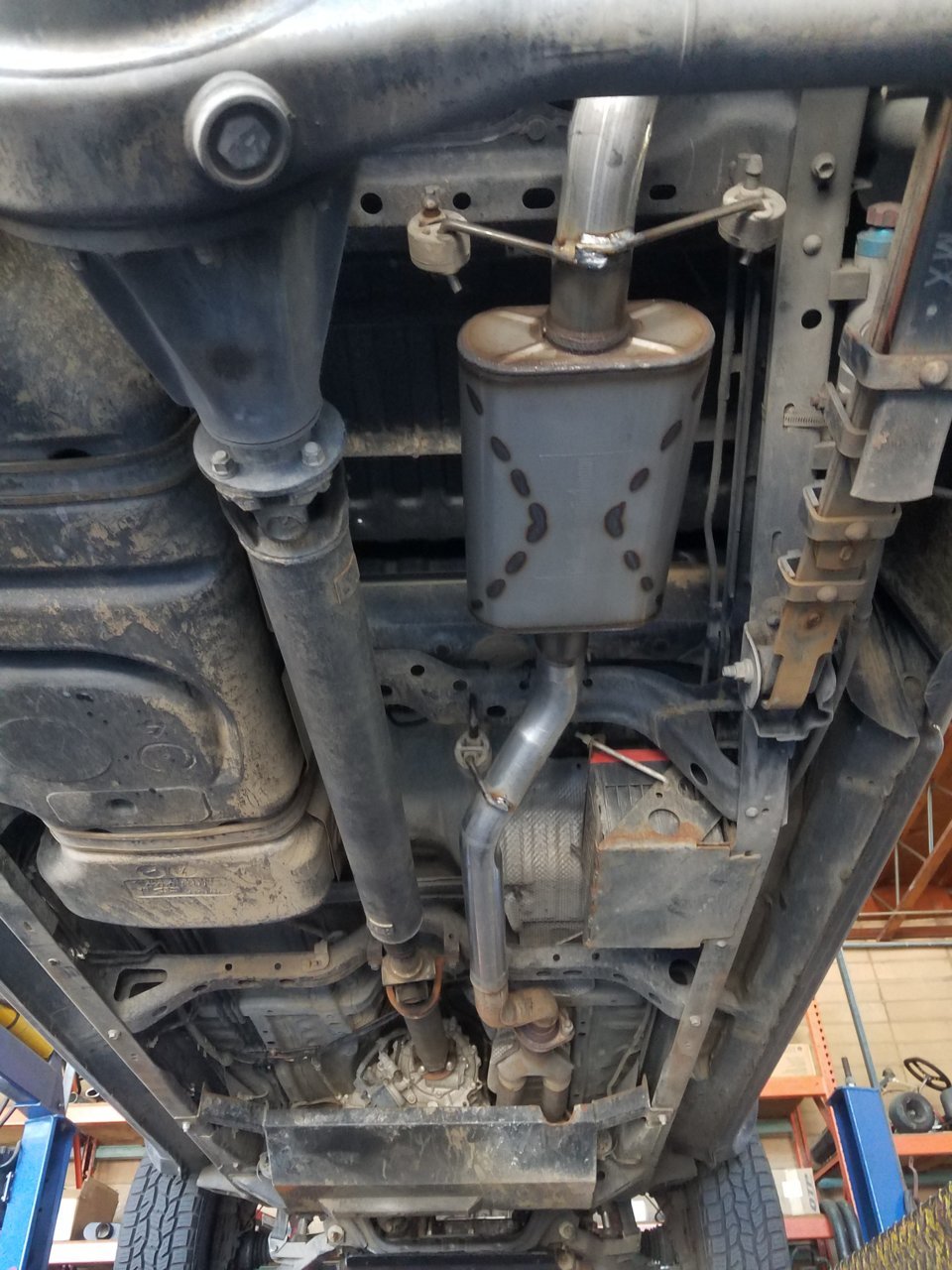

    Currently building my Exhaust setup. So far I have


    SPEC U LT equal length headers
    You need the 02 sensor extension harness too. Or lengthen your wires with silicone wire.



    Looking to do a 3" sleeper setup.

    Magnaflow 12279 https://www.amazon.com/gp/product/B000XQQ0AA/

    Magnaflow 14249 https://www.amazon.com/gp/product/B000CC9C96

    Y-Pipe from JRFE - Waiting list

    Turndown before rear axel

    Looking at the High Flow / Boost rated CATs too. Not sure yet.

    similar to this (not mine)

    https://www.youtube.com/watch?v=ubSy9Nykoso

    Last edited: Apr 11, 2020
    henryp likes this.
  3. Mar 24, 2020 at 10:10 AM
    #3
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    4,775
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Benefit of the second muffler to keep the sound down? I will be running a black widow muffler and need to figure out what to do with the rest. Since im stuck in CA I cant go with the JRFE which I really want to get or any available headers since not currently getting rid of any of the cats.

    Some tips on opening up the stock Y-Pipe and Routing would be helpful.

    Flake Boost [OP] likes this.
  4. Mar 24, 2020 at 10:13 AM
    #4
    Flake Boost

    Flake Boost [OP] FORCED

    Joined:
    Mar 18, 2020
    Member:
    #322445
    Messages:
    207
    There are High Flow cats that he can put on there. He just recently did a dual offset high flow cat system for someone on his equal length Y Pipe --- So that might be an option.

    Second muffler is to help with the DRONE that some of the exhausts systems cause. In my case, I just want it to be as quiet as possible..

    Last edited: Apr 11, 2020
    BassAckwards likes this.
  5. Mar 24, 2020 at 10:13 AM
    #5
    BassAckwards

    BassAckwards Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    23,686
    Gender:
    Male
    First Name:
    Robert
    TX
    Vehicle:
    09 i4 PreRunner
  6. Mar 24, 2020 at 10:21 AM
    #6
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    4,775
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    I did ask him about it before but the whole CA carb legal deal came up. Most cats are not CA legal which would still pose the issue.

    Roostfactor and Flake Boost [OP] like this.
  7. Mar 24, 2020 at 10:47 AM
    #7
    12TRDTacoma

    12TRDTacoma Ocean TRD

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    13,760
    Gender:
    Male
    First Name:
    Rob
    Concordia
    Vehicle:
    12 TRD Sport DCLB 4x4 Tacoma
    Supercharged
    The title has too much crap going on in it.

    Rename the thread to "Forced induction exhaust setups discussion thread" or something similar.

    Try and keep the word BS out of it because it encourages stupid useless posts which otherwise will clog up the thread with nonsensical drivel which keeping future members from coming in and finding the setup they want to see more of easily.

    Last edited: Mar 24, 2020
  8. Mar 24, 2020 at 10:49 AM
    #8
    12TRDTacoma

    12TRDTacoma Ocean TRD

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    13,760
    Gender:
    Male
    First Name:
    Rob
    Concordia
    Vehicle:
    12 TRD Sport DCLB 4x4 Tacoma
    Supercharged

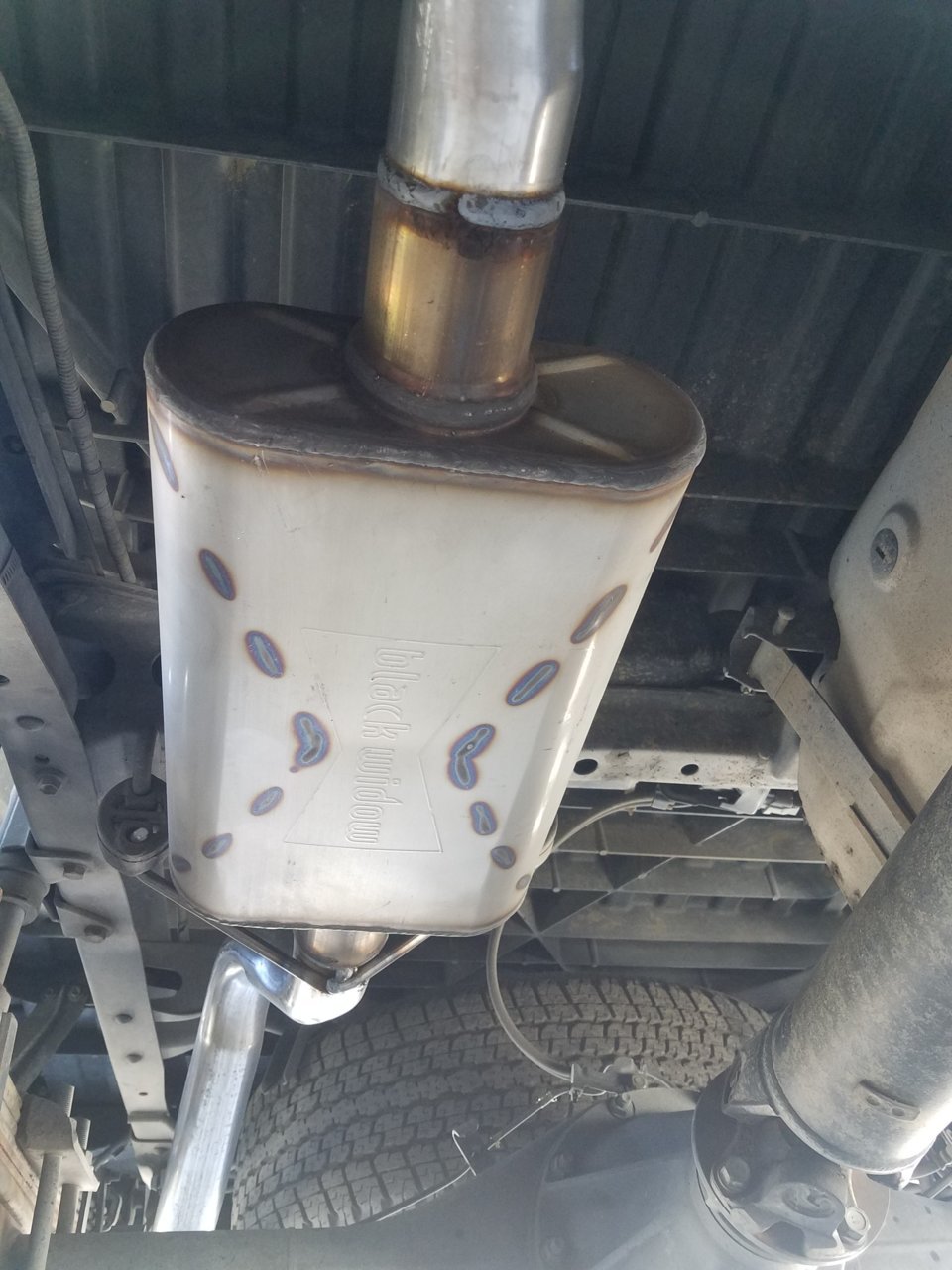

    With that being said, here is my setup:

    - TRD Supercharger
    - 2.5" exhaust from y pipe after cats all the way to the rear.
    - Black Widow Venom 250 series muffler

    https://youtu.be/dqYPPDnlIz4



    Last edited: Mar 24, 2020
    Flake Boost [OP] likes this.
  9. Mar 24, 2020 at 10:58 AM
    #9
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    4,775
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    I was thinking SC/Turbo but Force induction works. Def pretty long but just makes it easy to search. thats what really matters.

    Flake Boost [OP] and 12TRDTacoma like this.
  10. Mar 28, 2020 at 12:53 PM
    #10
    74cam

    74cam Automotive Engineer

    Joined:
    May 15, 2017
    Member:
    #219075
    Messages:
    338
    Gender:
    Male
    Michigan
    Vehicle:
    2010 Tacoma TRD Sport 6spd
    TRD Supercharged, 3 inch lift, TRD beadlock wheels
    I can go make a video of mine when the weather gets a bit better out here. I'm running TRD S/C, 3" aFe exhaust, y-pipe, and CAI. It has the drone you guys all mention and I'd like to eliminate. But man some of those sleeper exhaust setups sound great!

    In the meantime I found this video on youtube of another supercharged Tacoma -
    '08 Toyota Tacoma 4.0L w/Supercharger, aFe Intake + aFe Headers, Y-Pipe & 3" Exhaust

    https://www.youtube.com/watch?v=WvgVAZ79tPM

  11. Apr 18, 2020 at 8:57 PM
    #11
    Murphinator

    Murphinator Well-Known Member

    Joined:
    Mar 1, 2015
    Member:
    #149903
    Messages:
    2,493
    Gender:
    Male
    First Name:
    Anthony
    SoCal
    Vehicle:
    14 DCSB 4x4
    Here is a quick video I took today. My setup is JBA Shorties w/ Factory Cats, JRF Racing Ypipe, banks catback chopped over the axle.


    Wasn't a full throttle hit but I rolled into it slowly to like 3k rpms them let her eat.

  12. Apr 28, 2020 at 11:46 PM
    #12
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    4,775
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Trying to gauge what to do for my exhaust for the s/c setup.

    Part of this is a bit of a guess from pieces things together

    JBA Shorties/ Factory cats (CA) and all
    2.5 piping from cats into Y pipe/ re routed into 3" collector and 3" back
    3" in black widow muffler and 3" out dumped at the axle.

    I assume I should get bungs welded on both sides just in case. If not which side should I have it added for the AFR? Worth having both sides? I have seen some but not as common it seems.

    Truck will be 2.5 pulley, 650FICs, HPTune, Cam Gears so she will be putting in some work.

  13. Apr 29, 2020 at 7:23 AM
    #13
    Murphinator

    Murphinator Well-Known Member

    Joined:
    Mar 1, 2015
    Member:
    #149903
    Messages:
    2,493
    Gender:
    Male
    First Name:
    Anthony
    SoCal
    Vehicle:
    14 DCSB 4x4
    I just have a bung at the merge. If you have bungs on both banks it would help you diagnose issues. For me I have a UG where I can see somewhat is going on at both banks but its not as good as two independent full range sensors.

    Flake Boost [OP] likes this.
  14. Apr 29, 2020 at 9:26 AM
    #14
    Flake Boost

    Flake Boost [OP] FORCED

    Joined:
    Mar 18, 2020
    Member:
    #322445
    Messages:
    207
    @Murphinator & @nudavinci64 -

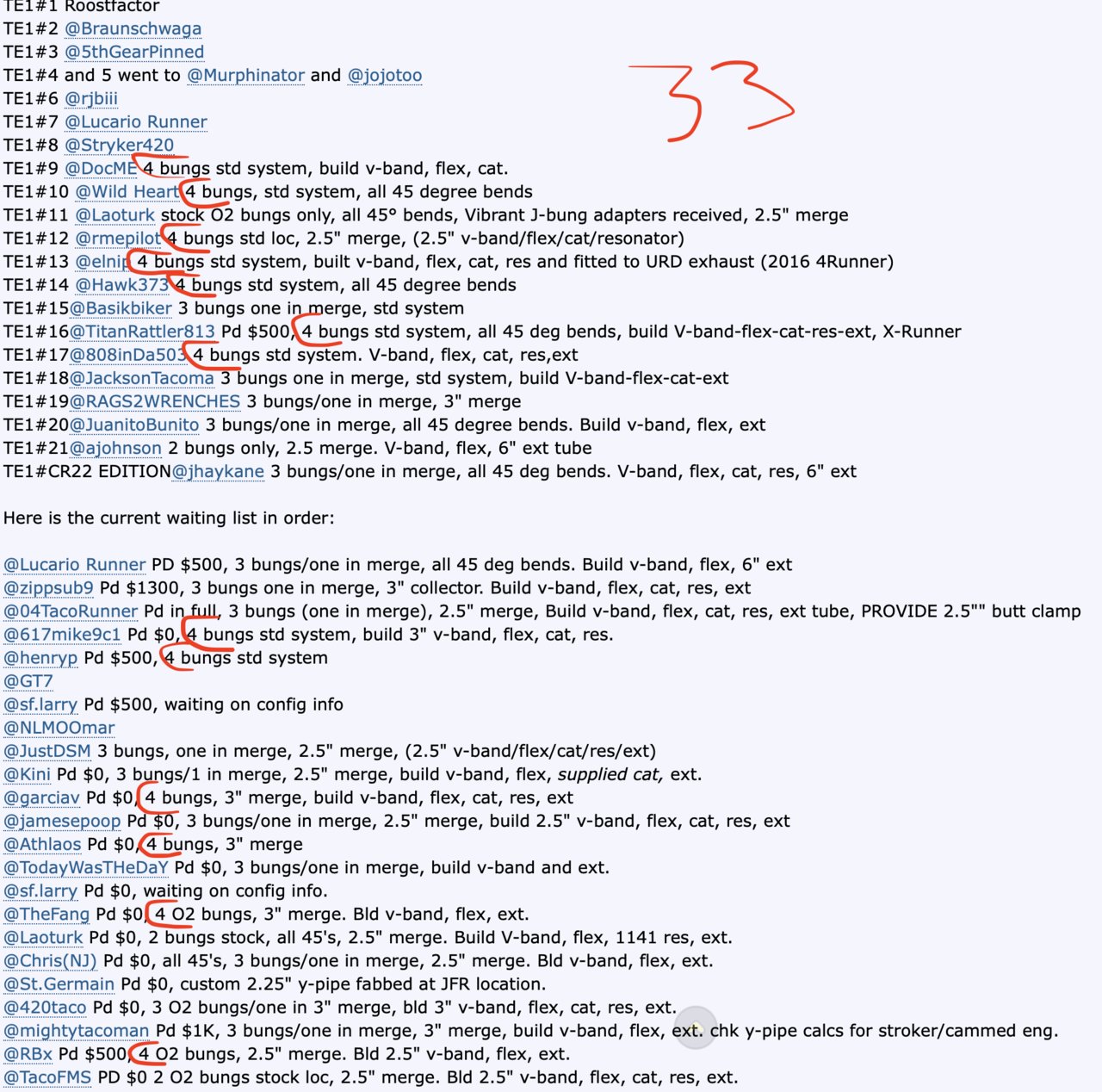

    Someone mentioned to me about the 4 bungs -2 factory and 2 wide band - in the JFR thread. After reading more. Looks like thats the proper way to go. troubleshooting is easier. Plenty of gauge options that support Dual AFR/ wide band. Plus thats how the factory setup is as well.

    Your setup looks solid as for what you have laid out already.

    33 decided and listed for the JFR y's

    14 want 4 bungs -
    4 want 2 bungs - stock/ standard/ only verbiage
    15 want 3 bungs - the 3rd at the merge area.

    Screen Shot 2020-04-29 at 12.08.58 PM.jpg

  15. Apr 29, 2020 at 9:58 AM
    #15
    Roostfactor

    Roostfactor Well-Known Member

    Joined:
    Jun 2, 2015
    Member:
    #156609
    Messages:
    3,755
    Gender:
    Male
    First Name:
    John
    TX panhandle
    Vehicle:
    2015 DCSB OR Pyrite Mica
    HPT/justDSM tuned factory ecu, URD Headers, JFR Y-Pipe/l 3" exhaust, Walbro 255 fuel pump, Maggy SC (JFR ported), JFR ported lower intake manifold, 76mm tb, 2.5 pulley, 640cc injectors, CSF Radiator, custom electric fan wit Autocoolguy controller, JFR SC pulley wrap mod
    2.5" is pretty large for 3 cylinders/200 hp (each bank). Especially if you want low end torque.

    1 AFR or 2?
    I have 2 because I wanted the extra resolution.

    Also if you get/have the HPtuner pro version afr can be viewed in your datalog for more accurate tuning.

    Flake Boost [OP] likes this.
  16. Apr 29, 2020 at 10:00 AM
    #16
    Roostfactor

    Roostfactor Well-Known Member

    Joined:
    Jun 2, 2015
    Member:
    #156609
    Messages:
    3,755
    Gender:
    Male
    First Name:
    John
    TX panhandle
    Vehicle:
    2015 DCSB OR Pyrite Mica
    HPT/justDSM tuned factory ecu, URD Headers, JFR Y-Pipe/l 3" exhaust, Walbro 255 fuel pump, Maggy SC (JFR ported), JFR ported lower intake manifold, 76mm tb, 2.5 pulley, 640cc injectors, CSF Radiator, custom electric fan wit Autocoolguy controller, JFR SC pulley wrap mod
    Bringing data I hadn't even thought of. Love it! :thumbsup:

  17. Apr 29, 2020 at 10:04 AM
    #17
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    4,775
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Nice, thats helpful. Playing dumb where would all the bungs go? I want to hit up some shots locally and feel I will need to direct them where items need to be.

    Flake Boost [OP] likes this.
  18. Apr 29, 2020 at 10:07 AM
    #18
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    4,775
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Good to know. I am open for feedback. I know 2.5 is plenty but since the truck will probably be getting close to it in some regards what to do. I also have the option of a 2.5" muffler or 3". From the cat back open for options.

    If its go JBA to regular piping do I widen the Y? What are you running in your Y's? What would be the benefit of the larger collector and larger going back? Seems to be common but was not sure except possible some back pressure release.

    need the crash course on what to do. =)

    Flake Boost [OP] likes this.
  19. Apr 29, 2020 at 10:09 AM
    #19
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    4,775
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    I was mainly thinking of 2 AFR for the same reason. If I want to add a second for extra resolution then it is there. If not then I will plug it until I add it.

    I do not have the Pro version but had thought about getting it as I learn how to use it more. @JustDSM is going to help me out with some tuning to start.

    Roostfactor likes this.
  20. Apr 29, 2020 at 10:11 AM
    #20
    Roostfactor

    Roostfactor Well-Known Member

    Joined:
    Jun 2, 2015
    Member:
    #156609
    Messages:
    3,755
    Gender:
    Male
    First Name:
    John
    TX panhandle
    Vehicle:
    2015 DCSB OR Pyrite Mica
    HPT/justDSM tuned factory ecu, URD Headers, JFR Y-Pipe/l 3" exhaust, Walbro 255 fuel pump, Maggy SC (JFR ported), JFR ported lower intake manifold, 76mm tb, 2.5 pulley, 640cc injectors, CSF Radiator, custom electric fan wit Autocoolguy controller, JFR SC pulley wrap mod
    I place them a few inches from the stock o2 bung locations.
    You want the bung clocked between 10 and 2 to prevent water accumulation.
    You also want to make sure there are no clearance issues when you install the o2 sensor.

    Flake Boost [OP] likes this.
