Forced Induction Exhaust Setups & Discussion

Discussion in 'Performance and Tuning' started by Flake Boost, Mar 24, 2020.

  1. Jun 2, 2020 at 12:15 AM
    #41
    Roostfactor

    Roostfactor Well-Known Member

    Joined:
    Jun 2, 2015
    Member:
    #156609
    Messages:
    3,885
    Gender:
    Male
    First Name:
    John
    TX panhandle
    Vehicle:
    2015 DCSB OR Pyrite Mica
    HPT/justDSM tuned factory ecu, URD Headers, JFR Y-Pipe/l 3" exhaust, Walbro 255 fuel pump, Maggy SC (JFR ported), JFR ported lower intake manifold, 76mm tb, 2.5 pulley, 640cc injectors, CSF Radiator, custom electric fan wit Autocoolguy controller, JFR SC pulley wrap mod
    Yes, the closer to the heads the cats are will heat them up significantly.
    Exhaust:
    The importance of exhaust components in order (traditionally) is S follows from most important to least
    Headers
    Y-pipe (my application effectively extends the headers into a more efficient system)
    After y-pipe. With 3" mandrel bends your flow will be fine.
    Most of the gains are near the engine where we take advantage of scavenging.

    Torspd and findingthingsout like this.
  2. Jun 2, 2020 at 7:39 AM
    #42
    findingthingsout

    findingthingsout Well-Known Member

    Joined:
    Dec 15, 2014
    Member:
    #144330
    Messages:
    778
    Gender:
    Male
    midwest
    Vehicle:
    08 Tacoma TRD O/R A.C. MT
    Boost, armor, lights, big tires, no savings.
    Thanks, Roost. I appreciate being able to utilize your prior research. I've changed the exhaust up a few times now and am ready to get a solid setup so I can tackle other areas.

    Torspd and Roostfactor like this.
  3. Jun 2, 2020 at 11:11 AM
    #43
    Roostfactor

    Roostfactor Well-Known Member

    Joined:
    Jun 2, 2015
    Member:
    #156609
    Messages:
    3,885
    Gender:
    Male
    First Name:
    John
    TX panhandle
    Vehicle:
    2015 DCSB OR Pyrite Mica
    HPT/justDSM tuned factory ecu, URD Headers, JFR Y-Pipe/l 3" exhaust, Walbro 255 fuel pump, Maggy SC (JFR ported), JFR ported lower intake manifold, 76mm tb, 2.5 pulley, 640cc injectors, CSF Radiator, custom electric fan wit Autocoolguy controller, JFR SC pulley wrap mod
    :cheers:

  4. Jun 6, 2020 at 11:35 AM
    #44
    findingthingsout

    findingthingsout Well-Known Member

    Joined:
    Dec 15, 2014
    Member:
    #144330
    Messages:
    778
    Gender:
    Male
    midwest
    Vehicle:
    08 Tacoma TRD O/R A.C. MT
    Boost, armor, lights, big tires, no savings.
    Has anyone painted their Y-pipe? New one is 304SS but due to living in Salt country wanting to make it last. A darker paint on the outside will help the tube bleed heat.

    How about painting inside the tubes? This would do the opposite and help keep the heat inside, which could protect external components. Eastwood Paints suggest doing so for increased longevity, they have a spray wand kit.

    Figure the headers are ceramic coated inside and out, I should continue with the theme.

  5. Jun 6, 2020 at 12:58 PM
    #45
    Roostfactor

    Roostfactor Well-Known Member

    Joined:
    Jun 2, 2015
    Member:
    #156609
    Messages:
    3,885
    Gender:
    Male
    First Name:
    John
    TX panhandle
    Vehicle:
    2015 DCSB OR Pyrite Mica
    HPT/justDSM tuned factory ecu, URD Headers, JFR Y-Pipe/l 3" exhaust, Walbro 255 fuel pump, Maggy SC (JFR ported), JFR ported lower intake manifold, 76mm tb, 2.5 pulley, 640cc injectors, CSF Radiator, custom electric fan wit Autocoolguy controller, JFR SC pulley wrap mod
    A few have ceramic coated or Ceracoated their full exhausts.

    You'd have to dig through my y-pipe thread to see pics.

  6. Jun 7, 2020 at 8:05 AM
    #46
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    25,801
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Make the exhaust out of inconel. No paint needed. ;)

  7. Jun 7, 2020 at 8:10 AM
    #47
    findingthingsout

    findingthingsout Well-Known Member

    Joined:
    Dec 15, 2014
    Member:
    #144330
    Messages:
    778
    Gender:
    Male
    midwest
    Vehicle:
    08 Tacoma TRD O/R A.C. MT
    Boost, armor, lights, big tires, no savings.
    Got any spare inconel tubing? You can have it back when I am done.

    Roostfactor likes this.
  8. Jun 7, 2020 at 8:12 AM
    #48
    findingthingsout

    findingthingsout Well-Known Member

    Joined:
    Dec 15, 2014
    Member:
    #144330
    Messages:
    778
    Gender:
    Male
    midwest
    Vehicle:
    08 Tacoma TRD O/R A.C. MT
    Boost, armor, lights, big tires, no savings.
    Looking further into the Eastwood internal exhaust coating. "Not for turbocharged and supercharged vehicles." They limit temps to 1800F, verse VHT silica-ceramic is 2000F.

  9. Jun 7, 2020 at 8:12 AM
    #49
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    25,801
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Left it at the forge. Tell em I sent ya. ;)

    Roostfactor likes this.
  10. Feb 27, 2021 at 10:35 AM
    #50
    12TRDTacoma

    12TRDTacoma Powered by Ford, GM, VW, and Mercedes

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    16,572
    Gender:
    Male
    First Name:
    Rob
    Concordia
    Vehicle:
    12 TRD Sport DCLB 4x4 Supercharged
    Boosted
    Exhaust resubmission:

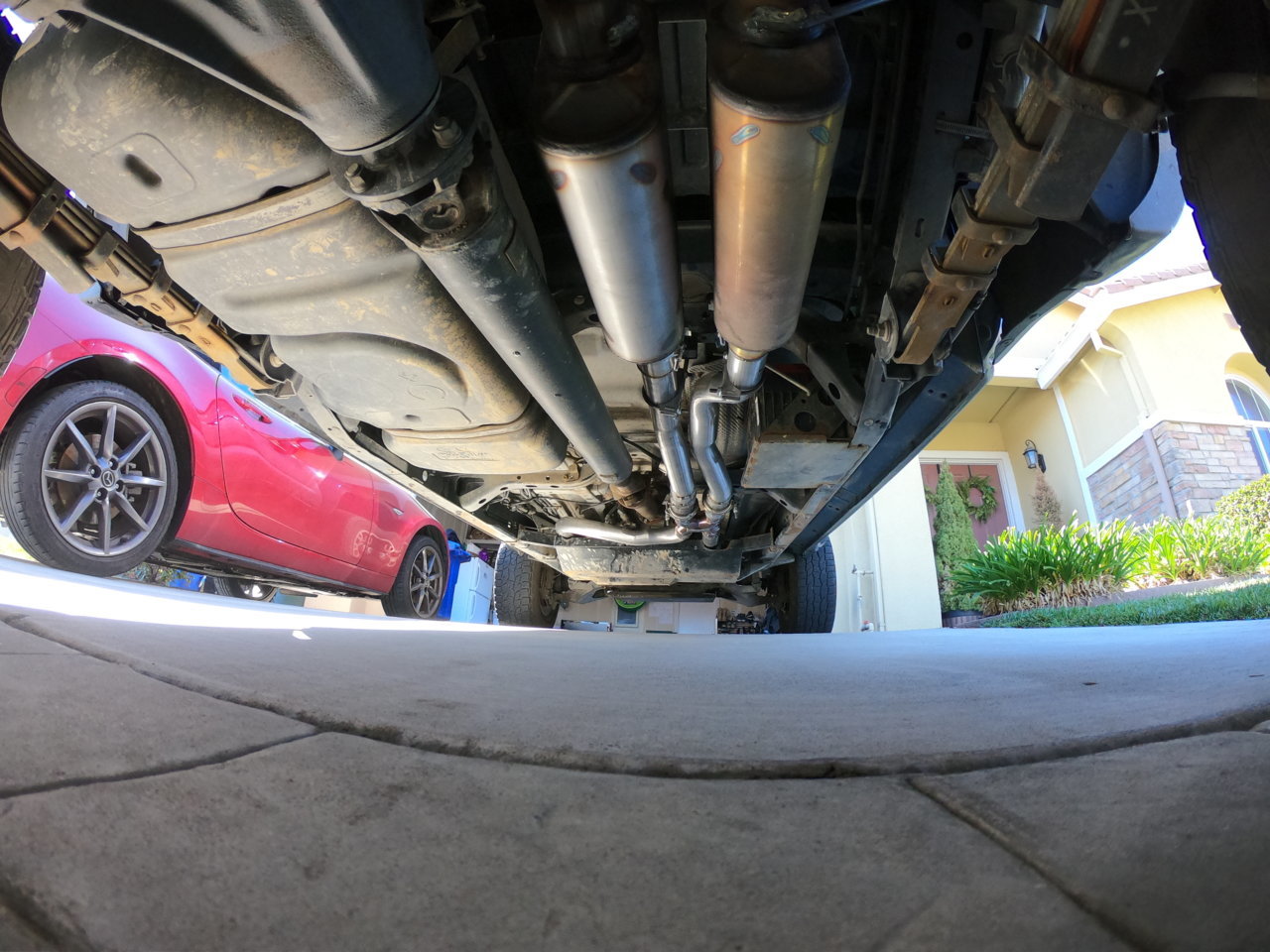

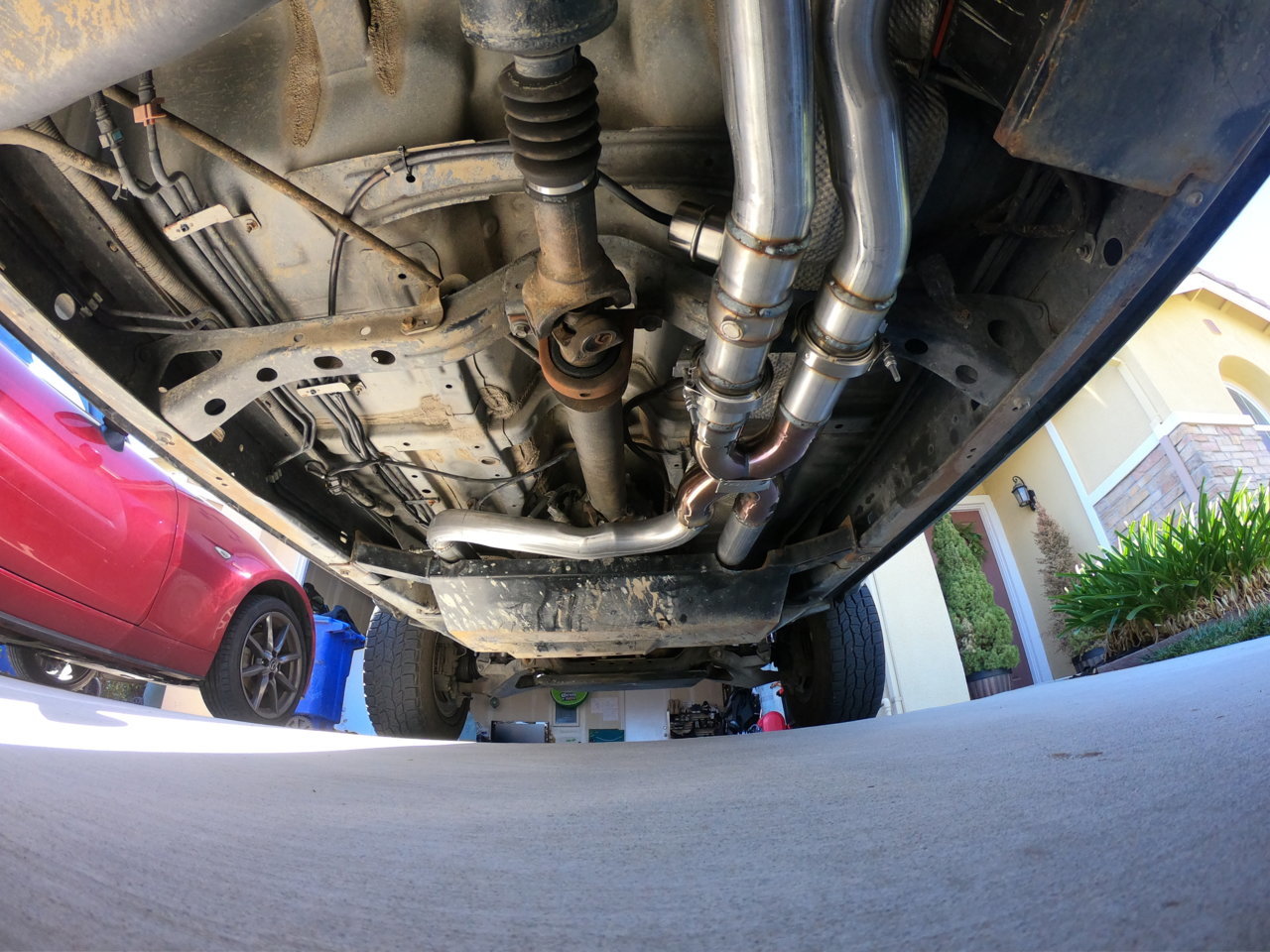

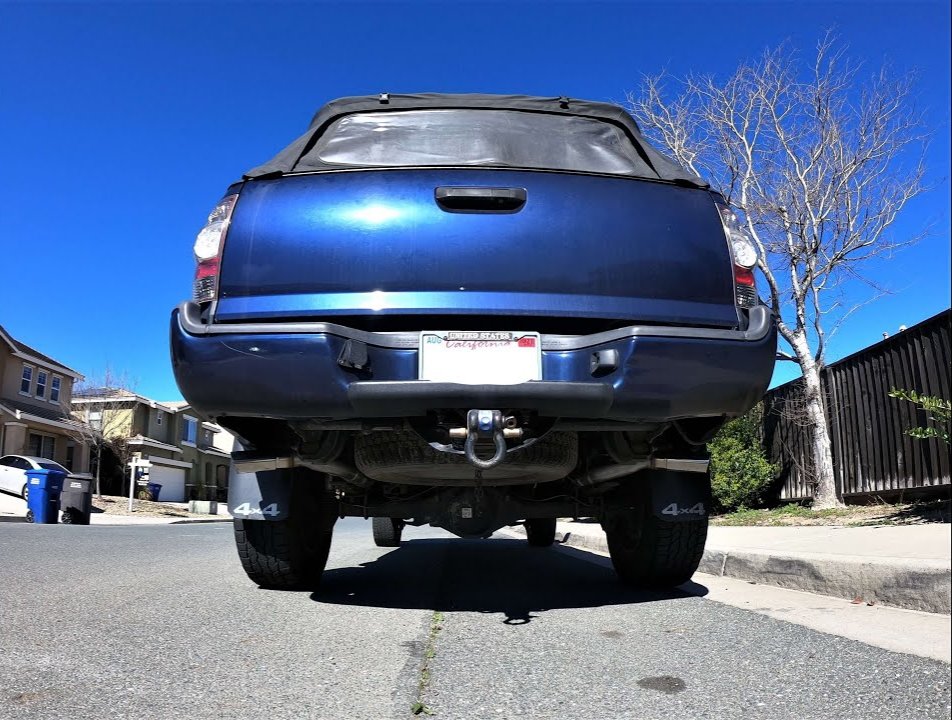

    Custom 2.5" true dual Y to X pipe variable boost cutout activated exhaust. Y converts to full flow X at 7 PSI.

    - Boost cutout supplied by Loud Valves

    - Wicked flow X- pipe

    - Dual Black Widow Venom 250 mufflers

    - Dual exit piping




    https://youtu.be/aTcVmnfaDLc

    Last edited: Oct 22, 2021
    Biscuits, MadTaco461, rj_taco and 3 others like this.
  11. Feb 27, 2021 at 10:36 AM
    #51
    BassAckwards

    BassAckwards Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    27,690
    Vehicle:
    AWD Turbo 2TR-FE
    Welcome back brother

    12TRDTacoma[QUOTED] likes this.
  12. Feb 27, 2021 at 10:38 AM
    #52
    12TRDTacoma

    12TRDTacoma Powered by Ford, GM, VW, and Mercedes

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    16,572
    Gender:
    Male
    First Name:
    Rob
    Concordia
    Vehicle:
    12 TRD Sport DCLB 4x4 Supercharged
    Boosted
    Thank you! Good to be back brother.

    Hawk373 and BassAckwards[QUOTED] like this.
  13. Apr 20, 2021 at 10:39 AM
    #53
    nudavinci64

    nudavinci64 Robert @ Holy Horsepower

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    9,913
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Looking into some setups for my CA or ( low key for a period of time CA setup).

    Just ordered some DT shorties which are supposed to have pending carb coming now that JBA no longer sells them.
    I Will have 3" Catback into a Black Widow Venom 250
    For the Y I am on the list for a JFR I will deal with swapping if needed when smog comes but in the meantime, I am going to have a shop do the Y setup.

    After the cat on the headers I know they like to open it up at the shop I am going to have done it. Likely prob 2 1/4 to meet the Y pipe. Should I make sure that the shop keeps the factory mounting points for the Y and Y to Cat? Is there any benefits to having different points clamped instead of welded? I saw one setup where they did this on the cat of the header so they could replace it easily if needed.

    Are there preferred clamps to use? I want to order or have him order the right goods. The shop works on a lot of track cars and hot rods and will be using a mandrel and welded piping instead of regular bent shop pipping.

    In the Y I assume get 4 bungs upfront so I can have the stock and AFR's added, just need to get some o2 sims to go with them.

  14. Apr 20, 2021 at 11:27 AM
    #54
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    25,801
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Were they bolt on clamps, or v-band clamps? Bolt-on use gaskets. V-bands do not.

  15. Apr 20, 2021 at 11:44 AM
    #55
    nudavinci64

    nudavinci64 Robert @ Holy Horsepower

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    9,913
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    For the Cat portion, I mentioned? Likely V-Bands based on the setup. that likely answers my question. Is it worth doing v-bands throughout or sticking with bolt on? Header to why if kept stick would need a bolt on unless converted and I guess the same for the Y to cat-back.

    I asked him to do a 3" collection of the Y into the cat for a better transition.

  16. Apr 20, 2021 at 3:59 PM
    #56
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    25,801
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    If removing the OEM donut gasket/flange, the you have to install a flex coupling.

  17. Apr 20, 2021 at 5:07 PM
    #57
    nudavinci64

    nudavinci64 Robert @ Holy Horsepower

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    9,913
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Makes sense. Is it worth doing so?

  18. Apr 20, 2021 at 9:54 PM
    #58
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    25,801
    Gender:
    Male
    First Name:
    Tor
    The Great America!
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] Haltech Elite 2500 [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 160* T-stat mod [] APR Large Fuel Rail [] Walbro 460 LPH E85 Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Just listened to that again. Sounds good.

    12TRDTacoma[QUOTED] likes this.
  19. Apr 20, 2021 at 10:08 PM
    #59
    nudavinci64

    nudavinci64 Robert @ Holy Horsepower

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    9,913
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    you still running the stock cats on this setup? assuming so but couldn't tell.

  20. Apr 20, 2021 at 11:20 PM
    #60
    12TRDTacoma

    12TRDTacoma Powered by Ford, GM, VW, and Mercedes

    Joined:
    Aug 20, 2012
    Member:
    #85133
    Messages:
    16,572
    Gender:
    Male
    First Name:
    Rob
    Concordia
    Vehicle:
    12 TRD Sport DCLB 4x4 Supercharged
    Boosted
    I intentionally drop the back windows every day now to listen to it. It's refreshingly fun to be able to do it and enjoy listening to the exhaust.

    All two of them. ;)
