Frame-end modifications for 1998-2000 Tacomas

Discussion in 'Elite Off-Road' started by davidpick, Mar 13, 2013.

  1. Mar 13, 2013 at 10:04 PM
    #1
    davidpick

    davidpick [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29760
    Messages:
    1,981
    Gender:
    Male
    First Name:
    David
    Everett, WA
    Vehicle:
    2004 Xcab 4x4 TRD
    For those of you with 1998-2000 Tacomas who are looking to purchase an Elite Offroad bumper, here are a few pictures to help you with the modifications needed to the frame ends.

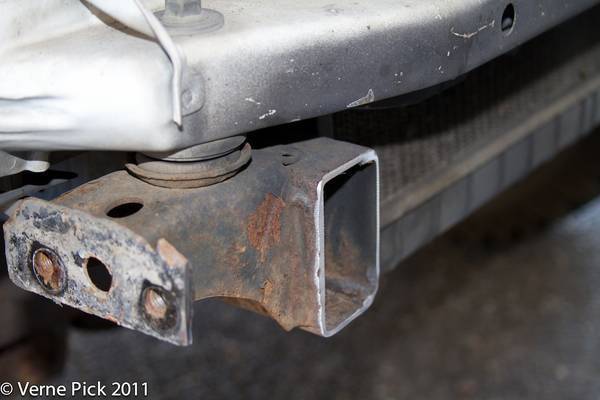

    Once you have the grill and OEM bumper removed, you'll need to cut the frame back and remove the skid plate mounting crossbar (don't worry, the bumper has the skid plate mounting points already built-in). Then you weld the frame end plates to the newly-cut frame for strength and to add an additional mounting point for the bumper (see photo 3).

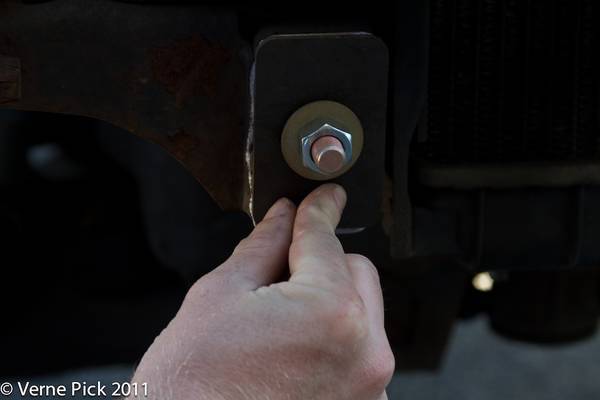

    Here are the photos of the finished modification:
    [​IMG]

    [​IMG]

    [​IMG]

  2. Apr 10, 2013 at 10:49 PM
    #2
    garrettnb

    garrettnb Canadian Ambassador

    Joined:
    Dec 12, 2011
    Member:
    #68636
    Messages:
    97
    Gender:
    Male
    First Name:
    Garrett
    Vancouver
    Vehicle:
    00 TRD w/33s on a 4" lift
    Where did you cut the frame? I'm at this step and kind of unaware where to go from here.

  3. Apr 11, 2013 at 8:07 AM
    #3
    davidpick

    davidpick [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29760
    Messages:
    1,981
    Gender:
    Male
    First Name:
    David
    Everett, WA
    Vehicle:
    2004 Xcab 4x4 TRD
    Have you pulled off your bumper yet? You'll see the frame ends sticking out on both sides of the radiator (see photos above). You need to cut those back so that they don't interfere with the mounting points of the bumper.

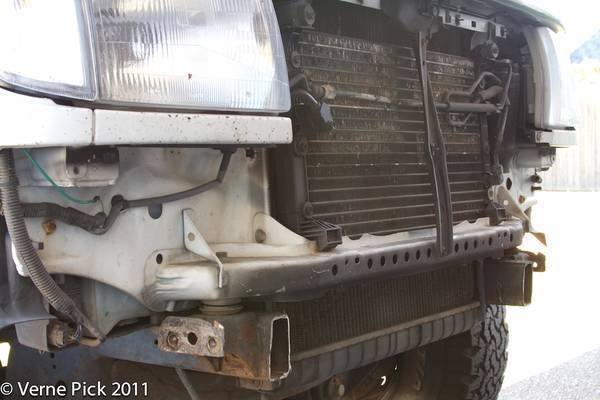

    See in the second photo above, the two holes in the plate in the lower-left corner? Those are the primary mounting points for the new Elite bumper, but the frame horns stick out too far and won't let the bumper slide on and mount up to those points. Keep test fitting the bumper as you trim the frame down until you can line it up with those holes on the side.

    Clear as mud? :)

  4. Mar 25, 2014 at 6:33 PM
    #4
    SeattleCoug

    SeattleCoug Washington State University

    Joined:
    Jul 25, 2012
    Member:
    #83444
    Messages:
    3,230
    Gender:
    Male
    First Name:
    Mark
    Oceanside, CA
    Vehicle:
    2015 TRD Off-Road
    I'm confused as to what welding the frame end plate onto the frame horns would do... does this provide some support somehow or is it meant to just seal up the frame
    :confused:

  5. Mar 25, 2014 at 8:20 PM
    #5
    davidpick

    davidpick [OP] Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29760
    Messages:
    1,981
    Gender:
    Male
    First Name:
    David
    Everett, WA
    Vehicle:
    2004 Xcab 4x4 TRD
    for my version of the bumper, it sealed up the frame and provided for an additional mounting point for the bumper. yours may be different...

  6. Mar 25, 2014 at 9:30 PM
    #6
    bellassaiw10

    bellassaiw10 Formally afroman5015

    Joined:
    Jun 16, 2010
    Member:
    #39032
    Messages:
    4,810
    Gender:
    Male
    Currituck NC
    Vehicle:
    00 4WD Prerunner
    Seal the frame and also give another support point for the bumper

  7. Mar 25, 2014 at 9:56 PM
    #7
    SeattleCoug

    SeattleCoug Washington State University

    Joined:
    Jul 25, 2012
    Member:
    #83444
    Messages:
    3,230
    Gender:
    Male
    First Name:
    Mark
    Oceanside, CA
    Vehicle:
    2015 TRD Off-Road
    Ah yeah that's what I figured out.
    Did your guys' bumpers come with the hardware for the extra support?
    I just got back from Home Depot and got some Grade 8 hardware but just curious if it was supposed to be provided..

  8. Mar 25, 2014 at 10:23 PM
    #8
    bellassaiw10

    bellassaiw10 Formally afroman5015

    Joined:
    Jun 16, 2010
    Member:
    #39032
    Messages:
    4,810
    Gender:
    Male
    Currituck NC
    Vehicle:
    00 4WD Prerunner
    My filler plates were bolted to the bumper, its actually my primary support point haha
