frame strengthening plates, do or don't??

Discussion in '1st Gen. Tacomas' started by logan1992, Jun 2, 2013.

  1. logan1992

    logan1992 [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #104018
    Messages:
    254
    Gender:
    Male
    First Name:
    logan
    gunnison colorado
    Vehicle:
    2004 tacoma trd
    ome Dakars in rear and ome 882's in front. 255 85 16's maxxis bighorns
    i have a 2004 Tacoma dc, I wheel it regularly on diffuculy rocky, flexy trails, including moab trails and Ouray. I don't carry much extra weight in the bed just my camping gear maby 100 pounds at the most. should I worry about the frame bending in the rear? should I install frame plates ? or are they only needed when adding a heavy bumper or pulling lots of weight? thanks for the help.

  2. Konaborne

    Konaborne Pineapples on pizza Hawaiian does not it make.

    Joined:
    Nov 21, 2010
    Member:
    #46536
    Messages:
    31,830
    Gender:
    Male
    First Name:
    Cody
    Kealakekua, Hawaii
    Vehicle:
    Lifted 00 TRD Off-Road
    fox extended travel remote resivoir coilovers, 14" eibach 600lb coils, All Pro tubular chromoly 1" uniball upper control arms, All Pro expedition leaf packs, 10" bilstein 5150 piggyback reservoir shocks 265/75r16 Goodyear wrangler MT/R kevlars wrapped around 16" Helo 791 gloss black, Mini H1 retrofits with 6000k bulbs, 18" magnaflow w/custom exhaust reroute various decals, Sockmonkey retro hood stripes
    having it and not needing it is way better than needing it and not having it

    Id get them

    im planning on getting them, and im 85% sure i wont need it

  3. logan1992

    logan1992 [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #104018
    Messages:
    254
    Gender:
    Male
    First Name:
    logan
    gunnison colorado
    Vehicle:
    2004 tacoma trd
    ome Dakars in rear and ome 882's in front. 255 85 16's maxxis bighorns
    ya, I just don't want to realize I need it when its to late and I have a bent frame on my hands. I will wheel the truck to its limits but not with a lot of weight in the bed so idk if ill need it or not . .

  4. logan1992

    logan1992 [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #104018
    Messages:
    254
    Gender:
    Male
    First Name:
    logan
    gunnison colorado
    Vehicle:
    2004 tacoma trd
    ome Dakars in rear and ome 882's in front. 255 85 16's maxxis bighorns
    do I have to remove the bed to weld em on or can I manage it with just removing the tire?

  5. TejasYOTA

    TejasYOTA Countinuous improvement

    Joined:
    Oct 4, 2009
    Member:
    #23789
    Messages:
    340
    Gender:
    Male
    First Name:
    Nathan
    Country of TEXAS!
    Vehicle:
    "STITCH" 01 Tacoma DC TRD Limited 4WD
    Check the TTORA Garage Section....

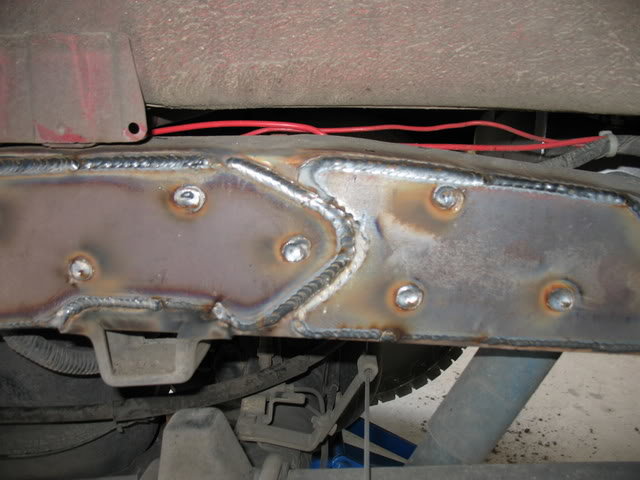

    There are two types of reinforcement plates, the ones welded flush on the out side (see Demello and CBI) or inside the frame rails (basically making our C-shaped rear section of the frame a boxed frame.
    See pics below.

    My CBI reinforcement plate
    http://www.ttora.com/forum/showpost.php?p=1249163&postcount=13
    [​IMG]

    Boxed frame
    Do you need to remove the bed - - no, just make sure you add a welding blanket over stuff, so nothing get's burned.
    http://www.ttora.com/forum/showthread.php?t=173455
    [​IMG]

  6. logan1992

    logan1992 [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #104018
    Messages:
    254
    Gender:
    Male
    First Name:
    logan
    gunnison colorado
    Vehicle:
    2004 tacoma trd
    ome Dakars in rear and ome 882's in front. 255 85 16's maxxis bighorns
    thanks for the help, I agree its eighty dollars for a good piece of mind. I think ill go with the frame reinforcement plates that weld to the outside, it seems like a pretty easy mod, I have a buddy that is a good welder maby ill do all the prep work and have him weld them on one day after work or something. how long does this mod take? any personal experience doing it?

  7. Supra TT

    Supra TT Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,365
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D44/Ford 9"
    SAS.. Need I say more.
    The longest part is going to be the welding, Depending on how good your buddies welding skills are it'll still take an hour to weld it all, probably more. Prep work should only take 30 minutes. No you don't need to remove the bed.

  8. logan1992

    logan1992 [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #104018
    Messages:
    254
    Gender:
    Male
    First Name:
    logan
    gunnison colorado
    Vehicle:
    2004 tacoma trd
    ome Dakars in rear and ome 882's in front. 255 85 16's maxxis bighorns
    when it gets welded should welds be done maby say 2 inches apart ? or fully weld around the entire plate ? either way I would seal them up really good so water doesn't get behind the plate some how

  9. Supra TT

    Supra TT Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,365
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D44/Ford 9"
    SAS.. Need I say more.
  10. KenLyns

    KenLyns Lord of War

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    20,155
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off Road Full-Auto
    All-Pro Front Bumper, All-Pro UCAs, Icon ET Coilovers, Icon VS Rear Shocks, TSB Leafs, Timbren Bumpstops, CBI Sliders, ViAir Compressor, Klearz LED 3rd Brake Light, Pop-N-Lock Tailgate Handle, Husky Front Flaps, Deeza HD Sway Bar Links
    Has anyone broken a Tacoma frame from flexing on trails? Jumping too aggressively in the desert can do it, but I've never seen pictures or reports of broken frames from low-speed rock-crawling, unless it's a major accident like a rollover.

  11. Johnnie

    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,761
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    Tacoma frames are very weak. They will bend and if you wheel a lot, I bet part of your frame is already bent. Personally I would just box it instead of adding the outside frame plates. Trail Gear sells a kit for $119. You'd be way better off doing this.
    Tacoma Rear Frame Box Kit

    http://www.trail-gear.com/tacoma-frame-gussets

  12. IgnorantlyAlberta

    IgnorantlyAlberta VA6DCO

    Joined:
    Apr 22, 2012
    Member:
    #77432
    Messages:
    3,058
    Gender:
    Male
    First Name:
    David
    edmonton
    Vehicle:
    06 sr5 tacoma rear shock relocate, 35s
    lift, wheels, bumper, rear bumper, intake, front and rear winches, swing tailgate, OBA, sliders.
  13. logan1992

    logan1992 [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #104018
    Messages:
    254
    Gender:
    Male
    First Name:
    logan
    gunnison colorado
    Vehicle:
    2004 tacoma trd
    ome Dakars in rear and ome 882's in front. 255 85 16's maxxis bighorns
    well I just bought the truck and installed the lift and tires, I havnt wheeled it to hard yet being its only 2 months old (to me) but I know the previous owner didn't wheel it at all so im hoping the frame is not bent at all yet. I know I will be doing tough trails as I did them in my old 01 xtcab taco. I never bought the frame plates on my old Tacoma but that's bc I didn't know better. so hopefully I can catch it before it bends at all. I see al lot of people on this sight that wheel pretty hard such as box rocket that didn't install the plates until about mid way through his build after a few moab trips and he didn't seem to have any problems so I guess im just debating if its truly necessary. you hear some people act like their frames are made of paper and some people wheel them pretty hard and have had no problems whithout weight on the bumper or bed of course. I will probably do it any ways just to ease my mind tho.

    Last edited: Jun 2, 2013
  14. logan1992

    logan1992 [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #104018
    Messages:
    254
    Gender:
    Male
    First Name:
    logan
    gunnison colorado
    Vehicle:
    2004 tacoma trd
    ome Dakars in rear and ome 882's in front. 255 85 16's maxxis bighorns
    also while im thinking about it wouldn't a class 3 hitch or aftermarket bumper strengthen the frame and resist twisting as well? not as much as the plates but better than a stock setup right?

  15. Johnnie

    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,761
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
    Adding a hitch or tube bumper might help a little with twisting and torque but overall the frame is very thin and weak. My frame is a little bent but it's not that big of a deal.

    It also really depend on the type of trails you run. If you're truck is going to experience a lot of articulation and flexing then you definitely want to box the frame.

    Also, Ballistic Fab make box kits too but they don't have them on their website. I believe they sell them for around $80 but you'll have to give them a call.

  16. logan1992

    logan1992 [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #104018
    Messages:
    254
    Gender:
    Male
    First Name:
    logan
    gunnison colorado
    Vehicle:
    2004 tacoma trd
    ome Dakars in rear and ome 882's in front. 255 85 16's maxxis bighorns
    I might look into that. does boxing the frame offer a lot greater strength over the plate strengthening kit?

  17. Johnnie

    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,761
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
  18. Johnnie

    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,761
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds

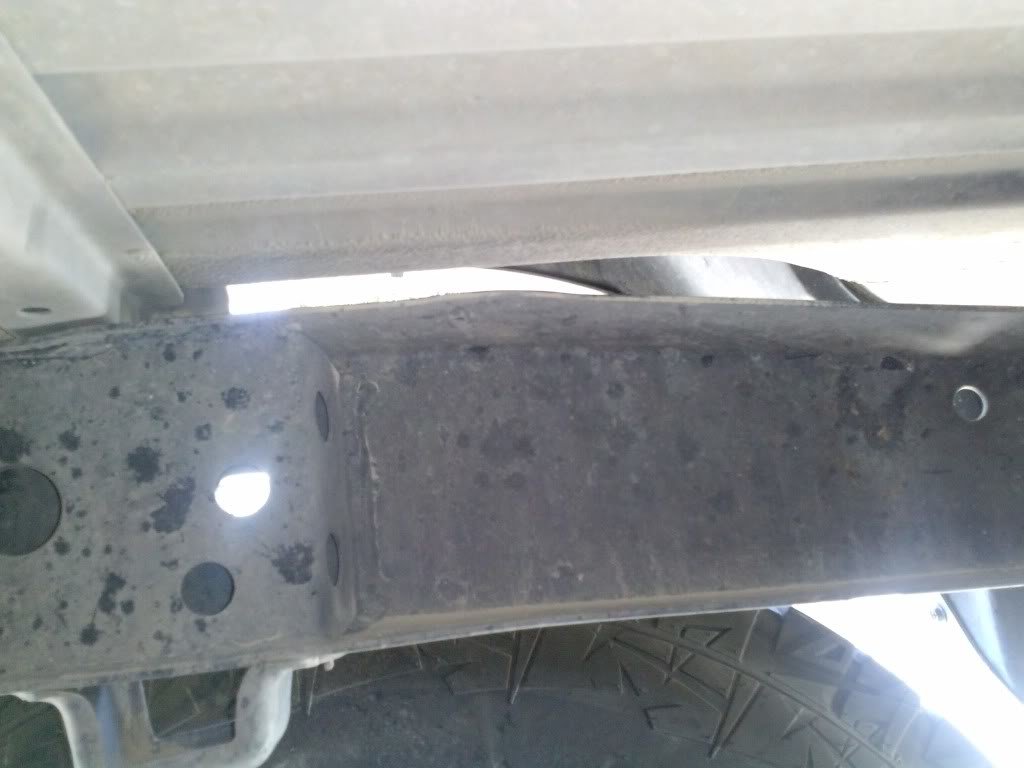

    Look at the picture of my frame. Center of the picture, top of the frame, you can see where it is bent up. I have no idea how that happened but an outside frame support would not have helped. Had I boxed the frame that would've never happened. Fortunately it's not that bad and when I remove the bed I can pound it back into place.

    [​IMG]

  19. logan1992

    logan1992 [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #104018
    Messages:
    254
    Gender:
    Male
    First Name:
    logan
    gunnison colorado
    Vehicle:
    2004 tacoma trd
    ome Dakars in rear and ome 882's in front. 255 85 16's maxxis bighorns
    thanks for the help guys, and great thread johnnie, I went ahead and ordered the frame plates and will see how they do, if I ever add a swing out tire bumper on the rear I will probably box the frame.

  20. logan1992

    logan1992 [OP] Well-Known Member

    Joined:
    May 12, 2013
    Member:
    #104018
    Messages:
    254
    Gender:
    Male
    First Name:
    logan
    gunnison colorado
    Vehicle:
    2004 tacoma trd
    ome Dakars in rear and ome 882's in front. 255 85 16's maxxis bighorns
    so I was walking through the city market parking lot and looked at 4 completely stock first gen Tacoma frames and all four had the bulge at the top of the frame right begind the bump stop plate. my guess is that they all have that bend. this has me questioning if the frame reinforcement plate is really needed. I think this is a part of Toyotas design with these frames. and come to think about it I have yet to read a post or article about a Tacoma frame failing.
