Front Axle & Wheel Hub removed an installation

Discussion in '3rd Gen. Tacomas (2016+)' started by Mr.Vencha808, Jan 13, 2021.

  1. Jan 13, 2021 at 11:02 PM
    #1
    Mr.Vencha808

    Mr.Vencha808 [OP] Member

    Joined:
    Jan 13, 2021
    Member:
    #352732
    Messages:
    18
    Gender:
    Male
    First Name:
    Lopaka
    Vehicle:
    2016 Tacoma 4x4TRDSport
    6” BDS Lift Fox Suspension With Reservoirs also with 3” stackable spacers... 4” Block With 2 Toy Teck Add A Leaf Springs... On 22x14 in Hostile Wheels 35’s Nitto Trail Mud Grappler Tires...
    So I Have A lifted 2016 Tacoma an been wanting to change out front axles wheel hub assembly... I’ve ordered the parts already have it on hand.. I just got my 8”clamshell bushing for driver side in today but most of my problems an noises are on my the passenger side...

    so my question is can I use the
    8”clamshell bearing on the passenger side?? Or it’s only made for the left side only??

  2. Jan 13, 2021 at 11:08 PM
    #2
    Car Ram-Rod

    Car Ram-Rod Well-Known Member

    Joined:
    Nov 15, 2020
    Member:
    #346855
    Messages:
    78
    What noises are you hearing on the passenger side?

    The “clam shell bushing” you’re talking about is the one that replaces the driver side factory needle bearing?

  3. Jan 13, 2021 at 11:22 PM
    #3
    Mr.Vencha808

    Mr.Vencha808 [OP] Member

    Joined:
    Jan 13, 2021
    Member:
    #352732
    Messages:
    18
    Gender:
    Male
    First Name:
    Lopaka
    Vehicle:
    2016 Tacoma 4x4TRDSport
    6” BDS Lift Fox Suspension With Reservoirs also with 3” stackable spacers... 4” Block With 2 Toy Teck Add A Leaf Springs... On 22x14 in Hostile Wheels 35’s Nitto Trail Mud Grappler Tires...
    Yes I know but is it only for the driver side?? Or can I use it on both sides??

  4. Jan 13, 2021 at 11:29 PM
    #4
    Car Ram-Rod

    Car Ram-Rod Well-Known Member

    Joined:
    Nov 15, 2020
    Member:
    #346855
    Messages:
    78
    Pretty sure it’s drivers side only.

    what kind of noise you hearing in the passenger side?

  5. Jan 13, 2021 at 11:33 PM
    #5
    Mr.Vencha808

    Mr.Vencha808 [OP] Member

    Joined:
    Jan 13, 2021
    Member:
    #352732
    Messages:
    18
    Gender:
    Male
    First Name:
    Lopaka
    Vehicle:
    2016 Tacoma 4x4TRDSport
    6” BDS Lift Fox Suspension With Reservoirs also with 3” stackable spacers... 4” Block With 2 Toy Teck Add A Leaf Springs... On 22x14 in Hostile Wheels 35’s Nitto Trail Mud Grappler Tires...
    I’m hearing a humming sound most definitely it’s the wheel bearing.. an also Rattling noise sounds like somethings bouncing around somewhere in that area... it’s not a broken stud I know that for sure.. i can hear it when I’m slowing dwn to a complete stop..

  6. Jan 13, 2021 at 11:56 PM
    #6
    Car Ram-Rod

    Car Ram-Rod Well-Known Member

    Joined:
    Nov 15, 2020
    Member:
    #346855
    Messages:
    78
    What size wheels and tires are your running?

  7. Jan 13, 2021 at 11:59 PM
    #7
    Mr.Vencha808

    Mr.Vencha808 [OP] Member

    Joined:
    Jan 13, 2021
    Member:
    #352732
    Messages:
    18
    Gender:
    Male
    First Name:
    Lopaka
    Vehicle:
    2016 Tacoma 4x4TRDSport
    6” BDS Lift Fox Suspension With Reservoirs also with 3” stackable spacers... 4” Block With 2 Toy Teck Add A Leaf Springs... On 22x14 in Hostile Wheels 35’s Nitto Trail Mud Grappler Tires...
    I had 22x14 hostile on 35” Trail Nitto Mud Grappler M/T With 1.5” wheel spacer.. took those off an now I’m using stalk snow flakes wheels with stalk tires...

  8. Jan 14, 2021 at 12:01 AM
    #8
    Mr.Vencha808

    Mr.Vencha808 [OP] Member

    Joined:
    Jan 13, 2021
    Member:
    #352732
    Messages:
    18
    Gender:
    Male
    First Name:
    Lopaka
    Vehicle:
    2016 Tacoma 4x4TRDSport
    6” BDS Lift Fox Suspension With Reservoirs also with 3” stackable spacers... 4” Block With 2 Toy Teck Add A Leaf Springs... On 22x14 in Hostile Wheels 35’s Nitto Trail Mud Grappler Tires...

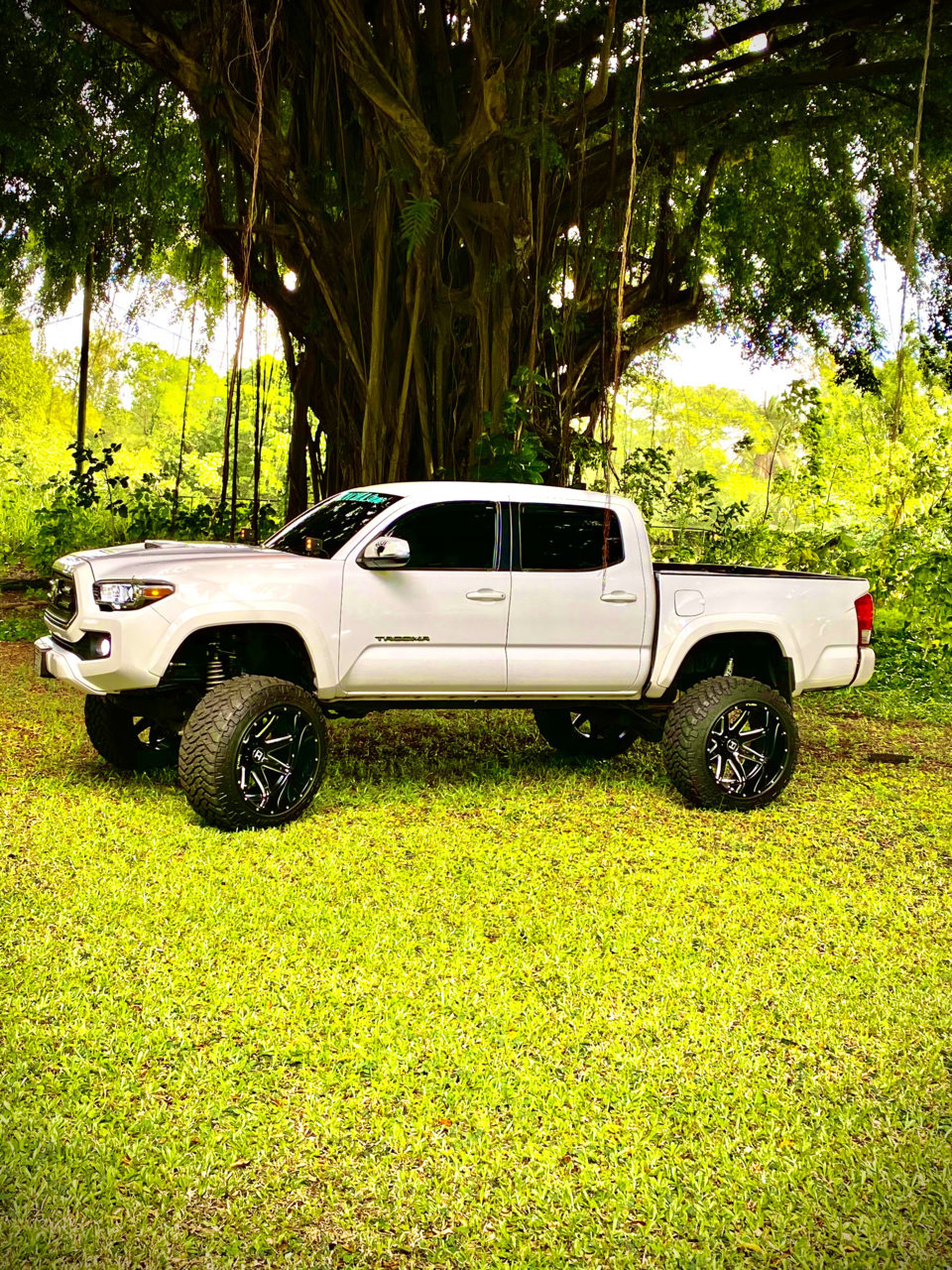

    53423A9C-CB18-4487-AD5B-E04D3C48D5E3.jpg These is what I had on

  9. Jan 14, 2021 at 12:02 AM
    #9
    Mr.Vencha808

    Mr.Vencha808 [OP] Member

    Joined:
    Jan 13, 2021
    Member:
    #352732
    Messages:
    18
    Gender:
    Male
    First Name:
    Lopaka
    Vehicle:
    2016 Tacoma 4x4TRDSport
    6” BDS Lift Fox Suspension With Reservoirs also with 3” stackable spacers... 4” Block With 2 Toy Teck Add A Leaf Springs... On 22x14 in Hostile Wheels 35’s Nitto Trail Mud Grappler Tires...

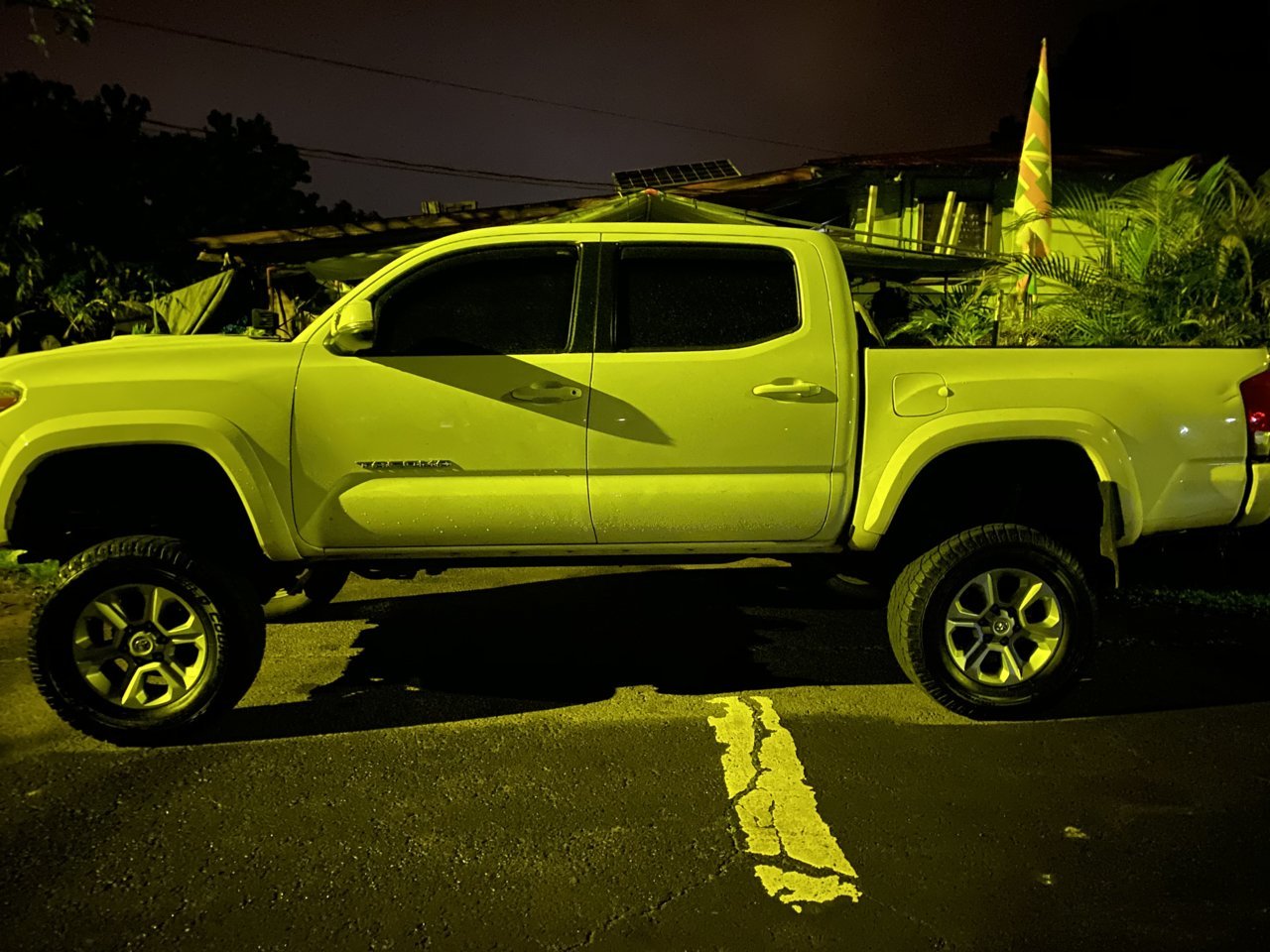

    This is what I have on now0935F60D-ABC4-4EB1-9F60-835B0A2D441F.jpg

  10. Jan 14, 2021 at 12:30 AM
    #10
    Car Ram-Rod

    Car Ram-Rod Well-Known Member

    Joined:
    Nov 15, 2020
    Member:
    #346855
    Messages:
    78
    Yeah it’s probably the wheel bearing. You said you changing both side wheel bearings anyway so wouldn’t hurt to start there and see how the thing changes or stays the same.

  11. Jan 14, 2021 at 12:37 AM
    #11
    Mr.Vencha808

    Mr.Vencha808 [OP] Member

    Joined:
    Jan 13, 2021
    Member:
    #352732
    Messages:
    18
    Gender:
    Male
    First Name:
    Lopaka
    Vehicle:
    2016 Tacoma 4x4TRDSport
    6” BDS Lift Fox Suspension With Reservoirs also with 3” stackable spacers... 4” Block With 2 Toy Teck Add A Leaf Springs... On 22x14 in Hostile Wheels 35’s Nitto Trail Mud Grappler Tires...
    Well I’m change those an my axels but driver side I’m gonna put in the 8”clamshell bearing.. an was wondering if the passenger side has the same thing or it just has needle bearings?? An That’s I should change?? As well!? Since I’m already goin in that far??

  12. Jan 14, 2021 at 1:14 AM
    #12
    muddog321

    muddog321 Well-Known Member

    Joined:
    Dec 22, 2009
    Member:
    #27973
    Messages:
    541
    Gender:
    Male
    FL
    Vehicle:
    09 tacoma doublecab 4wd trd w/e locker Pyrite mica color
    TW 1-piece driveshaft All Pro and Budbuilt skid plates OME Dakar rear springs 3" with 5100 5100 front set at 2" stock springs Falken Wildpeak A/T3W 265/70R16 Powerstop rotors and z36 pads Rebuilt rear and all wheel bearings front /rear Denso 130A rebuilt alternator New OEM idlers and tensioner assembly New AC compressor New PS hose and flushed Rhino front guard ARE shell
    Passenger side uses different bearing.
    Both side use same # oil seals.

    Below from the ECGS site
    TOYOTA 8" CLAMSHELL PASSENGER SIDE TUBE BEARING
    [​IMG]
    Pricing: $30.00

    This is the bearing in the passenger side tube of the T8 clamshell. It is a ball bearing OE replacement it is what supports the CV axle on Pass side directly behind axle seal.
    Fits 05 to present Toyota front axle tubes.

    Mr.Vencha808 [OP] likes this.
  13. Jan 14, 2021 at 1:23 AM
    #13
    Mr.Vencha808

    Mr.Vencha808 [OP] Member

    Joined:
    Jan 13, 2021
    Member:
    #352732
    Messages:
    18
    Gender:
    Male
    First Name:
    Lopaka
    Vehicle:
    2016 Tacoma 4x4TRDSport
    6” BDS Lift Fox Suspension With Reservoirs also with 3” stackable spacers... 4” Block With 2 Toy Teck Add A Leaf Springs... On 22x14 in Hostile Wheels 35’s Nitto Trail Mud Grappler Tires...
    Yes I have that one as well to install.. just wasn’t sure if that was for wheel hub... cuz I ordered the whole wheel hub assembly.. an was like darn it.. don’t tell me I have the wrong one lol

  14. Jan 14, 2021 at 1:24 AM
    #14
    Mr.Vencha808

    Mr.Vencha808 [OP] Member

    Joined:
    Jan 13, 2021
    Member:
    #352732
    Messages:
    18
    Gender:
    Male
    First Name:
    Lopaka
    Vehicle:
    2016 Tacoma 4x4TRDSport
    6” BDS Lift Fox Suspension With Reservoirs also with 3” stackable spacers... 4” Block With 2 Toy Teck Add A Leaf Springs... On 22x14 in Hostile Wheels 35’s Nitto Trail Mud Grappler Tires...
    So the passenger side if I’m not mistaken I have to take out C clip holding in the bearing?? Then press the bearing out after that??

  15. Jan 14, 2021 at 2:15 AM
    #15
    muddog321

    muddog321 Well-Known Member

    Joined:
    Dec 22, 2009
    Member:
    #27973
    Messages:
    541
    Gender:
    Male
    FL
    Vehicle:
    09 tacoma doublecab 4wd trd w/e locker Pyrite mica color
    TW 1-piece driveshaft All Pro and Budbuilt skid plates OME Dakar rear springs 3" with 5100 5100 front set at 2" stock springs Falken Wildpeak A/T3W 265/70R16 Powerstop rotors and z36 pads Rebuilt rear and all wheel bearings front /rear Denso 130A rebuilt alternator New OEM idlers and tensioner assembly New AC compressor New PS hose and flushed Rhino front guard ARE shell
    The bearing above is passenger side and your ECGS clamshell bushing drivers side (that replaces a weaker needle/roller bearing drivers side) go into the front diff housing to support the inner end of the CVs. CVs go in secured by the CV axle attached clip that comes out/goes in attached to CV. After you pull the CVs out a puller is used to remove those housing bearings and get new oil seals as you may mangle them - up to you but cheap and already will be in there.

    The wheel hub or bearing is the one piece assembly that the outboard spline of the CV goes thru and has a big nut to hold on all bolted to the steering knuckle.

    Many videos [posted on all of this.

  16. Jan 14, 2021 at 6:36 AM
    #16
    Car Ram-Rod

    Car Ram-Rod Well-Known Member

    Joined:
    Nov 15, 2020
    Member:
    #346855
    Messages:
    78
    Wheel bearing you won’t be taking out. You said you have new hub assemblies so when you remove the hub you just bolt in the new hub you bought.

    the ECGS bushing you have to take out the CV axle from the drivers side of the differential and then remove the needle bearing and replace with the new bushing.

    Ive never heard of guys replacing the passenger side bearing but I’m sure people do it. Probably a similar process to the driver side
