Front bumper build (slow)

Discussion in '2nd Gen. Tacomas' started by flyboy.co2, Feb 28, 2013.

  1. flyboy.co2

    flyboy.co2 [OP] Tail Striker

    Joined:
    Apr 4, 2011
    Member:
    #54348
    Messages:
    2,353
    Gender:
    Male
    First Name:
    Cam
    Wandering the cosmos with Carl Sagen
    Hey there fellow TW'ers! I've slowly been working on putting a front plate bumper together for myself (among other things...) and it's finally starting! So I got the idea almost a year ago when I saw a thread on here that disappeared, then I saw CBI's bumper. I knew I had to do this so I went on the hunt for some metal.

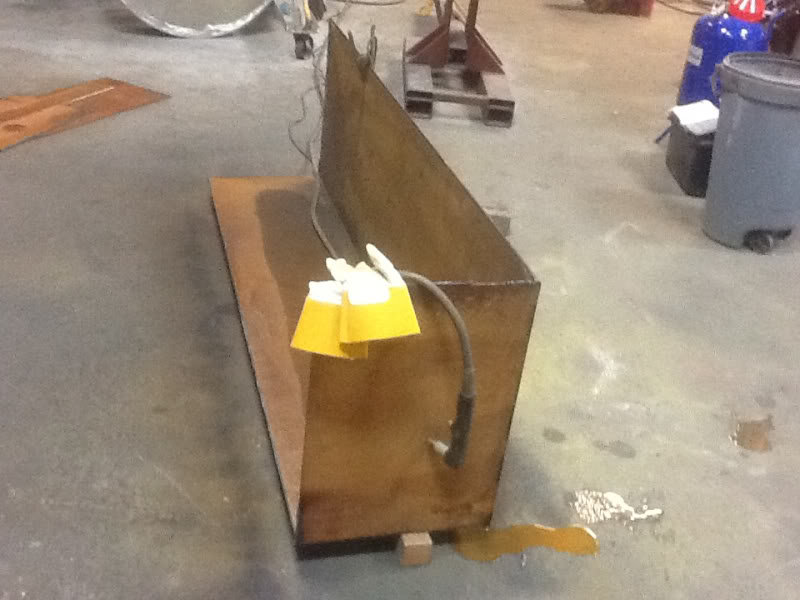

    In the meantime I mocked up a cardboard bumper and got everything the way I wanted on the truck. (Heavily influenced on the CBI bumper design)

    [​IMG]

    [​IMG]

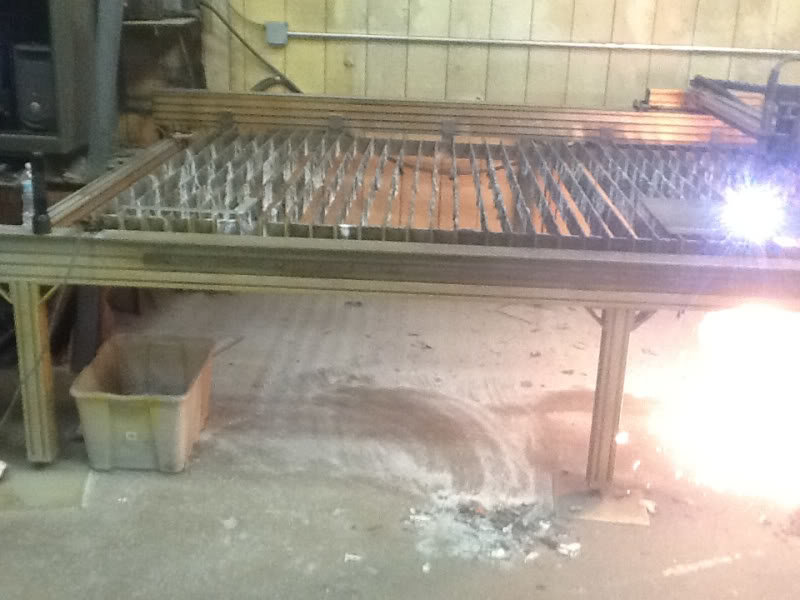

    I have a friend who has an awesome metal shop he uses for sculpture, working on cars, custom work for houses or anything really, that said I could use the space to work on the truck. Still no metal up to that point, but as luck would have it I was working on a job site this past summer and the designer designed a stove that didn't pass code so he had a 7'x2 1/2'x20" 3/16 plate steel box that was going into the dumpster. I grabbed it, then it sat in my yard for a while, and I got it to my friends shop not too long ago, and it's been cut up and ready to CNC.

    [​IMG]

    [​IMG]

    At this point I just need to finalize the cad work, and then this Tuesday I'm going to start chopping out the pieces, and hopefully if all goes smoothly I'll begin welding it that day.

    Disclaimer: this may take a while if stuff hits the fan. I have a pretty full schedule in school and flying which means i can only really work on Tuesdays and Thursdays because he closes his shop most weekends. However! I am optimistic this will get done in a timely manner.

    I'm pumped, and as some local members know I've been talking about this for a while now, but I've been afraid to start the thread until I knew I could actually get the work done. I'm confident I can! So I hope I don't disappoint!

    Also a shutout to member TRD 09, he's had some helpful tips about his build that he very graciously offered to me. Also to DTFtacoma for his pointer in sketchup. This is why TW rules, too many nice people too willing to lend a hand!

    Last edited: Mar 7, 2013
  2. Forster46

    Forster46 Very nice how much?

    Joined:
    Jul 20, 2010
    Member:
    #40487
    Messages:
    3,365
    Gender:
    Male
    First Name:
    Nick
    Mount Vernon, WA
    Vehicle:
    The doritos locos taco
    6000k HID's, AUX Reverse Lights, 3" Rough Country Suspension Lift, Pioneer AVH-P4200 Double Din, Underglow and footwell Lights, Camo Seat Covers, Duralast Tool Box, Blacked Out Badges, Grill, Front Emblem, Midland CB Radio, Amber Strobes, POWER REAR WINDOW, cup holder LED's, Firestik 3' in bed, console divider, Ultragauge.

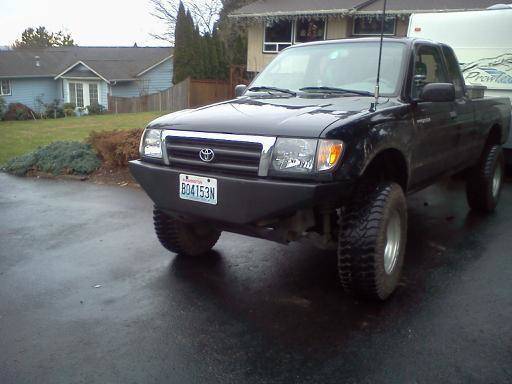

    I have never designed or made any kind of armor before. I started toying with a rear for my 06. But my friend saw that and asked me to design a front one for his 98. I tried to take some measurements from the front and it was harder than I thought. I then drew up a design based off the weird measurements into a 3D model on google sketchup. I then laid all the pieces flat and cut them on a plasmacam system. Then we tacked it all together and marked everything I measured wrong and had to change. After what seemed like forever we finally got it right and welded it up. Then he had a friend of his paint it.

    [​IMG]

    That is the design he wanted. Flat across the top, no more extra pieces to match the body, no holes for lights or anything. I think it came out great for the first time ever. Seeing your cardboard template makes me want to build one for my rig finally.

    EDIT: There are three holes on the skid plate piece that you can't see. I did that for some air to get in and cause I saw it on every other bumper and thought it needed it.

  3. BAMFTACO

    BAMFTACO Pabst Blue Ribbon on ice

    Joined:
    Feb 3, 2010
    Member:
    #30639
    Messages:
    9,699
    Gender:
    Male
    First Name:
    JUAN
    Malibu, CA
    Vehicle:
    Taco
    Lift- stock suspension with light racing uppers,tc coil bucket gusset, timbern bumps ,defined extended shackles with shackle brace. Armor- custom tube bumper, kr fab rear bumper,trail gear wiy 78 in sliders Performance-intake manifold spacer, vibrant resonator Random stuff- kenwood head unit,b&m t shifter, hood bug deflector.
  4. TRD 09

    TRD 09 Well-Known Member

    Joined:
    Aug 25, 2012
    Member:
    #85544
    Messages:
    538
    Gender:
    Male
    Alberta
    Vehicle:
    09 TRD sport
    Good work man, I'm always here to help, slow and steady...

  5. flyboy.co2

    flyboy.co2 [OP] Tail Striker

    Joined:
    Apr 4, 2011
    Member:
    #54348
    Messages:
    2,353
    Gender:
    Male
    First Name:
    Cam
    Wandering the cosmos with Carl Sagen
    I like that look man! Nice job!

    :turtleride: don't want to bugger this up!

  6. flyboy.co2

    flyboy.co2 [OP] Tail Striker

    Joined:
    Apr 4, 2011
    Member:
    #54348
    Messages:
    2,353
    Gender:
    Male
    First Name:
    Cam
    Wandering the cosmos with Carl Sagen
    so quick update, plans fell through to use the cnc cutter. some sort of problem squaring the guide track, so if it's working by this thursday i should have all the pieces cut out.

    here's something i was thinking about, i have enough 3/16" plate steel to make the bumper and the winch plate that mounts to the frame similar to cbi's method. the question is should i use what i have, or get the 1/4" plate steel for the back plate winch mount?

    i know the 3/16" will be plenty strong... but i wanted to have some leftover to fabricate a rear bumper for my fathers 2000 tundra which rotted out (damn salt).

    when i get around to it i'll post up the drawings i've done in sketchup.

  7. Foihdzas

    Foihdzas What is hummingbird?

    Joined:
    Sep 14, 2010
    Member:
    #43276
    Messages:
    989
    Gender:
    Male
    First Name:
    Danny
    B.C Canada
    Vehicle:
    2010 Dbl Cab 5' Box
    Extra fog lights behind grill, Pro Form rubberized undercoat, Fog lights on w/ high beams mod, Lighted 4wd switch, Husky Liners, 12v always on, Yellow wire mod, DEVIL HORNS BABY!! OME 885's Nitrochargers w/ 1.5" AAL with 1" lift block, Redline hood struts, front/rear winch wiring, Blue Sea systems Fuse Block, Spidertrax spacers, Wet Okle seat covers, ECGS front diff Bering Replacement

    I have no experience in building shit like this. But all of the bumpers with winch plates seem to boast a 1/4" winch plate. It's probably a good idea.

  8. flyboy.co2

    flyboy.co2 [OP] Tail Striker

    Joined:
    Apr 4, 2011
    Member:
    #54348
    Messages:
    2,353
    Gender:
    Male
    First Name:
    Cam
    Wandering the cosmos with Carl Sagen
    yeah that's what i was thinking. TRD 09 you did your winch plate in 3/16" right? is that holding up well?

  9. TRD 09

    TRD 09 Well-Known Member

    Joined:
    Aug 25, 2012
    Member:
    #85544
    Messages:
    538
    Gender:
    Male
    Alberta
    Vehicle:
    09 TRD sport
    3/16 with lots of gussets, it's been used a lot and no issues so far

  10. flyboy.co2

    flyboy.co2 [OP] Tail Striker

    Joined:
    Apr 4, 2011
    Member:
    #54348
    Messages:
    2,353
    Gender:
    Male
    First Name:
    Cam
    Wandering the cosmos with Carl Sagen
    I have some decent sized gussets on it, but I'm going to get a price on a 1/4" plate right now. Thanks!

  11. flyboy.co2

    flyboy.co2 [OP] Tail Striker

    Joined:
    Apr 4, 2011
    Member:
    #54348
    Messages:
    2,353
    Gender:
    Male
    First Name:
    Cam
    Wandering the cosmos with Carl Sagen

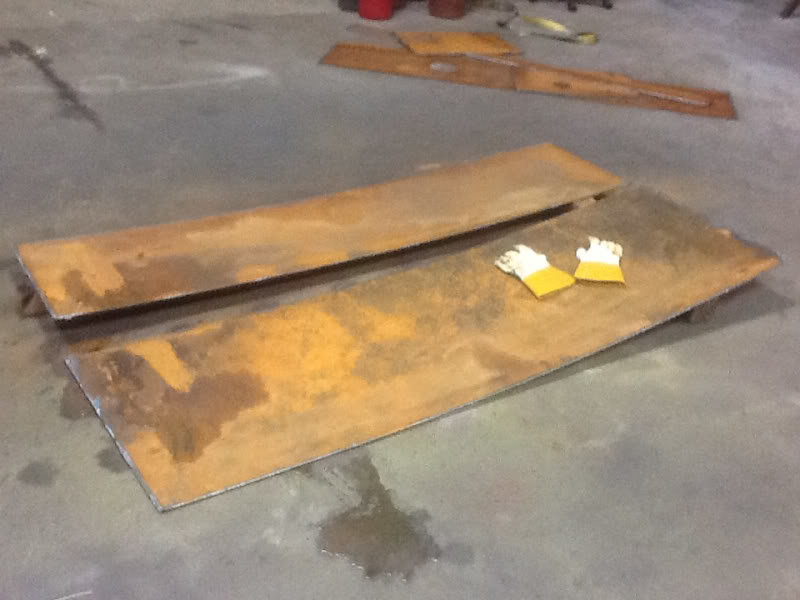

    Went to the steel shop and all they had (cut offs) was a 20"x40" 5/16 piece of plate steel. However it's only 50 buck which is how much I happen to have. This will be a beefy backing/winch plate, I'll make up for the added weight by cutting some holes in the 3/16" bumper on some of the triangular facets, and front. That will also help with airflow.

    Whadya'll think? 5/16" a little overkill? At least this way I'll have plenty left over for making my dad a bumper for his truck!

  12. flyboy.co2

    flyboy.co2 [OP] Tail Striker

    Joined:
    Apr 4, 2011
    Member:
    #54348
    Messages:
    2,353
    Gender:
    Male
    First Name:
    Cam
    Wandering the cosmos with Carl Sagen

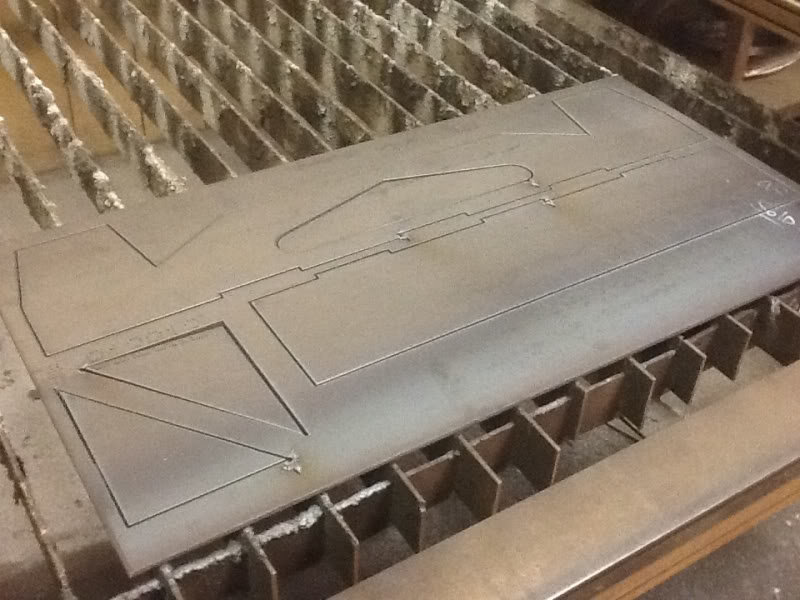

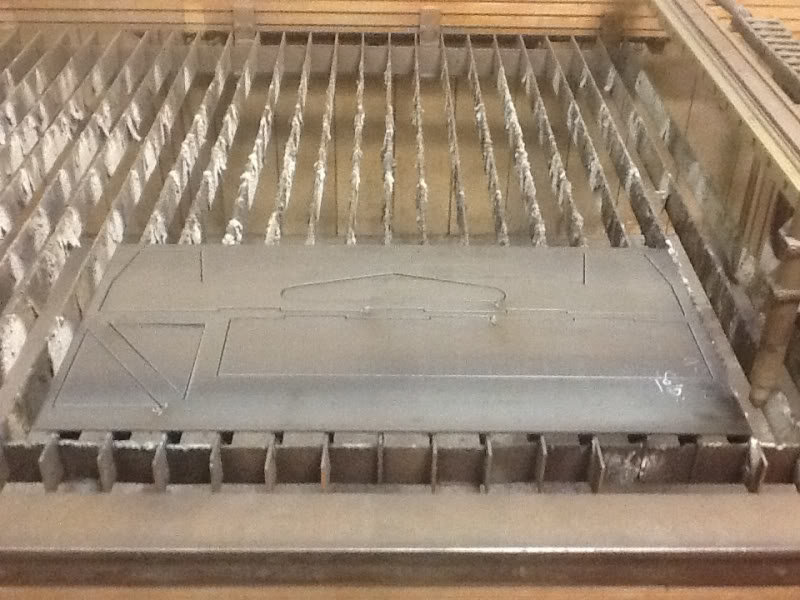

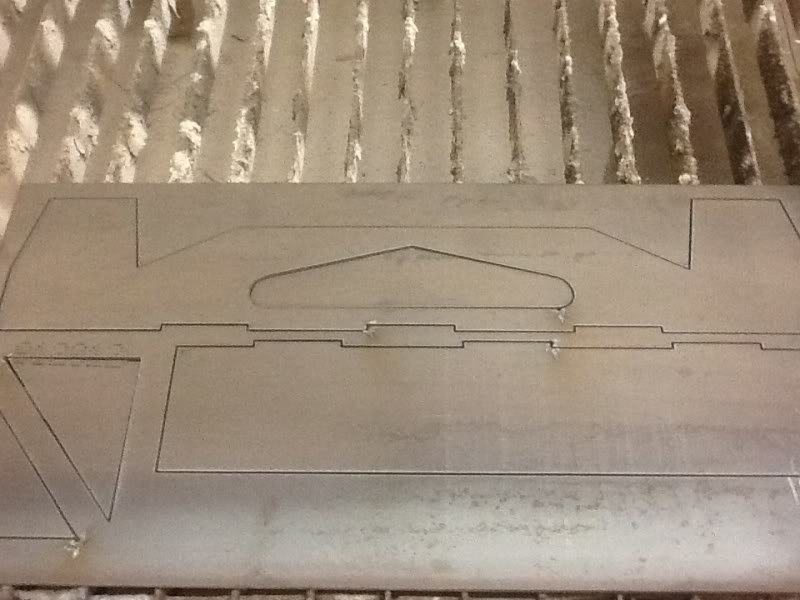

    Got around to cutting out the winch plate today! Came out perfect! Sadly once I got there I realized I fudged something on the bumper drawing so I have to tweak one small thing. I'll be headed back to the shop within the next couple of weeks to cut out the rest of the pieces. Here are some pictures to keep people interested!


    [​IMG]

    [​IMG]

    Forgot I had this... I'll get a lens cover so I don't destroy the camera, but for now... http://youtu.be/otqrw2iB4KY

    [​IMG]

    [​IMG]

    [​IMG]

    Last edited: Mar 7, 2013
  13. BAMFTACO

    BAMFTACO Pabst Blue Ribbon on ice

    Joined:
    Feb 3, 2010
    Member:
    #30639
    Messages:
    9,699
    Gender:
    Male
    First Name:
    JUAN
    Malibu, CA
    Vehicle:
    Taco
    Lift- stock suspension with light racing uppers,tc coil bucket gusset, timbern bumps ,defined extended shackles with shackle brace. Armor- custom tube bumper, kr fab rear bumper,trail gear wiy 78 in sliders Performance-intake manifold spacer, vibrant resonator Random stuff- kenwood head unit,b&m t shifter, hood bug deflector.
    :spy: looking good

  14. blackears

    blackears New Member

    Joined:
    Mar 7, 2013
    Member:
    #99195
    Messages:
    2
    Gender:
    Male
    Vehicle:
    2008 Prerunner Sport Double Cb
    removed all badging
    Thinking about activating the inside parking lights on my 08 Taco, looking for some instructional help.

  15. looneytunemagoun

    looneytunemagoun Well-Known Member

    Joined:
    Mar 20, 2011
    Member:
    #53340
    Messages:
    82
    Gender:
    Male
    First Name:
    james
    Leicester,mass
    Vehicle:
    SR5
    That looks great

  16. johnnym

    johnnym Well-Known Member

    Joined:
    Jun 14, 2010
    Member:
    #38917
    Messages:
    5,690
    Gender:
    Male
    First Name:
    john
    NH
    Vehicle:
    87 4Runner
    05 taco DD 87 4runner ..
  17. evanmb31

    evanmb31 Well-Known Member

    Joined:
    Jan 15, 2012
    Member:
    #70729
    Messages:
    7,269
    Gender:
    Male
    First Name:
    evan
    connecticut
    Vehicle:
    09 trd off road
    Satoshi'd grill. blacked out badges. aftermarket sound system. De-chromed and color matched. OME 885s + Dakars with 3rd leaf removed. LR UCAs. Scs stealth 6 with 285 duratracs. BAMF sliders
    :popcorn: looking awesome cam. Don't throw away those plans!

  18. JayC06

    JayC06 Well-Known Member

    Joined:
    Oct 23, 2010
    Member:
    #45118
    Messages:
    140
    Gender:
    Male
    First Name:
    Jay
    fairhaven ma
    Vehicle:
    06 4cyl ac 4x4
    5100's front at 1.75, procomp light bar, kc lights, dynomax muffler
    looking good

  19. mach1man001

    mach1man001 Well-Known Member

    Joined:
    Nov 4, 2009
    Member:
    #25415
    Messages:
    5,987
    Gender:
    Male
    First Name:
    Rob
    Blackstone, MA
    Vehicle:
    '09 Sport DC LB Met Grey
    Toyota bed mat (1st mod), Toyota all season floor mats, Rear spring TSB, Map light mod, Fog light mod, Putco yellow fog bulbs, Weather Tech window vents, Extra d-rings, Mounted mag light, TRD CAI with AFE pro dry filter, '05 front mud flaps (winter only), 2 set's of wheels/tires, 285/75/16 Duratrac's, Black Painted 1st Gen TRD wheels (wheeling set) Black powder coated FJ Cruiser with 265/70/17 Michelin AT2 tires (everyday), painted center of grill & bumper black, Devil horns, OME with 885's front, OME shocks w/OMD designed rear springs, Front diff drop, Rear trailer plug relocate, ATO IFS skid, Relentless Trans & Transfer skids, BAMF bolt on rock sliders, Relentless tailgate reinforcement, Uniden 75 CB radio, BAMF antenna bracket, TRD exhaust, high lift jack w/ATO mounts. And of course ProEFX Towing Mirrors!
    Looks good bud. :thumbsup:

  20. Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,708
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
