Front bumper mount measurements?

Discussion in '1st Gen. Tacomas (1995-2004)' started by RAT PRODUCTS, Nov 17, 2011.

  1. Nov 17, 2011 at 5:14 PM
    #1
    RAT PRODUCTS

    RAT PRODUCTS [OP] Raw Strength Equipment

    Joined:
    Apr 12, 2010
    Member:
    #35140
    Messages:
    13,737
    Gender:
    Male
    First Name:
    Ryan
    Farmington, MN
    Vehicle:
    Cummins Coal Rollin SOB
    Smokin with a smarty.
    I'm about to start designing a plate bumper for my truck. However, I don't have the necessary time to properly measure the bumper mounting measurements for the preliminary design. I'll measure when I mock it up in cardboard after modeling.

    Anyway, does anyone have the measurements I need to get a bumper designed? Or possibly a manufacturing drawing or something I can work off of? I have no intention of copying any designs.

    Now for my idea, I'm going to design a plate winch bumper with an integrated LED light bar and grill guard. It will have steel mounting brackets and winch mount, but all the plate will be aluminum 7075.

  2. Nov 17, 2011 at 6:28 PM
    #2
    Tacoma mud

    Tacoma mud Well-Known Member

    Joined:
    Jul 1, 2011
    Member:
    #59167
    Messages:
    444
    Gender:
    Male
    First Name:
    Kyle
    TEXAS
    Vehicle:
    97' xtra cab sr5 4x4
    soon to come
  3. Nov 19, 2011 at 7:59 AM
    #3
    RAT PRODUCTS

    RAT PRODUCTS [OP] Raw Strength Equipment

    Joined:
    Apr 12, 2010
    Member:
    #35140
    Messages:
    13,737
    Gender:
    Male
    First Name:
    Ryan
    Farmington, MN
    Vehicle:
    Cummins Coal Rollin SOB
    Smokin with a smarty.
    Where's the love?

  4. Nov 20, 2011 at 12:17 AM
    #4
    RelentlessFab

    RelentlessFab Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    14,561
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras: Sparks, NV
    Vehicle:
    07 SR5 6mt to 03 SR5 to 08 Sport and 17 6MT TRD OR
    Relentless Armored! Too many others to list.
    I'll play.
    Mounting locations: the bolt holes at the end of the frame horns is about 29 5/16" apart. The mounts on the side of the body mounts are about 39 7/8" apart and the 2 threaded holes there are about 2.25" apart.

    If you're planning on bending any of the plate, dont use 7075. If its all cut/welded then go for it.

    lukester78 likes this.
  5. Nov 20, 2011 at 6:53 AM
    #5
    RAT PRODUCTS

    RAT PRODUCTS [OP] Raw Strength Equipment

    Joined:
    Apr 12, 2010
    Member:
    #35140
    Messages:
    13,737
    Gender:
    Male
    First Name:
    Ryan
    Farmington, MN
    Vehicle:
    Cummins Coal Rollin SOB
    Smokin with a smarty.
    Awesome thanks. I will be cutting and big welding it all. It should be plenty strong?

  6. Dec 8, 2017 at 5:45 AM
    #6
    leafvillage

    leafvillage New Member

    Joined:
    Dec 7, 2017
    Member:
    #237852
    Messages:
    3
    Gender:
    Male
    Hello, do you think there is a way to install a bumper grill guard taken off a 1985 4 runner and onto a 2004 tacoma? the seller says the inside of the bumper is 61" thanks

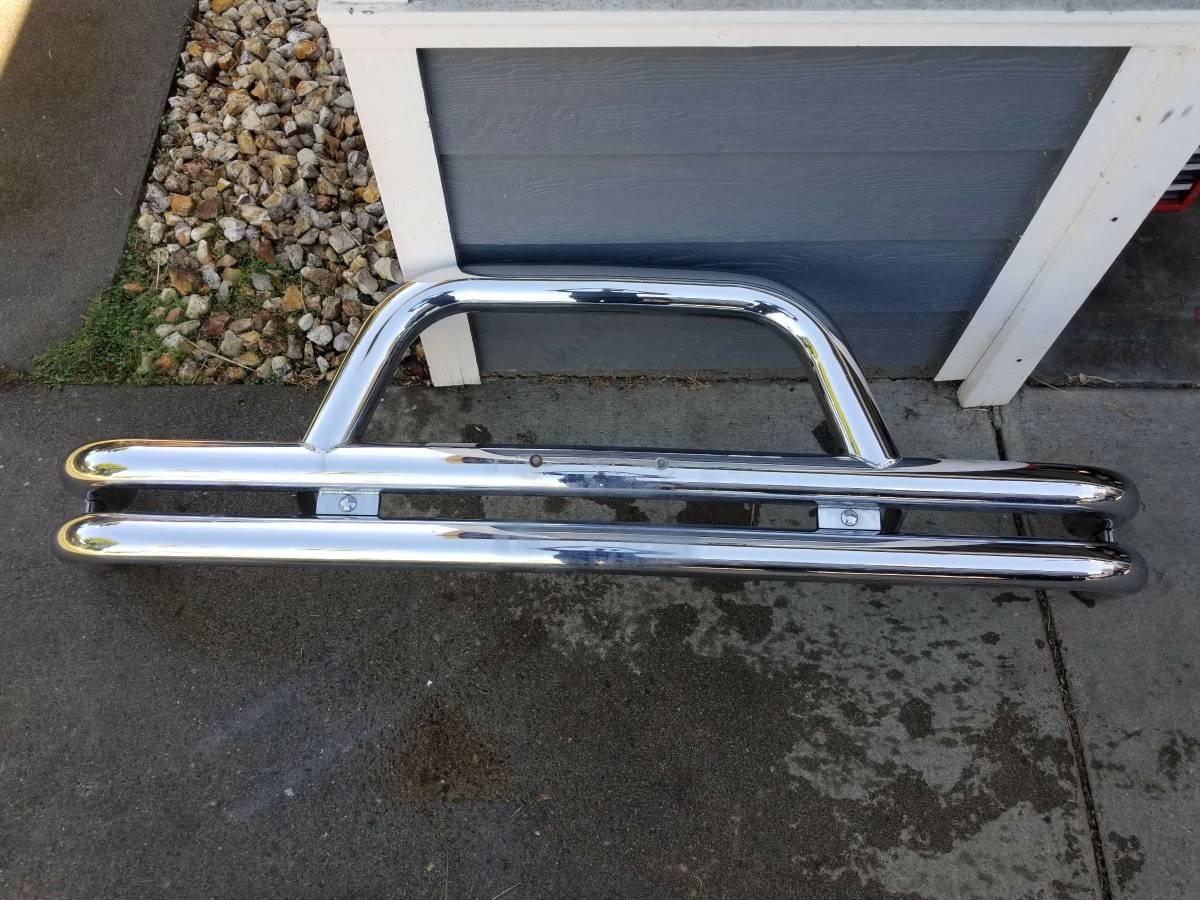

    chrome grill bumper smittybilt.jpg

  7. Dec 14, 2017 at 4:40 AM
    #7
    jero-taco

    jero-taco New Member

    Joined:
    Sep 18, 2017
    Member:
    #230359
    Messages:
    4
    Gender:
    Male
    Vehicle:
    06 Black Taco
    Dumping my money everywhere
    Would any one be willing to sell me their blueprints?? I just mashed up my whole front end and my bumper is toast, including many other things. I have a 2006 Tacoma with a 2" lift.
    Cheers, send me a picture of your truck and I would pay for the prints. It's a long shot, but I can try. I'm willing to pay as I know a lot of hard work goes into measuring everything out. It's snowing and I don't have a garage I can park my truck in and measure out everything... If anyone can help, send me a message and we can talk over the phone or email more in dept!
