Front camera on rear view mirror screen

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Mhettoyota, Feb 4, 2019.

  1. Feb 4, 2019 at 9:19 PM
    #1
    Mhettoyota

    Mhettoyota [OP] New Member

    Joined:
    Jan 29, 2019
    Member:
    #281081
    Messages:
    1
    Gender:
    Male
    Hi, so I want to figure out how to connect an aftermarket camera to the rear view mirror screen. My factory rear camera shows on the factory touch screen. Anyone know how I can patch into the mirror screen?

  2. Mar 22, 2019 at 12:05 PM
    #2
    Kimgt

    Kimgt Well-Known Member

    Joined:
    Oct 31, 2018
    Member:
    #271196
    Messages:
    79
    Gender:
    Male
    First Name:
    Kim
    Fullerton, CA
    Vehicle:
    2012 Tacoma DCLB
    Stock
    anyone do this? I'm also interested in something like this.

  3. Mar 22, 2019 at 1:23 PM
    #3
    jross20

    jross20 Well-Known Member

    Joined:
    Feb 19, 2018
    Member:
    #244913
    Messages:
    2,028
    Gender:
    Male
    First Name:
    John
    Georgia
    Vehicle:
    2000 4Runner SR5 4x4 | V6 | Auto
    Tundra 5100s F+R, OME 880s+890s, duro bumps, etc
    I'd love a front camera on my 2011. Also curious about this except mine is the rear view mirror camera

  4. Mar 27, 2019 at 9:20 AM
    #4
    Kimgt

    Kimgt Well-Known Member

    Joined:
    Oct 31, 2018
    Member:
    #271196
    Messages:
    79
    Gender:
    Male
    First Name:
    Kim
    Fullerton, CA
    Vehicle:
    2012 Tacoma DCLB
    Stock

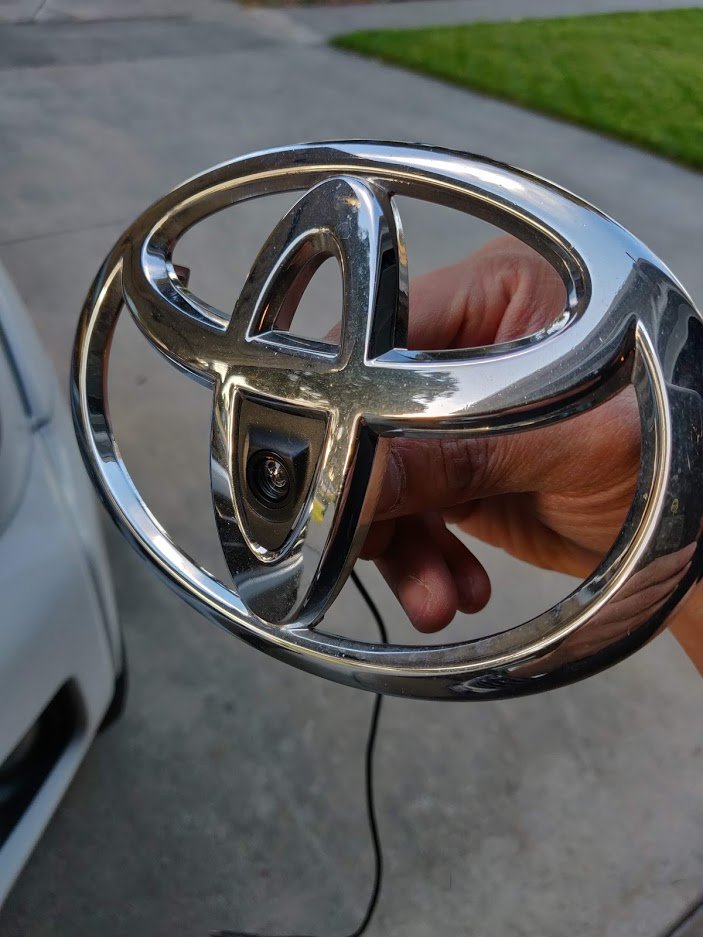

    So i picked up this front camera that nests into the emblem, its not a perfect fit since the rear portion of the cam will not fit into the grill opening. I'm going to modify the camera body, as opposed to modifying the grill because its cheaper to replace, then I'm hoping to run the wires through the firewall and into the dash, where i'll have a switched power. the Video input is where i need help, how can i access the video input for the rear view mirror? Do i use the IO1 plug (red and white wires)? and does the switch over for pulling up the display happen when there is a video signal?[​IMG]

    WNTiu5Ce7nJyMYBjsE9nfeO15N68shutF95saj2Q_9bb12e0f4813c57b85328cb93a912648c50d2dcc.jpg

    Dj Suisav and BlakeyD like this.
  5. Mar 27, 2019 at 10:49 AM
    #5
    rphillips

    rphillips Well-Known Member

    Joined:
    Sep 14, 2016
    Member:
    #197271
    Messages:
    852
    Gender:
    Male
    First Name:
    Rick
    Norene TN.
    Vehicle:
    2013 Reg. cab 4x4
    none
    From what I've been learning, 2013 & older had the view in the rearview mirror, 2014 & newer, their mirrors didn't have the camera screen in them, the camera shows thru the radio screen. If you want it to show in the mirror, you'll need to install a mirror, with the screen & a harness going from the mirror to the harness plug, near the fuse box.

  6. Mar 27, 2019 at 11:09 AM
    #6
    BlakeyD

    BlakeyD Well-Known Member

    Joined:
    Nov 3, 2018
    Member:
    #271538
    Messages:
    528
    First Name:
    Blake
    CA
    Vehicle:
    2012 Tacoma TRD Off Road "Tyra"
    Which camera did you get, would be very interested to see how this works out for you!

  7. Mar 27, 2019 at 11:12 AM
    #7
    BlakeyD

    BlakeyD Well-Known Member

    Joined:
    Nov 3, 2018
    Member:
    #271538
    Messages:
    528
    First Name:
    Blake
    CA
    Vehicle:
    2012 Tacoma TRD Off Road "Tyra"
    Post #3 may help here with identifying the wires.
    https://www.tacomaworld.com/threads/mirrortap-2012-rearview-mirror-camera-wiring.314683/

  8. Mar 27, 2019 at 11:52 AM
    #8
    Kimgt

    Kimgt Well-Known Member

    Joined:
    Oct 31, 2018
    Member:
    #271196
    Messages:
    79
    Gender:
    Male
    First Name:
    Kim
    Fullerton, CA
    Vehicle:
    2012 Tacoma DCLB
    Stock
    Here is a Link to the actual camera i ordered: https://www.amazon.com/gp/product/B06WP9MTKG/ref=ppx_yo_dt_b_asin_title_o05_s00?ie=UTF8&psc=1

    I can't recommend it yet, because i have not seen the output image, I've read reviews that the view angle is too wide and makes it useless in off-roading but it should work fine for me to judge parking distances.

    I also can say its not a direct fit, so be aware its going to take some customization and glue to hold it in.

  9. Mar 27, 2019 at 3:06 PM
    #9
    TACOMA2NDGEN

    TACOMA2NDGEN Well-Known Member

    Joined:
    Jan 24, 2018
    Member:
    #242230
    Messages:
    1,072
    Gender:
    Male
    First Name:
    ROLAND
    new jersey
    Vehicle:
    2010 dcsb silver sport trd
    baja squadron pros
    Like said above you would need a mirror with the camera in it and harness. Then I would recommend a SPDT switch so you could have the front camera on one side of the switch and the other in reverse

  10. Mar 27, 2019 at 3:24 PM
    #10
    Kimgt

    Kimgt Well-Known Member

    Joined:
    Oct 31, 2018
    Member:
    #271196
    Messages:
    79
    Gender:
    Male
    First Name:
    Kim
    Fullerton, CA
    Vehicle:
    2012 Tacoma DCLB
    Stock
    I do, I have a 2012, it has a review mirror with the screen, currently it displays temp and compass, i would like it to display a switched cam when powered.

    I think we're all on the same page, I just need to know were i can find this harness and where does it plug into.

  11. Mar 27, 2019 at 8:37 PM
    #11
    rphillips

    rphillips Well-Known Member

    Joined:
    Sep 14, 2016
    Member:
    #197271
    Messages:
    852
    Gender:
    Male
    First Name:
    Rick
    Norene TN.
    Vehicle:
    2013 Reg. cab 4x4
    none
    Sorry, but I'm a little confused. Are you saying the mirror now shows the compass & temp, but no back-up camera image? If that's the case, is there a camera in the tailgate? Several folks, usually with 2014 & 2015 models, have found their Taco's were already completely wired for the camera, except for the camera, in the tailgate. The only thing needed was to install the camera & plug the existing harness to it, turn on the ign. & put the truck in reverse. If yours already has a working back-up camera, there is a company called "Camera Source", they have the harness to move the image from the mirror to the radio screen, on the 2013's. I'd assume they have other harnesses for other Taco's, hopefully the one you need. I'm in the process of trying to get the camera working in my 2013 reg. cab. I'm not even sure the back-up camera was available in the reg. cabs, I know the list of options were very slim for reg. cabs the last couple of yrs they were made.

  12. Mar 27, 2019 at 9:50 PM
    #12
    Kimgt

    Kimgt Well-Known Member

    Joined:
    Oct 31, 2018
    Member:
    #271196
    Messages:
    79
    Gender:
    Male
    First Name:
    Kim
    Fullerton, CA
    Vehicle:
    2012 Tacoma DCLB
    Stock
    Ok, I hear ya.

    I have a functional back up cam, it feeds video to my radio head unit (jbl). It works fine and dandy, I would like to take advantage of the screen in the rear view mirror.

  13. Mar 27, 2019 at 10:10 PM
    #13
    rphillips

    rphillips Well-Known Member

    Joined:
    Sep 14, 2016
    Member:
    #197271
    Messages:
    852
    Gender:
    Male
    First Name:
    Rick
    Norene TN.
    Vehicle:
    2013 Reg. cab 4x4
    none
    OK, maybe I have it now. The 2013 & older orig. set up should have had a 4 pin connector at the right side upper corner of the fuse box, that takes the image to the mirror. To move the image, per the kit I've bought, you disconnect that connector & run this new harness from the camera end of this connector to the radio, leaving the harness, going to the mirror unhooked. I'd think there should be a vacant 4 pin connector floating somewhere around the top of the fuse box, that is still connected to the mirror. Sorry, I don't know where you will get power to your new front set-up.

  14. Mar 28, 2019 at 1:29 AM
    #14
    TACOMA2NDGEN

    TACOMA2NDGEN Well-Known Member

    Joined:
    Jan 24, 2018
    Member:
    #242230
    Messages:
    1,072
    Gender:
    Male
    First Name:
    ROLAND
    new jersey
    Vehicle:
    2010 dcsb silver sport trd
    baja squadron pros
    Once you figure out what harness you need then you can do the anytime camera mod. I just did mine the other day. One project at a time right lol:D

  15. Mar 28, 2019 at 6:25 AM
    #15
    rphillips

    rphillips Well-Known Member

    Joined:
    Sep 14, 2016
    Member:
    #197271
    Messages:
    852
    Gender:
    Male
    First Name:
    Rick
    Norene TN.
    Vehicle:
    2013 Reg. cab 4x4
    none
    Sorry, connector should have been at top "LEFT" of fuse box.

  16. Mar 28, 2019 at 8:20 AM
    #16
    Wattapunk

    Wattapunk Stay lifted my friends !

    Joined:
    Jan 26, 2010
    Member:
    #30098
    Messages:
    3,230
    Gender:
    Male
    First Name:
    Uncle K
    TX
    Vehicle:
    2005 DCLB 4WD
    Curious regarding end result of this. Kudos for trying. I ended up buying a cheap aftermarket kenwood with 2 video inputs for my front and rear cameras. The front is powered by a toggle switch vs the rear which is tied to the reverse lights.

  17. Mar 28, 2019 at 10:47 AM
    #17
    Kimgt

    Kimgt Well-Known Member

    Joined:
    Oct 31, 2018
    Member:
    #271196
    Messages:
    79
    Gender:
    Male
    First Name:
    Kim
    Fullerton, CA
    Vehicle:
    2012 Tacoma DCLB
    Stock

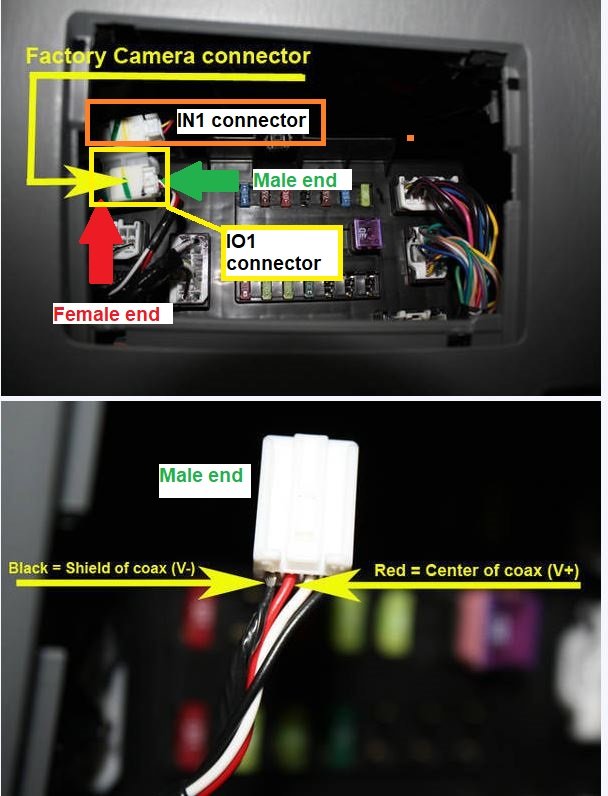

    Here is my question, here is a popular image of what I think people are talking about for the connector. there are two connectors and two ends, which connector and which end is the video feed into the rear view mirror screen?

    IO1? IN1? male end, or female?

    Tacoma input connectors.jpg

  18. Mar 28, 2019 at 10:49 AM
    #18
    Bullnettles

    Bullnettles Well-Known Member

    Joined:
    Mar 9, 2017
    Member:
    #212761
    Messages:
    684
    Gender:
    Male
    First Name:
    Jared
    Houston
    Vehicle:
    2017 OR DCSB
    Off topic, but how did you attach the camera on there? Looks good.

  19. Mar 28, 2019 at 10:51 AM
    #19
    Kimgt

    Kimgt Well-Known Member

    Joined:
    Oct 31, 2018
    Member:
    #271196
    Messages:
    79
    Gender:
    Male
    First Name:
    Kim
    Fullerton, CA
    Vehicle:
    2012 Tacoma DCLB
    Stock
    The camera is made to fit in the emblem, it has a flange that nests in the emblem, but they didn't account for the actual black grill since the rear end is too large in diameter to fit in there. I'll have to do some grinding to make sure it fits into the grill. you can source the camera from ebay/Amazon i posted my link above. I cannot recommend it yet though, since i have yet to see the output.

    Bullnettles likes this.
  20. Mar 28, 2019 at 10:55 AM
    #20
    BlakeyD

    BlakeyD Well-Known Member

    Joined:
    Nov 3, 2018
    Member:
    #271538
    Messages:
    528
    First Name:
    Blake
    CA
    Vehicle:
    2012 Tacoma TRD Off Road "Tyra"
    You're definitely the guinea pig, we're all just waiting around to see the final result before we do it ourselves lol:thumbsup:

    NayNay94 likes this.
