Front coil stud length too short?

Discussion in '1st Gen. Tacomas' started by wrat, Oct 18, 2013.

  1. Oct 18, 2013 at 3:33 PM
    #1
    wrat

    wrat [OP] Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101424
    Messages:
    275
    Gender:
    Male
    Wyoming
    Vehicle:
    2004 Tacoma Xcab 4x4 TRD
    First off, here's the background info:
    I have a 2004 Tacoma Xtra cab, 4x4 (TRD), V6. I installed OME 882's and had the 5mm trim packer installed on the drivers side. Everything was fine and dandy except for the taco lean was still significant. I looked around a decided on going with the Wheeler's 1/4 inch top plate spacer for the drivers side. Their website states that typically longer studs are not required. I even called Wheelers to explain my situation and was told that there shouldn't be a problem.

    Well, the first picture below is the passenger side. You can see that the three studs fully extend through the nut (albeit the studs are tapered at the top). The second picture is the drivers side; the studs do not fully extend through the nuts, and with the stud threads tapering off at the top, this means I only have maybe 3 wraps of threads holding onto each nut. I do offroad this truck pretty hard and fairly often, so what do you guys think: Is this a problem? Should I go with longer studs? Will it be alright? Any thoughts/concerns would be greatly appreciated.

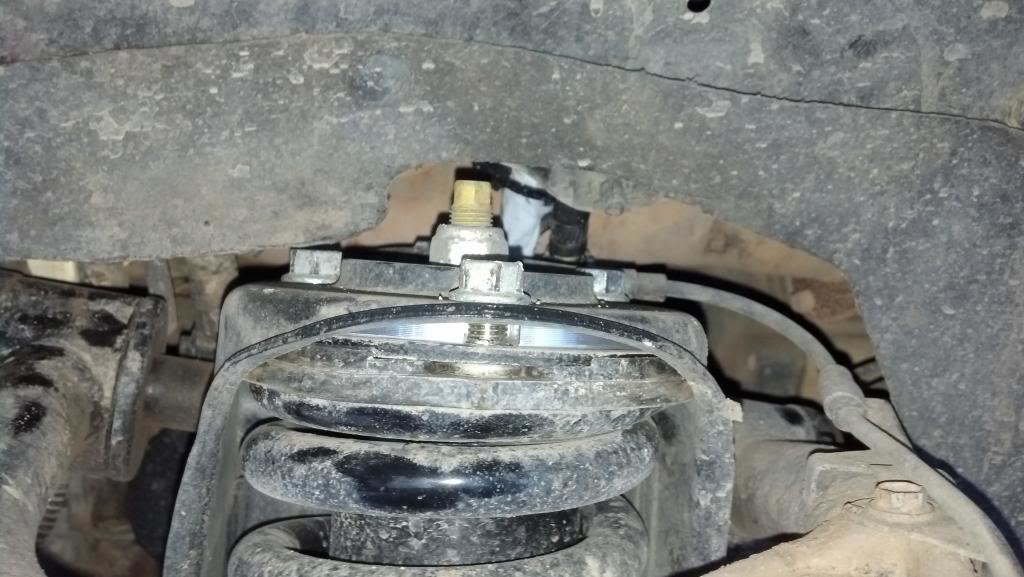

    Passenger Side:
    [​IMG]

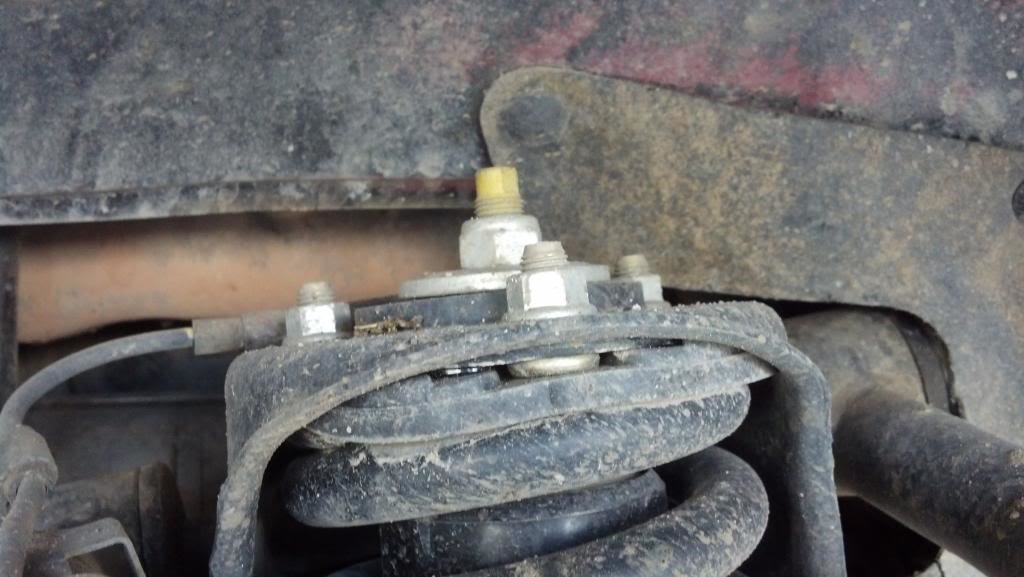

    Driver's Side:
    [​IMG]

  2. Oct 18, 2013 at 4:41 PM
    #2
    offrdmania

    offrdmania Taco Wagon

    Joined:
    Oct 2, 2013
    Member:
    #113684
    Messages:
    438
    Gender:
    Male
    First Name:
    Matt
    Templeton, Ca
    Vehicle:
    96 Tacoma LX 4 banger
    Looks to me like it isnt seated up into the pocket all the way.

  3. Oct 18, 2013 at 4:43 PM
    #3
    davidpick

    davidpick Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29760
    Messages:
    1,954
    Gender:
    Male
    First Name:
    David
    Everett, WA
    Vehicle:
    2004 Xcab 4x4 TRD
    looks to me like you'll have to go with longer studs on the driver's side. passenger side looks fine.

  4. Oct 18, 2013 at 4:47 PM
    #4
    tacomataco2

    tacomataco2 Well-Known Member

    Joined:
    Nov 27, 2012
    Member:
    #91944
    Messages:
    1,749
    Gender:
    Male
    Eastham Mass
    Vehicle:
    02 Dbl cab Silver
    Bilstein 5100's, eibach coils, u bolt flip, Dakars/d6xl, Ome shackles, Poly sway bar bush, Poly rack bush, voltmeter, led guage lights, magnaflow stainless catback, stainless cats, deckplate mod, afe filter, tundra brakes,PIAA fogs behind grillecraft, color matched grille, soft topper, Projector retrofit, Allpro bumper , Blitzpro light bars, Alpine/ rock fosgate sound system, 35% tint, Some derped stuff
    Get the extended studs for the drivers side, thats not enough thread bite.

  5. Oct 18, 2013 at 10:09 PM
    #5
    wrat

    wrat [OP] Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101424
    Messages:
    275
    Gender:
    Male
    Wyoming
    Vehicle:
    2004 Tacoma Xcab 4x4 TRD
    Thanks for the responses everyone. I expected that the advice given was probably wrong and that I should have gone with longer studs. Well there goes more time and effort to get it corrected...

  6. Oct 19, 2013 at 6:52 AM
    #6
    offrdmania

    offrdmania Taco Wagon

    Joined:
    Oct 2, 2013
    Member:
    #113684
    Messages:
    438
    Gender:
    Male
    First Name:
    Matt
    Templeton, Ca
    Vehicle:
    96 Tacoma LX 4 banger
    Does anyone else not see the big gap on the drivers side? Longer studs is just a band aid. My question is why isnt it seated all the way up in the pocket like the passenger side? If it was, then there would be enough thread..

  7. Oct 19, 2013 at 6:58 AM
    #7
    Jbcm12

    Jbcm12 Well-Known Member

    Joined:
    Apr 29, 2012
    Member:
    #77894
    Messages:
    815
    Gender:
    Male
    First Name:
    Joshua
    Bay Area
    Wait this advice is wrong? I'm not sure if you read the first post and the post before me, its not seated properly...

  8. Oct 19, 2013 at 7:31 AM
    #8
    Lumpskie

    Lumpskie Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,863
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking
    ^This.

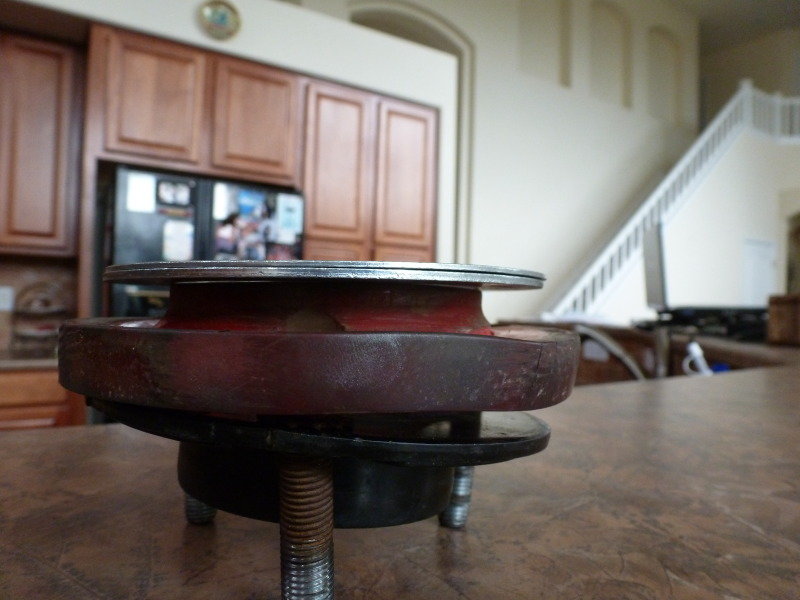

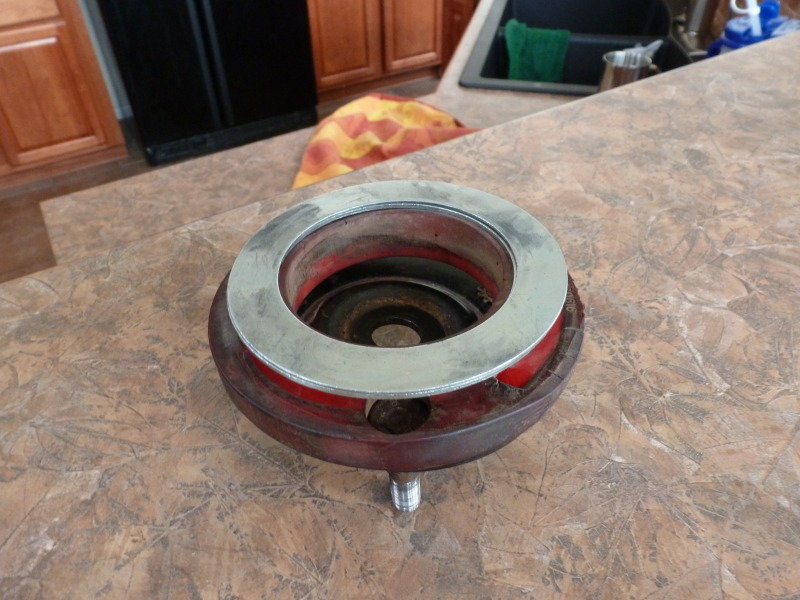

    It looks like there is a different top plate on your coil there(passenger side looks black and driver side looks like aluminum) and you are gapped on the bottom side. Check to see if there is interference down there. I ran into this when I installed my Toytec Coilovers and sold my NWOR front lift.

    [​IMG]

    [​IMG]

  9. Oct 19, 2013 at 10:29 AM
    #9
    wrat

    wrat [OP] Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101424
    Messages:
    275
    Gender:
    Male
    Wyoming
    Vehicle:
    2004 Tacoma Xcab 4x4 TRD
    As in the studs should have been seated better to begin with? I'll try to tighten them all down more and see if I can get them to pull through more. Is that what you're saying? I'll report back after trying that.

  10. Oct 19, 2013 at 10:31 AM
    #10
    wrat

    wrat [OP] Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101424
    Messages:
    275
    Gender:
    Male
    Wyoming
    Vehicle:
    2004 Tacoma Xcab 4x4 TRD
    I just meant the advice from Wheelers about the studs. I sure hope that I'm able to just tighten them down more rather than having to disassemble the coil to get the studs in deeper.

  11. Oct 19, 2013 at 10:35 AM
    #11
    wrat

    wrat [OP] Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101424
    Messages:
    275
    Gender:
    Male
    Wyoming
    Vehicle:
    2004 Tacoma Xcab 4x4 TRD
    The passenger side and drivers side both have OME Nitrocharger Sport shocks and OME 882's. The only difference between the two is that the drivers side has a 5mm trim packer on the bottom of the coil with an aluminum 1/4 inch top plate spacer (which is what you're seeing).

    I think your pictures help me understand what you all are saying about the gap. I'll go out and fool around with it to see if I can get the studs through any more.

  12. Oct 19, 2013 at 10:38 AM
    #12
    tomtom

    tomtom Well-Known Member

    Joined:
    Jul 15, 2012
    Member:
    #82706
    Messages:
    4,823
    Gender:
    Male
    The Desert SW
    Vehicle:
    03 Tacoma TRD
    OME lift w/ 882s and Dakar leaf packs, Elite front and rear bumpers, Rocky Road Rock Sliders
    I wouldn't use the studs as a press. They aren't meant for that and the nuts don't have full thread to work with.

    I'd start over. Take the strut out, clean everything up, make sure the spacer sits flat on the top plate of the strut (metal to metal contact) and put it all back together. When put back in, make sure the strut sits flat in the bucket with metal to metal contact between the bottom of the bucket and the top of the spacer.

    If all the pieces are sitting flat, there are no gaps and the studs aren't long enough to get full thread contact, you need longer studs.

  13. Oct 19, 2013 at 10:42 AM
    #13
    KenLyns

    KenLyns Lord of War

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    20,728
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off Road Full-Auto
    All-Pro Front Bumper, All-Pro UCAs, Icon ET Coilovers, Icon VS Rear Shocks, TSB Leafs, Timbren Bumpstops, CBI Sliders, ViAir Compressor, Klearz LED 3rd Brake Light, Pop-N-Lock Tailgate Handle, Husky Front Flaps, Deeza HD Sway Bar Links
    Because wrat installed the 1/4" spacer only on the driver's side to fix Taco Lean.

    @wrat: you need longer studs. You can press out / press in the studs with a bench vise and a socket, but the strut needs to be taken apart again (spring compressor, the whole deal).

  14. Oct 19, 2013 at 10:52 AM
    #14
    wrat

    wrat [OP] Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101424
    Messages:
    275
    Gender:
    Male
    Wyoming
    Vehicle:
    2004 Tacoma Xcab 4x4 TRD
    Thanks for clearing that up. That is what I was thinking would be required if it was a stud length issue (which I now understand to be the problem). Thanks again for the responses. I guess I won't be taking the truck up the trails until this is resolved.

  15. Oct 19, 2013 at 11:16 AM
    #15
    Lumpskie

    Lumpskie Independent Thinker

    Joined:
    Apr 20, 2013
    Member:
    #102450
    Messages:
    1,863
    Gender:
    Male
    Colorado
    Vehicle:
    '96, 4x4, v6, manual hub
    Toytec 16" coilovers with Tundra Bilstein 5100s, Light Racing UCAs, Alcan Leafs with Orbit Eyes, 12" Bilstein 7100 short Bodies, ARB rear locker, 33x12.5 Duratracs, CBI sliders, Bushwacker fender flares, self made front bumper, M8000, Vision X 6.7" Hi/Lo Beam HIDs, full skids, Inchworm dual case setup - 15º clocking

    I see that now! The way the flash lit up the aluminum made the solid spacer look like a concaved spacer that centered in the hole.

    Wrat: Sorry for the confusion.

  16. Oct 19, 2013 at 11:25 AM
    #16
    wrat

    wrat [OP] Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101424
    Messages:
    275
    Gender:
    Male
    Wyoming
    Vehicle:
    2004 Tacoma Xcab 4x4 TRD
    Hey no problem.

    I just got back from going out and taking a closer look. The stud heads are sitting flush against the plate so longer studs will be necessary. It looks like the general consensus is that leaving it like this is no good so I appreciate the feedback.

  17. Oct 19, 2013 at 1:38 PM
    #17
    offrdmania

    offrdmania Taco Wagon

    Joined:
    Oct 2, 2013
    Member:
    #113684
    Messages:
    438
    Gender:
    Male
    First Name:
    Matt
    Templeton, Ca
    Vehicle:
    96 Tacoma LX 4 banger
    I skimmed over the part where a spacer was put in there so yes, longer studs make sense now. I thought we were looking at a stock setup. My bad

  18. Oct 19, 2013 at 2:00 PM
    #18
    KenLyns

    KenLyns Lord of War

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    20,728
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off Road Full-Auto
    All-Pro Front Bumper, All-Pro UCAs, Icon ET Coilovers, Icon VS Rear Shocks, TSB Leafs, Timbren Bumpstops, CBI Sliders, ViAir Compressor, Klearz LED 3rd Brake Light, Pop-N-Lock Tailgate Handle, Husky Front Flaps, Deeza HD Sway Bar Links
    The 1/4" spacer P/N TP14 is a common part that fits on both 1st gen and 2nd gen Tacos. The 2nd gen studs are longer than 1st gen studs, which may be the source of the "do not normally require longer studs" comment in Wheeler's listing.

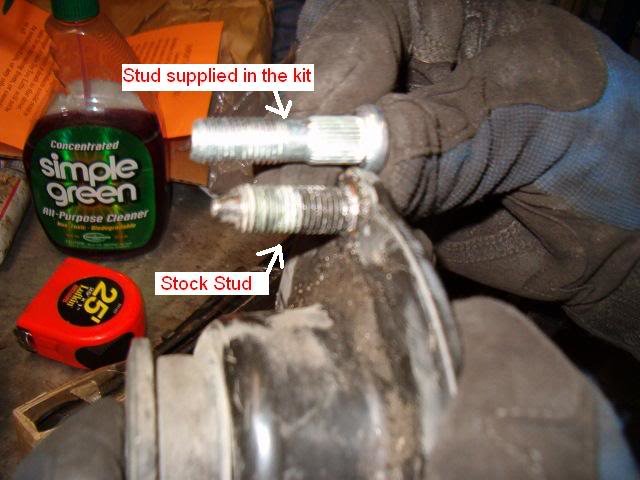

    2nd gen stud compared to the extra-long studs included by Toytec for 1/2" spacers (photo by toku58):

    [​IMG]

    Last edited: Oct 19, 2013
  19. Nov 8, 2013 at 6:24 PM
    #19
    wrat

    wrat [OP] Well-Known Member

    Joined:
    Apr 5, 2013
    Member:
    #101424
    Messages:
    275
    Gender:
    Male
    Wyoming
    Vehicle:
    2004 Tacoma Xcab 4x4 TRD
    Hey folks, it's been a little while but I thought I'd give an update in case this comes up for anyone else in the future.

    I guess a part I left out (which happens to have created all of this mess) was that I had Wheelers assemble the OME 882's and Nitrochargers for me. It turns out that the studs they used were not stock. So the studs they used to assemble everything were shorter than the stock stud length. Wheelers called me and we walked through everything (what I have, what the problem is, what the end result is, etc). Wheelers sent me out the factory studs and guess what? Plenty of length even with a 3/8 inch top plate spacer that I swapped in place of the 1/4 inch that was previously there. So all in all, if you use factory studs then you will have enough stud length for a thin top plate spacer. Once again, Wheelers came through on the advice and assistance.
