    Quick Links: Chipped paint on tailgate. Leave it? Touch it up? 2021 Tacoma Wheels IOEM Fog light harness Help with tail light wiring D ring shackles How to remove this insert?

Front Diff, Transfer Case, and Auto Transmission Breathers

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Mark_R, Mar 14, 2017.

Page 1 of 5
  1. Mar 14, 2017 at 10:43 AM
    #1
    Mark_R

    #1
    Mark_R [OP] Well-Known Member

    Joined:
    Mar 7, 2016
    Member:
    #180524
    Messages:
    64
    Gender:
    Male
    First Name:
    Mark
    Vehicle:
    2016 Toyota Tacoma TRD Off-Road
    Hello TW,

    I currently have all the parts to do the rear-diff breather mod, so I am set for getting that done this weekend. My question is where are the breathers located for the front diff, transmission and transfer case? I am getting tons of varied answers while searching on TW, so I figured I would post the questions here.

    Thank you in advance.
    Mark

    Mark_R, Mar 14, 2017
    #1
    Joe23 likes this.
  2. Mar 14, 2017 at 10:46 AM
    #2
    OdiN1701

    #2
    OdiN1701 Well-Known Member

    Joined:
    Feb 19, 2017
    Member:
    #210998
    Messages:
    1,975
    Gender:
    Male
    Colorado
    Vehicle:
    2017 Quicksand TRD OR DC SB
    Crawl under and look?

    OdiN1701, Mar 14, 2017
    #2
  3. Mar 14, 2017 at 10:53 AM
    #3
    Joe23

    #3
    Joe23 Canuckistikian

    Joined:
    Oct 5, 2015
    Member:
    #165909
    Messages:
    11,302
    Gender:
    Male
    The Great White North
    Vehicle:
    2017 TRD Off-road DCSB
    subd.
    I keep hearing that the front diff already has a breather by the battery but cannot find it.
    Got an ARB breather kit cheap so just need to install it. Would love to know where each part is.

    Joe23, Mar 14, 2017
    #3
  4. Mar 14, 2017 at 10:55 AM
    #4
    smitty99

    #4
    smitty99 I also bought a 4Runner

    Joined:
    Sep 10, 2015
    Member:
    #163923
    Messages:
    12,944
    Gender:
    Male
    Scottsdale
    Vehicle:
    16 TRDORDCSB 4x4 A/T (loaded w/ JBL)
    6112s/5160s & 3-leaf AAL;ubolt flip kit;Superbumps
    Never used one. Never had a problem. :poking:

    smitty99, Mar 14, 2017
    #4
    Greg.Brakes.Tacos, Storman and Sandeman like this.
  5. Mar 14, 2017 at 11:18 AM
    #5
    monkeyface

    #5
    monkeyface Douchebag, or just douche if we're friends

    Joined:
    May 13, 2012
    Member:
    #78740
    Messages:
    3,134
    Gender:
    Male
    Colorado
    Vehicle:
    '90,'97,'12,'05 Tundra 4.7,'07 T4R 4.7,'08 T4R 4.7
    Those ARB kits seem pretty slick, the breather tubes will be tucked on the lower wheelwell, look for the metal caps.

    monkeyface, Mar 14, 2017
    #5
  6. Mar 14, 2017 at 11:39 AM
    #6
    Joe23

    #6
    Joe23 Canuckistikian

    Joined:
    Oct 5, 2015
    Member:
    #165909
    Messages:
    11,302
    Gender:
    Male
    The Great White North
    Vehicle:
    2017 TRD Off-road DCSB
    I thought all the breathers were just on the tops of each?

    They are pretty nice kits, allows for 4 breathers and comes with a bunch of tubing, for the $75CAD I got it for can't go wrong.
    Just need to install it and not sure if I need new connectors on each diff/transfer/trans to attach the tubing.

    Joe23, Mar 14, 2017
    #6
  7. Mar 14, 2017 at 8:19 PM
    #7
    Mark_R

    #7
    Mark_R [OP] Well-Known Member

    Joined:
    Mar 7, 2016
    Member:
    #180524
    Messages:
    64
    Gender:
    Male
    First Name:
    Mark
    Vehicle:
    2016 Toyota Tacoma TRD Off-Road
    When you say "breather tubes", are you saying that the front diff, transfer case and transmission all are routed to the lower wheel well location?

    Thank you.

    Mark_R, Mar 14, 2017
    #7
  8. Mar 14, 2017 at 11:50 PM
    #8
    RedAlertCA

    #8
    RedAlertCA I like her a little dirty.

    Joined:
    Feb 28, 2017
    Member:
    #211986
    Messages:
    96
    Gender:
    Male
    First Name:
    Rob
    Sonora CA
    Vehicle:
    2016 DCLB Off Road - The most maligned Tacoma ever!
    Rockford Fosgate all around AllPro Differential/Exhaust Skid AllPro Apex Sliders

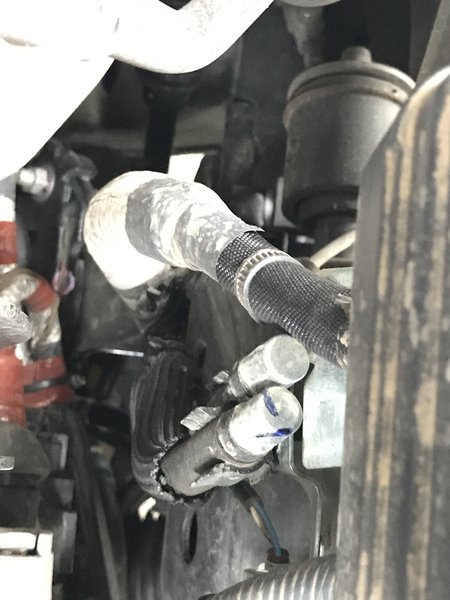

    Two breathers can be found in the engine bay on the driver's side. They're just little metal caps on the end of hoses. The best info I've found indicates these are for the front diff and the transmission. The transfer case apparently has a breather hose on it routed somewhere. I really searched online, here on TW and elsewhere and this is the best I came up with.

    The rear diff has a pressure relief valve right on it. It is not a breather.

    Some people will swear no one ever had a problem due to no rear diff breather. Others say they or their cousin's friend's neighbor's diff was ruined because it needed one. Many, like me, figure it's an easy fix, so why not? I put mine behind the taillight easy as pie.

    RedAlertCA, Mar 14, 2017
    #8
    usmc2msu, JVL1985, boston23 and 1 other person like this.
  9. Mar 15, 2017 at 9:51 AM
    #9
    Judicar

    #9
    Judicar Well-Known Member

    Joined:
    Nov 28, 2015
    Member:
    #170855
    Messages:
    393
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD OR DCSB
    I have the ARB kit for my rear diff and do seem to remember seeing the other two mentioned breathers in the engine bay while I was routing the ARB line. I, too, am also looking to determine if those two are for both the front diff, transmission and transfer case. I seem to remember someone mentioning that the transfer case and transmission breather terminate at the same line. Hope to get some clarification on this...might have to take my skids off and do some investigative work this weekend.

    Judicar, Mar 15, 2017
    #9
    JVL1985 likes this.
  10. Mar 15, 2017 at 10:07 AM
    #10
    mark1285

    #10
    mark1285 Well-Known Member

    Joined:
    Dec 27, 2016
    Member:
    #205813
    Messages:
    126
    Gender:
    Male
    First Name:
    Mark
    Vehicle:
    2017 Tacoma TRD Off-Road
    Would also love some detailed information on breathers for various components. Are we fine for light wheeling but submerging differential stock or should everyone do this mod? Thanks!

    mark1285, Mar 15, 2017
    #10
  11. Mar 17, 2017 at 2:24 PM
    #11
    Braves95

    #11
    Braves95 Go Clemson Tigers

    Joined:
    Oct 9, 2016
    Member:
    #199319
    Messages:
    6,509
    Gender:
    Male
    First Name:
    David
    Central PA
    Vehicle:
    17 MGM TRD Off Road DCSB P&T 6MT
    Fab Fours Bumper Block Heater Dual Exhaust Flow Master Smittybilt 12k Winch Synthetic Rope Bed Mat Roof Rack Puddle Lights 17" Rockstar Wheels NittoTerra Grapplers Power TailGate Lock Tonneau Cover w/lights Mobtown sliders MT Remote Start Tinted Windows Front And Rear Camera BRC Competition Diff Breather Bed Step Weather tech Floor Mats TRD Pro Tail lights TRD MT Shift Knob ARB dual compressor URD short shifter Kings 2.5 OEM W/remote resi. Click adjuster.
    im working on mine now. I can't find the same breather on rear to the transfer case. Im doing the exhaust reroute so when the truck comes down gonna look in the engine bay.

    Braves95, Mar 17, 2017
    #11
  12. Apr 13, 2017 at 9:00 PM
    #12
    Steventura86

    #12
    Steventura86 Active Member

    Joined:
    Apr 5, 2017
    Member:
    #215507
    Messages:
    44
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    2016 Tacoma TRD OR
    OME BP-51, TRD RIMS 17" KO2's, ARB snorkel, Rigid ditch Dually flood lights with OCF ditch brackets, custom cut vinyl hood wrap, extang 2.0 bed cover, bed extender, OEM roof rack and side steps, ARB Breather kit, weathertech window deflectors

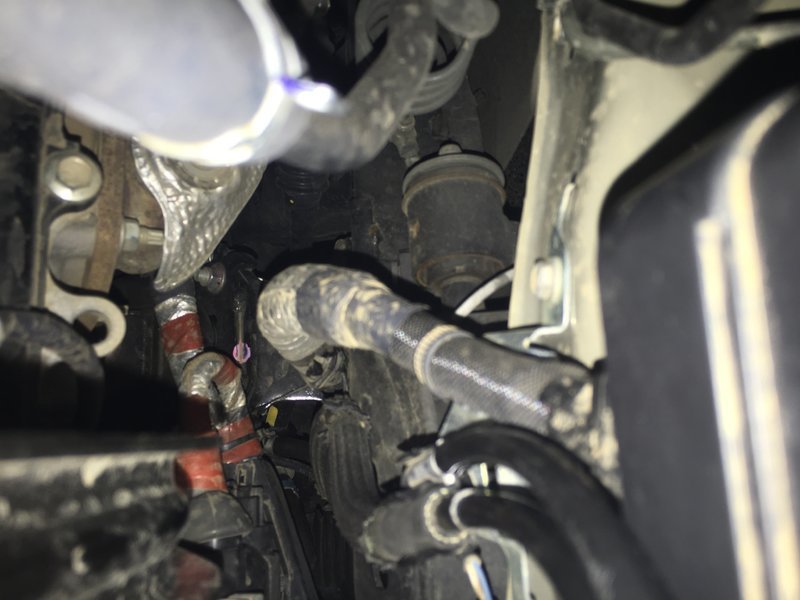

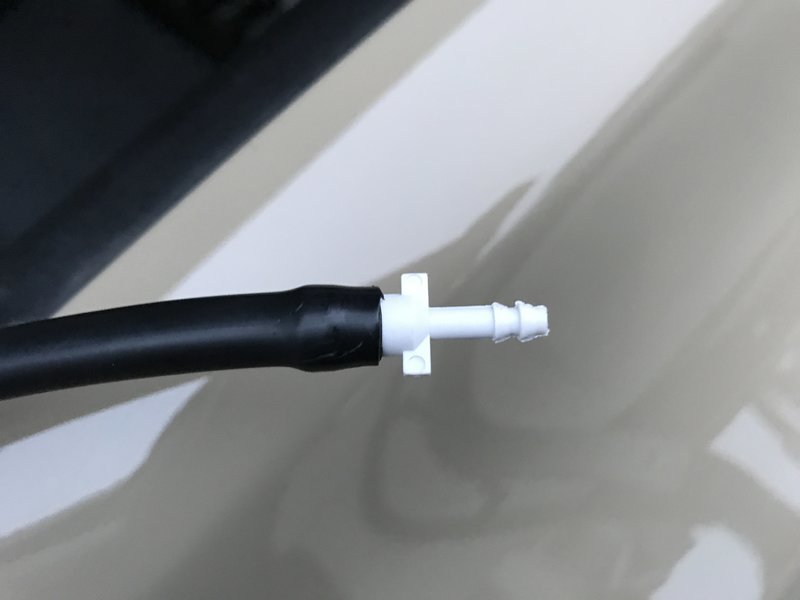

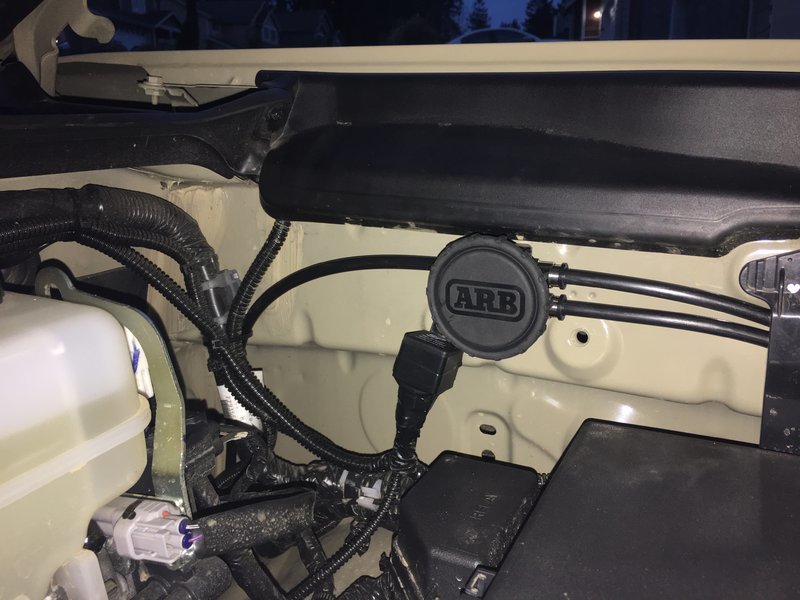

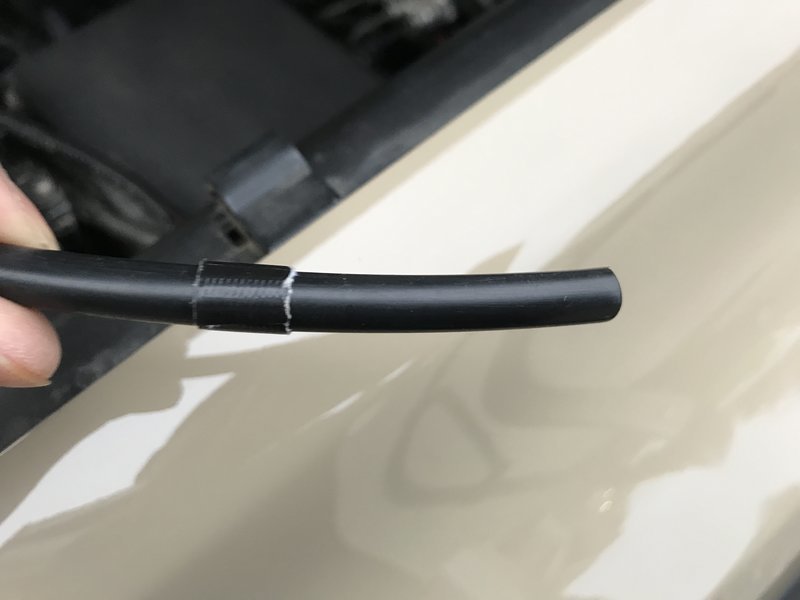

    Just finished my ARB Breather kit install 16 Tacoma off road. Still don't know where the transfer case Breather is. I was told it splits and connects the the transmission line. I have the front, rear and transmission connected. Let me know if you find info on the location of the transfer case breather. No one knows or just links to 2nd Gen diagrams and DIY's.




    Last edited: Apr 13, 2017
    Steventura86, Apr 13, 2017
    #12
    Shveet, fatfurious2, TacoPandaTRD and 5 others like this.
  13. Apr 13, 2017 at 9:26 PM
    #13
    weefek

    #13
    weefek Well-Known Member

    Joined:
    Feb 9, 2017
    Member:
    #210135
    Messages:
    220
    Gender:
    Male
    First Name:
    J
    Vehicle:
    2017 OR ACLB
    The rear diff breather is a bad design on these trucks

    weefek, Apr 13, 2017
    #13
  14. Apr 14, 2017 at 3:38 AM
    #14
    Braves95

    #14
    Braves95 Go Clemson Tigers

    Joined:
    Oct 9, 2016
    Member:
    #199319
    Messages:
    6,509
    Gender:
    Male
    First Name:
    David
    Central PA
    Vehicle:
    17 MGM TRD Off Road DCSB P&T 6MT
    Fab Fours Bumper Block Heater Dual Exhaust Flow Master Smittybilt 12k Winch Synthetic Rope Bed Mat Roof Rack Puddle Lights 17" Rockstar Wheels NittoTerra Grapplers Power TailGate Lock Tonneau Cover w/lights Mobtown sliders MT Remote Start Tinted Windows Front And Rear Camera BRC Competition Diff Breather Bed Step Weather tech Floor Mats TRD Pro Tail lights TRD MT Shift Knob ARB dual compressor URD short shifter Kings 2.5 OEM W/remote resi. Click adjuster.

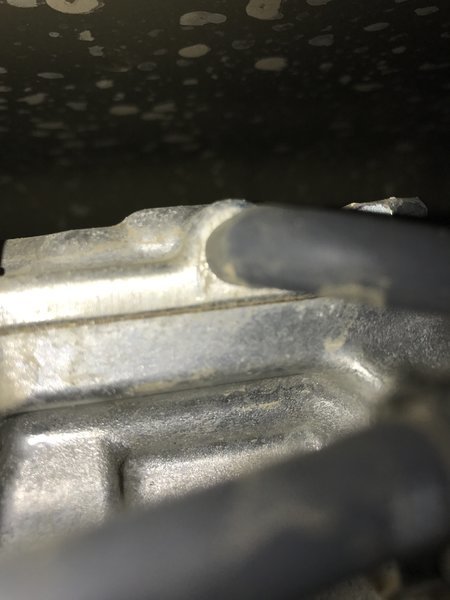

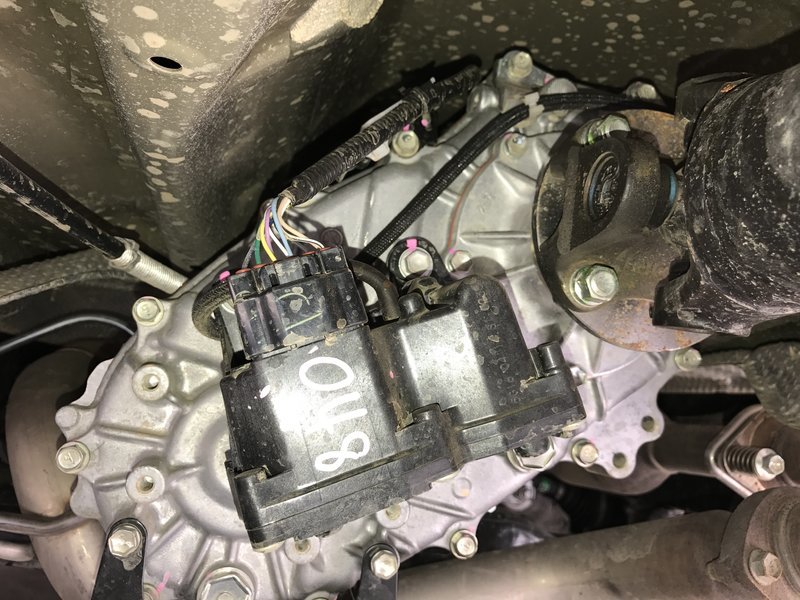

    Transfer case breather is on top. U have to use a mirror to see it. I'm just gonna tap into the 2 breather hoses that come up to the battery and then goto the breather. You can feel it but in no way are u able to get anything up there to remove and add ur own adapter or hose.

    Braves95, Apr 14, 2017
    #14
  15. Apr 14, 2017 at 4:49 AM
    #15
    Steventura86

    #15
    Steventura86 Active Member

    Joined:
    Apr 5, 2017
    Member:
    #215507
    Messages:
    44
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    2016 Tacoma TRD OR
    OME BP-51, TRD RIMS 17" KO2's, ARB snorkel, Rigid ditch Dually flood lights with OCF ditch brackets, custom cut vinyl hood wrap, extang 2.0 bed cover, bed extender, OEM roof rack and side steps, ARB Breather kit, weathertech window deflectors
    On top???? On top of the transfer case? I know the breather comes out from the top of it, but where does it go? Is there no line?

    Steventura86, Apr 14, 2017
    #15
  16. Apr 14, 2017 at 5:24 AM
    #16
    Braves95

    #16
    Braves95 Go Clemson Tigers

    Joined:
    Oct 9, 2016
    Member:
    #199319
    Messages:
    6,509
    Gender:
    Male
    First Name:
    David
    Central PA
    Vehicle:
    17 MGM TRD Off Road DCSB P&T 6MT
    Fab Fours Bumper Block Heater Dual Exhaust Flow Master Smittybilt 12k Winch Synthetic Rope Bed Mat Roof Rack Puddle Lights 17" Rockstar Wheels NittoTerra Grapplers Power TailGate Lock Tonneau Cover w/lights Mobtown sliders MT Remote Start Tinted Windows Front And Rear Camera BRC Competition Diff Breather Bed Step Weather tech Floor Mats TRD Pro Tail lights TRD MT Shift Knob ARB dual compressor URD short shifter Kings 2.5 OEM W/remote resi. Click adjuster.

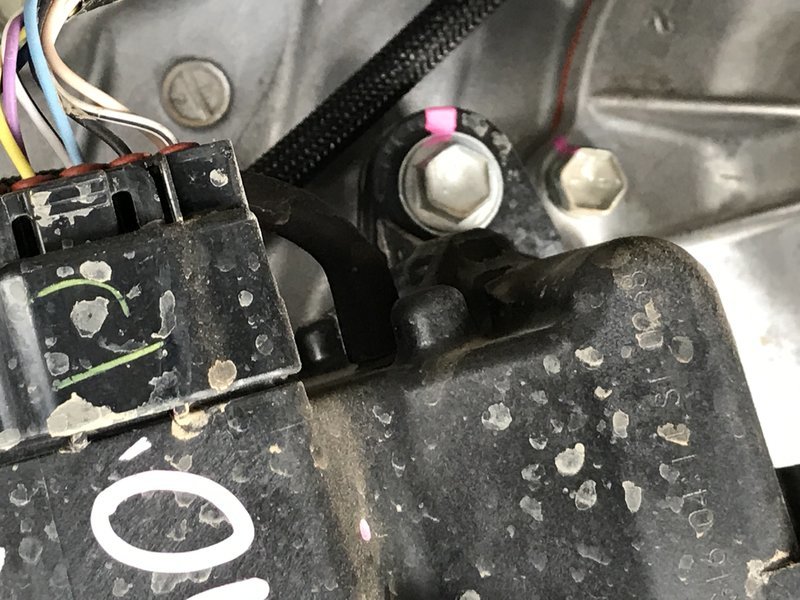

    Yes there is a line. Post 12 2nd pic. There r 2. 1 is for the transfer case and the other is the transmission.

    Braves95, Apr 14, 2017
    #16
  17. Apr 14, 2017 at 12:20 PM
    #17
    Steventura86

    #17
    Steventura86 Active Member

    Joined:
    Apr 5, 2017
    Member:
    #215507
    Messages:
    44
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    2016 Tacoma TRD OR
    OME BP-51, TRD RIMS 17" KO2's, ARB snorkel, Rigid ditch Dually flood lights with OCF ditch brackets, custom cut vinyl hood wrap, extang 2.0 bed cover, bed extender, OEM roof rack and side steps, ARB Breather kit, weathertech window deflectors

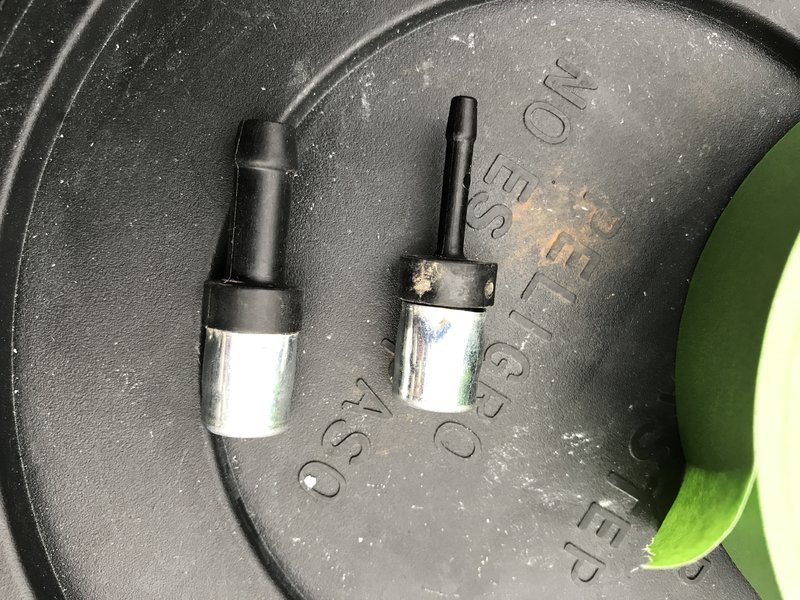

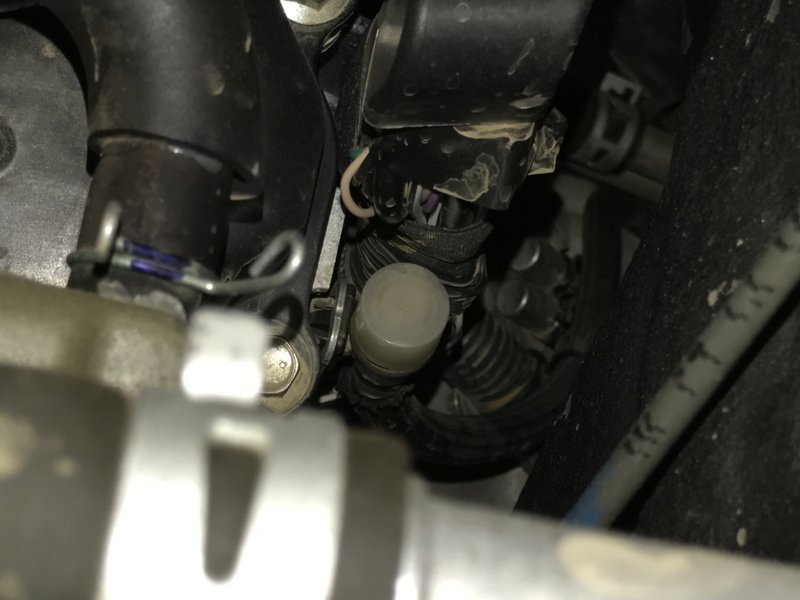

    Good news I found the two breathers for the transfer case and the transmission breather. The two up by the battery is for the front diff only. The white cap is the transmission breather and the 2 silver ones are the transfer case.



    Steventura86, Apr 14, 2017
    #17
    Greg.Brakes.Tacos, Froggyhill, Danactive and 1 other person like this.
  18. Apr 14, 2017 at 12:40 PM
    #18
    Mark_R

    #18
    Mark_R [OP] Well-Known Member

    Joined:
    Mar 7, 2016
    Member:
    #180524
    Messages:
    64
    Gender:
    Male
    First Name:
    Mark
    Vehicle:
    2016 Toyota Tacoma TRD Off-Road
    Super good investigative work sir! So if I am following this correctly... The two silver breathers in your original post are for the front differential. The white capped one and the two other silver ones account for the transmission and the transfer case? For the Tcase and the Transmission, where do these breathers live exactly?

    Mark_R, Apr 14, 2017
    #18
  19. Apr 14, 2017 at 12:48 PM
    #19
    Steventura86

    #19
    Steventura86 Active Member

    Joined:
    Apr 5, 2017
    Member:
    #215507
    Messages:
    44
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    2016 Tacoma TRD OR
    OME BP-51, TRD RIMS 17" KO2's, ARB snorkel, Rigid ditch Dually flood lights with OCF ditch brackets, custom cut vinyl hood wrap, extang 2.0 bed cover, bed extender, OEM roof rack and side steps, ARB Breather kit, weathertech window deflectors
    Just made a video...check it out

    https://youtu.be/bKQakcRIzHY

    Steventura86, Apr 14, 2017
    #19
    andthen, realsystem, Little Lion and 30 others like this.
  20. Apr 14, 2017 at 12:51 PM
    #20
    Steventura86

    #20
    Steventura86 Active Member

    Joined:
    Apr 5, 2017
    Member:
    #215507
    Messages:
    44
    Gender:
    Male
    First Name:
    Steve
    Vehicle:
    2016 Tacoma TRD OR
    OME BP-51, TRD RIMS 17" KO2's, ARB snorkel, Rigid ditch Dually flood lights with OCF ditch brackets, custom cut vinyl hood wrap, extang 2.0 bed cover, bed extender, OEM roof rack and side steps, ARB Breather kit, weathertech window deflectors
    I hate when people just give false info or bullshit links to 2nd gens and DIYs that have nothing to do with 3rd gens. Let me know if that helped everyone out

    Steventura86, Apr 14, 2017
    #20
    Rath89, SquidLord, 800VDC and 8 others like this.
