Front Frame thingy

Discussion in '2nd Gen. Tacomas (2005-2015)' started by jkuniverse, Jan 20, 2020.

  1. Jan 20, 2020 at 3:41 PM
    #1
    jkuniverse

    jkuniverse [OP] Well-Known Member

    Joined:
    Feb 20, 2019
    Member:
    #283862
    Messages:
    376
    Gender:
    Male
    First Name:
    Jason
    Arlington TX
    Vehicle:
    2013 Limited DCSB 4x4 Super White

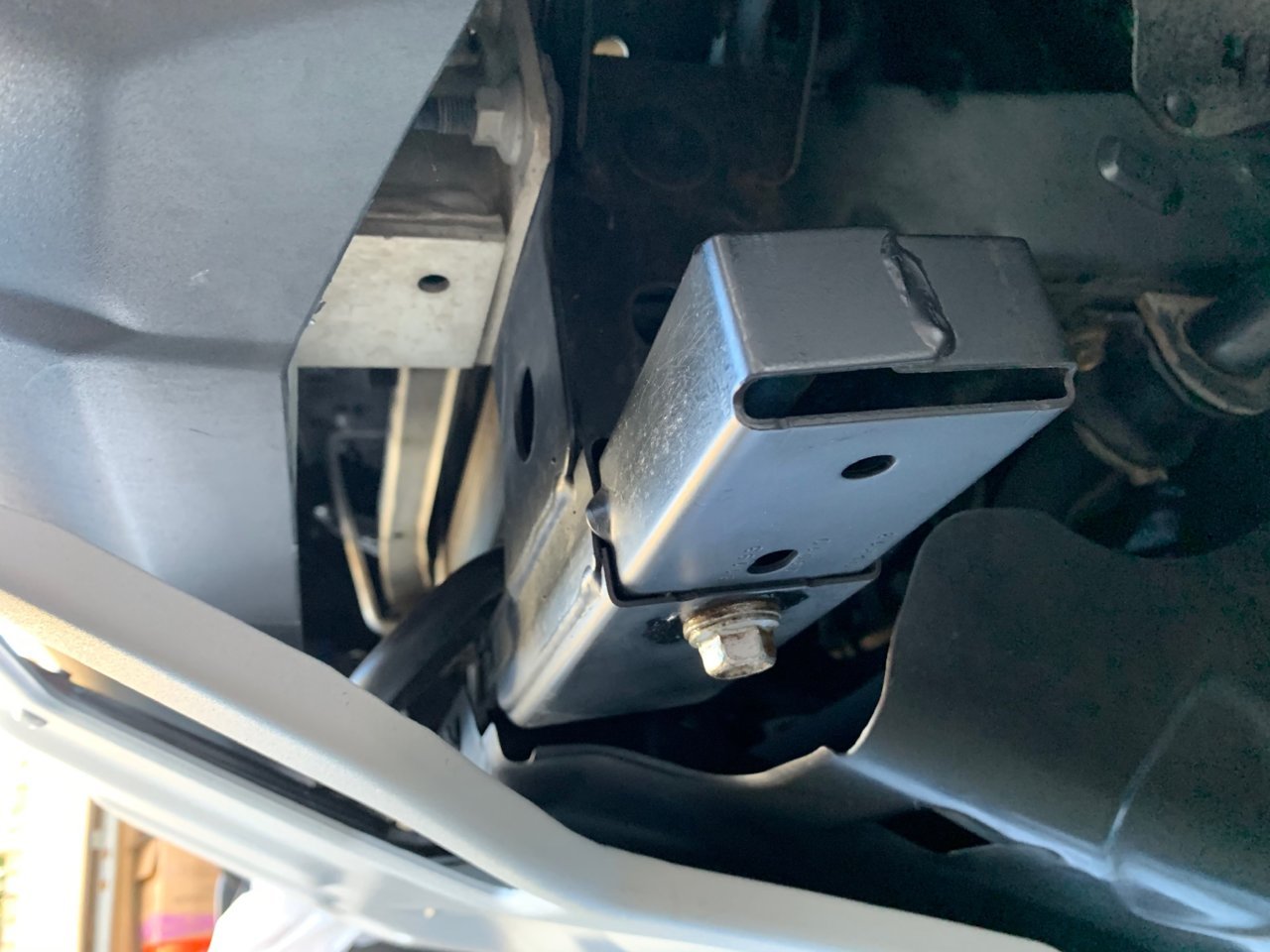

    Can this piece be removed? It looks like a cap or extension. Wonder if removing it will alter the integrity (safety) of the frame. I’m thinking about mounting a set of driving/fog lights.


  2. Jan 20, 2020 at 3:43 PM
    #2
    pdaddy

    pdaddy WeLl-KnOwN mEmBeR

    Joined:
    Sep 10, 2019
    Member:
    #304930
    Messages:
    1,841
    Gender:
    Male
    First Name:
    Preston
    Central AL
    Vehicle:
    ‘13 DCSB Prerunner SR5 Offroad
    When I installed my ARB bumper, the instructions said to remove those so bolts could be placed there. I don’t know what their purpose is...

    llamasmurf and jkuniverse [OP] like this.
  3. Jan 20, 2020 at 3:43 PM
    #3
    vssman

    vssman Rocket Engineer

    Joined:
    Jun 17, 2013
    Member:
    #106440
    Messages:
    8,628
    Gender:
    Male
    Naugatuck, CT
    Vehicle:
    2013 SR5 double cab
    Yes, you can remove it. The bolt on the bottom holds it in.

    SR-71A and jkuniverse [OP] like this.
  4. Jan 20, 2020 at 3:49 PM
    #4
    Alexely999

    Alexely999 Well-Known Member

    Joined:
    Jan 17, 2016
    Member:
    #175203
    Messages:
    1,853
    Gender:
    Male
    First Name:
    Alex
    Bay Area, CA
    Vehicle:
    2015 DCSB 4X4

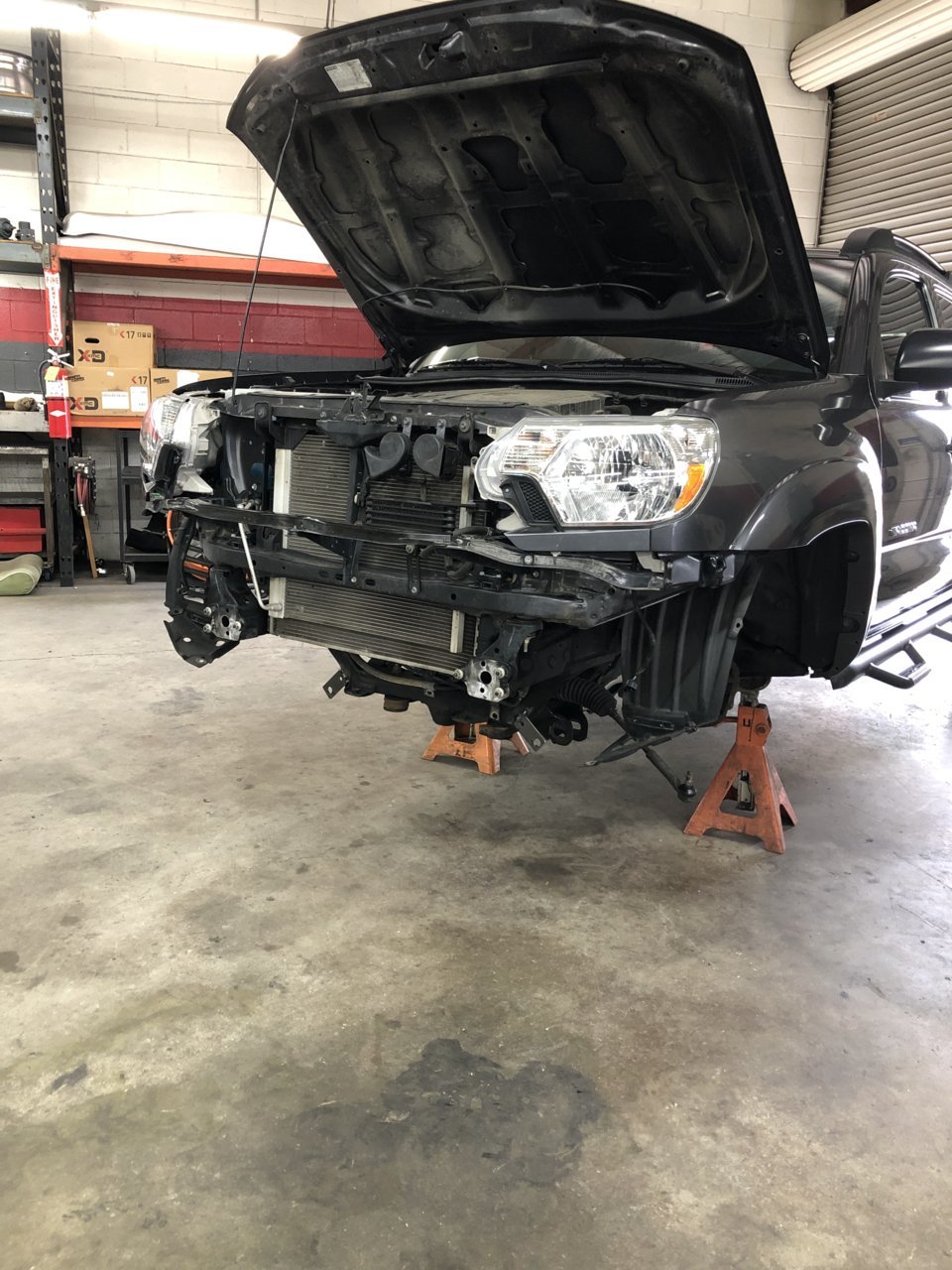

  5. Jan 20, 2020 at 4:14 PM
    #5
    pdaddy

    pdaddy WeLl-KnOwN mEmBeR

    Joined:
    Sep 10, 2019
    Member:
    #304930
    Messages:
    1,841
    Gender:
    Male
    First Name:
    Preston
    Central AL
    Vehicle:
    ‘13 DCSB Prerunner SR5 Offroad
    So if it can be removed, what exactly is the purpose of this extension thing?

  6. Jan 20, 2020 at 4:41 PM
    #6
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,474
    Nobody knows for sure, but it has been speculated that the truck failed the offset head on crash test by this >< much, so they added that doohickey and passed.

    Shellshock, 74cam, Alexely999 and 8 others like this.
  7. Jan 20, 2020 at 5:48 PM
    #7
    08TacoTrD

    08TacoTrD Well-Known Member

    Joined:
    Oct 30, 2008
    Member:
    #10385
    Messages:
    1,561
    Gender:
    Male
    Vehicle:
    08 TRD Offroad
    5100's and 883 OME Coils TRD Exhaust Deaver 1.5" AAL Rear Differential Breather Extension, 4WD Light, Tailgate Pipe clamp, Fog lights on while High Beams on, Carrier Bearing flip
    Must be nice to drive in a salt free area. The undercarriage looks almost new.

  8. Jan 20, 2020 at 6:14 PM
    #8
    llamasmurf

    llamasmurf Snow Wheeling Aficionado

    Joined:
    Mar 1, 2016
    Member:
    #179866
    Messages:
    4,047
    Gender:
    Male
    First Name:
    Wes
    Northern Ontario
    Vehicle:
    2015 Matte Black TRD ACOR
    Build thread lists all the things :D
    If you used proper undercoating on a regular basis, yours could be nice as well.

    o_O

  9. Jan 21, 2020 at 9:25 AM
    #9
    Collins

    Collins Well-Known Member

    Joined:
    Oct 9, 2009
    Member:
    #24013
    Messages:
    314
    Gender:
    Male
    North Carolina
    Vehicle:
    09' Tacoma, 2.7L, 5spd, 4x4
    Not to derail thread, but on my 2009 those ends are starting to have surface rust...should they be removed if so?
    My frame looks pretty good otherwise...thankfully not too much salt/brine used here in NC.

    Thanks.

  10. Jan 21, 2020 at 3:41 PM
    #10
    GREENBIRD56

    GREENBIRD56 Well-Known Member

    Joined:
    Aug 19, 2014
    Member:
    #136508
    Messages:
    461
    Gender:
    Male
    First Name:
    Steve
    Casper / Tucson
    Vehicle:
    014 Taco 4Dr 4wd

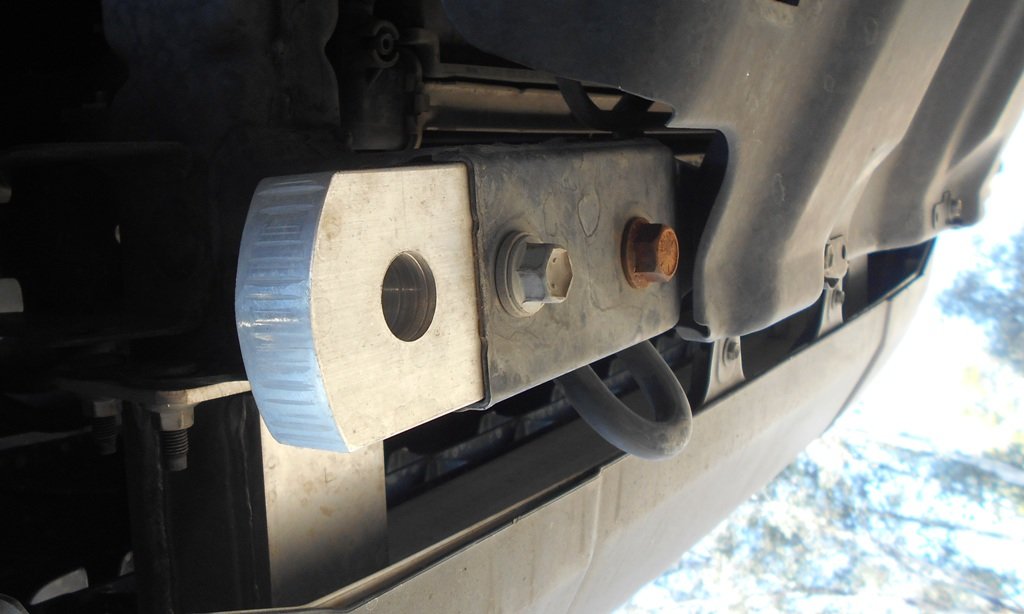

    Anchor in X-member.jpg Aluminum shackle point.jpg

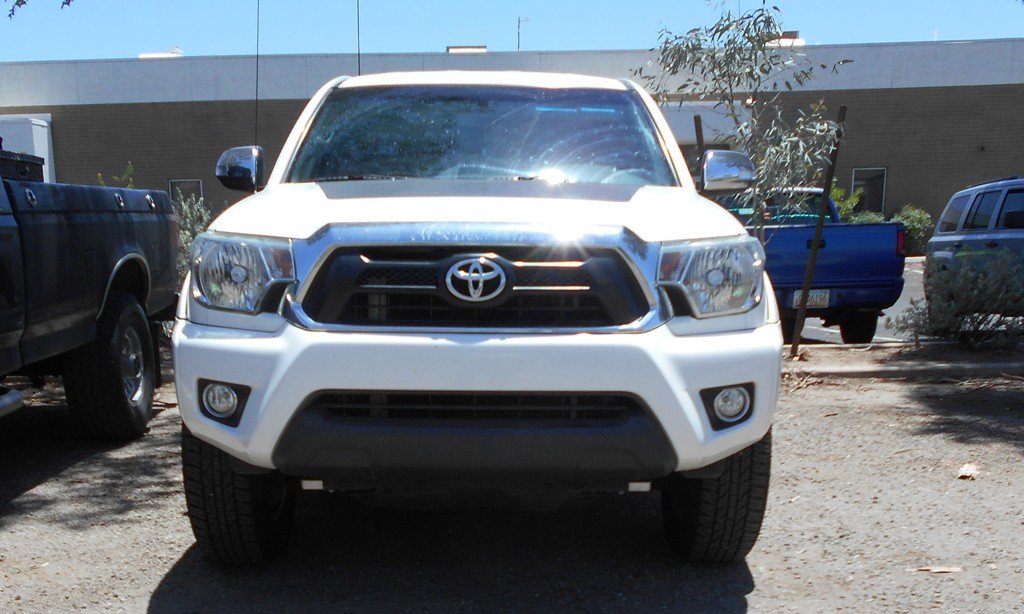

    Double Shackle Attachments.jpg

    36,000 yield strength 6061 aluminum, 1.0 inches thick

    Marc70 likes this.
  11. Jan 21, 2020 at 4:28 PM
    #11
    pdaddy

    pdaddy WeLl-KnOwN mEmBeR

    Joined:
    Sep 10, 2019
    Member:
    #304930
    Messages:
    1,841
    Gender:
    Male
    First Name:
    Preston
    Central AL
    Vehicle:
    ‘13 DCSB Prerunner SR5 Offroad
    Still not sure what it really does but that’s a nice subtle touch

  12. Jan 21, 2020 at 5:05 PM
    #12
    GREENBIRD56

    GREENBIRD56 Well-Known Member

    Joined:
    Aug 19, 2014
    Member:
    #136508
    Messages:
    461
    Gender:
    Male
    First Name:
    Steve
    Casper / Tucson
    Vehicle:
    014 Taco 4Dr 4wd
    Provides two anchors for 3/4 shackles.

  13. Jan 21, 2020 at 5:08 PM
    #13
    kystnTRD

    kystnTRD Ramblin Man

    Joined:
    Sep 19, 2007
    Member:
    #2741
    Messages:
    757
    Gender:
    Male
    NW Pennsylvania
    Vehicle:
    2016 TRD Sport 6MT
    Only as strong as what its attached to. That 36000lbs means little in this application

  14. Jan 21, 2020 at 5:08 PM
    #14
    BroID

    BroID Well-Known Member

    Joined:
    Nov 7, 2017
    Member:
    #235337
    Messages:
    647
    Gender:
    Male
    The Gem State
    Vehicle:
    2017 Tacoma TRD off road
    BFG KM2 255/85r16 Bilstein 5100s OME 888, HD Dakar’s, JBA control arms, BAMF Shackle hangers and shackle.
    yikes! those points are not strong enough for a 3/4 shackle

    ajmogen likes this.
  15. Jan 21, 2020 at 5:11 PM
    #15
    kystnTRD

    kystnTRD Ramblin Man

    Joined:
    Sep 19, 2007
    Member:
    #2741
    Messages:
    757
    Gender:
    Male
    NW Pennsylvania
    Vehicle:
    2016 TRD Sport 6MT
    That spot is not rated for a 3/4 shackle

    ajmogen likes this.
  16. Jan 21, 2020 at 7:11 PM
    #16
    GREENBIRD56

    GREENBIRD56 Well-Known Member

    Joined:
    Aug 19, 2014
    Member:
    #136508
    Messages:
    461
    Gender:
    Male
    First Name:
    Steve
    Casper / Tucson
    Vehicle:
    014 Taco 4Dr 4wd
    All of these attachment points are only as strong as the sheet metal they are attached to. Factory parts included. The 6061-T3 aluminum is the same same strength as mild steel ASTM A-36 ( also 36,000 yield. There is roughly 2.0 inches of metal in the eyelet - so 36 Tons at pull out of the eye - just about equals destruction of a common 3/4 shackle with a 7/8 pin. The point is ........ None of this stuff will fail before you damage the truck frame.

    DG92071 likes this.
  17. Jan 21, 2020 at 7:15 PM
    #17
    81Trekker

    81Trekker Well-Known Member

    Joined:
    Aug 25, 2019
    Member:
    #303299
    Messages:
    2,047
    Gender:
    Male
    La Jolla SD
    Vehicle:
    81 Trekker and 2015 CCSB Tacoma
    Too many to remember
    I really didn’t see the point to it


    Sterling_vH111 likes this.
  18. Jan 21, 2020 at 7:21 PM
    #18
    kystnTRD

    kystnTRD Ramblin Man

    Joined:
    Sep 19, 2007
    Member:
    #2741
    Messages:
    757
    Gender:
    Male
    NW Pennsylvania
    Vehicle:
    2016 TRD Sport 6MT
    My point exactly, it's a recipe for failure, in this case at the expense of your truck. Shackles are not to be rated at their destructive strength, they have a 5:1 safety factor for a reason. Point is, dont attach a shackle of any rating to something of a lesser rating. I work with rigging everyday as an ironworker by profession, this is how people get hurt or killed.

    VanDoom likes this.
  19. Jan 21, 2020 at 8:09 PM
    #19
    crazytacoman

    crazytacoman Well-Known Member

    Joined:
    Oct 30, 2018
    Member:
    #271148
    Messages:
    331
    First Name:
    Tacoman
    Taco World
    Vehicle:
    02 2.7 doublecab
    Color Wheels
    I think it’s probably to help (a little?) with impacts coming at that angle. Like when they show the crash tests from a car hitting a corner.

  20. Jan 21, 2020 at 8:10 PM
    #20
    GREENBIRD56

    GREENBIRD56 Well-Known Member

    Joined:
    Aug 19, 2014
    Member:
    #136508
    Messages:
    461
    Gender:
    Male
    First Name:
    Steve
    Casper / Tucson
    Vehicle:
    014 Taco 4Dr 4wd
    I fail to see the logic of your reply - if the eyelet won't pull out - right up to the destruction limit of the 3/4 shackle, then the rigging is properly matched. Period. If a force is then applied in excess of the structural limits of the truck - that is entirely up to whomever applies the force. But it won't go flying. I too have been making big lifts - for forty years - and rigging match or overkill is always a good idea when it's easily applied. That is why some huge number of these trucks have one or more of the 3/4 shackles hanging off of them. That is how you try to keep people from being hurt out of ignorance.

    My pull ring on the rear hitch is constructed for a 1.0 shackle and sometimes I hang one on there just to scare Prius drivers in the parking lot.
