Front strut replacement option

Discussion in 'Suspension' started by NEFLmudder, Jan 2, 2018.

  1. Jan 2, 2018 at 1:46 PM
    #1
    NEFLmudder

    NEFLmudder [OP] Well-Known Member

    Joined:
    Jan 12, 2014
    Member:
    #120469
    Messages:
    67
    Gender:
    Male
    First Name:
    Mike
    Jacksonville
    Vehicle:
    2013 DCSB TRD
    6" Zone lift kit, 20" Tracker Level 8 (20x9 0 offset) with Firestone Destination AT 275/65/20, Debadged, double din touchscreen pioneer dvd, 10" kicker cxr in a taco tunes box and a 600.1 kicker amp. Custom made surf racks utilizing the track system.
    First off I have tried the search and not found any info on switching the front strut spacer. I am currently running the zone 6" lift kit with the 3" front strut spacer and lift spindles. I am at the point I want to upgrade away from the spacer but was wondering if there were any options other than the expensive coil overs. I was hoping to reach out to the Tacomaworld followers and ask if anyone has upgraded to other options. I was hoping I could go to the billstein 5100 set at max height and OME 883's.

  2. Jan 14, 2019 at 7:28 AM
    #2
    NEFLmudder

    NEFLmudder [OP] Well-Known Member

    Joined:
    Jan 12, 2014
    Member:
    #120469
    Messages:
    67
    Gender:
    Male
    First Name:
    Mike
    Jacksonville
    Vehicle:
    2013 DCSB TRD
    6" Zone lift kit, 20" Tracker Level 8 (20x9 0 offset) with Firestone Destination AT 275/65/20, Debadged, double din touchscreen pioneer dvd, 10" kicker cxr in a taco tunes box and a 600.1 kicker amp. Custom made surf racks utilizing the track system.
    Anybody?

  3. Jan 14, 2019 at 8:58 AM
    #3
    trdt44

    trdt44 Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31238
    Messages:
    350
    First Name:
    Trent
    Utah
    Vehicle:
    2017 Tacoma TRD OR
    Are you running the front shock spacer that came with the Zone bracket lift? What shocks are you running now? Is the 3" spacer a pre-load spacer?

  4. Jan 14, 2019 at 9:03 AM
    #4
    NEFLmudder

    NEFLmudder [OP] Well-Known Member

    Joined:
    Jan 12, 2014
    Member:
    #120469
    Messages:
    67
    Gender:
    Male
    First Name:
    Mike
    Jacksonville
    Vehicle:
    2013 DCSB TRD
    6" Zone lift kit, 20" Tracker Level 8 (20x9 0 offset) with Firestone Destination AT 275/65/20, Debadged, double din touchscreen pioneer dvd, 10" kicker cxr in a taco tunes box and a 600.1 kicker amp. Custom made surf racks utilizing the track system.
  5. Jan 14, 2019 at 9:04 AM
    #5
    NEFLmudder

    NEFLmudder [OP] Well-Known Member

    Joined:
    Jan 12, 2014
    Member:
    #120469
    Messages:
    67
    Gender:
    Male
    First Name:
    Mike
    Jacksonville
    Vehicle:
    2013 DCSB TRD
    6" Zone lift kit, 20" Tracker Level 8 (20x9 0 offset) with Firestone Destination AT 275/65/20, Debadged, double din touchscreen pioneer dvd, 10" kicker cxr in a taco tunes box and a 600.1 kicker amp. Custom made surf racks utilizing the track system.

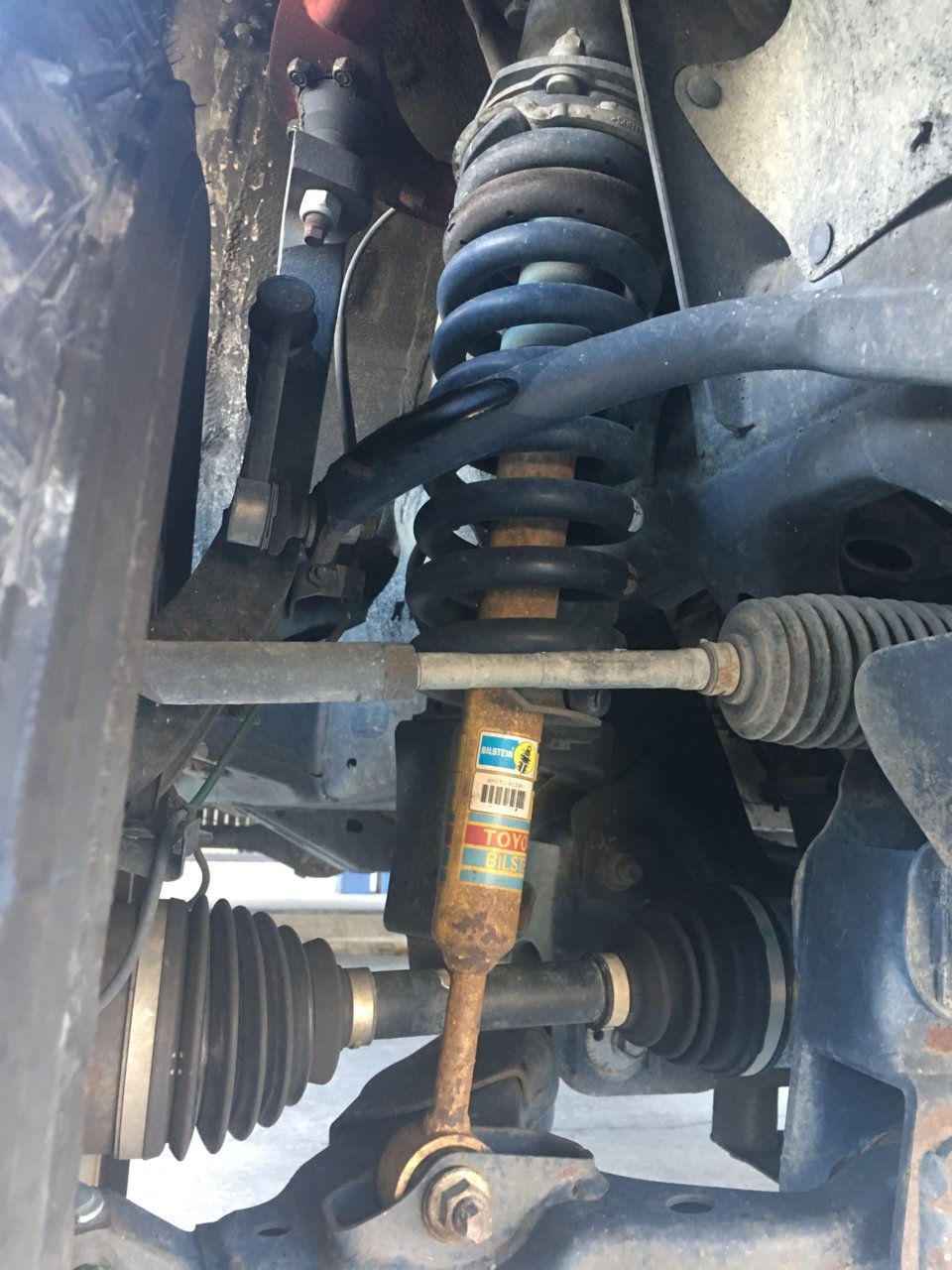

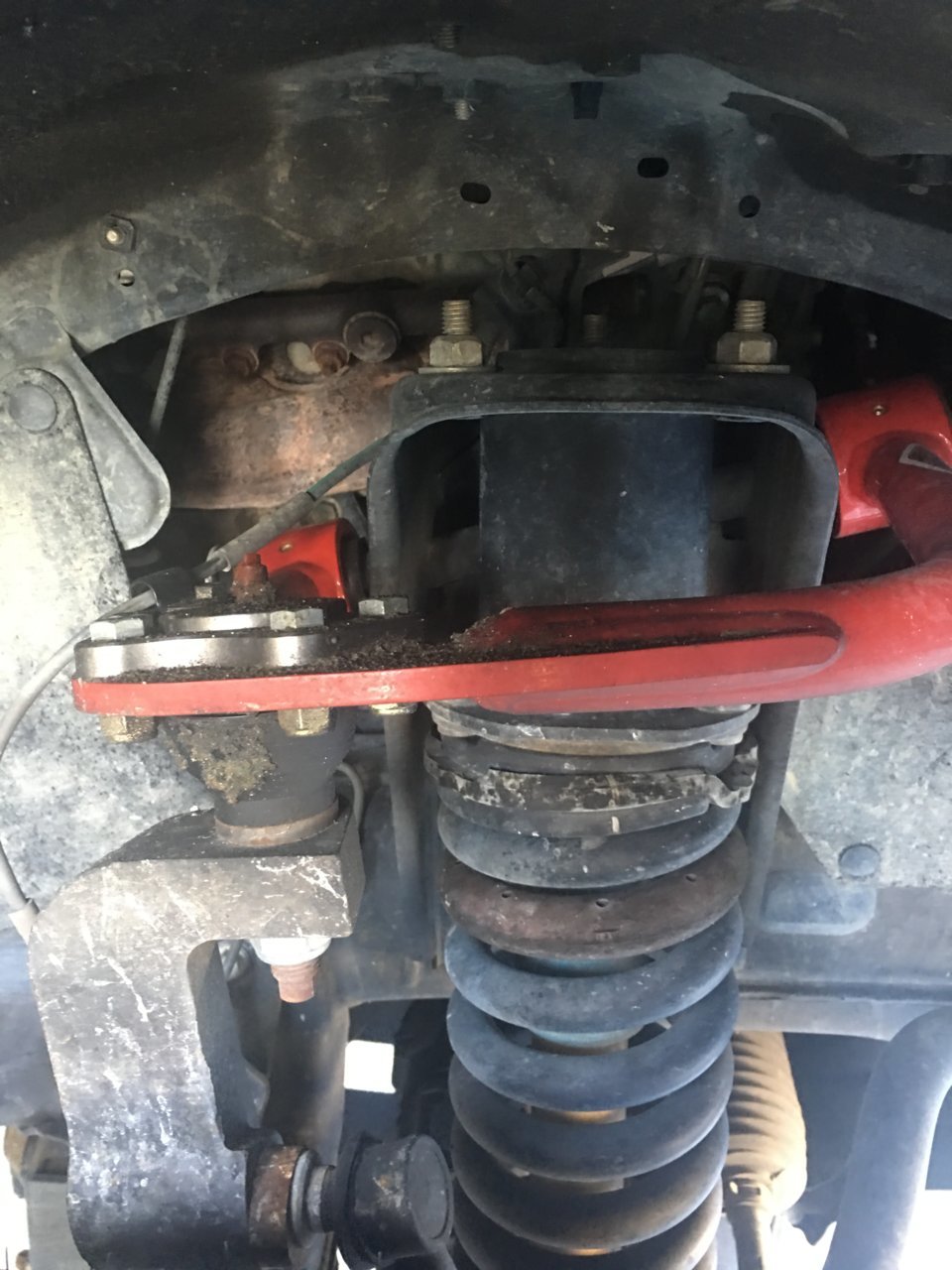

    It’s the factory strut with the zone spacer.

  6. Jan 15, 2019 at 9:51 AM
    #6
    trdt44

    trdt44 Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31238
    Messages:
    350
    First Name:
    Trent
    Utah
    Vehicle:
    2017 Tacoma TRD OR
    Is the Zone spacer 4" tall? Looks like everything is dropped 4" and then the preload spacer provides the last 2" of lift. Likely unless you get custom coilovers made for your truck you will need to keep the Zone top spacers. You might be able to find some shocks that are made for another brand of bracket lift. You will need shocks that have an extended length that is roughly 4" longer than stock. The 5100's you mentioned will still be the stock length.

    eta: For example I was running RCD Bilstein shocks made for their lift on my old Tundra that had a BDS lift on it.

    Last edited: Jan 15, 2019
