Frontrunner Bed Rack and Bed Rail Weight capacity

Discussion in '3rd Gen. Tacomas (2016+)' started by D-CM, Jul 8, 2018.

  1. Jul 8, 2018 at 9:38 PM
    #1
    D-CM

    D-CM [OP] Well-Known Member

    Joined:
    May 14, 2018
    Member:
    #253512
    Messages:
    59
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    Rock sliders
    I am looking to mount a rooftop tent over the bed of my 3rd gen Tacoma and I really like the frontrunner slimline rack that mounts to the bed rails. The problem I see is that it mounts into the bed rails only (no support from the walls of the truck bed). The rack weight rating is plenty strong to support a ~130lb tent, me, my wife, and a child. However, my concern is the load capacity of the bed rails themselves. I cannot find any clear cut answer on load rating of the bed rails - only a bunch of "I think 200 lbs per rail but Im not 100%".

    All are welcome to comment but I was specifically hoping to hear from someone running the Frontrunner bed rack and roof top tent combo.

    Last edited: Jul 9, 2018
  2. Jul 8, 2018 at 11:00 PM
    #2
    Alesimo

    Alesimo Ruined my Pro's resale value.

    Joined:
    Sep 29, 2014
    Member:
    #139352
    Messages:
    1,136
    Gender:
    Male
    First Name:
    Alec
    Houston, Texas
    Vehicle:
    2017 Cement TRD Pro MT
    Frontrunner Slimline II Rokblokz Mudflaps Spod SE w/ HD Switch Cali Raised Ditch Brackets w/ Rigid Industries D2 Hyperspots Rigid Industries D2 Driving Lights Exhaust Reroute Pelfreybuilt Aluminum Pro Mid, Rear, and Gas Skid Plates ARB Twin Compressor w/ ExE Bed Cubby Mount ExE TPAM RAM System w/ Hondo Garage Perfect Squeeze Meso Customs Ultimate Map and Dome Lights Docloco Rear Seat Molle Panel Mobtown Bolt-On Rock Sliders Mobtown Steel Plate Bumper King Shocks 2.5 Reservoir EXT w/ compression adjusters on all 4 corners Icon RXT Rear Leaf Pack
    I would like to know this myself

    mcharfauros likes this.
  3. Jul 8, 2018 at 11:09 PM
    #3
    OnHartung'sRoad

    OnHartung'sRoad -So glad I didn't take the other...

    Joined:
    Jul 24, 2017
    Member:
    #224878
    Messages:
    5,318
    Somewhere in the Mojave Desert...
    Vehicle:
    2017 Tacoma TRD 4x4 (formerly 2002 TRD 4x4, 1995 4x4 4Runner, 1985 4x4 Toy PU) ... and RIP’s (rust in pieces) to a Bronco II 4x4 & S10 Blazer 4x4
    I have a cabrack mounted RTT so it doesnt count here, but you could mod the bedrails with extra supports - also it doesnt take much to make the tailgate go off square- I have an ARE MX shell and can tell its pushing sideways on the tailgate when parking on a side slope. So, I’d consider putting in bed stiffeners too for your RTT.

    Alesimo likes this.
  4. Jul 8, 2018 at 11:49 PM
    #4
    Broccoli

    Broccoli Well-Known Member

    Joined:
    Oct 16, 2015
    Member:
    #166833
    Messages:
    2,111
    Gender:
    Male
    Airdrie Alberta
    Vehicle:
    2016 trd sport blazing blue,
    If it was me i would not trust the bed rail system alone with all that weight. Just asking for trouble. Maybe you or a shop could weld on a lip to sit on the top of the bed perimeter. In the manual there is a page or two devoted to the rails and cleats /technical data

    here4cake and phsycle like this.
  5. Jul 10, 2018 at 7:46 AM
    #5
    prest14

    prest14 Well-Known Member

    Joined:
    May 30, 2018
    Member:
    #254996
    Messages:
    188
    Gender:
    Male
    Temple, TX
    Vehicle:
    2017 SR5 4x4
    Bilstein 6112/5160, TC UCA, Dakar Medium

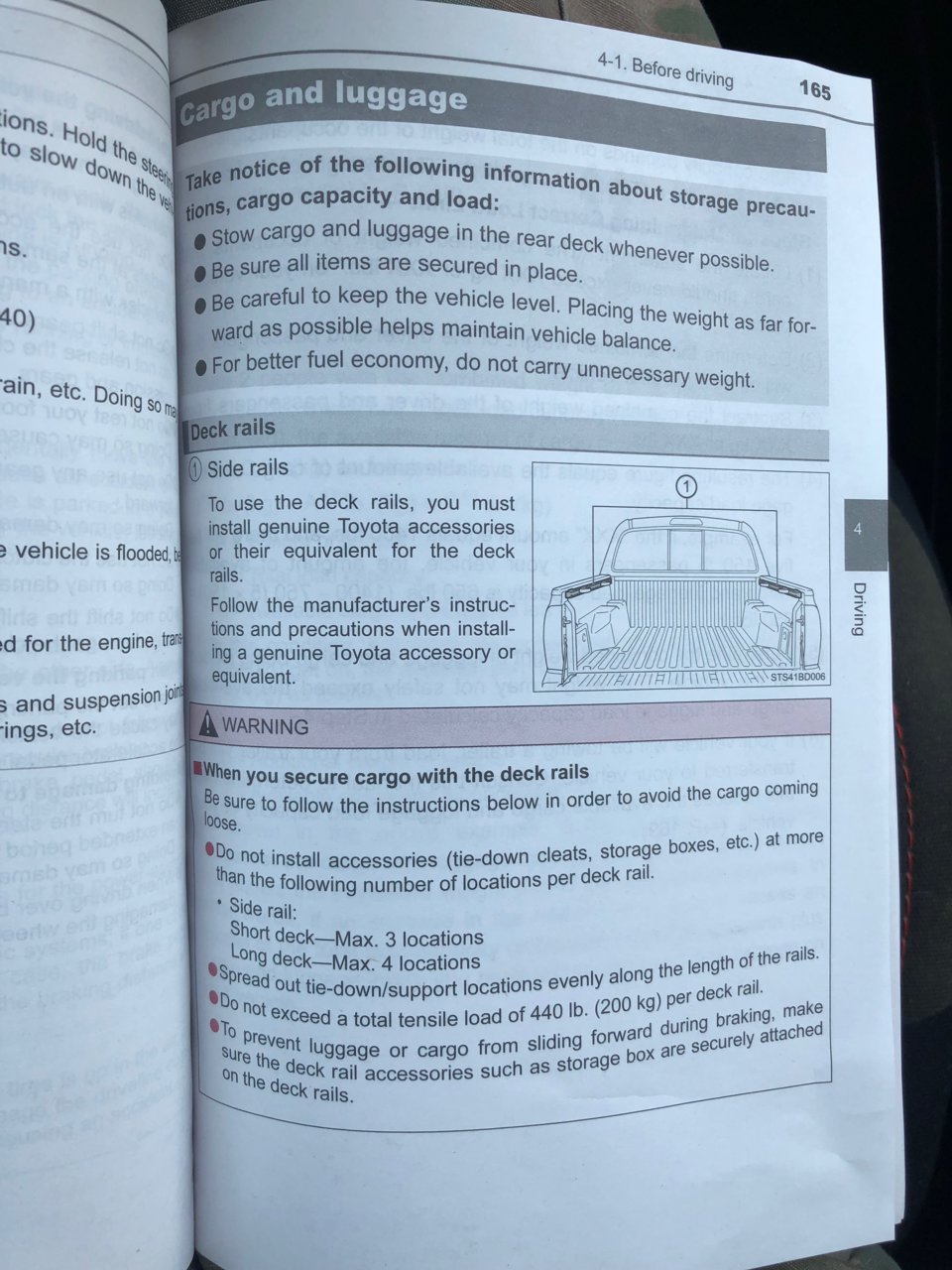

    I just looked at the manual because I was wondering this myself. The manual says "Do not exceed a total tensile load of 440 lb. (200kg) per deck rail." I'm not an engineer, so I'm having a little trouble wrapping my head around the tensile load part. But to me this says that a single bed rail will support 440 lbs, allowing you to support up to 880 lbs safely if spread between the 2 bed rails. If that's correct, then the 2 side rails should have no problem supporting a rack, RTT and a couple people. Or am I totally off on the meaning of tensile load?

    Page from the manual (2017) below:

    rail capacity.jpg

    House Forsaken and Alesimo like this.
  6. Jul 10, 2018 at 9:30 AM
    #6
    phsycle

    phsycle Well-Known Member

    Joined:
    Aug 22, 2011
    Member:
    #62149
    Messages:
    1,871
    Gender:
    Male
    CA
    Is that 440lb static weight? With a 150lb tent (plus whatever the rack weighs), running trails and washboard roads? Nope, not me. I wouldn't trust those rails with all that weight bouncing up and down on it. Give me a proper rack (not mine):

    [​IMG]

    shaggy135, transworldmoto and prest14 like this.
  7. Jul 10, 2018 at 9:34 AM
    #7
    D-CM

    D-CM [OP] Well-Known Member

    Joined:
    May 14, 2018
    Member:
    #253512
    Messages:
    59
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    Rock sliders

    I just came across this yesterday and was happy when I first read it. But tensile load is a weird way to put it. Tensile strength has to do with tension (as in pulling), not necessarily the downward force that would be exhibited a roof top tent with people in it. However, I am getting the feeling that these bed rails are very strong. I found a guy that has the front runner bed rack with the front runner RTT mounted to it and he said he has had no issues with sagging with him, his wife, and his daughter in it. He also had a water port attached to one of the bed rails. So I’m a little more confident in it now. I am also lookin into whether I can add an extra leg mount for The bed rail I plan to add on the side of the bed opposite the cab (header rail). If I end up going this route I’ll update how it works out.

    Thanks for your replies and please continue to add to this with new thoughts or experiences.

    prest14 likes this.
  8. Jul 10, 2018 at 9:37 AM
    #8
    D-CM

    D-CM [OP] Well-Known Member

    Joined:
    May 14, 2018
    Member:
    #253512
    Messages:
    59
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    Rock sliders
    I hear ya. That is the one thing that is keeping me from pulling the trigger on that bed rack.

    prest14 likes this.
  9. Jul 10, 2018 at 9:43 AM
    #9
    prest14

    prest14 Well-Known Member

    Joined:
    May 30, 2018
    Member:
    #254996
    Messages:
    188
    Gender:
    Male
    Temple, TX
    Vehicle:
    2017 SR5 4x4
    Bilstein 6112/5160, TC UCA, Dakar Medium
    Ya all valid concerns. I jumped the gun and ordered the rack without fully thinking through the load limits of the rails (whoops). I'll be a guinea pig and let ya know if it goes poorly. I'll be picking up the RTT next month... So if I haven't updated with disastrous result by late AUG/SEP, it is probably fine lol.

    Alesimo likes this.
  10. Jul 10, 2018 at 9:44 AM
    #10
    phsycle

    phsycle Well-Known Member

    Joined:
    Aug 22, 2011
    Member:
    #62149
    Messages:
    1,871
    Gender:
    Male
    CA
    Frontrunner does say on their site:

    "Due to load limitations of the factory bed tracks, we do NOT advise loading more than 150 lbs (68 kg). While Front Runner racks and mounting systems have been engineered and built to hold 660 lbs/299kgs, this may exceed your vehicle manufacturers’ recommendations. Until all vehicle components are made as off-road tough as Front Runner’s, we suggest contacting your vehicle maker to check load limits before aggressive loading of the rack."

    You'd be at max with the RTT. I think this was meant more for other, lighter cargo.

  11. Jul 10, 2018 at 10:45 AM
    #11
    D-CM

    D-CM [OP] Well-Known Member

    Joined:
    May 14, 2018
    Member:
    #253512
    Messages:
    59
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    Rock sliders
    Funny thing is that I actually spoke to a front runner employee at a recent event here in CA and he told me he didn’t think it would be a problem. He also showed me this attachment he said front runner might release in the future that extends from the leg of the bed rack over the bed wall (like most racks do). I’m not sure why it hasn’t been released though.

    With my concerns I would just move on and get a regular rack but I like how light it is and that I could use it dual purpose - RTT (with the quick release latches) when I’m overnight, or cargo when I’m on a trail just for the day.

  12. Jul 10, 2018 at 10:45 AM
    #12
    prest14

    prest14 Well-Known Member

    Joined:
    May 30, 2018
    Member:
    #254996
    Messages:
    188
    Gender:
    Male
    Temple, TX
    Vehicle:
    2017 SR5 4x4
    Bilstein 6112/5160, TC UCA, Dakar Medium
    Found another page taking about the factory cleats that install into the bed rail. It says not to put a load on the cleats greater than 220lbs, or at an angle greater than 45 degrees, as it may damage the rail and/or cleats. But then again it says do not put more than 440lbs tensile load on a single rail. Kind of confusing.

    My gut feeling is that it will work out fine. I think the disclaimer from frontrunner is a "cover our butt" move because they don't want to open themselves up to even the slightest chance of liability. Obviously if you are unsure or on the fence, I'm not trying to push you that way - do what you feel is right. But I'll ride the lightning and report back.

    Relevant second page:

    rail capacity 2.jpg

  13. Jul 10, 2018 at 10:46 AM
    #13
    D-CM

    D-CM [OP] Well-Known Member

    Joined:
    May 14, 2018
    Member:
    #253512
    Messages:
    59
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    Rock sliders
    What is the weight of the RTT you are getting?

  14. Jul 10, 2018 at 10:49 AM
    #14
    phsycle

    phsycle Well-Known Member

    Joined:
    Aug 22, 2011
    Member:
    #62149
    Messages:
    1,871
    Gender:
    Male
    CA
    You're on the right track. I do like the Frontrunner racks, though. Pretty slick attachment system and quality components. Almost got one for my old LC. But if I were buying today, I would lean Eeziawn, although they don't make anything specific to Tacoma's (or pick ups in general, IIRC).

  15. Jul 10, 2018 at 10:59 AM
    #15
    phsycle

    phsycle Well-Known Member

    Joined:
    Aug 22, 2011
    Member:
    #62149
    Messages:
    1,871
    Gender:
    Male
    CA
    In my experience, Frontrunner hasn't been super conservative when it comes to performance/weight rating. I've even thought they were pretty ballsy on some of the weight ratings for these slim aluminum racks. They even let people walk on their roof racks without any qualm. Also, if you look at the other truck racks and roof racks on their site, you won't see the same warning as you do on the Tacoma specific rack. Nice racks for sure, but something to think about.

  16. Jul 10, 2018 at 11:09 AM
    #16
    totmacher

    totmacher automotive hypochondriac

    Joined:
    Sep 7, 2009
    Member:
    #22430
    Messages:
    4,020
    Gender:
    Male
    First Name:
    Daniel
    TN (memphis-ish)
    Vehicle:
    2018 4Runner
    Thinking about it.
    220 lb per cleat x 2 cleats per side rail = 440 lb per rail.

    The "tensile" does mean like pulling straps tight to secure a load. Tension pulling cleats. The rails were designed around cargo, not mounting big stuff.

    The cleats stick out from the rail. So pulling up/down puts a torque on rails which can bend the mounting bolts holding the rails in.

    If you mount a load as close as possible to the rail and it's putting weight mostly as vertical load, now you are really only talking shear strength of mounting bolts which should be able to handle much higher amount than some angled load offset away from the rails.

    Does that help you any maybe...

    Omar RVA and prest14 like this.
  17. Jul 10, 2018 at 11:46 AM
    #17
    D-CM

    D-CM [OP] Well-Known Member

    Joined:
    May 14, 2018
    Member:
    #253512
    Messages:
    59
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD OR DCSB
    Rock sliders
    It makes sense. I know the rack has a 30 day money back guarantee. So I’ll probably buy it, test it out for a weekend and see how it holds up. That way I can also see if I can modify it and add support in other areas. Or I can wait for prest14 to see if his bed rails come apart:rofl:

    prest14 likes this.
  18. Jul 10, 2018 at 12:09 PM
    #18
    YUKON007

    YUKON007 Member

    Joined:
    Aug 31, 2017
    Member:
    #228720
    Messages:
    14
    Gender:
    Male
    I run the Front Runner Load bars, a set of 3 with my Mt. Shasta Extended on top. I've slept with myself, wife and large dog up top and had zero issues. There's an Instagram account I follow "MilkTeacoma", and he's running the exact rack you're interested in completely kitted out and loaded down and doesn't seem to have any problems. I picked his brain a bit before I pulled the trigger on the load bars. I was nervous at first, for the same reasons you are but I've been camping a handful of times now and haven't noticed any deflection in the bars or the side rails. They're definitely the cleanest install I've seen, and with the added benefit of accessorizing with Front Runner gear. I didn't go full rack, because I knew the RTT would take up the entire rack space, and I did not want the added height. I'll leave the bars mounted to the tent and remove as a unit if/when I don't want the tent on the truck. 20180413_194831.jpg 20180315_204643.jpg

    betojr14, D-CM [OP] and prest14 like this.
  19. Jul 10, 2018 at 1:15 PM
    #19
    Madtown

    Madtown Well-Known Member

    Joined:
    Jan 13, 2018
    Member:
    #241165
    Messages:
    484
    Gender:
    Male
    First Name:
    Eric
    Madison,WI
    Vehicle:
    16 Tacoma OR Quicksand
    Ray10's, Fox TRD Pro suspension
    I will be doing the same but with 2 Front Runner bars & a CVT Mt Shasta standard tent. Front Runner said 220 lbs dynamic total weight & 660 static weight capacity when using 2 bars. Might weld some feet onto the up posts to help with weight distribution. I was going to go with a CBI or Mobtown but they are all a month or so delivery time. I needed something ASAP.

    Edit. CVT shows the Mt Shasta 125 lbs empty. Should be just fine as still under the dynamic weight limit which would be when driving I believe. Then will be my GF & myself for a total of 275 lbs plus the tent & well under the static weight capacity.

    Last edited: Jul 10, 2018
    betojr14 and prest14 like this.
  20. Jul 10, 2018 at 1:27 PM
    #20
    soup222002

    soup222002 Well-Known Member

    Joined:
    May 20, 2017
    Member:
    #219505
    Messages:
    195
    Gender:
    Male
    Amelia Virginia
    Vehicle:
    2017 DCSB TRDORD
    IMG_2366.jpg I have a tepui mounted on 2 front runner load bars. I mounted total chaos bed stiffeners as well. I've had no issues with the fiancé and I
