The fuse/relay mount I designed for my 2022 Tacoma is now available for 2nd gen Tacomas.

If you want to add a waterproof relay/fuse block (sold separately) to your 2005-2015 Toyota Tacoma, you can achieve a factory (OEM) look with these custom 3D printed mounting brackets.

Truemods fuse/relay block

or

Auxbeam fuse/relay block

I designed these mounting brackets for an auxiliary relay/fuse block on my 2022 Tacoma because I wanted a solution that was waterproof, safer, and more reliable than the most popular alternative available. I also wanted my relay/fuse block to look like it was installed by Toyota.

The most popular alternative is a Blue Sea fuse block mounted on a metal bracket.

My design is waterproof and does not obstruct access to the Toyota Relay Block #2. It provides for a low voltage shut-off and does not waste space with mounts for grounding wires because:
1: there are plenty of factory grounding points located throughout your truck.
2: there is a ground point right next to the battery about 1 foot from the location of the fuse block.

This mounting bracket set has three pieces:

1: Factory Relay Block #2 relocation mount. This bracket repositions the existing relay block between the power steering assembly and body, to make room for the new relay/fuse block that goes next to the factory main relay/fuse box. This location ensures accessibility of the factory relay block #2 and does not excessively bend or stretch the cables to the relay block.

This mount relocates the factory Relay Block #2 to this location

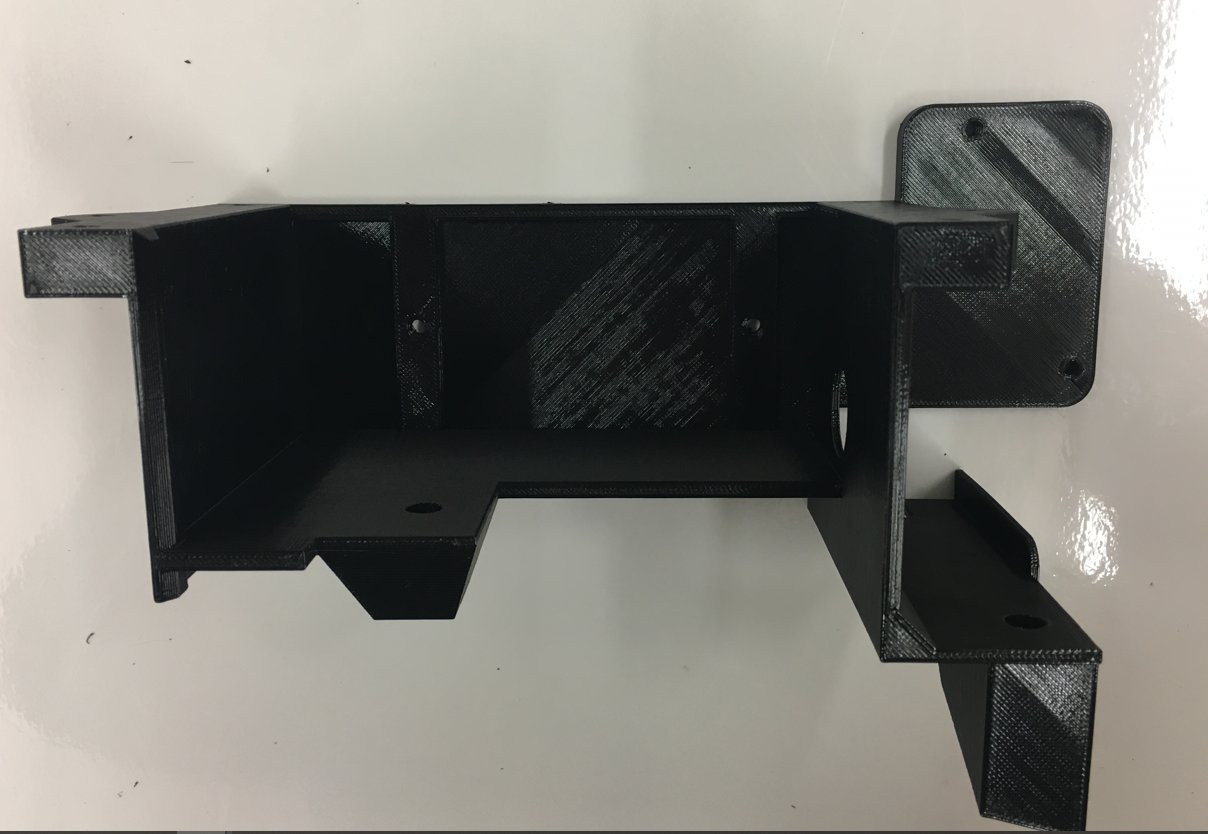

2: A two part mount for the relay/fuse block
This mount fits the Truemods relay/fuse block:

$22 12V Auto Waterproof Fuse Relay Box Block [6 Bosch Style Relay Holder] [6 ATC/ATO Fuse Holder] Universal Relay Block Box for 12V Automotive Vehicles Cars Marine Boat Light Equipment

$22 True Mods 12V DC Auto Waterproof Fuse 5-Pin Relay Box Block [6 Bosch Style Relay Holder] [6 ATC/ATO Fusible Holder] Universal Relay Block Box for Automotive Vehicles Cars Marine Boat Light Equipment

https://www.amazon.com/gp/product/B07MR64XK1?ie=UTF8&th=1 (~$22 sold separately)

or the Auxbeam 8 Gang Switch Pane fuse/relay block:

$170 Auxbeam 8 Gang Switch Panel BA80 Automatic Dimmable LED Touch Control Panel Box Electronic Relay System Car Touch Switch Box Universal for Truck ATV UTV Boat Marine SUV Caravan -Blue, 2 Year Warranty

$140 Auxbeam 8 Gang Switch Panel BA80 Automatic Dimmable LED Touch Control Panel Box Electronic Relay System Car Touch Switch Box Universal for Truck ATV UTV Boat Marine SUV Caravan -Blue, 2 Years Warranty

https://www.amazon.com/gp/product/B07KZLB74K?ie=UTF8

a: The lower part fits the contours of the engine bay and requires only one hole to be drilled.

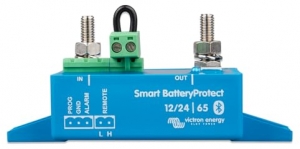

The lower part mounts an optional Smart Battery Protect (low voltage cut off switch) to prevent accidentally draining your battery:

$60 Victron Energy Smart Battery Protect 12/24-Volt 65 amp (Bluetooth)

$54 Victron Energy Smart BatteryProtect 12/24-Volt 65 amp (Bluetooth)

https://www.amazon.com/dp/B07MXG5XZ4?ref=ppx_yo2ov_dt_b_product_details (!$60 sold separately)

100 Amp Circuit Breaker with Manual Reset Car Marine Trolling Motors Boat RV ATV 12V-48VDC Waterproof Audio System Fuse

$19 100 Amp Circuit Breaker with Manual Reset Car Marine Trolling Motors Boat RV ATV 12V-48VDC Waterproof Audio System Fuse
https://www.amazon.com/gp/product/B08TWSBPW7?ie=UTF8 (~$18 sold separately)

100A (OR 60A) breaker: https://www.amazon.com/gp/product/B08TWSBPW7?ie=UTF8
Smart Battery Protect (optional):
https://www.amazon.com/dp/B07MXG5XZ4?ref=ppx_yo2ov_dt_b_product_details

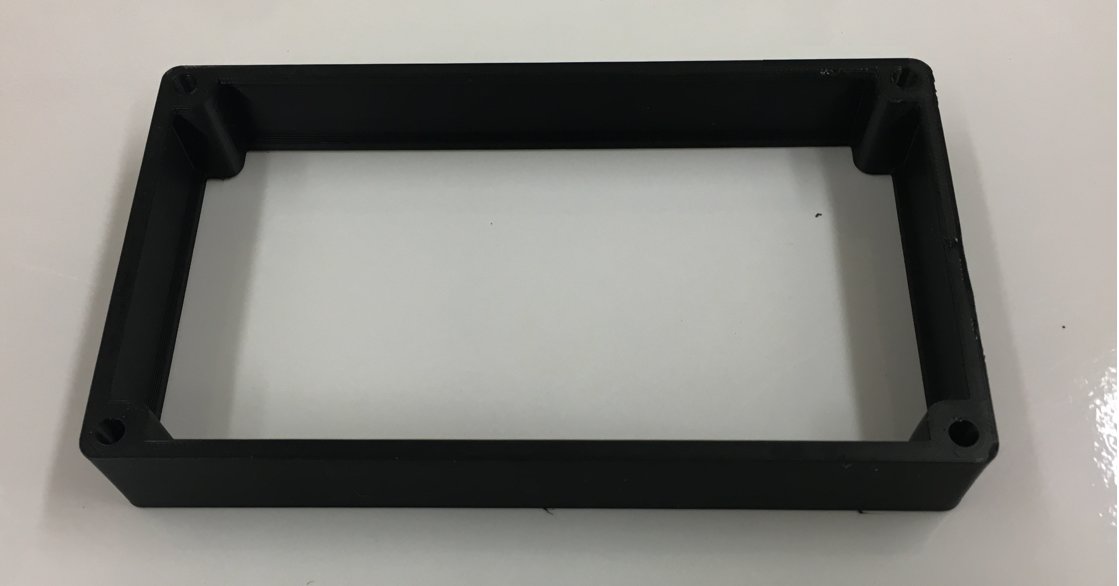

b: The upper part adds additional space under the relay/fuse block to conceal wires that may need a little slack under the relay/fuse block.

In summary, with this option, you get a mount for a waterproof fuse/relay block, a relocation mount for the factory Relay Block #2, and a breaker mount. There are no sharp edges for potential shorts, no wasted space on a negative bus, access to the OEM Relay Block#2, and a professional looking finished installation.

This kit includes mounting brackets and hardware for the items listed above (but does not include):

Truemods relay/fuse block:
https://www.amazon.com/gp/product/B07MR64XK1?ie=UTF8&th=1
OR
Auxbeam 8 Gang Switch Panel: https://www.amazon.com/gp/product/B07KZLB74K?ie=UTF8

All wires, ring terminals, grommets, heat shrink tubing specific to the relay/ruse box you decide to use.
You can see more photos and details here

Please note that before you order this mounting bracket kit, you should already be familiar with the tools and skills required to assemble the Fuse/Relay box. If you are not sure, order the Fuse/Relay box before you order this mounting kit.

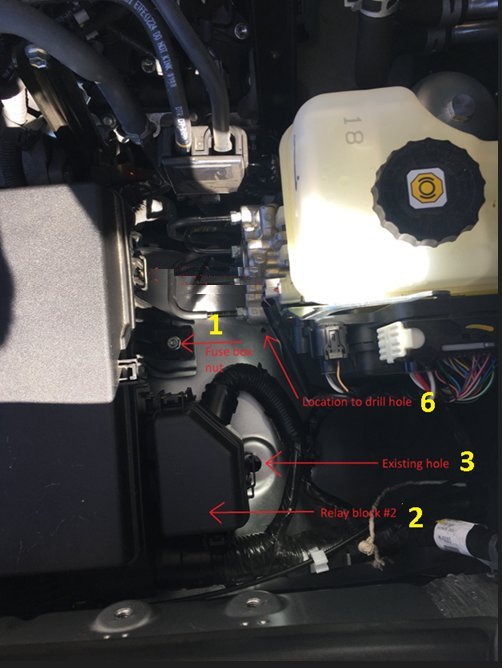

Also compare your engine bay to this photo which shows where my fuse/relay mount kit fits

I used the Truemods fuse/relay block on my 2022 Tacoma.

$22 True Mods 12V DC Auto Waterproof Fuse 5-Pin Relay Box Block [6 Bosch Style Relay Holder] [6 ATC/ATO Fusible Holder] Universal Relay Block Box for Automotive Vehicles Cars Marine Boat Light Equipment

$22 12V Auto Waterproof Fuse Relay Box Block [6 Bosch Style Relay Holder] [6 ATC/ATO Fuse Holder] Universal Relay Block Box for 12V Automotive Vehicles Cars Marine Boat Light Equipment
this fuse/relay mount

It can power up to 6 fuse and 6 relays

I've also mounted the Auxbeam for another customer

As featured by Chloe Kuo on YouTube:
https://youtu.be/QVErIO-pSwk

https://youtu.be/Kd7Yuisq7dE
