FS: Custom TOYOTA Grill Emblems

Discussion in '2nd Gen Tacoma Parts Marketplace (2005-2015)' started by Dozer, Jul 6, 2016.

  1. Jul 6, 2016 at 10:13 AM
    #1
    Dozer

    Dozer [OP] Well-Known Member

    Joined:
    Apr 24, 2014
    Member:
    #128413
    Messages:
    131
    Gender:
    Male
    Colorado
    Vehicle:
    13 TRD Off Road
    I like the "old school" look of the Landcruiser emblem (P/N: 75311-90K00) so I bought one. I wasn't happy with the white/plastic look so I decided to try something a bit different. Using the plastic emblem as a template, I matched the font and size and had the letters waterjet cut from 1/4"-thick 5052 Aluminum. I bead-blasted them to get a uniform matte finish and then used a clearcoat to get back a little gloss and protect them.

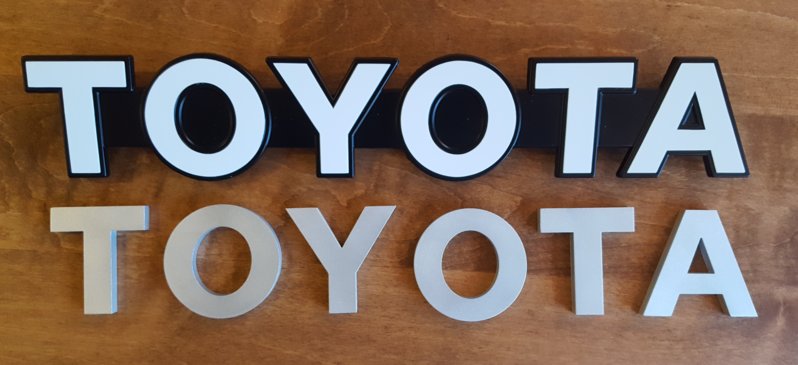

    Here's an sample of the letters so you can see that they are identical to the OEM emblem.

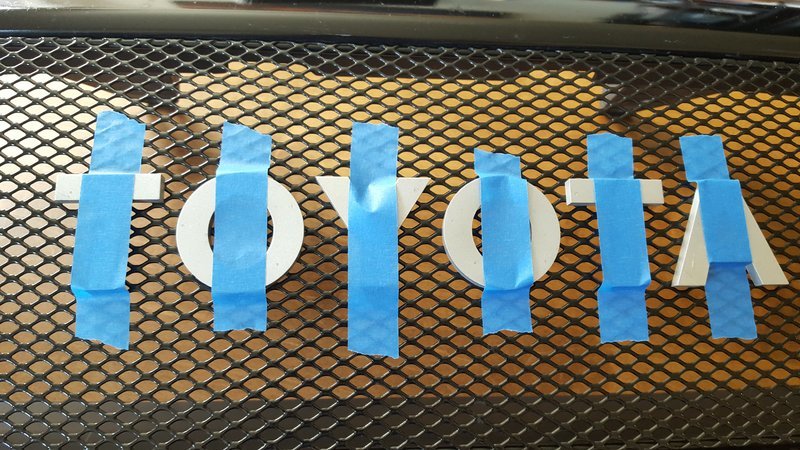

    To mount them, I first used a paper template (I'll include it with each order) to space them properly. After positioning the letters I held them in place with masking tape.

    Flipping the grill over, I used a fine-tip Sharpie to trace the mesh pattern on the back of the letters. Leaving the paper template in place, I removed the letters, drilled and then tapped #2-56 holes (about 3-4 per letter) in the mesh gaps. Using the paper template as a guide again, I positioned the letters again and secured with #2-56 screws, lock washer, and a couple washers to get the contact with the mesh just right.

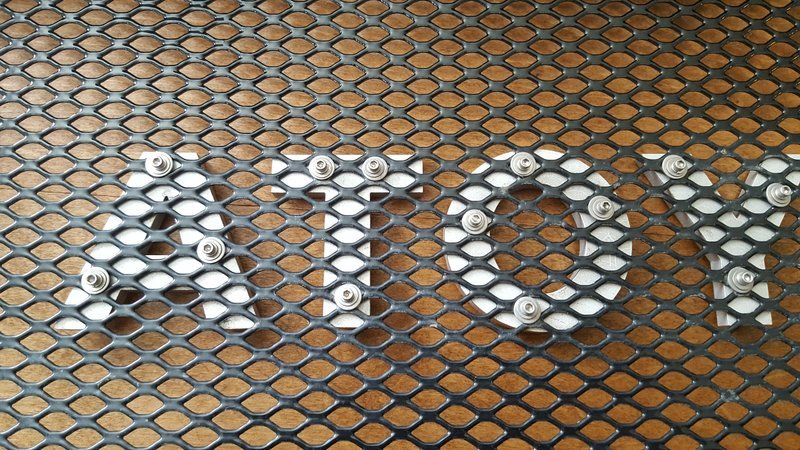

    As you can see, the mounting is very specific to the grill insert you are using so it has to be custom-fitted. A much easier option (that other have successfully used) is to mount them with heavy-duty 3M tape (like the kind for hanging mailboxes to brick walls). As always, I'm here to help if you have any questions about mounting!

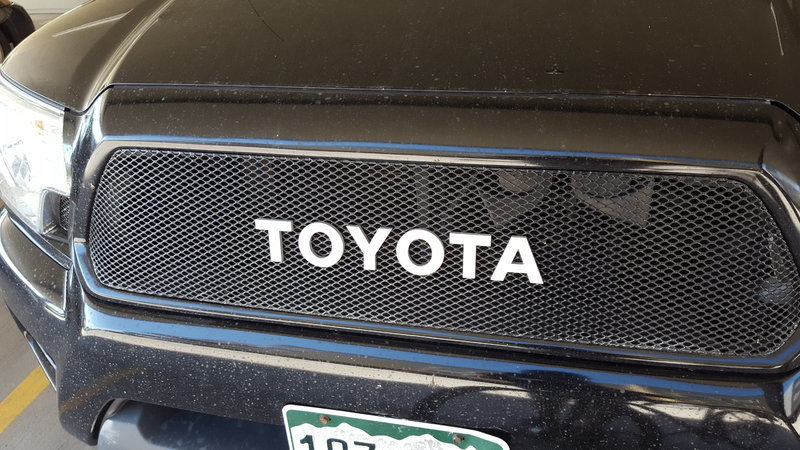

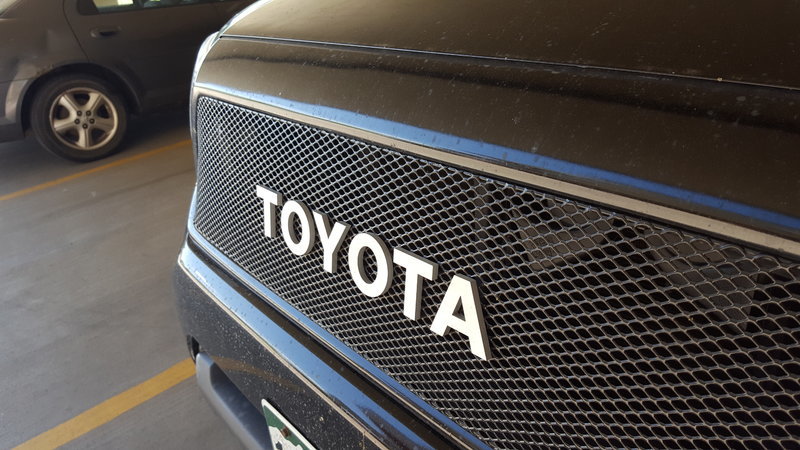

    And mounted on the truck.




    Now offering another option, courtesy of a custom order from @Tyler07:

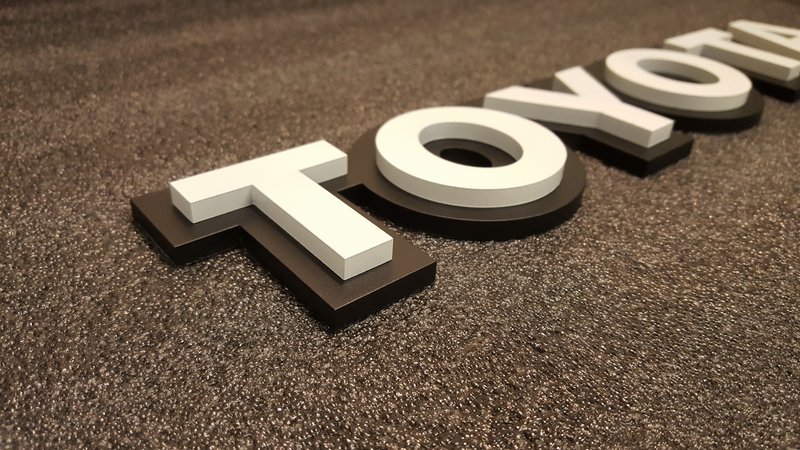

    It's a single-piece backing for these letters with about a 1/4" border around each letter (shown here in satin black powdercoat)

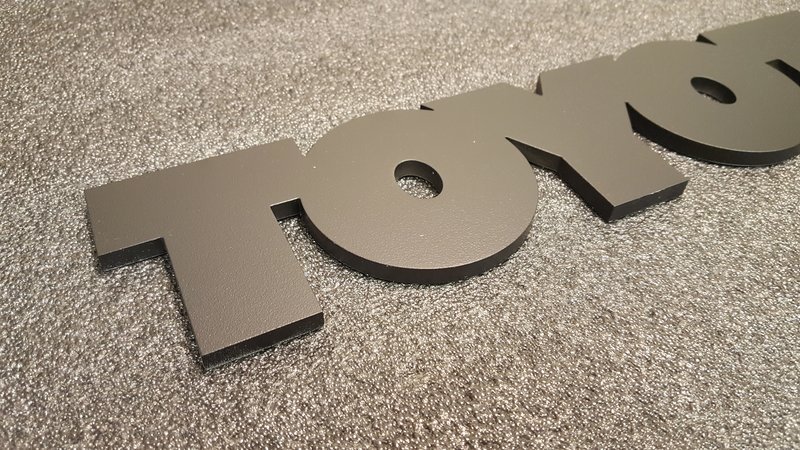

    And a close-up shot. Same beadblasted and powdercoat color options available!


    With each set, I'll also include a copy of the paper template I used to space the letters. The mounting option is up to you, this does not include any hardware or pre-drilled holes.


    The individual letter sets and backing piece are each priced the same if you buy only one or the other.

    Raw aluminum - $40 shipped
    Bead-blasted finish - $50 shipped
    Powdercoated - $60 shipped
    Colors available:
    - Satin Black
    - High Gloss Black
    - White
    - Light Machine Gray
    - Dark Blue
    - Bright Red

    If you order both at the same time I'll knock off $10 from the total. So, a set of letters and backing powdercoated would be $60 + $60 - $10 = $110.

    The 3rd round ordering is now closed. Thanks guys!


    3rd round:
    1. @flyfisher4822 - satin black backing
    2. @cromad - bead blasted letters, satin black backing
    3. @Early B. - light machine gray letters and satin black backing
    4. @KK1849 - bead blasted letters, satin black backing
    5. @Taco1999 - white letters, satin black backing
    6. @primer - bead blasted letters
    7. @ptm - white letters, satin black backing
    8. @wacked - bead blasted letters, (2) satin black backings
    9. @Banjo-Paul - white letters, satin black backing
    10. @APOLLO-TACO - light machine gray letters
    11. @bfeth - white letters


    green = shipped

    Last edited: Aug 8, 2017
  2. Jul 6, 2016 at 11:21 AM
    #2
    Muffdiver

    Muffdiver Growing old is mandatory, growing up is optional

    Joined:
    Jun 16, 2015
    Member:
    #157550
    Messages:
    1,111
    Gender:
    Male
    First Name:
    Ty
    Elkhart, In
    Vehicle:
    2012 TRD OR DC 4x4
    I'll take the OEM part off your hands. PM inbound

  3. Jul 6, 2016 at 6:21 PM
    #3
    Dozer

    Dozer [OP] Well-Known Member

    Joined:
    Apr 24, 2014
    Member:
    #128413
    Messages:
    131
    Gender:
    Male
    Colorado
    Vehicle:
    13 TRD Off Road
    PM replied

  4. Jul 6, 2016 at 6:25 PM
    #4
    HomerTaco

    HomerTaco O.o •_• -_- O.O Vendor

    Joined:
    Mar 28, 2010
    Member:
    #34129
    Messages:
    44,353
    Gender:
    Male
    First Name:
    Craig
    Bucks County Pa.
    Vehicle:
    four sticks, dual cases, zero fucks...
    ...................................................................................................................................................... Core-Hurst short throw shifter & T-handle / Carbon Fiber Interior / custom console light / De-badged / leather interior / Heated Front seats / Red Line Hood Struts / Painted speaker grills /one-off TRD Satoshi Grill with 12-15 front-end swap/ Pioneer AVIC-X920BT HU / Scangauge II / Black LED Tails / Dash Mount for iPad mini / Safari Snorkel / Auto-pilot mode / Leer 100XQ Cap / 4x Innovations sliders / Rear Diff Breather Mod / front windows tinted to 35% / Brute Force Fab Hybrid Front Bumper / BAMF Rear Diff Skid / Budbuilt Skids / CBI Trail Master 2.0 rear hybrid bumper / Fox rr coils/ TC UCA's/ TC spindle gussets/ TC Cam Tab gussets / Dakar leafs / Defined Engineering shackles / All pro U bolt flip / Timbren Rear Bumpstops / BAMF LCA skids / Exhaust re-route / Fog Light anytime Mod / LowRange Off Road extended rear brake lines / ATO Shackle Flip / sectioned Bushwhacker flares / re-geared to 4.56 / ARB Front & Rear Locking Diff / ARB CKMA12 compressor / PrInSu full rack system / 1" body lift / Inchworm 4.7 crawlbox / twin stick FJ t-case / Davez off-road triple-stick kit/
    Very well done! :thumbsup:

    AR15xAR10 likes this.
  5. Jul 6, 2016 at 6:50 PM
    #5
    Ironcross6921

    Ironcross6921 Not done breaking stuff yet.

    Joined:
    Nov 18, 2015
    Member:
    #170013
    Messages:
    834
    Gender:
    Male
    First Name:
    Matt
    Colorado City, Colorado
    Vehicle:
    2007 Tacoma TRD OR - 1999 Tacoma Prerunner - 1992 4Runner
    Where you located in colorado? Pending location what's pricing for pickup.

  6. Jul 6, 2016 at 7:18 PM
    #6
    Dozer

    Dozer [OP] Well-Known Member

    Joined:
    Apr 24, 2014
    Member:
    #128413
    Messages:
    131
    Gender:
    Male
    Colorado
    Vehicle:
    13 TRD Off Road
    Boulder, but I'm in Denver often. Pickup price will be about $5-$6 cheaper so not that significant. Which ones are you interested in?

  7. Jul 7, 2016 at 4:26 PM
    #7
    Dozer

    Dozer [OP] Well-Known Member

    Joined:
    Apr 24, 2014
    Member:
    #128413
    Messages:
    131
    Gender:
    Male
    Colorado
    Vehicle:
    13 TRD Off Road
    Thanks - coming from the Grill Master, that means a lot!

    HomerTaco likes this.
  8. Jul 9, 2016 at 8:09 AM
    #8
    Dozer

    Dozer [OP] Well-Known Member

    Joined:
    Apr 24, 2014
    Member:
    #128413
    Messages:
    131
    Gender:
    Male
    Colorado
    Vehicle:
    13 TRD Off Road
    The OEM emblem is sold but I still have a few sets of the TOYOTA letters.

  9. Jul 10, 2016 at 8:24 PM
    #9
    Frank0

    Frank0 "Cali-Man"

    Joined:
    Dec 19, 2015
    Member:
    #172586
    Messages:
    213
    Gender:
    Male
    First Name:
    Frank
    Orange,CA
    Vehicle:
    !!Tacoma!! TRD SPORT 4x4
    Here and there
    Show pics of the letters,im interested

  10. Jul 10, 2016 at 10:48 PM
    #10
    Dozer

    Dozer [OP] Well-Known Member

    Joined:
    Apr 24, 2014
    Member:
    #128413
    Messages:
    131
    Gender:
    Male
    Colorado
    Vehicle:
    13 TRD Off Road
    The 2nd photo from the top is the letters (beadblasted finish) compared to the original emblem. They are 1/4" thick, 5052-Al. Let me know if you want a close-up photo.

  11. Aug 10, 2016 at 7:39 AM
    #11
    Dozer

    Dozer [OP] Well-Known Member

    Joined:
    Apr 24, 2014
    Member:
    #128413
    Messages:
    131
    Gender:
    Male
    Colorado
    Vehicle:
    13 TRD Off Road
    Bump - only 2 sets of these letters left!

  12. Sep 19, 2016 at 4:40 PM
    #12
    Dozer

    Dozer [OP] Well-Known Member

    Joined:
    Apr 24, 2014
    Member:
    #128413
    Messages:
    131
    Gender:
    Male
    Colorado
    Vehicle:
    13 TRD Off Road
    Here's awesome install by @Supra4x4! Still have 2 sets of these letters available.


    Supra4x4 likes this.
  13. Sep 20, 2016 at 5:06 AM
    #13
    Coot83

    Coot83 DORKEL NATION

    Joined:
    Aug 9, 2016
    Member:
    #194134
    Messages:
    13,255
    Gender:
    Male
    First Name:
    Chris
    Scottsdale, Az
    Vehicle:
    2012 Baja TX
    TC 3.5 LT, RCV axles, Demello sliders, BD light bar/fogs, LP6, DMZ rear, SOS skids, custom bumper, King 16" triples, Locked-on hydro rear bumps...
    Im interested in a set of these letters. Out of curiousity, is it easier to apply some sort of sticky tape to these on the grill? I was thinking that screwing them on might be easier, but maybe not?

    Coot

  14. Sep 20, 2016 at 6:11 AM
    #14
    ctsnow13

    ctsnow13 Well-Known Member

    Joined:
    Jan 3, 2016
    Member:
    #173859
    Messages:
    271
    Gender:
    Male
    Vehicle:
    2014 Magnetic Grey TRD DCSB
    I'll take a set of the raw aluminum ones. Let me know how to pay you and everything.

  15. Sep 20, 2016 at 12:53 PM
    #15
    Dozer

    Dozer [OP] Well-Known Member

    Joined:
    Apr 24, 2014
    Member:
    #128413
    Messages:
    131
    Gender:
    Male
    Colorado
    Vehicle:
    13 TRD Off Road
    PMs replied, sales on the final 2 sets pending.

    Willing to do another run if I can get a list of at least 5 people interested.

  16. Sep 20, 2016 at 12:56 PM
    #16
    AR15xAR10

    AR15xAR10 #blackriflesmatter

    Joined:
    Apr 13, 2013
    Member:
    #102024
    Messages:
    54,002
    Gender:
    Male
    Heh, wouldn't you like to know
    Vehicle:
    08 SR5 4x4 V6 IndigoInkPearl ACLBFTMFW
    Please refer to my build thread (click signature picture)
    more details please

    would you be willing to make these for other members? definitely way more clean than the entire plastic emblem

  17. Sep 20, 2016 at 1:02 PM
    #17
    DuttonCD

    DuttonCD Well-Known Member

    Joined:
    Jul 1, 2016
    Member:
    #190981
    Messages:
    327
    Gender:
    Male
    First Name:
    Chris
    Alabama
    Vehicle:
    2018 TRD OR CEMENT
    Can you do white?

  18. Sep 20, 2016 at 1:02 PM
    #18
    Dozer

    Dozer [OP] Well-Known Member

    Joined:
    Apr 24, 2014
    Member:
    #128413
    Messages:
    131
    Gender:
    Male
    Colorado
    Vehicle:
    13 TRD Off Road
    I used screws and it was a little tricky to get the screws to line up with the mesh holes while keeping the letter spacing perfect. I think the double-sticky tape that Supra4x4 used looks great and should last with proper surface prep.

    The basic steps that I took to mount them with screws was:

    1. Laid out the letters on the grill (based on the Land Cruiser emblem spacing) - I will provide this paper template
    2. Used tape to hold the letters in place then marked the mesh locations on the back of the letters
    3. Drilled and tapped #2-56 holes
    4. Used the paper template again to position the letters straight, secured them in place with screws and washers from behind the grill

    Last edited: Sep 20, 2016
  19. Sep 20, 2016 at 1:08 PM
    #19
    Dozer

    Dozer [OP] Well-Known Member

    Joined:
    Apr 24, 2014
    Member:
    #128413
    Messages:
    131
    Gender:
    Male
    Colorado
    Vehicle:
    13 TRD Off Road
    Yeah I originally bought the Land Cruiser emblem but didn't like the plastic look or the black bar connecting the letters. I just ran a set of 5 at the waterjet to keep costs down by selling the rest. If there's enough interest I could definitely do another production run.

    If I do that I'll pop my grill off to take pictures of my mounting method (screws) but that's totally up to you guys.

    I'm happy to sell them to you as raw aluminum if you want to finish them yourselves. Or I can bead-blast them (which is what I did) to give them a smooth metallic finish. I also have limited powercoat colors available that I would do "made to order".

    TRDSport10 and AR15xAR10 like this.
  20. Sep 20, 2016 at 1:09 PM
    #20
    Dozer

    Dozer [OP] Well-Known Member

    Joined:
    Apr 24, 2014
    Member:
    #128413
    Messages:
    131
    Gender:
    Male
    Colorado
    Vehicle:
    13 TRD Off Road
    Sure can. I'll add you to the list of "interested" if I do another production run.
