FS: FJ OEM Offroad Light Switch (PT297-35072-LS) and Harness

Discussion in '2nd Gen Tacoma Parts Marketplace (2005-2015)' started by scmedic85, Dec 26, 2013.

  1. Dec 26, 2013 at 8:03 PM
    #1
    scmedic85

    #1
    scmedic85 [OP] Well-Known Member

    Joined:
    Jul 8, 2012
    Member:
    #82182
    Messages:
    262
    Gender:
    Male
    First Name:
    Greig
    Charleston, SC
    Vehicle:
    2012 DCSB 4WD
    For Sale - $65

    This is the lighted offroad light switch from the Toyota FJ, as well as the wiring harness. I just purchased these from Sparks Toyota this month but decided not to go through with my project. I paid about $80; just trying to recoup some of my money.

    This will fit in the blanks to the left of the steering wheel.

    Parts numbers and original prices:

    23.87 -
    $36 PT297-35070-SH Lamp Wire Harness
    PT297-35070-SH - Switch Harness IN STOCK
    53.39 - PT297-35072-LS - Offroad Lights Switch IN STOCK

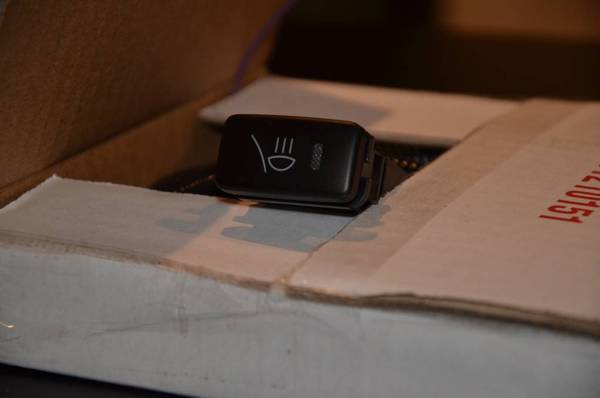

    The switch and harness have been combined into one box:
    [​IMG]

    scmedic85, Dec 26, 2013
    #1
  2. Dec 27, 2013 at 6:07 PM
    #2
    scmedic85

    #2
    scmedic85 [OP] Well-Known Member

    Joined:
    Jul 8, 2012
    Member:
    #82182
    Messages:
    262
    Gender:
    Male
    First Name:
    Greig
    Charleston, SC
    Vehicle:
    2012 DCSB 4WD
    Shipping is an additional $5 via USPS Priority Mail.

    scmedic85, Dec 27, 2013
    #2
  3. Dec 30, 2013 at 4:54 PM
    #3
    JTW

    #3
    JTW Well-Known Member

    Joined:
    Apr 27, 2013
    Member:
    #103003
    Messages:
    203
    Gender:
    Male
    First Name:
    Josh
    Pittsburgh PA
    Vehicle:
    2013 tacoma DCSB 4x4 Base
    Rancher shell,16x8 Enduro rims with 265/75/16 BFG K/O'S, 5100's with eibach springs and a 2 inch aal not installed yet;) brute force rear bumper with a tire gate and rotopax 2 gal cans.
    Is there a relay in with the wiring harness? I'm think inking about installing some lights. Would this be all I need? Thanks

    JTW, Dec 30, 2013
    #3
  4. Jan 2, 2014 at 2:05 PM
    #4
    scmedic85

    #4
    scmedic85 [OP] Well-Known Member

    Joined:
    Jul 8, 2012
    Member:
    #82182
    Messages:
    262
    Gender:
    Male
    First Name:
    Greig
    Charleston, SC
    Vehicle:
    2012 DCSB 4WD
    No relay included. To do your install you would need to purchase a relay, some additional wiring and connectors.

    scmedic85, Jan 2, 2014
    #4
  5. Jan 2, 2014 at 11:54 PM
    #5
    yarro

    #5
    yarro Well-Known Member

    Joined:
    Sep 17, 2011
    Member:
    #63689
    Messages:
    740
    Gender:
    Male
    Tacoma, WA
    Vehicle:
    11' TRD Off Road DCSB
    TREX Eyelids. RIGID Fogs Toyota Skid Plate. AVID Light Bar. Rigid SR 20"Combo LED bar OEM Toyota Running Boards, LEER Canopy RIGID Roof Rack - COMPLETE. FJ cruiser Switch panel install in center isle. (4 new slots for OEM switches) Glove box & Center counsel Lighting with amber switch.
    Which relay is needed for these? does it depend how big of lights you are putting on?

    yarro, Jan 2, 2014
    #5
  6. Jan 3, 2014 at 12:11 AM
    #6
    acdronin

    #6
    acdronin Well-Known Member

    Joined:
    Dec 2, 2010
    Member:
    #47036
    Messages:
    19,641
    Gender:
    Male
    .
    yes, the size of the relay has nothing to do with these types of switches.

    Relay and Fuse Formula:

    Wattage of circuit/bulbs on the circuit (55X2=110 watts) divided by number of volts in your system (12 for 12 volt system) = number of Amps that circuit requires, in this case the answer is 9.16 Amps. Fuses and relays are rated by amps. Allow for a 'cushion' over the calculated amperage, in this case, a 10 Amp fuse will work but I would use a 15 Amp fuse and the most common relays you will see are gonna be 20's or 30 Amp relays, the 20 will do fine.

    acdronin, Jan 3, 2014
    #6
  7. Jan 3, 2014 at 11:54 PM
    #7
    yarro

    #7
    yarro Well-Known Member

    Joined:
    Sep 17, 2011
    Member:
    #63689
    Messages:
    740
    Gender:
    Male
    Tacoma, WA
    Vehicle:
    11' TRD Off Road DCSB
    TREX Eyelids. RIGID Fogs Toyota Skid Plate. AVID Light Bar. Rigid SR 20"Combo LED bar OEM Toyota Running Boards, LEER Canopy RIGID Roof Rack - COMPLETE. FJ cruiser Switch panel install in center isle. (4 new slots for OEM switches) Glove box & Center counsel Lighting with amber switch.

    Thanks for the info, helps a lot.. didn't really understand it before

    yarro, Jan 3, 2014
    #7
