FS: Front Seat Jackers (Lifts the front of the seat) - 2nd Gen

DesertDoesIt.com

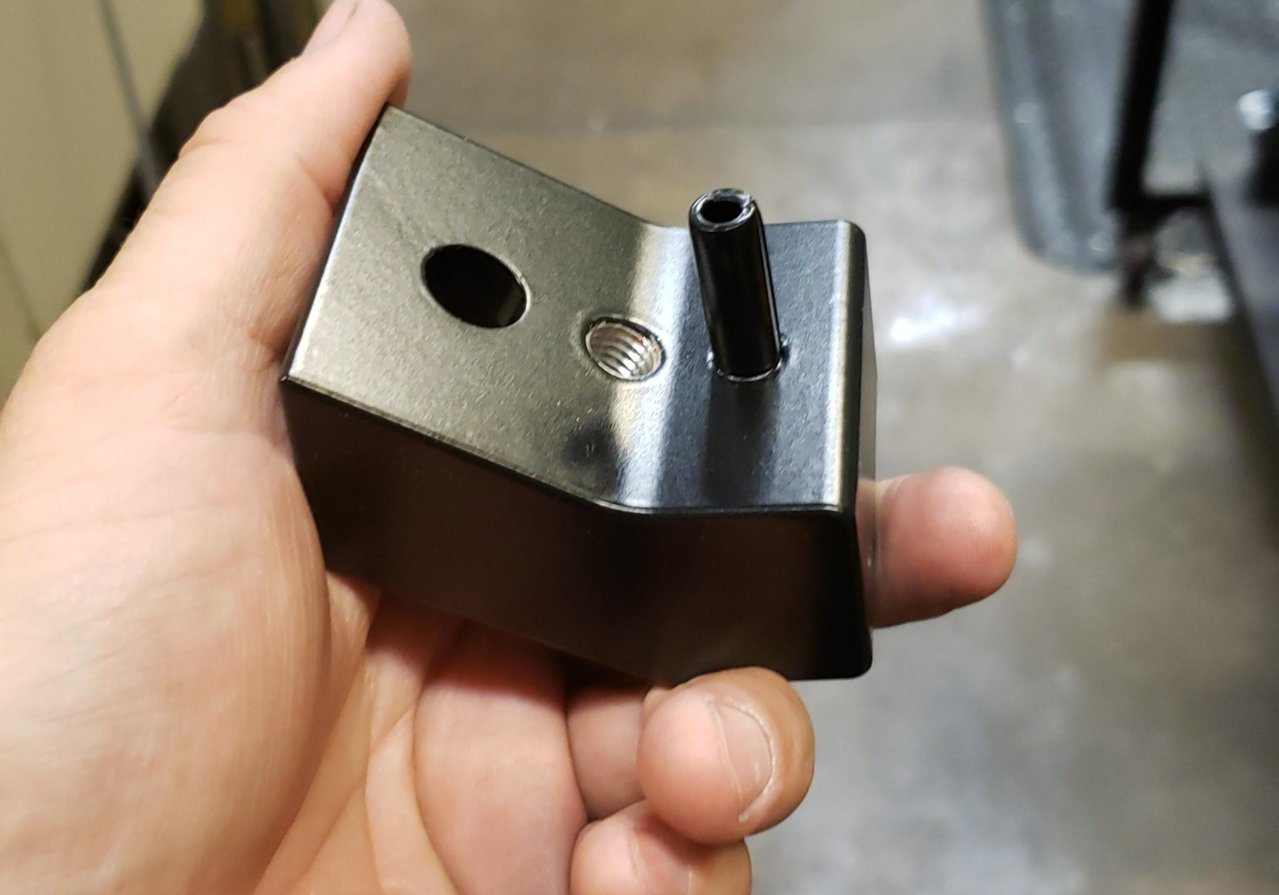

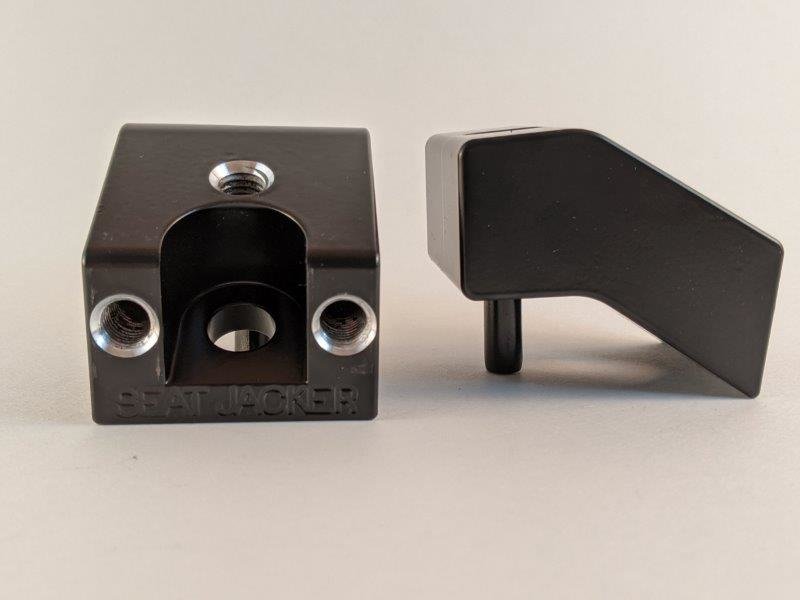

If you are struggling to find that comfortable seating position during your commute or road trip, you might be suffering from a lack of leg support. The Tacoma Seat Jackers will lift the front of your driver or passenger seat to provide that much-needed leg support without significantly impacting headroom. In many cases this has alleviated lower back stress felt during longer drives.

These will help you find that seating position that just isn't available in a stock Tacoma.

Tacoma Seat Jackers will fit 2005-2022 Toyota Tacoma's with captain's chairs. Sorry, these do not fit Tacoma's with bench seats.

Installs in less than 10 minutes.

• Includes everything needed to install

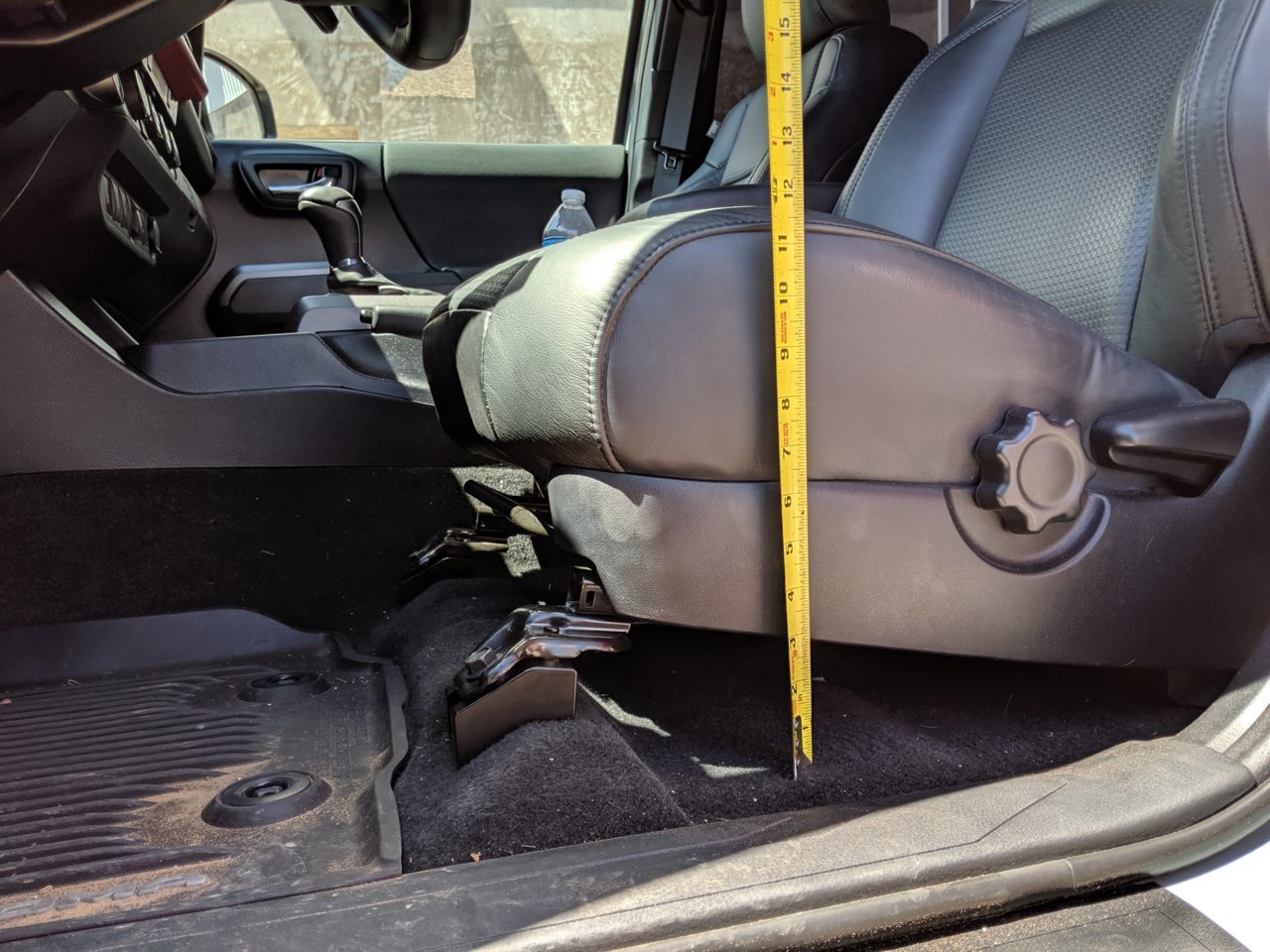

• Lifts FRONT of seat 1-1/4"
• Bolts in with no modifications
• Fits Driver and Passenger Seats (Does not fit bench seats)

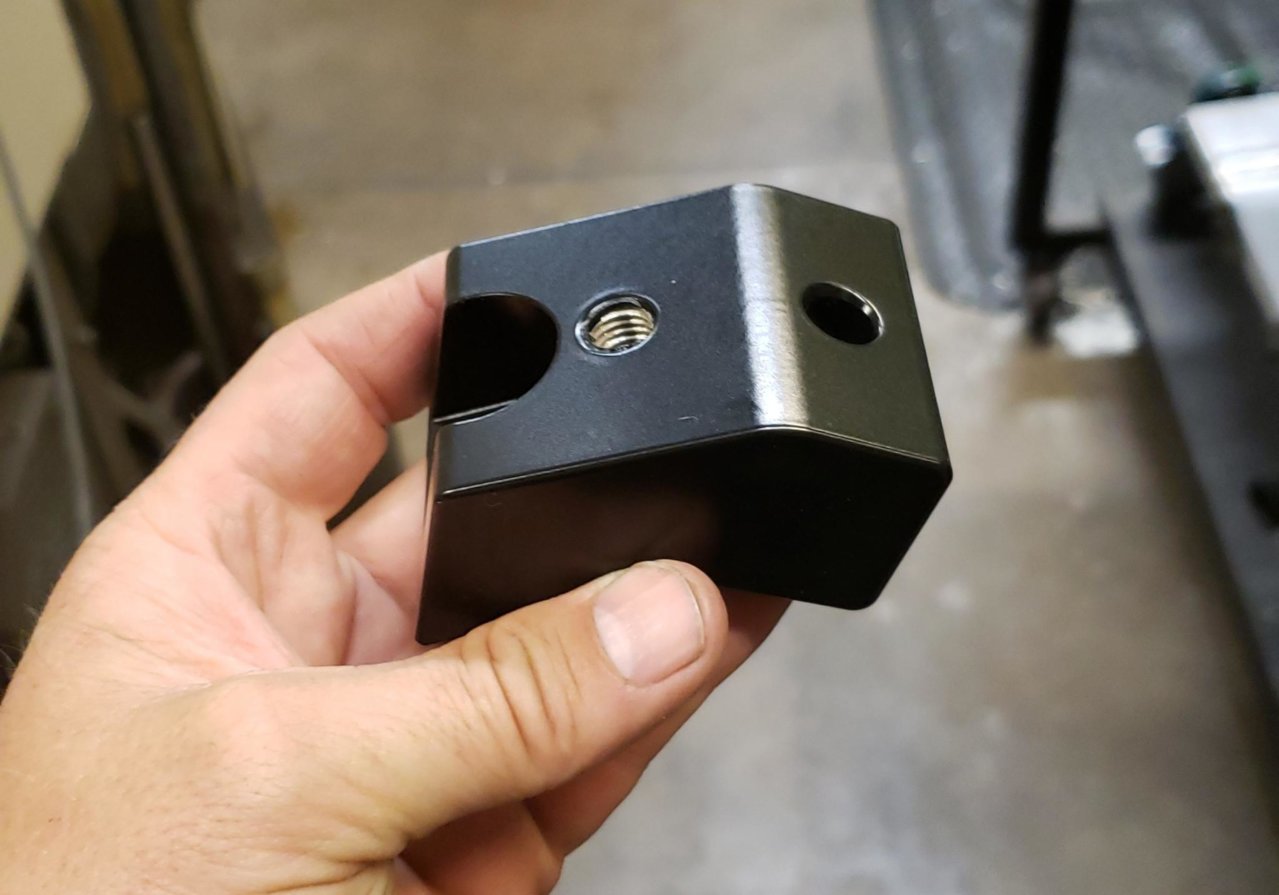

• Made from 6061 Aluminum

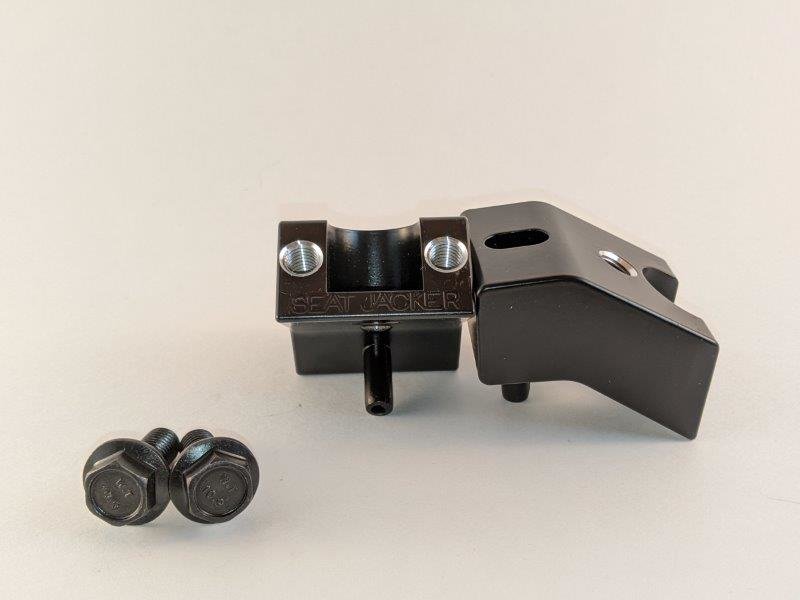

• M10 Grade 10.9 Black Hardware (Reuse factory front bolt)
• All Seat Jackers are Black Powder Coated for a lifetime-protective coating.
• Proudly Made In America

Cost is $99 per seat or $189 for both seats and includes everything needed to install (includes free shipping, International shipping is extra).


--------------------------------------------------------------------------

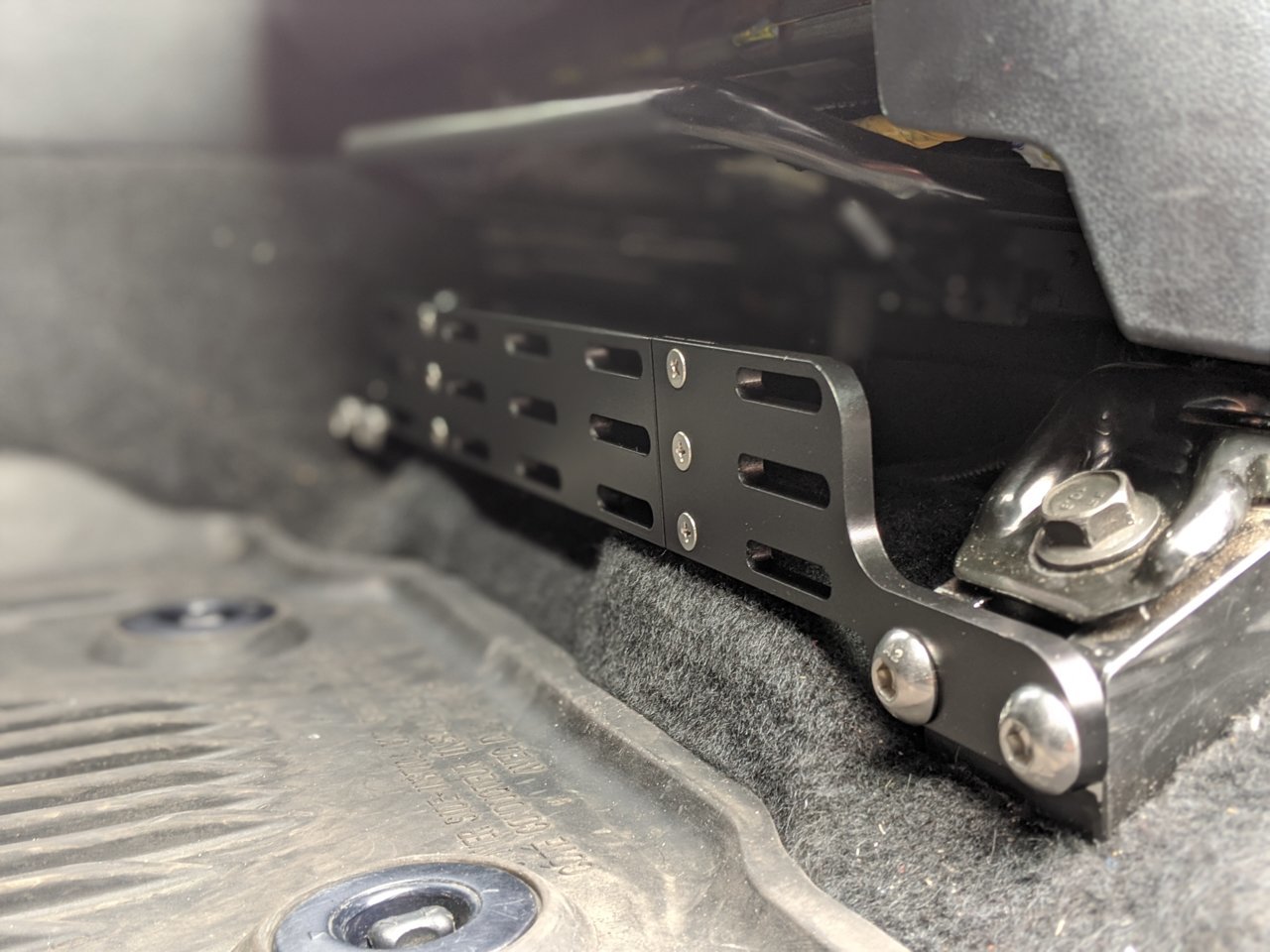

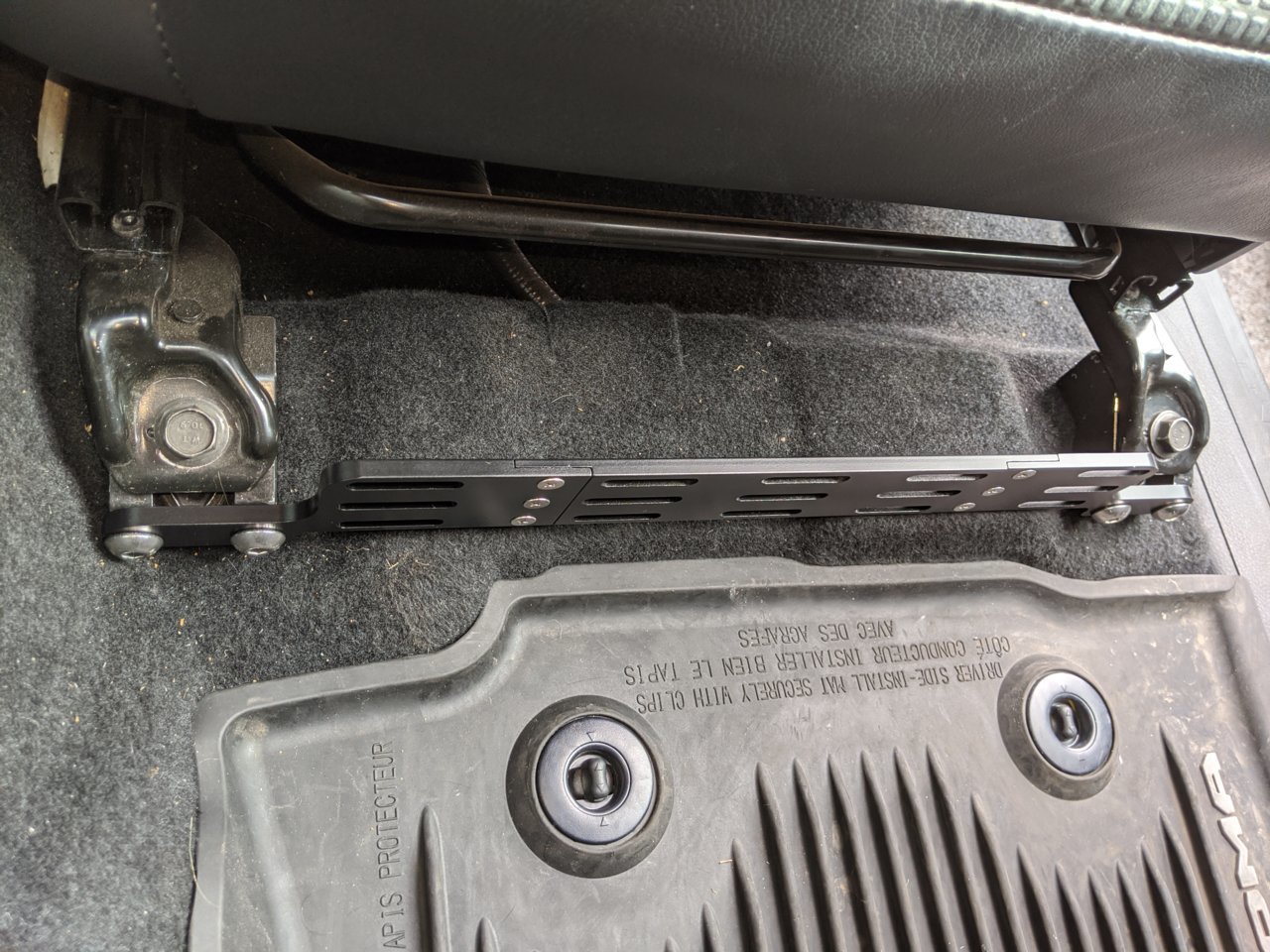

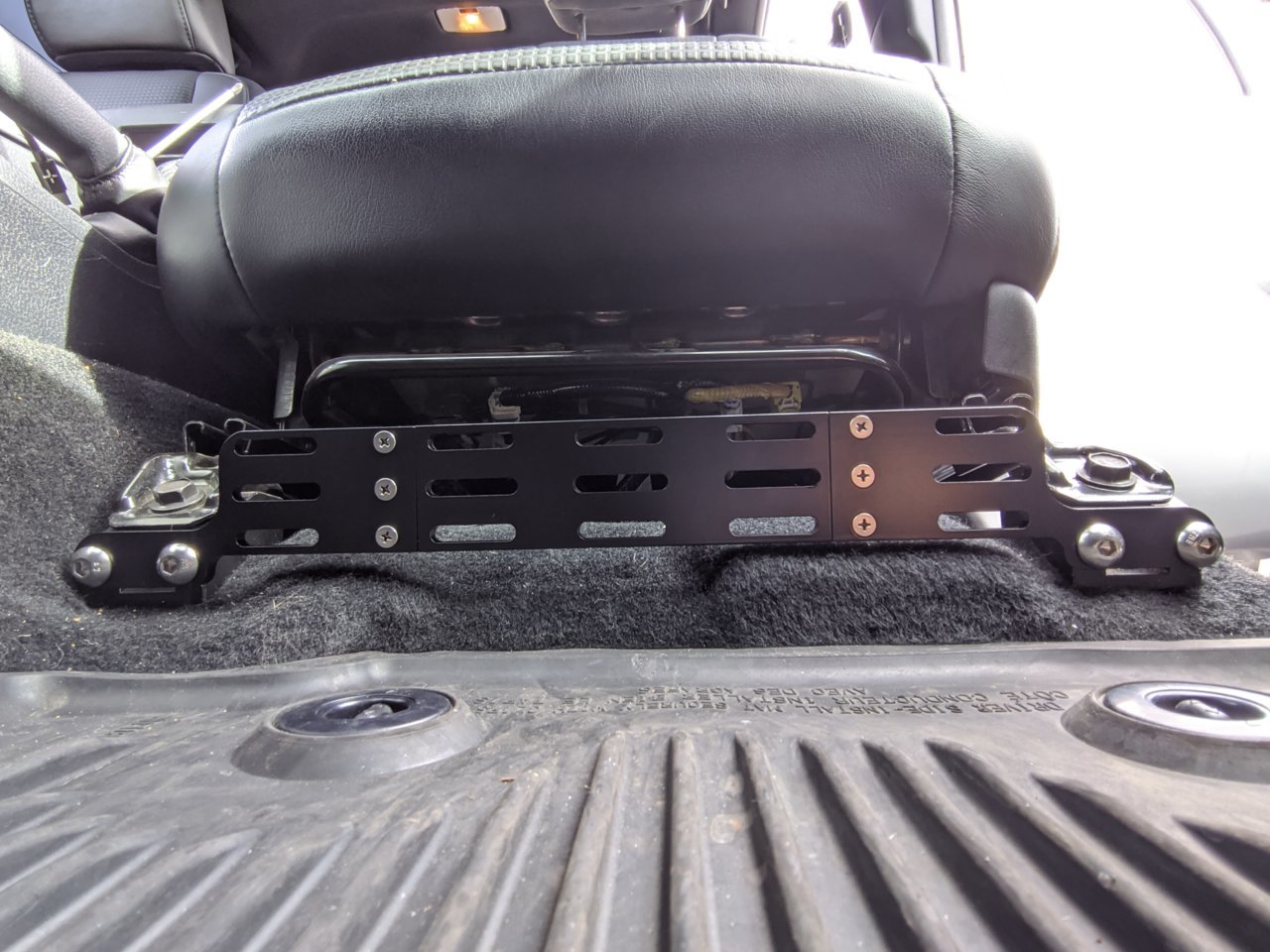

The Multimount Panel bolts to the front of Seat Jackers and provides a mounting point for Flashlights, Fire Extinguishers, Handguns, Axes, Knives, tool rolls, and so on. Mount items to the front, back or both sides. This panel allows for quick access to frequently used tools or emergency equipment.

Currently available in satin black powder coat finish or raw aluminium. Please note, the raw aluminium option although tumbled may have sharper edges and light machining marks.

• Installs to the front of Toyota Tacoma, 4Runner, and FJ front Seat Jackers only (purchased separately).
• Includes Stainless Steel button-head mounting hardware and flat-head assembly hardware.
• Fits Driver and Passenger Seat Jackers
• Made from 6061 Aluminum
• Proudly Made In America

Black powder coated and includes everything needed to install (includes shipping via USPS, International shipping is extra).

Thanks for looking,
Steve



Tools Needed: 14mm wrench/socket and 15mm wrench/socket

Installation Instructions:
Step One: Remove both front factory seat base bolts (14mm socket).
*These M10 fine thread bolts will be reused in Step Five in the same location..

Step Two: Loosen the rear seat bolts (do not remove). This will allow the front mounts to align a little better.

Step Three: Lift the front of the front seat by pushing back on the headrest or by asking a helper to sit in the back seat and pull the headrest towards them.

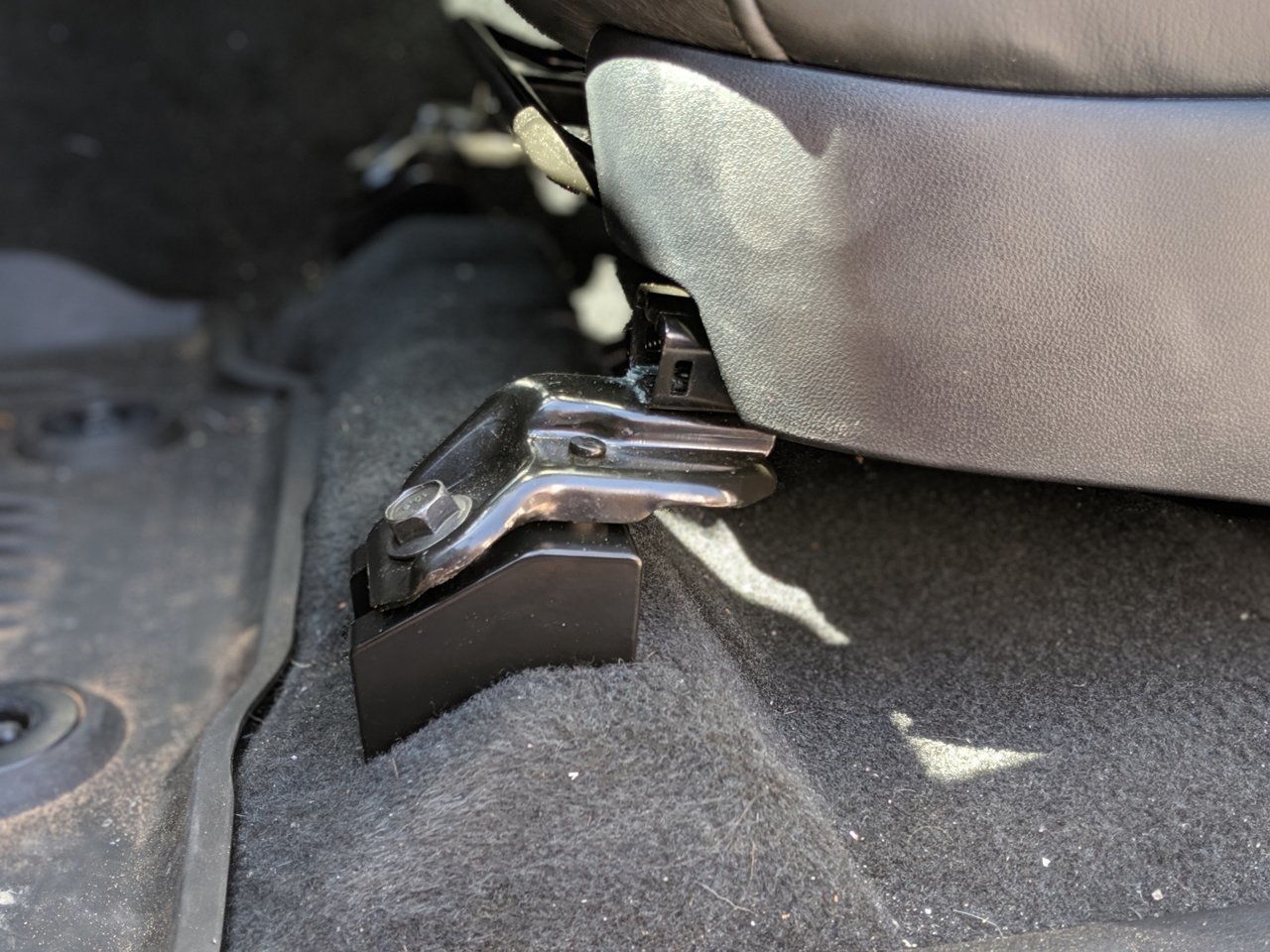

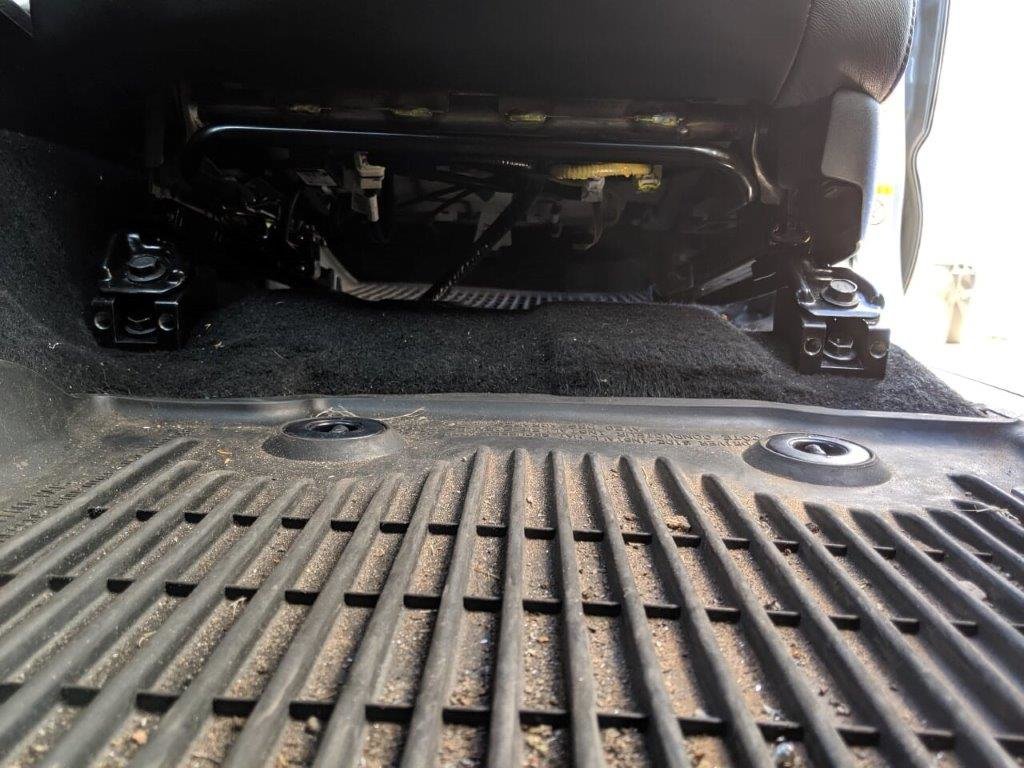

Step Four: Place lift blocks under the front seat mounts being careful to install the roll pin into the hole on the floor.

Step Five: Use the factory M10 fine thread bolts to fasten the lift blocks to the floor of the truck.
*IMPORTANT - THE FACTORY BOLTS ARE USED TO FASTEN THE BLOCKS TO THE FLOOR ONLY.

Step Six: Use the provided M10-1.5 x 25mm bolts (coarse thread) to fasten the seat to the lift blocks, finger tight only.
*IMPORTANT – IF THE SEAT RAIL HOLE DOES NOT LINE UP PERFECTLY, SIMPLE LIFT UP THE SEAT RAIL ABOUT A ¼” AND THREAD IN THE BOLT A COUPLE THREADS.

Step Seven: Torque four front bolts and two rear bolts to 27ftlbs or German Spec (good’ntight).

Check bolt torque at regular intervals.



First 50 sets are officially at the powder coaters.



Ordered



Thank you, I've added you to the Paid list. You will be included in the first shipment which should go out the 14th.

Steve



So anybody use these yet ? I"m 5 10 would these make my seat better or ? Looks like a great product , Thanks for making them !



I’ll buy a set for one seat (driver) when they’re ready to ship.



I haven't shipped any yet, still waiting on the powder coaters. Looking good to start shipping next week.

Sounds good, getting close now.



Powder coating is done picking up this weekend to start shipping Monday.



I’m interested in these. I’ll PayPal you tomorrow. Thanks for making & sharing these.



Sounds good. You will get in on the first batch that will start shipping next week.



Order placed - can’t wait



Got it, I'll get it shipped out asap.

Steve



Just a heads up that I haven't seen an order from you. If you did order, pm me so I can dig into it.



Fab something that sends it up in the 2.5 inch range. GF is a little short ass. Thinking about getting her a booster seat. LOL
Nice build guys but really , come up with a 2.5 would be awesome.



We can go taller but is suggest going with a combo front and rear lift so the rear isn't angled too much.



All paid orders have shipped and should be delivered by Friday.

If you don't receive your order by Saturday, I will get you a tracking number. Or if you really really need a tracking number now, let me know.

Canada orders will take extra time.

First two posts are updated with details on shipping to Canada, final photos, Install Instructions, and shipped orders.



love the idea. I am 6'5.. I just worry, am I going to be hitting my head with these installed? I do crave the seats to be higher, especially on the long road trips I have planned. any one who bought them give me feedback? I would definitely be interested in these.



Check out the last page of the Gen 3 FS post starting at post #62. A few guys have installed them with positive results.



will do thanks
