FS: Front Seat Jackers (Lifts the front of the seat) - 3rd Gen

Discussion in '3rd Gen Tacoma Parts Marketplace (2016+)' started by EasyDoesIt, May 1, 2019.

  1. May 1, 2019 at 4:03 PM
    #1
    EasyDoesIt

    EasyDoesIt [OP] DesertDoesIt.com

    Joined:
    Mar 27, 2011
    Member:
    #53816
    Messages:
    716
    Gender:
    Male
    First Name:
    Steve
    Las Vegas, NV
    Vehicle:
    2011 Dbl Cab TRD Offroad
    Icon C/O's
    DesertDoesIt.com

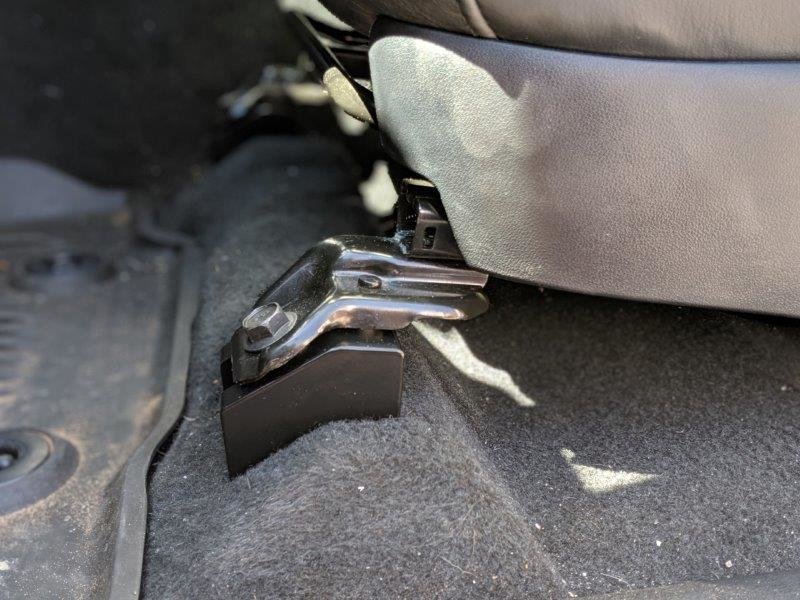

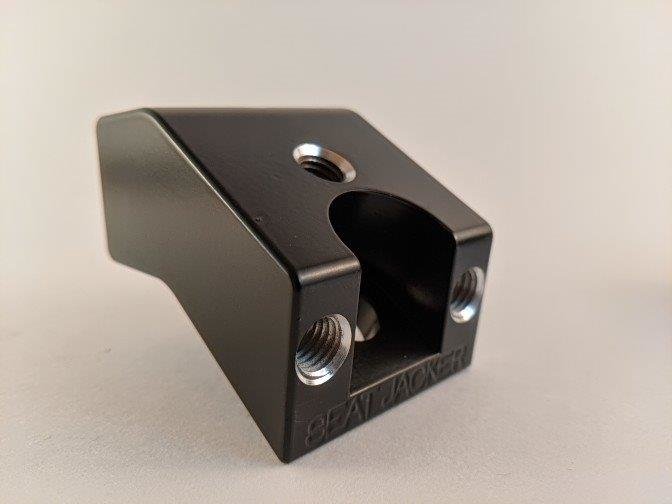

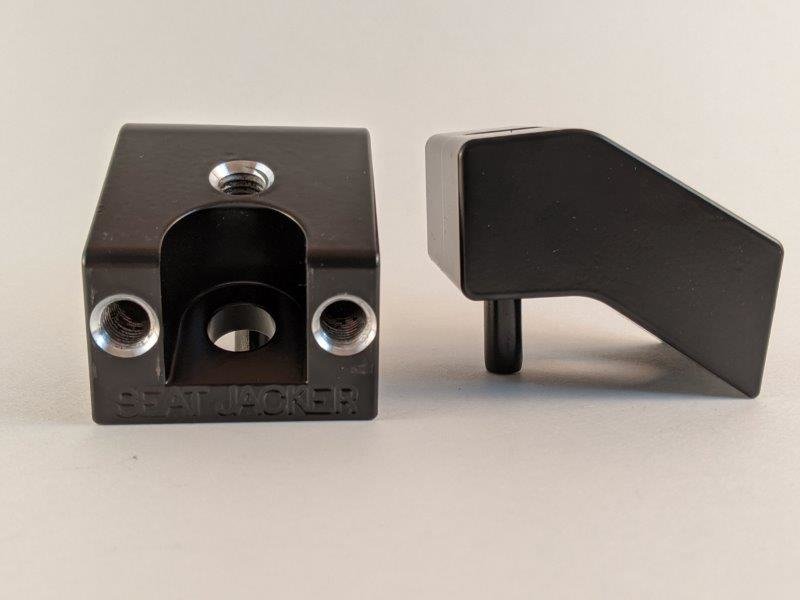

    If you are struggling to find that comfortable seating position during your commute or road trip, you might be suffering from a lack of leg support. The Tacoma Seat Jackers will lift the front of your driver or passenger seat to provide that much-needed leg support without significantly impacting headroom. In many cases this has alleviated lower back stress felt during longer drives.

    These will help you find that seating position that just isn't available in a stock Tacoma.

    Tacoma Seat Jackers will fit 2005-2020 Toyota Tacoma's with captain's chairs. Sorry, these do not fit Tacoma's with bench seats.

    Installs in less than 10 minutes.

    • Includes everything needed to install

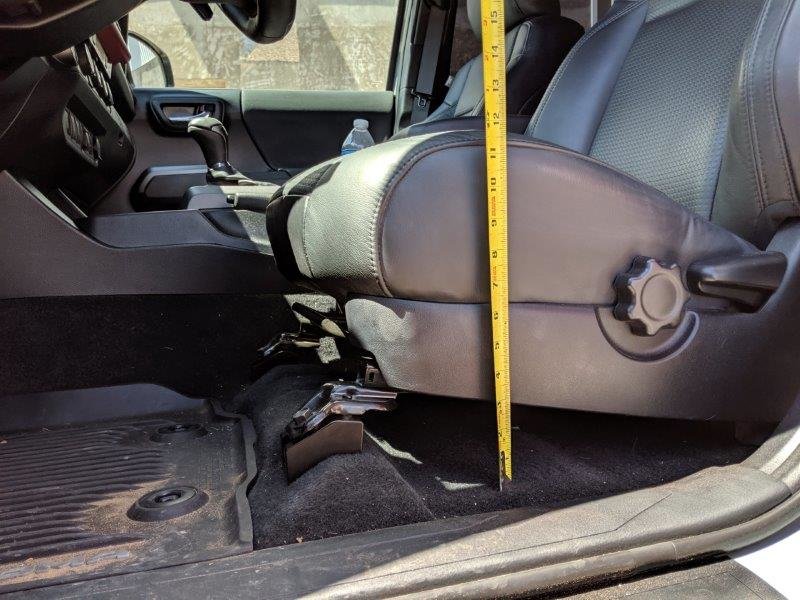

    • Lifts FRONT of seat 1-1/4"
    • Bolts in with no modifications
    • Fits Driver and Passenger Seats (Does not fit bench seats)
    • Made from 7075 Aluminum
    • M10 Grade 10.9 Black Hardware (Reuse factory front bolt)
    • All Seat Jackers are Black Powder Coated for a lifetime-protective coating.
    • Proudly Made In America

    Cost is $99 per seat or $189 for both seats and includes everything needed to install (includes shipping via USPS Priority, International shipping is extra).


    --------------------------------------------------------------------------

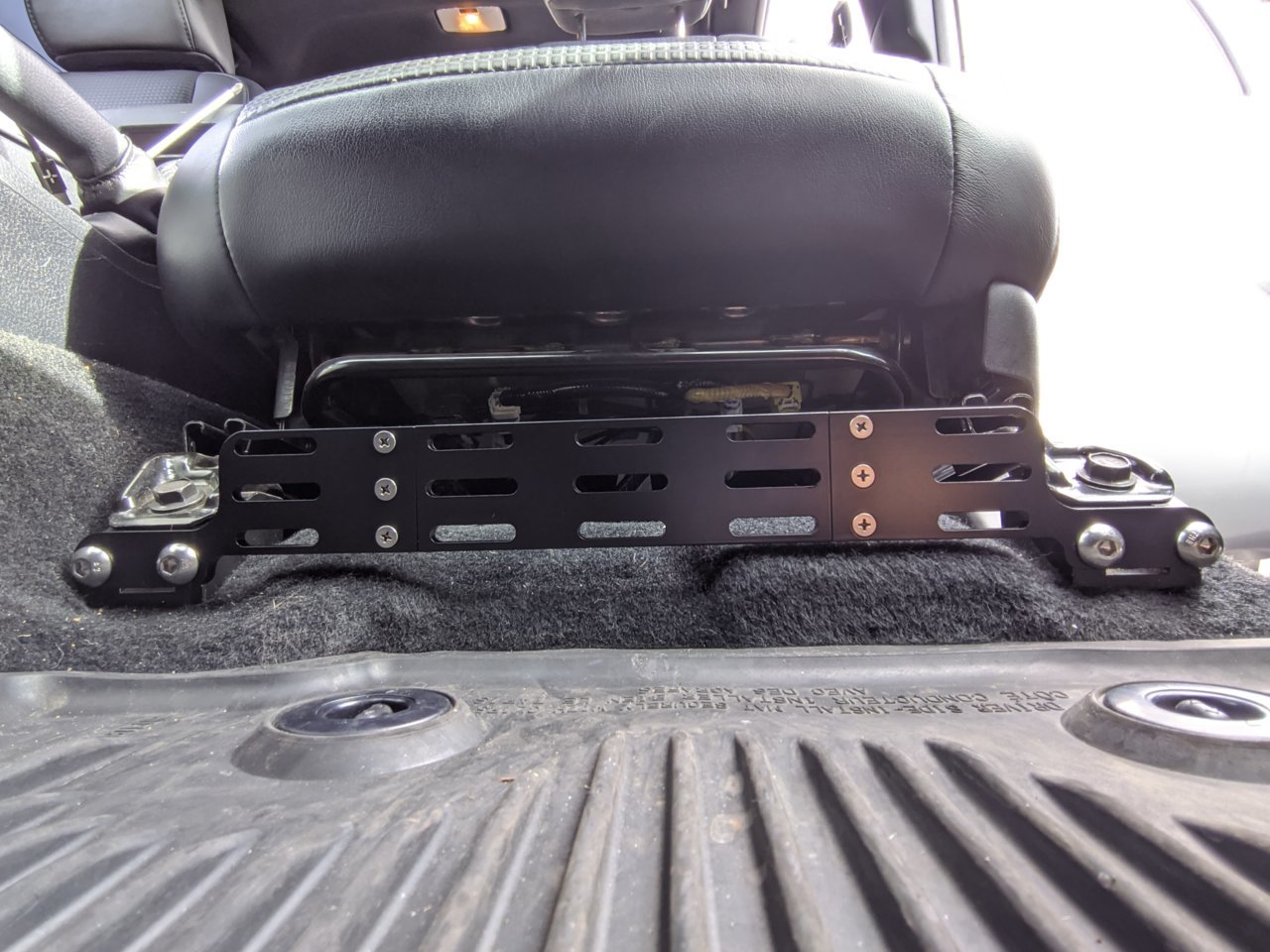

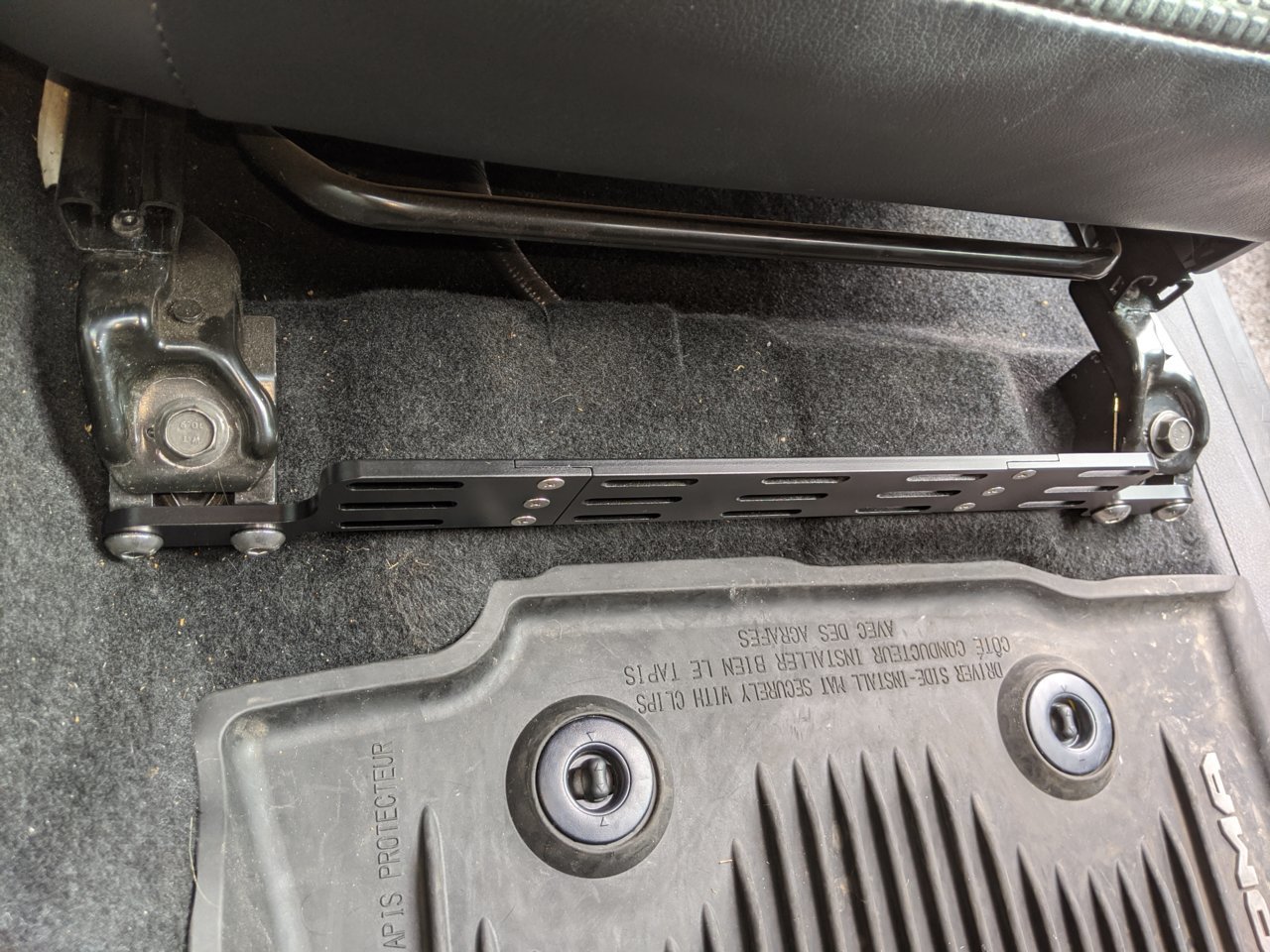

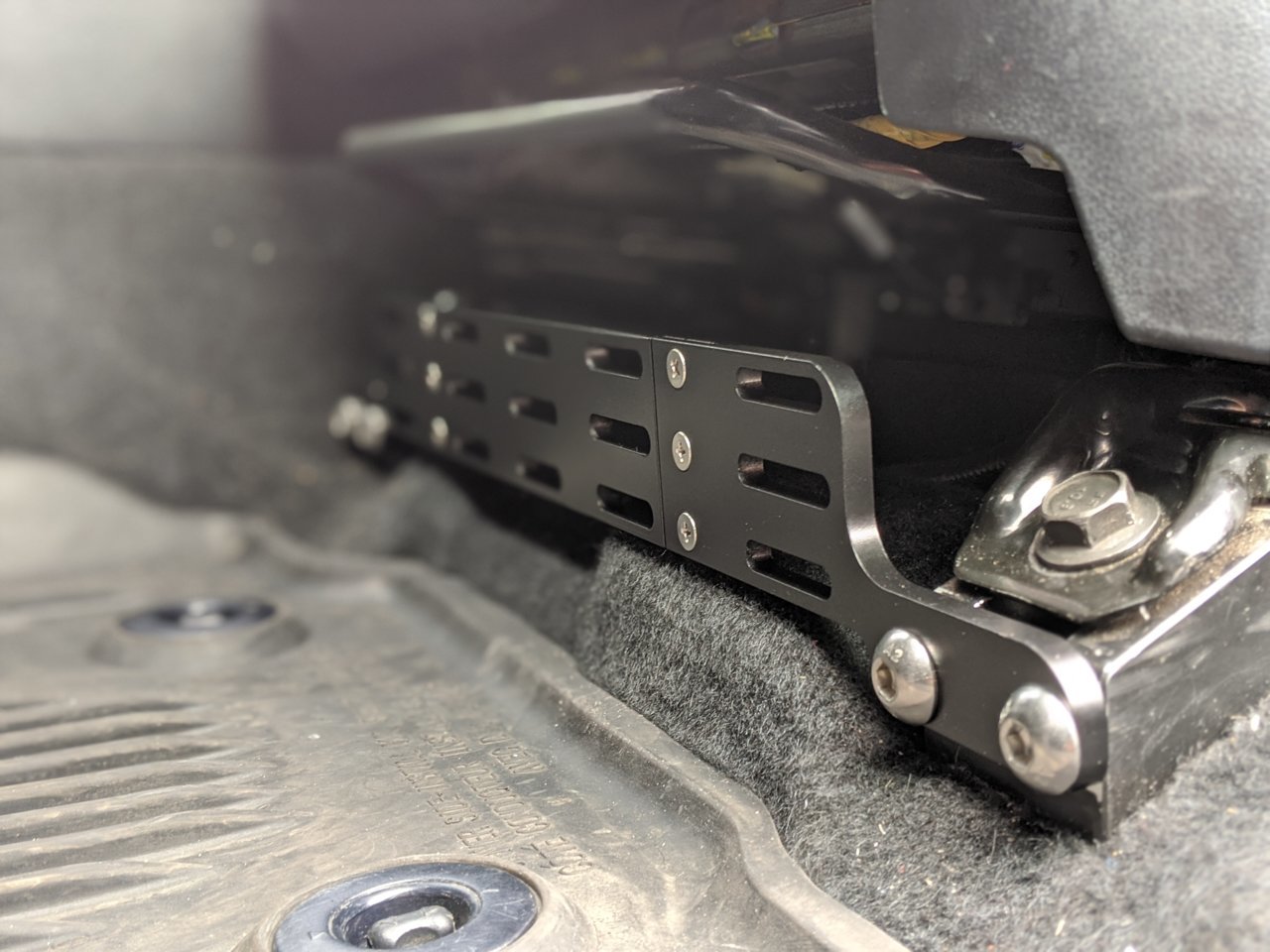

    The Multimount Panel bolts to the front of Seat Jackers and provides a mounting point for Flashlights, Fire Extinguishers, Handguns, Axes, Knives, tool rolls, and so on. Mount items to the front, back or both sides. This panel allows for quick access to frequently used tools or emergency equipment.

    Currently available in satin black powder coat finish or raw aluminium. Please note, the raw aluminium option although tumbled may have sharper edges and light machining marks.

    • Installs to the front of Toyota Tacoma, 4Runner, and FJ front Seat Jackers only (purchased separately).
    • Includes Stainless Steel button-head mounting hardware and flat-head assembly hardware.
    • Fits Driver and Passenger Seat Jackers
    • Made from 6065 Aluminum
    • Proudly Made In America
    Black powder coated and includes everything needed to install (includes shipping via USPS Priority, International shipping is extra).

    Thanks for looking,
    Steve

    00100lrPORTRAIT_00100_BURST20191208122157352_COVER.jpg IMG_20191208_122028.jpg IMG_20191208_122321.jpg ANGLE.jpg SXS.jpg Powder Coated 5.jpg Powder Coated 6.jpg IMG_20190615_105242.jpg

    Last edited: Oct 21, 2020
  2. May 1, 2019 at 4:03 PM
    #2
    EasyDoesIt

    EasyDoesIt [OP] DesertDoesIt.com

    Joined:
    Mar 27, 2011
    Member:
    #53816
    Messages:
    716
    Gender:
    Male
    First Name:
    Steve
    Las Vegas, NV
    Vehicle:
    2011 Dbl Cab TRD Offroad
    Icon C/O's
    Tools Needed: 14mm wrench/socket and 15mm wrench/socket

    Installation Instructions:
    Step One: Remove both front factory seat base bolts (14mm socket).
    *These M10 fine thread bolts will be reused in Step Five in the same location..

    Step Two: Loosen the rear seat bolts (do not remove). This will allow the front mounts to align a little better.

    Step Three: Lift the front of the front seat by pushing back on the headrest or by asking a helper to sit in the back seat and pull the headrest towards them.

    Step Four: Place lift blocks under the front seat mounts being careful to install the roll pin into the hole on the floor.

    Step Five: Use the factory M10 fine thread bolts to fasten the lift blocks to the floor of the truck.
    *IMPORTANT - THE FACTORY BOLTS ARE USED TO FASTEN THE BLOCKS TO THE FLOOR ONLY.

    Step Six: Use the provided M10-1.5 x 25mm bolts (coarse thread) to fasten the seat to the lift blocks, finger tight only.
    *IMPORTANT – IF THE SEAT RAIL HOLE DOES NOT LINE UP PERFECTLY, SIMPLE LIFT UP THE SEAT RAIL ABOUT A ¼” AND THREAD IN THE BOLT A COUPLE THREADS.


    Step Seven: Torque four front bolts and two rear bolts to 27ftlbs or German Spec (good’ntight).

    Check bolt torque at regular intervals.

    Last edited: Oct 22, 2019
  3. May 1, 2019 at 5:06 PM
    #3
    perkj

    perkj Well-Known Member

    Joined:
    Aug 31, 2016
    Member:
    #196051
    Messages:
    880
    Gender:
    Male
    I’ll be the first to bite. Order for two sets incoming, but a question for you (@EasyDoesIt): do you want payment via PP as payment for goods or family & friends?

  4. May 1, 2019 at 7:31 PM
    #4
    EasyDoesIt

    EasyDoesIt [OP] DesertDoesIt.com

    Joined:
    Mar 27, 2011
    Member:
    #53816
    Messages:
    716
    Gender:
    Male
    First Name:
    Steve
    Las Vegas, NV
    Vehicle:
    2011 Dbl Cab TRD Offroad
    Icon C/O's
    Go ahead and send it however you feel comfortable, some folks like that extra insurance that comes from Payment For Goods but either works.

    EatSleepTacos likes this.
  5. May 1, 2019 at 9:14 PM
    #5
    perkj

    perkj Well-Known Member

    Joined:
    Aug 31, 2016
    Member:
    #196051
    Messages:
    880
    Gender:
    Male
    Order placed :thumbsup:

    EasyDoesIt [OP] likes this.
  6. May 2, 2019 at 4:49 AM
    #6
    AJ`s Inferno Offroad

    AJ`s Inferno Offroad 2018 offroad fire ball

    Joined:
    Feb 17, 2019
    Member:
    #283409
    Messages:
    324
    Gender:
    Male
    Glen Burnie,Maryland
    Vehicle:
    2018 TRD Offroad inferno
    Order and payment sent

  7. May 2, 2019 at 5:09 AM
    #7
    EasyDoesIt

    EasyDoesIt [OP] DesertDoesIt.com

    Joined:
    Mar 27, 2011
    Member:
    #53816
    Messages:
    716
    Gender:
    Male
    First Name:
    Steve
    Las Vegas, NV
    Vehicle:
    2011 Dbl Cab TRD Offroad
    Icon C/O's
    Payments received, I'll get these shipped out on or before 5/20.

    Thanks guys.

  8. May 3, 2019 at 7:58 AM
    #8
    EasyDoesIt

    EasyDoesIt [OP] DesertDoesIt.com

    Joined:
    Mar 27, 2011
    Member:
    #53816
    Messages:
    716
    Gender:
    Male
    First Name:
    Steve
    Las Vegas, NV
    Vehicle:
    2011 Dbl Cab TRD Offroad
    Icon C/O's
    Blocks are at the powder coaters.

    perkj and drumr04 like this.
  9. May 3, 2019 at 7:59 AM
    #9
    AJ`s Inferno Offroad

    AJ`s Inferno Offroad 2018 offroad fire ball

    Joined:
    Feb 17, 2019
    Member:
    #283409
    Messages:
    324
    Gender:
    Male
    Glen Burnie,Maryland
    Vehicle:
    2018 TRD Offroad inferno
  10. May 3, 2019 at 9:42 AM
    #10
    perkj

    perkj Well-Known Member

    Joined:
    Aug 31, 2016
    Member:
    #196051
    Messages:
    880
    Gender:
    Male
    Hoping this means both of mine will ship next week :thumbsup:

  11. May 3, 2019 at 10:35 AM
    #11
    EasyDoesIt

    EasyDoesIt [OP] DesertDoesIt.com

    Joined:
    Mar 27, 2011
    Member:
    #53816
    Messages:
    716
    Gender:
    Male
    First Name:
    Steve
    Las Vegas, NV
    Vehicle:
    2011 Dbl Cab TRD Offroad
    Icon C/O's
    Possibly, they will absolutely ship before 5/20.

    perkj likes this.
  12. May 5, 2019 at 9:33 AM
    #12
    AJ`s Inferno Offroad

    AJ`s Inferno Offroad 2018 offroad fire ball

    Joined:
    Feb 17, 2019
    Member:
    #283409
    Messages:
    324
    Gender:
    Male
    Glen Burnie,Maryland
    Vehicle:
    2018 TRD Offroad inferno
    Will you send a tracking # out to the buyers when they are mailed? Thanks

  13. May 5, 2019 at 12:51 PM
    #13
    1taco2motos

    1taco2motos Well-Known Member

    Joined:
    Jun 14, 2016
    Member:
    #189648
    Messages:
    286
    Gender:
    Male
    Lakewood, CO
    Vehicle:
    19 DCSB mgm TRD OR 6MT
  14. May 5, 2019 at 3:12 PM
    #14
    INT.EGRATED

    INT.EGRATED Well-Known Member

    Joined:
    Dec 22, 2018
    Member:
    #276605
    Messages:
    259
    Gender:
    Male
    Los Angeles, CA
    Vehicle:
    2016 DCSB TRD Sport Manual 4x4
    SCS Ray 10, BFG KO2, BD Fogs, Snugtop Rebel, Frontrunner cab + camper, Renogy Solar, Portable 110ah dual battery, Bedslide S
    Looks like this is a good way to make some room under the seat for a radio or other accessories. How is angle taken into account? e.g. I'm assuming the mounting angle is different with versus without *rear* spacers... Does one work better than the other or are both configurations just as solid?

  15. May 6, 2019 at 7:48 AM
    #15
    EasyDoesIt

    EasyDoesIt [OP] DesertDoesIt.com

    Joined:
    Mar 27, 2011
    Member:
    #53816
    Messages:
    716
    Gender:
    Male
    First Name:
    Steve
    Las Vegas, NV
    Vehicle:
    2011 Dbl Cab TRD Offroad
    Icon C/O's
    Yes sir.

    Got it, replied and received payment.

    Lifting the front of the seat, back of the seat, or both is a preference thing. We are only lifting the front 1-1/4" so the angle is not extreme by any stretch. Either configuration is very solid and should provide you with a little extra space under the seat...maybe enough room to clear an ARB compressor?

  16. May 6, 2019 at 10:18 AM
    #16
    taconac

    taconac Active Member

    Joined:
    Jan 25, 2019
    Member:
    #280548
    Messages:
    40
    Gender:
    Male
    First Name:
    Michael
    TN
    Vehicle:
    '18 Tacoma TRDOR
    RRW Front Bumper Method Racing 304 Wheels
  17. May 8, 2019 at 5:47 AM
    #17
    EasyDoesIt

    EasyDoesIt [OP] DesertDoesIt.com

    Joined:
    Mar 27, 2011
    Member:
    #53816
    Messages:
    716
    Gender:
    Male
    First Name:
    Steve
    Las Vegas, NV
    Vehicle:
    2011 Dbl Cab TRD Offroad
    Icon C/O's
    Received, thank you

  18. May 8, 2019 at 7:41 AM
    #18
    garner2002

    garner2002 Well-Known Member

    Joined:
    Aug 18, 2018
    Member:
    #263221
    Messages:
    69
    Gender:
    Male
    DFW TX
    Vehicle:
    2018 TRD Pro Cavalry Blue
    I would like a set, PAID, Thanks.

  19. May 8, 2019 at 1:06 PM
    #19
    crazychris4124

    crazychris4124 Earn those pinstripes

    Joined:
    Jun 25, 2017
    Member:
    #222386
    Messages:
    1,077
    Gender:
    Male
    Westchester County, NY
    Vehicle:
    '17 Inferno Moneypit
    Too many, make it stop
    Has anyone experienced lower back pain because of these seats?

  20. May 8, 2019 at 1:15 PM
    #20
    perkj

    perkj Well-Known Member

    Joined:
    Aug 31, 2016
    Member:
    #196051
    Messages:
    880
    Gender:
    Male
    My issue is hamstring numbness and pain, not back pain.
