Fully Polished TuRD

Discussion in '1st Gen. Builds (1995-2004)' started by slander, Apr 12, 2014.

  1. Apr 12, 2014 at 11:53 AM
    #1
    slander

    slander [OP] Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    4,276
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.

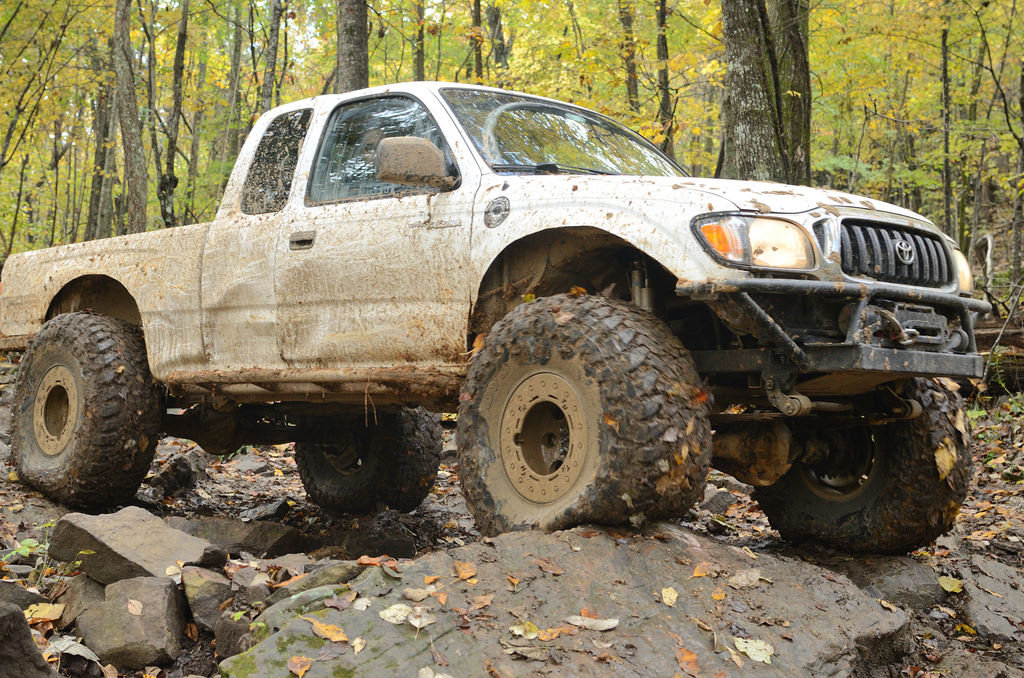

    How it sits now:

    37" pro comp extreme mt2
    Trail ready Beadlocks (sold!)
    17" Pro comp vapor beadlocks
    flipped fj 60 front axle
    Fj80 rear axle
    dual cases with a lefty and 4.7s
    Spartan/aussie lockers f/r
    5.29's
    new front frame
    rcvs
    Full internal cage (gone)
    No trailer
    and a bunch of other crap i can think of.

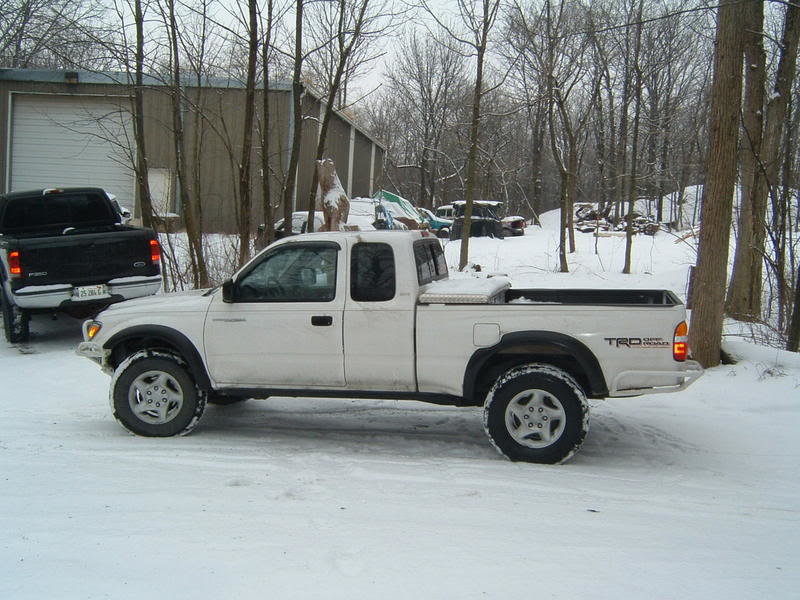

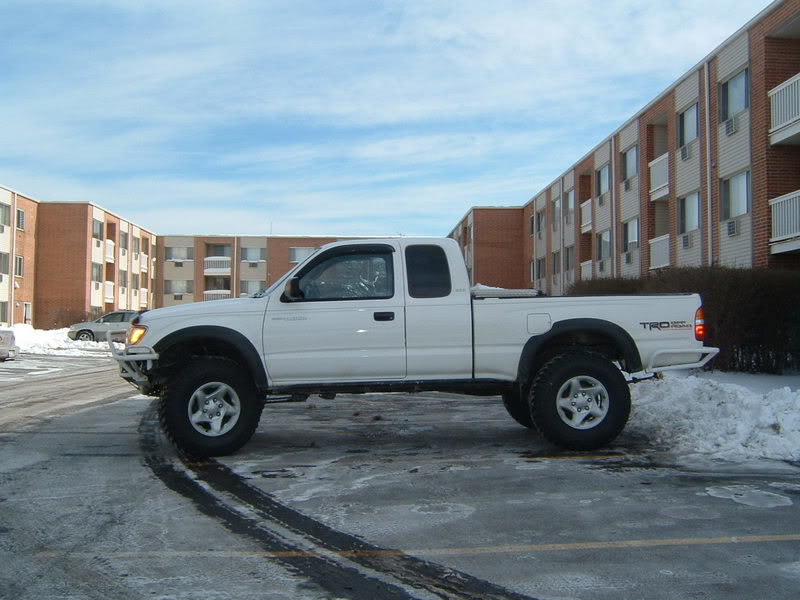

    Here is the closest pic i have of it stock in 2005, I slapped the all pro bumpers f/r and the winch off my old jeep! I bought the truck as a DD while i built the jeep, i had no intention of wheeling it. Took it offroad once, and sold the jeep 2 weeks later!
    old jeep that i sold that has funded 80% of my buildup:

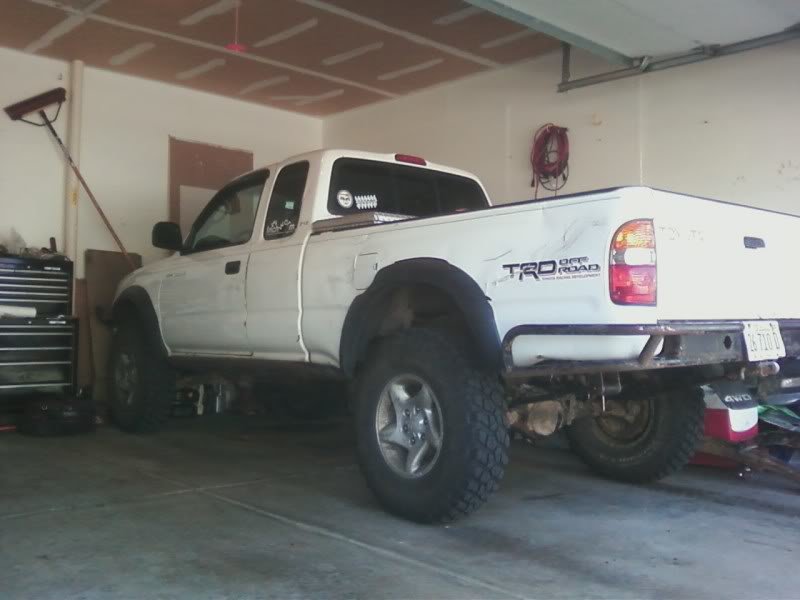

    Wheeled it stockish for a while and needed new tires so i lifted it.
    Before:
    After:
    I put OME 882s with rear 8 leaf deavers, 1inch lift shackle, a ubolt flip, and bfg 255/85/16 kms. I had the soft OME shocks out back, but i broke them off the mount at take over, and i decided to replace them with some bilstein 5100's. I have been very pleased with this combo and have no complaints.
    Breaking it in

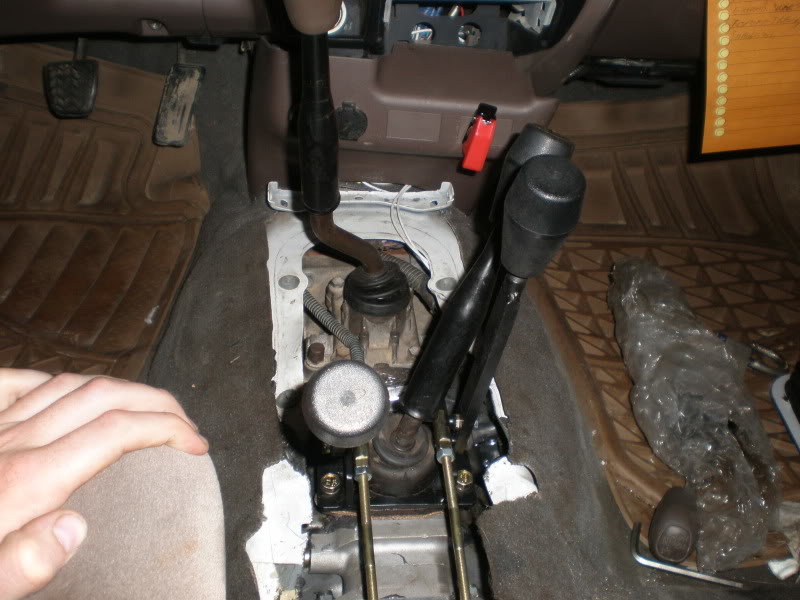

    Well i decided that i needed a crawl box after stalling my truck and rolling backwards down a 50 foot hill my clutch hated me as well! I bought some marlin adapters used, a toy case, and some 4.7 gears and built my crawler. I could not be happier with this setup!! The truck will go up anything i point it at and is reliable as hell!

    Last edited: Jul 3, 2019
  2. Apr 12, 2014 at 11:57 AM
    #2
    slander

    slander [OP] Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    4,276
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.

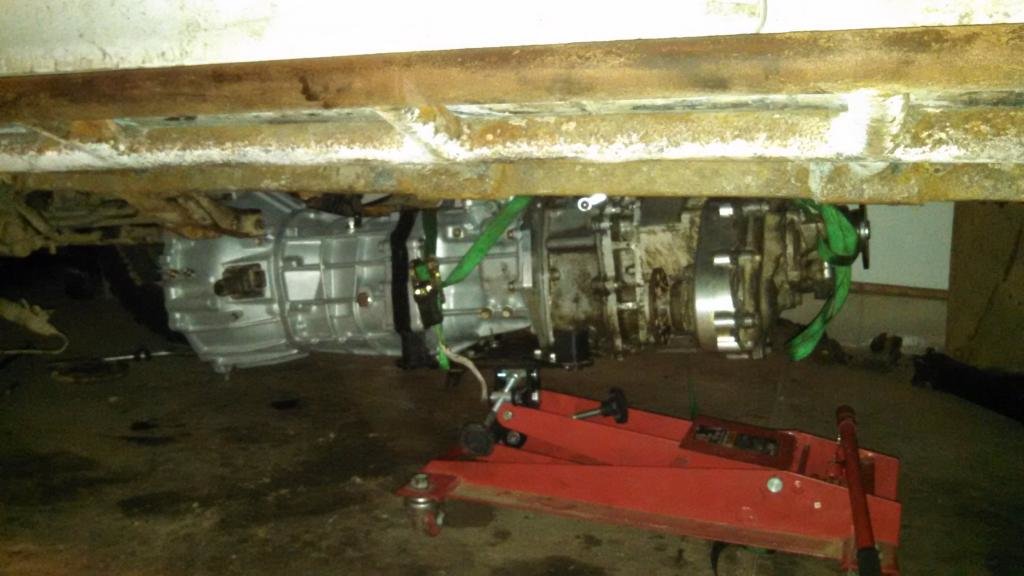

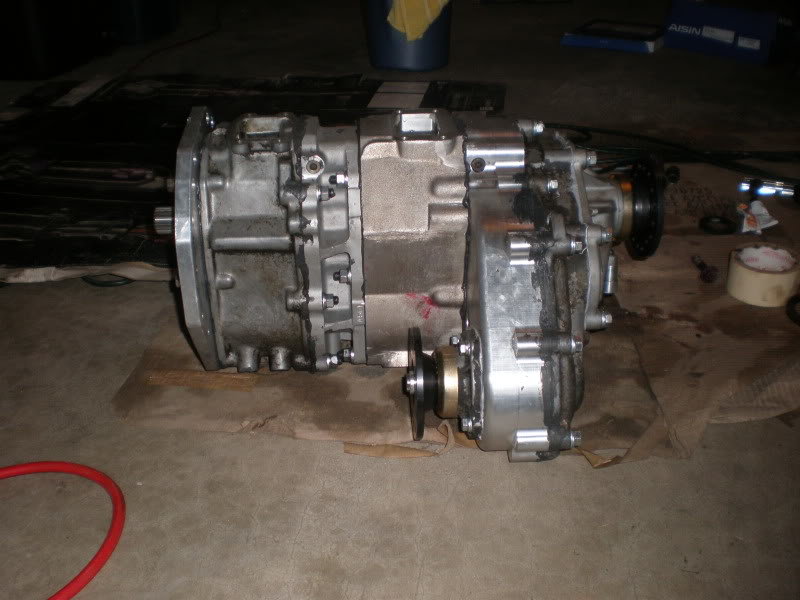

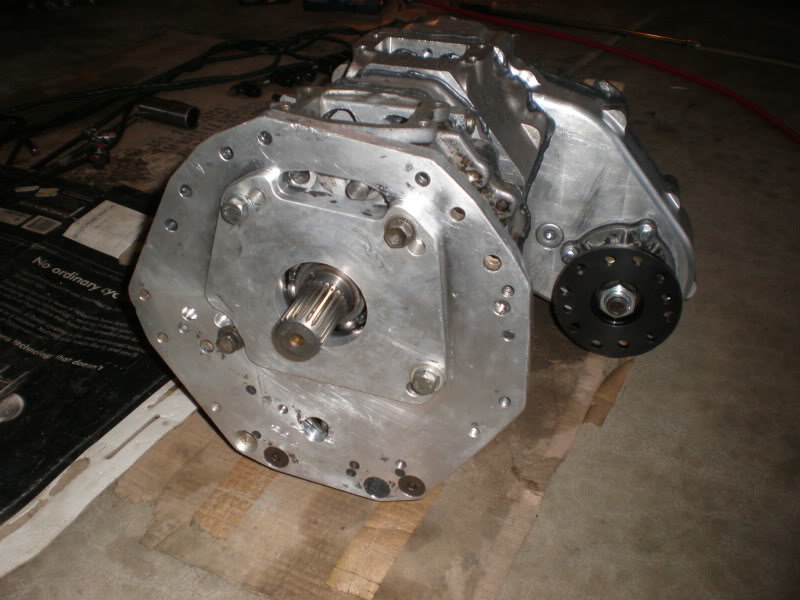

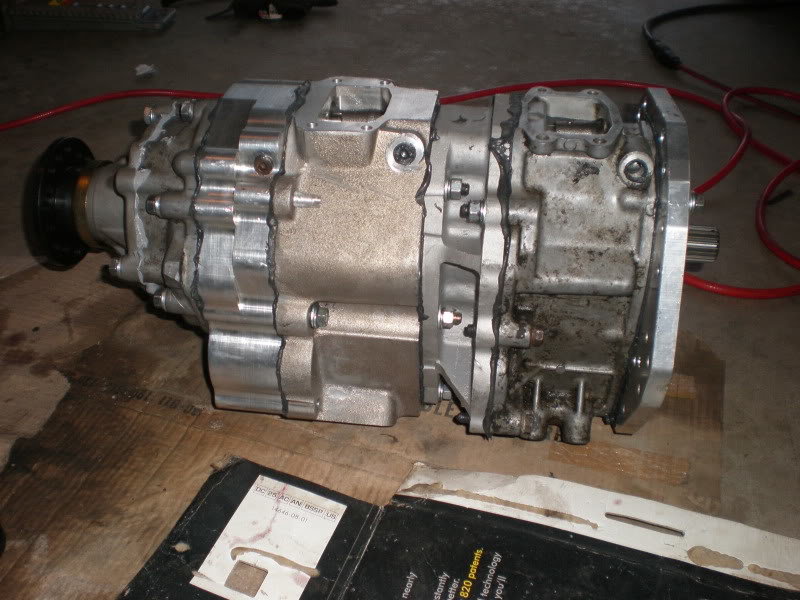

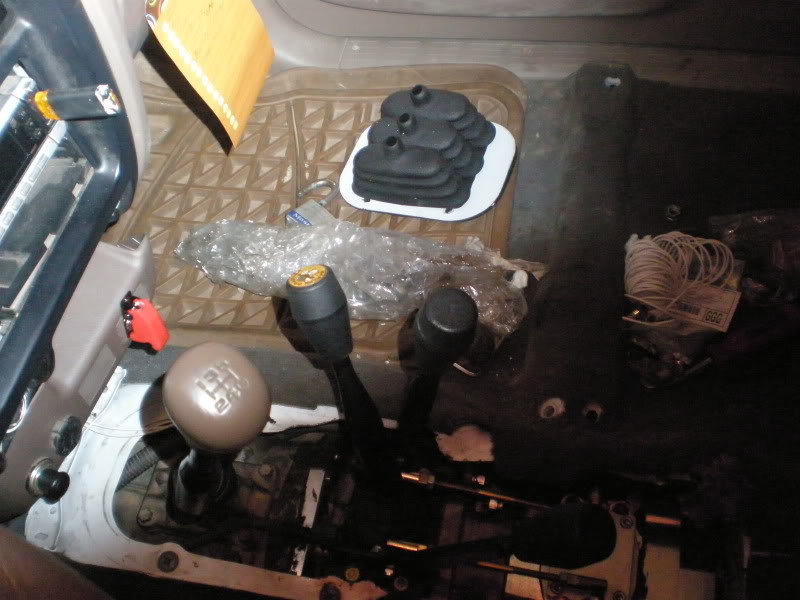

    Heres some pics of my latest mod. Its a lefty with a crawler bolted to it! The crawler has the stock 2.28:1 gears in it, 23 spline, mated with an MC07 XD to the lefty. The lefty has 23spline, 4.7:1 gears, the Advanced adapters low range housing, and marlin 30spline main shaft. I will also be installing RAD designs triple sticks, because i want my cup holders back. I will most likely be making a custom center console as well. Didn't get any pics of the install since it was spread over 4weeks (don't ask parts problems and it sucks living here!) and my camera was in mexico on a family trip. I also slapped a marlin clutch in as well.




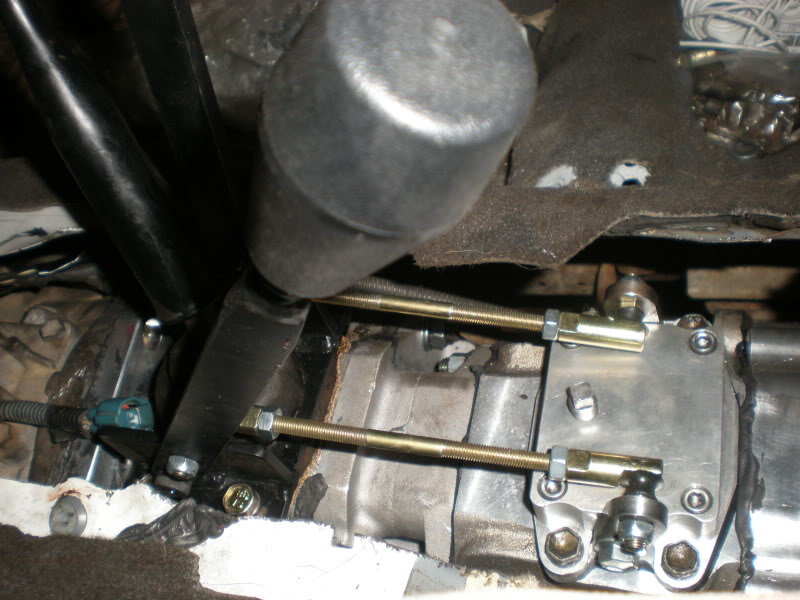

    Got the lefty and duals in, wired up the ADD to a switch (that's the red switch you see in the pic) and got the triple sticks in. I need to figure out a way to get the left stick to clear the gear shifter when the case in lo and the tranny is in 2nd or 4th. This is the RAD design triple stick kit, this is mated to a lefty so don't pm me asking how i got it to fit on a chain drive taco kit it may or may not fit i don't know!!

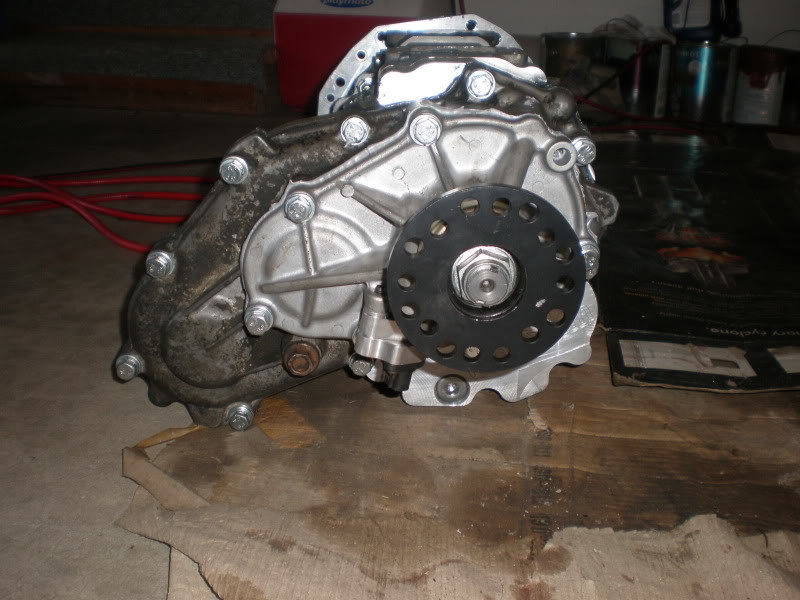

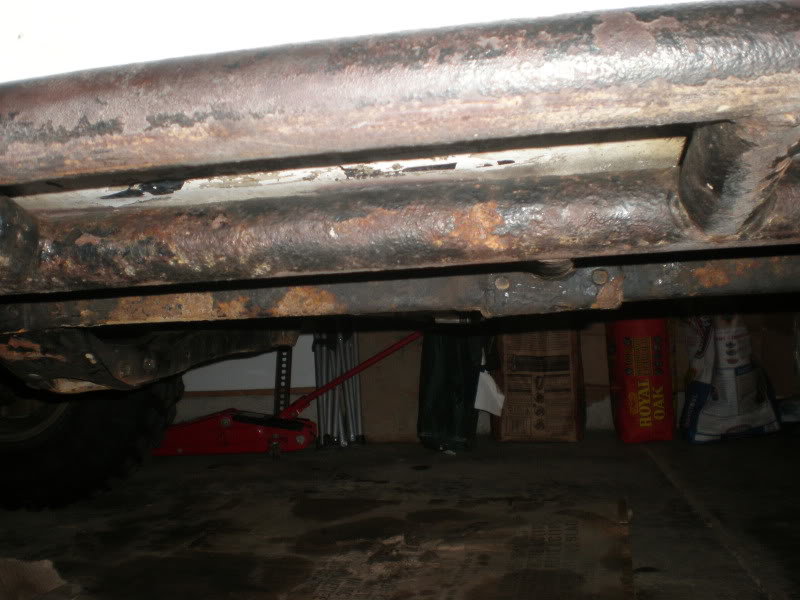

    And look no more tcase hanging down, the lefty is pretty much tucked up to the frame rails, it hangs down maybe a half inch below them. It wasn't worth my time to clock it, it already barely fits under the truck.

  3. Apr 12, 2014 at 11:59 AM
    #3
    slander

    slander [OP] Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    4,276
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.
    I replaced my clapped out rear suspension, my 6 year old 8 leaf deavers finally gave up on life. The truck sagged 2.5"s more on the drivers side than the passenger side, and the springs were badly wrapped from years of wheeling with no bumpstops and a crawler with no traction bar. I picked up a set of all pro expo leafs for a smokin deal on TTORA. The expo leafs would be WAY too stiff for my application, so i pulled 2 leafs out of the springs packs. I also ordered a new set of u bolts, and spring plates from ruff stuff. On with the pics:

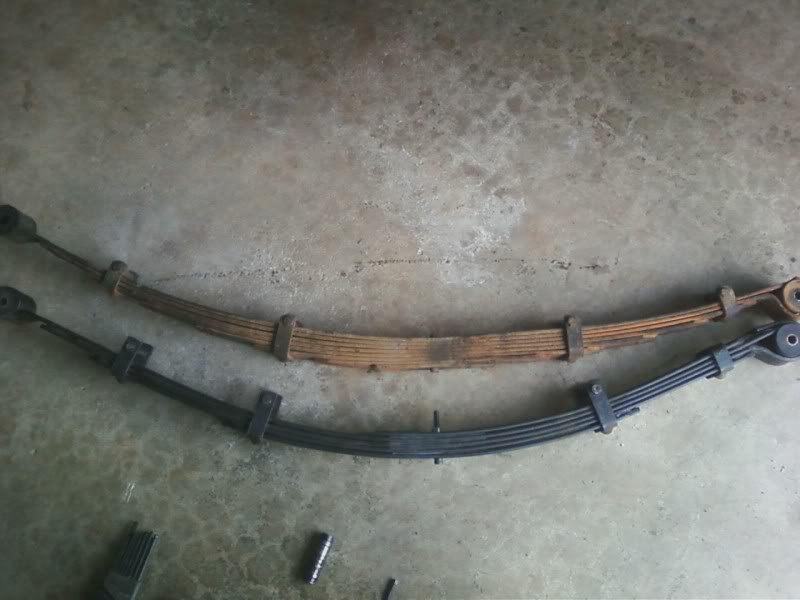

    Side by side comparison of the deavers and the expo leafs:
    Side shot after the install:
    Shot of the springs, not a fan of the shackle angle but it should sag down.
    It still leans about an inch more on the drivers side. May be that i tweaked the frame flopping it in Harlan to that side 2 years ago.

    The springs flex okay, a bit stiff, but they should break in after a few trips. It is nice not bottoming out on whoops in the road, and offroad i can get on the gas a bit and hit some good size holes, and the rear does not hit the bumps even with the bed loaded. I also have cut the axle wrap by 95% on the street, the yokes are no longer slapping into each other on the rear drive shaft.

  4. Apr 12, 2014 at 12:00 PM
    #4
    slander

    slander [OP] Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    4,276
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.

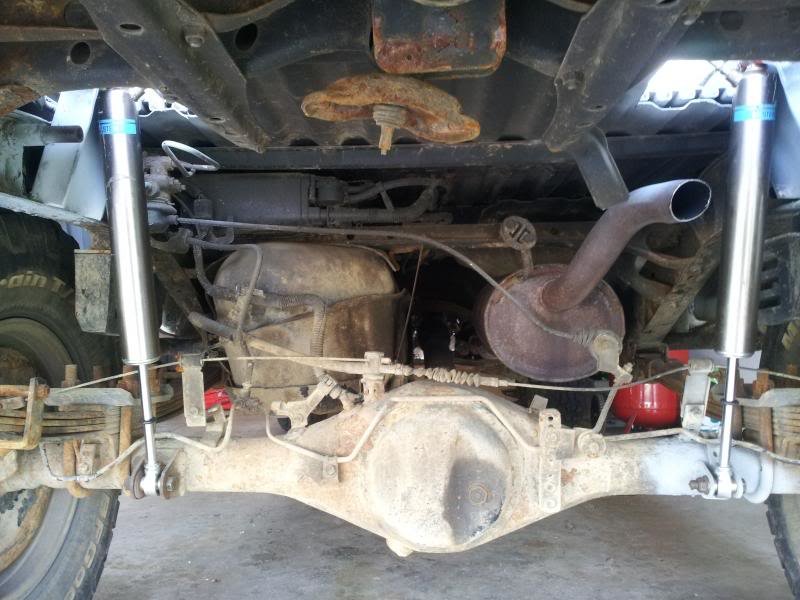

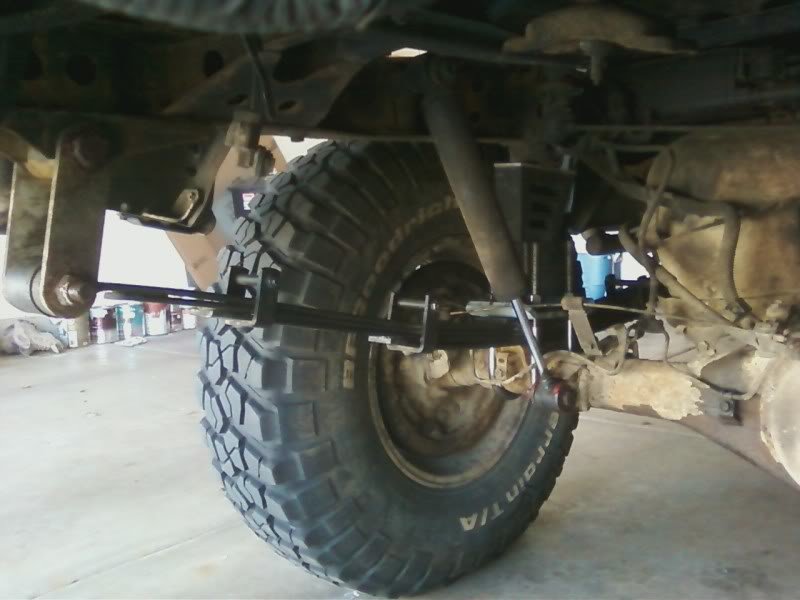

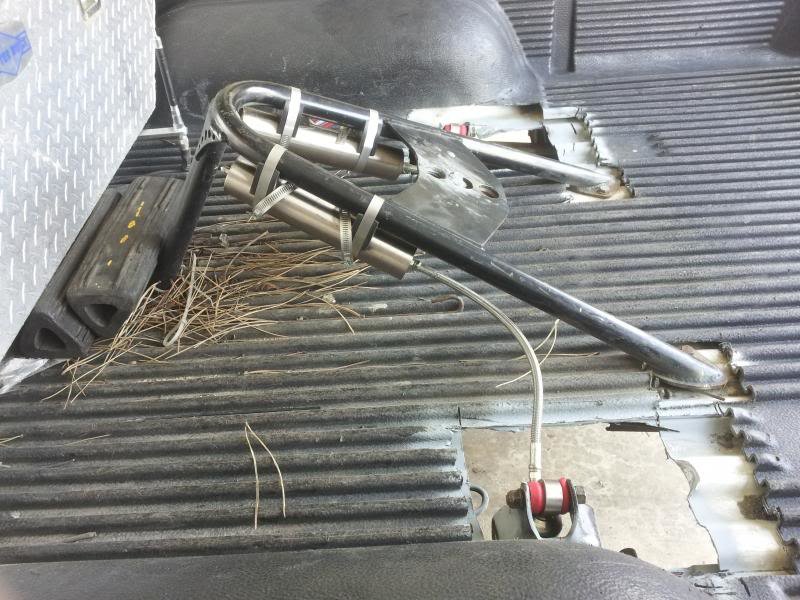

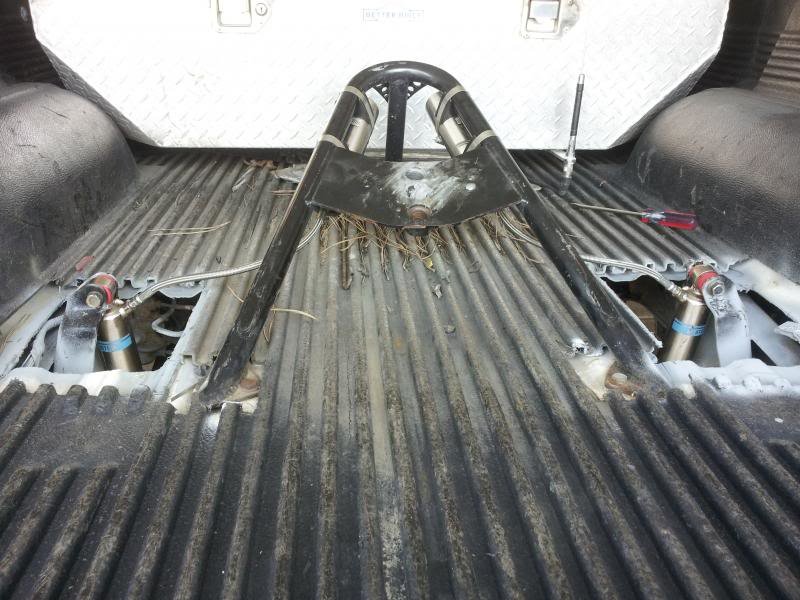

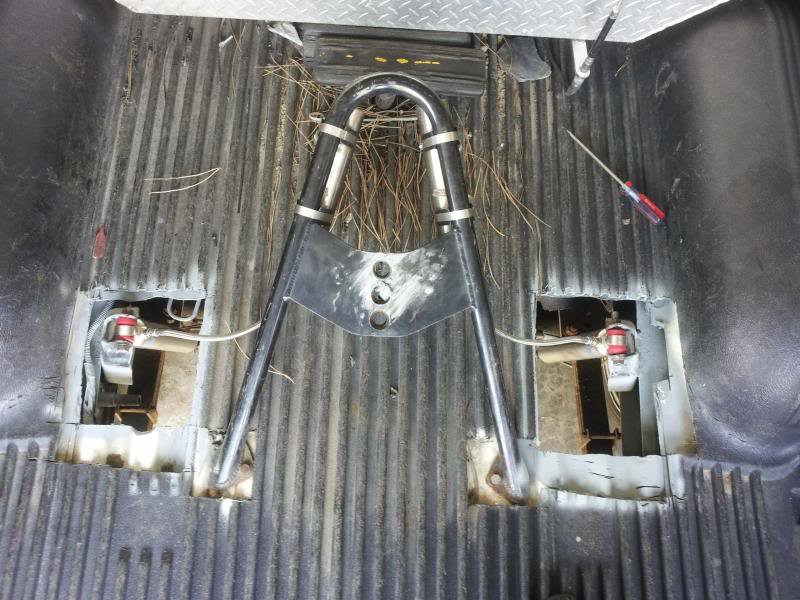

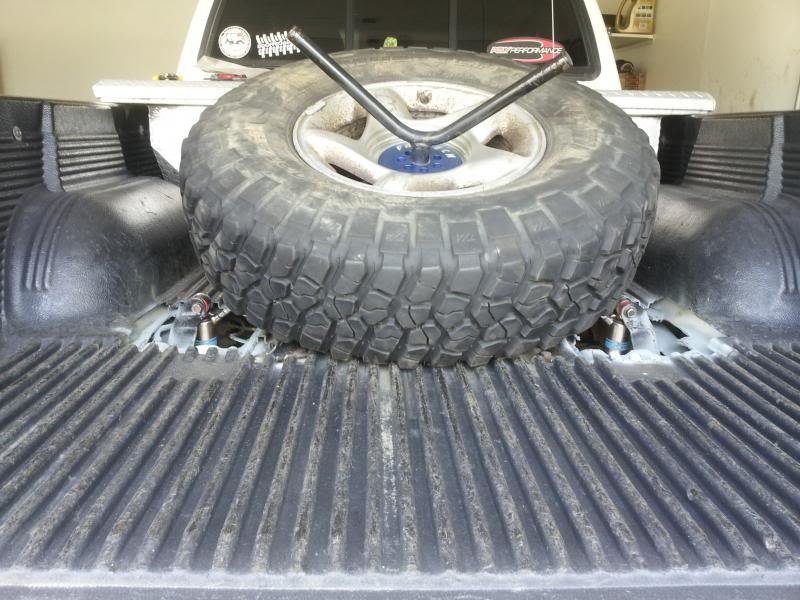

    Mounted up my bilstein 12" short body 7100 shocks and shock mounts through the bed last night. We cut a f250 shock mount in half and welded that to the rear frame after cutting holes in the bed. I also welded a new passenger side shock mount on the axle, moving it to the back of the axle. We failed to take into account the shock angle, so the bushings are bound up pretty good, but i am going to get some heims and that should fix it, it just sucks because the ones that came with the shocks got buggered up when i was pounding them out. I mounted the resi's to my pro comp spare mount, nice and subtle!!

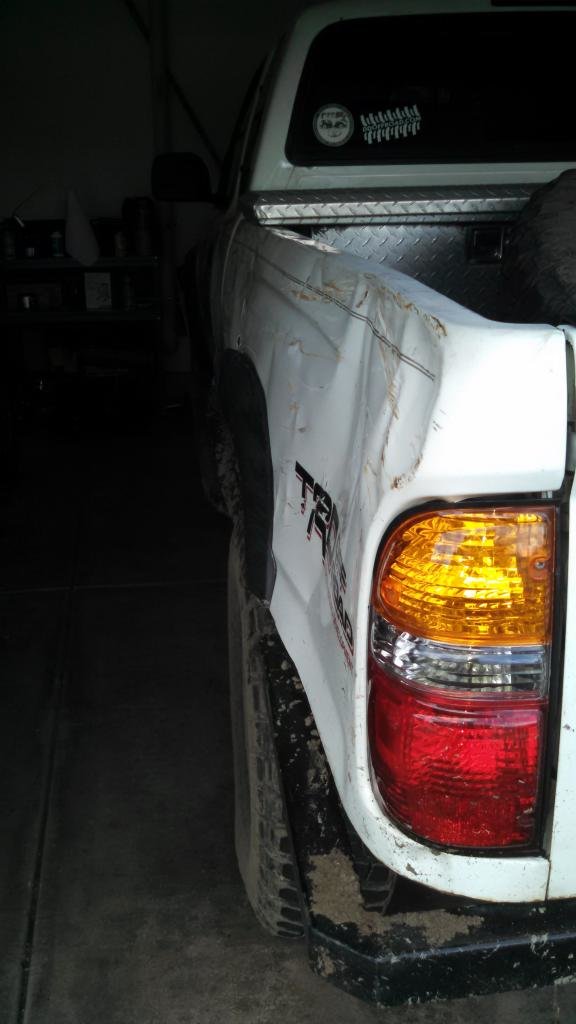

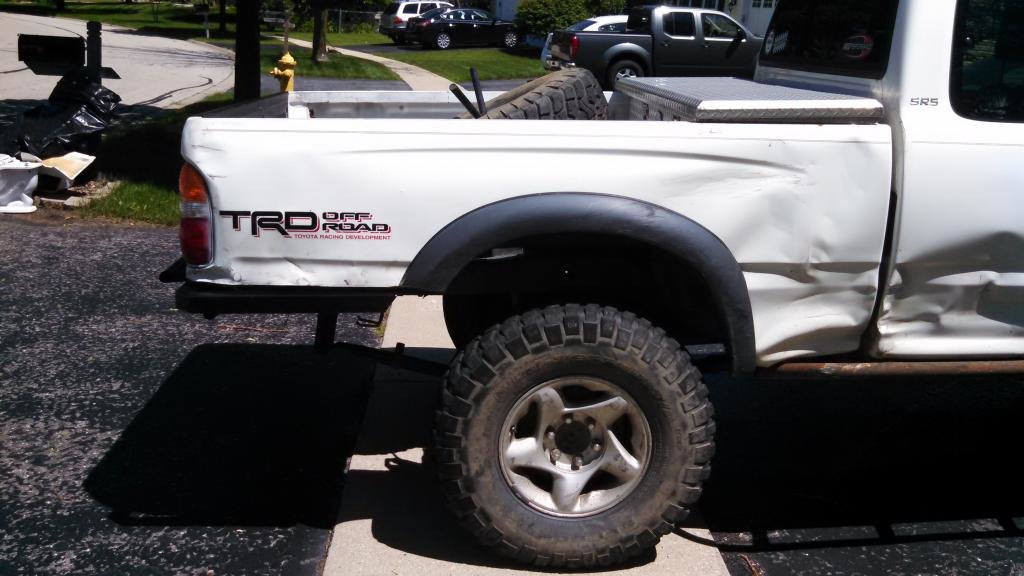

    I trimmed the bed sides down, and the next mods are an exo cage, and an SAS swap with either an FJ60 axle or a dana 60.

  5. Jun 18, 2014 at 9:35 AM
    #5
    muddedtaco

    muddedtaco Well-Known Member

    Joined:
    Dec 4, 2013
    Member:
    #117871
    Messages:
    369
    Gender:
    Male
    First Name:
    Wesley
    South Mississippi
    Vehicle:
    96 Tacoma 4x4 2.7
    Rattle caned black, Mossy oak door panels, shifter shroud, and radio cluster surround
    Looks good, keep it up, I hope to start mine soon if I ever get enough money between brake downs to rebuild my engine.

    commandotaco likes this.
  6. Jul 13, 2014 at 2:11 PM
    #6
    slander

    slander [OP] Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    4,276
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.

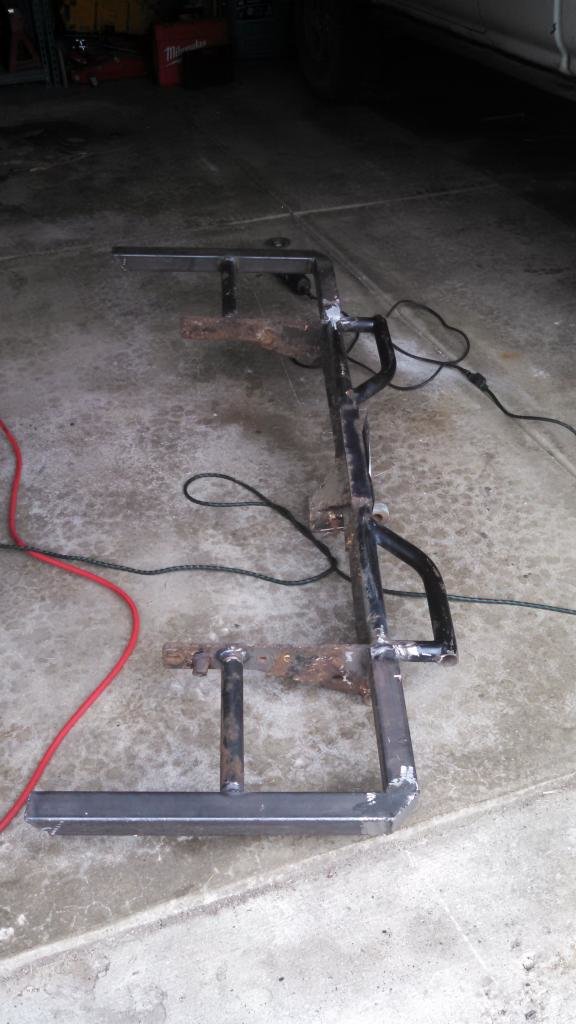

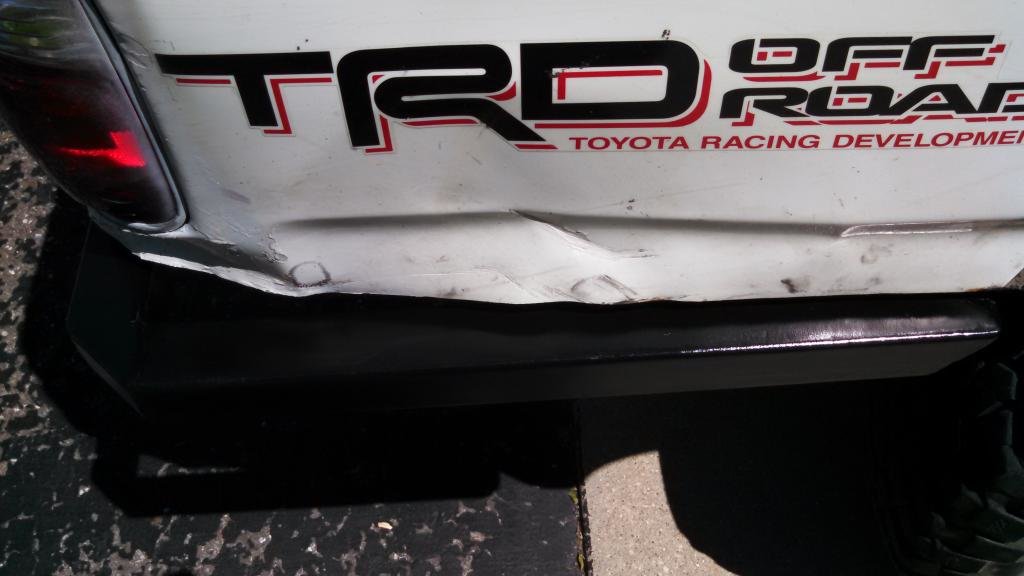

    I built a new bumper since i high clearenced my bedsides. I used the all pro bumper as the "base". Its not pretty but hey it will work. I need to add some angled square tube behind the tailight and it will be done. It was 330am on Friday when i finished this so i decided this will be for another day. Its made out of 2x2 .120wall tubeing.

  7. Aug 6, 2014 at 3:52 PM
    #7
    slander

    slander [OP] Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    4,276
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.
    I picked up an fj-80 axle for the rear, it will get stuffed with a lunchbox locker of some sort.

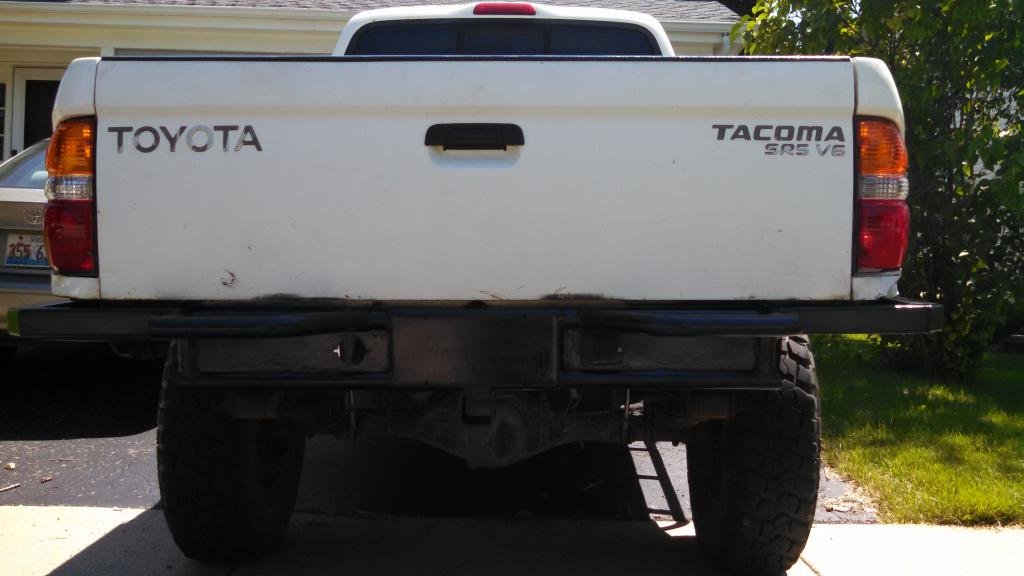

    I also cut the "stinger" off my all pro bumper, I always hated that thing!!


    Mully, commandotaco and ChadsPride like this.
  8. Feb 13, 2015 at 7:43 PM
    #8
    slander

    slander [OP] Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    4,276
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.

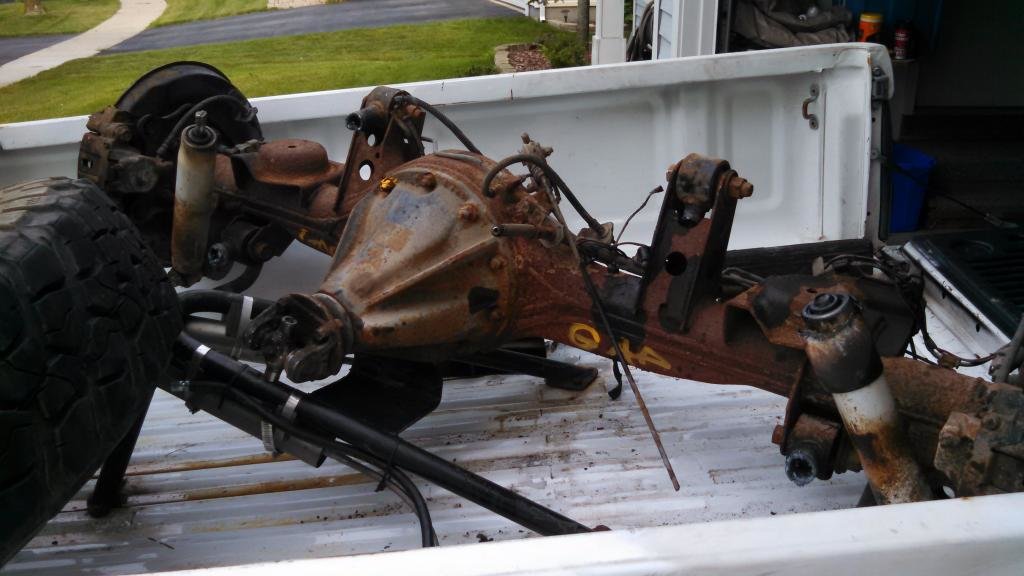

    So let me start this by saying this project was begun when i was trying to get my stock parking brake to work and do a brake job on my taco rear. Endless hours of swearing at drum brakes coupled with toyotas awesome rear axle seal design of dumping gear oil in the drums led to my quest to ditch the rear drums. I looked at disc brake kits and after ordering one from a vendor, and eventually cancelling my order (STILL waiting for my money back, ill post up who it was after it all blows over) and realizing that the kits are all way over priced and I'm not comfortable making my own homebrew disc brake setup. SO after some searching i came up the fj80 rear axle and luckily found one at a local junkyard. I paid 350 for this beauty, its open and out of a 1996 FZJ80.

    This is one heavy bitch!!!

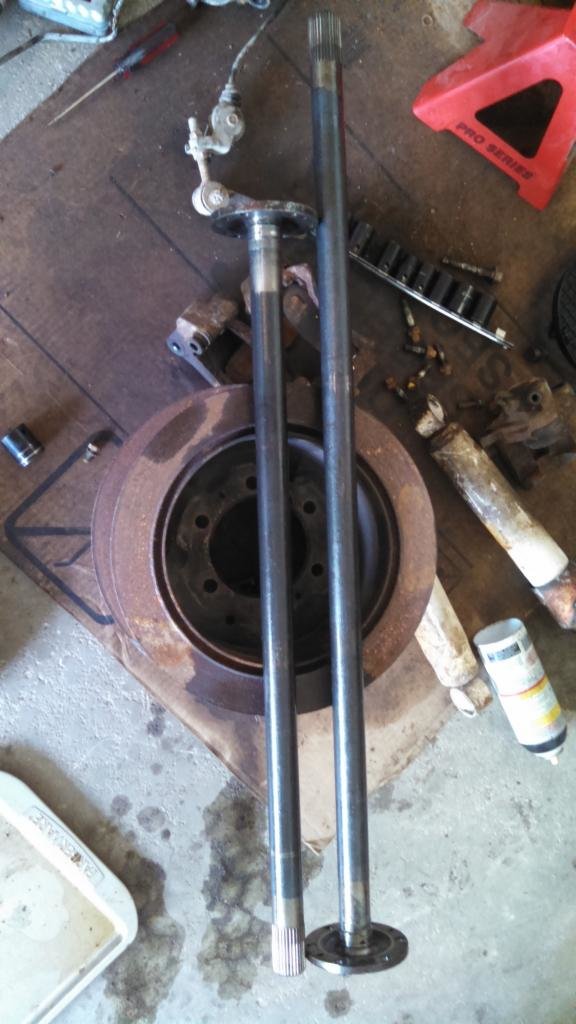

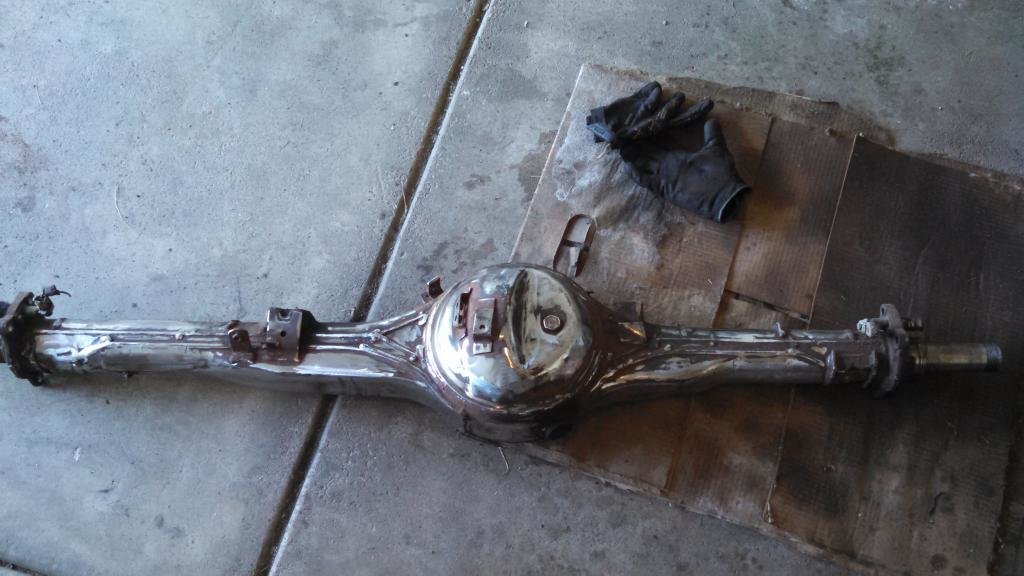

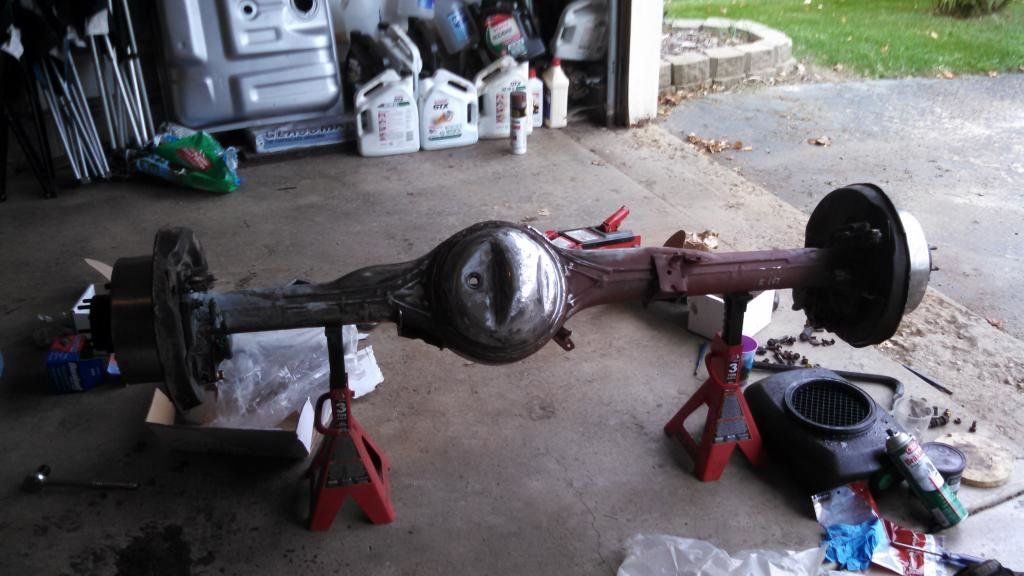

    Those of you that dont know the fzj80 has a Full Floating rear axle with factory discs, a parking brake that will work with the tacos and has a monster 9.5" ring gear!! I went with the open model because...... Its all i could find!
    The plans are, hack the brackets off stuff it with a spartan locker and run it for now back and forth to starbucks (the 80s natural stomping ground, i want it to feel like its at home under the taco). Eventually it will get a detroit once i need to re gear.

  9. Feb 13, 2015 at 7:45 PM
    #9
    slander

    slander [OP] Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    4,276
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.

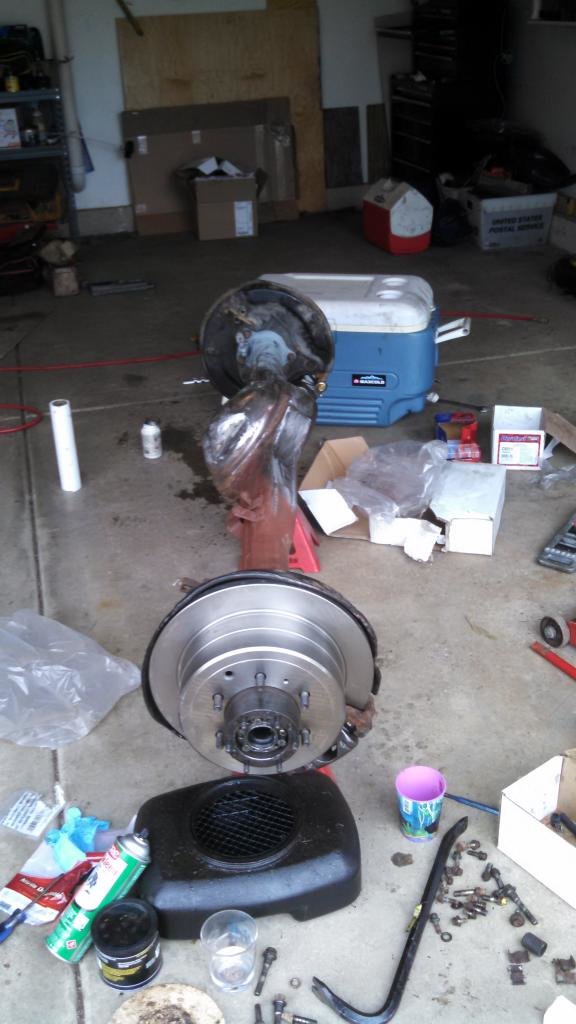

    So far the tear down has been going good, the seals were shot so there was gear lube in the hubs but the bearings look great so im going to run them. Also one of the set screws for the hub nut was stripped out so i had to drill it out. The cone washers on the hub popped right out.
    The ring gear looks great:
    Beef!! The splines look great, barely any wear and no twist.

    commandotaco likes this.
  10. Feb 13, 2015 at 7:48 PM
    #10
    slander

    slander [OP] Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    4,276
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.
    Well heres how it sits after 10hrs of cutting and grinding. The brackets are thick and it sucks using cut off discs and a sawzall. I also ground off the diff plug to avoid that problem before it begins.
    Im at the 90% done mark:

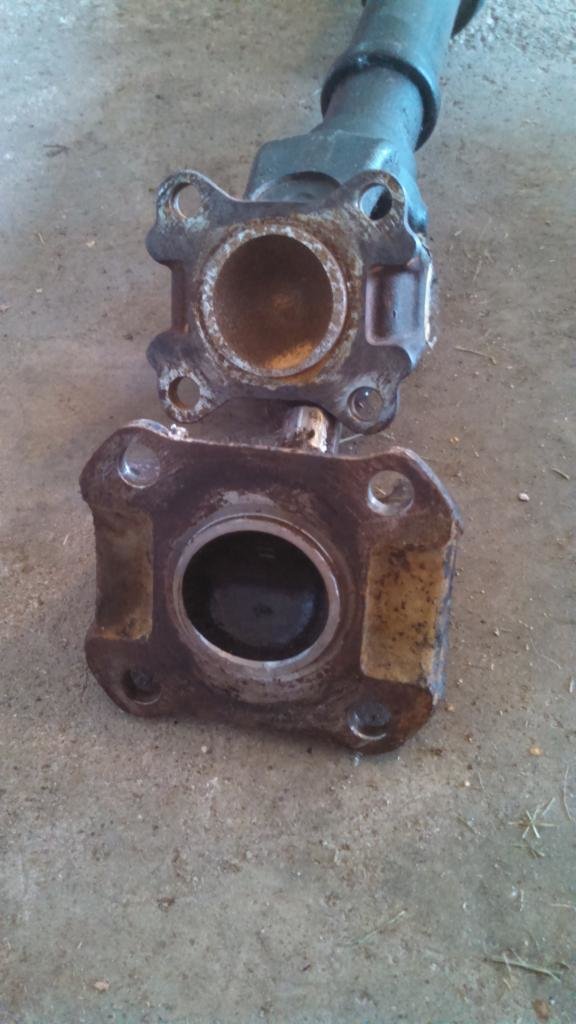

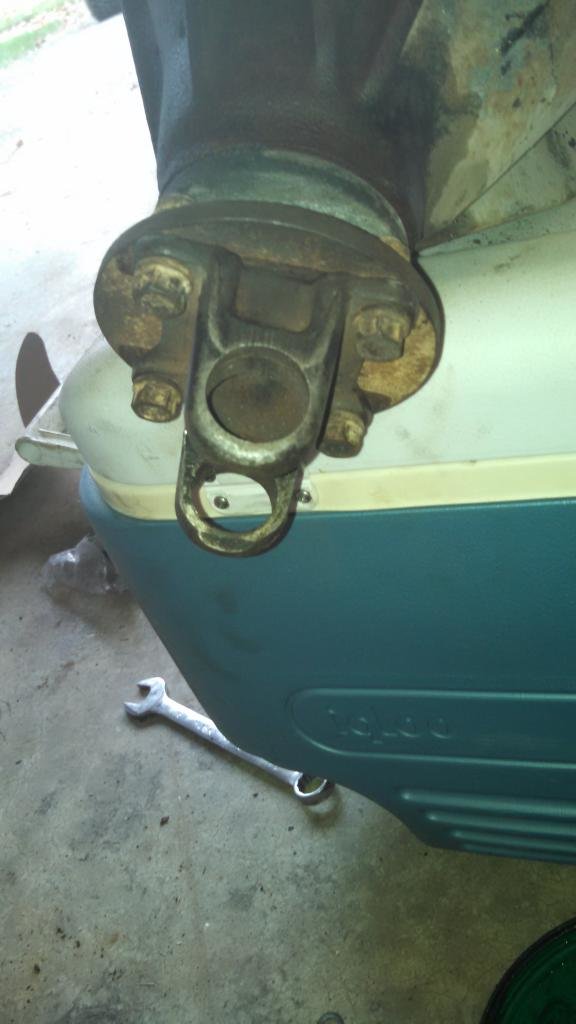

    Heres the taco rear drive shaft to tcase yoke bolted to the 80 flange, perfect fit:
    80 yoke on bottom, taco on top that's the pattern that WILL NOT work

  11. Feb 13, 2015 at 7:50 PM
    #11
    slander

    slander [OP] Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    4,276
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.
    I ordered a spartan locker to go in this thing, hope to have it swapped in by the end of the month. I am using 3.25" u bolts and perches.

    Last edited: Jan 12, 2020
    FirstTimeFirstGen likes this.
  12. Feb 21, 2015 at 6:59 AM
    #12
    slander

    slander [OP] Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    4,276
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.
    My trans decided it didnt like its fluid any more and dumped it into the crawler and tcase. I thought the crawler was leaking, turns out it was venting off the trans fluid. One day it went POW letting the clutch out at a stoplight, and after that would always pop out of first. Talked to the guys at marlin and was going to rebuild the trans myself, but they convinced me to just get a rebuilt unit. So last weekend i spent 16hrs in a 15* garage swapping the trans.

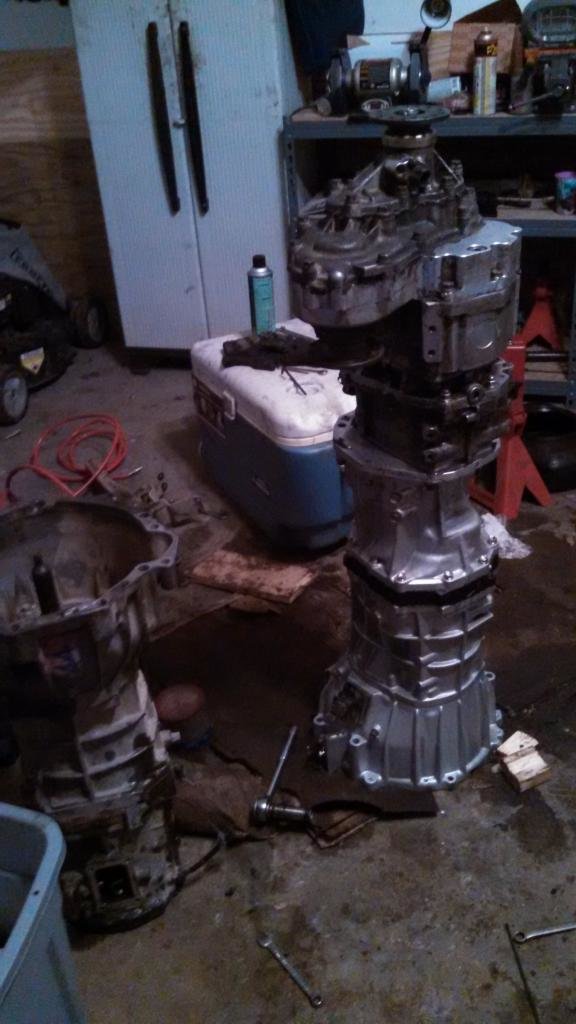

    Tower of gear reduction:
    No way to do this without the trans jack, well no easy way that is!

    Last edited: Feb 22, 2015
  13. Feb 21, 2015 at 12:45 PM
    #13
    presto

    presto Well-Known Member

    Joined:
    May 9, 2011
    Member:
    #56375
    Messages:
    2,239
    Gender:
    Male
    First Name:
    Topher
    san francisco
    Vehicle:
    2k T4R 4x4
    Subbed, nice.

    commandotaco likes this.
  14. Feb 22, 2015 at 3:05 PM
    #14
    slander

    slander [OP] Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    4,276
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.
    Got bored this weekend and brought the fj80 axle third in the house to thaw out to install this:
    Sweet box for sure!!
    The install of the spartan locker takes less than 10mins, this thing is stupid easy to install and looks beefy as hell!

    Now all i need to do is install my prop valve and burn the axle in. I need it to thaw out a bit first...

    Last edited: Mar 9, 2015
    commandotaco likes this.
  15. Feb 22, 2015 at 3:08 PM
    #15
    slander

    slander [OP] Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    4,276
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.

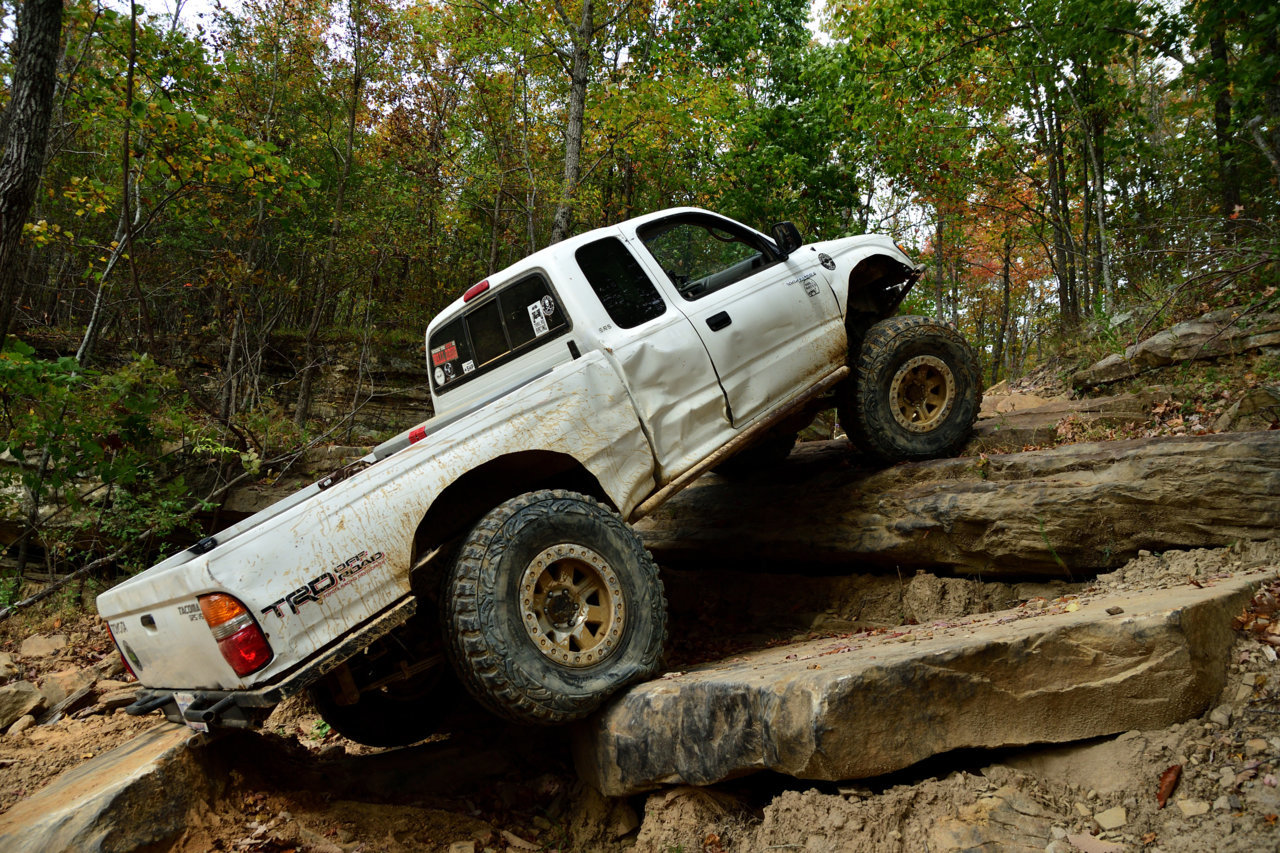

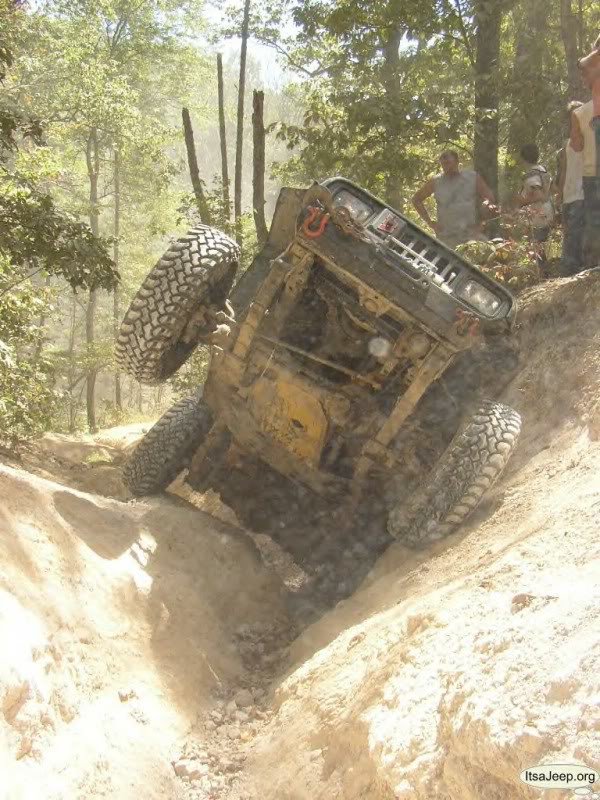

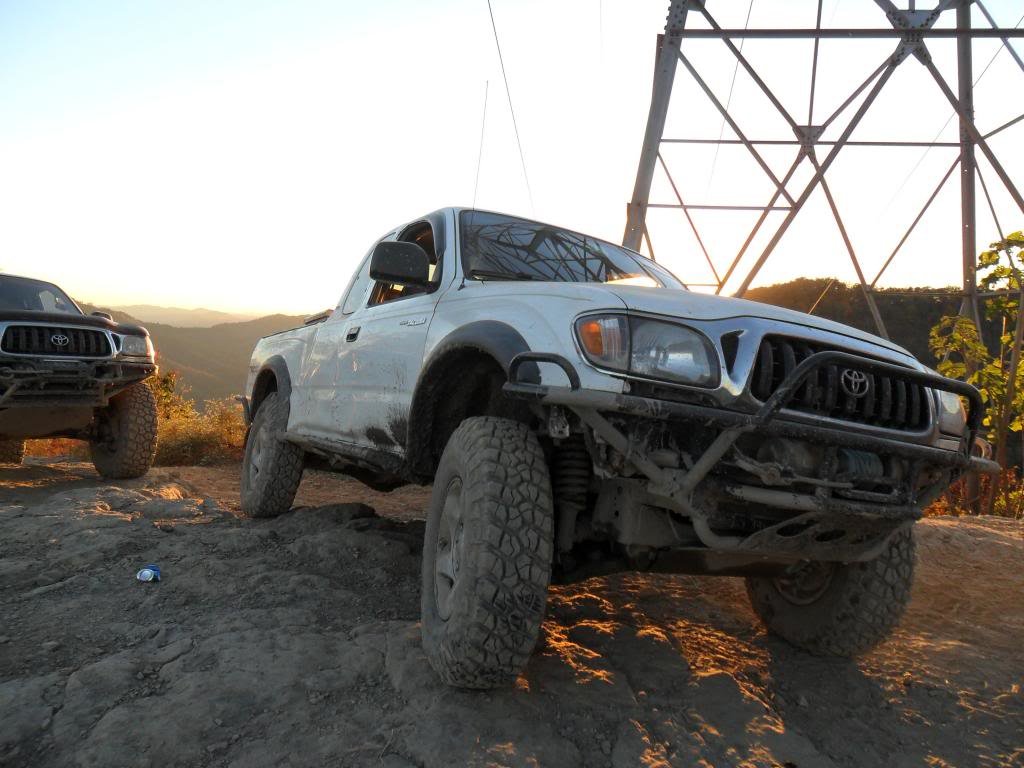

    I'm getting some hardcore cabin fever and want to wheel so here are some pics to hold me over....

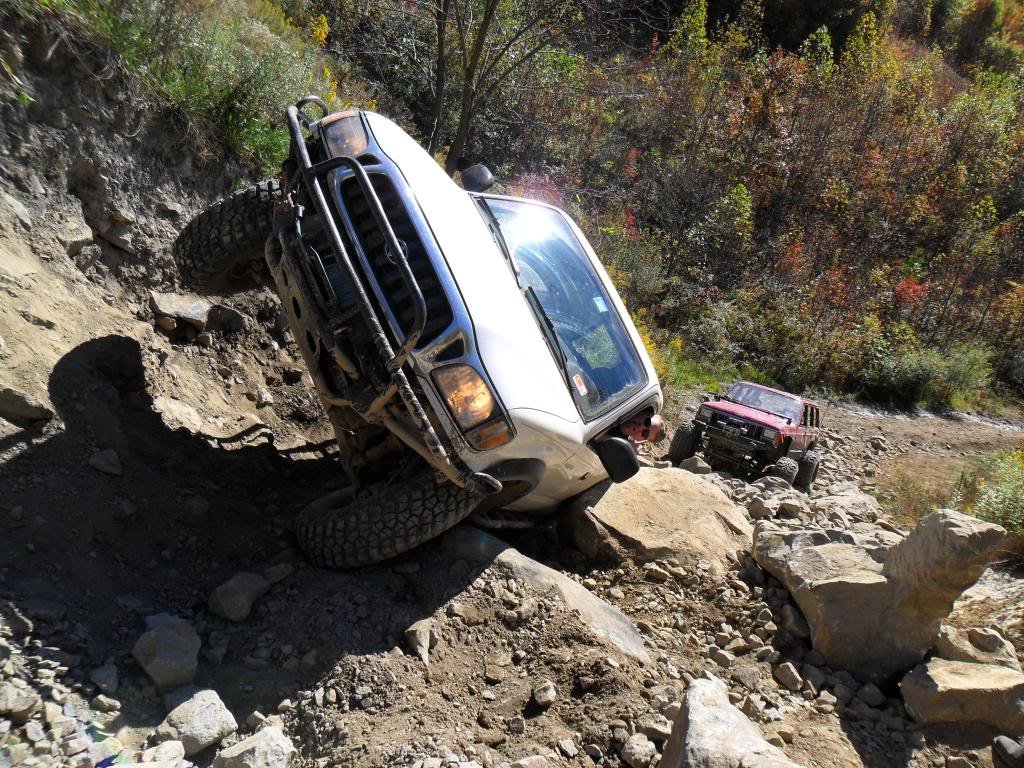

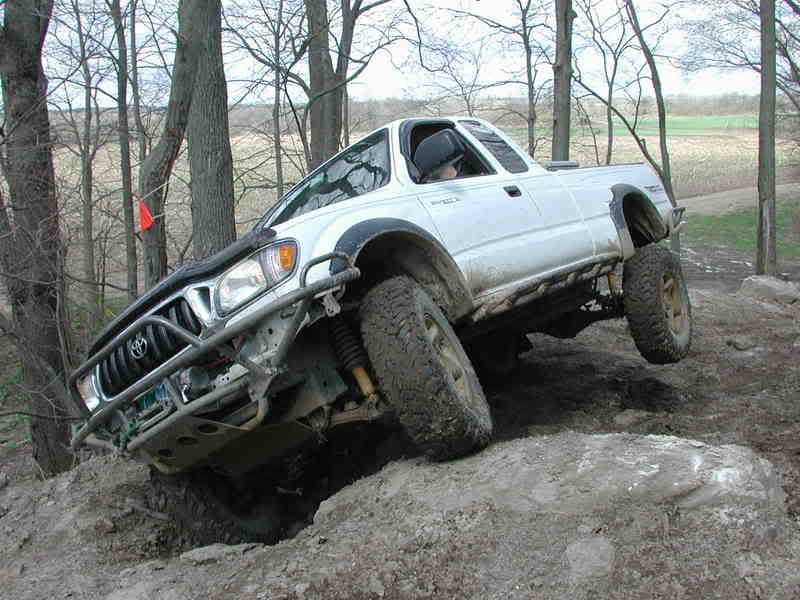

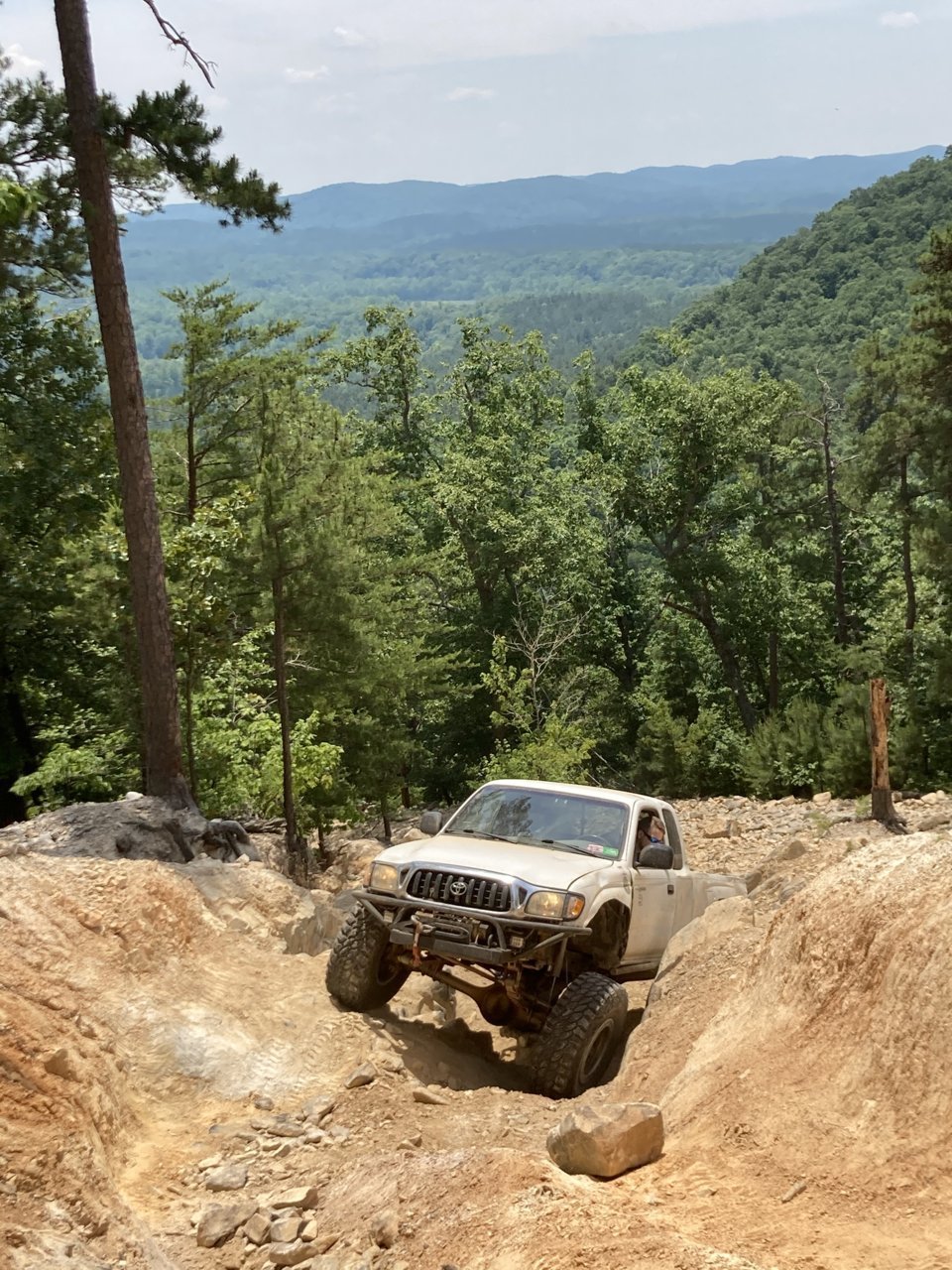

    Layed it over into a tree the last trip of last season:

    Dominic4Lo and commandotaco like this.
  16. Mar 9, 2015 at 12:10 PM
    #16
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    12,242
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Lifted, Locked, Armored. Ready To Wheel.
    Sweet rig. I'm surprised you're still on 255s.

  17. Mar 9, 2015 at 12:19 PM
    #17
    slander

    slander [OP] Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    4,276
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.
    Thanks man, its definitely not a looker but it goes where ever i point it. It's a combo of $$$, reliability, its a DD (its in its twilight years of that though..), and I like the challenge of the smaller tires. My ifs is starting to wear out, the tires are wearing out and i really want a front locker, so an SAS is in the future. I have to go pay for and pick the axle up one of these days.

  18. Mar 10, 2015 at 6:48 AM
    #18
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    12,242
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Lifted, Locked, Armored. Ready To Wheel.
    Yea it looks like it does a good job of going where you want it to go. This will be sweet if you sas it. How big of tires you think you'd run?

    I know what you mean about liking the challenge of smaller tires. I was on 255s for a while, and I like the challenge of being a dclb lol

  19. Mar 10, 2015 at 11:50 AM
    #19
    slander

    slander [OP] Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    4,276
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.
    All my friends wheel with 37s so probibly those. It all depends on what kind of a deal I can find on tires.

  20. Mar 10, 2015 at 11:54 AM
    #20
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    12,242
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Lifted, Locked, Armored. Ready To Wheel.
    I've been seeing a lot of people talk about 37" military take offs with plenty of tread for real cheap. Idk how or where people find them though.
