Fuse failure Hella 500 Driving lights

Discussion in 'Lighting' started by AgMechTacoma, Jan 19, 2014.

  1. Jan 19, 2014 at 6:24 AM
    #1
    AgMechTacoma

    AgMechTacoma [OP] Well-Known Member

    Joined:
    Mar 21, 2013
    Member:
    #100253
    Messages:
    62
    Gender:
    Male
    First Name:
    Joey
    Simpsonville/Clemson, SC
    -Fat Bob's Garage Leveling kit -DIY Satoshi Grill -Hella 500 driving lights -BHLM -Black Stock wheels -Reclining Bench Seat Mod -Black Badges -Removed Secondary Filter & Intake Resonator -Hard Wired GPS -DIY Skid Plate -Rear Differential Breather Mod -Sylvania 894 Reverse Light Mod

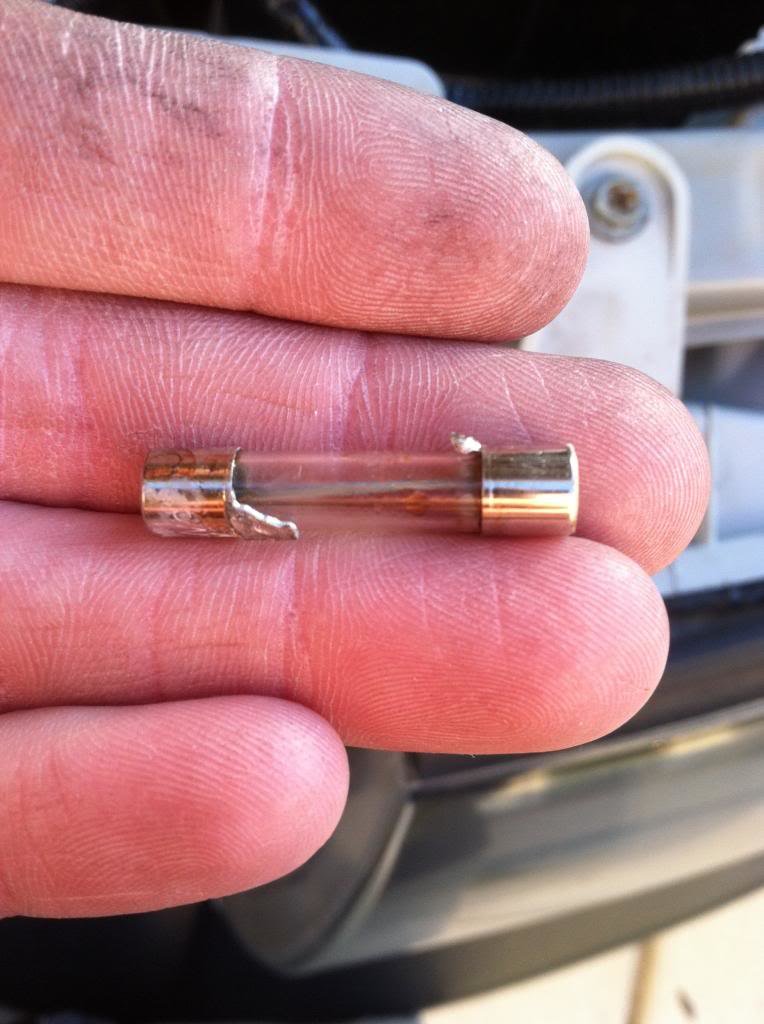

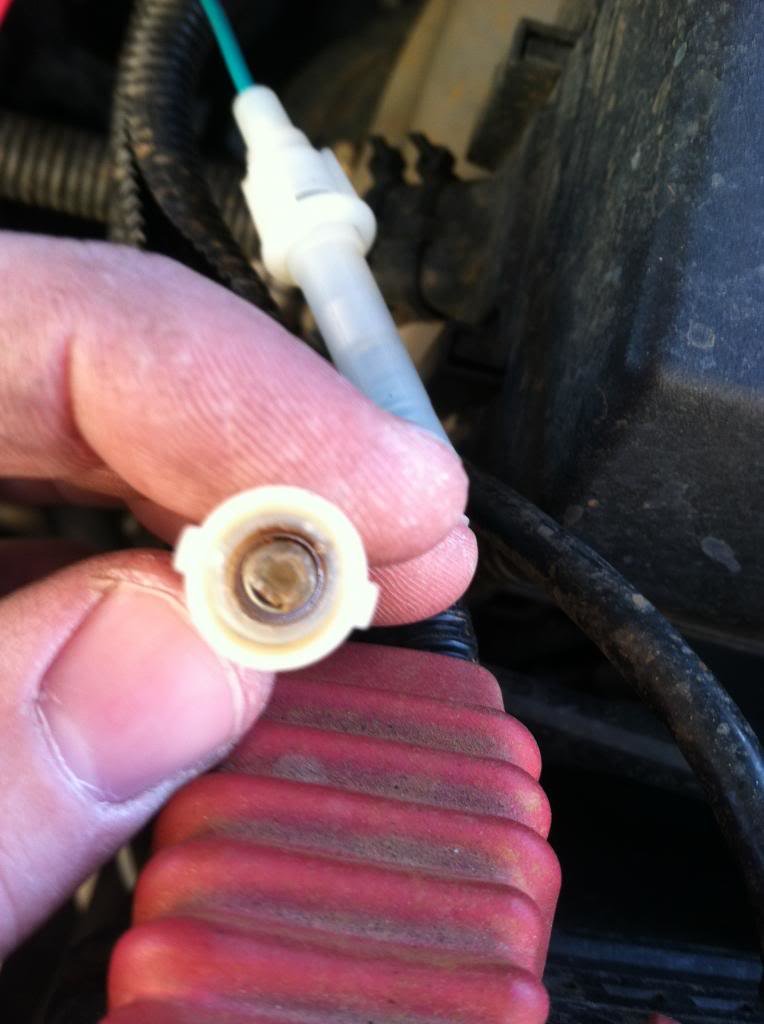

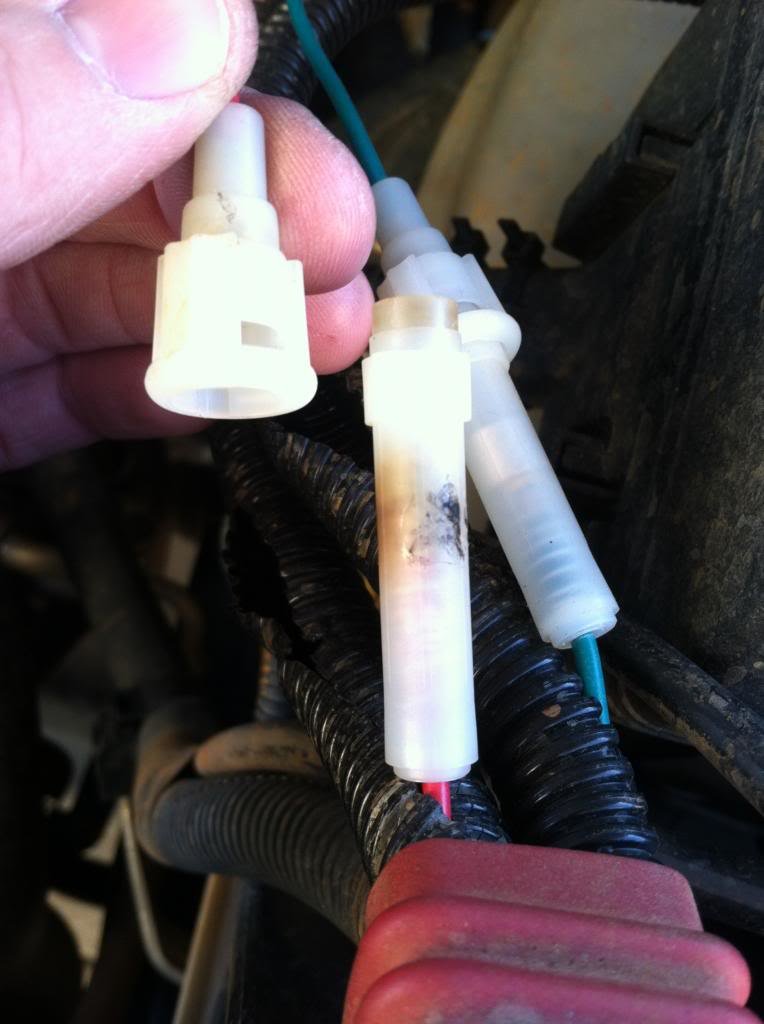

    I tried to use my lights yesterday, and they wouldn't come on. When I looked at the fuses I noticed one of them had gotten really hot and melted the plastic casing around it, and melted the solder in the connector. I'm just glad it didn't start a fire or anything. Anybody have an idea of what could cause this? I've had the lights for over a year and never had any problems with them before.

    [​IMG]

    [​IMG]

    [​IMG]

  2. Jan 27, 2014 at 1:51 PM
    #2
    JU Boi

    JU Boi Well-Known Member

    Joined:
    Dec 8, 2010
    Member:
    #47367
    Messages:
    87
    Gender:
    Male
    Alaska
    Vehicle:
    Super White 2006 Tacoma TRD Off Road 4X4
    Anytime Fogs, GROM ipod interface, Black Badges, Bed bike mount, trimmed mud flaps.
    This exact same thing happened to me. The fuse holders that hella sends are absolute crap. Go to an auto parts store and get a new one. I happened to have 2 sets of lights so i bought two. Then splice that new one in there. I think i even put a different size fuse in it (one that could handle more load).

    As a side note. I put 100w lights in my hella 500ff and the light is incredible.

    Interested to see how this turns out.

  3. Jan 27, 2014 at 4:25 PM
    #3
    AgMechTacoma

    AgMechTacoma [OP] Well-Known Member

    Joined:
    Mar 21, 2013
    Member:
    #100253
    Messages:
    62
    Gender:
    Male
    First Name:
    Joey
    Simpsonville/Clemson, SC
    -Fat Bob's Garage Leveling kit -DIY Satoshi Grill -Hella 500 driving lights -BHLM -Black Stock wheels -Reclining Bench Seat Mod -Black Badges -Removed Secondary Filter & Intake Resonator -Hard Wired GPS -DIY Skid Plate -Rear Differential Breather Mod -Sylvania 894 Reverse Light Mod
    I think putting in a larger fuse would make the problem more dangerous. The filament that was in the 15 A fuse never failed, so it got really hot.

  4. Jan 27, 2014 at 4:32 PM
    #4
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    3,685
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd
    Poor connection that got hot not an over load. The little plastic fuse holders are worthless for that much load. get a heavy duty ATC fuse holder. A pair of 100 watt lamps draw about 17 amps.

  5. Jan 27, 2014 at 4:41 PM
    #5
    AgMechTacoma

    AgMechTacoma [OP] Well-Known Member

    Joined:
    Mar 21, 2013
    Member:
    #100253
    Messages:
    62
    Gender:
    Male
    First Name:
    Joey
    Simpsonville/Clemson, SC
    -Fat Bob's Garage Leveling kit -DIY Satoshi Grill -Hella 500 driving lights -BHLM -Black Stock wheels -Reclining Bench Seat Mod -Black Badges -Removed Secondary Filter & Intake Resonator -Hard Wired GPS -DIY Skid Plate -Rear Differential Breather Mod -Sylvania 894 Reverse Light Mod
    I just ripped all the wiring out after it happened. I'm gonna start over with better stuff than what came with the light kit. I got a Bosch relay, heavy duty inline fuses, oem fog light switch, solder connections with shrink tubing. Gonna do it right so I never have problems again. I hate having to go back and fix stuff.

  6. Feb 2, 2014 at 11:14 AM
    #6
    bw4706

    bw4706 Well-Known Member

    Joined:
    May 7, 2013
    Member:
    #103681
    Messages:
    199
    Gender:
    Male
    First Name:
    Buddy
    Illinois
    Vehicle:
    09 Toyota Tacoma
    Bilstein 5100's , Eibach Coils SPC UCA's, General Spring HD leaf packs, De-Badged, Nfab Light Bar, (4) 4" LED Spotlights,Bed Lights, Mag Light Seat Mount driver and passenger, Mini Mag Console Mount,Hard wired GPS, Cup Holder & Rear Floor LED's, LED's in and out, Blacked out rims, Bed decals & Mesh grill, Heated seats, Diff breather relocation mod, LED Under Hood Lighting, LED Bed Lights, Aux. LED Reverse Lights Redline Tuning Hood Struts & EZ Down Tailgate. 6 Circuit Aux. Fuse Panel W/Circuit Breaker. Front & Rear Facing DVR cameras, High Lift Jack Bed Rail Mount. Clazio Leather Seat Covers. All Pro Heavy Duty Rock Sliders.
    I hooked up 4 hella black magics and had the same problem. I threw away the fuse holders from hella and replaced them with 30 amp inline fuses and bigger gage wiring. Each set of lights has its own inline fuse and relay. Seems to be fine now.
