    First World Problems Fab has a new camp trailer!!

    Ok so its not "new", but its new to me! Built in 1994, supposedly this was built as a kit for use on hunting trips, said it was used 3-4 times and then sat. Someone else bought it as a project and never got around to working on it so now i have it! I actually have a need for this so i plan to get this thing back into presentable condition!

    Welcome to the build and BS thread!

    Current state.... 8MAR19

    [​IMG]
    1st camping trip...
    [​IMG]


    Where it lived for 2 years... What it looked like when i got it!

    [​IMG]
    Has a cool old school canopy and rack already!
    [​IMG]
    Inside isnt bad at all. A little dated but it looks solid enough. More pics to come when i get some time.
    [​IMG]
    Driving it home.... had to rig up some tow lights...
    [​IMG]
    Mods so far... not in this order
      • Exterior Mods
        • All exterior lights swapped to LEDs
        • All new electrical wiring throughout
        • Replaced the rear hatch door hinges with a nice beefy piano hinge
          • Rubber grommet underneath for weather protection
        • Custom built roof rack by FWP Fab
          • quick fists for fishing poles
          • quick fists for tarp poles.
          • 6.6' x 8.2' awning
          • 100w solar panel
        • 3 gang switch panel outside next to the door
          • voltage indicator
          • USB charger
        • Custom built fender wells by FWP Fab
        • New aluminum roof panel installed
        • Repainted the window frame up front
        • Custom length 3500lb axle from Southwest Wheel
          • matching toyota 6x5.5 bolt pattern
          • self adjusting drum brakes
        • 17" tundra wheels on 265/70/17 KO2s (matching spare)
        • Extended the tongue length ~26" by FWP Fab
        • Custom cooler cage by FWP Fab
          • Cut most of the sides off for weight reduction
        • Tongue storage box
        • 6.6' x 8.2' awning
        • Bulldog 2" ball hitch
        • new safety chains
        • New tongue jack
        • Solar powered
      • Interior Mods
        • It has a 3" mat but i added a mattress topper
        • Removed the old interior cabinets
        • Removed the old interior panels
        • MaxAir Roof vent
        • Custom storage box in the floor inside the cabin.
        • Cabin LEDs are installed
        • all wiring for lights/speakers in rear panel ran
        • 12v/110v RV electrical panel installed to run everything
        • ceiling and 1.75 wall panels installed
        • Custom cedar headboard installed
        • Custom cedar window frames
        • 110v power strip (4 110v outlest and 2 USB outlets)
        • Dual media receiver radio w/USB & Bluetooth
        • 100mAh Deep Cycle battery
    To Do:
        • redo & re model the rear galley area.
          • probably going to cover the rear cook/prep surface with aluminum for easy clean up and sanitation
          • I will install a few shelves and drawers.
          • want to extend the rear surface all the way to the rear of the trailer so i dont have to lean over into the trailer so much.
          • need to install rear hatch panel so i can install lights and speakers in the hatch
        • Redo & Remodel the cabin area
          • small overhead cabinet for clothes, towels, blankets and such
          • cabinets on the hatch wall to mount the radio, store headlamps, flashlights, headlamps, charging cables

        • install new aluminum panel on the rear hatch and sides
          • would like to get a new door and side window
        • would like to make some changes to the axle...
          • install new leafs/hangers
          • install struts
          • install brake drums
    Its small so i can only do so much.

    Last edited: Aug 21, 2019
  2. May 18, 2018 at 7:36 AM
    #2
    Shmellmopwho

    Shmellmopwho Well-Known Member

    Joined:
    Apr 10, 2014
    Member:
    #127399
    Messages:
    10,279
    Gender:
    Male
    First Name:
    Ryan
    Lomita CA
    Vehicle:
    2013 White DCLB TRD sport
    Bunch of stuff
    Awesome! Congrats on the new trailer dude! It will be fun to build it up and make it suitable for your needs!

    As for the axle, I’m gonna leave a link here for you where you can get a brand new 3500 lbs axle for like $120 and you can customize the hub face to hub face length and choose the bolt pattern of the axle so you don’t need to run wheel spacers or adapters. If you plan on putting the same size tires on your trailer as your truck, then get a 6 on 5.5 bolt pattern for the trailer axle that way you can swap wheels between truck and trailer if need be. If you run one spare while you’re out wheeling you can use the spare for both the trailer and the truck. Then if you run into the unfortunate event of popping or shredding a 2nd tire on your truck, you essentially have 2 more spares you can steal from the trailer to at least get you outta the predicament you’re in and then go back for the trailer later.

    Run the axle wider than the trailer so you can run the new larger tires outside the trailer walls so you can 1. Fit a much larger tire and 2. Have more articulation out of the trailer for any Offroad application

    Here is the place to get the axle. All you have to do is weld the spring perches onto the axle where the leaf springs land. Pretty easy

    https://www.southwestwheel.com/c-1248-3500-lbs-straight-dexter-trailer-axles.aspx

  3. May 18, 2018 at 7:40 AM
    #3
    saundern

    saundern Swerve for nothing

    Joined:
    Dec 10, 2009
    Member:
    #27342
    Messages:
    6,465
    Gender:
    Male
    First Name:
    Nick
    Simpsonville, SC
    Vehicle:
    2005 TRD Sport
  4. May 18, 2018 at 7:41 AM
    #4
    Drainbung

    Drainbung Somedays you are the show....

    Joined:
    Sep 2, 2010
    Member:
    #42629
    Messages:
    6,861
    Gender:
    Male
    First Name:
    Bob
    Oasis of NV
    Vehicle:
    10 DCLB
    TRD Fleshlight
  5. May 18, 2018 at 7:48 AM
    #5
    scottalot

    scottalot FooW

    Joined:
    Jun 1, 2013
    Member:
    #105349
    Messages:
    123,975
    First Name:
    Stockalot
    TW
    Vehicle:
    2018 tea four arghh Offroad 4x4 White LoveMachine
    Bone stock like Chicken in the Crock Pot .Dakkars,305/70/16 MT's, Extended length Fox Coilovers, Fox RR rear Shocks, Total Chaos UCA's, Dakar Leaf packs, LED Map and Dome, Breather relocate, Slimer from Ghost-busters starut up screen, Vent Visors, LED Pod's on Ditch Brackets soon, Level 8 Strike 6 Wheels, New MT Tars - Fierce Attitude, SOS front bumper -steel, SOS bed rack, LED white marker lights, LED reverse, TRD exhaust, Wheelers Super Bumps up front, SOS sliders bolt on with fill plates, Csjummper2003 White/Amber DTRL and white parking led bulbs, RTT rack basket Sold 2013, sold 2014 Tacoma. All listed stuff was on the '14 Bed Mat, WeatherTech Rain Guards, Ultra Gauge, TW Sticker amongst others, Useless Free OEM Bug Deflector, Flyzeye, OME Kit with 885's and Dakar and Nitro Shocks front and Rear . Tailgate mod, SOS Concepts 1/4" Skid Plate, White LED's interior Dome and Maps, Goodyear Wrangler MTR Kevlar 275/70/17, Wet Okole Seat Covers - full piping in Charcoal Grey, Lamin-X Green Fog light film, 17"x8 -10 offset Level 8 MK6 wheels in Gun Metal Finish, SOS Concepts Sliders W/ Kickout 12/21/14, Stubby antenna, LED reverse lights, lift removed 2/20/15 - making changes and trying to make up my mind
    Here for the BS :popcorn:

    Lord Helmet and ChadsPride like this.
  6. May 18, 2018 at 7:56 AM
    #6
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    Good looking out on the axle! That is what i need for sure! I for sure want to get matching hubs, not sure about matching tires and wheels though. Probably just pick up a set of stock take offs for cheap somewhere.

    The rear will be where my initial focus will start after i make sure the trailer frame and floor are solid. The axle will wait till i get it to a presentable state. Currently the rear door is held shut with a bungee cord, the lights are duct taped on, and im not sure why but my trailer plug doesnt work, so i had to tap into my brake lights. The only latch that works currently is the door latch. None of the locks work...

    Going to start with the rear door, need to get that to close and seal up nicely. Then i will move on to the storage, probably going to gut it and redo it all. Then repair any damage to walls or what not.

    Need to take a page from @Silverspool and make an spreadsheet to track this build.

  7. May 18, 2018 at 8:00 AM
    #7
    Shmellmopwho

    Shmellmopwho Well-Known Member

    Joined:
    Apr 10, 2014
    Member:
    #127399
    Messages:
    10,279
    Gender:
    Male
    First Name:
    Ryan
    Lomita CA
    Vehicle:
    2013 White DCLB TRD sport
    Bunch of stuff
    For sure bro! Figured that would be better since it’s cheap for a brand new one you know?

    Sounds like you got your work cut out for you but at least the trailer has good bones

  8. May 18, 2018 at 8:06 AM
    #8
    ETXTacoma

    ETXTacoma TTC #050 in the 903

    Joined:
    Feb 12, 2016
    Member:
    #177942
    Messages:
    16,031
    Gender:
    Male
    First Name:
    Steven
    Tyler, Texas
    Vehicle:
    2014 DCSB Tacoma TRD OR
    Dynatrac ProRock 60 Rear Axle, that is important enough.
    Here for the progress.

  9. May 18, 2018 at 8:27 AM
    #9
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    Yes i am going to buy that axle simply for the fact that its cheap and i can buy it with matching hubs! Win win in my book! I would have just found the cheapest axle i could find and throw on some adaptors. But new is always better, plus with an extra axle i can build a light utility trailer for a 4 wheeler or something.

    So far from what i have seen the trailer looks solid. I mean i would camp in it tonight if i had to, and i dont think there would be any issues. Wouldnt have very many comforts but you can sleep in it...

    Plugged in the window a/c last night and i think that i could camp in it during the summer as it sits now.

    But yeah i have some work to do, will be a welcomed change of pace from the truck.

  10. May 18, 2018 at 10:21 AM
    #10
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    Here is the sleeping area cabinets... needs some work. Also they are way to low! My toes hit the bottom of the cabinets if i lay on my back.

    Also looks like Dude already found his spot! This is his first time checking out the new camper.

    Not sure what that is on the bottom... But there is a plug on the outside for an extension cord to power it.
    [​IMG]

    scottalot and Drainbung like this.
  11. May 18, 2018 at 10:39 AM
    #11
    ETXTacoma

    ETXTacoma TTC #050 in the 903

    Joined:
    Feb 12, 2016
    Member:
    #177942
    Messages:
    16,031
    Gender:
    Male
    First Name:
    Steven
    Tyler, Texas
    Vehicle:
    2014 DCSB Tacoma TRD OR
    Dynatrac ProRock 60 Rear Axle, that is important enough.
    Magnetek/Parallax Power Inverter/Converter

  12. May 18, 2018 at 10:47 AM
    #12
    kevsumac

    kevsumac Member

    Joined:
    May 10, 2018
    Member:
    #253106
    Messages:
    12
    Gender:
    Male
    First Name:
    Kevin
    Vehicle:
    2017 Tacoma TRD Sport
    What do you do with the lease once you kill them?

  13. May 18, 2018 at 10:53 AM
    #13
    scocar

    scocar Going Full Vanilla!

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,561
    First Name:
    Dick
    Erehwon
    Vehicle:
    The Silver Steed of Righteousness
    Animal husbandry, Bullshit detection, Very runny cheese
  14. May 18, 2018 at 11:46 AM
    #14
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    Nice! Yeah i can see myself finding a bunch of info on that site! :fistbump:

    scocar likes this.
  15. May 18, 2018 at 12:05 PM
    #15
    scocar

    scocar Going Full Vanilla!

    Joined:
    Nov 11, 2009
    Member:
    #25814
    Messages:
    38,561
    First Name:
    Dick
    Erehwon
    Vehicle:
    The Silver Steed of Righteousness
    Animal husbandry, Bullshit detection, Very runny cheese
    So is that papier maché or what?

  16. May 21, 2018 at 1:38 PM
    #16
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    Haha. Nah man, its acutally pretty strong! Its covered in fiberglass, other than a couple places its still pretty solid!

    ETXTacoma likes this.
  17. May 21, 2018 at 1:43 PM
    #17
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
  18. May 21, 2018 at 1:46 PM
    #18
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s

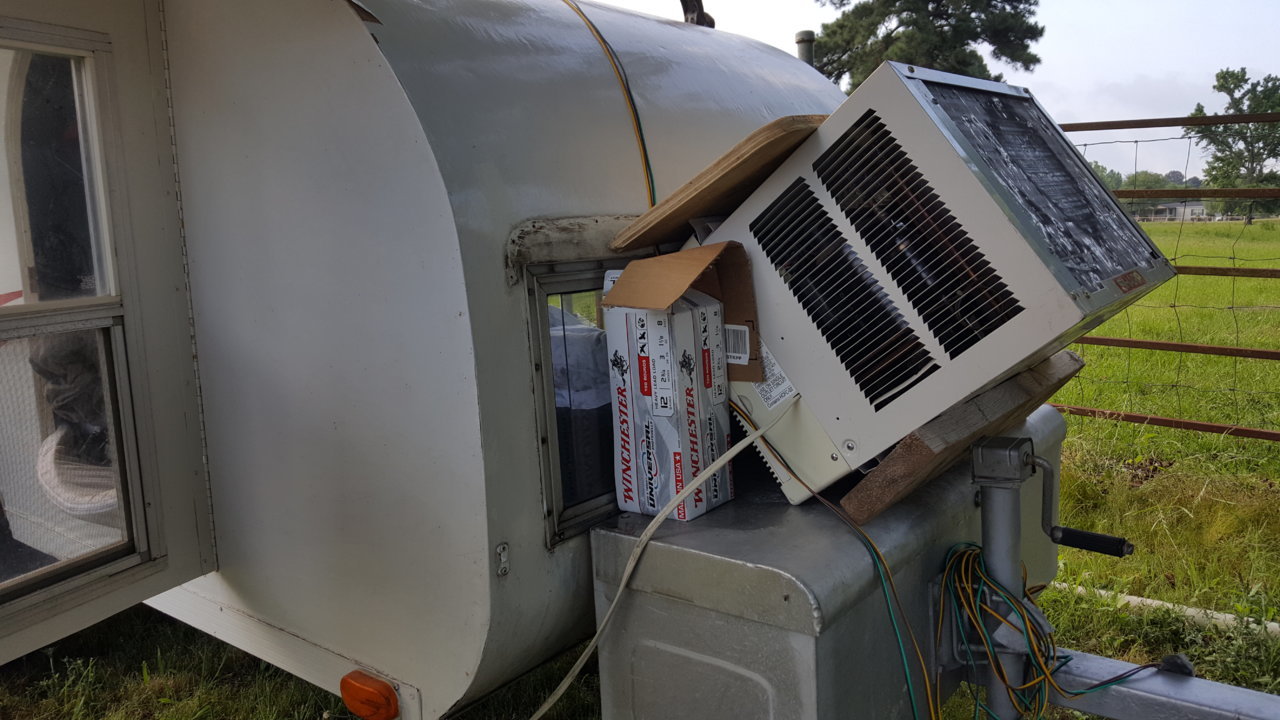

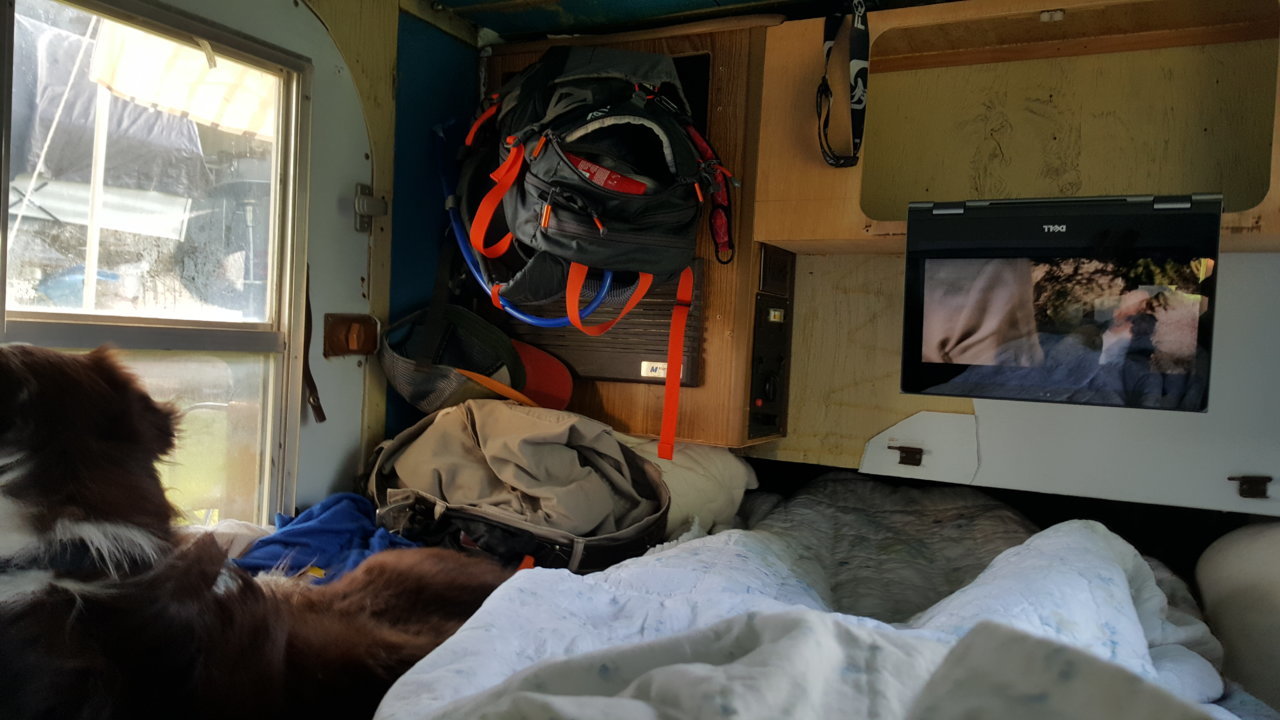

    I camped in it over the weekend to test out the a/c in the front window method. Actually got cold a couple times at night. Need to figure out something for the a/c though... all the cold air blows out the sides and the vents are way taller then the window...

    [​IMG]
    [​IMG]

    ETXTacoma and Drainbung like this.
  19. May 21, 2018 at 1:47 PM
    #19
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,736
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    So i did a few improvements this weekend....

    • Removed all the old lights
    • Removed the old struts
    • removed old fire extinguisher
    • removed old rear door overhead light
    • Removed some of the old wiring
    • Removed the old "door" hinges
    • Installed new "piano" hinges
    • Installed new LED lights in the rear door. Going to take back the larger round red LEDs and exchange them for the smaller LEDs the size of the yellow button LEDs.
    • Added a 1.5" memory foam mattress on top of the 3" pad already in there. Needs to be trimmed to size though.
      • about to buy a new axle as soon as i find out how long it needs to be.
      • Also looking for 2 17" spare tundra wheel & tire combos to put on the trailer. If you know anyone selling them cheap let me know.

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    ETXTacoma and Drainbung like this.
  20. May 21, 2018 at 1:48 PM
    #20
    Tacodriver08

    Tacodriver08 To have faith, is to trust yourself to the water

    Joined:
    Mar 3, 2011
    Member:
    #52270
    Messages:
    1,961
    Gender:
    Male
    First Name:
    Chris
    Texas
    Vehicle:
    05 X-Cab 4x4
    Too many to list
    Hey @Zac of all trades ive got a 3500lb axle from that southwest wheel company at the house that’s yours for cheap. I bought it for my trailer build but measured wrong and it ended up being to narrow. It doesn’t have hubs on it but it’s wms is 65” with hubs. Also have my old rims from the truck, there’s 4 that you can have to throw some tires on if you want.

To Top
