FWP Fab Teardrop Trailer Build / Restoration #overlandAF

Discussion in 'First World Problems Fabrication' started by Zac of all trades, May 18, 2018.

  1. Jul 5, 2018 at 8:47 PM
    #41
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,704
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    Thanks! I should be building the fender flairs for them soon. Going with square over the rounded ones.

    ETXTacoma likes this.
  2. Jul 5, 2018 at 8:48 PM
    #42
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,704
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    :wave:

  3. Jul 6, 2018 at 4:10 PM
    #43
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,704
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    So im looking at this fuse block for the trailer....
    [​IMG]

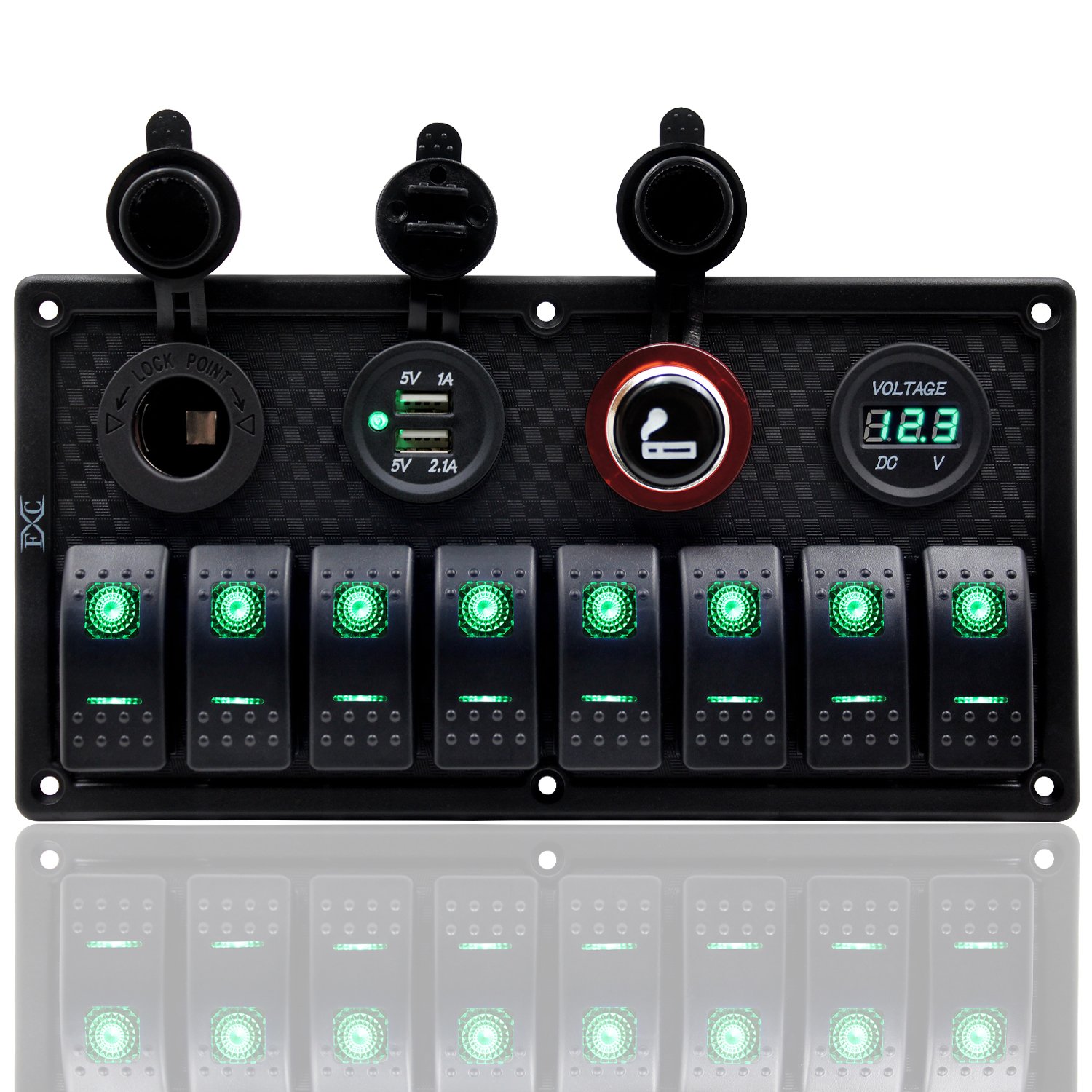

    And i think this would pair with it nicely... 8 switches, 2 12v plugs, volt meter, and 2 usb plugs. Anyone have suggestions on other prebuilt 8 switch setups?
    [​IMG]

  4. Jul 6, 2018 at 10:30 PM
    #44
    ETXTacoma

    ETXTacoma TTC #050 in the 903

    Joined:
    Feb 12, 2016
    Member:
    #177942
    Messages:
    15,981
    Gender:
    Male
    First Name:
    Steven
    Tyler, Texas
    Vehicle:
    2014 DCSB Tacoma TRD OR
    Dynatrac ProRock 60 Rear Axle, that is important enough.
    I would do that fuse panel, but a different switch setup... if you want the outlet setup, Blue Sea makes one that I have that I put in the bed of the truck that is really nice.

    Almost as a pay once, cry once setup when it comes to electrical...



    Here is what I would suggest, just from what I am thinking out loud here.

    Volt Meter - yes it is useful, but if you want a way to monitor your battery on the trailer, I would instead put a National Luna Battery Monitor (http://www.sierraexpeditions.com/index.php?l=product_list&c=297) not sure if you are going to run dual battery or single battery on the trailer or how you are planning on doing it honestly, but this way you have an actual monitor with alarm for the battery so if the battery does get low if will start alarming you. Not sure if you were going to put Solar on the trailer or not but this way it will also let you know if the batteries are being charged or not...

    12V outlets - http://a.co/fOyDPIK - you can either do that one, or one that has two dual USB outlets in it plus the cig lighter style port. These are a fused panel as well...

    I would also suggest to be sure to put in a main breaker between the battery and everything so you can have one main shut off point to everything just in case.

    As far as switches go, you could also do a Blue Sea WeatherDeck panel as well, but those do get pricey depending on what you want. A 6 Pos, Switch Only setup is about $60 (http://a.co/9ZF82Zl) which I don't think you would need to have each switch fused if you are also running the fuse block and each thing is fused from that already. An 8 Pos, switch only is $71 (http://a.co/g5j1krn)

    This way everything is waterproof and weatherproof, properly fused and everything else.

  5. Jul 9, 2018 at 12:06 PM
    #45
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,704
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    Trailer progress photos... sorry about the lighting in these photos. working with the caliraised sideshooters.

    Storage box installed...
    • 8" deep
    • 15" wide
    • 21.5" long

    Also worked on a design for a new frame so i can get a longer tongue...
    • Removed the old tool box, going to put the cooler cage there for the RTIC 65
    • build a new tool box in front of that to hold wheel chocks/leveling boards/etc.
    • extend the neck about 2.5 feet
    • multi axes hitch????? or weld on the old hitch?
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Wild Crow and ETXTacoma like this.
  6. Jul 9, 2018 at 12:08 PM
    #46
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,704
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    I need to just go to the blue sea website and look at everything they have to offer....

    ETXTacoma likes this.
  7. Jul 9, 2018 at 12:11 PM
    #47
    ETXTacoma

    ETXTacoma TTC #050 in the 903

    Joined:
    Feb 12, 2016
    Member:
    #177942
    Messages:
    15,981
    Gender:
    Male
    First Name:
    Steven
    Tyler, Texas
    Vehicle:
    2014 DCSB Tacoma TRD OR
    Dynatrac ProRock 60 Rear Axle, that is important enough.
    Pretty much...

    Build it right so it won't burn down or something...

  8. Jul 9, 2018 at 2:50 PM
    #48
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,704
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    Haha. yeah if you know me then you know i dont half ass stuff. This trailer will be nice when im done with it, im not buying all top name brand items, i will get the cheaper stuff where i can, but the eletrical stuff will be done up nice.

    Just need to not listen to my step dad because he like to get the cheap stuff because "its the same thing" but his things tend to break all the time and he has to fix/replace his "same things"

    Those switches that i posted though are water/weather proof so that is something i was concidering, i just need to find a place that i want to mount that big ass switch plate.... May need to go with a couple smaller ones, 1 for the inside, 1 for the rear. And maybe one on the outside for power access.

    There is a hole already in the side of my trailer next to the door, so instead of patching it, i may use it as a power recepticle to charge stuff, or it may go as a porch light.

    ETXTacoma likes this.
  9. Jul 16, 2018 at 6:27 PM
    #49
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,704
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    Electrical stuff is starting to roll in...
    [​IMG]

    Freshly ordered and on the way....
    • roof vent
    • battery shut off switch
    • 40 amp circuit breaker
    • 40 amp fuse with holder
    • 16 gauge wire (6 colors / 100ft)
    • ring terminals
    • heat shrink
    • 4 " zip ties for cable management

  10. Jul 16, 2018 at 8:50 PM
    #50
    ETXTacoma

    ETXTacoma TTC #050 in the 903

    Joined:
    Feb 12, 2016
    Member:
    #177942
    Messages:
    15,981
    Gender:
    Male
    First Name:
    Steven
    Tyler, Texas
    Vehicle:
    2014 DCSB Tacoma TRD OR
    Dynatrac ProRock 60 Rear Axle, that is important enough.
    atta boy!!!!

    When will you be working on the trailer again? I would not mind helping out if you needed some helping?

  11. Jul 16, 2018 at 9:13 PM
    #51
    POOLGUY

    POOLGUY Well-Known Member

    Joined:
    Feb 19, 2013
    Member:
    #97958
    Messages:
    2,112
    Gender:
    Male
    First Name:
    JEFF
    ALABAMA
    Vehicle:
    08 TRD SPORT 6 SPEED
    CUSTOM SAFARI RACK, CUSTOM TABLET MOUNT, REAR HELPER SPRINGS AND FRONT LEVELING KIT
  12. Jul 16, 2018 at 9:36 PM
    #52
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,704
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    Im thinking maybe this weekend. I will have the rest of the stuff im ordering come in this weekend. i just need to design the electrical layout and then the fun will start.

    Probably cutting whole in the top this weekend to install that roof vent. Need to pick up some sealant for the vent, and some flex seal for under the new storage box to protect it from the elements.

    And i will probably try to run the wires for the trailer lights.

    Would like to start welding on the new frame and tongue. Not sure when that will happen though.

    ETXTacoma and defythemall like this.
  13. Jul 16, 2018 at 10:33 PM
    #53
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,704
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    Last edited: Jul 16, 2018
    ETXTacoma likes this.
  14. Jul 17, 2018 at 10:47 AM
    #54
    TACORIDER

    TACORIDER Just another statistic

    Joined:
    Jun 25, 2012
    Member:
    #81357
    Messages:
    5,667
    Gender:
    Male
    First Name:
    JAKE
    EAST TAWAKONI TEXAS
    Vehicle:
    12 TACO and some other Toyota’s
    If you ordered that wiring off Amazon be careful because a lot of the wiring I looked at was aluminum or copper coated. Copper only was hard to find

  15. Jul 17, 2018 at 2:39 PM
    #55
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,704
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    I will get AWG wire for the battery wire and such, but the wire that will be powering my LEDs im not too concerned with.

    What gauge wire did you use on your trailer?

    Last edited: Jul 17, 2018
  16. Jul 17, 2018 at 3:26 PM
    #56
    TACORIDER

    TACORIDER Just another statistic

    Joined:
    Jun 25, 2012
    Member:
    #81357
    Messages:
    5,667
    Gender:
    Male
    First Name:
    JAKE
    EAST TAWAKONI TEXAS
    Vehicle:
    12 TACO and some other Toyota’s
    I used the two wire jacketed from etrailer for the brakes and wiring for the tailights I used 10 or 12 into this junction box
    https://www.amazon.com/gp/aw/d/B01EO17JBS?psc=1&ref=yo_pop_mb_pd_title

    Then this pigtail at the other end into the junction box
    https://www.amazon.com/gp/aw/d/B00G5CGHOU?psc=1&ref=yo_pop_mb_pd_title

  17. Jul 17, 2018 at 4:05 PM
    #57
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,704
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    Welp just ordered the Inteli-power 4000 to manage all my electrical stuff. Every review i have read has been pretty positive so far, i will let you know what my opinion is once its installed. Also picked up some 12 gauge wire, and a roof vent install kit.

    Now to return the Blue Sea fuse block / 40 amp breaker / and 40 amp fuse i just ordered yesterday....

    Wild Crow and ETXTacoma like this.
  18. Jul 17, 2018 at 4:06 PM
    #58
    ETXTacoma

    ETXTacoma TTC #050 in the 903

    Joined:
    Feb 12, 2016
    Member:
    #177942
    Messages:
    15,981
    Gender:
    Male
    First Name:
    Steven
    Tyler, Texas
    Vehicle:
    2014 DCSB Tacoma TRD OR
    Dynatrac ProRock 60 Rear Axle, that is important enough.
    Pretty excited to see how it works out for you man.

  19. Jul 19, 2018 at 1:42 PM
    #59
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,704
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    More stuff rolling in....
    • Power Center
    • 12GA wire (6 colors)
    • Roof Vent
    • vent install kit
    • battery isolation switches
    [​IMG]

    Last edited: Jul 19, 2018
    ETXTacoma likes this.
  20. Jul 23, 2018 at 4:26 PM
    #60
    Zac of all trades

    Zac of all trades [OP] FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,704
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    More progress on the trailer this weekend...

    • Hole has been cut for the roof vent/fan. Need to get the wires ran, and head liner cut so i can do the final mount and power.

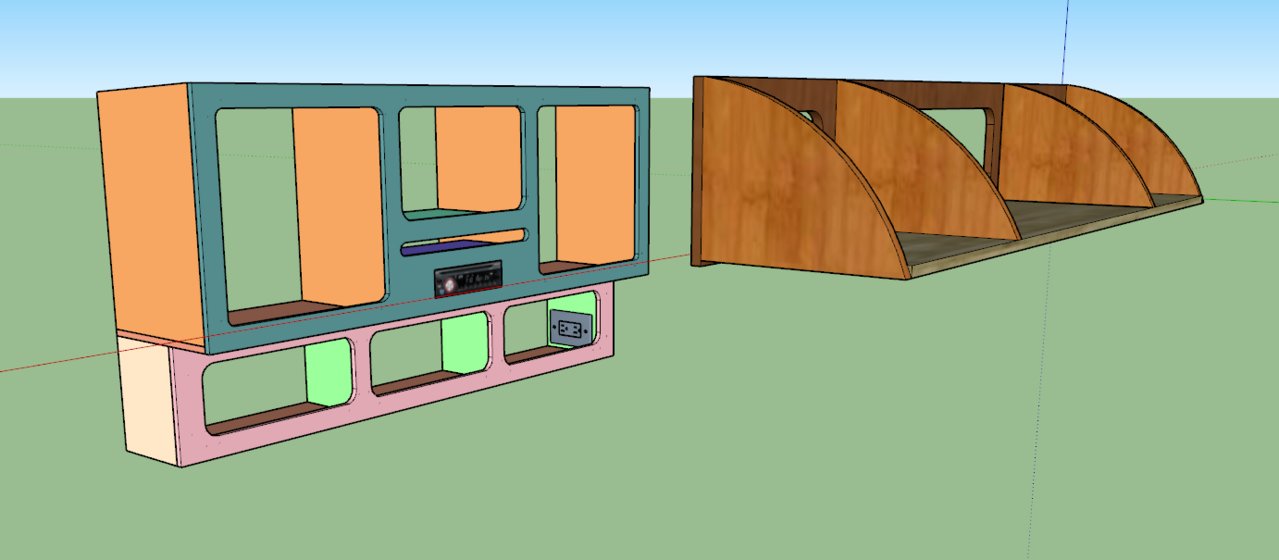

    • Extended the rear deck and made an enclosed area for battery/electrical storage on one side, general storage on the other. (Probably going to redo this with a table saw as the cuts were not perfectly straight, which caused the measurements for the electrical box to be slightly crooked. That would drive me nuts every time i looked at it so it will be done again. Its only 2 boards so it will be easy.)
    • Rear hatch door has been fully wired for tow lights, "cook" lights, and speakers.
    • Bought some #4 welding wire for battery leads, and battery terminals
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]


    Probably going with these speakers if i can not find some 6x9s...
    [​IMG]

    Also got a free inline amplifier that i need to test to see if it works. If so its going in the trailer!
    45w RMS x 4
    [​IMG]

    Found this for about $60
    [​IMG]

    Wild Crow and ETXTacoma like this.
