garage door button with pictures

Discussion in '2nd Gen. Tacomas' started by spyshot, Aug 26, 2010.

  1. Aug 26, 2010 at 2:56 PM
    #1
    spyshot

    spyshot [OP] Well-Known Member

    Joined:
    May 31, 2009
    Member:
    #17830
    Messages:
    86
    Gender:
    Male
    Dayton Ohio
    Vehicle:
    09 TDR OFFRoad
    i wanted to put a button in the blank spot next to the A-Trac button below the HVAC controls. this button activates my garage door using my wireless remote. i didn't find any posts on putting a switch in this location, so i figured I'd post some pics if someone else was interested in doing that.

    i bought a push button switch: B Electrical Inc Model: GSW-22. I recommend this exact model because it worked perfect, you'll see why later.

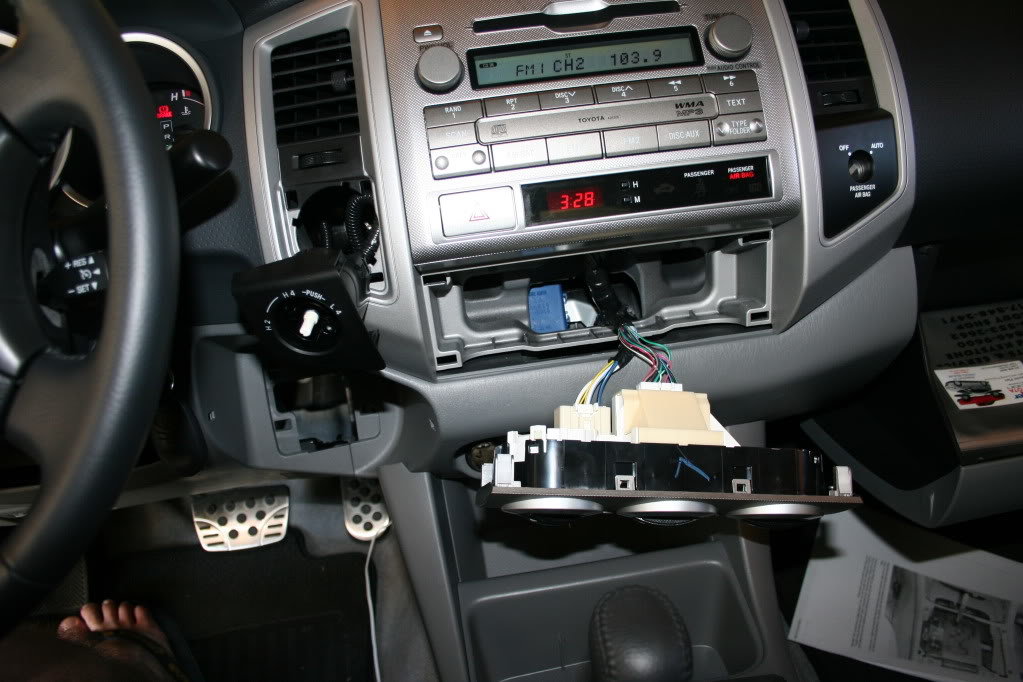

    start by removing the 4X4 switch knob then pull the 4X4 shroud out. should pull straight out. i used two needle nose pliers to grab behind where the knob was and pull. then reach your fingers behind the HVAC controls and push on the clips that hold the housing in. that pops the left side of the HVAC off and the right comes off with some more tweaking and pulling.

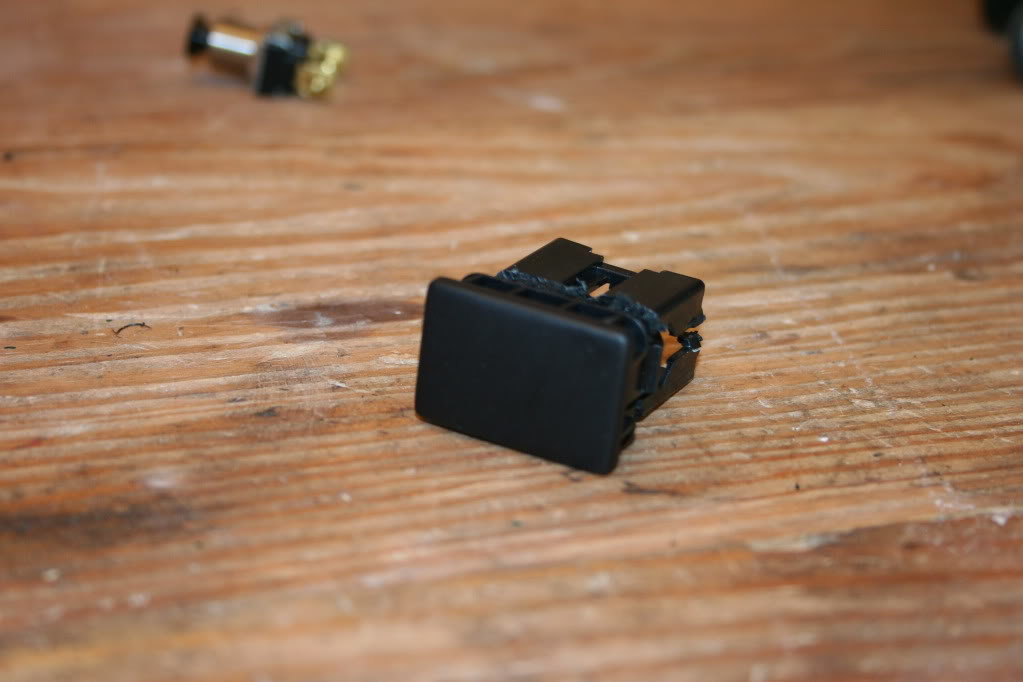

    I put my fingers in the hole above the blank and felt around till i could feel the clip holding the blank in on the top. and after some pushing it popped out.
    [​IMG]

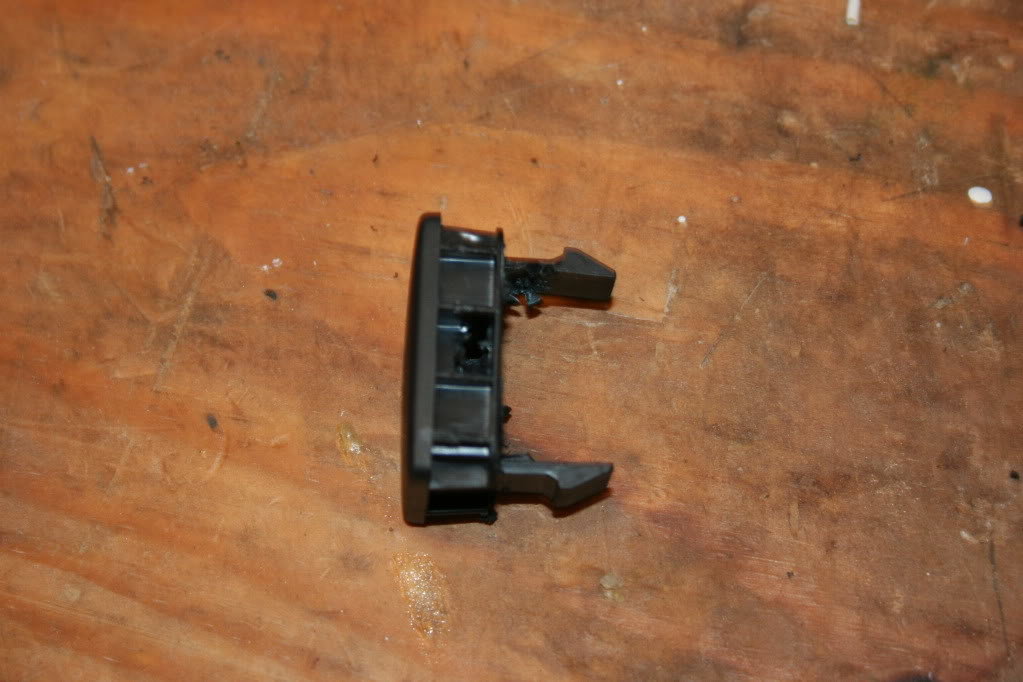

    as you can see, there is a lot of plastic on the back side of the blank. i used a dremel and other tools at my disposal to remove the excess plastic in order to make room for the switch.
    [​IMG]


    here's what it looks like after the cutting. make sure you do not cut off the clips. these will be used to hold the blank and switch back in when you're done.
    [​IMG]

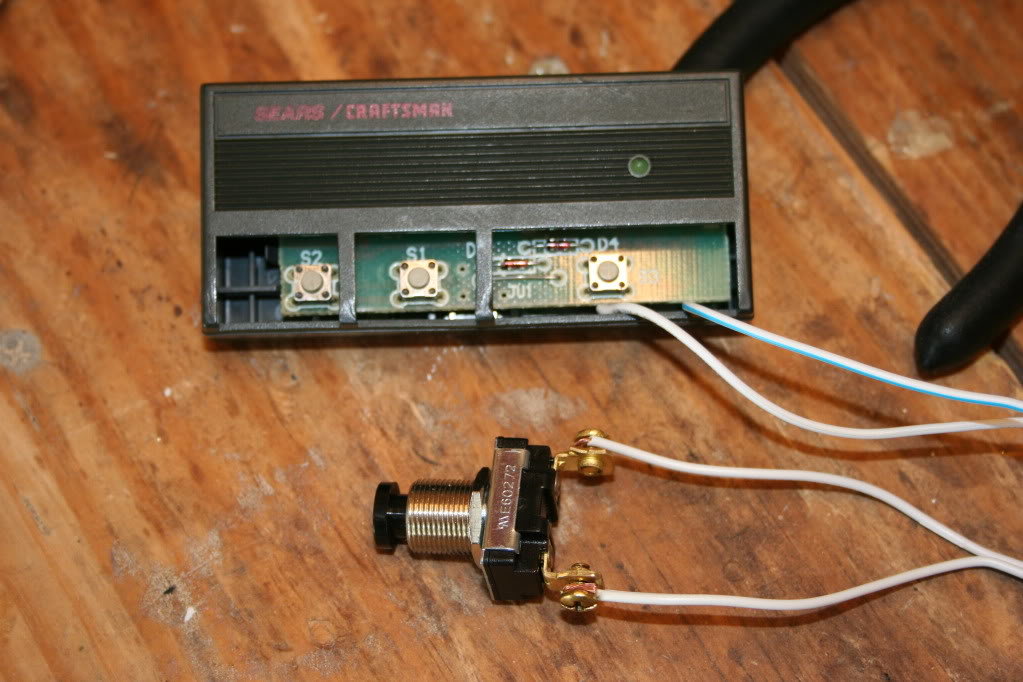

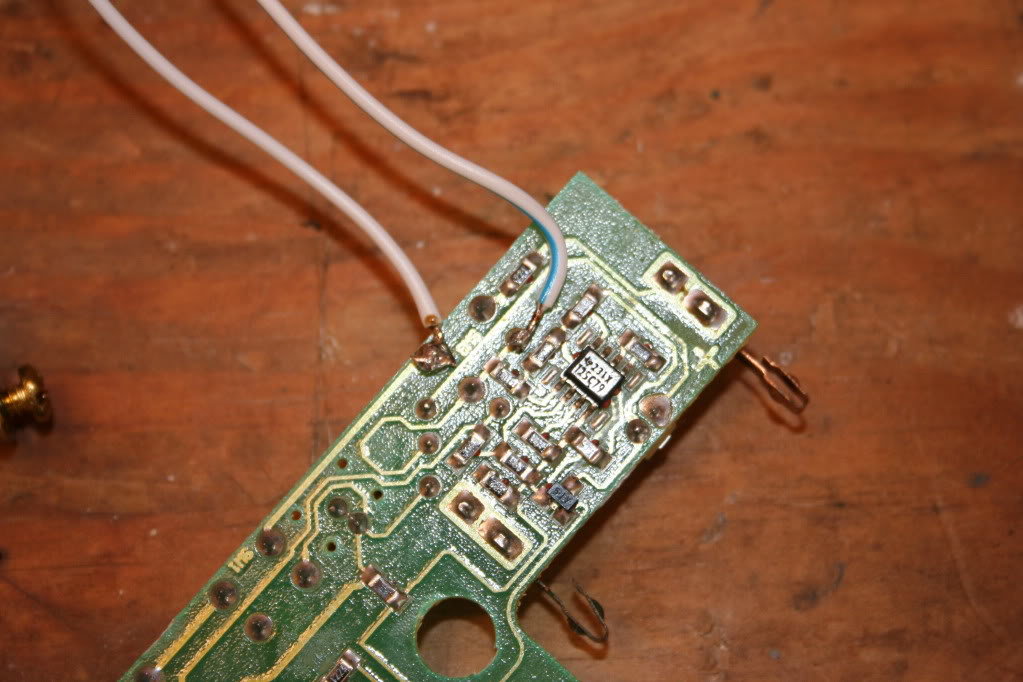

    every garage door remote is different. you'll have to open yours up and determine where to connect your wires to complete the circuit when the new switch in used. here's the circuit board out of my remote.
    [​IMG]


    then i took the button covers out of the remote and here is my completed setup.
    [​IMG]

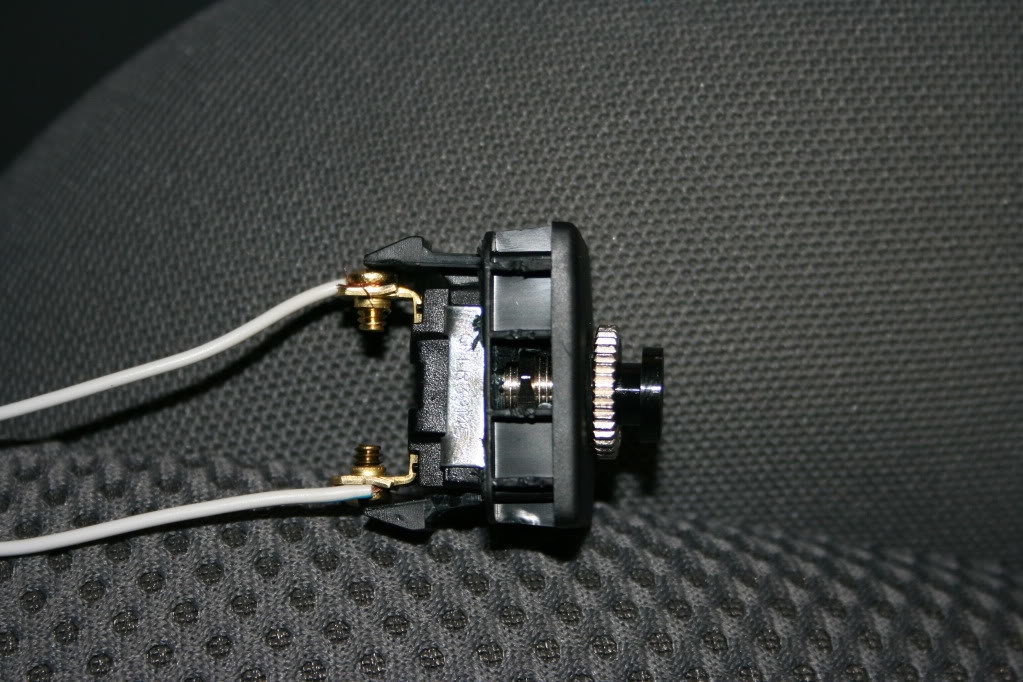

    you'll need to drill a hole in the blank and insert the switch. notice how perfectly it fits? the only thing i did was i bent the brass arms inward a little bit, to allow the clips on the blank to flex in order for it to be inserted back into the dash.
    [​IMG]

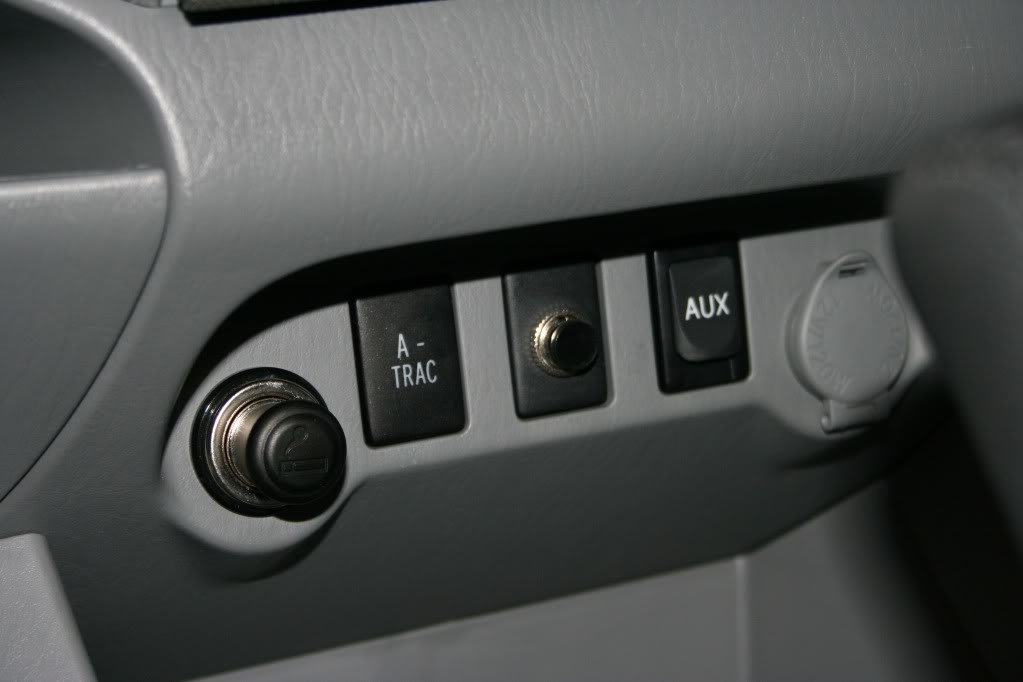

    here is the finished project. be sure to do several tests along the way. you don't want to repeat any of this if you don't have to. after putting the blank back i tucked the remote under the dash just to the right of the steering column. easy access in order to change the battery when needed.
    [​IMG]


    helper is optional....
