Garmin 60CSx Install in 05+ Tacoma

Discussion in '2nd Gen. Tacomas (2005-2015)' started by barlowrs, Sep 13, 2010.

  1. Sep 13, 2010 at 3:36 PM
    #1
    barlowrs

    barlowrs [OP] Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    597
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
    OK first off, I want to give credit for this one, as I cannot take any credit. This idea was previously done by “DblD” in this thread: http://www.tacomaworld.com/forum/2nd-gen-tacomas/93807-ram-gps-mount.html

    I really like his idea, so I stole it and took a few steps further. So, on to the write-up:

    The Parts needed:
    RAM Mount Garmin 60CSx Astro Cradle RAM-HOL-GA12U Model: RAM-HOL-GA12U
    RAM Mount Diamond Plate with 1 inch Ball RAM-B-238U Model: RAM-B-238U
    RAM Mount 0.25 inch NPT Thread with Single 1 inch Ball Model: RAM-B-218-1U
    RAM Mount Short Arm B-Socket RAM-B-201U-A Model: RAM-B-201U-A
    Garmin Cigarette Lighter Adapter Model: 010-10085-00
    7/16 Fine Thread Bolt or threaded Rod
    6 mm metric tap
    6mm metric bolt or threaded rod

    Steps:

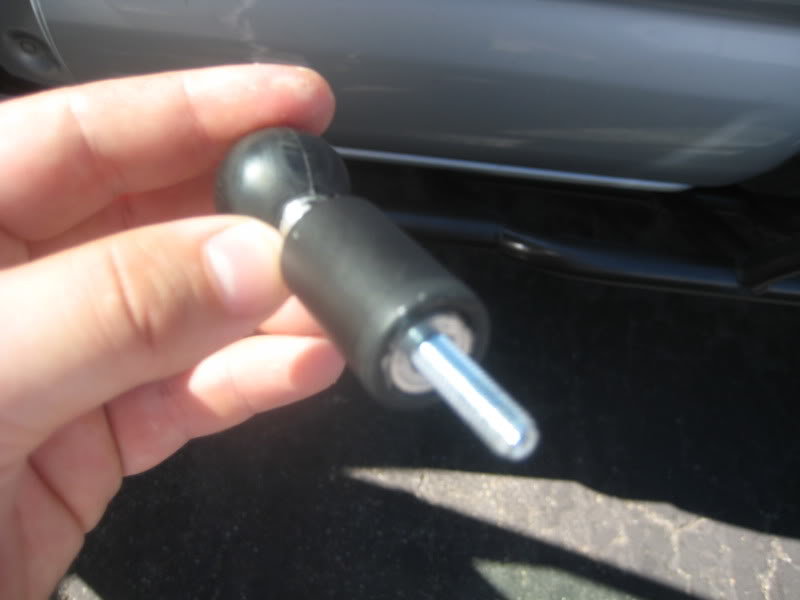

    First thing was to make the ballmount that interfaces with the trucks “ohh $hit” handle. This is where me and DblDs methods were a bit different. The threads that the ballmount comes with is 7/16 fine thread. I took a small threaded rod, cut it to length (about ¾” long) so that it will thread in and sit flush inside the ballmount. If you don’t have threaded rod, just cut the head off a bolt. Next, while it was still on the lathe, I drilled her right down the center and tapped it with a 6mm tap. DO NOT DRILL AND TAP ALL THE WAY THROUGH (make it a blind hole) otherwise your metric bolt will just thread into your mount and disappear before mating with the truck.
    I then took my metric bolt (or threaded rod) chopped the head off and threaded it in so that it was about an inch or so sticking out:

    [​IMG]

    Add some locktite and you are good to go

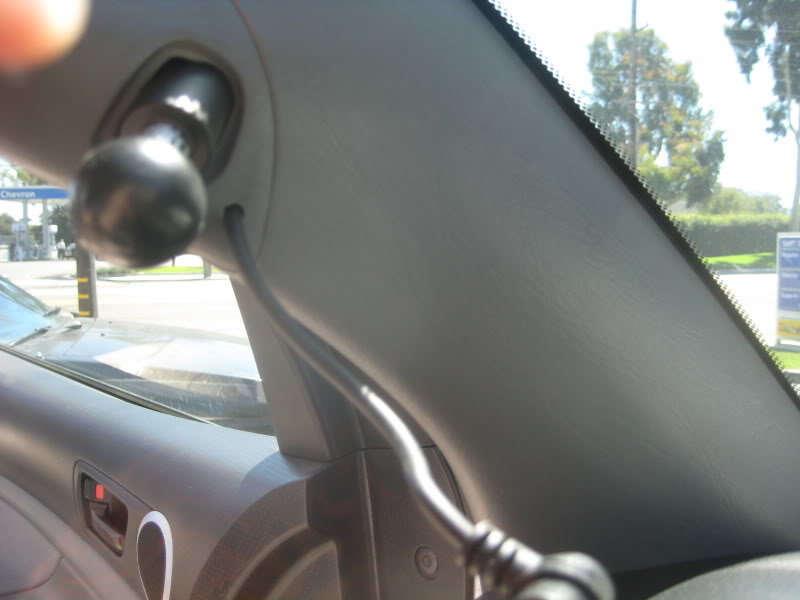

    Now, remove the a-pillar from the truck (very easy..two bolts) so that you can route the charger cable. While it is off, Drill a hole to run the wire out so that it can reach your GPS. Then re-install the a-pillar using the new ballmount in place of the lower “ohh $hit” handle mounting bolt location:
    [​IMG]

    In the picture above, you can see the charger wire going through the hole in the a-pillar.

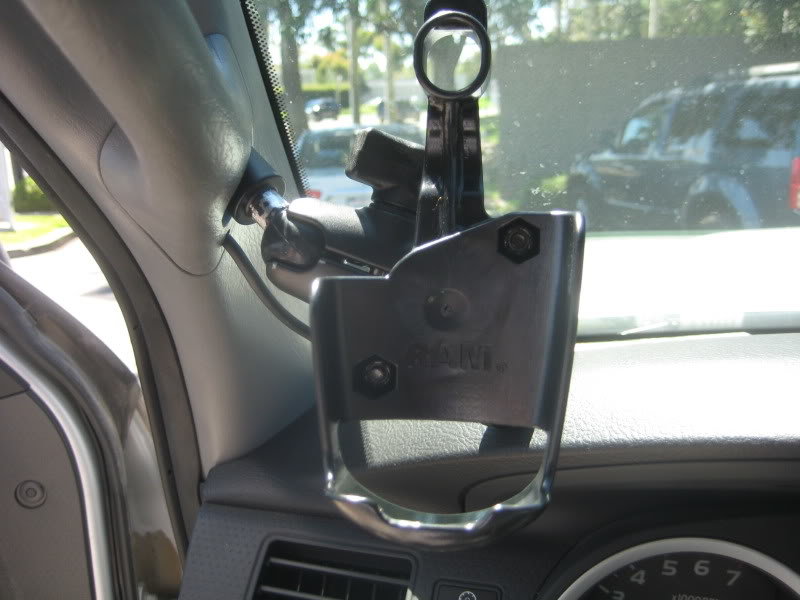

    Now, add the small arm and cradle and orient it how you like:

    [​IMG]

    Next was to wire it, you can easily keep the cigarette lighter plug and just use that, however, I wanted to hardwire mine into my auxiliary fuse block. To do I routed it into my engine bay through the grommet in the fire wall. I then cut the cig lighter plug off so that it is just the wires.

    NOTE THAT A 1.5A FUSE IS CONTAINED IN THE CIG LIGHTER PLUG, SO YOU MUST FUSE IT EXTERNALLY IF YOU REMOVE THE PLUG

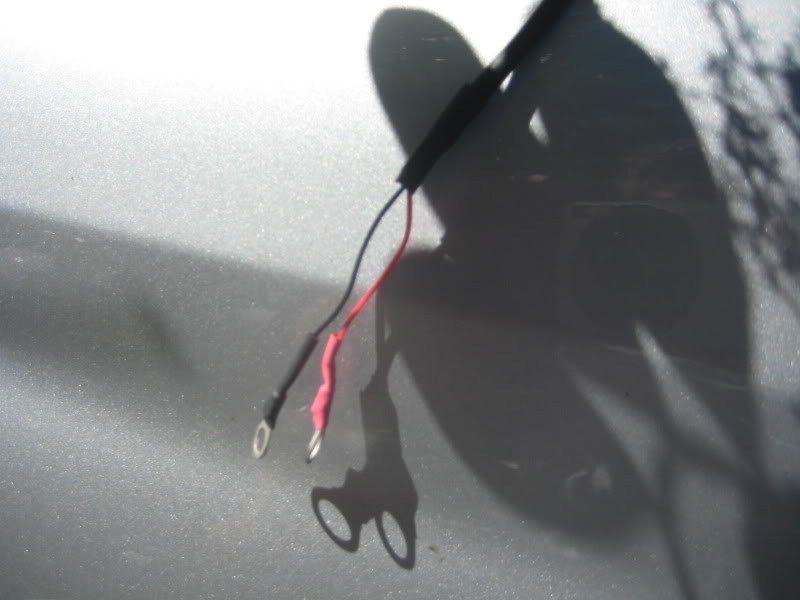

    I then routed it to the fuse block, cut it to length and added standard ring terminals:

    [​IMG]

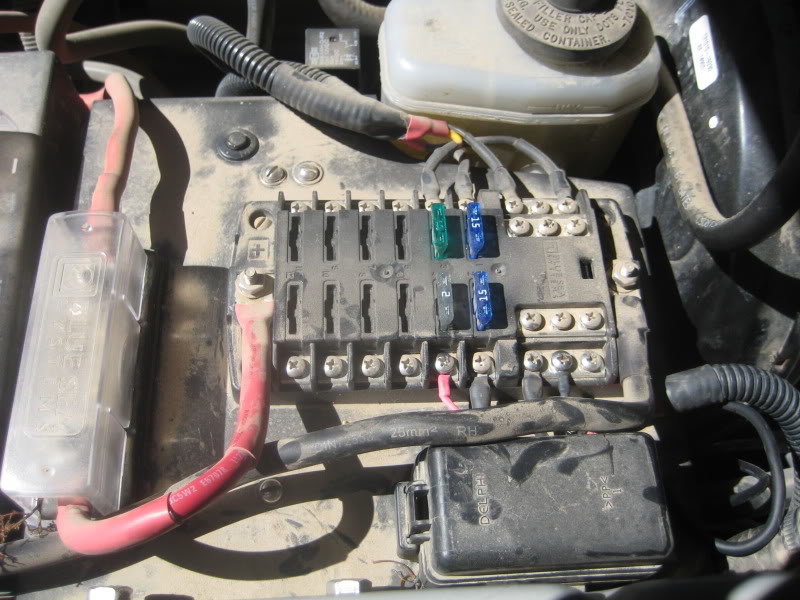

    All that is left is to plug it into the fuse block and fuse it. I used a 2A fuse (I will try to find a proper 1.5 “ fuse that will fit later, but 2A is the smallest I had laying around):

    [​IMG]

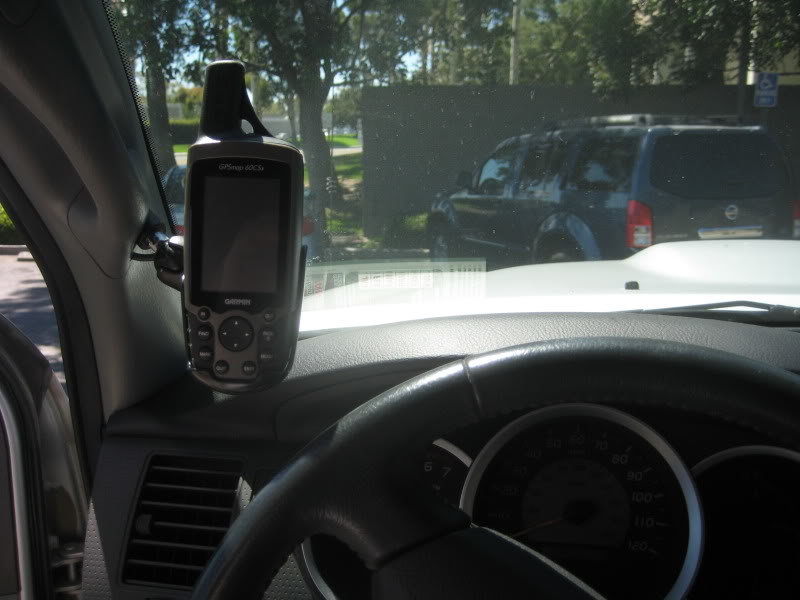

    And the final product, as seen from the driver’s seat:
    [​IMG]

  2. Sep 13, 2010 at 4:15 PM
    #2
    stangkeip10

    stangkeip10 Well-Known Member

    Joined:
    Mar 29, 2010
    Member:
    #34210
    Messages:
    125
    Gender:
    Male
    Cincinnati
    Vehicle:
    '10 Magnet Gray 4x4 Access Cab SR5
    BHLM, Black OR TRD wheels, BFG Mud terrains, yellow wire mod, 5100s @ 2.5, toytec tsb aal
    a vent mount would be a whole lot easier and look a whole lot better

  3. Sep 13, 2010 at 4:19 PM
    #3
    barlowrs

    barlowrs [OP] Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    597
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
    Cool, then do a vent mount. I prefer this, hence why I did it. When I am out in the desert, I like having all my vents clear, not to mention, I like having my GPS right there so I dont have to look down to see it. To each his own

  4. Sep 13, 2010 at 4:23 PM
    #4
    mandzach

    mandzach Well-Known Member

    Joined:
    Dec 23, 2006
    Member:
    #550
    Messages:
    348
    Gender:
    Male
    When your offroad, it only takes a second of looking down to ruin a day.

    I like the setup, but for me to evaluate the setup cost is a factor. Approx what did the whole mounting setup run you?

  5. Sep 13, 2010 at 4:31 PM
    #5
    barlowrs

    barlowrs [OP] Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    597
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
    Yeah, thats my feeling, I want it as close to line of sight as I can so I do not have to look around to find it. Total cost including the car charger and mount components was right about $40.00. (Does not include the fuse, or threaded rod, I had laying around, but that is cheap stuff as you can get a single bolt and cut off the head, or glue it like DblD did as well)

  6. Sep 13, 2010 at 4:36 PM
    #6
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    10,733
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Vehicle:
    The "Big Nig"
    Lifted, Locked, Armored. Ready To Wheel.
    Thats pretty sick. I've looked into buying a RAM mount for my motorcycle for ipod or gps. If i recall they were a bit pricey so i just use my pocket, but that looks cool and I bet for the desert its perfect.

  7. Sep 13, 2010 at 4:48 PM
    #7
    barlowrs

    barlowrs [OP] Well-Known Member

    Joined:
    Feb 12, 2010
    Member:
    #31230
    Messages:
    597
    Gender:
    Male
    First Name:
    Robert
    So Cal
    Vehicle:
    06 Toyota Tacoma Sport 4x4
    Build Thread: http://www.tacomaworld.com/forum/builds/74926-barlowrs-06-taco-expo-build-thread.html OME Lift, FJ SE Wheels, 255/85 KM2, Allpro Plate Bumper, 8K Winch, Synthetic Line, Yaesu FT-8800R, Custom Sliders Sockmonkey bedside decals, BHLM, base model grille, TRD offroad (black) trim
    RAM components really arnt that bad, check out GPScity.com and you can piece together the mount you want. They are VERY strong as well. But yeah, on my bike my Ipod stays in my pocket haha, and I have no GPS as its a track bike...you can get a tank bag to hold your GPS as well

  8. Dec 6, 2010 at 9:36 AM
    #8
    gordynor

    gordynor Well-Known Member

    Joined:
    Nov 30, 2010
    Member:
    #46955
    Messages:
    59
    Gender:
    Male
    First Name:
    Daniel
    San Diego
    Vehicle:
    2011 MGM Double Cab 4x4 TRD Off Road
    Steering intermediate shaft TSB, Rear leaf TSB, Bilstien 5100 F&R, Viair 400 mounted under the hood, rear diff breather, re-routed crossmember exhaust, fixed GPS mount, in-dash CB radio, double din HU, trimmed mud flaps, etc...
    Robert,

    I love your idea and your write up is awesome. Before I jump into it, can I ask a question about the power source? I've been scouring Google for ways to hardwire the 5v USB wire to the car (I have the Garmin Oregon which runs off of USB) and the best I can find is something really bulky like this (http://www.amazon.com/GA-NHWC-Garmi...3?s=electronics&ie=UTF8&qid=1291656505&sr=1-3). In your post you run it directly to the fuse panel and use a 1.5A fuse... how did you convert the 12v source to 5v though? I really don't want to zip-tie some bulky box under the dash...

    Thanks! You've got an awesome rig! I love your build thread...

    Daniel

  9. Dec 6, 2010 at 9:51 AM
    #9
    TexasIslandBoy

    TexasIslandBoy THE RED DRAGON!!

    Joined:
    Jun 10, 2009
    Member:
    #18262
    Messages:
    3,203
    Gender:
    Male
    First Name:
    Andrew
    South Texas. SPI
    Vehicle:
    07' trd offroad 4X4 (For Sale)
    pro comp 6inch lift 35'' tires moto 950's radfo coilovers magnaflow exhaust 5/16" front skidplate usa spec ipod interface tree pin strip mod dry drop in filter full size BFG KM2 spare
    what gps is that?

  10. Dec 6, 2010 at 9:53 AM
    #10
    MGH-PA

    MGH-PA Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14940
    Messages:
    257
    Gender:
    Male
    Northcentral, PA
    Vehicle:
    05 Tacoma TRD AC 4x4
    265/75/16 Nitto Terra Grapplers, Bestop
    Seriously?

  11. Dec 6, 2010 at 10:32 AM
    #11
    cactuscorn

    cactuscorn Another FNG

    Joined:
    Oct 20, 2010
    Member:
    #44966
    Messages:
    502
    Gender:
    Male
    El Paso, TX
    Vehicle:
    '10 SR5 PreRunner
    OEM bedmat, D rings in front keep it from gettin ripped off. Wet Okole seat covers
    is that a aftermarket fuse block? i was bummed when i didnt see the same on my '10. i cant wait to lose all the crap ive got plugged into my dc outlets. very clean job overall man.

  12. Dec 6, 2010 at 10:52 AM
    #12
    unentered

    unentered Son of Baconator

    Joined:
    Jul 10, 2010
    Member:
    #39998
    Messages:
    341
    Gender:
    Male
    First Name:
    Jacob
    Deep Creek, VA
    Vehicle:
    DCLB4x4MGM
    AMS Filter, WT Mats, Supertop, ScanGauge.
    Magellan Nuvi XL540TM ;)

  13. Dec 6, 2010 at 12:02 PM
    #13
    gordynor

    gordynor Well-Known Member

    Joined:
    Nov 30, 2010
    Member:
    #46955
    Messages:
    59
    Gender:
    Male
    First Name:
    Daniel
    San Diego
    Vehicle:
    2011 MGM Double Cab 4x4 TRD Off Road
    Steering intermediate shaft TSB, Rear leaf TSB, Bilstien 5100 F&R, Viair 400 mounted under the hood, rear diff breather, re-routed crossmember exhaust, fixed GPS mount, in-dash CB radio, double din HU, trimmed mud flaps, etc...
    I found another, smaller option, but it's about $50! No way...

    My Oregon GPS charges via USB. So, I think if I dismantle a USB car charger (made to fit into the cigarette adapter) I can wire that up to the fuse box with a 1.5A add-a-circuit and essentially copy the model linked above. The wiring would be

    Fuse box >> 1.5A add-a-circuit (with ground, of course) >> 12v to 5v regulator (from the USB car charger) >> USB >> Garmin

    Does that sound right? I really don't want to fry anything but so far that seems what these products do.

  14. Dec 6, 2010 at 12:11 PM
    #14
    TRDKenE

    TRDKenE DAMN GOOD DEAL!!

    Joined:
    Jul 6, 2009
    Member:
    #19348
    Messages:
    706
    Gender:
    Male
    First Name:
    Kenny
    Richmond, Virginia
    Vehicle:
    '10 D-CAB OFF-ROAD 4X4
    TRD CAI, GrillCraft.
    yea actually inside the charger there should be a fuse. which would make it easy to figure out which wire you need to hook to power and ground.

  15. Dec 6, 2010 at 12:16 PM
    #15
    gordynor

    gordynor Well-Known Member

    Joined:
    Nov 30, 2010
    Member:
    #46955
    Messages:
    59
    Gender:
    Male
    First Name:
    Daniel
    San Diego
    Vehicle:
    2011 MGM Double Cab 4x4 TRD Off Road
    Steering intermediate shaft TSB, Rear leaf TSB, Bilstien 5100 F&R, Viair 400 mounted under the hood, rear diff breather, re-routed crossmember exhaust, fixed GPS mount, in-dash CB radio, double din HU, trimmed mud flaps, etc...
    Yeah, I've already dismantled the charger and they made it simple: red was wired to the fuse, black was ground. On the USB side of the regulator there's red & yellow... I guess the red is + and yellow is ground, but I won't know until I test it I guess.

  16. Dec 6, 2010 at 12:41 PM
    #16
    lembowski

    lembowski Rompin Around

    Joined:
    Jul 29, 2009
    Member:
    #20347
    Messages:
    7,090
    Gender:
    Male
    First Name:
    Matt
    Rolando, CA
    Vehicle:
    09 LT, Caged, 4WD
    Clean install! I like it.

  17. Dec 6, 2010 at 1:07 PM
    #17
    mrp192

    mrp192 REALLY!!

    Joined:
    Feb 21, 2009
    Member:
    #13911
    Messages:
    739
    Gender:
    Male
    First Name:
    Brent
    Cheney WA
    Vehicle:
    98 V6 4x4 limited
    Stereo, boobies
    Yes that is its a BlueSea fusebox.. you can get them at a boat store like west marine.

  18. Dec 6, 2010 at 1:16 PM
    #18
    cactuscorn

    cactuscorn Another FNG

    Joined:
    Oct 20, 2010
    Member:
    #44966
    Messages:
    502
    Gender:
    Male
    El Paso, TX
    Vehicle:
    '10 SR5 PreRunner
    OEM bedmat, D rings in front keep it from gettin ripped off. Wet Okole seat covers
    thanx man.

    edit: looks like hes got a large fuseable link between the battery and the new block but i have no idea what rating would be needed. am i on the right track?

    also looks like he built a plate of some sort and mounted that to the wheelwell. i see how this could be done with a sheet of fabbed alluminium using the main fusebox rear support and the open/plugged port, or the 2 pre-threaded inserts on the inner fender wall (all circled).

    if my plan works, ill gain line of sight with this placement compared to what i have now. note the inspection and registration stickers we must run that already fill the intended area. also, these pics were taken from eye level while seated so it should be very close to this in the real world. i gotta remove this clutter! candycorn wants her damn cupholder now blocked by the adaptor and wires.

    fuse block mounting points.jpg

  19. Dec 6, 2010 at 1:46 PM
    #19
    RZRob

    RZRob Well-Known Member

    Joined:
    Dec 9, 2009
    Member:
    #27315
    Messages:
    454
    Gender:
    Male
    First Name:
    Robert
    Anaheim Hills
    I am really impressed with how tidy your mount is. I actually had my GPS mounted there, but found it created such a massive blindspot (My GPS is larger), more so than when mounted in the center of the windshield that I just had to move it. Still, that looks so clean I may go again.

    I made this bracket base then snuck power to mine. It's off the windshield, but still in the line of sight.

    RZ Rob

    [​IMG]

  20. Dec 6, 2010 at 1:53 PM
    #20
    Crom

    Crom Time is precious; use it wisely

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    4,588
    Gender:
    Male
    First Name:
    Mr. Sir
    San Diego, CA
    Vehicle:
    2009 Double Cab 4x4 Off Road
    Many, see build thread.
    Thanks for doing this writeup. I saw DBLd's thread and I still want to do this. Rep sent.
