Discussion in 'Long Travel Suspension' started by linked2002, Aug 19, 2011.

Page 8 of 131
  1. Sep 22, 2011 at 2:27 PM
    #141
    DTFtacoma

    #141
    DTFtacoma Dezert Toy Fabrication Vendor

    Joined:
    Mar 5, 2009
    Member:
    #14364
    Messages:
    6,950
    Gender:
    Male
    First Name:
    Anthony
    Santa Maria, CA
    Vehicle:
    06 PreRunner D-cab
    DTF LT front & rear
    I paid 250 for mine with 2 dies but it only does 90s on a 7"clr which is a pain

    DTFtacoma, Sep 22, 2011
    #141
  2. Sep 22, 2011 at 2:28 PM
    #142
    linked2002

    #142
    linked2002 [OP] Well-Known Member

    Joined:
    Aug 17, 2011
    Member:
    #61872
    Messages:
    812
    Gender:
    Male
    san diego
    Vehicle:
    02 tacoma, 3 linked, 6 over custom arms, cage
    links, custom 6 over arms, full 1.75 d.o.m. cage, 35 gallon cell, etc
    oh thats a bummer man. still not a bad deal though. definitely better than nothing.

    linked2002, Sep 22, 2011
    #142
  3. Sep 22, 2011 at 2:32 PM
    #143
    DTFtacoma

    #143
    DTFtacoma Dezert Toy Fabrication Vendor

    Joined:
    Mar 5, 2009
    Member:
    #14364
    Messages:
    6,950
    Gender:
    Male
    First Name:
    Anthony
    Santa Maria, CA
    Vehicle:
    06 PreRunner D-cab
    DTF LT front & rear
    Oh yeah that for sure plus it can handle 1.75" 120 wall DOM so that's all I really need

    DTFtacoma, Sep 22, 2011
    #143
  4. Sep 22, 2011 at 2:38 PM
    #144
    Max-4_Yota

    #144
    Max-4_Yota The Welfare Cadilac

    Joined:
    Dec 10, 2009
    Member:
    #27357
    Messages:
    4,230
    Gender:
    Male
    First Name:
    Michael
    South Carolina
    Vehicle:
    3rd gen Tacoma
    Chicken lights, chrome and smoke tunes.
    Max-4_Yota, Sep 22, 2011
    #144
  5. Sep 22, 2011 at 2:41 PM
    #145
    DTFtacoma

    #145
    DTFtacoma Dezert Toy Fabrication Vendor

    Joined:
    Mar 5, 2009
    Member:
    #14364
    Messages:
    6,950
    Gender:
    Male
    First Name:
    Anthony
    Santa Maria, CA
    Vehicle:
    06 PreRunner D-cab
    DTF LT front & rear
    Do it

    DTFtacoma, Sep 22, 2011
    #145
  6. Sep 22, 2011 at 2:48 PM
    #146
    linked2002

    #146
    linked2002 [OP] Well-Known Member

    Joined:
    Aug 17, 2011
    Member:
    #61872
    Messages:
    812
    Gender:
    Male
    san diego
    Vehicle:
    02 tacoma, 3 linked, 6 over custom arms, cage
    links, custom 6 over arms, full 1.75 d.o.m. cage, 35 gallon cell, etc
    just remember... worst they can say is the offer is too low... so lower it is.. more money stays in your pocket...

    i would say 400 plus shipping for just welder.

    linked2002, Sep 22, 2011
    #146
  7. Sep 22, 2011 at 2:49 PM
    #147
    Max-4_Yota

    #147
    Max-4_Yota The Welfare Cadilac

    Joined:
    Dec 10, 2009
    Member:
    #27357
    Messages:
    4,230
    Gender:
    Male
    First Name:
    Michael
    South Carolina
    Vehicle:
    3rd gen Tacoma
    Chicken lights, chrome and smoke tunes.
    I offered $425 no helmet, waiting on response

    Max-4_Yota, Sep 22, 2011
    #147
  8. Sep 22, 2011 at 5:46 PM
    #148
    Max-4_Yota

    #148
    Max-4_Yota The Welfare Cadilac

    Joined:
    Dec 10, 2009
    Member:
    #27357
    Messages:
    4,230
    Gender:
    Male
    First Name:
    Michael
    South Carolina
    Vehicle:
    3rd gen Tacoma
    Chicken lights, chrome and smoke tunes.
    Got him down to $525, might keep looking.

    He's local

    Max-4_Yota, Sep 22, 2011
    #148
  9. Sep 30, 2011 at 10:56 AM
    #149
    97yota4wd

    #149
    97yota4wd Well-Known Member

    Joined:
    Aug 26, 2010
    Member:
    #42280
    Messages:
    12,834
    Gender:
    Male
    First Name:
    Eric
    Mesa, AZ
    Vehicle:
    alot of metal, small engine, decent travel.
    caged, camburg long travel, 50t leafpack (soon to be installed) light rack over cab, 5pt harnesses etc
    :popcorn:

    97yota4wd, Sep 30, 2011
    #149
  10. Sep 30, 2011 at 11:04 AM
    #150
    linked2002

    #150
    linked2002 [OP] Well-Known Member

    Joined:
    Aug 17, 2011
    Member:
    #61872
    Messages:
    812
    Gender:
    Male
    san diego
    Vehicle:
    02 tacoma, 3 linked, 6 over custom arms, cage
    links, custom 6 over arms, full 1.75 d.o.m. cage, 35 gallon cell, etc

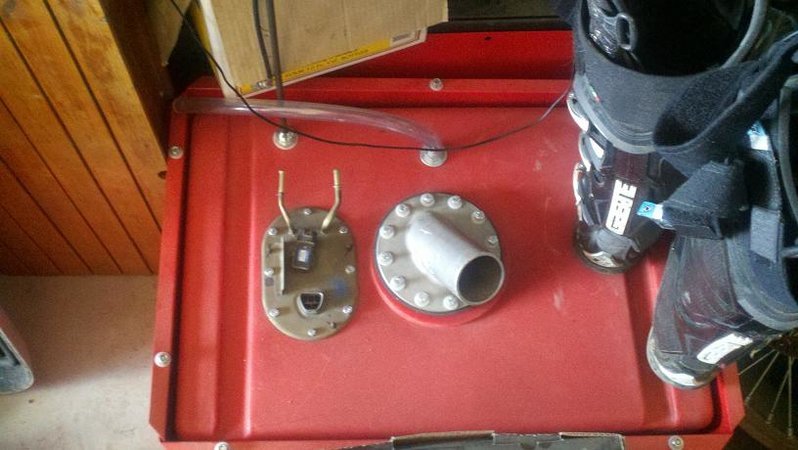

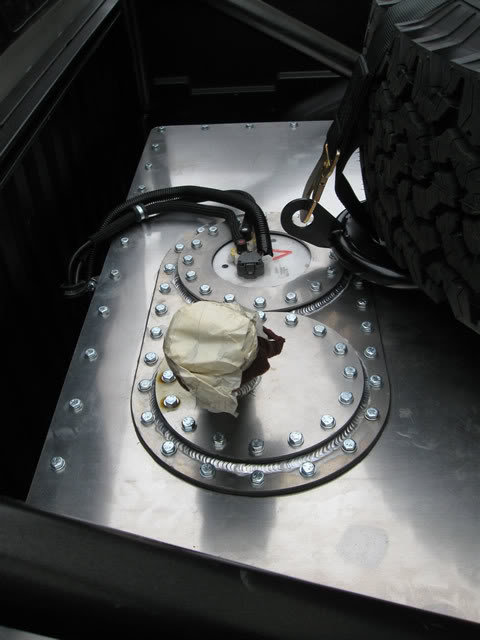

    fuel cell plumbing with stock pickup/level:

    i will update this with pictures as soon as i can get into my garage and into the corner where my cell is to help give you guys a better understanding.

    best way to start is obviously remove the metal lid that protects your plastic bladder inside the can. remove your stock sender from the stock tank. there will be a rubber seal under it that should be close to the form that you will need to cut out of the top of the cell. use that seal to trace the shape of the hole you will need to cut (you can also mark the holes where the screws will need to go through but i dont reccommend it). cut out the major inner hole (make sure it is the inner one... dont trace the outer edges of the seal and cut or you WILL FUCK YOUR CELL UP!).
    you should be able to maneuver the pickup into the hole you just cut now.... once you have it in, now trace the bolt holes through the holes in the metal plate (top of stock sender) and drill out. i had to cut and extend my float as it wouldnt reach the bottom of my tank. you guys will need to figure that out on your own.. also you will need to figure a way to make the fuel pump pick up at the bottom of the cell (mine was about 4 inches from bottom).
    now you will need to figure out on the lid of your can where you will need to cut out the appropriate holes so that when you put the lid on, all plumbing will be coming out of lid without kinks. im hardline plumbing mine back to the stock lines, but there are other ways to go about it as well. any questions feel free to ask and i will assist you as best i can.

    BE SURE TO CLEAN OUT ALL THE PLASTIC FROM THE INSIDE OF YOUR CELL WITH A SHOP VAC.

    EDIT: SEE PICTURES... THERE IS HOW I DID MINE.


    linked2002, Sep 30, 2011
    #150
  11. Sep 30, 2011 at 11:08 AM
    #151
    97yota4wd

    #151
    97yota4wd Well-Known Member

    Joined:
    Aug 26, 2010
    Member:
    #42280
    Messages:
    12,834
    Gender:
    Male
    First Name:
    Eric
    Mesa, AZ
    Vehicle:
    alot of metal, small engine, decent travel.
    caged, camburg long travel, 50t leafpack (soon to be installed) light rack over cab, 5pt harnesses etc
    awesome man thanks so much.

    pics when you can would be awesome.

    97yota4wd, Sep 30, 2011
    #151
  12. Sep 30, 2011 at 11:36 AM
    #152
    linked2002

    #152
    linked2002 [OP] Well-Known Member

    Joined:
    Aug 17, 2011
    Member:
    #61872
    Messages:
    812
    Gender:
    Male
    san diego
    Vehicle:
    02 tacoma, 3 linked, 6 over custom arms, cage
    links, custom 6 over arms, full 1.75 d.o.m. cage, 35 gallon cell, etc
    for sure i will try to take some tonight. it is really much easier than you would think and saves tons of coin. remember people... Keep IT Simple Stupid. dont go buying shit unless you know for a fact there isnt a safe/cheaper way to make it happen with what you've already got.

    linked2002, Sep 30, 2011
    #152
  13. Oct 4, 2011 at 11:29 AM
    #153
    linked2002

    #153
    linked2002 [OP] Well-Known Member

    Joined:
    Aug 17, 2011
    Member:
    #61872
    Messages:
    812
    Gender:
    Male
    san diego
    Vehicle:
    02 tacoma, 3 linked, 6 over custom arms, cage
    links, custom 6 over arms, full 1.75 d.o.m. cage, 35 gallon cell, etc
    fuel cell plumbing post updated with pictures

    linked2002, Oct 4, 2011
    #153
  14. Oct 4, 2011 at 11:34 AM
    #154
    mjp2

    #154
    mjp2 Living vicariously through myself Moderator

    Joined:
    Feb 16, 2007
    Member:
    #924
    Messages:
    22,012
    Gender:
    Male
    First Name:
    Milton Juevo Portimous II
    NJ
    Vehicle:
    Current: '21 Bronco Badlands. Previous: '06 TRD Access Cab, v6, 6-speed
    This cell has no foam or internal rubber bladder, correct? If it does you run into the joys of getting all that stuff to work with the nut ring that seals the bladder and all that other good stuff. You'll also cut away foam as needed to allow the float to move without interference.

    mjp2, Oct 4, 2011
    #154
  15. Oct 4, 2011 at 11:35 AM
    #155
    linked2002

    #155
    linked2002 [OP] Well-Known Member

    Joined:
    Aug 17, 2011
    Member:
    #61872
    Messages:
    812
    Gender:
    Male
    san diego
    Vehicle:
    02 tacoma, 3 linked, 6 over custom arms, cage
    links, custom 6 over arms, full 1.75 d.o.m. cage, 35 gallon cell, etc
    no i have a full foam fill in there. it is all placed accordingly so my float can swing freely.

    linked2002, Oct 4, 2011
    #155
  16. Oct 4, 2011 at 11:39 AM
    #156
    mjp2

    #156
    mjp2 Living vicariously through myself Moderator

    Joined:
    Feb 16, 2007
    Member:
    #924
    Messages:
    22,012
    Gender:
    Male
    First Name:
    Milton Juevo Portimous II
    NJ
    Vehicle:
    Current: '21 Bronco Badlands. Previous: '06 TRD Access Cab, v6, 6-speed
    Nice! Solid solution, and it's the same one I took on my truck. :thumbsup:

    mjp2, Oct 4, 2011
    #156
  17. Oct 4, 2011 at 12:10 PM
    #157
    linked2002

    #157
    linked2002 [OP] Well-Known Member

    Joined:
    Aug 17, 2011
    Member:
    #61872
    Messages:
    812
    Gender:
    Male
    san diego
    Vehicle:
    02 tacoma, 3 linked, 6 over custom arms, cage
    links, custom 6 over arms, full 1.75 d.o.m. cage, 35 gallon cell, etc
    hahah that proves a point then... the both of us cant be completely nuts... must work hahaha

    linked2002, Oct 4, 2011
    #157
  18. Oct 4, 2011 at 2:35 PM
    #158
    97yota4wd

    #158
    97yota4wd Well-Known Member

    Joined:
    Aug 26, 2010
    Member:
    #42280
    Messages:
    12,834
    Gender:
    Male
    First Name:
    Eric
    Mesa, AZ
    Vehicle:
    alot of metal, small engine, decent travel.
    caged, camburg long travel, 50t leafpack (soon to be installed) light rack over cab, 5pt harnesses etc
    :popcorn:

    this should be.... interesting.....

    my cell has a plastic bladder.. so you cut them both accordingly, then bolt it down like this.... bolt, outside of fuel cell, plastic bladder, nut. right? i really dont want to mess this up lol

    97yota4wd, Oct 4, 2011
    #158
  19. Oct 4, 2011 at 2:39 PM
    #159
    linked2002

    #159
    linked2002 [OP] Well-Known Member

    Joined:
    Aug 17, 2011
    Member:
    #61872
    Messages:
    812
    Gender:
    Male
    san diego
    Vehicle:
    02 tacoma, 3 linked, 6 over custom arms, cage
    links, custom 6 over arms, full 1.75 d.o.m. cage, 35 gallon cell, etc
    lol wait wait.. you guys do know that the lid to my cell isnt on right? that is the pick up drilled directly into the plastic bladder that is filled with foam.

    linked2002, Oct 4, 2011
    #159
  20. Oct 4, 2011 at 2:42 PM
    #160
    mjp2

    #160
    mjp2 Living vicariously through myself Moderator

    Joined:
    Feb 16, 2007
    Member:
    #924
    Messages:
    22,012
    Gender:
    Male
    First Name:
    Milton Juevo Portimous II
    NJ
    Vehicle:
    Current: '21 Bronco Badlands. Previous: '06 TRD Access Cab, v6, 6-speed
    Mine has a custom rubber bladder. The stock pump/sending unit is sandwiched in a custom ring built into the access cover that bolts to the internal nut ring.


    The nut ring attached to the internal bladder is what the oval plate bolts to. The rest of the nuts and bolts simply hold the filler and the stock pump to the oval plate.

    mjp2, Oct 4, 2011
    #160
