Gentex 453 Mirror and temp sensor install in 2014 Off Road - Pictures

Discussion in '2nd Gen. Tacomas (2005-2015)' started by MustDrive, Dec 20, 2013.

  1. Dec 20, 2013 at 10:55 PM
    #1
    MustDrive

    MustDrive [OP] Well-Known Member

    Joined:
    Jun 13, 2013
    Member:
    #106224
    Messages:
    71
    Gender:
    Male
    First Name:
    Dave
    Minnesota
    Vehicle:
    '14 White Off Road, 6-Speed, Double Cab
    Nothing major planned, this is my daily driver. - replaced stock tires with Cooper AT3s - added Husky WeatherBeater floor mats - installed Access Original bed cover - installed Gentex 453 mirror and the included external temp sensor, also has Homelink and auto-dim - installed ImMrYo mirror bracket - hose clamp mod and washer mod to secure tailgate, with a GateKeeper lock installed over the hose clamp - replaced stock reverse lights with Philips Halogen 30w from Home Depot GY6.35 base
    After reading the posts by RJP869 explaining the Gentex 453 mirror in this thread I decided to buy one from him, and install it in my 2014 Off Road. I really wanted the external temp function, the homelink, and the autodim. In short, it works great and I am very happy with the product, especially with the custom wiring harness he provides (it plugs right into the Tacoma power plug in the headliner).

    I also like that the wire from the mirror to the temp sensor is pre-cut to the perfect lengths. The temp sensor has wires long enough to pass through the firewall into the pedal area, and this under-the-hood part is protected in plastic. The interior wire goes from the pedal area up the A-pillar to the mirror. These wires meet and need to be connected down near the pedals. Each has about 2 feet of extra wire in that area, making the connecting easy since it happens on the floor right in front of the driver seat (not way up under the dash).

    I also installed the bracket designed by ImMrYo, and am glad I did - the visibility under the mirror is much better with the higher mounting location.

    I took many pictures of my installation of the temp sensor and its wiring. I hope they are helpful.

    The package included zip ties, wire connectors, and even a screw for mounting the sensor. The mirror looks great.

    [​IMG]

    [​IMG]

    I located the large rubber grommet where many of the factory wires pass through the driver's side of the firewall.

    [​IMG]

    [​IMG]

    Next, I looked around for a place to mount the sensor. I decided to place it just below the factory temp sensor (which is wired to the AC, from what I have read). There is a vertical bracket between the radiator and the grill, with a flat surface which looked like a great place for the new temp sensor. Since it is right below the hood latch, I basically ran my temp sensor wire along the hood latch cable all the way to the grommet in the firewall. To access that hood release cable, I removed a black plastic cover as shown.

    [​IMG]

    [​IMG]

    Here is the sensor. It should be mounted pointing up, or forwards, to keep water from getting into the area where the wires connect to the sensor. I mounted it pointing up.

    [​IMG]

    I placed tape over the area I needed to drill so I could mark the hole location with a marker. I used a 1/8" drill bit. Since the bracket I am drilling is thin, I did not tap the hole for the screw.

    [​IMG]

    [​IMG]

    Last edited: Jan 26, 2014
  2. Dec 20, 2013 at 10:56 PM
    #2
    MustDrive

    MustDrive [OP] Well-Known Member

    Joined:
    Jun 13, 2013
    Member:
    #106224
    Messages:
    71
    Gender:
    Male
    First Name:
    Dave
    Minnesota
    Vehicle:
    '14 White Off Road, 6-Speed, Double Cab
    Nothing major planned, this is my daily driver. - replaced stock tires with Cooper AT3s - added Husky WeatherBeater floor mats - installed Access Original bed cover - installed Gentex 453 mirror and the included external temp sensor, also has Homelink and auto-dim - installed ImMrYo mirror bracket - hose clamp mod and washer mod to secure tailgate, with a GateKeeper lock installed over the hose clamp - replaced stock reverse lights with Philips Halogen 30w from Home Depot GY6.35 base
    Before mounting the sensor I noticed the head of the supplied screw was barely larger than the hole in the sensor, so I added my own washer. When the screw was halfway in, I dripped some red loctite onto it and screwed it in the rest of the way.

    [​IMG]

    [​IMG]

    [​IMG]

    To get the wires through the firewall grommet, I bent an old coat hanger 180 degrees to make a doubled "hoop" and pushed it through from the cab into the engine compartment. It took some effort. When it was nearly through, I went under the hood, found the area of the grommet it was trying to penetrate through, and helped it with a knife.

    [​IMG]

    I put the temp sensor wires through the "hoop" at the end of the coat hanger, then pulled from in the cab until the wires came through and were laying on the floor, ready to be connected to the mirror wires.

    [​IMG]

    [​IMG]

    [​IMG]

    The wires under the hood were protected in plastic right up to the firewall grommet, the length of the supplied harness was perfect.
    [​IMG]

    I used zip ties to attach the temp sensor wire to the hood release cable and to a few other supports along its route under the hood.

    [​IMG]

    [​IMG]

    Last edited: Jan 26, 2014
    TRDSport10 likes this.
  3. Dec 20, 2013 at 10:57 PM
    #3
    MustDrive

    MustDrive [OP] Well-Known Member

    Joined:
    Jun 13, 2013
    Member:
    #106224
    Messages:
    71
    Gender:
    Male
    First Name:
    Dave
    Minnesota
    Vehicle:
    '14 White Off Road, 6-Speed, Double Cab
    Nothing major planned, this is my daily driver. - replaced stock tires with Cooper AT3s - added Husky WeatherBeater floor mats - installed Access Original bed cover - installed Gentex 453 mirror and the included external temp sensor, also has Homelink and auto-dim - installed ImMrYo mirror bracket - hose clamp mod and washer mod to secure tailgate, with a GateKeeper lock installed over the hose clamp - replaced stock reverse lights with Philips Halogen 30w from Home Depot GY6.35 base

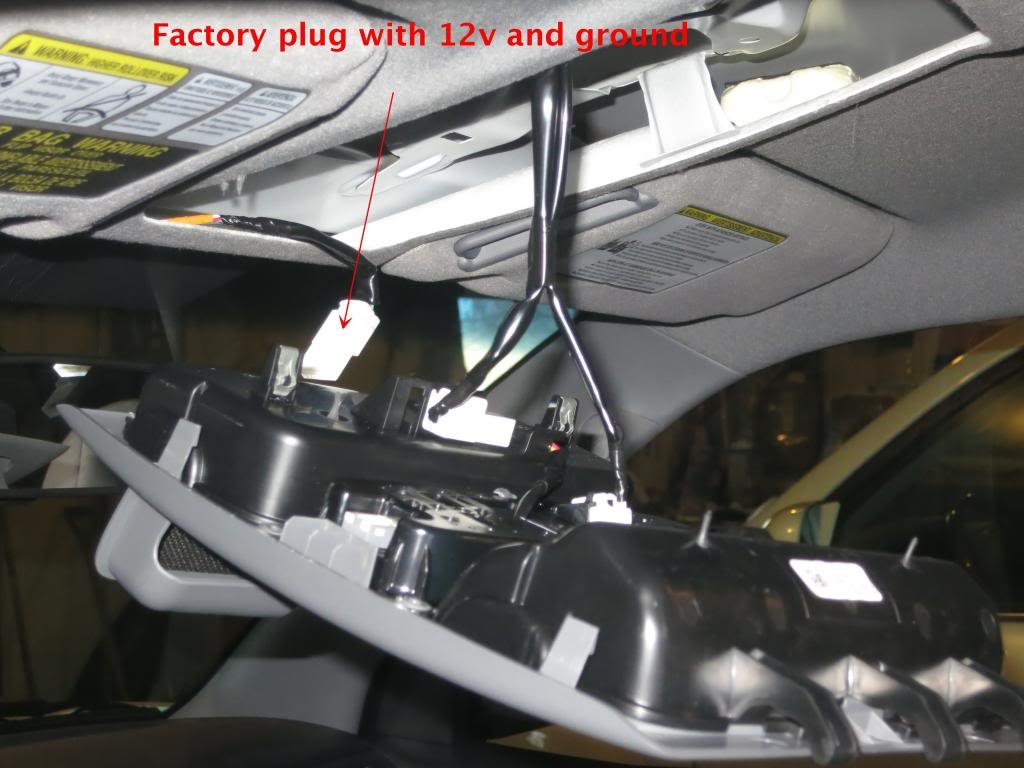

    I dropped the overhead console by removing the screw in the rear sunglass holder and popping the front connectors down. The factory wiring plug for the mirror was easy to find.

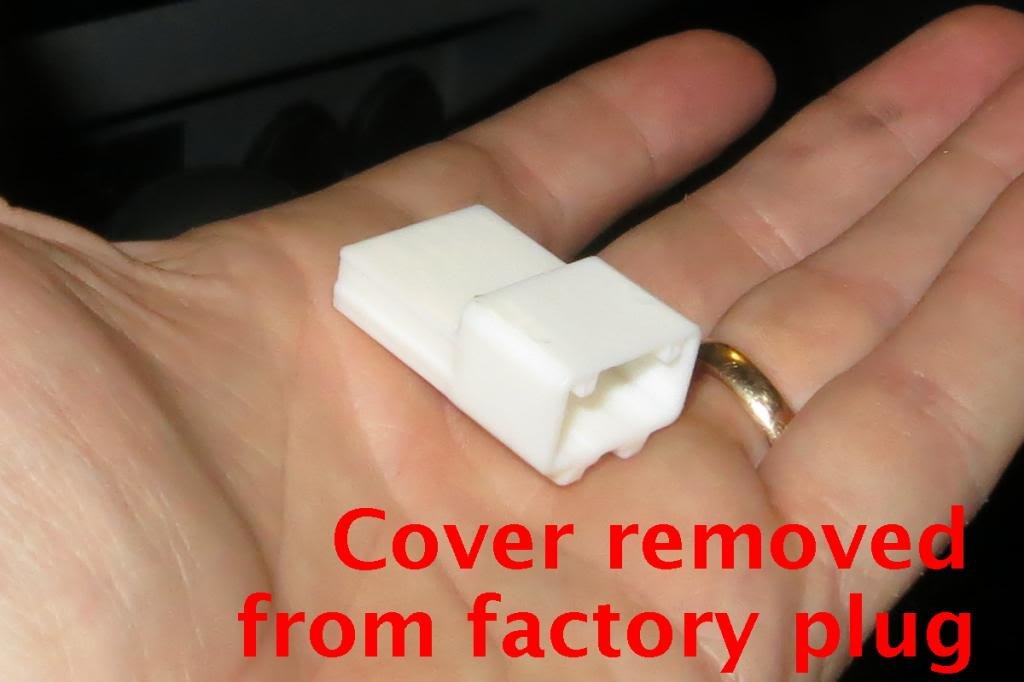

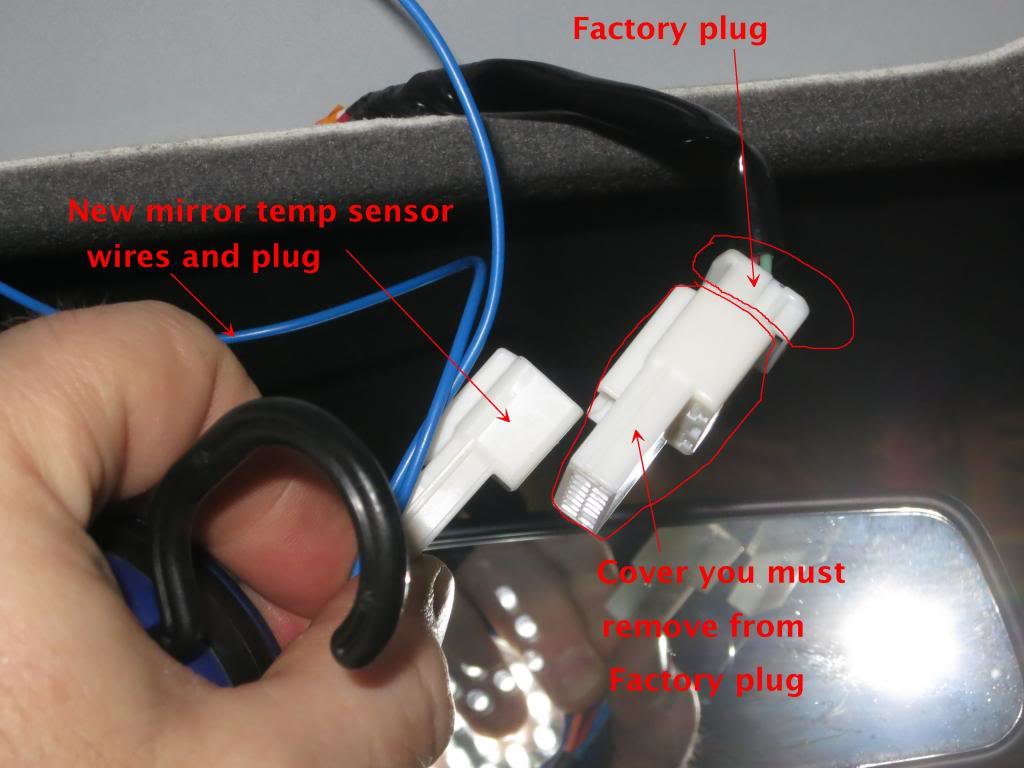

    The factory plug appeared to not fit the connector supplied with my mirror. I discovered the factory plug has a cover over it, and after removing that it fit perfectly.

    IMG_8708-CoverOverFactoryPlug-makesMirro_77c10386072386e3c8e86d7d8ea28a6c7dec48df.jpg

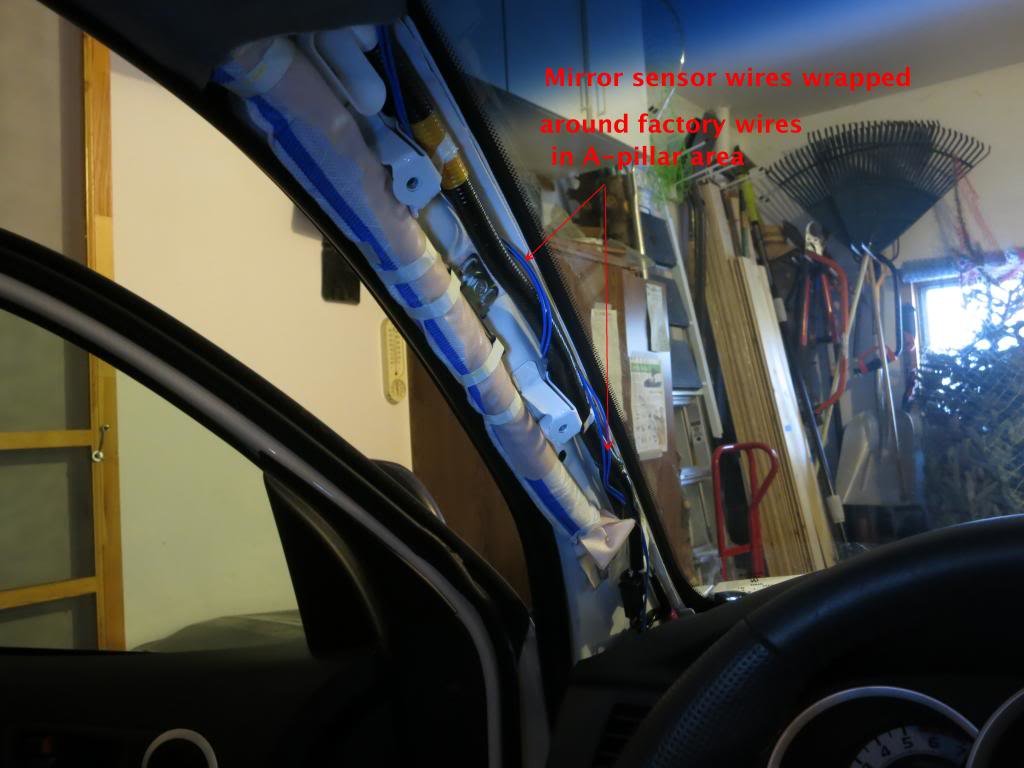

    I ran the temp sensor wire from the mirror along the very front edge of the headliner to the A-pillar. I was able to pull down the very front edge of the headliner anywhere I needed to find the end of the wire and assist it along (you cannot push on a rope, or a thin wire). I removed the A-pillar trim and ran the wire down to the opening in the dash.

    IMG_8714-TempSensorWires-WrappedAroundFa_1d204b93970267a5c2d079f191d6d21cf796b8db.jpg

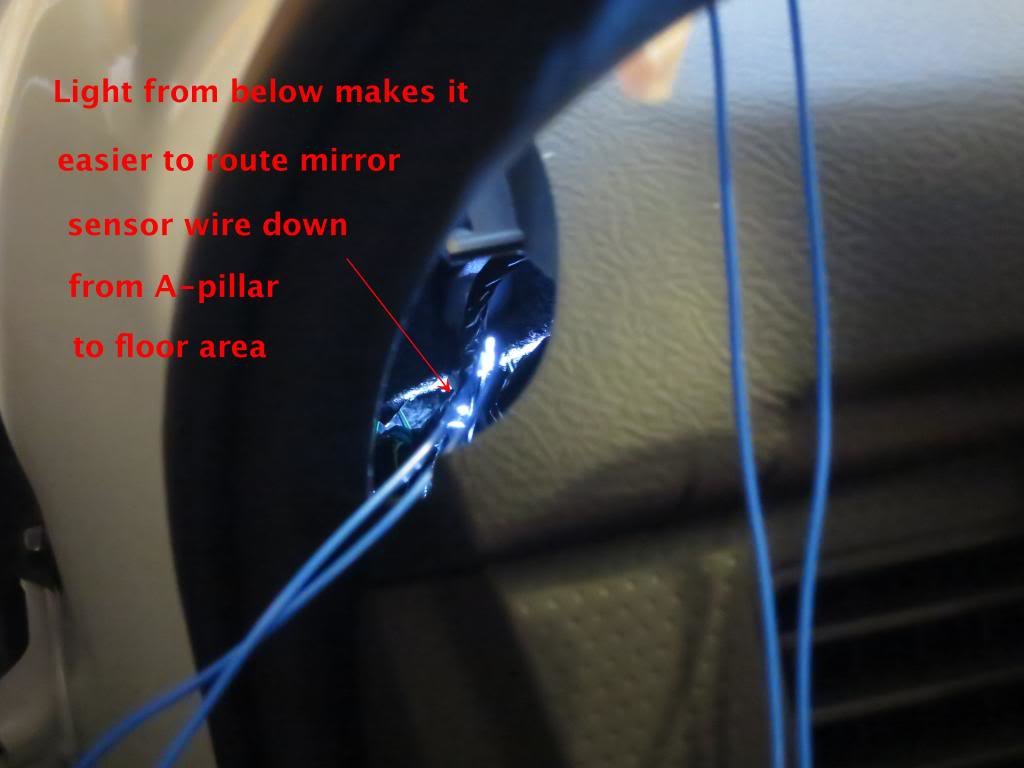

    I placed my light on the floor shining up into the left side of dash. This helped me see how to run the wire down from the A-pillar to the floor area.

    IMG_8712-LightFromBelowDash-HelpsRunWire_39604f15fee31f36447af8808dbe3fc34856887a.jpg

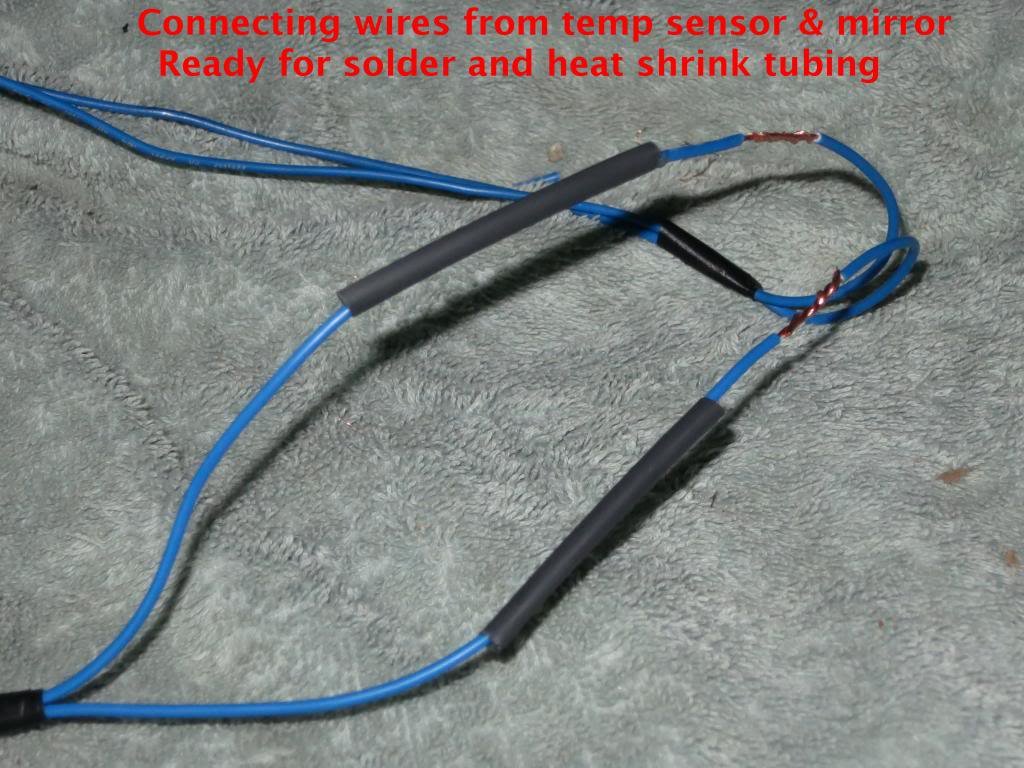

    I am a bit old school, so I soldered the wires and protected them with heat shrink. They are not polarized, any wire from the mirror end can be connected to any wire from the temp sensor end.

    IMG_8717-TempSensorWires-ReadyForSolderi_da8a44e7cb842c06ef1abdd7d00a40dce97f4321.jpg

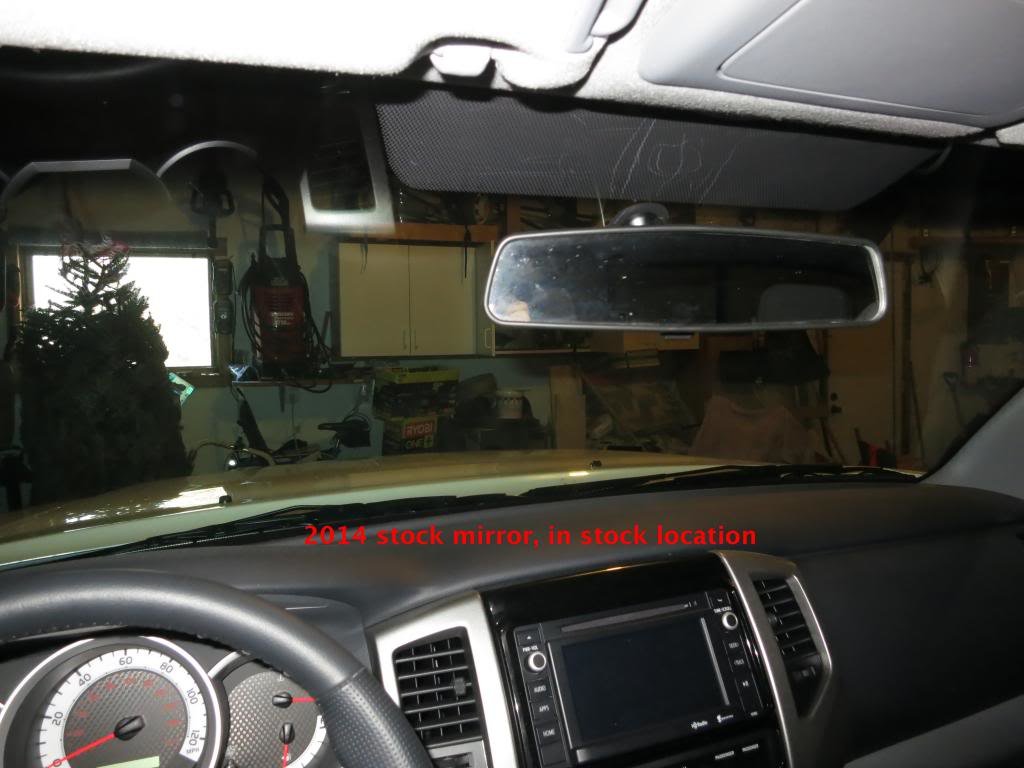

    That's it. Here is the "Before" picture - the stock mirror in its stock location.

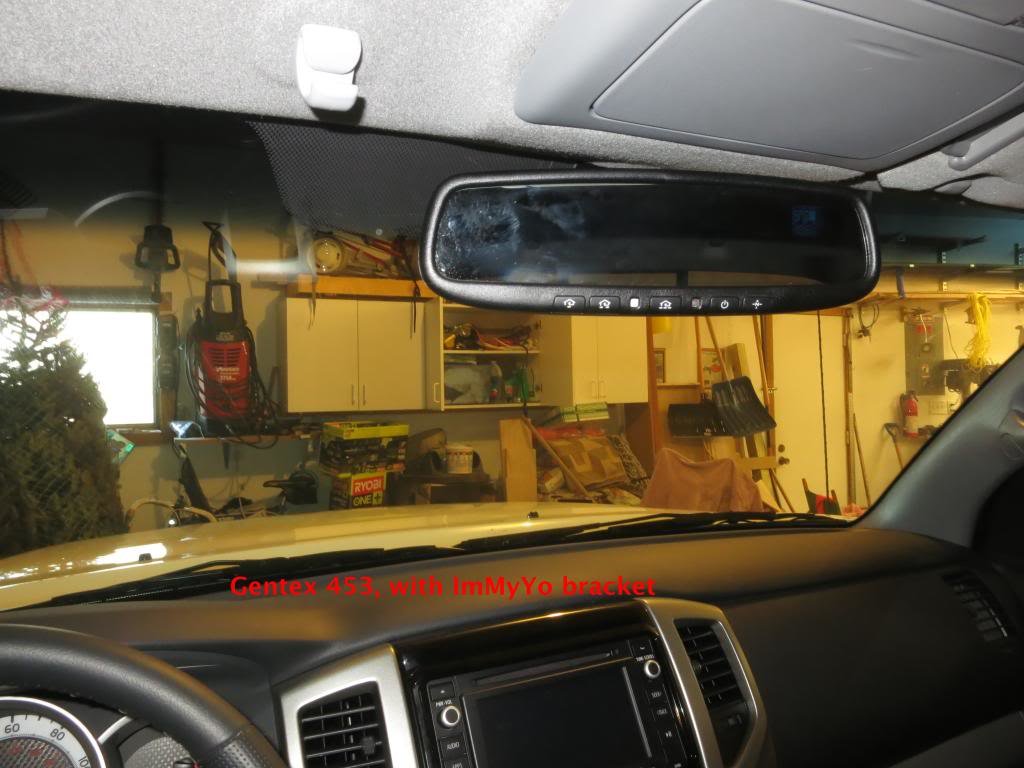

    The "After" picture - the Gentex 453 on the ImMrYo bracket. I REALLY like the new, higher location, it gives much better visibility under the mirror. This is a great bracket, and a great mirror.

    Last edited: Jan 26, 2014
    TRDSport10, wi_taco, stvhwrd and 7 others like this.
