Got a wiring question

Discussion in 'Audio & Video' started by tacomathunder, Jan 20, 2011.

  1. Jan 20, 2011 at 8:32 PM
    #1
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    When i removed the factory stereo tonight (sorry no pics, it was too dark) there was a whole bunch of wires hooked into the first socket, then the socket next to it a brown looking wire into a connector which connected tho the radio.....any idea what that is??? i have a regular cab, so i know there are no rear speaker connections......im getting ready to crimp the wiring harnesses from my new radio to my connections, but need to know what that wire is so i dont short anything out.


    any help is greatly appreciated

  2. Jan 20, 2011 at 11:52 PM
    #2
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    does anyone have any idea what that brown wire is?

  3. Jan 21, 2011 at 12:10 AM
    #3
    SuperTaRD9904

    SuperTaRD9904 Well-Known Member

    Joined:
    Dec 5, 2010
    Member:
    #47215
    Messages:
    145
    Gender:
    Male
    First Name:
    Brandon
    FortWorth
    Vehicle:
    04 long travel supercharged Taco
    TRD supercharger, +3 control arms, long travel, king coilovers, glassworks unlimited fenders, hood and bedsides, deaver j59 leafs sprung under, custom exhaust out of bedside, kartek bedcage with spare tire carrier, full sound system, completely rebuilt with 17k miles.
    it might be the dimmer. i think i had a brown dimmer light before. not positive though.

  4. Jan 21, 2011 at 12:34 AM
    #4
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    so if it is the dimmer, i wouldnt use it on aftermarket stereo??

  5. Jan 21, 2011 at 12:52 AM
    #5
    KalamaKid

    KalamaKid Well-Known Member

    Joined:
    Aug 3, 2008
    Member:
    #8323
    Messages:
    5,169
    Gender:
    Male
    First Name:
    Jason
    Socialist Republic of Portlandia
    same shit as everyone else
    brown wire would be lighting. Not sure what for though? Do you have steering wheel controls. If it was the dimmer your new stereo will have its own dimmer built in!

  6. Jan 21, 2011 at 1:00 AM
    #6
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    i do not have steering wheel controls, i have the base taco....so none of those luxuries lol......but the wires that are coming from the truck to connect to the radio is what im talking about....you know how on the stock radio there are 2 connectors connected to the radio for the front speakers? on one of those connectors from the truck there is literally 1 wire that is brown color.... i have no idea what it is:confused:

  7. Jan 21, 2011 at 1:03 AM
    #7
    KalamaKid

    KalamaKid Well-Known Member

    Joined:
    Aug 3, 2008
    Member:
    #8323
    Messages:
    5,169
    Gender:
    Male
    First Name:
    Jason
    Socialist Republic of Portlandia
    same shit as everyone else
    Me either man? Now your splicing this onto a new connector harness right? Does the new harness not have a brown wire?

  8. Jan 21, 2011 at 1:07 AM
    #8
    KalamaKid

    KalamaKid Well-Known Member

    Joined:
    Aug 3, 2008
    Member:
    #8323
    Messages:
    5,169
    Gender:
    Male
    First Name:
    Jason
    Socialist Republic of Portlandia
    same shit as everyone else
    [​IMG]

    looks like its ground. I think its black or green now on the 09's and above. I've done quite a few tacomas and never ran into a problem

  9. Jan 21, 2011 at 1:08 AM
    #9
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    i dont think so, ill have to check.....

  10. Jan 21, 2011 at 1:09 AM
    #10
    KalamaKid

    KalamaKid Well-Known Member

    Joined:
    Aug 3, 2008
    Member:
    #8323
    Messages:
    5,169
    Gender:
    Male
    First Name:
    Jason
    Socialist Republic of Portlandia
    same shit as everyone else
    yeah its ur ground so most likely splice it onto the black wire.

  11. Jan 21, 2011 at 1:14 AM
    #11
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    wow, that chart helps me a ton man, thanks a lot...i really appreciate it

  12. Jan 21, 2011 at 4:21 AM
    #12
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    these are just for referance to make sure im on the same page here

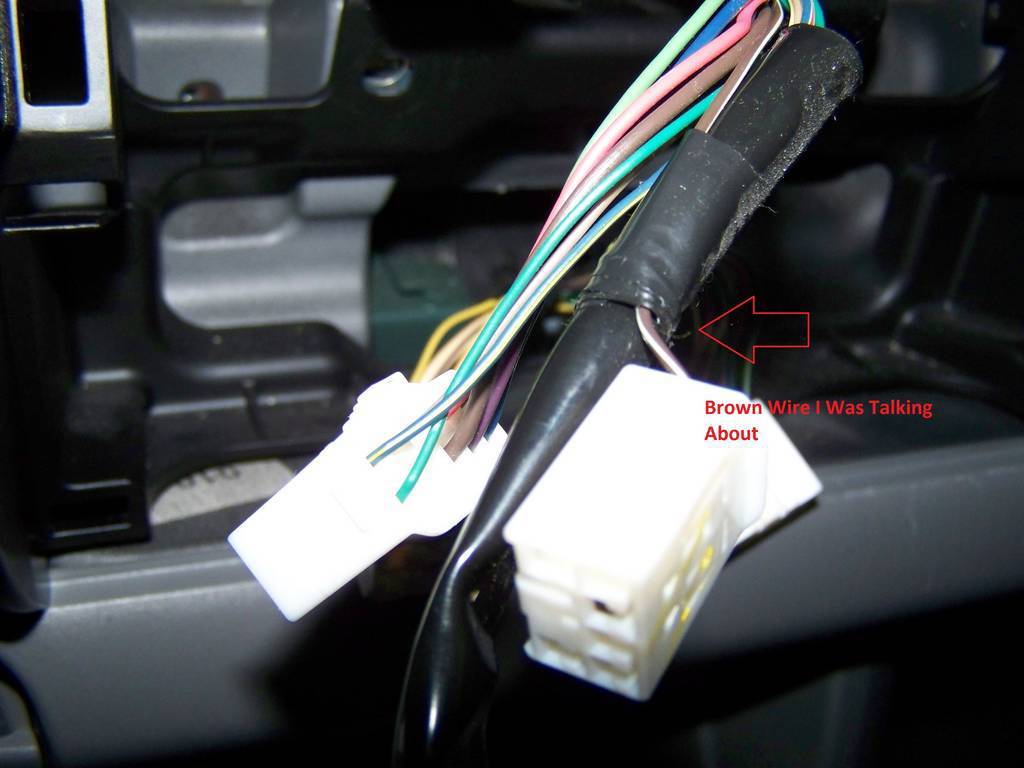

    this is the brown wire i was talking about
    [​IMG]

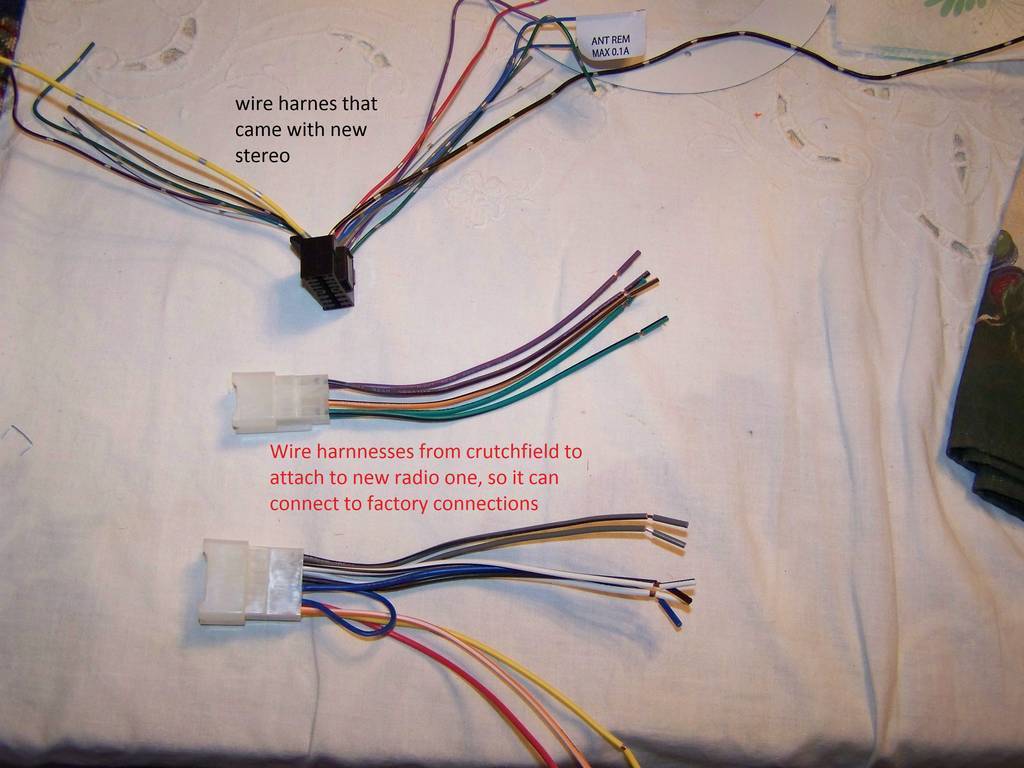

    these are the wiring harnesses i have
    [​IMG]

  13. Jan 21, 2011 at 9:39 AM
    #13
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    so im guessing it is the ground then

  14. Jan 21, 2011 at 9:44 AM
    #14
    novataco

    novataco Well-Known Member

    Joined:
    Jul 15, 2008
    Member:
    #7953
    Messages:
    356
    Gender:
    Male
    NOLA
    Vehicle:
    06 Sport V6 auto
    Aries bull bar, Lund grill screen, blackened h/l, Weathertech plastic all over, Access LE tonneau, window tint, tube steps, DF-Toy aux adapter, cig plug always on, console vault, hitch step, 1700 watt in-cab inverter and dual battery (in-progress), Delta bike hitch mounts
    Because its a thicker gauge than the others and the chart says brown is ground, I would say ground.

  15. Jan 21, 2011 at 10:07 AM
    #15
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    actually, looking at it now, its brown and white.....maybe its just a rogue wire that leads to nothing?? because on the wiring harness chart it says that smaller connector is for rear speakers, which i dont have since i have a regular cab

  16. Jan 22, 2011 at 12:15 AM
    #16
    KalamaKid

    KalamaKid Well-Known Member

    Joined:
    Aug 3, 2008
    Member:
    #8323
    Messages:
    5,169
    Gender:
    Male
    First Name:
    Jason
    Socialist Republic of Portlandia
    same shit as everyone else
    how did it turn out bro?

  17. Jan 22, 2011 at 7:00 AM
    #17
    EnolaGaia

    EnolaGaia Well-Known Member

    Joined:
    Sep 9, 2006
    Member:
    #9
    Messages:
    1,136
    Gender:
    Male
    Midwest USA
    Vehicle:
    '01 & '04 S-Runners
    01 SR: Double Cab conversion, S/C, lowered.
    In the 2007 base audio wiring scheme:

    - Solid Brown Wire = Ground
    - Brown / White Wire = Illumination control line (leads to the dimmer rheostat).

  18. Sep 28, 2011 at 7:17 PM
    #18
    Fotno

    Fotno New Member

    Joined:
    Sep 20, 2011
    Member:
    #63855
    Messages:
    2
    Gender:
    Male
    First Name:
    Jared
    Houma
    Vehicle:
    06 2.7L
    When you installed this, did you crimp the new stereo harness to the provided harnesses from crutchfield? and if so, do I just match colors to colors?

  19. Sep 29, 2011 at 5:36 PM
    #19
    tacomathunder

    tacomathunder [OP] Well-Known Member

    Joined:
    Nov 9, 2009
    Member:
    #25672
    Messages:
    1,541
    Gender:
    Male
    First Name:
    Mike
    Florida
    Vehicle:
    07 4 cyl reg cab
    pop-a-lock on tailgate, tailgate damper by ez down, extang platinum snap tonneau cover, rampage LED light bar, etrailer wiring harness, black led tail lights, tsi clutter catcher center console, griffin itrip ipod player,BHLM,35W DDM Tuning hid's 5000K, Day Time Running Light Mod, New Sony Stereo
    pretty much yeah....you should get an instruction manual with the wire connections for the stereo to the harness..its pretty easy

  20. Sep 30, 2011 at 12:22 PM
    #20
    fbconvert

    fbconvert It works if you work it.

    Joined:
    Apr 25, 2011
    Member:
    #55535
    Messages:
    358
    Gender:
    Male
    First Name:
    Brian
    Portland, OR
    Vehicle:
    2005 Tacoma Double Cab TRD Sport
    Bought as a wrecked vehicle almost done repairing it. It is my daily driver
