Got an alignment, now new rubbing!!!!

Discussion in 'Suspension' started by Sawick, May 5, 2011.

  1. May 5, 2011 at 4:28 PM
    #1
    Sawick

    Sawick [OP] Still not worthy!

    Joined:
    Feb 6, 2011
    Member:
    #50642
    Messages:
    342
    Gender:
    Male
    First Name:
    Jason
    Bedford, MA
    Vehicle:
    09 TRD Sport
    HID Retrofit, Smoked Tails, Tint, Running Boards, Satoshi, XD Cranks, 285/70 Duratracks, In-Dash Navigation, aFe Pro Dry CAI, 2525XL, 5100's+ coils, Socked and Millerd!
    UPDATED with print out!

    First.. I did use the good ol' Search button. There were many threads who all danced around my question, but none that hit it on the head. (that I could find)

    So, now to my delemma....
    I got my 5100s @.85 and Eibach lift combo put on, and mounted my 285/70/17s on my 5bs rim (i know 4.5 is ideal). I was forced to do the usual trimming of fenders, and eventually was going to chop the Cab mount to eliminate rubbing in reverse.

    I took my truck in to have an alignment done today at my local tire shop.
    I was forced to take off my 285 and put my 265/65s back on because the place didnt want to put my rims on the machine and possibly mess them up.
    After the alignment, I now rub the cab mount on the drivers side very hard on any large turn. The Pass side isnt quite as bad, but I still rub a little on large turns. (I did not have this issue pre-alignment, was only going over bumps in reverse that I rubbed):frusty:

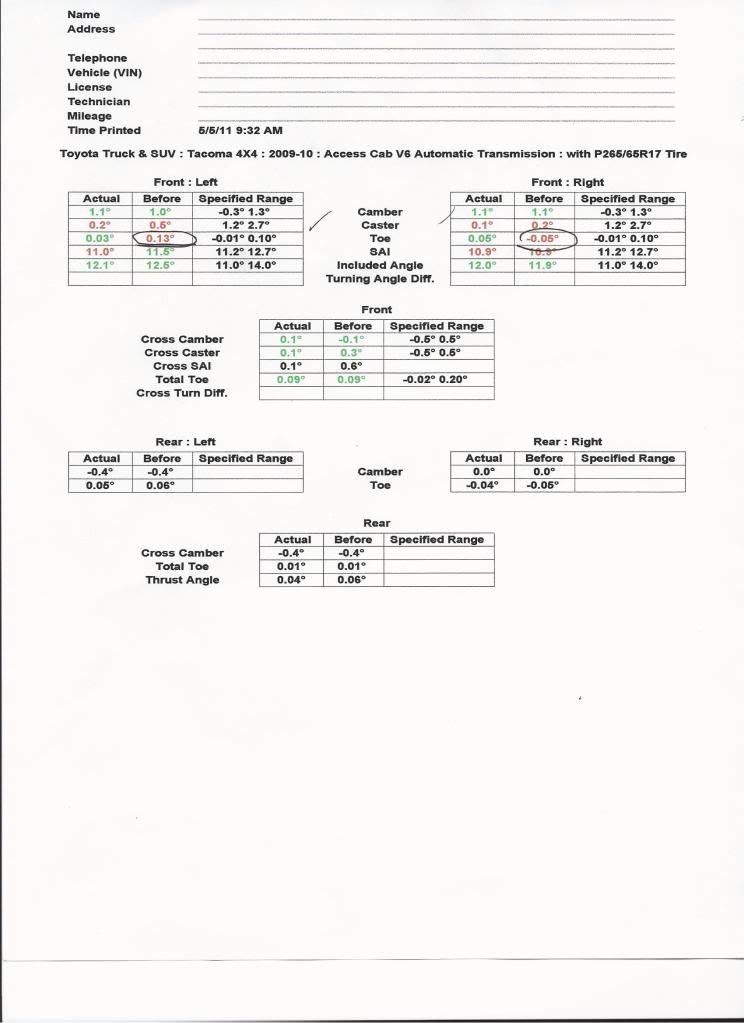

    Here are my numbers:
    [​IMG]

    What if anything can I do to help solve this? (besides chopping the cab mount, that will come) Since it didnt do it before, I have to assume its something to do with the alignment. I dont understand it well enough to know what to ask if I take it back.
    Do I need more lift? I could add a 1/4 spacer on top of the 5100/Eibachs to get another .5" of lift I guess.

  2. May 5, 2011 at 4:39 PM
    #2
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,195
    Gender:
    Male
    Apex, NC
    Vehicle:
    15 Black DC OR Prerunner
    Your caster looks awefully low. should be 2.4* positive or so. would like to see the print out. ask them to add more caster. When caster is added from the bottom you will gain body mount/rear wheel well clearance. Looks like they took out caster. at only 0.85" of lift you should easily be able to get the caster within spec.

  3. May 5, 2011 at 5:02 PM
    #3
    Sawick

    Sawick [OP] Still not worthy!

    Joined:
    Feb 6, 2011
    Member:
    #50642
    Messages:
    342
    Gender:
    Male
    First Name:
    Jason
    Bedford, MA
    Vehicle:
    09 TRD Sport
    HID Retrofit, Smoked Tails, Tint, Running Boards, Satoshi, XD Cranks, 285/70 Duratracks, In-Dash Navigation, aFe Pro Dry CAI, 2525XL, 5100's+ coils, Socked and Millerd!
    I'll toss the print out up after I get home, but I have a little bit more then .85 of lift. I have the Eibach coils and 5100s set @.85, so I'm right around 2-2.4" of lift

  4. May 5, 2011 at 6:57 PM
    #4
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,195
    Gender:
    Male
    Apex, NC
    Vehicle:
    15 Black DC OR Prerunner

    ahhh ok.. well you should still be able to get more caster out of it. Im surprised youre not wandering all over the freeway on that small amount of caster. a lot of these alignment shops that hire kids dont have a clue as to how to correctly align it.

  5. May 5, 2011 at 6:58 PM
    #5
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,961
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    That alignment is horrible..

  6. May 5, 2011 at 7:18 PM
    #6
    Sawick

    Sawick [OP] Still not worthy!

    Joined:
    Feb 6, 2011
    Member:
    #50642
    Messages:
    342
    Gender:
    Male
    First Name:
    Jason
    Bedford, MA
    Vehicle:
    09 TRD Sport
    HID Retrofit, Smoked Tails, Tint, Running Boards, Satoshi, XD Cranks, 285/70 Duratracks, In-Dash Navigation, aFe Pro Dry CAI, 2525XL, 5100's+ coils, Socked and Millerd!
    Figured as much, but what can I tell them to work on in hopes of eliminating the new Rub?

    From what I can gather from here, Toe & Camber @0 and Caster @2.0-2.4 are the "ideal" settings correct?

  7. May 5, 2011 at 7:19 PM
    #7
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Staff Member

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,961
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Nothing you can really tell them, nor can they do anything unless you get new UCA's to add caster back.

  8. May 5, 2011 at 7:20 PM
    #8
    Fabulous

    Fabulous Well-Known Member

    Joined:
    Jul 17, 2009
    Member:
    #19807
    Messages:
    832
    Gender:
    Male
    First Name:
    Fabian
    Calgary, AB
    Vehicle:
    2006 Tacoma double-cab TRD Sport
    Homertaco grill, Light Racing UCA's, 2.8" front lift (5100's at 0.85 setting and Eibach springs) 2" AAL with rear 5100's, Wet Okole seat covers fr/ bk. 17 x 9 Incubus Crusher wheels w/ 4.5" backspacing. 30% tinted front windows.
    I agree. I have that set up, and before I installed my UCA's I was able to get a way better alignment. It may be in their "specs" but it's shitty. Tell them to get the caster higher, and the camber lower. Not every truck is the same, but I was able to get at least 1.9 caster, and 0.6 camber with mine...that would be a huge improvement over the butcher job they did on yours.

  9. May 5, 2011 at 7:22 PM
    #9
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,895
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    You were able to get a better alignment BEFORE you got new UCA's ?

  10. May 5, 2011 at 7:25 PM
    #10
    Sawick

    Sawick [OP] Still not worthy!

    Joined:
    Feb 6, 2011
    Member:
    #50642
    Messages:
    342
    Gender:
    Male
    First Name:
    Jason
    Bedford, MA
    Vehicle:
    09 TRD Sport
    HID Retrofit, Smoked Tails, Tint, Running Boards, Satoshi, XD Cranks, 285/70 Duratracks, In-Dash Navigation, aFe Pro Dry CAI, 2525XL, 5100's+ coils, Socked and Millerd!
    I was planning on upgrading the UCAs, but pre-alignment it wasnt rubbing like it is now. Were my #s better pre-alignment?

  11. May 5, 2011 at 7:26 PM
    #11
    Fabulous

    Fabulous Well-Known Member

    Joined:
    Jul 17, 2009
    Member:
    #19807
    Messages:
    832
    Gender:
    Male
    First Name:
    Fabian
    Calgary, AB
    Vehicle:
    2006 Tacoma double-cab TRD Sport
    Homertaco grill, Light Racing UCA's, 2.8" front lift (5100's at 0.85 setting and Eibach springs) 2" AAL with rear 5100's, Wet Okole seat covers fr/ bk. 17 x 9 Incubus Crusher wheels w/ 4.5" backspacing. 30% tinted front windows.
    Better then what he's got. I had 1.9/2.08 caster, 0.6 camber before I installed my UCA's. It was okay, but felt loose in the wheel, and the high camber looked goofy from the front...so it annoyed me.

  12. May 5, 2011 at 7:28 PM
    #12
    Fabulous

    Fabulous Well-Known Member

    Joined:
    Jul 17, 2009
    Member:
    #19807
    Messages:
    832
    Gender:
    Male
    First Name:
    Fabian
    Calgary, AB
    Vehicle:
    2006 Tacoma double-cab TRD Sport
    Homertaco grill, Light Racing UCA's, 2.8" front lift (5100's at 0.85 setting and Eibach springs) 2" AAL with rear 5100's, Wet Okole seat covers fr/ bk. 17 x 9 Incubus Crusher wheels w/ 4.5" backspacing. 30% tinted front windows.
    I like my Light Racing UCAs. They were $370 at Fat Bobs Garage...

  13. May 5, 2011 at 7:29 PM
    #13
    ds46000

    ds46000 Well-Known Member

    Joined:
    Feb 15, 2011
    Member:
    #51206
    Messages:
    183
    Gender:
    Male
    Vehicle:
    07 PreRunner TRD Sport
    i think you're rubbing now as opposed to before because you have less caster now. if you add caster (which is what you should ask them to do, becuase you're nowhere close to being in spec...and i'm sure you have "some" to add...even if it's not a lot), the wheel should move forward in the wheel well, and you won't rub on that cab mount anymore.

    take it back to them...basically with that much camber, you should be able to get your caster to at least 1.5 or so.

    There's a give and take w/ regards to camber and caster. You ideally want zero camber, but if you do that, you won't have any caster. If they keep your camber at around 1.0 or thereabouts, they should be able to get your caster back to normal which should alleviate the wheel rubbing.

  14. May 5, 2011 at 7:33 PM
    #14
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,195
    Gender:
    Male
    Apex, NC
    Vehicle:
    15 Black DC OR Prerunner
    Looks to me like the set the toe and ignored the caster/camber. take it back and make them fix it. camber should be closer to 0* and caster should be 2.5* or so with a little difference between the two for tracking.

  15. May 5, 2011 at 7:44 PM
    #15
    Sawick

    Sawick [OP] Still not worthy!

    Joined:
    Feb 6, 2011
    Member:
    #50642
    Messages:
    342
    Gender:
    Male
    First Name:
    Jason
    Bedford, MA
    Vehicle:
    09 TRD Sport
    HID Retrofit, Smoked Tails, Tint, Running Boards, Satoshi, XD Cranks, 285/70 Duratracks, In-Dash Navigation, aFe Pro Dry CAI, 2525XL, 5100's+ coils, Socked and Millerd!
    Yea, looking at it he really didnt change much but the Toe and .3 off the Left Caster

  16. May 5, 2011 at 11:08 PM
    #16
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,895
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Gotcha , duh

  17. May 6, 2011 at 9:09 AM
    #17
    Sawick

    Sawick [OP] Still not worthy!

    Joined:
    Feb 6, 2011
    Member:
    #50642
    Messages:
    342
    Gender:
    Male
    First Name:
    Jason
    Bedford, MA
    Vehicle:
    09 TRD Sport
    HID Retrofit, Smoked Tails, Tint, Running Boards, Satoshi, XD Cranks, 285/70 Duratracks, In-Dash Navigation, aFe Pro Dry CAI, 2525XL, 5100's+ coils, Socked and Millerd!
    would adding a small amount of additional lift help at all? I could toss a 1/4 spacer on top of the 5100s I guess

  18. May 6, 2011 at 9:21 AM
    #18
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,195
    Gender:
    Male
    Apex, NC
    Vehicle:
    15 Black DC OR Prerunner
    No more lift will make it worse as you would have to lose more caster to get your camber correct. YOu really just need to take it back and have them fix the caster, they should easily be able to get close to 2* which should solve your rubbing.

  19. May 6, 2011 at 12:29 PM
    #19
    Sawick

    Sawick [OP] Still not worthy!

    Joined:
    Feb 6, 2011
    Member:
    #50642
    Messages:
    342
    Gender:
    Male
    First Name:
    Jason
    Bedford, MA
    Vehicle:
    09 TRD Sport
    HID Retrofit, Smoked Tails, Tint, Running Boards, Satoshi, XD Cranks, 285/70 Duratracks, In-Dash Navigation, aFe Pro Dry CAI, 2525XL, 5100's+ coils, Socked and Millerd!
    Thanks for the info, I've got an appointment Monday afternoon to see what they can do. Hopefully they try and fix it rather then be a jackass.

  20. May 6, 2011 at 12:31 PM
    #20
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,363
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    That's not an alignment, that's misalignment. The actual looks just a different bad afterwards. I personally would not have paid or left the shop with numbers like that. Never pay until you see this sheet. Good luck with do over.


    .05 toe, 0 camber & 2.5 caster. Go in and TELL them what actual specs you will pay for. My shit wasn't that far off when I did trial and error by sight alignment on my old truck.
