GPS Install - Hardwired to the A-Pillar

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Juicifer, Dec 7, 2013.

  1. Dec 7, 2013 at 3:54 PM
    #1
    Juicifer

    Juicifer [OP] Member

    Joined:
    Nov 30, 2009
    Member:
    #26751
    Messages:
    9
    Gender:
    Male
    Several people have posted this mod before, but this one is a little different than others I've seen. I was able to do the complete install without any special tools other than a drill, no tapping bolts, off the shelf parts, and no visible permanent alteration to the interior panels if you ever want to undo it. It also can be adjust a bit more so you don't end up with a blind spot.

    [​IMG]
    [​IMG]

    Parts needed:
    RAM Motorcycle Twist and Tilt™ Pivot Base with 1" Ball PN RAM-B-360-U

    1" Double Socket Arm for 1" Ball PN RAM-B-201U-A

    Ram X-Grip Universal Holder PN RAM-HOL-UN7BU

    Add a circuit

    Android Micro-USB 12V to 5V or,

    Garmin compatible regulator with Mini-B USB

    Two ATM style fuses for the Add a circuit (stock one will not fit)

    Ring terminal to ground the power cord

    6mm Metric bolt with 8mm head, to replace the stock grab handle bolt.

    Tools needed:
    Small drill
    8mm socket
    10mm socket
    4mm allen wrench for Ram Mount assembly

    The nice thing about using this Ram Mount is that it does not require modification, and it offers a little bit more adjustment. All you need to do is throw away the extra side mount piece that comes with it, and buy a bolt with a small enough head to fit down inside the mount and bolt it on, and slightly longer. The stock grab handle bolt has too large of a head to fit inside the mount.

    I'll let the photos speak for themselves, as most of it is pretty straight forward.

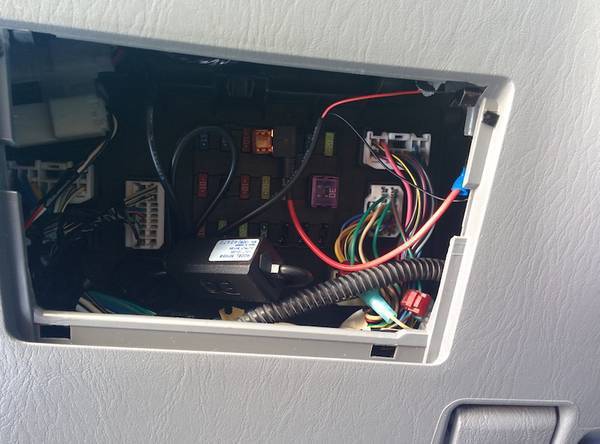

    The add a circuit installed, with the ring terminal grounded to a nearby bolt on the upper right side of the fuse panel.
    [​IMG]
    [​IMG]

    Drill the A-pillar cover out a slight amount to make room for the power cord.
    [​IMG]

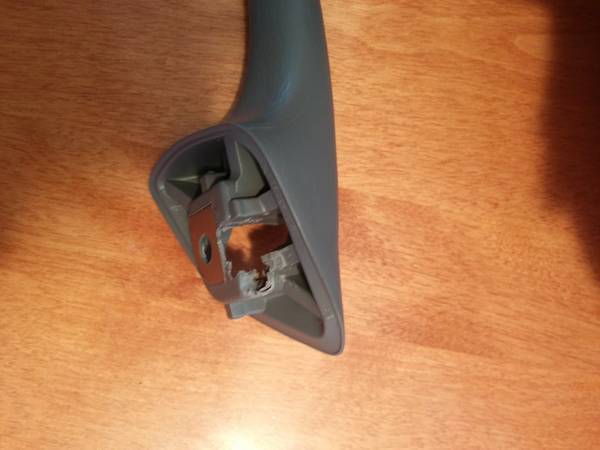

    Drill the grab handle out slightly to make room for the power cord.
    [​IMG]

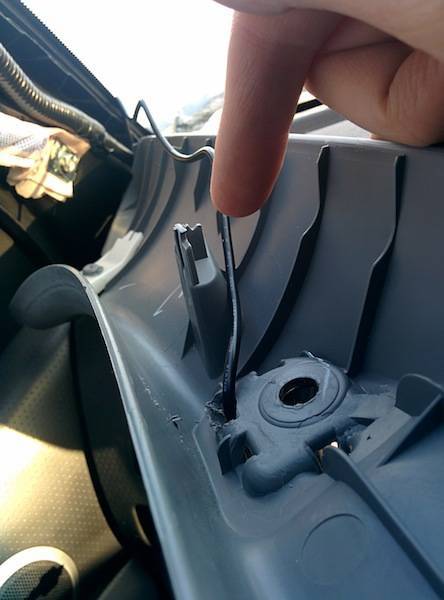

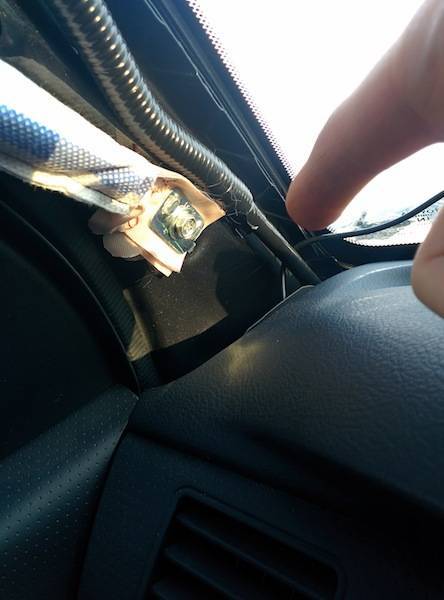

    Install the cord, wrap the cord behind the other wiring as shown, such that it does not interfere with the airbag should it deploy.
    [​IMG]

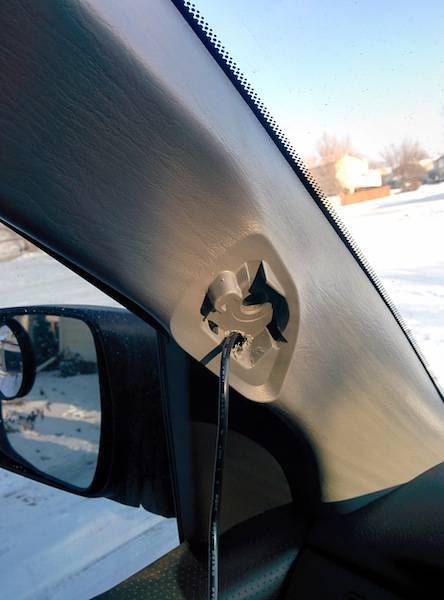

    Install the A-Pillar cover and route the cord on the side of the plastic tab as shown, so it stays away from the airbag.
    [​IMG]

    [​IMG]

    [​IMG]

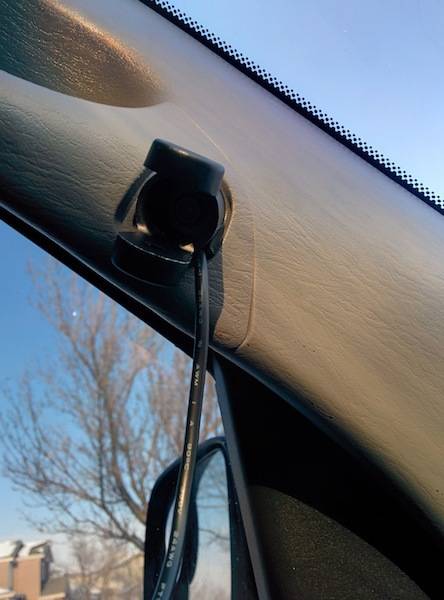

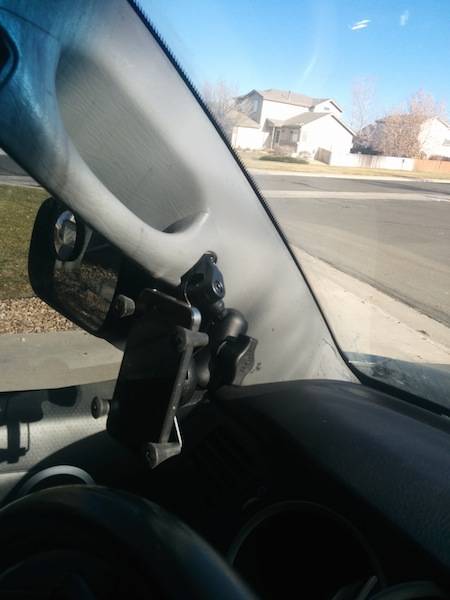

    Install the base of the Ram Mount, note that I was able to fish the wire past the mount without drilling any of the finished surfaces.
    [​IMG]

    [​IMG]

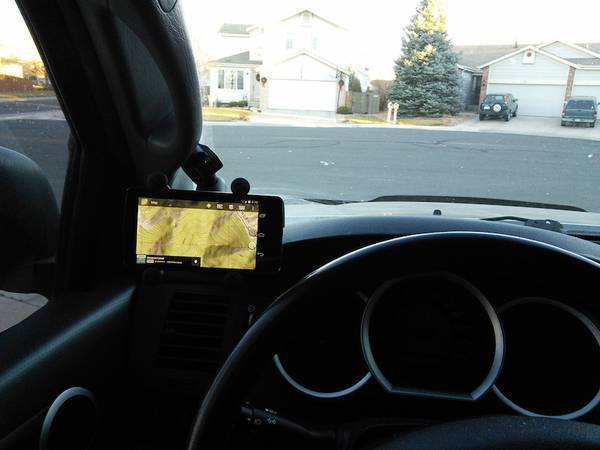

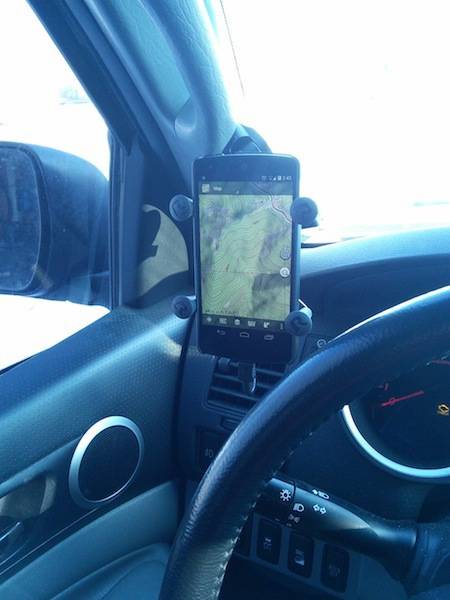

    Voila!

    Just make sure whatever cord you buy converts the voltage down from 12V to 5V if you are wiring a USB device.

    steelhd likes this.
  2. Dec 7, 2013 at 4:04 PM
    #2
    J0HN_R1

    J0HN_R1 Well-Known Member

    Joined:
    Jun 15, 2010
    Member:
    #39007
    Messages:
    556
    Gender:
    Male
    Calgary, Alberta
    Vehicle:
    2014 Tacoma TRD Sport DCSB
    Bilstein 5100's @ 2.75" FR, Deaver 1.5" TSB leafs RR
    Good job, but it's way too close to the steering wheel for my liking...

    ;)

  3. Dec 7, 2013 at 4:09 PM
    #3
    1993t100

    1993t100 I'm lost

    Joined:
    Nov 11, 2013
    Member:
    #116388
    Messages:
    4,242
    Gender:
    Male
    First Name:
    Samuel
    Bellevue, NE
    Vehicle:
    2012 Tacoma AC 4x4
    Buncha junk
    Looks awesome! I've got a 93 T100 (similar to the interior of the first Tacoma's, however not exact). I took out my cigarette 12v plug, and ran it down to a panel that's easily removed. I only have my phone charger plugged in right now, but when I buy a GPS & radar detector I'll buy one of these http://www.amazon.com/eForCity-Thre...1265&sr=8-15&keywords=cigarette+plug+splitter and keep them all behind the dash to keep it clean. I heard it's a job to run wires up by the heater vent to the top of the dash but it can be done, which is what I'll be doing. Great write up!

  4. Dec 7, 2013 at 8:02 PM
    #4
    teamhypoxia

    teamhypoxia MichelinMan

    Joined:
    Aug 21, 2012
    Member:
    #85247
    Messages:
    3,013
    Gender:
    Male
    Colorado
    Vehicle:
    '12 DCSB TRD OR
    Nice write-up


    Looks good.

  5. Dec 7, 2013 at 9:41 PM
    #5
    JdevTac

    JdevTac Negative Ghostrider

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    1,637
    Gender:
    Male
    First Name:
    Josh
    GA
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica
    I did this same thing a while back using the other write-up on here, but I did it with the straight mount that I epoxied a 6mm stud to. I really like the pivoting ball mount you used though. How is the adjustability on that? Can you just spin it around where you want it?The way mine is now will only low articulation of the RAM arm in a small range since the arm conflicts with the ball mount stick at certain angles.

    My GPS ends up sitting about 2 inchs offset from the steering wheel and at about 10 o'clock as it is. Anyone with huge hands would have an issue lol.

  6. Dec 7, 2013 at 10:42 PM
    #6
    Juicifer

    Juicifer [OP] Member

    Joined:
    Nov 30, 2009
    Member:
    #26751
    Messages:
    9
    Gender:
    Male
    The rotation is adjustable, but locks down as you tight the grab handle bolt. The next joint out, the pivoting ball, can swing with some force from the hand (it is tightened with a small allen bolt, but not fully locked). Because I swung this piece toward the windshield, it helps keep the GPS away from the steering wheel. So to answer your question, yes, you can get much more adjustability out of it. If the arm starts impeding the ball, you can just rotate the whole assembly a little bit and get more articulation between the ball and the slots of the arm. My motorcycle has the problem you speak of, which is part of the reason I used this setup on the truck, to avoid that ball/arm binding at high angles.

    You can tell from the pictures that it is close to the steering wheel, but probably not as close as it looks. It does not impede normal driving at all.

    If that still concerns you, you can easily adjust the whole unit further back and to the right, but it will then create a blind spot on the corner of your windshield. Not a big deal though. I can adjust it by hand in seconds, and have found that the best position for me is as shown. It's probably about 6"-8" away from the steering wheel, although it is hard to tell from the pictures. You won't be hitting your knuckles on it.

    Last edited: Dec 7, 2013
  7. Jan 3, 2015 at 6:05 PM
    #7
    teamhypoxia

    teamhypoxia MichelinMan

    Joined:
    Aug 21, 2012
    Member:
    #85247
    Messages:
    3,013
    Gender:
    Male
    Colorado
    Vehicle:
    '12 DCSB TRD OR
    Going to make this happen

  8. Jun 5, 2015 at 5:38 AM
    #8
    BlueManRising

    BlueManRising Member

    Joined:
    Apr 4, 2015
    Member:
    #152491
    Messages:
    23
    Gender:
    Male
    First Name:
    Nathan
    SC
    Vehicle:
    2015 SR5 Double Cab 4x4 MT
    Yellow Wire Mod, BenWA Rear window Mod, Equilizier Upgrade, Sub Install, Nerf Bars
    Awesome, just bought all the stuff to do this next weekend. Thanks for the write up. I like the motorcycle twist part, it definitely will give better articulation than the ball in the other review.
