Grom Ipod Interface, 12v pwr source, glove box light Install *pics*

Discussion in 'Audio & Video' started by Taco-Jenn/FJ-Kyle, Dec 6, 2007.

  1. Dec 6, 2007 at 4:23 PM
    #1
    Taco-Jenn/FJ-Kyle

    Taco-Jenn/FJ-Kyle [OP] Member

    Joined:
    Oct 18, 2007
    Member:
    #3117
    Messages:
    18
    Vehicle:
    2007 Tacoma TRD / FJ Cruiser
    Billet Grill, Grom Ipod Interface, de mudflapped, more mods to come.
    Alright Part one of my X-mas gift to fiance' was a Grom Ipod interface kit. Hanging in the FJ forums all the time all I hear about is the Dice kits, but many I have found when shopping around would not allow use of the steering wheel controls, or the 6 disc changer.

    When I found the Grom kit it was a little cheaper in price, and it works with the steering wheel controls, AND the 6 disc changer! After using the Ipod kit through my Pioneer head unit in my FJ she has come to love my setup. Needless to say she's getting one too, just she wants to keep the factory head unit.

    Install is pretty much a plug and play deal, since each Kit includes a vehicle specific harness.

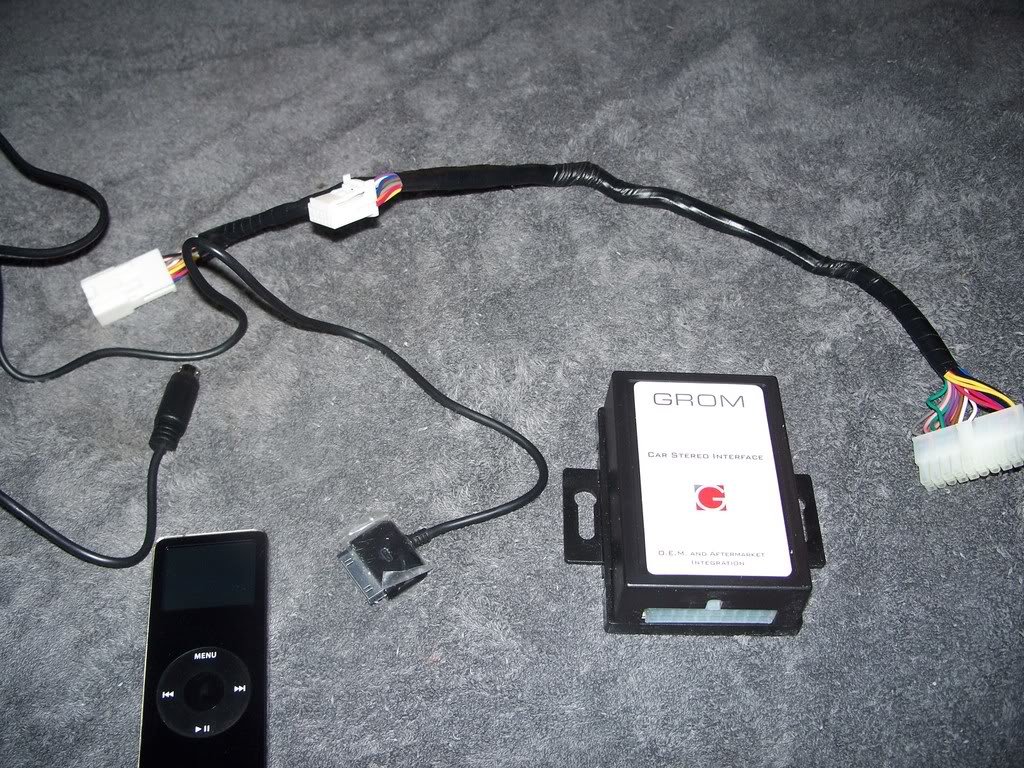

    [​IMG]


    To Test this out I am using my Now ancient 4G Nano. In the FJ I have the Ipod run to my glove box with a home made bracket and some velcro for easy removal when I feel need to update its playlists. She wanted her Ipod mounted in the center console armrest. I figured if I am taking all of the center console out, I am gonna do everything while I am there. I had a 12v pwr source from radio shack laying around so I figured now was as good as any time. She also wanted to use my center console glove box light mod I did to my truck as well. (quick run to Advanced Auto)

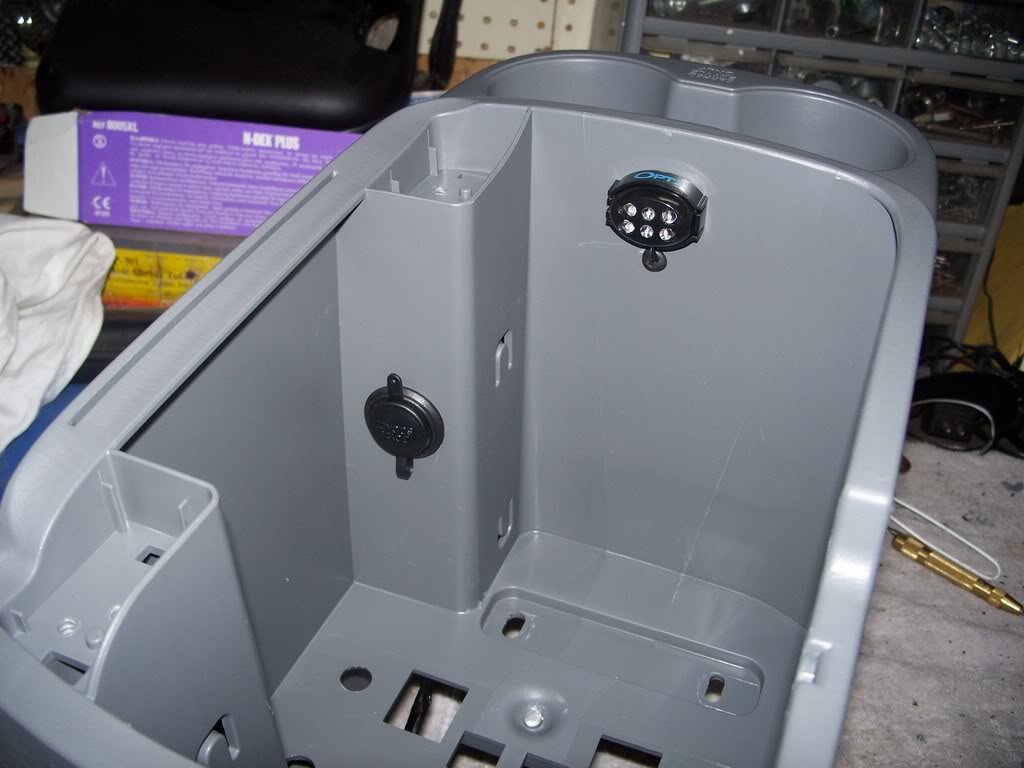

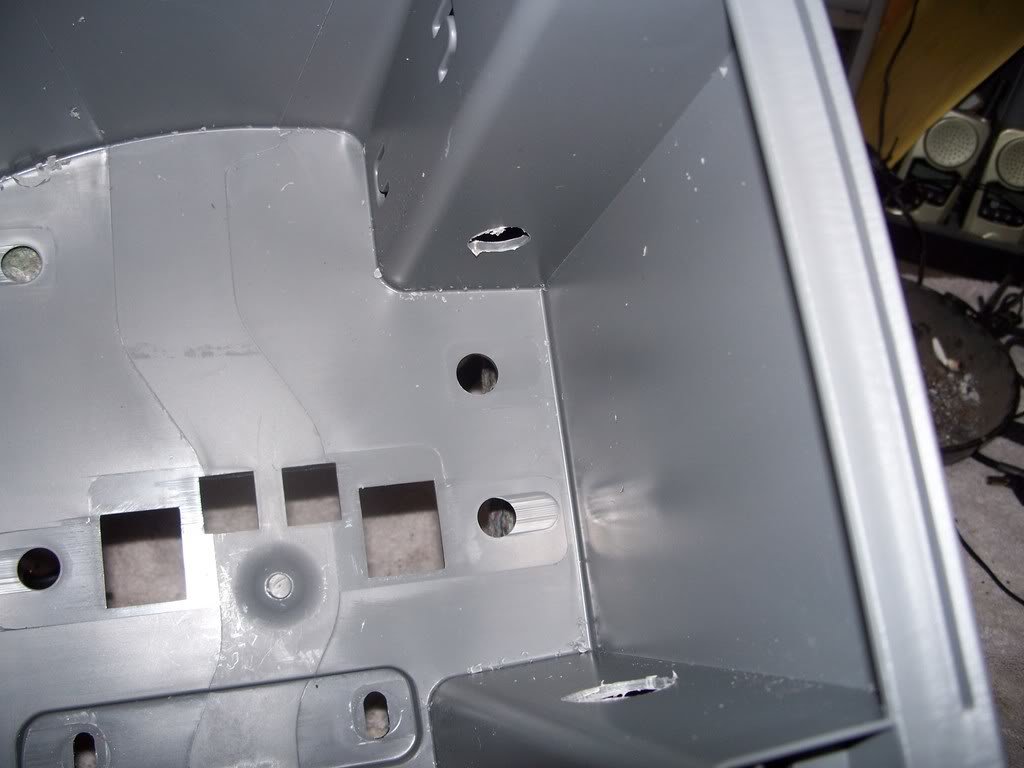

    Here are some holes drilled for the new 12V power source, glove box light and Ipod cable.



    [​IMG]

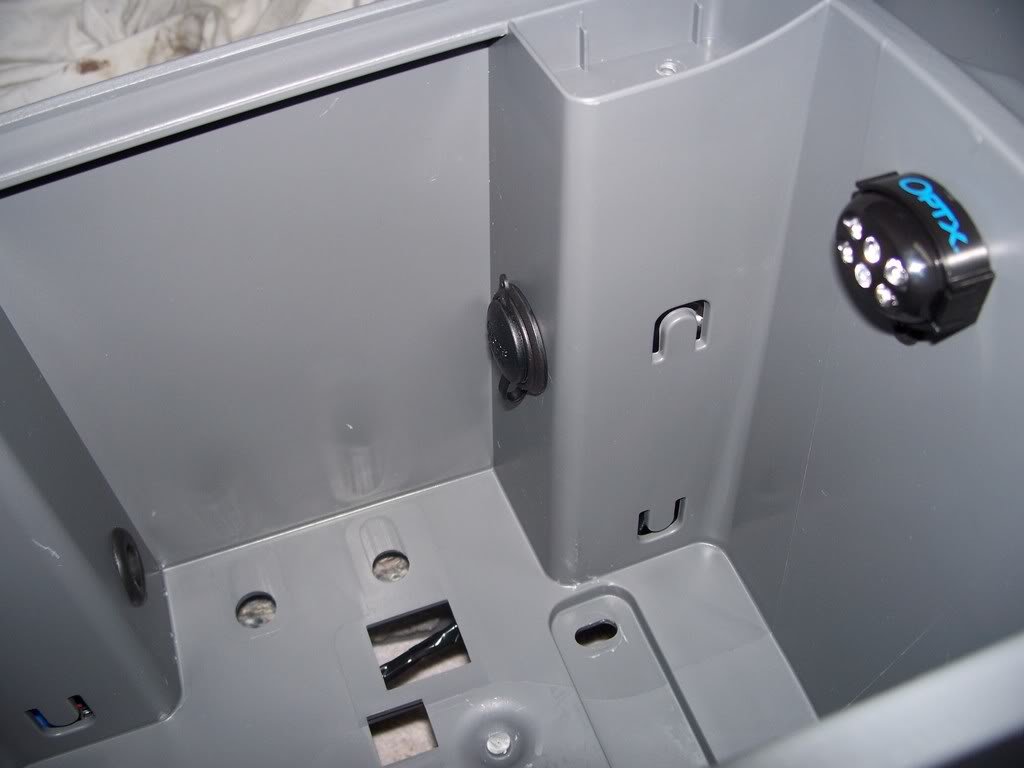

    An here is the Components in place. I used the hot and ground from the 12V for the glove box light as well, that way one fuse will handle both items and I only have to run the wires once (I'm lazy).


    [​IMG]

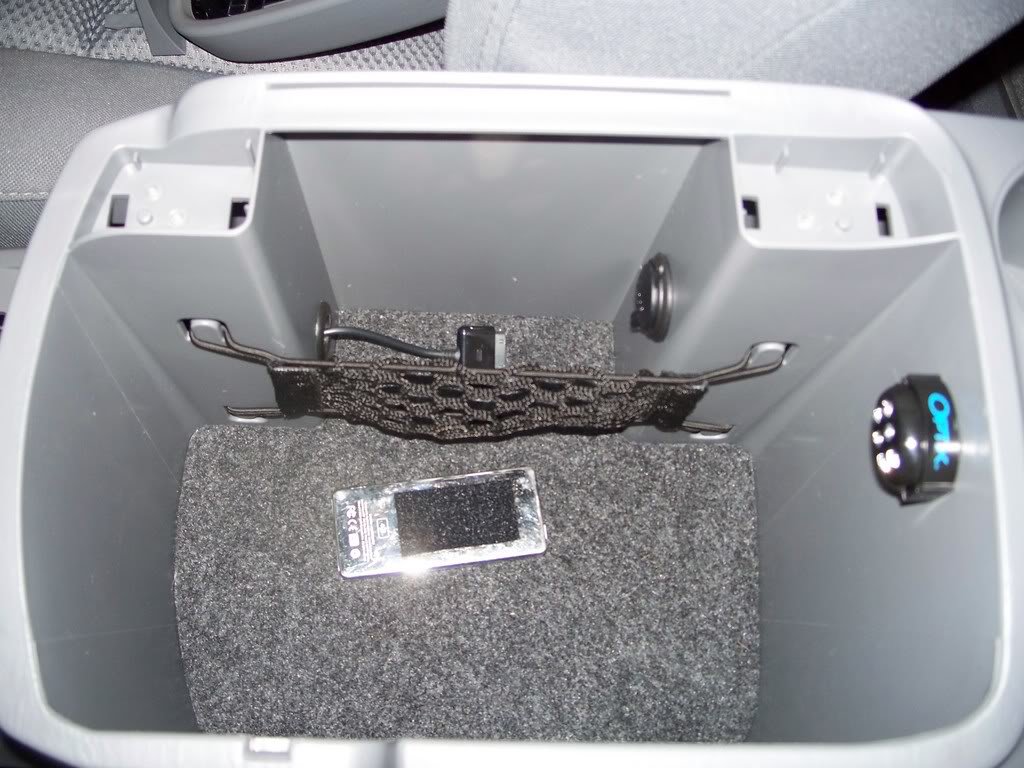

    The rubber gromet at the bottom is for the Ipod link cable which goes straight to the Grom Box. I chose the Optix lights because I have used them before and they are bright without being anoying to the driver at night.



    [​IMG]

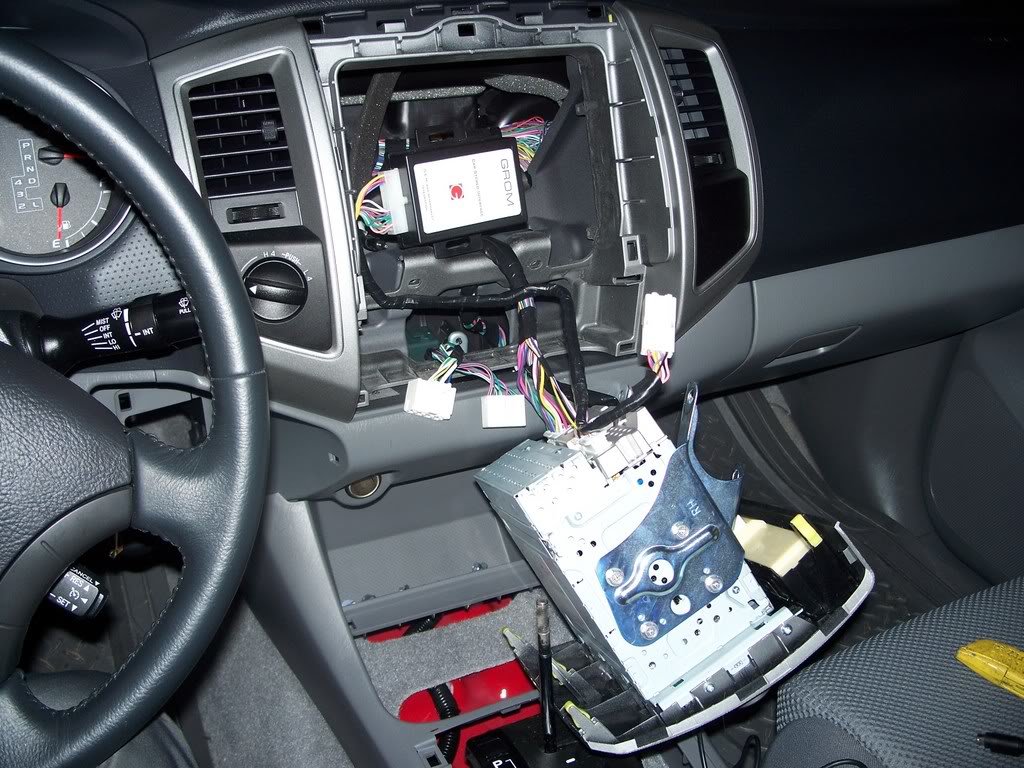

    Whoo my dash puked a radio! At first i tried to make this much harder than it is, turns out the climate controls come out really easy and then the rest lifts up and away after 4 bolts are removed.





    [​IMG]


    To Be Continued....

  2. Dec 6, 2007 at 4:23 PM
    #2
    Taco-Jenn/FJ-Kyle

    Taco-Jenn/FJ-Kyle [OP] Member

    Joined:
    Oct 18, 2007
    Member:
    #3117
    Messages:
    18
    Vehicle:
    2007 Tacoma TRD / FJ Cruiser
    Billet Grill, Grom Ipod Interface, de mudflapped, more mods to come.
    Everything in the proper spot Sans Armrest Lid.


    [​IMG]

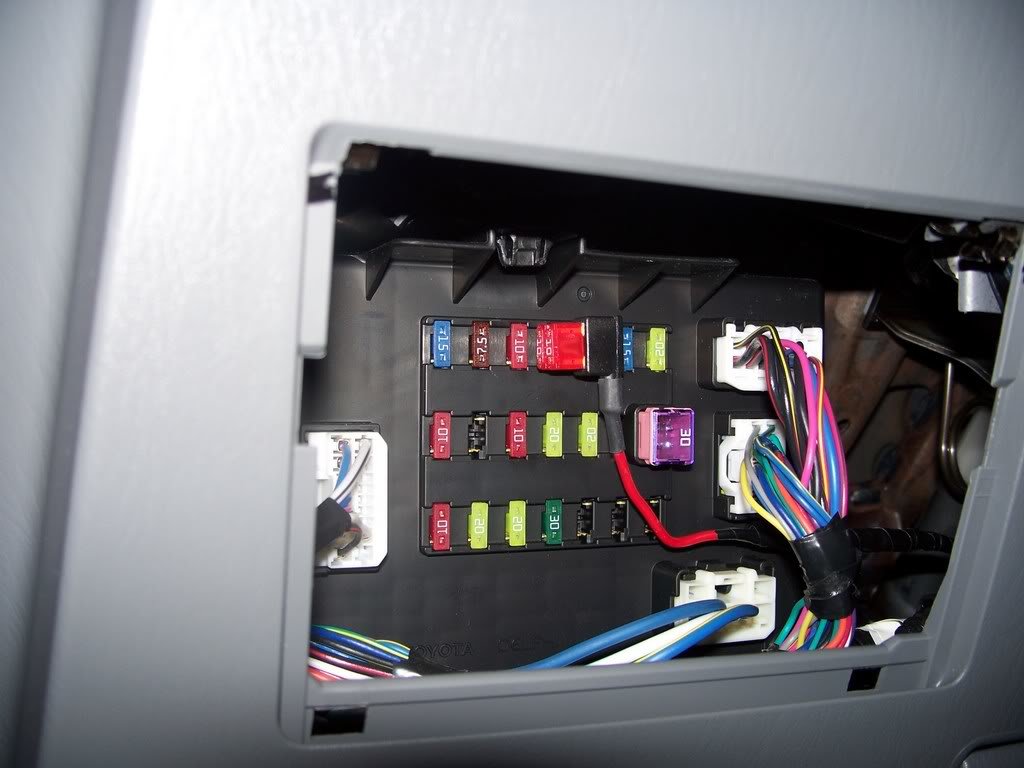

    Ahhhhhh the Add a circuit my favorite little gadget. I used the ACC fuse spot for the light and 12v pwr source. Good thing about the Add a circuit, is that you can use the 7.5 fuse for Accessory and 10 (or whatever you choose) for the glove box light.




    [​IMG]

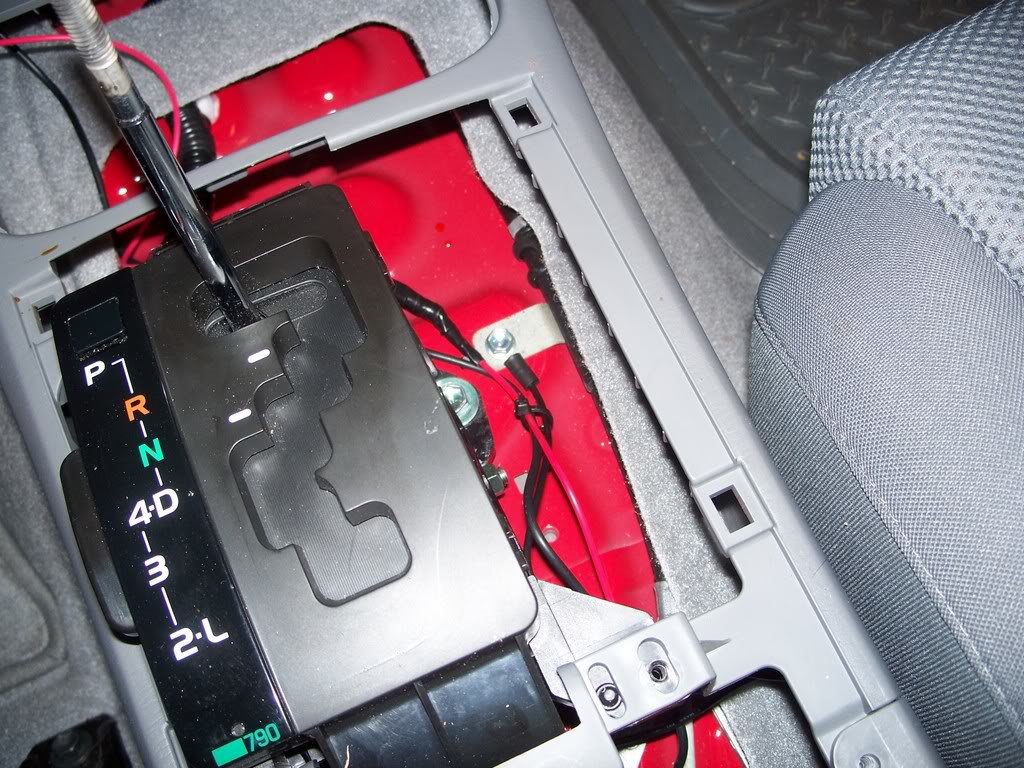

    And to the right of the Gear Selector is a perfect ground already provided by Toyota. And a side note, the 12v pwr source has an inline fuse. I removed this so if I needed to replace a fuse it wouldn't be trapped under the console. Its much easier to access it in the Factory fuse panel.


    [​IMG]

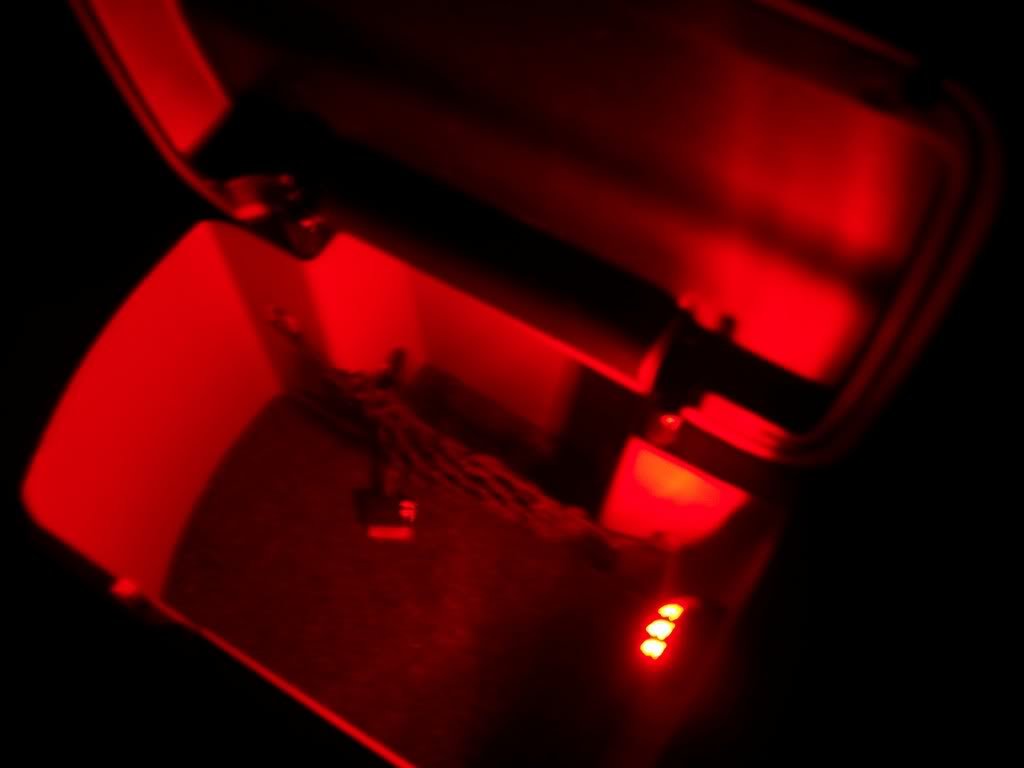

    Finished, my camera doesn't do so hot in the dark but you get the idea. Chose Red to match the Truck, and the dash light are orangeish red. Now that it works there comes part 2 of x-mas thats getting her the actual Ipod!



    [​IMG]



    And Viola! I like this setup because I am not a fan of wires from a cell phone charger, or a MP3 player laying around on the console or dash. Anyhoo there it is, ahh Christmas and installs. Happy Holidays!

  3. Dec 6, 2007 at 7:32 PM
    #3
    rhoppas

    rhoppas Land of Oz

    Joined:
    Aug 29, 2007
    Member:
    #2564
    Messages:
    1,301
    Gender:
    Male
    Topeka, KS
    Vehicle:
    07 Double Cab V6 TRD Sport Tow
    Earnhardt Cannons, Terra Grapplers, Viper alarm, Hunter4x4 Bull Bar, 6" Pro Comp Off-Road lights, extra set of bed D-rings, Chrome exhaust tip, Metra Ipod/MP3 adapter, Garmin GPS, CarriageWorks grill, Maglite mounted to driver seat, 9" Stubbie Antenna, WeatherTech floor liners, Saddleman Neoprene seat covers, DeeZee bed mat
    Good job Taco/FJ! That is a sweet setup. How much is the Grom? Does it work with a regular mp3 player? We are getting more choices for Taco radio interfaces by the day, and that's a good thing....

  4. Dec 6, 2007 at 8:44 PM
    #4
    Taco-Jenn/FJ-Kyle

    Taco-Jenn/FJ-Kyle [OP] Member

    Joined:
    Oct 18, 2007
    Member:
    #3117
    Messages:
    18
    Vehicle:
    2007 Tacoma TRD / FJ Cruiser
    Billet Grill, Grom Ipod Interface, de mudflapped, more mods to come.
    Thanks Rhoppas,

    The Grom was 79.99 I Believe, I was just excited it wasn't 149.99 like the Dice units, so I bought it in a hurry. As far as I know its compatible with all the Apple Ipods. It has the standard Ipod dock cable, but I am not certain if another company has tried to use the same format.

    Something I should add is that not only do you retain 6 disc changer functions and you Steering wheel controls, The Grom works in simple mode and advanced mode. In simple mode when you press disc and you can operate the Ipod by the clickwheel in its usual manner. In Advanced mode you can browse up to 5 playlists all through the OEM head unti controls or steering wheel.

    Disc will take you to your Ipod, pres disc again and you will go to your cd player as usual. Press 2 -6 for playlist 1-5 (i think 1 is the entire library not a playlist) once in a playlist track < or > wil work as normal. Press Scan and < > will move you 10 songs at a time. It may sound weird but 2 minutes of me playing with it and I felt pretty comfotable with it.

  5. Dec 7, 2007 at 9:45 AM
    #5
    rhoppas

    rhoppas Land of Oz

    Joined:
    Aug 29, 2007
    Member:
    #2564
    Messages:
    1,301
    Gender:
    Male
    Topeka, KS
    Vehicle:
    07 Double Cab V6 TRD Sport Tow
    Earnhardt Cannons, Terra Grapplers, Viper alarm, Hunter4x4 Bull Bar, 6" Pro Comp Off-Road lights, extra set of bed D-rings, Chrome exhaust tip, Metra Ipod/MP3 adapter, Garmin GPS, CarriageWorks grill, Maglite mounted to driver seat, 9" Stubbie Antenna, WeatherTech floor liners, Saddleman Neoprene seat covers, DeeZee bed mat
    Thanks for the details. It sounds very similar to the USA-Spec device except that it only supports Ipods and not regular mp3 players.

  6. Dec 7, 2007 at 10:04 AM
    #6
    MotoXFreeStyle61

    MotoXFreeStyle61 Displaced Texan

    Joined:
    May 18, 2007
    Member:
    #1616
    Messages:
    849
    Gender:
    Male
    San Antonio TX
    Vehicle:
    06 PreRunner SR5 4Cyl, Access Cab, 5
    Black Head Light Mod, Tacoma All Weather Mats, ScanGauge II, Tonnaeu Bed Cover, 40% Tint, Added Fog Lights, 600W x 1 Alpine MRP-M650 Amp, Alpine 10" Type-R SWR-1022D Sub, Secondary Air Filter Removed, Day Time Running Lights, K&N Drop In Air Filter (oiled), Westin Bullbar (Black Powder), Alpine IVA-W505 w/Nav, JL Audio 6.5" Front Speakers, Toyota SR5 Seat Covers, 2.5" Toytec Spacer
    I like the units that offer ipod controls from the head unit. I dont have an ipod yet but i'll get one as soon as my 5yr old Dell Jukebox dies. The new generation ipods are awesome looking and they have 160gb harddrives. Which will be a nice upgrade from my 15gb jukebox. :)

  7. Dec 7, 2007 at 10:46 AM
    #7
    007Tacoma

    007Tacoma I dub thee malicious!

    Joined:
    Jan 4, 2007
    Member:
    #643
    Messages:
    6,664
    Gender:
    Male
    First Name:
    Mark
    San Antonio, TX
    Vehicle:
    2015 4Runner Trail Edition Premium
    Cloaking Device
    That is a great write up! Do you have any more pics or wiring diagrams for this install?

  8. Dec 7, 2007 at 12:03 PM
    #8
    Taco-Jenn/FJ-Kyle

    Taco-Jenn/FJ-Kyle [OP] Member

    Joined:
    Oct 18, 2007
    Member:
    #3117
    Messages:
    18
    Vehicle:
    2007 Tacoma TRD / FJ Cruiser
    Billet Grill, Grom Ipod Interface, de mudflapped, more mods to come.
    Thanks! I don't have a wiring diagram but I do have more pics, some I nixed them because I wasn't sure if I'd run power from the fuse box under the hood, or from the one in the cab. plan on some more when she get her Ipod I plan on using the velcro Idea again so the Ipod is fixed to the wall of the compartment.

  9. Dec 16, 2007 at 9:14 PM
    #9
    volf16

    volf16 Member

    Joined:
    Nov 19, 2007
    Member:
    #3524
    Messages:
    15
    Gender:
    Male
    Scottsdale, AZ
    Vehicle:
    06' silver streak mica double cab, longbed, PreRunner Sport
    Ipod adaptor install, remove secondary air filter, A.R.E Tonneau Cover. Amp installed, HID 5000k H4's and H10's
    I bought the grom as well. It was easily installed. I like the way it operates and the fact you can use the steering wheel controls. I did notice the my ipod seemed to get pretty hot while it was connected to the grom (charging). It did'nt affect the performance of the ipod though.

  10. Dec 18, 2007 at 8:52 AM
    #10
    healthylaugh

    healthylaugh Member

    Joined:
    Oct 31, 2006
    Member:
    #158
    Messages:
    19
    NW Washington State
    Vehicle:
    2006 V6 SR-5 Access Cab TRD Off-Road Auto TowPkg Audio Config: 6 speaker non-JBL & steering controls
    I have the 2006 Tacoma and just installed a USA SPEC PA12-TOY this weekend.

    Getting the dash out was easy, thanks to this thread

    http://aaronlinsdau.com/gear/articles/ipod2car.html

    and your great post here.

    A few things:

    I had a hell of a time fishing the PA12 harness from the back of the head unit down toward my center console. (I tried to take the shortest path and couldn't get it to go that way, so I have to take the farthest route--fishing more from toward the front of the truck, farthest forward from the head unit that you can see in there.)

    I'd like to do it the way you have it depicted here, so:

    Can you detail where and how you fished your harness to the armrest box from the head unit? I cannot see because the GROM unit blocks it in that 5th pic or is that the harness going down in the lowest opening near where the two two detached connector modules are coming out?

    I don't know how to remove all the jazz in the center console area (like you have done in the photo with the radio dangling and the pic with the shifter on the left of frame above) so I can see what I'm doing.

    Then I want to bring it into my armrest box just like you've done, so how did you remove that to drill it?

    And where did you get that nice rubber gromet to finish the job off so cleanly?

    Can someone please explain in detail and post photos if you have them? Thanks!

  11. Dec 21, 2007 at 8:44 AM
    #11
    007Tacoma

    007Tacoma I dub thee malicious!

    Joined:
    Jan 4, 2007
    Member:
    #643
    Messages:
    6,664
    Gender:
    Male
    First Name:
    Mark
    San Antonio, TX
    Vehicle:
    2015 4Runner Trail Edition Premium
    Cloaking Device
    I am very interested in this as well as the OPTX light...

  12. Dec 24, 2007 at 8:51 AM
    #12
    Taco-Jenn/FJ-Kyle

    Taco-Jenn/FJ-Kyle [OP] Member

    Joined:
    Oct 18, 2007
    Member:
    #3117
    Messages:
    18
    Vehicle:
    2007 Tacoma TRD / FJ Cruiser
    Billet Grill, Grom Ipod Interface, de mudflapped, more mods to come.
    I used a long zip tie to get the wire fished all the way up the back side of behind the air ducts and wires.

    Removing the center glove box took some time because google wasn't helping me out at all, but the carpet sectioin in the glove box removes just by pulling it out, I had to use a pick to get at a corner so i could get a finger nail on it. under that are the two srews that give me problems, the rest are visable.

    The gromets I got from Advanced Auto, Also at Harbor freight I found a kit with every shape and size gromet in it.

  13. Feb 24, 2008 at 6:43 AM
    #13
    chizzums

    chizzums New Member

    Joined:
    Feb 23, 2008
    Member:
    #4911
    Messages:
    2
    Vehicle:
    2005 Regular Cab SR5
    Does anybody know if the GROM works in the regular cab? When i plug everything up and i push DISC it will go to my IPOD but for only 2 secs can you hear the music and then it will go back over to CD if i have a CD in or it will go to radio if there is no CD. Somehow its not recognizing that the IPOD is playing instead of a CD and it will not stay connected to the IPOD. Any ideas of what is going on?

  14. Feb 25, 2008 at 7:04 AM
    #14
    argm31i

    argm31i Well-Known Member

    Joined:
    Oct 15, 2007
    Member:
    #3061
    Messages:
    342
    Gender:
    Male
    Great looking install...

    I noticed two bundles coming out of the black box with white connectors on them. One appears to be the plug into the radio. What's the other one?

    Also, did you have to patch into the fuse box for the Grom, or was that just for the light and 12v hook-up?

  15. Feb 18, 2010 at 3:54 AM
    #15
    n2advnture

    n2advnture Well-Known Member

    Joined:
    Feb 4, 2010
    Member:
    #30694
    Messages:
    160
    Gender:
    Male
    First Name:
    Mark
    New Market, MD
    Vehicle:
    2007 Double Cab 4x4 TRD Sport Longbed
    Front skid plate color matched to wheels, Weather Tech floor mats, Window visors, Bug deflector, Exhaust tip, Bed mat, EZ down tail gate, Redline hood struts, Cover Wet Okole custom seat covers w/ heaters, FJ Anthracite Special Edition Wheels, 265/75/R16 BFG All-Terrain KOs, Pioneer Avic Z110BT, Back up cam in Pop N Lock, XTang Solid Fold tonneau, Escort Xi45 hardwired radar detector, Scan Gauge II
  16. Feb 18, 2010 at 6:24 AM
    #16
    81shark

    81shark Well-Known Member

    Joined:
    Nov 7, 2008
    Member:
    #10567
    Messages:
    1,680
    Gender:
    Male
    Vehicle:
    2006 Base Access CP1
    nice...the light doesn't do much for me tho.

    i ran my ipod cable into the center console as well, i just did it the ghetto way by snapping hte lower front net holder off to run the wire thru it. shouldn't hurt the resale value to much. :lol:
