GROUP BUY '96-2004 Tacoma Rear plate bumper

Discussion in 'Relentless Fabrication' started by Hawk_tx, Oct 31, 2019.

  1. Oct 31, 2019 at 8:02 PM
    #1
    Hawk_tx

    Hawk_tx [OP] Well-Known Member

    Joined:
    Jun 28, 2017
    Member:
    #222648
    Messages:
    157
    Gender:
    Male
    Texas
    Vehicle:
    2001 Burgundy Tacoma Trd
    Here is the information for the bumper.



    Base price includes Standard or High clearance hitch (customer will need to specify which one when ordering) Flush mount cutouts for Rigid D series will be standard on all bumpers.



    Bare: $849 (price does not include shipping, shipping is extra)



    Powder Coating adds $175

    Key features:
    - Made from 3/16”, ¼”, and ¾” thick steel, CNC cut and bent, and MIG welded for unbeatable quality and rugged good looks with the strength to back them up.
    - Improved clearance over low hanging factory bumper and hitch.
    - Mounts through 1/4" steel mounting brackets, and uses 4 mounting points per side of frame. Compare this to our competitors using only 1-2 bolts per frame rail being held in shear!
    - Standard integrated 3/4" steel recovery points are through welded directly to the mounting plates for strength to handle all recovery situations! No surface welded 'recovery' points here!
    - Standard hi-lift jack lifting notches on every bumper
    - Standard cutouts for factory license plate lights to be reused
    - Each bumper is hand made to order to your exact specifications.
    - Approximately 75lbs base bumper weight.
    - Modified mounting for trucks with body lift is available. If a body lift is installed, please specify how much body lift is on your truck when ordering otherwise a bumper for a standard truck will be sent (0" body lift).

    Installation:
    No vehicle modification is necessary to install. Simply remove the factory rear bumper and bolt the beefier Relentless rear plate bumper up with basic hand tools!
    **Factory tow hitch will NOT work with this bumper. I can integrate a hitch into the bumper, but since I cannot get it officially tested like the factory hitch, it comes unrated for capacity and full responsibility and liability is on you if you decide to tow with it. I'm sure you can understand where i am coming from, theres just a lot of liability there that I can't claim for on-road use. These are off-road bumpers.


    Please allow time for your bumper to be expertly crafted to your specs. We build as quick as possible, but quality like this takes some time. Great looks, unbeatable quality and solid design is found in every Relentless product. Complete customer satisfaction in our product is my goal!

    Sample pictures:

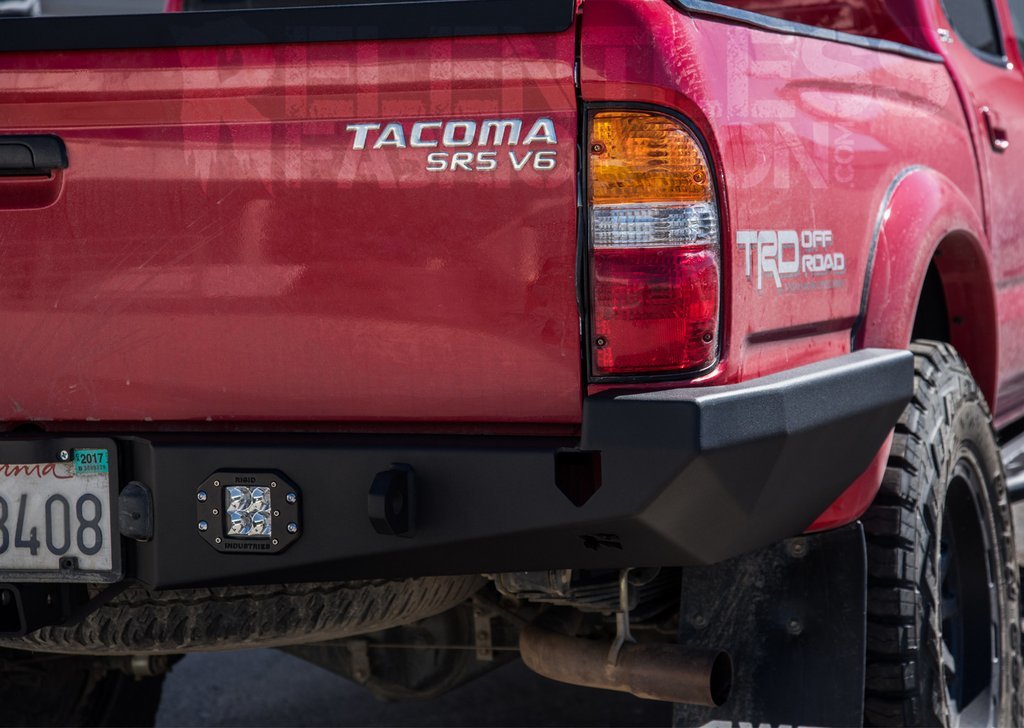

    Pictured is base bumper for a 3" body lifted application.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    Jason's rear with: 3" body lift mod, receiver hitch, custom backup light cutouts, and swing-out tire carrier option.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

  2. Nov 3, 2019 at 6:05 AM
    #2
    ChargedSHOTaco

    ChargedSHOTaco Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85118
    Messages:
    100
    Gender:
    Male
    I’m in.

  3. Dec 5, 2019 at 1:05 PM
    #3
    TheMTBtacoGuy

    TheMTBtacoGuy Well-Known Member

    Joined:
    May 18, 2018
    Member:
    #253847
    Messages:
    1,078
    Gender:
    Male
    First Name:
    carsen
    Sandy, UT
    Vehicle:
    01 trd Supercharged 5spd, grandma Lexus
    • 3in old man emu lift • jba ucas • 34in bfg at on 16in method wheels • 2nd gen TRD supercharger (PO) • ARB front bumper • black metalic flake paint job (PO) • All pro off-road bead rack • smittybilt rtt • Borla exhaust (PO)
  4. Mar 18, 2020 at 1:56 PM
    #4
    Garwood

    Garwood Well-Known Member

    Joined:
    Nov 14, 2015
    Member:
    #169633
    Messages:
    89
    Gender:
    Male
    Pensacola, FL
    Vehicle:
    2002 TRDOR Xtra Cab 5spd MT
    Did this group buy ever get off the ground? It's such a cool bumper, I'd totally be in.

  5. Mar 19, 2020 at 12:57 AM
    #5
    Hawk_tx

    Hawk_tx [OP] Well-Known Member

    Joined:
    Jun 28, 2017
    Member:
    #222648
    Messages:
    157
    Gender:
    Male
    Texas
    Vehicle:
    2001 Burgundy Tacoma Trd
    No it never did :(

  6. Mar 19, 2020 at 1:07 AM
    #6
    Flare side Taco Lover

    Flare side Taco Lover I'm gettin hitched...to my truck!

    Joined:
    Dec 2, 2018
    Member:
    #274496
    Messages:
    539
    Gender:
    Female
    First Name:
    Mudder Trucker
    Hicktown Ohio
    Vehicle:
    Derek the Taco, Purdy Face the Ram, Paradise the Ranger
    hitch light and goat skull
    I wish I could get one like that for a stepside.

  7. May 3, 2020 at 12:06 AM
    #7
    owl0990

    owl0990 Member

    Joined:
    Oct 5, 2014
    Member:
    #139704
    Messages:
    15
    Gender:
    Male
    Colorado
    Vehicle:
    02 SR5 Xtra Cab 4X4 Taco
    Flex-a-lite electric fan, URD crankshaft pulley, K&N cold air intake, optima battery, Centerforce clutch, Gusseted/modified spindles, Total Chaos UCA's, King extended travel coilovers, Bilstein 5100 rear shocks, stainless extended brake lines, slotted/drilled rotors, urethane bushings everywhere round out the list of whats been done so far...leaf springs, differentials/lockers, and armor are on the to do list still
    Is there any way to get this group buy off the ground?

  8. May 4, 2020 at 12:58 AM
    #8
    Hawk_tx

    Hawk_tx [OP] Well-Known Member

    Joined:
    Jun 28, 2017
    Member:
    #222648
    Messages:
    157
    Gender:
    Male
    Texas
    Vehicle:
    2001 Burgundy Tacoma Trd
    I don’t think there is enough interest but I’m still down

  9. Aug 16, 2020 at 6:40 AM
    #9
    Sinkalip

    Sinkalip Member

    Joined:
    Nov 19, 2016
    Member:
    #202760
    Messages:
    21
    Gender:
    Male
    Vehicle:
    04 DC 04 RC
    I'm in, I should've bought one a couple years ago when I got my front bumper :mad:

  10. Aug 16, 2020 at 9:24 AM
    #10
    RelentlessFabrication

    RelentlessFabrication relentlessfabrication.com Vendor

    Joined:
    Sep 12, 2018
    Member:
    #266012
    Messages:
    374
    Sparks, NV
    Last edited: Aug 17, 2020
  11. Oct 1, 2020 at 4:11 PM
    #11
    DK117

    DK117 Well-Known Member

    Joined:
    Mar 29, 2016
    Member:
    #182725
    Messages:
    53
    Gender:
    Male
    First Name:
    DK
    Vehicle:
    2003 TRD
    will factory hitch work with the wrap around? I like everything you guys do, but don't want to lose my factory hitch.
