guide to installing Camburg UCA on a 1st gen taco w/ a 6" fabtech lift

Discussion in '1st Gen. Tacomas (1995-2004)' started by 03TRDtacotrucker, Nov 10, 2011.

  1. Nov 10, 2011 at 8:59 PM
    #1
    03TRDtacotrucker

    03TRDtacotrucker [OP] No Road. No Problem.

    Joined:
    Oct 27, 2010
    Member:
    #45301
    Messages:
    380
    Gender:
    Male
    First Name:
    Alex
    North Richland Hills, TX
    Vehicle:
    03 SC double cab TRD SR5 4X4
    TRD supercharger, URD 7th injector, Map 3 ECU, 2.2 URD pulley, Doug Thorley headers, Bear River tru performance hi flow cat, 18" Magnaflow muffler, 6" fabtech lift, 35" BFG KM2 tires, the old all pro tube rear bumper, ARB front bumper with smitty built 8k winch, pro comp krawlers 87 series wheels, roof rack, 60" hi-lift jack, K&N intake, grey wire mod, front and rear diff breather mod, G2-performance 4.88 gears in the front, Yukons in the rear w/ royal purple oil, red top optima battery, PreRunner Tiregate with full size spare, Radflo front coilovers, Custom home made front skid plate, rear bilstein 5150 series shocks, Elite sliders w/o kick, Camburg UCA.
    Doing this on a MAC without a paint program so sorry if its hard to fallow, did my best to be as descriptive as I could instead. Couldnt fine a thread anywhere for an install guide for these with this truck and a fabtech lift so figured I would make one.

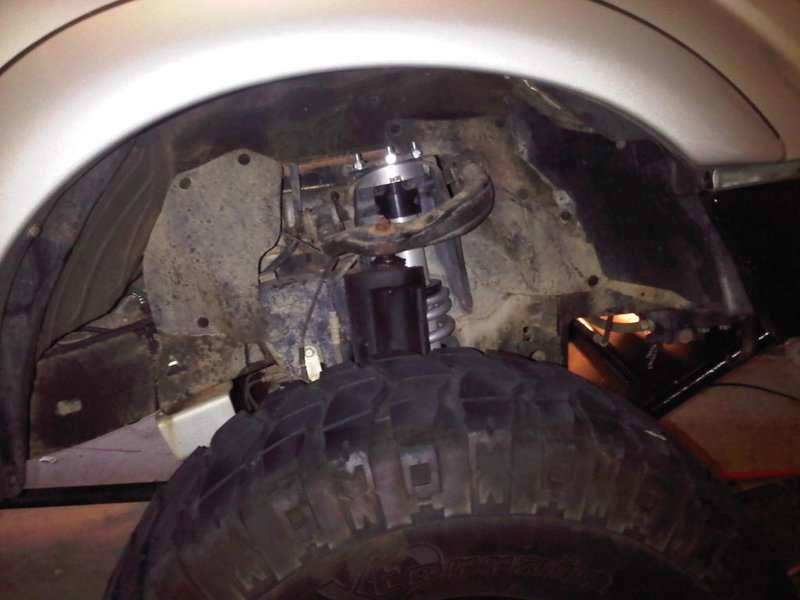

    before install

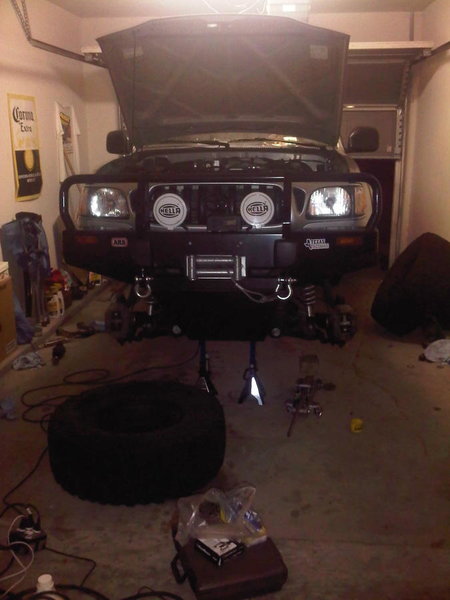

    Jack the truck up and remove both front tires

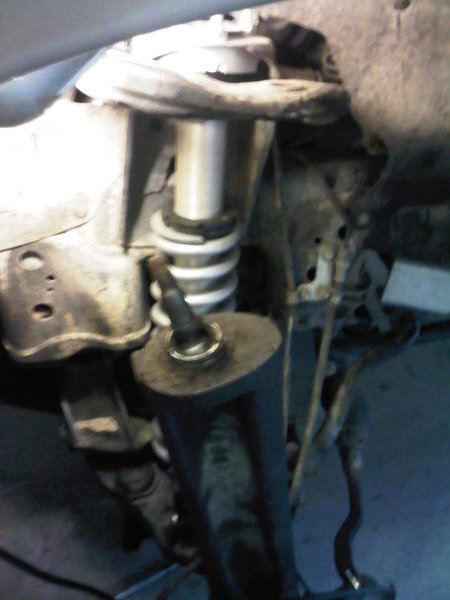

    remove pin from UCA ball joint bolt and then remove the bolt (use some PB blaster if necessary to help loosen the bolt) then using a hammer hit the bottom of the UCA next to the ball joint up to free the BJ from the UCA.
    Next remove the BJ boot clamp and then the snap ring (you can remove the snap ring with a pair of pliers and a flat head screw driver, but helps to use a snap ring removing tool even with mine being too small) Next since you are replacing the BJ anyways just spray the base of the BJ with some PB blaster and knock it down through the spindle using a small sledge or hammer.

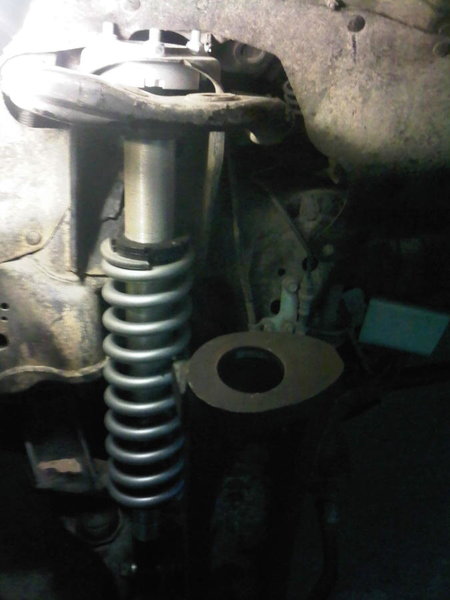

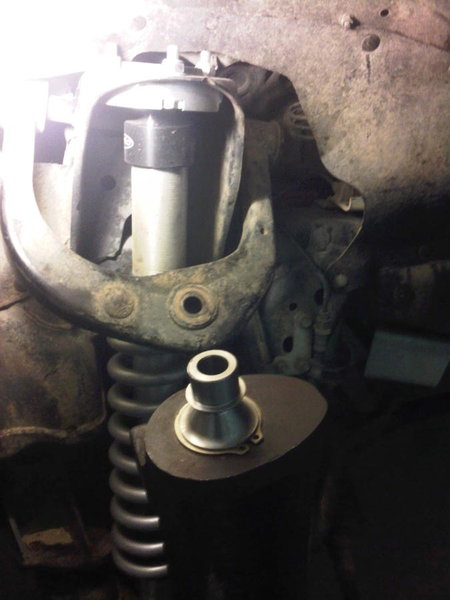

    Now using a C-clamp style press that I rented from O'reillys press the new lower part of the uniball into the spindle and then install the new snap ring (make sure to use a generous amount of anti-seize on this part or else you will have trouble getting it into place since the size of the fabtech spindle makes the press difficult to use here) you will most likely have to back off and press it a couple times before it will seat in place enough for the snap ring to clear (took me about 3 times each side)

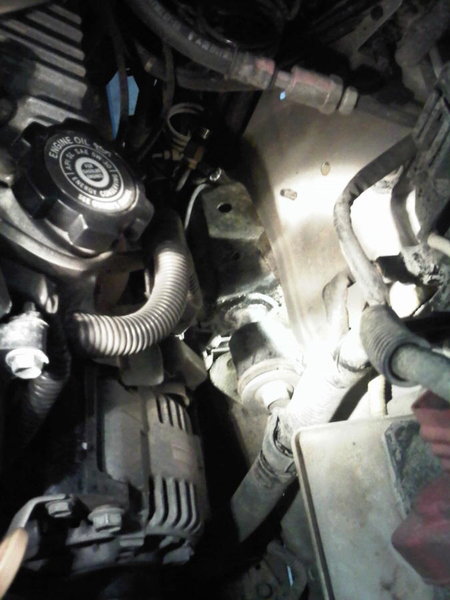

    on the drivers side under the battery tray you will have to remove a wiring harness clamp and the air bag sensor using a 10mm socket and then slide the coolant tank out in order for the UCA bolt to be taken out. using a 19mm socket remove the bottom UCA bolt and slide the bolt all the way out. (on the passenger side you will have to bend part of your fender well out using some channel locks and then remove another air bag sensor (10mm) and also move an A/C line over out of the way for the bolt to clear.

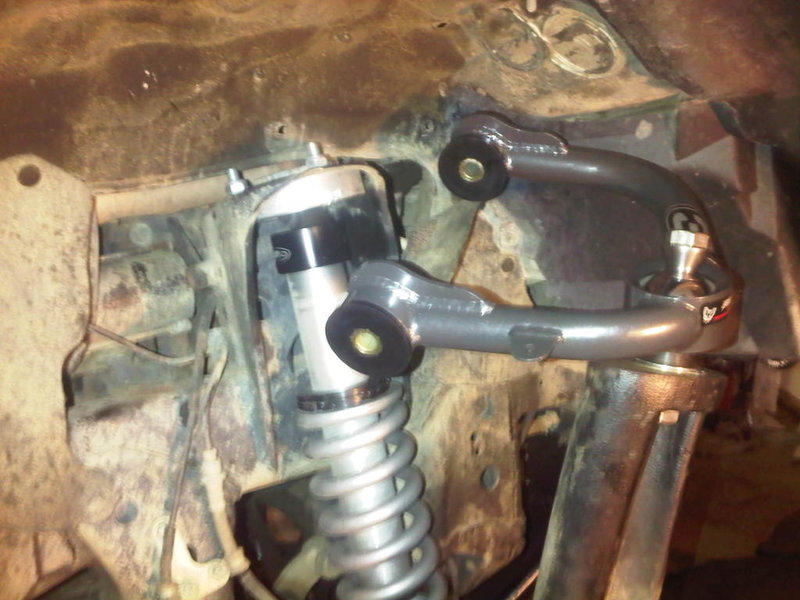

    next install the bushing into the new UCA and make sure to grease before installing. I found it easier to go ahead and install the UCA to the spindle not tightening the bolt down yet to help keep it in place while inserting the long bolt back through the new UCA (another hand will help with this part too) but this also makes it easier if your installing these by yourself.

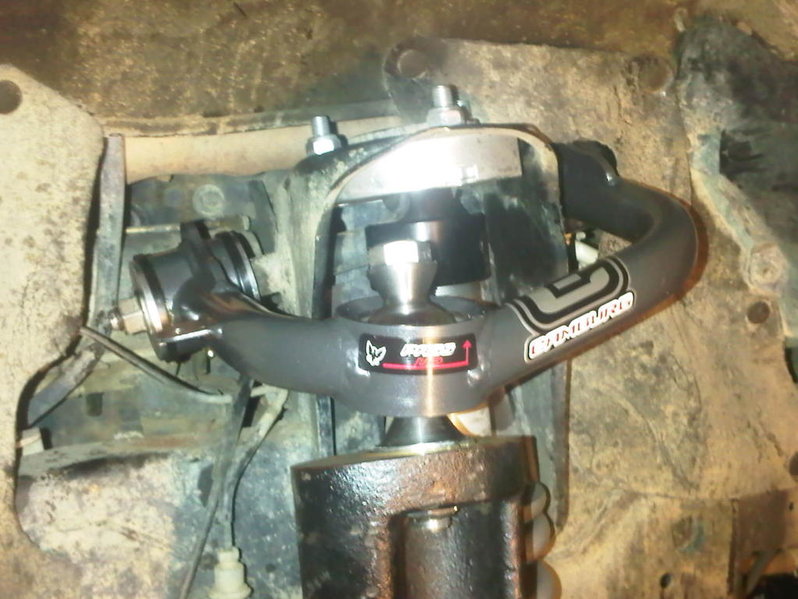

    next tighten the long bolt back down and go ahead and tighten the uniball bolt down as well make sure to get these both good and tight since it is what's keeping your tire in place (85ft/lb). Make sure to re-install your air bag sensors and harness. Spray some lubricant on the uniball when finished to keep it from squeaking, I used silicone lube.

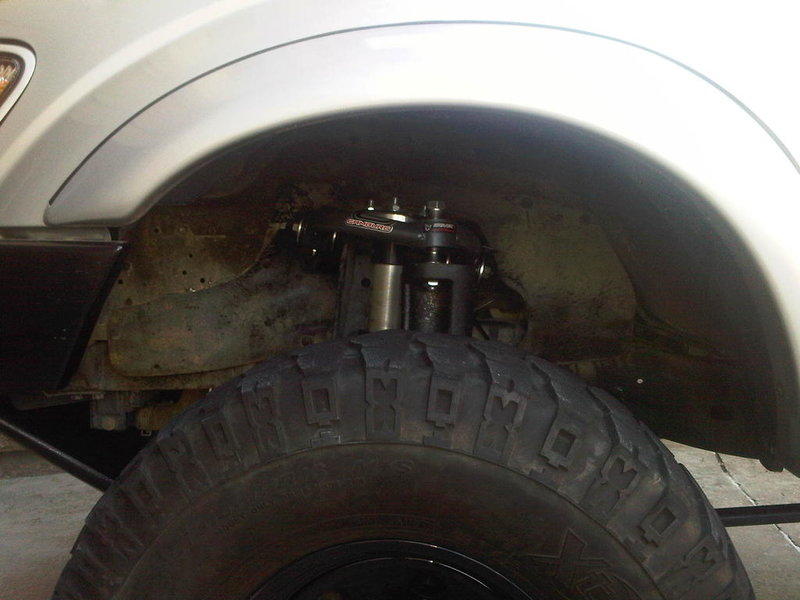

    Next re-install your tires and head to the nearest alignment shop, which is a must do after this. After that enjoy your new awesome UCA, which not only look great, but work great too :D....Wish I had more pictures or a paint program could have made this easier to fallow, but did my best with what I had. If you have any questions feel free to PM me and ill do my best to answer them, And no I did not gain any lift installing these, but did get better wheel travel and a smoother ride. All in all this job took me about 4 hours to do and ive never installed a UCA before this. Drivers side by the way is a little more difficult to do than the passenger side. would start with the passenger side first so you get a better feel for it before tackling the drivers side.


  2. Nov 10, 2011 at 10:48 PM
    #2
    TacoMX

    TacoMX TW's Official anti body-lift pundit

    Joined:
    Aug 24, 2011
    Member:
    #62240
    Messages:
    4,831
    Gender:
    Male
    First Name:
    Jonathan
    Deltona, Florida
    Vehicle:
    '13 Tacoma TRD Sport DCLB 4x4
    stock.....for now...
    Better ride after the UCA? or did you install them just for better suspension articulation?

    Your setup looks great! Im not a big fan of DB lifts...but yours is setup nice!

  3. Nov 11, 2011 at 1:08 AM
    #3
    STLharry

    STLharry Lube: It's the key to penetration.

    Joined:
    Oct 11, 2008
    Member:
    #9899
    Messages:
    1,849
    Gender:
    Male
    First Name:
    Harry
    VT
    Vehicle:
    Yeti Rescue Package with 220k miles
    '95-'97 camouflaged, ARB bull bar, sliders, rear tube bumper, King coilovers with Icon neoprene condoms and a defenestrated sway bar, OME Rear Suspension: CS046R leafs/N85 shocks/NWOR greasable mounting stuff; S13WL Tundra calipers/pads/rotors, IPF H4 lenses and bulbs, IPF 968 DCG 100W fog lights, clapped out CB radio, Aussie-spec FJ60 inclinometer, ARB CKMA12 compressor; 4' Hi-Lift, deckplate mod/grey wire mod/dif breather extensions/dif drop, Duratrac tires, Sockmonkey bedside decals, boat cupholder
  4. Nov 15, 2011 at 2:56 PM
    #4
    03TRDtacotrucker

    03TRDtacotrucker [OP] No Road. No Problem.

    Joined:
    Oct 27, 2010
    Member:
    #45301
    Messages:
    380
    Gender:
    Male
    First Name:
    Alex
    North Richland Hills, TX
    Vehicle:
    03 SC double cab TRD SR5 4X4
    TRD supercharger, URD 7th injector, Map 3 ECU, 2.2 URD pulley, Doug Thorley headers, Bear River tru performance hi flow cat, 18" Magnaflow muffler, 6" fabtech lift, 35" BFG KM2 tires, the old all pro tube rear bumper, ARB front bumper with smitty built 8k winch, pro comp krawlers 87 series wheels, roof rack, 60" hi-lift jack, K&N intake, grey wire mod, front and rear diff breather mod, G2-performance 4.88 gears in the front, Yukons in the rear w/ royal purple oil, red top optima battery, PreRunner Tiregate with full size spare, Radflo front coilovers, Custom home made front skid plate, rear bilstein 5150 series shocks, Elite sliders w/o kick, Camburg UCA.
    Yeah the ride is way better and the wheel travel is much better too. rides like it was stock again except for these worthless mud terrains that vibrate like hell and sound like a freight train going down the road, which is next in line to be changed. installed these because i needed new upper ball joints and figured what hell might as well since its pretty much the same labor time, so the change from worn out BJ to driving with these is like night and day would highly recommend. Alignment shop had a hell of a time getting their part done, but that could of just been the case with mine.

  5. Nov 15, 2011 at 6:24 PM
    #5
    TacoMX

    TacoMX TW's Official anti body-lift pundit

    Joined:
    Aug 24, 2011
    Member:
    #62240
    Messages:
    4,831
    Gender:
    Male
    First Name:
    Jonathan
    Deltona, Florida
    Vehicle:
    '13 Tacoma TRD Sport DCLB 4x4
    stock.....for now...
    what kind of tires are you going for?

    Camburg, all pro, and light racing are at the top of my list if I decide to go with some UCA's.

    They looks sooo sick...esp the uniball arms.

  6. Nov 16, 2011 at 10:35 AM
    #6
    03TRDtacotrucker

    03TRDtacotrucker [OP] No Road. No Problem.

    Joined:
    Oct 27, 2010
    Member:
    #45301
    Messages:
    380
    Gender:
    Male
    First Name:
    Alex
    North Richland Hills, TX
    Vehicle:
    03 SC double cab TRD SR5 4X4
    TRD supercharger, URD 7th injector, Map 3 ECU, 2.2 URD pulley, Doug Thorley headers, Bear River tru performance hi flow cat, 18" Magnaflow muffler, 6" fabtech lift, 35" BFG KM2 tires, the old all pro tube rear bumper, ARB front bumper with smitty built 8k winch, pro comp krawlers 87 series wheels, roof rack, 60" hi-lift jack, K&N intake, grey wire mod, front and rear diff breather mod, G2-performance 4.88 gears in the front, Yukons in the rear w/ royal purple oil, red top optima battery, PreRunner Tiregate with full size spare, Radflo front coilovers, Custom home made front skid plate, rear bilstein 5150 series shocks, Elite sliders w/o kick, Camburg UCA.
    im going with the goodyear duratrac tires, everyone has the BFG all terrains so feel like being different. Not to mention they are cool looking tires with a mean tread for an all terrain.

  7. Jan 10, 2012 at 10:38 AM
    #7
    03TRDtacotrucker

    03TRDtacotrucker [OP] No Road. No Problem.

    Joined:
    Oct 27, 2010
    Member:
    #45301
    Messages:
    380
    Gender:
    Male
    First Name:
    Alex
    North Richland Hills, TX
    Vehicle:
    03 SC double cab TRD SR5 4X4
    TRD supercharger, URD 7th injector, Map 3 ECU, 2.2 URD pulley, Doug Thorley headers, Bear River tru performance hi flow cat, 18" Magnaflow muffler, 6" fabtech lift, 35" BFG KM2 tires, the old all pro tube rear bumper, ARB front bumper with smitty built 8k winch, pro comp krawlers 87 series wheels, roof rack, 60" hi-lift jack, K&N intake, grey wire mod, front and rear diff breather mod, G2-performance 4.88 gears in the front, Yukons in the rear w/ royal purple oil, red top optima battery, PreRunner Tiregate with full size spare, Radflo front coilovers, Custom home made front skid plate, rear bilstein 5150 series shocks, Elite sliders w/o kick, Camburg UCA.
    just got new tires went with some BFG KM2's. love the ride and their extremely quiet for a mud terrain. UCA's are holding up strong and the drive with the new tires feels like a brand new truck. well worth the money and the install time.

  8. Jan 10, 2012 at 11:10 AM
    #8
    Blackdawg

    Blackdawg Dr. Frankenstein

    Joined:
    Dec 31, 2010
    Member:
    #48500
    Messages:
    50,483
    Gender:
    Male
    First Name:
    Monte
    Wyoming/St. Louis
    Vehicle:
    96.5 FrankenTaco & 03 Stock dbl cab
    BFG KM2 33x12.5 tires, Wheelers Type B rims, Allpro 1.5'' Wheel spacers w/extended thread lug nuts 2 Alpine 10'' Type Xs 2 Kicker 6X9s 4 Sony 5 1/4s Pioneer 4100 HU Sway bar removed 4 Hella 500 HIDs Frankenstein Leaf packs 1'' lift shackles Eibach coils 5100s front 10'' 5150s rear BAMF BPV bracket Deckplate mod Elite Front bumper Magnaflow 14'' muffler Elite Off Road Rear bumper with Tire gate with jerry can and fold down table, BAMF sliders, Custom Homemade Bed, rack/roof rack, CVT Mt. Shasta Roof Top Tent, 20lb CO2 tank, BAMF diff skid custom front skid, GM CS144 140 amp alternator Blitzpro 21s HAWK side LEDs Blitzpro Custom made side mirror lights, LightForce 240 Blitz llights, Piaa 510 ION fogs, XRC8 Winch w/in cab controls,
    HAHA! yea man KM2s FTW!

  9. Jun 10, 2014 at 1:01 PM
    #9
    Griff 99 TRD

    Griff 99 TRD Well-Known Member

    Joined:
    Jan 12, 2013
    Member:
    #95058
    Messages:
    276
    Gender:
    Male
    Vehicle:
    '99 Tacoma TRD Extended Cab 4x4
    K&N FIPK OME w/883s Air Raid TBS Trailgear Bumper Smoked Lights Mean Green Alternator JL Audio Sub/Amp Hybrid Audio Speakers Pioneer Head Unit ARB bumper Eagle 15x10 wheels Odyssey battery
    Guys, I am definitely in a world of POOP with this!!! I have a '99 Tacoma SR5 V6 TRD and I can't get the "snap ring to clear." I first used a c-clamp style press, then I took it to a local shop where they used a 30 ton press and there wasn't enough clearance. The guy said I would have to grind down the top of the spindle.

  10. Jun 10, 2014 at 8:28 PM
    #10
    043RZ

    043RZ Well-Known Member

    Joined:
    Mar 20, 2011
    Member:
    #53381
    Messages:
    243
    Gender:
    Male
    First Name:
    Matt
    Spring Grove, PA
    Vehicle:
    2004 Tacoma SR5
    6" Fabtech Lift, 15" American Racing Wheels, 5.29 Nitro Gears, 35/12.50R15 Cooper Discover STT, Pioneer 200 Watt Stereo, 6x8 Pioneer speakers, Raised Front and Rear Diff Breathers, Deck Plate Mod, Red Interior Underglow, Red Exterior Underglow, Cool White LED Rock Lights,
    Very nice write up man!! Thumbs up! I to have a fatech 6 inch lift and have actually been looking for awhile on how to get rid of the fabtech struts up front. They ride like shit and i want my factory ride back. Soooo i have a question for ya. What brand of strut is that you have installed on your truck? And also did the manufacture of the strut supply you with that spacer to make?

  11. Aug 28, 2014 at 5:10 PM
    #11
    03TRDtacotrucker

    03TRDtacotrucker [OP] No Road. No Problem.

    Joined:
    Oct 27, 2010
    Member:
    #45301
    Messages:
    380
    Gender:
    Male
    First Name:
    Alex
    North Richland Hills, TX
    Vehicle:
    03 SC double cab TRD SR5 4X4
    TRD supercharger, URD 7th injector, Map 3 ECU, 2.2 URD pulley, Doug Thorley headers, Bear River tru performance hi flow cat, 18" Magnaflow muffler, 6" fabtech lift, 35" BFG KM2 tires, the old all pro tube rear bumper, ARB front bumper with smitty built 8k winch, pro comp krawlers 87 series wheels, roof rack, 60" hi-lift jack, K&N intake, grey wire mod, front and rear diff breather mod, G2-performance 4.88 gears in the front, Yukons in the rear w/ royal purple oil, red top optima battery, PreRunner Tiregate with full size spare, Radflo front coilovers, Custom home made front skid plate, rear bilstein 5150 series shocks, Elite sliders w/o kick, Camburg UCA.
    The struts are Radflow coilovers. They were supposed to be an exact replacement for the fabtech struts. They seem to me to be about 1-2" too short. Fully extended out, they still seem a little short.
