Ham radio antenna install location questions

Discussion in 'Technical Chat' started by jbaird22, Feb 27, 2013.

  1. Mar 25, 2013 at 3:03 PM
    #41
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,408
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    Oh and don't forget the FJ gauge pod above radio retro fit ;)

  2. Mar 25, 2013 at 4:44 PM
    #42
    maineah

    maineah Well-Known Member

    Joined:
    Mar 24, 2011
    Member:
    #53641
    Messages:
    3,716
    Gender:
    Male
    First Name:
    Tim
    Maine
    Vehicle:
    4X4 SR5 V6 6spd

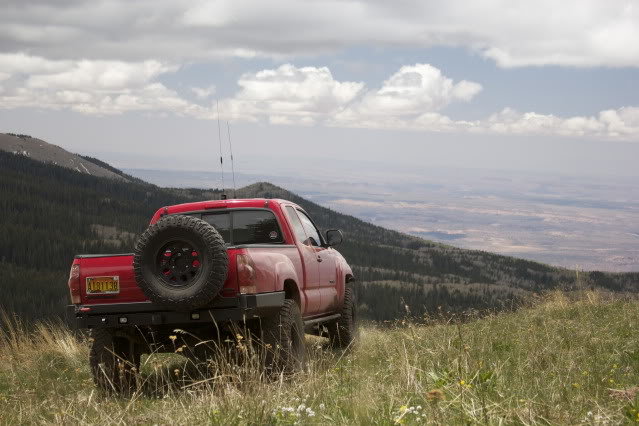

    Left antenna is VHF/UHF right antenna is 10-80 meter HF. Personally I would not mount an antenna on the roof unless you never drive into a garage use a parking garage or never go off road. Quite often it takes the antenna off mount and all and leaves a nasty hole in the roof.


  3. Mar 25, 2013 at 5:25 PM
    #43
    The Traveler

    The Traveler Formerly REBELTACO

    Joined:
    Mar 28, 2012
    Member:
    #75806
    Messages:
    6,801
    Gender:
    Male
    First Name:
    Matt
    SoCal
    Vehicle:
    1980 Cherokee Chief
    I don't own a Taco anymore.
    :drool:
    Damn you, Anthony...now I'm gonna be spending all my money INSIDE my truck instead of outside where I need it! :eek:

    But all of that sounds like what my truck should look like when it's done. I want to switch EVERYTHANNNG. I want a Panavise iPad mount, Lowrance Baja GPS, Ultragauge, Po-Po siren and PA, etc.

    But back to ham radios :spy:

  4. Mar 26, 2013 at 6:31 AM
    #44
    jbaird22

    jbaird22 [OP] Active Member

    Joined:
    Jan 12, 2013
    Member:
    #95052
    Messages:
    37
    Gender:
    Male
    Vehicle:
    08 access cab SR5
    Proforce- thanks for the pictures. That helped a ton. I was watching a YouTube vid of a guy that dismantled his interior and saw the airbag controller and you're right, I definitely do not want to hit that or cause that thing to go haywire.

    So if I gather correctly, your first attempt at cutting the bucket, you cut too large of an opening and covered it with carpet? I can see myself doing that, but seeing as it is going to kill me to fire up the dremel in the first place, I'll take my time and measure about 500 times.

    The thread got a little jumbled but the Larsen Antenna in the right angle mount in the bed was what I had in mind. I don't park my truck in the garage, but if I ever did I wouldn't want to have to fiddle with taking the antenna off the roof.

    Thanks for all the pics and posts. Keep them coming and I plan on making a video of the install or at the least take pictures of it.

  5. Mar 26, 2013 at 1:13 PM
    #45
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,408
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    Yeah I knew the SRS module was there but didn't anticipate it being in the way, so I cut the very bottom of the pocket and that was a fail. So then I cut in the middle so it dit just above the SRS module but just below the dash above it. So that left me with a giant hole underneath the radio. I am OCD with clean installs and even though it wasn't visible I still had to fix it. So I got a sheet of abs plastic, cut it to make a trim around the radio, used a heat gun to mold it to shape, then carpeted it for a finished look. I basically rebuilt the panel I cut so its all covered up back there. Here is a different angle to kinda see where in the middle of the pocket it needs to be mounted. Still hard to see but you get the idea. I can get a better one later if you want.

    [​IMG]

    Last edited: Mar 26, 2013
  6. Mar 26, 2013 at 1:15 PM
    #46
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,408
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    The point of the carpet was to clean up the hole around the radio. Even if its cut to the exact perfect size and filed down clean, you can still see the rough edge of the plastic as seen in the picture below. Look at the top left corner of the radio. Its a clean cut but still looks tacky. The carpet was the only thing I could think that would make it look smooth and clean.

    [​IMG]

  7. Mar 26, 2013 at 1:17 PM
    #47
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,408
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    The higher you cut in the pocket the better. I've installed 3 or 4 in that spot now and it seems like every time I move it higher and it gets better. But keep in mind manually transmission is different because their pocket is smaller. Radio model and size also makes a difference. Just measure before you cut. It'll be fine. The radio only goes into the hole about 1-2" at most. It doesn't go very deep at all.

  8. Mar 26, 2013 at 1:18 PM
    #48
    jbaird22

    jbaird22 [OP] Active Member

    Joined:
    Jan 12, 2013
    Member:
    #95052
    Messages:
    37
    Gender:
    Male
    Vehicle:
    08 access cab SR5
    That angle shows it much better. I was thinking of mounting it more "flat" like that than up and down for viewing purposes.

    Can you tell me how much room from the top and the bottom you have for the "middle"?

    Thanks again for the responses. Now if gigaparts would remove their finger from their rectum and get my order shipped out.

  9. Mar 26, 2013 at 1:24 PM
    #49
    bjmoose

    bjmoose Bullwinkle J. Moose

    Joined:
    Aug 31, 2010
    Member:
    #42529
    Messages:
    5,620
    Gender:
    Male
    First Name:
    Steve
    San Jose CA
    Vehicle:
    '11 Std Cab 4x4 5sp
    OME suspension, ARB Air Locker, Yaesu FT 8900 Ham Radio
  10. Mar 26, 2013 at 2:13 PM
    #50
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,408
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature

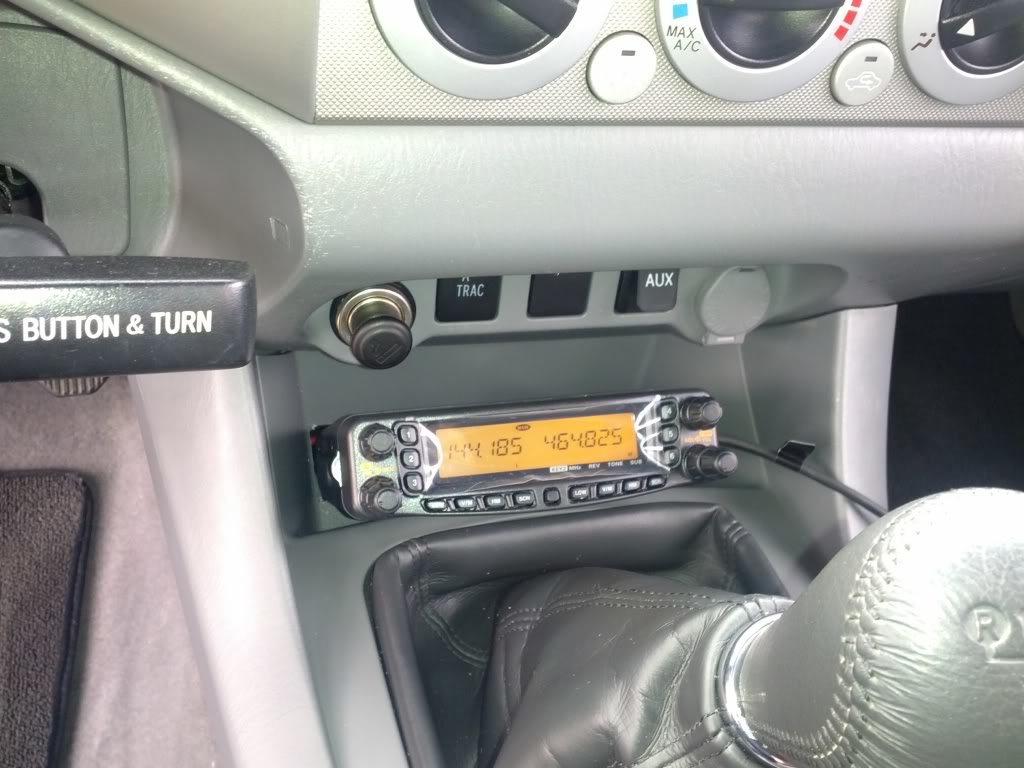

    I cant really get in there to measure, but here is a picture i just took. It looks about even top and bottom.

    uploadfromtaptalk1364332267897.jpg uploadfromtaptalk1364332304516.jpg





    That's an awesome write up! If I did the install all over again, I would definitely use the remote face mount kit. It would be installed in the same location it is now, except without cutting the hole. And obviously I'd need a remote speaker but that's cheap.

  11. Mar 26, 2013 at 2:20 PM
    #51
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,408
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    When measuring clearance from the radio to SRS module, keep on mind that once you connect the antenna cable, it usually sticks out further than the radio as seen here:

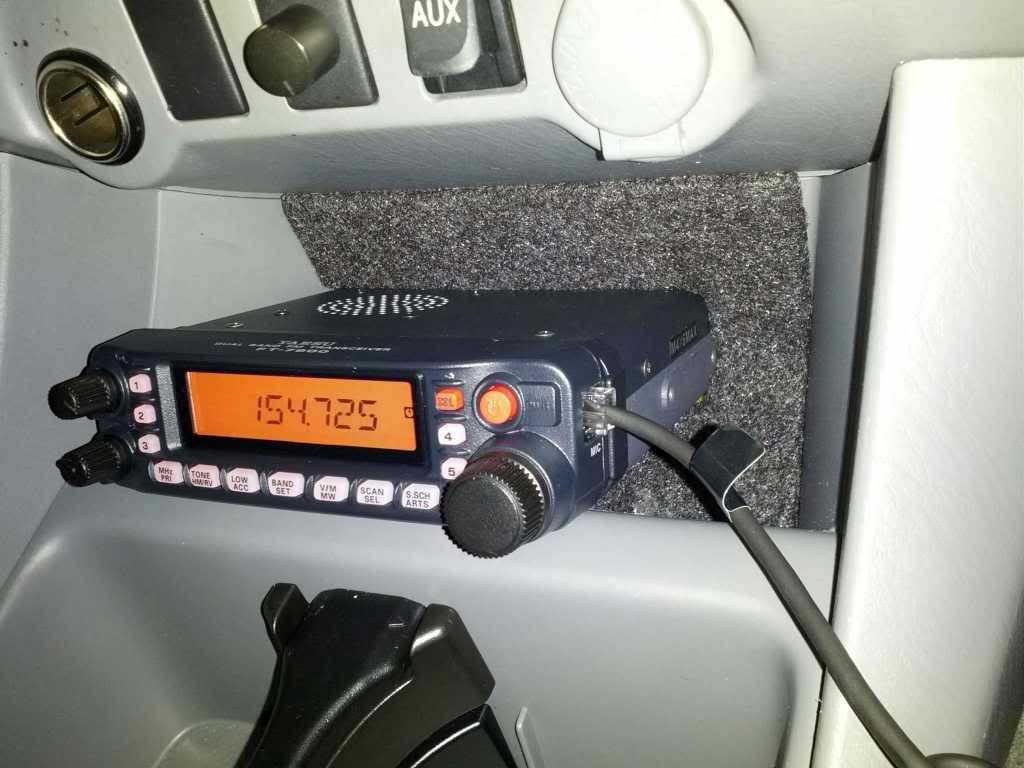

    The radio only sides into the hole a little. Where my finger is in this picture is how far it goes in


    If you cut the hole correctly, there is no need to "attach" the radio to the panel in any way. It sits in there tight enough to not move. Besides, it needs to be easy to insert/remove because that the only way to put it all together after you cut the hole. The radio should sit perfectly on the lip in front of the cup holder so that if you remove the face plate the radio doesn't fall. as see here:


  12. Mar 26, 2013 at 2:23 PM
    #52
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,408
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    Also note how the cut is in the middle (top-bottom) but far left (left-right) this is so the mic connection has room. This may vary based on your radio model. Its also easier to get to the radio and see and work the controls if it's furthest left as possible. Also easier to cut the hole the way. My recommendation, start with a hole that's slightly too small with the dremel, them use a file or rasp to finish the rest

  13. Mar 26, 2013 at 2:28 PM
    #53
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,408
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    When you said mount the radio more "flat" I'm assuming you mean cut the hole higher up in the pocket correct? Be careful because if you cut too high, you will lose the retention clip which holds that whole center console piece attached to the dash. Also if you go to flat, then the radio will slide in/out too easily with nothing to hold it in place so it'll be loose and you'll have to attach it some way. Also it may construe visibility of your screen, especially in high lighting situations.

  14. Mar 26, 2013 at 3:04 PM
    #54
    kai38`

    kai38` Well-Known Member

    Joined:
    Dec 9, 2007
    Member:
    #3778
    Messages:
    572

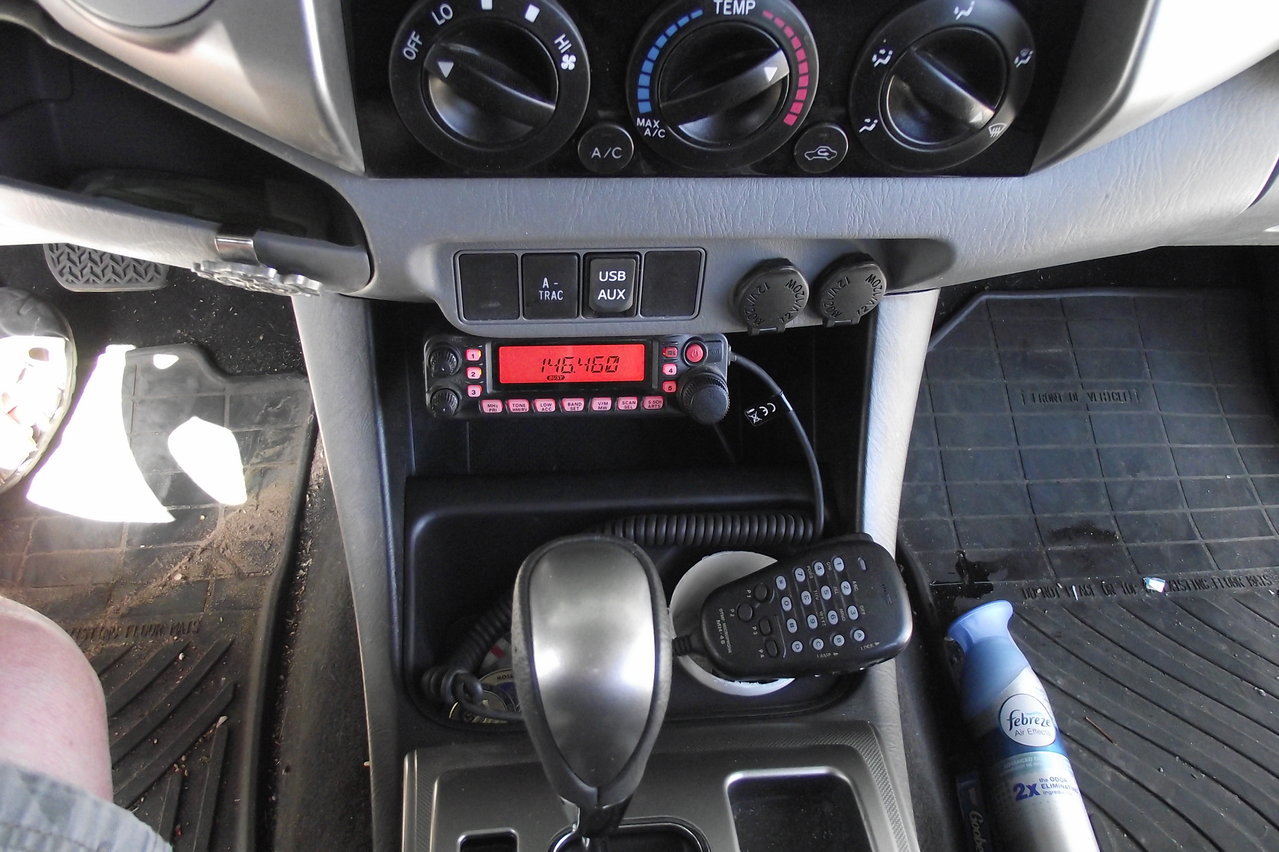

    I'm waiting for my bed rack I had antenna mounts added to the sides one for HAM one for CB, I mounted the HAM unit behind the rear back seat.
    [​IMG]

    And mounted the face in the lower storage box with heavy duty Velcro so I can remove it from sight when parked.

    [​IMG]

  15. Mar 26, 2013 at 3:19 PM
    #55
    MonkeyProof

    MonkeyProof Power Top

    Joined:
    Oct 7, 2008
    Member:
    #9774
    Messages:
    9,386
    SoCal- SGV
    Nice and clean :thumbsup:

  16. Mar 26, 2013 at 6:51 PM
    #56
    afd23a

    afd23a Well-Known Member

    Joined:
    Sep 26, 2008
    Member:
    #9483
    Messages:
    1,806
    Gender:
    Male
    The Dynamo of Dixie
    Vehicle:
    05 Access Cab 5 Lugger
    Factory Fog Lights, Removed Secondary Air Filter, Metra Ipod Adapter, Int Wiper Stalk, Wet Okole's, URD Short Shifter, Scanguage II w/Blendmount, Fat Bob's 2.75" spacer lift, ARE topper, SP Performance Pads & Slotted Rotors, 4.10 gears

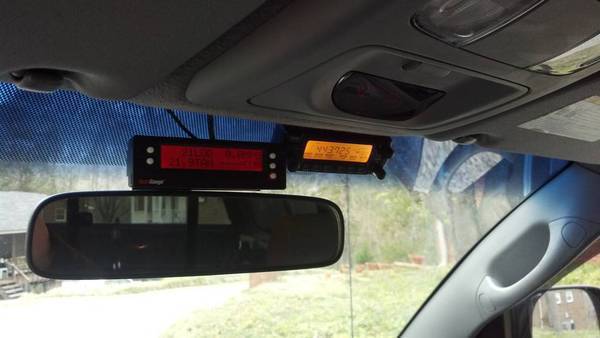

    I mounted my Icom 207h control head on the edge of the headliner using the belt clip from a cheap tape measure. Used a small screw to attach the clip to the top of the head. Then clipped the whole thing on the front edge of the headliner. Got that idea from a thread on here about mounting a scanguage. Ran the control cable down the DS A pillar and under the carpet. The transceiver is under the driver's seat an inch or so above the carpet. I used some L shaped mounts (like rack ears) on both sides of the transceiver and velcro'd them to the carpet. Used CAT5 cable to extend the mic connection and ran it out hole for the parking brake handle next to the steering wheel. Blue Sea fuse box is mounted under the hood with relays. Larsen 2m/70cm NMO antenna is mounted at the DS edge of the hood using a homemade bracket that is similar to the West Crystal mount.

    Icom 207H
    [​IMG]

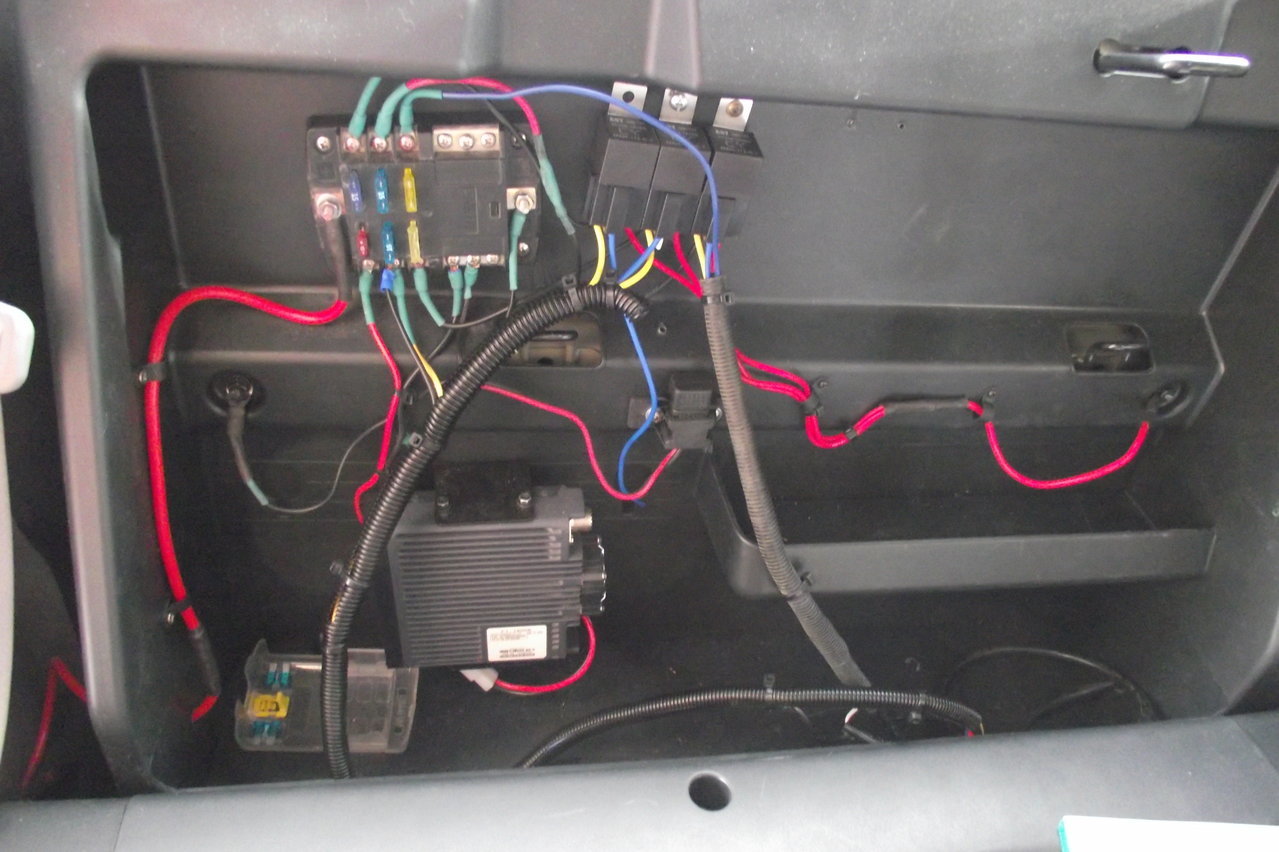

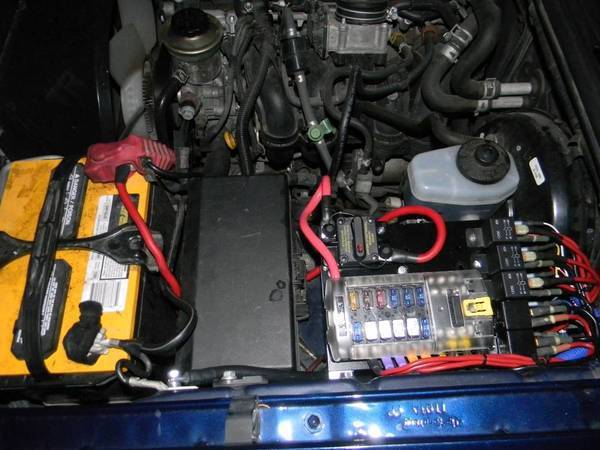

    Aux Fuse box and relays
    [​IMG]

    Last edited: Mar 26, 2013
  17. Mar 27, 2013 at 9:39 AM
    #57
    jbaird22

    jbaird22 [OP] Active Member

    Joined:
    Jan 12, 2013
    Member:
    #95052
    Messages:
    37
    Gender:
    Male
    Vehicle:
    08 access cab SR5
    I appreciate the tips and pics. It would have been easier to get a remote face plate model, but the budget did not support it. My radio is expected to arrive tomorrow but installation will have to wait until next week due to work this weekend.

    One thought though, I considered fabbing a mount so it wouldn't easily slide out of hole. A lot will have to depend on how things look with the radio in hand.

  18. Mar 27, 2013 at 9:42 AM
    #58
    jbaird22

    jbaird22 [OP] Active Member

    Joined:
    Jan 12, 2013
    Member:
    #95052
    Messages:
    37
    Gender:
    Male
    Vehicle:
    08 access cab SR5
    Where do you get automotive carpet?

  19. Mar 27, 2013 at 2:41 PM
    #59
    ProForce

    ProForce Thin Blue Line

    Joined:
    Oct 12, 2009
    Member:
    #24205
    Messages:
    5,408
    Gender:
    Male
    First Name:
    Anthony
    SoCal-Ontario
    Vehicle:
    09 MGM TRD Sport DCSB 4.0 Auto 2wd
    Too many to list. See build page. Link in signature
    Its subwoofer enclosure carpet. Not sure where you can buy it. Its super super thin which makes it easy to work with. Its the really cheap stuff. The good stuff is too thick. I got it from shop I used to work at. Best buy used to sell it, but I doubt they do anymore, that was when I worked there like 6 years ago lol. Try a stereo shop or ebay

  20. Mar 27, 2013 at 2:54 PM
    #60
    Round II

    Round II Member #12005

    Joined:
    Jan 16, 2012
    Member:
    #70777
    Messages:
    4,308
    Gender:
    Male

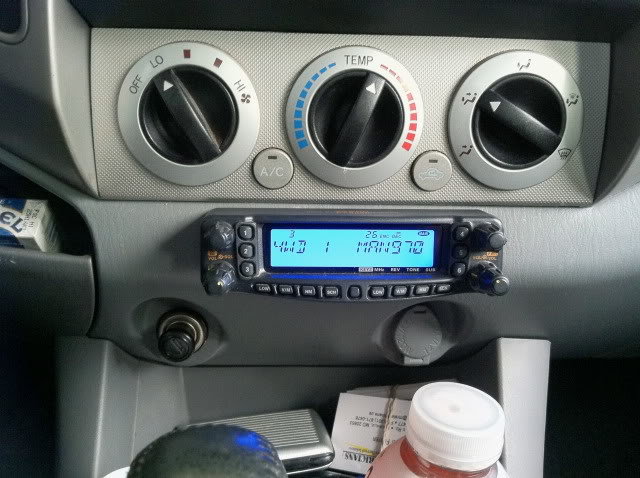

    My Install:

    [​IMG]

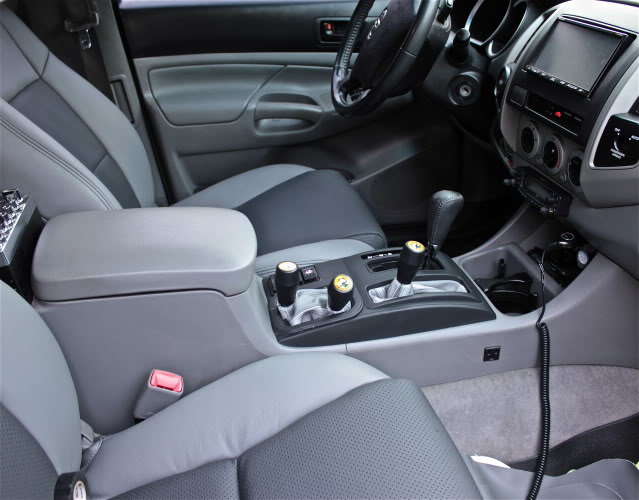

    ..and you can see from the side profile it doesn't stick out to far.

    [​IMG]

    I opted for drilling the roof for the antenna seemed to be the best option IMHO. I usually dont run around with the antennas on only when doing road trips. A nice NMO mount will come a with a screw on weather cap.

    Not the best shot but the only pic I have of the Antennas.
    [​IMG]
