Hardwired Dash Camera (Hidden Wiring)

Discussion in '3rd Gen. Tacomas (2016+)' started by orion808, Aug 30, 2017.

  1. Aug 30, 2017 at 11:59 PM
    #1
    orion808

    orion808 [OP] Jack of all trades. Master of none.

    Joined:
    Aug 30, 2017
    Member:
    #228617
    Messages:
    601
    Gender:
    Male
    Florida
    Vehicle:
    2017 Inferno Tacoma Off-Road (Premium & Tech)
    Interior LEDs Hardwired DashCam/Extra USB Black "Tacoma" on tailgate Blackened Badges Nerf Bars Mud Guards Rear Diff. Breather Mod Plasti-dipped Grille Glovebox Vinyl LED Bed Lights LED soft glow flooring accent lights Custom switches Diamondback Tonneau 3rd Bed Rail Sill Protectors w/ Vinyl Tweeter Upgrades Tint windows Husky Floor Mats Molle Panel behind seats Speaker Upgrades Anytime Camera Mod w/ Secondary Rear Camera Plan: Clazzios 2-3" Lift
    SO I recently purchased a Tacoma. I have the mod bug and know that if I don't do it now, I won't do it. So, that said, I've started. One of the first projects was a dash camera.

    I hate the idea of a 12V outlet being taken up, so adding a fuse and hard wiring it was my only option.

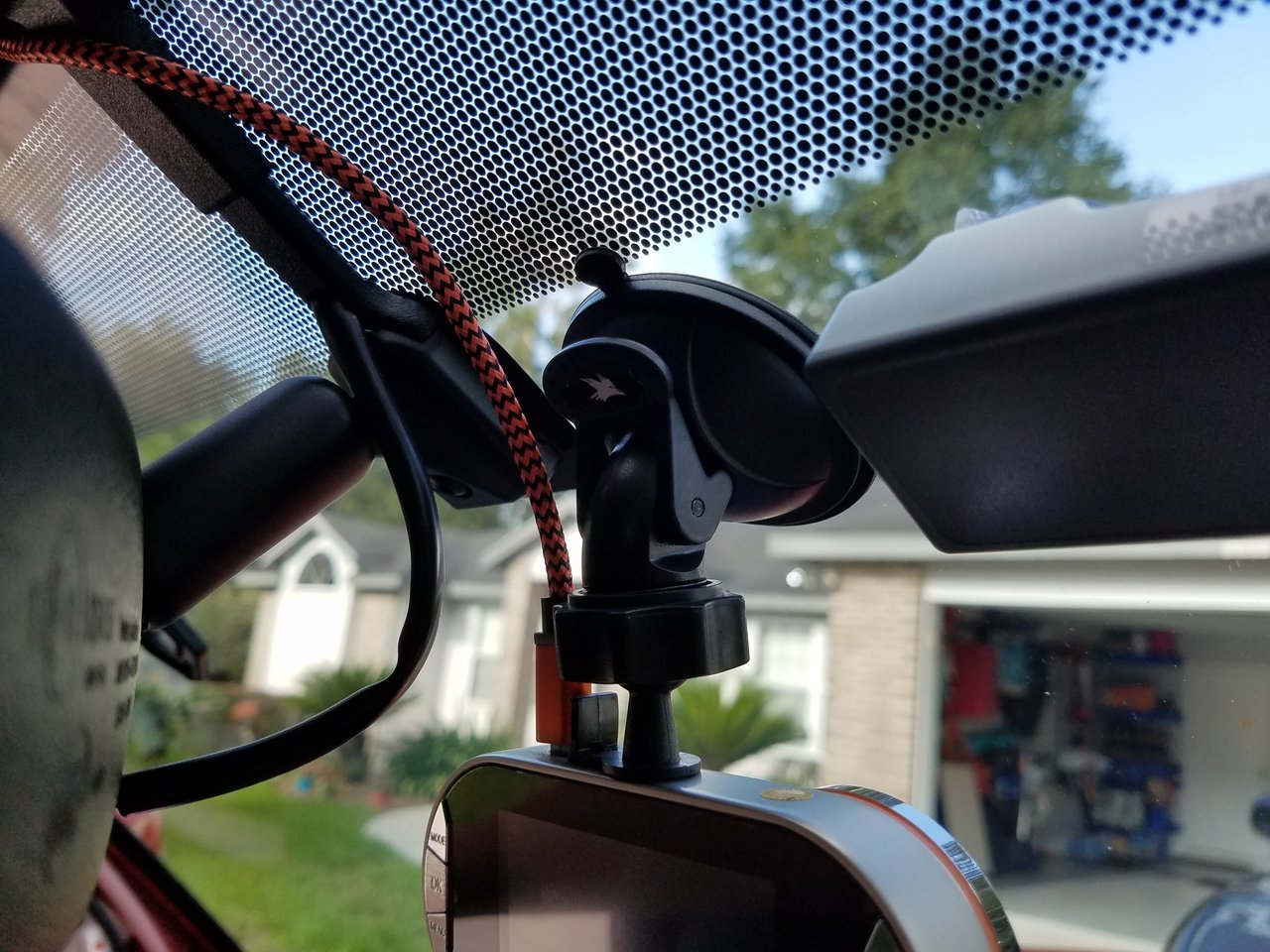

    Here's the final product:

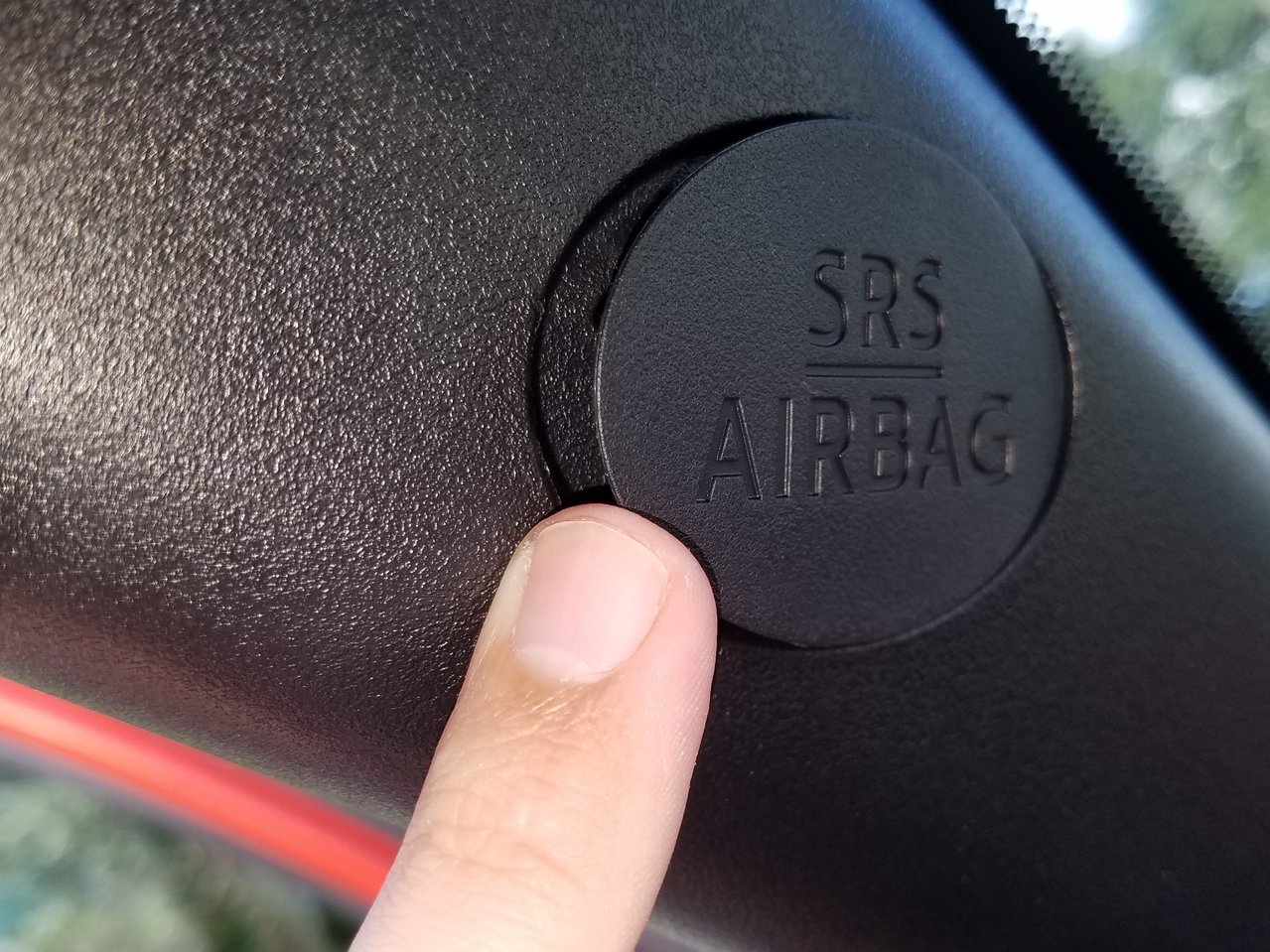

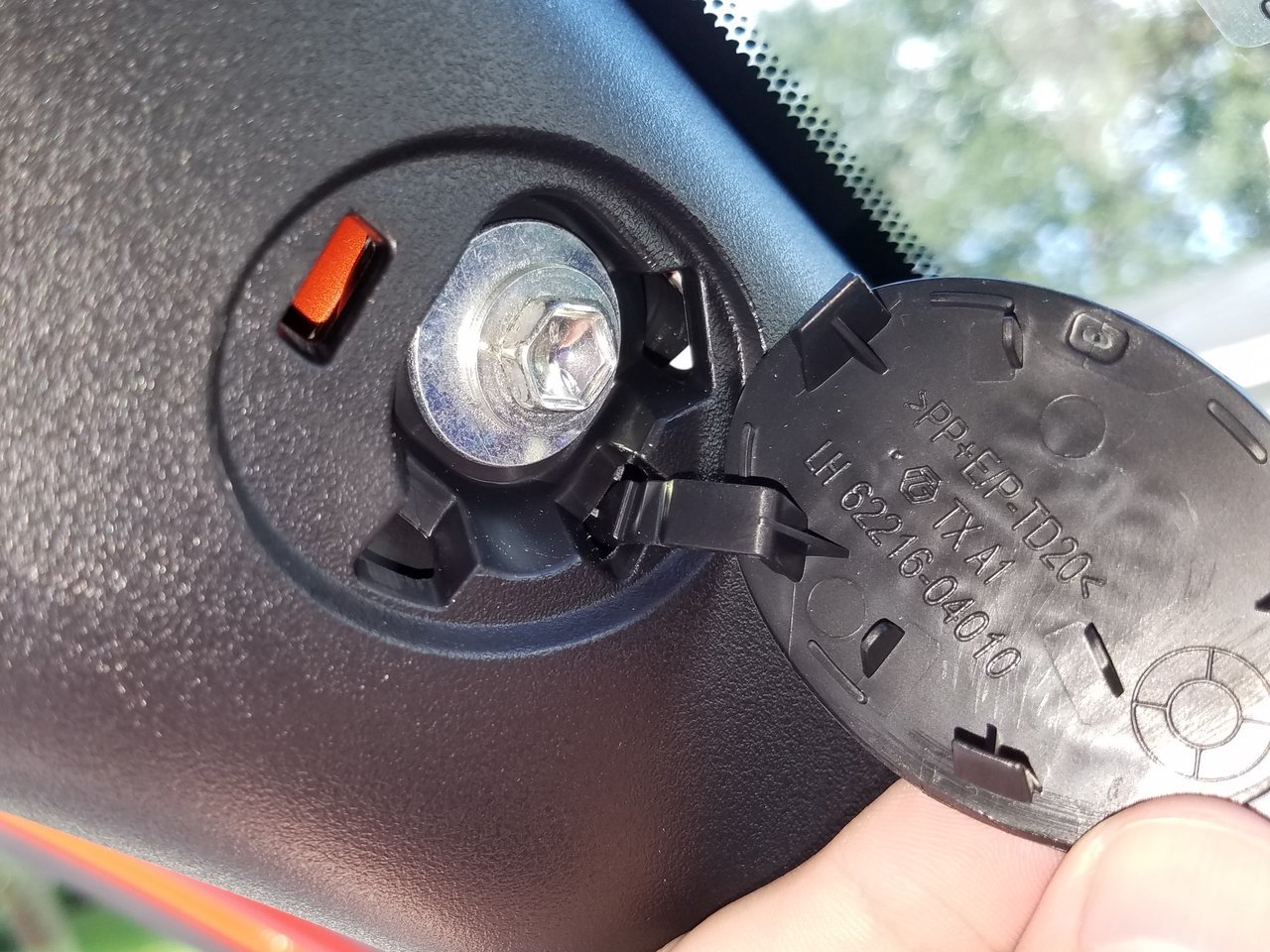

    On the driver's side , I removed the door molding so that I could easily hide the wires as they ran up to the top of the window. Note that the USB cable is orange and black.

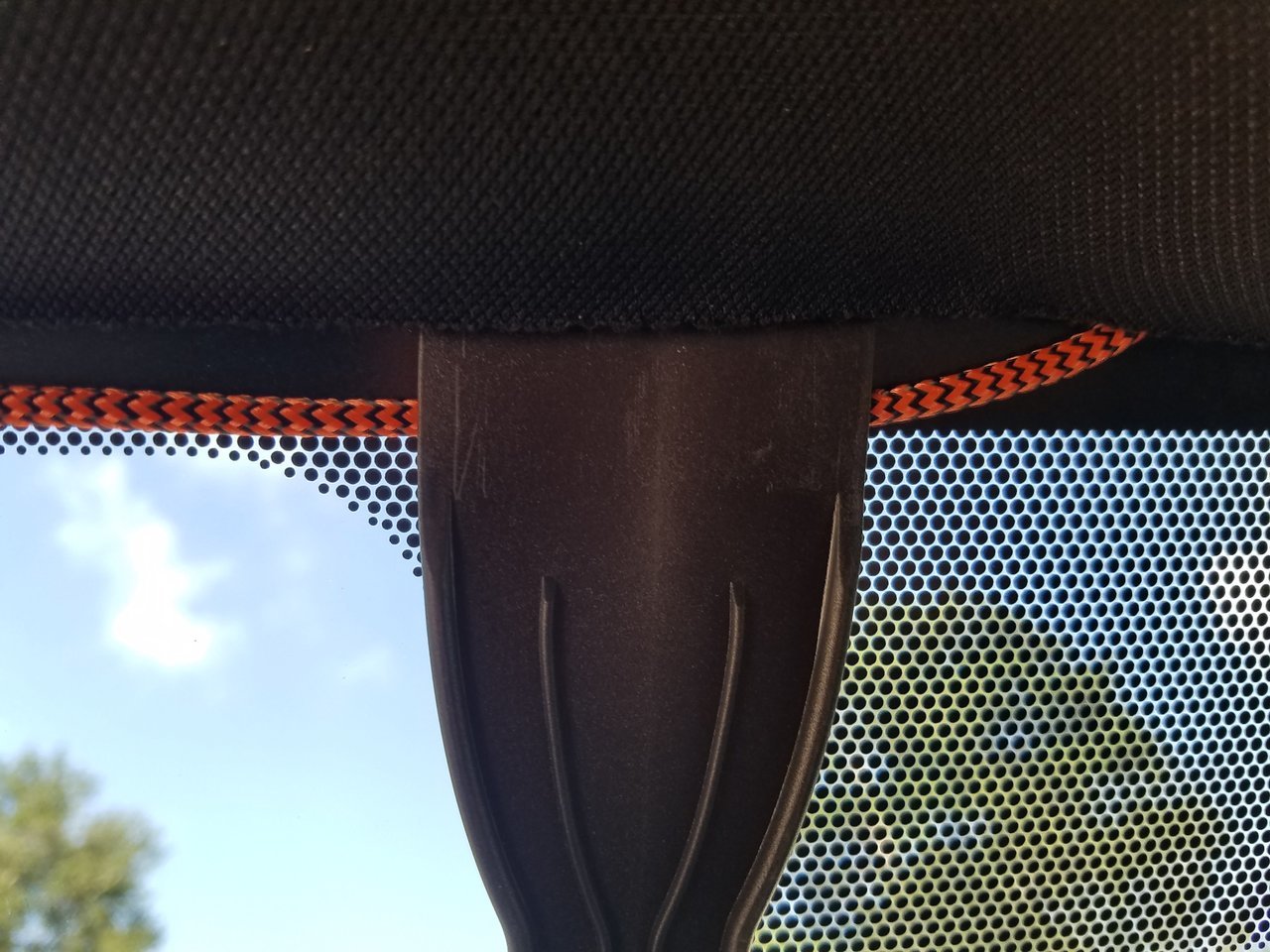

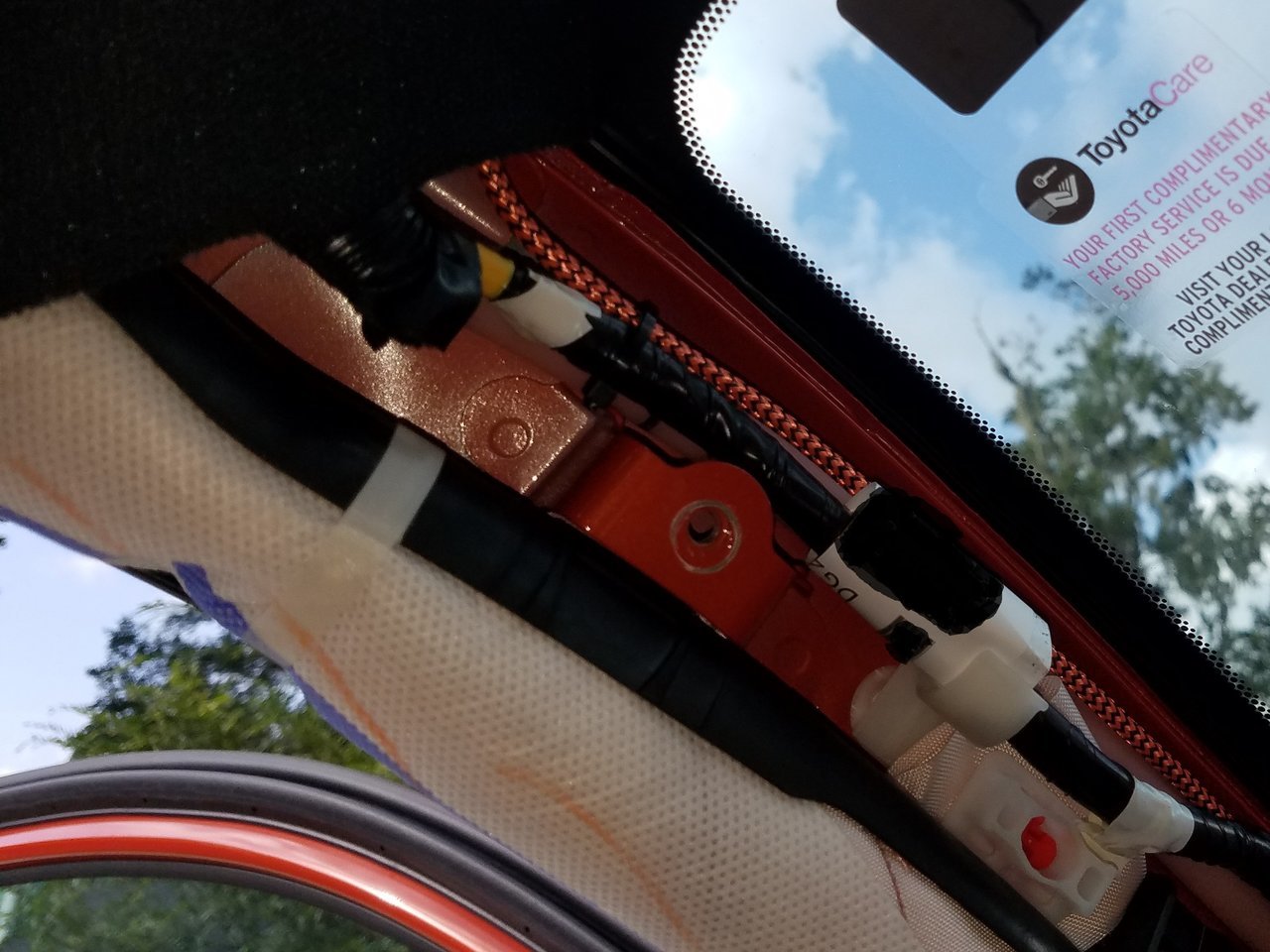

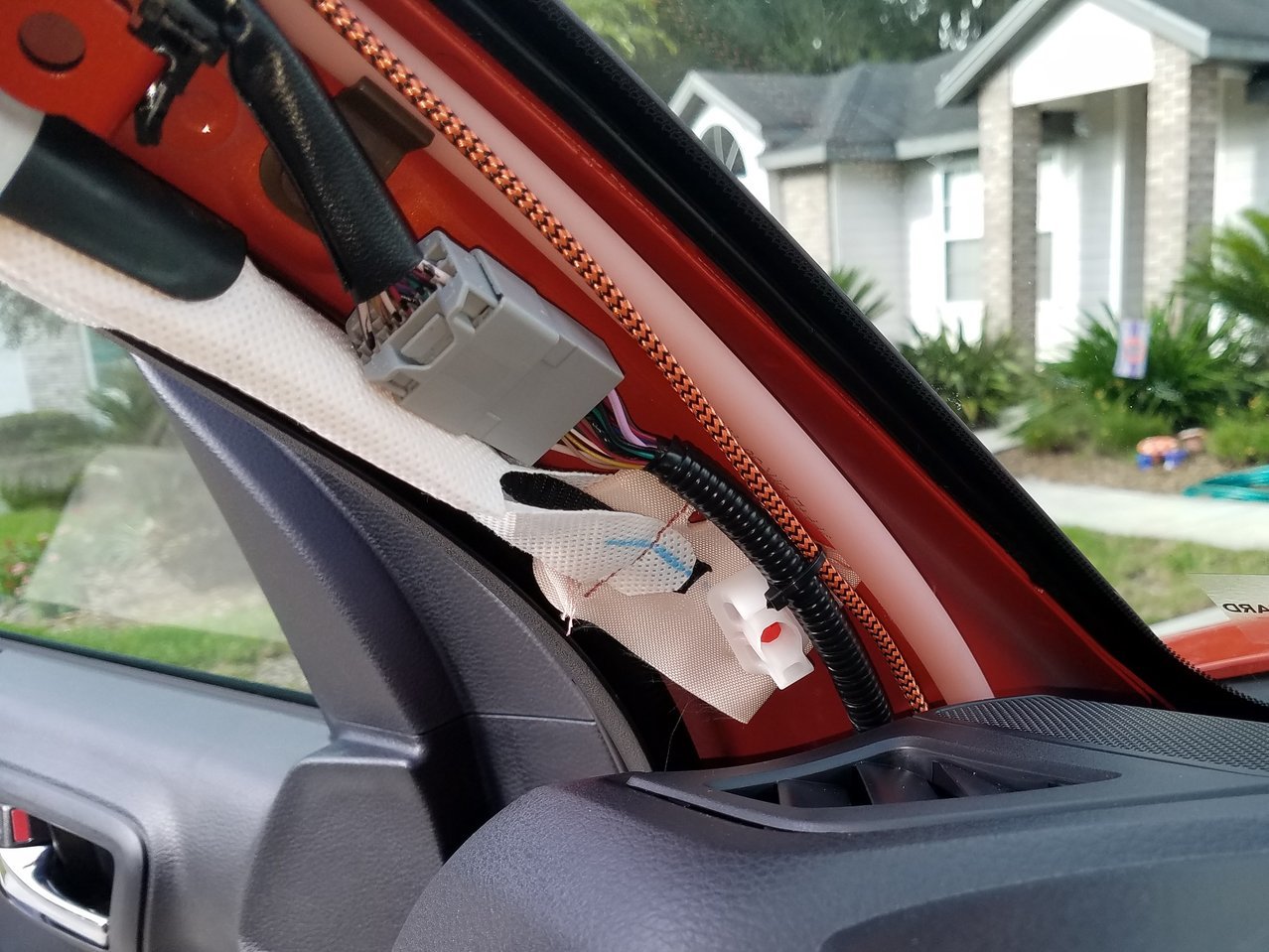

    I tucked in the wiring by first sticking a plastic scrapper up between the headliner and the window. I then tucked the usb cable behind it and stuffed it further if needed with the scrapper.

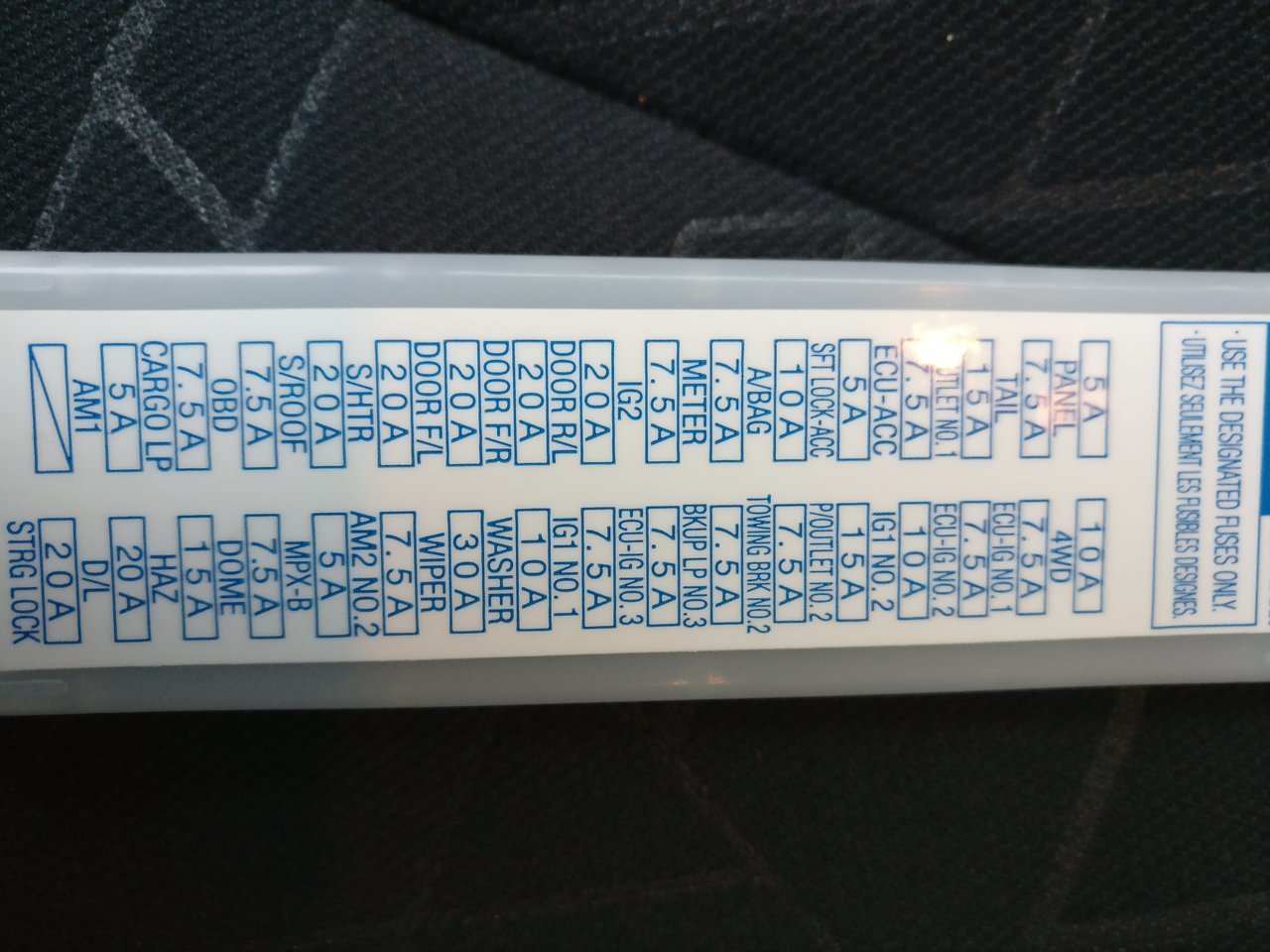

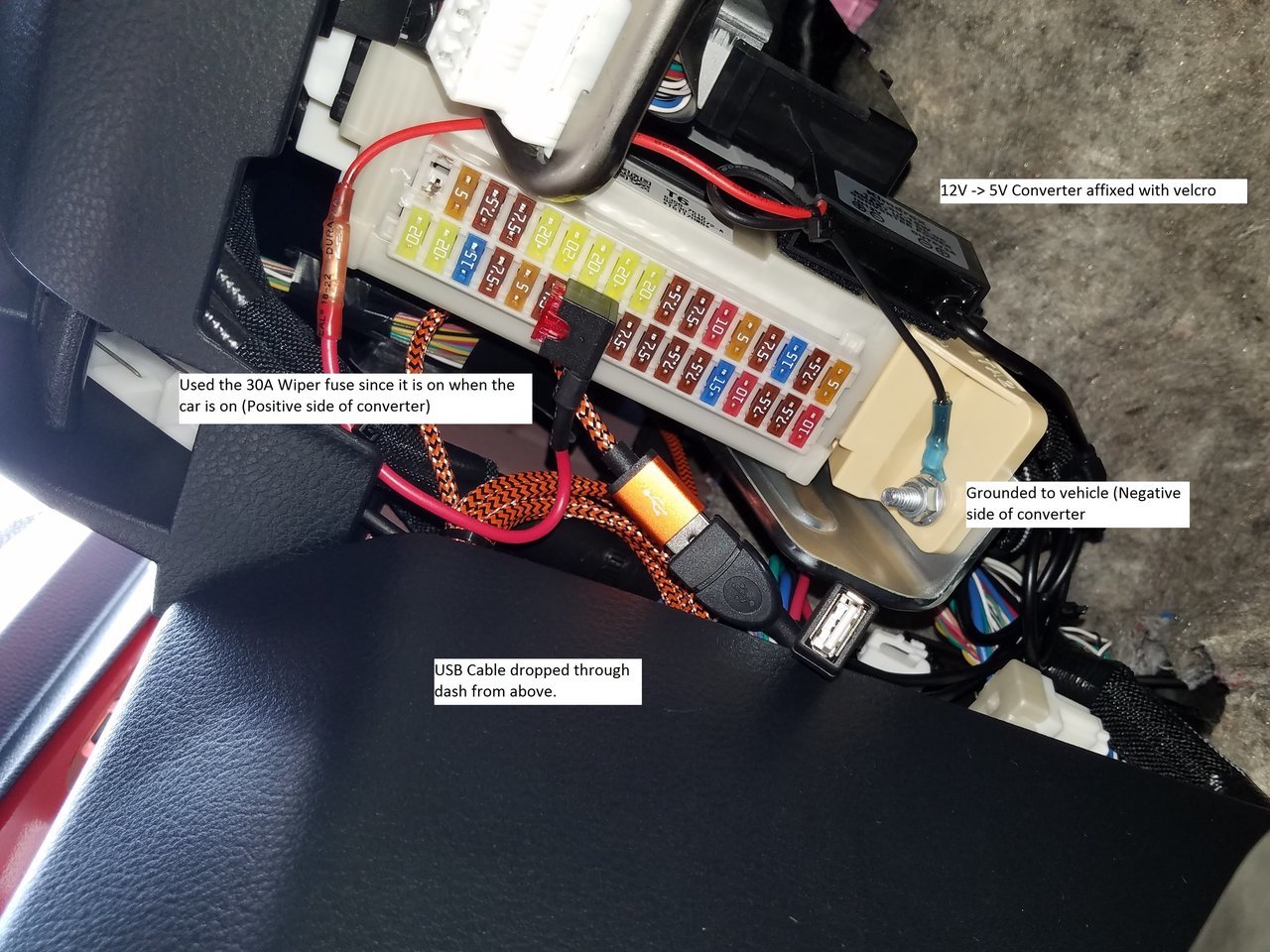

    Under the steering wheel is the fuse panel. I removed the panel with a screw driver. It felt like I'd break the tab, but it came loose. I used an piggyback fuse holder and placed a 10A fuse inside. I also used a 12V -> 5V converter with USB outputs already included.

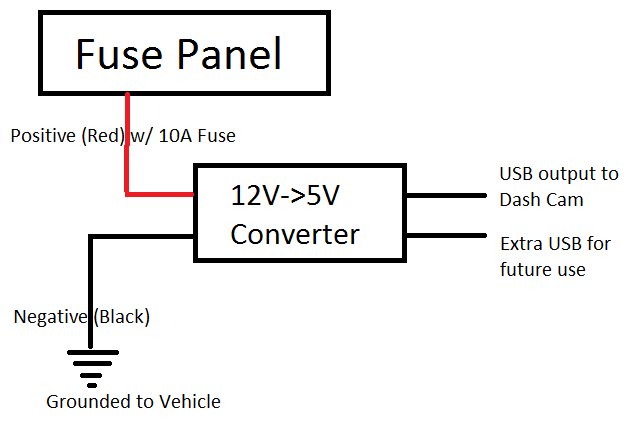

    Here's a basic schematic:
