HAVOC’s SuperWhite build

Discussion in '2nd Gen. Builds (2005-2015)' started by HAVOC, Sep 9, 2020.

  1. Sep 9, 2020 at 1:51 AM
    #1
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,765
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    2012 Toyota Tacoma (built 12/11)
    2TR-FE
    A340F
    4WD
    regular cab
    super white exterior (040)
    graphite interior (FU13)

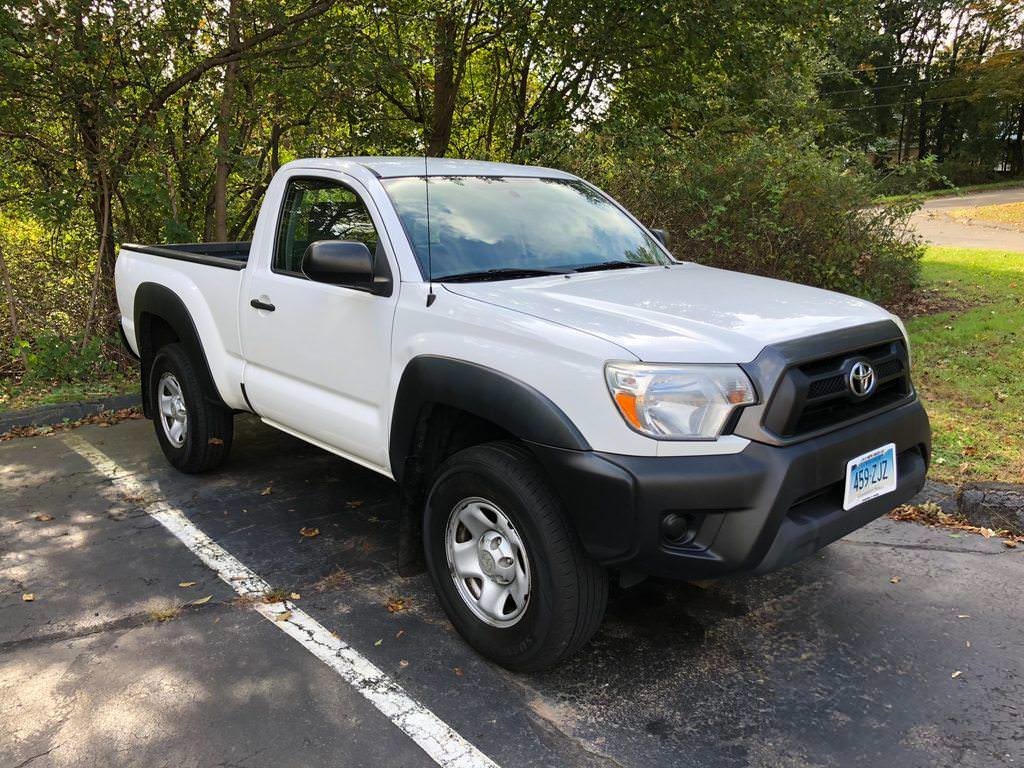

    Before:

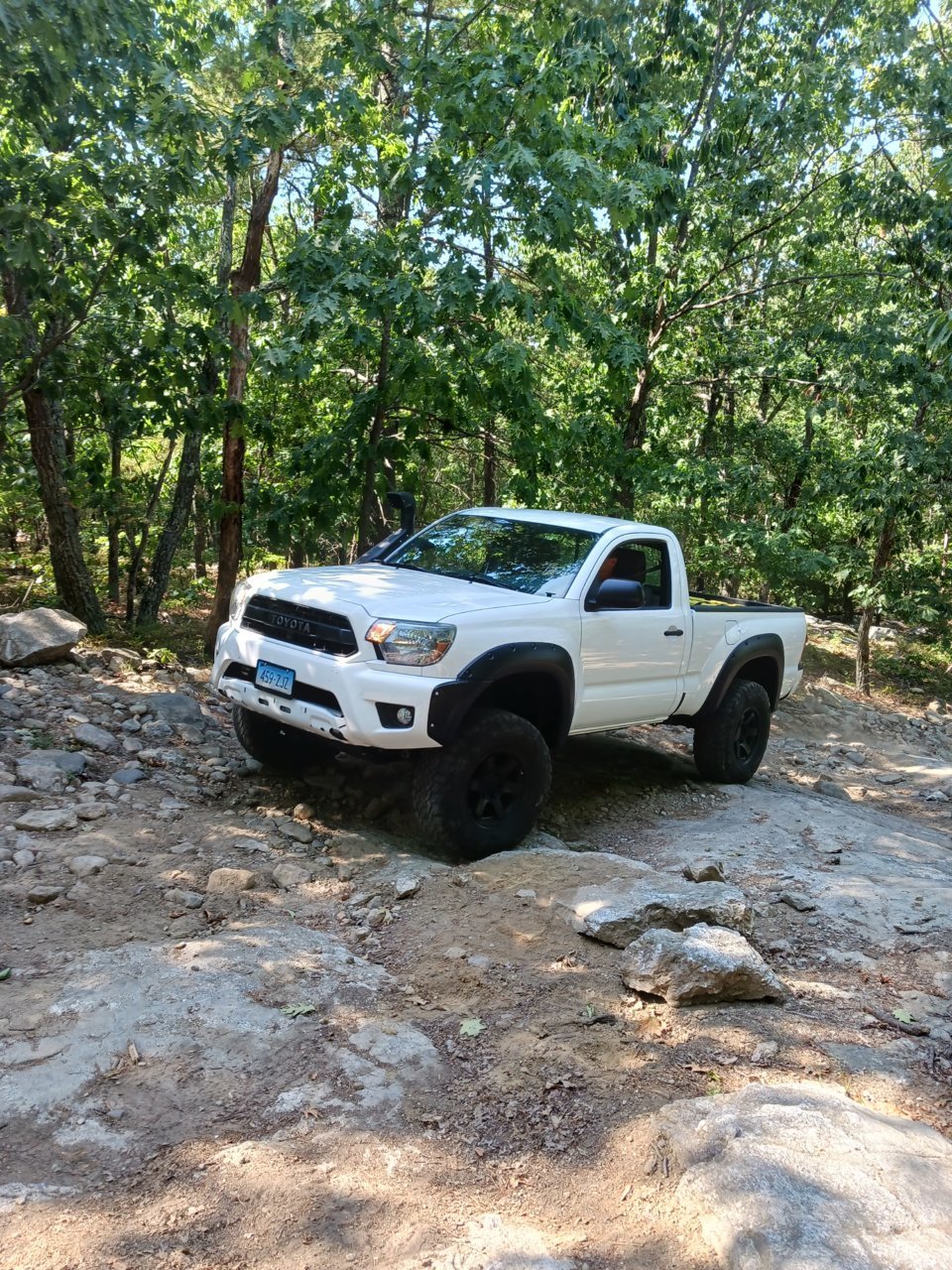

    Current:

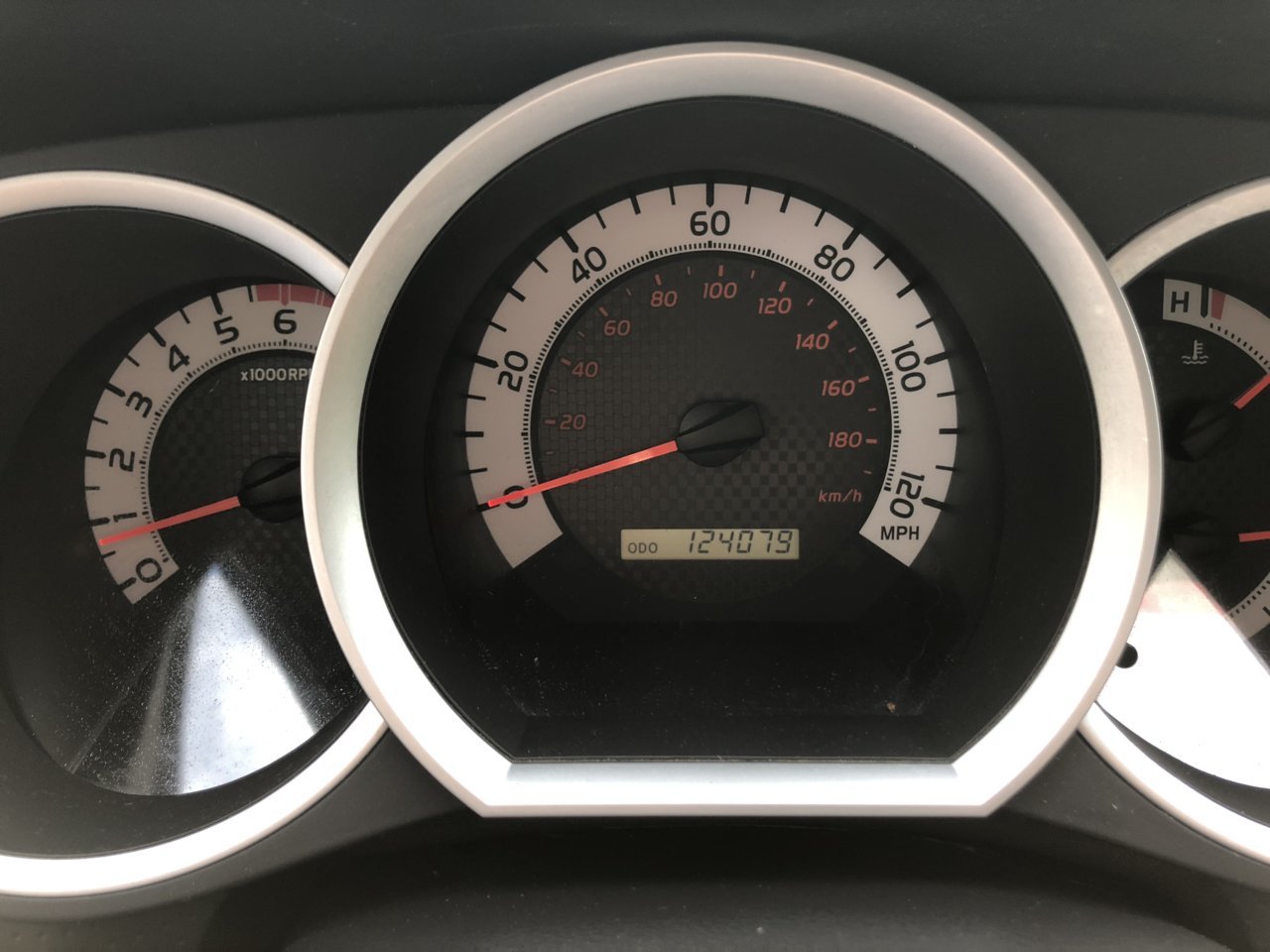

    Mileage when bought:


    Last edited: Sep 10, 2020
    Flare side Taco Lover and T.Barn like this.
  2. Sep 9, 2020 at 1:52 AM
    #2
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,765
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    Maintenance:
    Did 120,000 mile service. I still need to change the coolant and flush the brake fluid.
    Replaced R/F caliper (NAPA Eclipse).
    Installed the ECGS bushing.
    Replaced driver door upper hinge.
    Replaced driver door check.
    Replaced driver door window run channel.
    Replaced driver side window regulator.
    Replaced both DRL/signal bulbs.

    Engine/Drive train:
    Uni-filter mod.
    Installed cover for secondary air pump.

    Interior:

    New carpet installed.
    New floor mats installed.
    New dashboard installed.
    Meso Customs steering wheel logo cover.
    Vehicle OCD glove box organizer.
    Vehicle OCD center console organizer.
    Vehicle OCD center console tray.
    New cluster "glass".
    UltraGauge EM Plus.
    "Bob's mirrors" rear view mirror with compass and temperature.
    Cellet car cup phone holder.
    https://www.amazon.com/Cellet-PH600...8&sr=1-1-80ba0e26-a1cd-4e7b-87a0-a2ffae3a273c

    Body/Exterior:
    De-badged entire truck.
    Installed color matched grille surround and OEM Pro grille.
    Installed color matched front bumper.
    Installed color matched rear bumper (came damaged from eBay and is starting to rust).

    Audio:
    Installed a navigation/SAT radio from a 2015 Tacoma.

    Electrical:
    Installed XM antenna to top of dashboard.
    Installed GPS antenna underneath dashboard using custom bracket.

    Lighting:
    Cali-Raised low profile ditch light brackets.

    Comms:

    Chassis:

    Installed frame caps.
    https://squareonecreations.com/collections/accessories/products/bumper-end-plates

    Suspension:

    https://www.headstrongoffroad.com/store/p312/OME_Coil/Bilstein_5100_Kit_w/_Dakars_(HS05BK-1-Dakar).html

    OME 885 front coils.
    Bilstein 5100 front shocks.
    ARB Dakar rear leaf springs (medium duty).
    Headstrong 1/4" top spacer.
    Total Chaos upper control arms.
    Wheeler's U-bolt flip.
    Wheeler's SuperBump bump stops (front & rear).
    Sway bar relocation brackets.
    RevTek diff drop (RTDD2-KB).

    Brakes:

    24" braided steel extended brake lines.

    Wheels:

    Level 8 Mk6 16x8 -10 offset (matte black).
    DPAccessories 12x1.5 closed end ET (extended thread) black lug nuts.

    Tires:
    BFGoodrich All-Terrain T/A KO2 LT265/75R16 123/120R E (31").

    Armor:

    RCI engine skid plate.
    RCI transfer case skid plate.
    RCI fuel tank skid plate.

    Misc:
    Noico sound deadening panels in roof.
    Noico heat/cool panels in roof.
    Installed used headlights from a 2015 Tacoma.
    OEM Toyota Tacoma bed mat.
    G-Tek door sill protectors.
    Diff breather extension.
    Intermittent wiper mod.
    Textured license plate frames.
    OEM antenna base.

    Last edited: Apr 25, 2021
  3. Sep 19, 2020 at 2:24 PM
    #3
    GARSHA91

    GARSHA91 YES, that is me on that Facebook group

    Joined:
    Sep 30, 2013
    Member:
    #113559
    Messages:
    2,895
    Gender:
    Male
    First Name:
    Matt
    Chicago
    Vehicle:
    2015 TRD Off-Road DCSB
    Just a grocery getter
  4. Sep 20, 2020 at 1:26 AM
    #4
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,765
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4

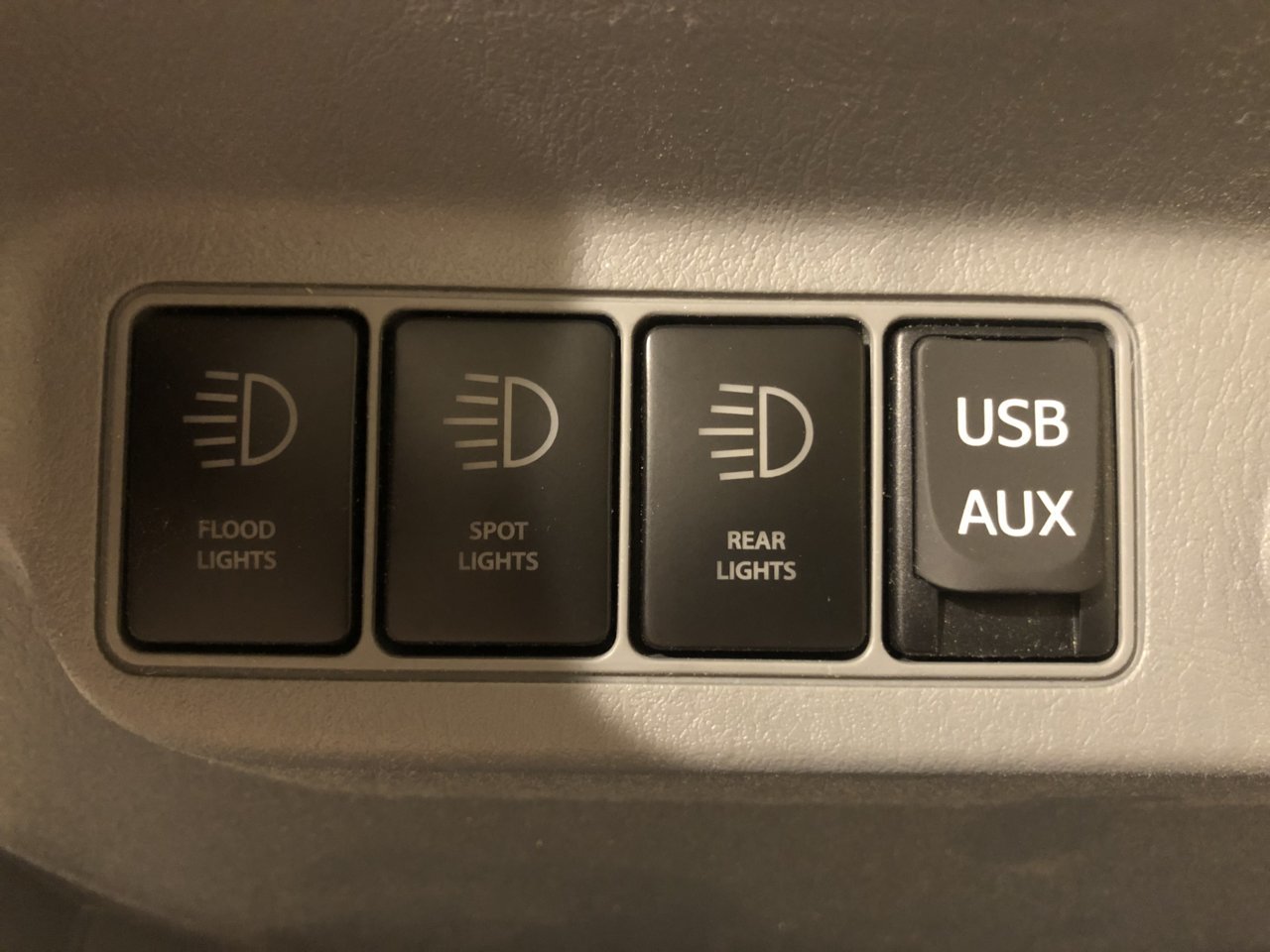

    Finished wiring switches for some lighting.


  5. Sep 25, 2020 at 10:18 AM
    #5
    mcintoshman

    mcintoshman Active Member

    Joined:
    Aug 19, 2020
    Member:
    #338139
    Messages:
    36
    Gender:
    Male
    Vehicle:
    2012 White Base 4x4 Tacoma
    Cruise control, variable wipers, tube steps, stock upscale radio, Undercover tonneau, factory alloys.
    Nice, I have one just like it, right down to the color and over fenders. Production date 03/12, 46,000 original miles. AT because that's the only way to get bucket seats, a necessity. It's pretty much stock except for OEM add-ons: cruise, interval wipers, DRL, hitch and harness, tonneau, etc. Your picture here brings up a question. Mine came with the 'AUX' input for the radio, I see yours has the 'USB/AUX'. I secured a used OEM 'USB/AUX' connector, and I had already had upgraded the stock radio to the Toyota step-up 86120-04260 (A518B3 on face) which has a USB input. Both ends are proprietary connectors so I haven't found a solution. I was hoping Toyota had a pigtail so I wouldn't have to buy an entire vehicle harness, and the USB shouldn't need to integrate into the entire network anyway. May I ask, how did you connect yours? Thanks!

  6. Sep 25, 2020 at 1:21 PM
    #6
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,765
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    Sure.
    You will need the USB/AUX jack, part number 86190-0C020, the USB conversion cable, part number PT546-00120-US and a USB harness, part number PT233-47100-WH
    There is one tab that you will need to file to make the two connectors mate up. You will know when you see it.

    You will have a very long cable with no idea where to put the excess. I coiled mine up (about three small turns) and placed it behind the tire pressure computer.


  7. Sep 25, 2020 at 2:07 PM
    #7
    mcintoshman

    mcintoshman Active Member

    Joined:
    Aug 19, 2020
    Member:
    #338139
    Messages:
    36
    Gender:
    Male
    Vehicle:
    2012 White Base 4x4 Tacoma
    Cruise control, variable wipers, tube steps, stock upscale radio, Undercover tonneau, factory alloys.
    Wow, you're the first to know anything about this connection, thanks! Please indulge once more as the factory radio connections are unique. I've included a picture of the back side for illustration. I know one of these receptacles is for USB because all models except base had this radio, and 86190-0C020, thus the 'USB/AUX' connection. Do you know one is for USB and does your solution work with it? I figure after market radios have the standard USB connect which would make this much simpler. Thanks again.

    Tacoma radio 86120-04260.jpg

  8. Sep 25, 2020 at 3:56 PM
    #8
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,765
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    It looks like that blue connector is where the USB plugs into. The one on my navigation (non-JBL) radio is grey and looks like this.


    What year is that radio/truck? Also, does it have JBL? I can look at a wiring diagram for it.

  9. Sep 26, 2020 at 9:09 AM
    #9
    mcintoshman

    mcintoshman Active Member

    Joined:
    Aug 19, 2020
    Member:
    #338139
    Messages:
    36
    Gender:
    Male
    Vehicle:
    2012 White Base 4x4 Tacoma
    Cruise control, variable wipers, tube steps, stock upscale radio, Undercover tonneau, factory alloys.
    Sub note here. I looked up one of the part numbers you mentioned, PT546-00120, and it looked like it could be exactly what I need. The picture was on Amazon (best picture I could find), but it didn't show the ends of the cable from the plug side so I couldn't see for sure. We're talking about a wire that would directly connect 86190-0C020 to the A518B3 radio. Looking at the picture above, it seems probable that the USB connection receptacle is either the top most white 8-pin, or the second from left white 12- pin. With your background on this, does it seem I'm on the right track? Oh, my main requirement for adding the USB port is charging. Thanks!

  10. Sep 26, 2020 at 9:21 AM
    #10
    mcintoshman

    mcintoshman Active Member

    Joined:
    Aug 19, 2020
    Member:
    #338139
    Messages:
    36
    Gender:
    Male
    Vehicle:
    2012 White Base 4x4 Tacoma
    Cruise control, variable wipers, tube steps, stock upscale radio, Undercover tonneau, factory alloys.

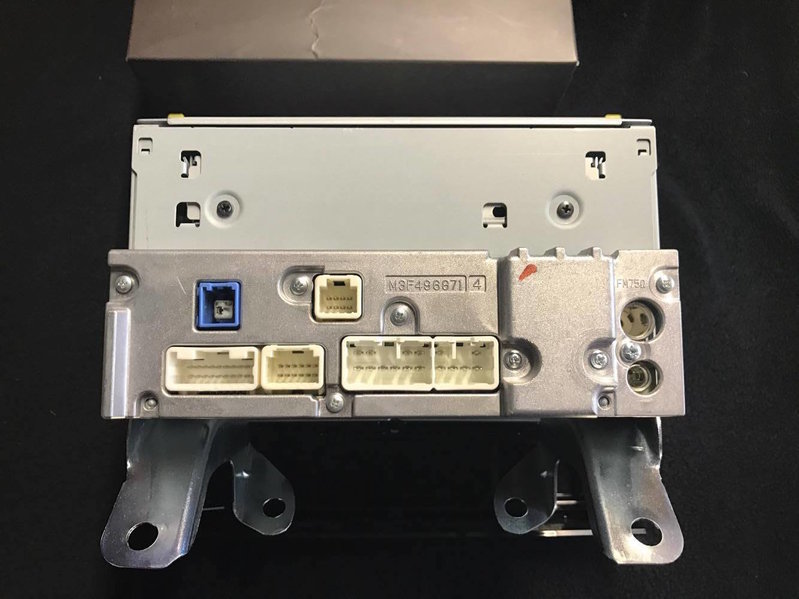

    Sorry, I missed your last post. My Tacoma is a 2012, production date 03/12. The radio I added is what the owner's book lists as 'Type B', it is the one between the entry level, and the JBL model. The 2012 sales brochure does specify that it has 'USB port'. Factory model number on the radio is 86120-04260, with ID #A518B3 on the face. Thanks.

    Tacoma 86120-04260 radio.jpg

  11. Sep 26, 2020 at 11:40 AM
    #11
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,765
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    Here is the wiring for a 2012. You have to see if you have the "multimedia interface ECU" (on page 3 of the .PDF, behind the glove box). I assume you do not.


    Attached Files:

  12. Sep 26, 2020 at 12:14 PM
    #12
    mcintoshman

    mcintoshman Active Member

    Joined:
    Aug 19, 2020
    Member:
    #338139
    Messages:
    36
    Gender:
    Male
    Vehicle:
    2012 White Base 4x4 Tacoma
    Cruise control, variable wipers, tube steps, stock upscale radio, Undercover tonneau, factory alloys.
    Thank you. I will look, but I suspect you are right. So, you're saying some models have a multimedia interface ECU which would accommodate the USB as well as the stereo jack adaptor, and some do not? Logic dictates a feed from a USB source to the radio, inputted through the USB/AUX port, should be able to pass and receive power and data without additional support. This is a feature that most 2012 models had, and became standard in 2013. I thought for sure there would be a direct connection, sounds like not. Sure wish a knew someone with an upgrade Taco and could have them look. Thank for for the wiring diagram, I will keep it for future reference. Side note here, you have me thinking about the Uni Filter mod. I didn't even know about it until I read your list of updates.

  13. Sep 26, 2020 at 12:28 PM
    #13
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,765
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4

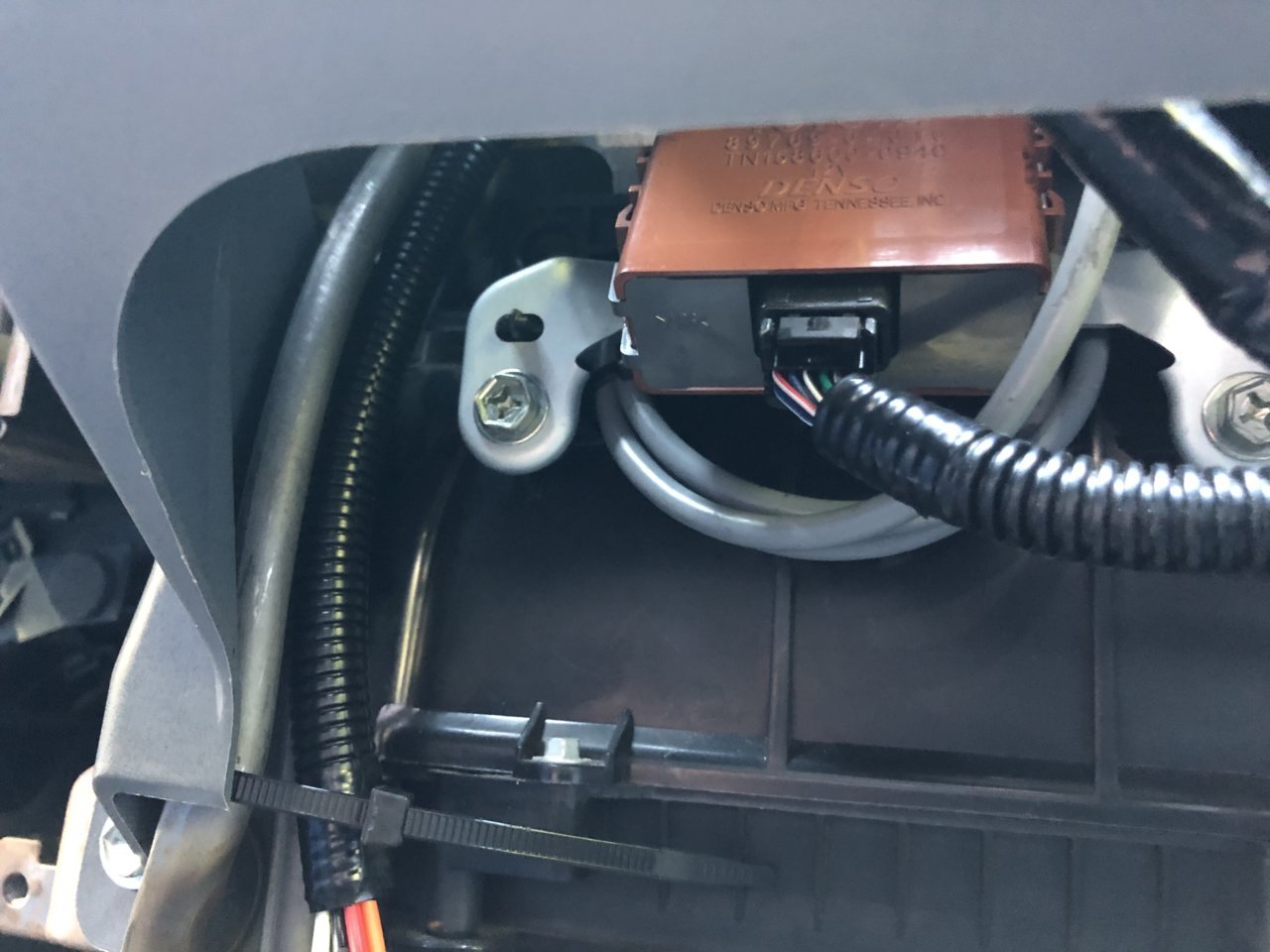

    I'm not sure what trucks have the interface ECU (maybe just the JBL ones?). It's something I saw when I was doing research on my install. I was happy that it didn't take a lot of parts to get the USB and AUX working.

    The uni-filter mod is one of the first mods I did. I kept the foam filter and plastic cap that was removed and so should you if you ever need to bring it to the dealer if the pump fails and your truck is covered under the Customer Support Program "ZHA".


    Attached Files:

  14. Sep 27, 2020 at 5:46 PM
    #14
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,765
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4

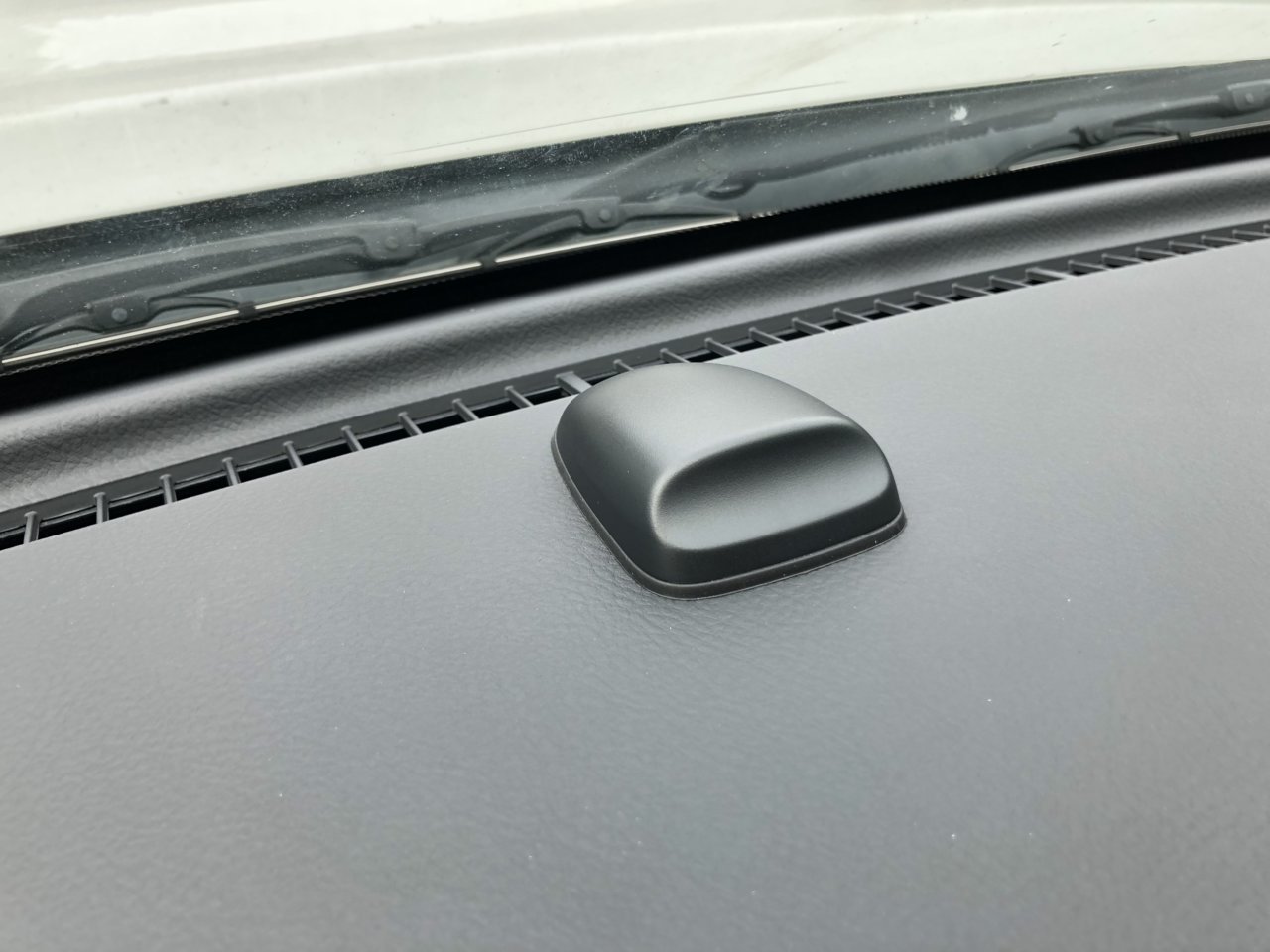

    Installed XM antenna. Going to grab some parts so I can mount the GPS antenna (under dash).

    XM antenna.jpg

  15. Sep 28, 2020 at 11:26 AM
    #15
    mcintoshman

    mcintoshman Active Member

    Joined:
    Aug 19, 2020
    Member:
    #338139
    Messages:
    36
    Gender:
    Male
    Vehicle:
    2012 White Base 4x4 Tacoma
    Cruise control, variable wipers, tube steps, stock upscale radio, Undercover tonneau, factory alloys.
    That looks great, and has a nice OEM appearance. The upgrade Toyota radio I added does have Sirius XM as a standard feature, but I haven't messed with getting it working. The backup cam and USB connect are now up on my to-do list.

    HAVOC [OP] likes this.
  16. Sep 28, 2020 at 11:33 AM
    #16
    fatfurious2

    fatfurious2 IG: great_white_taco

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    42,640
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
    came here for pictures of a cool reg cab, only saw pics of the back of a radio :pout:

    crashngiggles likes this.
  17. Sep 28, 2020 at 3:00 PM
    #17
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,765
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    in due time

    I'm posting pictures as I finish mods or if I find a solution to a problem.

    fatfurious2 and whiteknight4x4 like this.
  18. Sep 28, 2020 at 3:24 PM
    #18
    fatfurious2

    fatfurious2 IG: great_white_taco

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    42,640
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
    oh wait, was the picture in the first post with the lift and Level 8 wheels?

    Or do you have a current pic?

  19. Sep 28, 2020 at 3:38 PM
    #19
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,765
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4
    I don't have a current picture at the moment. I'm going to pull the Bushwacker flares off first.

    fatfurious2 likes this.
  20. Sep 30, 2020 at 2:06 AM
    #20
    HAVOC

    HAVOC [OP] Well-Known Member

    Joined:
    Feb 6, 2012
    Member:
    #72230
    Messages:
    2,765
    Gender:
    Male
    Connecticut
    Vehicle:
    2012 Tacoma 4X4

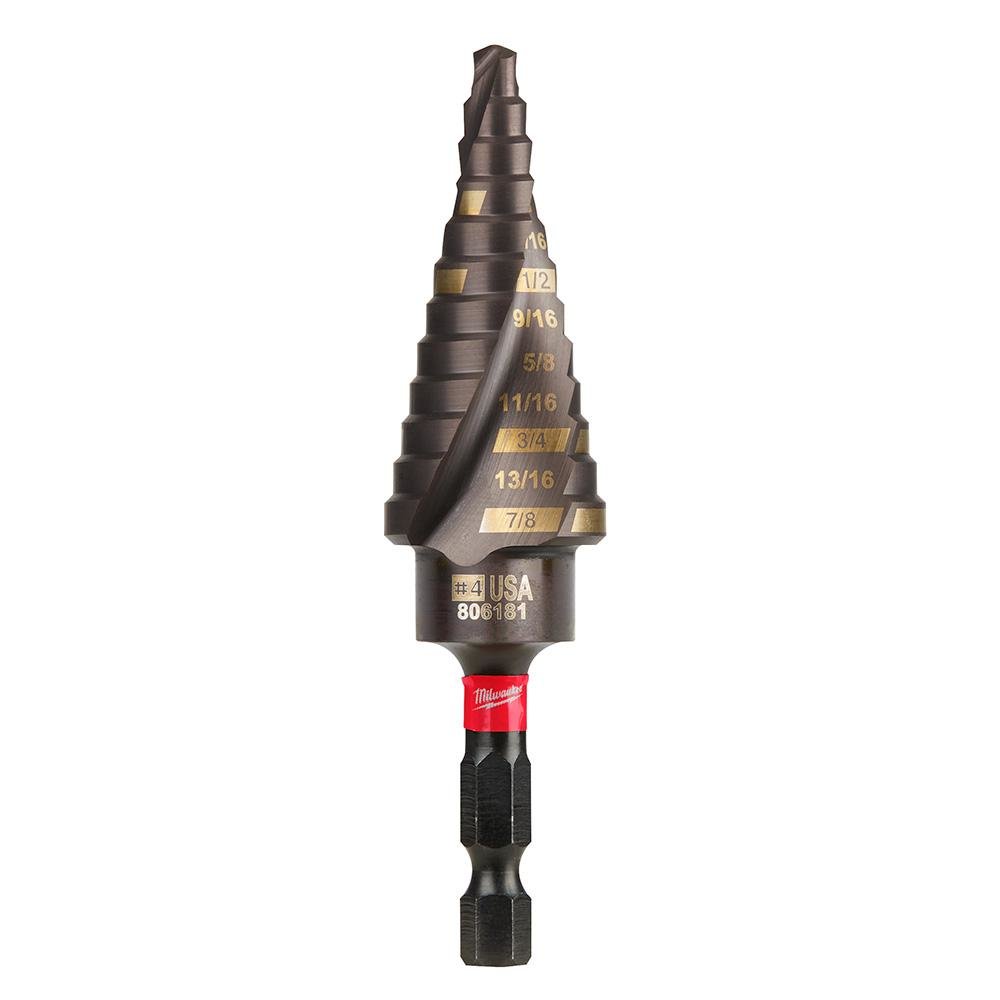

    Here is what I used to drill the hole in the dash. You have to be careful because the plastic grabs the drill bit. You can either damage your dashboard or drill the hole too big.

    I have a cordless Snap-On driver that I've had for years and this is a perfect attachment for it.

    step drill.jpg

    Last edited: Nov 26, 2020
