Hayden Transmission Oil Cooler Install

Discussion in '1st Gen. Tacomas' started by zero4, Aug 16, 2010.

  1. Aug 16, 2010 at 12:02 AM
    #1
    zero4

    zero4 [OP] Metal Cutter

    Joined:
    Sep 10, 2006
    Member:
    #31
    Messages:
    443
    Gender:
    Male
    First Name:
    Will
    Northridge, CA
    Vehicle:
    01' DCab 3.4L TRD
    Donahoe CO, Donahoe Rear Resi, Deaver J59, 16" Pro Comp, 33" BFG AT, Hayden Trans Oil Cooler, Oil Filter Relocator, FM 40, ES Bushings, Beefed CB Drop, Deckplate, K&N Drop-In, DO Bed Bar, Cobra 75 WXST, Firestik Firefly, Philips D1R, Clarion Remote Start, Husky Liners
    A bit late to the party but after all these years I finally installed one. I'm sure there's lots of threads about these here on TW & on other forums but I'll share my install.

    I choose the Hayden 678, the TRD one is way too much money IMO for the same core but with brackets. I didn't like the TRD's mounting location anyway.

    I'm not a fan of using those zip ties through the radiator or condensor so I made my own brackets. Only the grill was removed for the install, bumper stayed on.


    First I had to remove the left/driver side horn which would be relocated later.
    [​IMG]

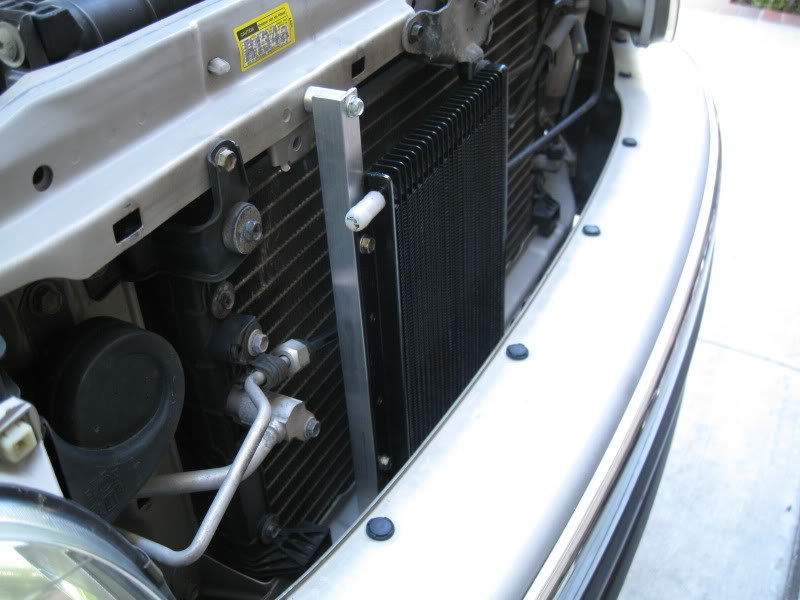

    Mock up:

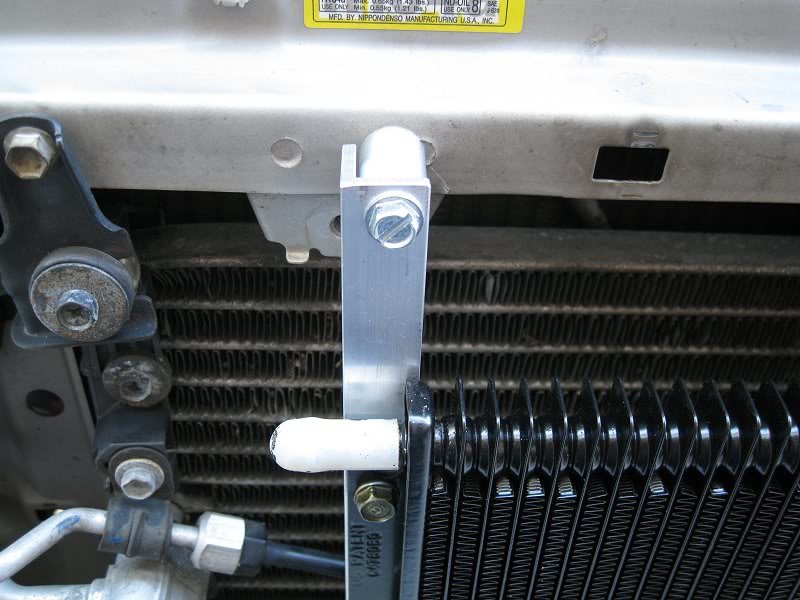

    Used an L shaped aluminum bar from Lowes.
    [​IMG]

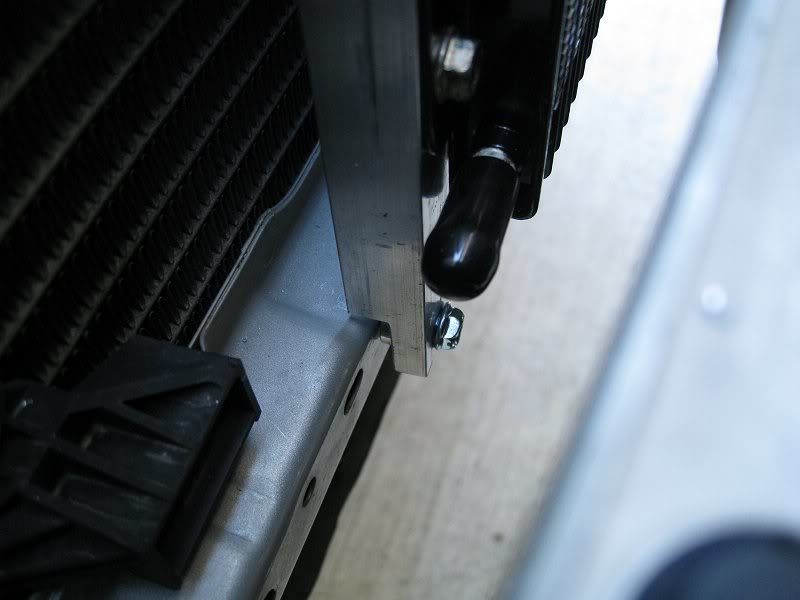

    Used a sheet metal screw here but will replace this one with a bolt.
    [​IMG]

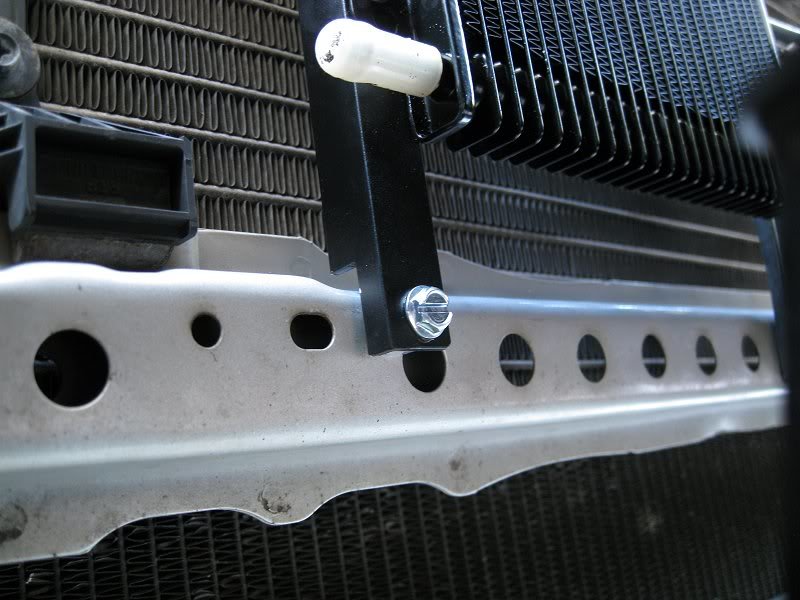

    Used an existing hole on the center support bar for the grille.
    [​IMG]

    Cut a section out to clear the radiator support.
    [​IMG]

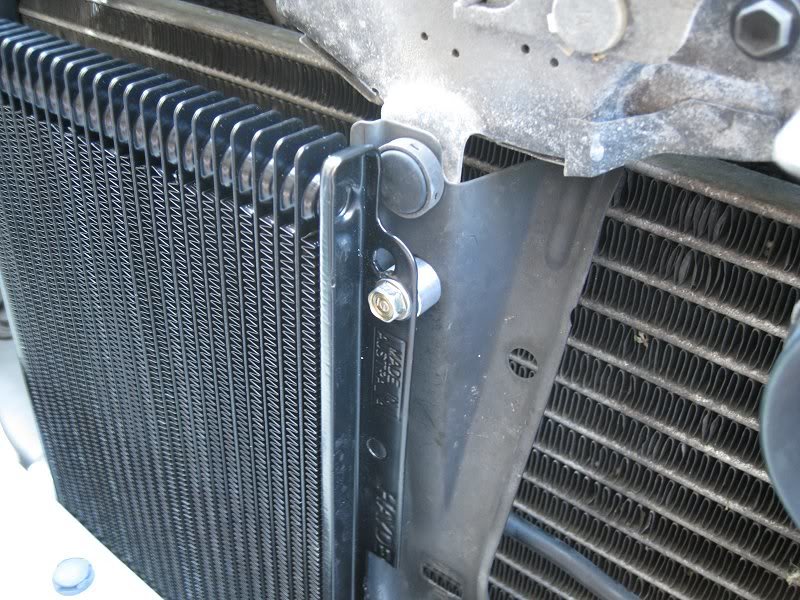

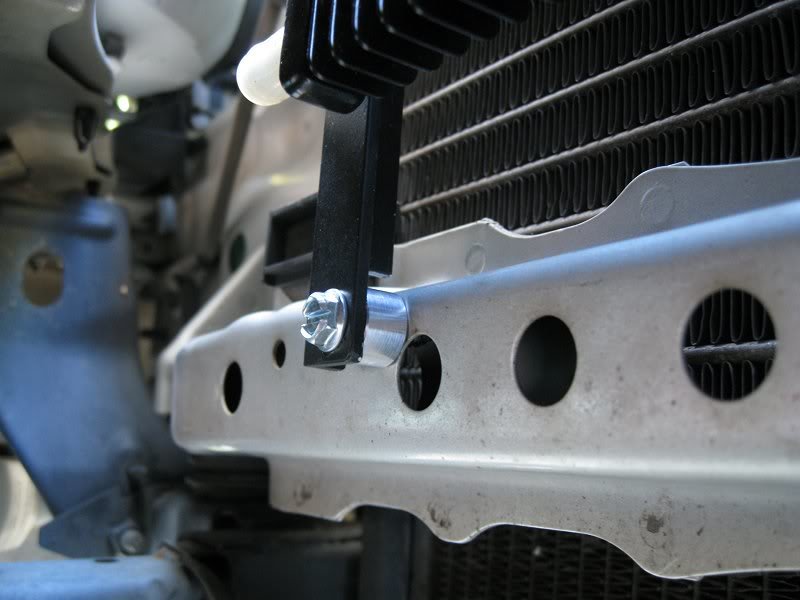

    Used a another sheet metal screw here.
    [​IMG]

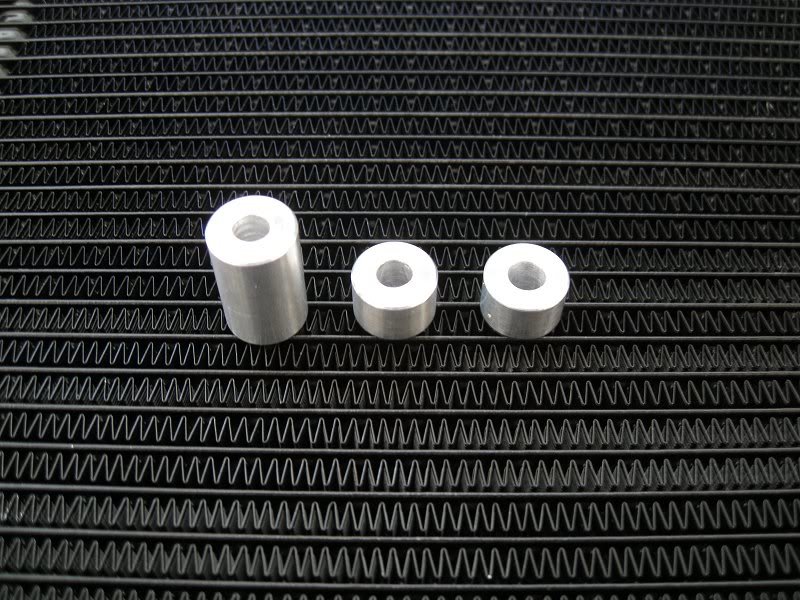

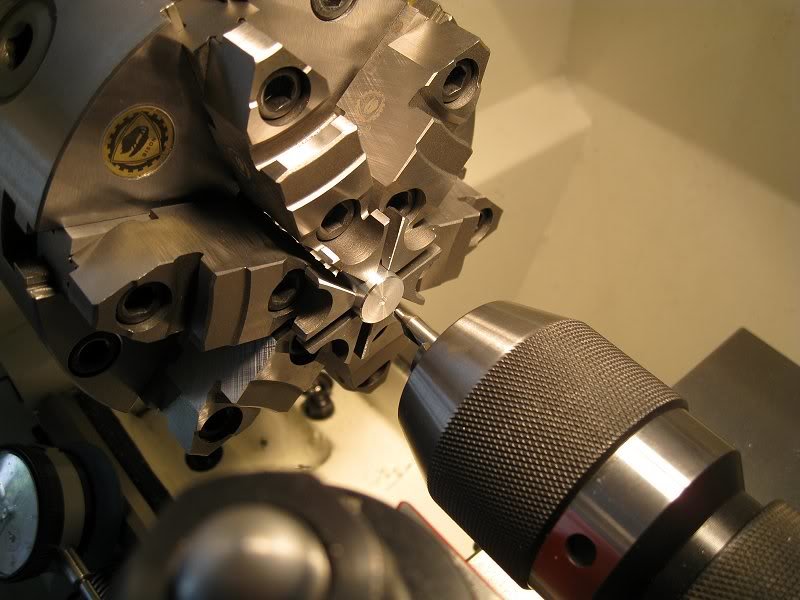

    The three aluminum spacers I turned on my lathe.

    EDIT: I don't remeber the exact lengths I made them as I turned to fit during the install. But from roughly measuring with just a ruler the top one is 15/16" & the the two others are 3/8". YMMV
    [​IMG]

    [​IMG]

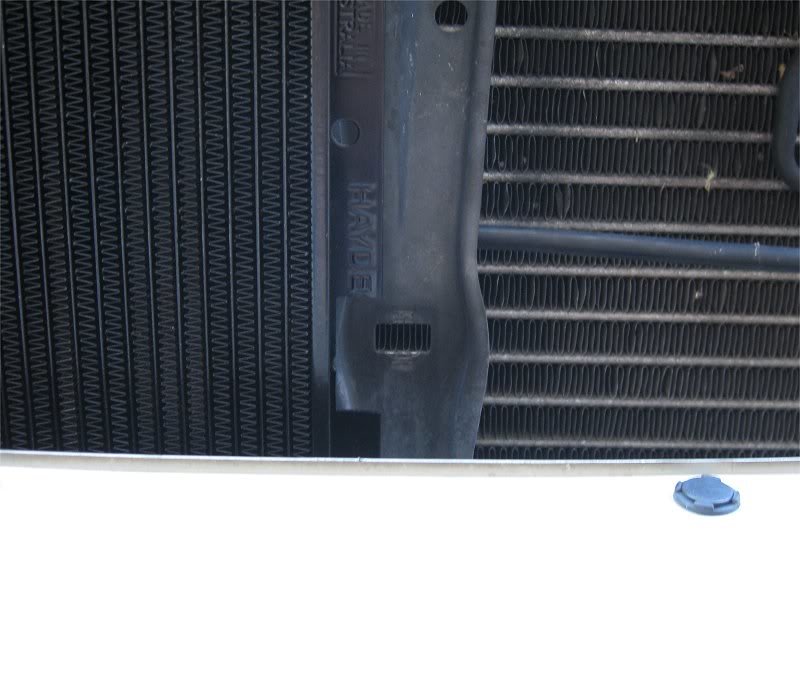

    Cut a relief on the oil cooler with my bandsaw to clear one of the grille's mounting post.
    [​IMG]

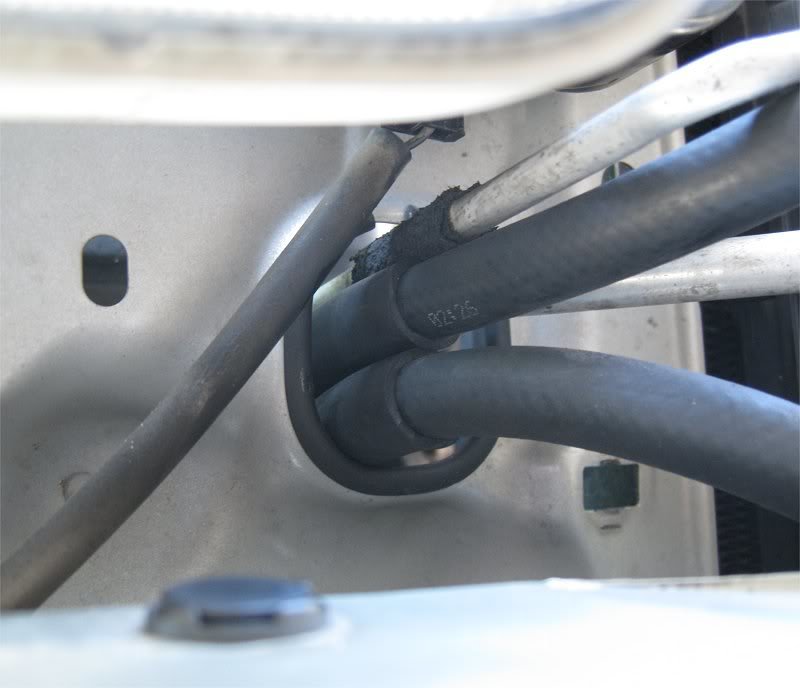

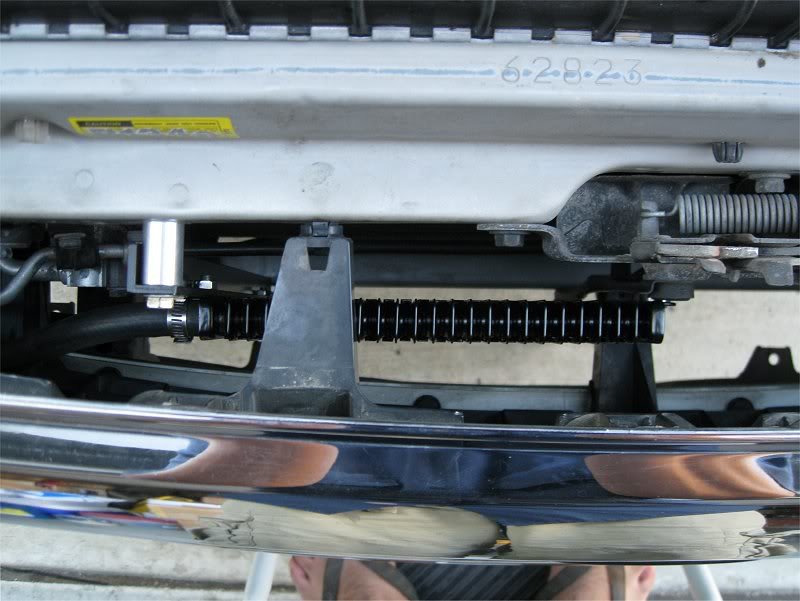

    I choose to run the lines through the same opening for the AC condensor lines. I slipped some covers over the hoses & added some rubber trim to cover up the edges of the hole for added protection.
    [​IMG]

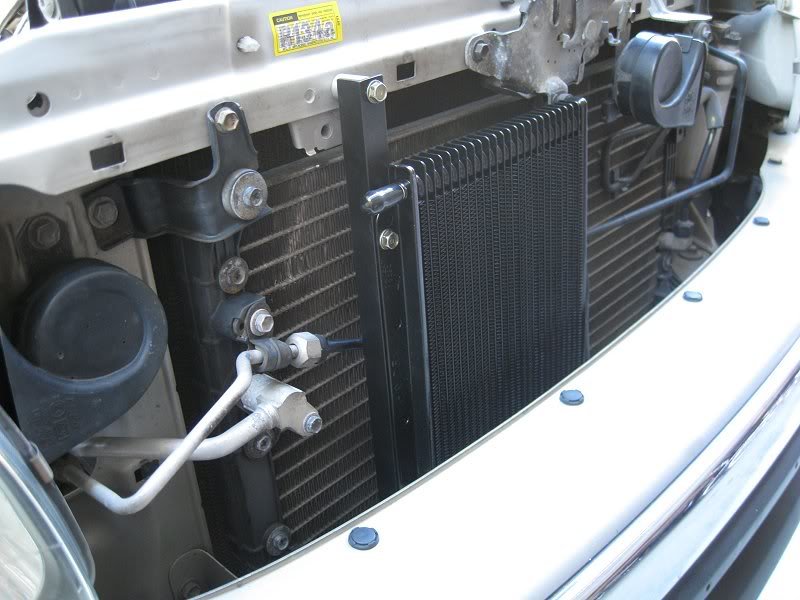

    After paint:
    [​IMG]

    [​IMG]

    [​IMG]

    Soldered on some wires to extend the left/driver side horn.
    [​IMG]

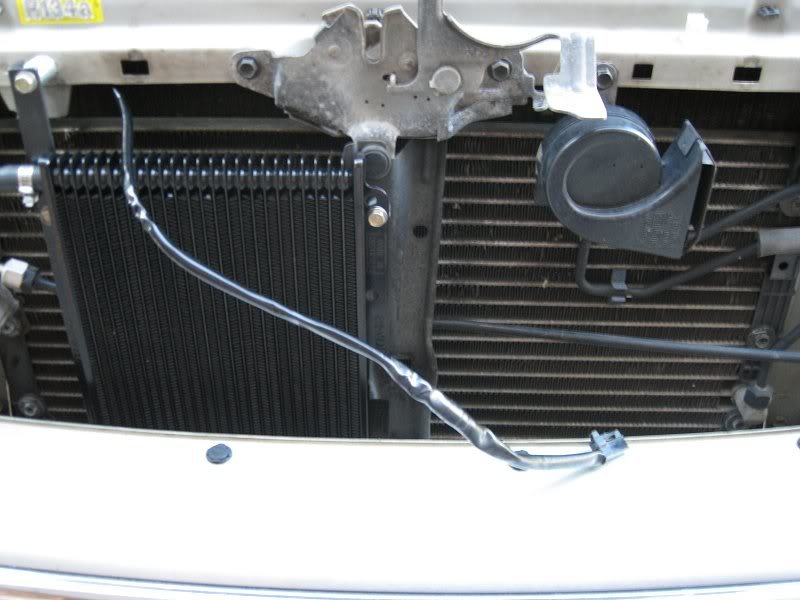

    The horn's new location using an existing hole in the radiator support (now it really is the driver's side horn).
    [​IMG]

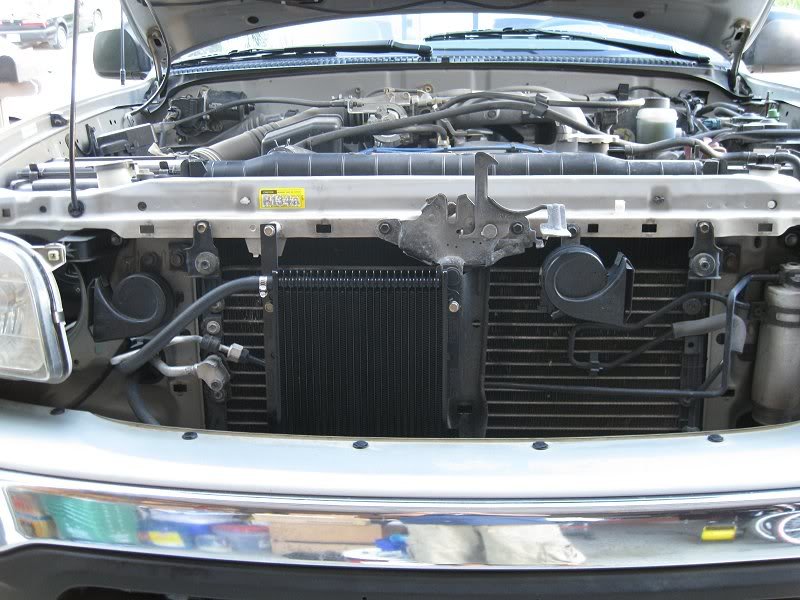

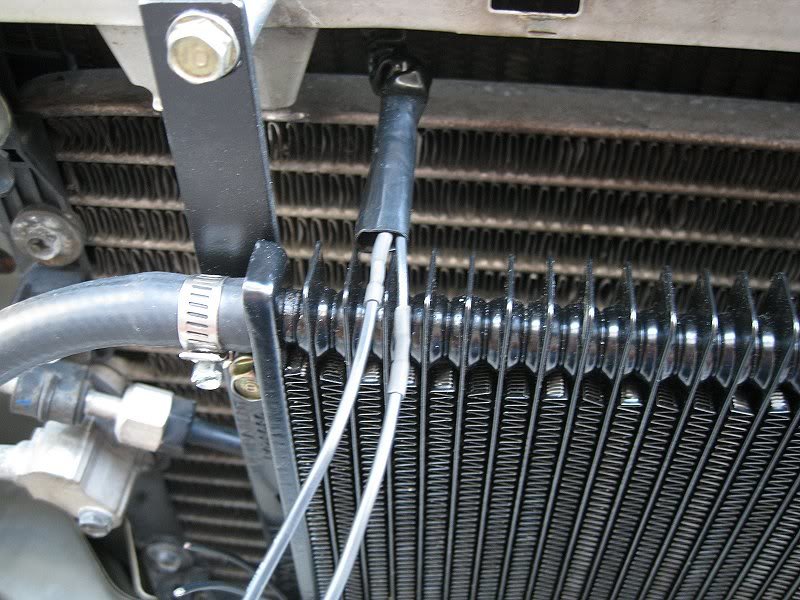

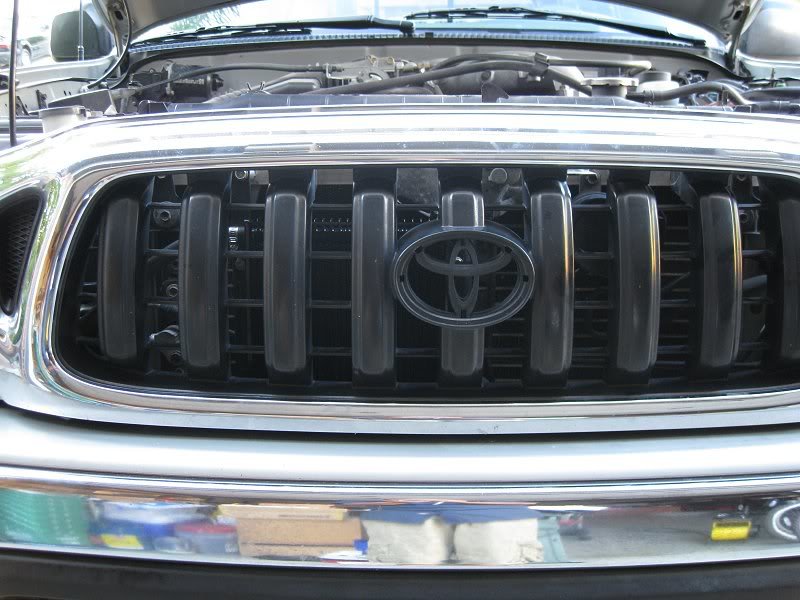

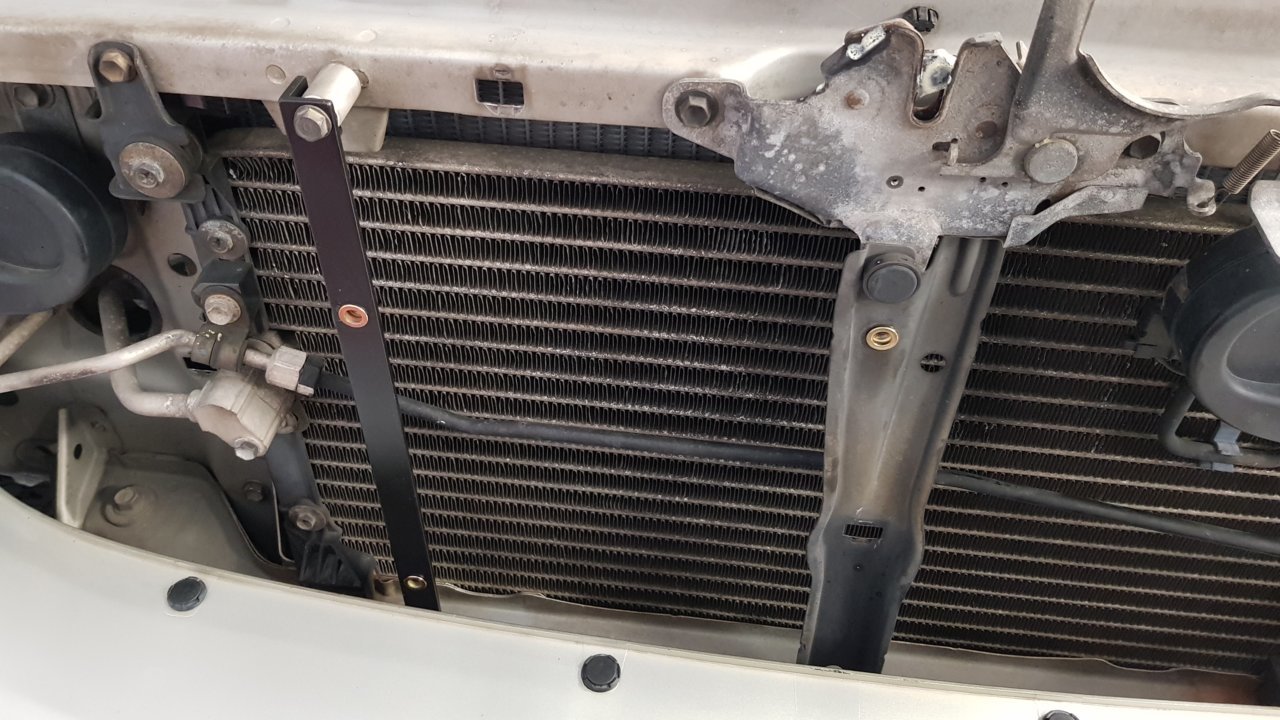

    Completed Install.
    [​IMG]

    [​IMG]

    [​IMG]


    In the end, there was only two holes I that I drilled on the chassis.

    The hose included with the kit is 11/32" & does fit on the stock barbs fine. You can get 3/8" if you want an easier fit. I choose to use the 11/32" hose directly to the hard line of the transmission & used the stock spring clamp because of space constraints.

    In case anyone is wondering about the OE heat exchanger, the driver side of the radiator is the return (back of tranny). It's your choice on using the oil cooler before or after the OE heat exchanger.

    Last edited: Jan 28, 2014
  2. Aug 16, 2010 at 1:32 AM
    #2
    jesus

    jesus Well-Known Member

    Joined:
    Oct 31, 2009
    Member:
    #25236
    Messages:
    927
    Gender:
    Male
    First Name:
    jesus
    bakersfield
    Vehicle:
    02
    K&N ram intake & doug exs.
    Nice job.... would you be willing to install for others and if so how much would it cost???

  3. Aug 16, 2010 at 5:01 AM
    #3
    Manlaan

    Manlaan Well-Known Member

    Joined:
    Jan 25, 2010
    Member:
    #30054
    Messages:
    1,030
    Gender:
    Male
    First Name:
    Greg
    Riverton, Utah
    Vehicle:
    2002 XtraCab SR5 V6 4x4 Black
    See Signature
    Very nice. It's already on my to do list though.

    Notice much of a difference?

  4. Aug 16, 2010 at 6:53 PM
    #4
    zero4

    zero4 [OP] Metal Cutter

    Joined:
    Sep 10, 2006
    Member:
    #31
    Messages:
    443
    Gender:
    Male
    First Name:
    Will
    Northridge, CA
    Vehicle:
    01' DCab 3.4L TRD
    Donahoe CO, Donahoe Rear Resi, Deaver J59, 16" Pro Comp, 33" BFG AT, Hayden Trans Oil Cooler, Oil Filter Relocator, FM 40, ES Bushings, Beefed CB Drop, Deckplate, K&N Drop-In, DO Bed Bar, Cobra 75 WXST, Firestik Firefly, Philips D1R, Clarion Remote Start, Husky Liners
    Sorry, probably not. I quite doing installs for others ever since I stopped working at my buddy's race shop.


    Yes & no. Tranny shifts are smooth now but that's probably just cause the oil had not been changed for 80K miles or so. If it weren't for the oil change I doubt I would notice a difference just driving around without load.

  5. Aug 16, 2010 at 7:01 PM
    #5
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,256
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    Nice work.

    I got the towing package on my truck even though I hardly ever pull anything...primarily for the transmission and oil cooler, as they will add to the longevity of the truck down the line.

  6. Aug 16, 2010 at 7:24 PM
    #6
    Barnone

    Barnone Guest

    I been thinking about doing the trans oil cooler for years (kinda late also) and I think I will do it after seeing your excellent write up and photos.
    Thanks for the post.

  7. Aug 17, 2010 at 7:10 PM
    #7
    crazyasu45

    crazyasu45 Well-Known Member

    Joined:
    May 14, 2009
    Member:
    #17241
    Messages:
    712
    Gender:
    Male
    First Name:
    Matt
    Canada
    Vehicle:
    2013 MGM DCLB 4X4 TRD SPORT
    3" SUSPENSION LIFT
    My Engine Oil Cooler is leaking...I need to place it...Toyota wants 1K for one :( Can I use this Hayden Trans Oil Cooler instead? If so...whats the part # and how much? Thx Matt

    (M-OC-1676) 77, 78, or 79?

  8. Aug 17, 2010 at 9:13 PM
    #8
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,849
    Gender:
    Male
    Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
    nice man, i need to get a tranny cooler...among all the other crap i "need"

  9. Sep 2, 2010 at 12:50 AM
    #9
    zero4

    zero4 [OP] Metal Cutter

    Joined:
    Sep 10, 2006
    Member:
    #31
    Messages:
    443
    Gender:
    Male
    First Name:
    Will
    Northridge, CA
    Vehicle:
    01' DCab 3.4L TRD
    Donahoe CO, Donahoe Rear Resi, Deaver J59, 16" Pro Comp, 33" BFG AT, Hayden Trans Oil Cooler, Oil Filter Relocator, FM 40, ES Bushings, Beefed CB Drop, Deckplate, K&N Drop-In, DO Bed Bar, Cobra 75 WXST, Firestik Firefly, Philips D1R, Clarion Remote Start, Husky Liners
    My truck didn't have the factory "towing package". My truck came with a U-haul class III hitch & it had a 4 pin & 5 pin socket installed. After adding the tranny oil cooler I was looking at getting the towing fan clutch too. To my surprise I already have the green fan clutch. :D

    Can anyone with a 3.4 double cab check and see if they have the orange fan clutch? I'm wondering if the prev owner put the green one on or if all double cabs come with the green one. Then again the prev owner also installed a oil filter relocator.

  10. Sep 2, 2010 at 1:15 AM
    #10
    EL ROJO

    EL ROJO B==D~~

    Joined:
    Jun 22, 2010
    Member:
    #39302
    Messages:
    5,893
    Gender:
    Male
    First Name:
    Cory
    Camarillo
    Ooh I want one! I will check my fan and let ya know.

  11. Sep 2, 2010 at 2:52 AM
    #11
    Manlaan

    Manlaan Well-Known Member

    Joined:
    Jan 25, 2010
    Member:
    #30054
    Messages:
    1,030
    Gender:
    Male
    First Name:
    Greg
    Riverton, Utah
    Vehicle:
    2002 XtraCab SR5 V6 4x4 Black
    See Signature
    Do you have a scangauge to monitor the temp?

    If so, how are the temps under a heavy strain before and after?
    I can tell you my before temps, but dont have the cash to put one in yet to see how much of a difference it makes.

    The standard setup is getting to about about 170-180 degrees normal driving (normal operating temp according to FSM), about 220-230 while on a trail (seems pretty high to me as to why I'm really wanting to do it).

  12. Sep 2, 2010 at 3:15 AM
    #12
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,318
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    I have this same type Hayden stacked plate cooler on my car. It's about 33% more efficient than tube & fin coolers. They come in different sizes depending on GVW. Works great. I did run mine thru the factory "cooler" then thru the Hayden. The return oil is luke warm, you could hold the hose bare handed all day with car at normal warmed up temp. The one coming out you can hold for a few seconds before the burn starts. You can really extend the life of the tranny with this. I'm also running AMSOIL synthetic atf and that helps keep temps down too. Very worth the 50 or so bucks depending on what size you get. I didn't do any custom bracket install, just used the mounting stuff that comes with it. Nice write up.................

  13. Sep 3, 2010 at 7:48 AM
    #13
    iDigTulsa

    iDigTulsa Well-Known Member

    Joined:
    Aug 11, 2010
    Member:
    #41554
    Messages:
    106
    Gender:
    Male
    First Name:
    Luke
    Tulsa, OK
    Vehicle:
    03 DoubleCab TRD SR5 4x4
    Free Alarm Mod, Grey Wire Mod, Reverse Leaf Spring Helper Mod, Kenwood Deck, Memphis 10'', Yakima Roof Rack, Debadged Sides,Silver Toyota Skid Plate, Injen CIA, 3.5'' Amsoil Dry Filter, 17 x 7.5 Tundra Split Spoke Alloy's
    I just stepped outside after reading this, and my 2003 3.4 DC 4x4 TRD SR5 has the orange fan clutch...and I do not have the towing package. Seems like you really lucked out there brother.

  14. Sep 3, 2010 at 8:58 PM
    #14
    zero4

    zero4 [OP] Metal Cutter

    Joined:
    Sep 10, 2006
    Member:
    #31
    Messages:
    443
    Gender:
    Male
    First Name:
    Will
    Northridge, CA
    Vehicle:
    01' DCab 3.4L TRD
    Donahoe CO, Donahoe Rear Resi, Deaver J59, 16" Pro Comp, 33" BFG AT, Hayden Trans Oil Cooler, Oil Filter Relocator, FM 40, ES Bushings, Beefed CB Drop, Deckplate, K&N Drop-In, DO Bed Bar, Cobra 75 WXST, Firestik Firefly, Philips D1R, Clarion Remote Start, Husky Liners
    Nope don't have a SG. From what I've read the 1st gens don't have trans temp that can be monitored through the OBD port but then again not sure. I would like to add a trans temp guage but I do do a lot of heavy towing to be worrying about so it's not on my list of things to do.

    It does make a huge difference, like T@co_Pr3runn3r said the return line coming out of the cooler going into the tranny I can hold with my hand & it's just warm unlike the inlet line which is pretty hot. I checked this after do some hard runs up some steep hills by my house in 2nd gear. More than worth the $50.


    Thank you very much for checking, another thing I didn't have to buy!

    I got my truck with 30K mi on it & it came with the ClassIII hitch, oil filter relocator, bed extender, Flowmaster, a K&N FIPK, & it was debadged. Probably wouldv'e passed on the Flowmaster & FIPK though. I sold the FIPK for a good price, bought a stock airbox & intake tube for $50 & it came with a K&N drop in. I guess I did luck out on this one.

  15. Sep 3, 2010 at 9:54 PM
    #15
    Digiratus

    Digiratus Adventurer

    Joined:
    Mar 26, 2010
    Member:
    #34006
    Messages:
    10,674
    Gender:
    Male
    First Name:
    Mike
    the Pacific Northwest, Exploring
    Vehicle:
    The RedHead
    King ET Coilovers Camburg Uniball UCAs Alcan 8-Leaf Rear Spring Packs Fox 2.0 Resi Rear Shocks FrankenFab Rear Shock Relocate Trail Gear U-bolt Flip Toytec 1" Extended Shackle 4.88 Nitro Gears ARB Front Locker OBA ARB Twin Comp 15x8 D Window Steelies 33" BFG KM2s Limited Edition Elite Front Bumper Smittybilt X2O 10K Winch PIAA 510 SMR Fog Lights Lightforce 170s Badland Sliders FrankenFab Tire Carrier Swingout bumper w/kitchen BudBuilt Front & Bellypan Skids BAMF Rear Diff Skid Whynter 65 qt. Fridge/Freezer CVT Mt Bachelor RTT Badland Custom Bed Rack GM 140 amp alternator Optima Yellow Top battery Magnaflow 18" Muffler Braided Steel Brake Lines K&N Drop-in air filter ScanGauge II OBDII Scanner Uniden 520xl CB radio 3’ Firestik Adjustable tip antenna Pioneer DEH-P9400BH HU Alpine Amps & Type R components (F) and coaxials (R) Wet Okole Seat Covers Weathertech Digital Liners Deck Plate Mod 1” Diff Drop Carrier Bearing Drop
    Well... we have a dilemma here. Manlaan, (who has a good rep in this section) implied that he was reading temps from his SCII for his auto tranny. And along comes Phantom (with his 2nd gen) who clearly states that SCII cannot read auto tranny temps. :eek: Which one is right?

  16. Sep 3, 2010 at 10:04 PM
    #16
    luk8272

    luk8272 Poodoo

    Joined:
    Feb 24, 2008
    Member:
    #4929
    Messages:
    5,842
    Gender:
    Male
    First Name:
    Lucas
    Kaplan, Louisiana
    Vehicle:
    07 Silver4dr. 4x4, V6 Shortbed
    5% Tint, Bug flector, vent Visors, Removed secondary air filter, Rear Spring TSB w/ Wheeler's Add A Leaf HD Pack, Icon 2.0 rear shocks, Toytec 3" lift up front with Total Chaos UCA's, Debadged, Billet Grille,TRD Offroad rims/17x9 Pro comp 6001 rims, Duratracs 265/75/16 or 285/70/17, Fog light anytime mod, Tailgate hose clamp mod, Pro-dry AFE filter. Extended Differential Breather, ABS on/off, 6000k LEDs from CSJumper, heads/fogs, ScanguageII, Devil horns, Devil horns on third brake light, Mounted 60" Highlift, Mounted Tool Box, Wet Okole Front/Rear Seat Covers, TW sticker, Midland Handheld CB,Painted engine cover, Revenge Fab Sliders, ARE Topper, Weather tech Floorliners.
    All I can vouch for is that the SCII doesn't do temps for the 2nd gens. When I owned my 1st gen I didn't own the SCII.

  17. Sep 3, 2010 at 10:09 PM
    #17
    zero4

    zero4 [OP] Metal Cutter

    Joined:
    Sep 10, 2006
    Member:
    #31
    Messages:
    443
    Gender:
    Male
    First Name:
    Will
    Northridge, CA
    Vehicle:
    01' DCab 3.4L TRD
    Donahoe CO, Donahoe Rear Resi, Deaver J59, 16" Pro Comp, 33" BFG AT, Hayden Trans Oil Cooler, Oil Filter Relocator, FM 40, ES Bushings, Beefed CB Drop, Deckplate, K&N Drop-In, DO Bed Bar, Cobra 75 WXST, Firestik Firefly, Philips D1R, Clarion Remote Start, Husky Liners
    From what I found in the past, 1st gens don't have tranny temp monitored through the ECU. Not sure about second gens though. I think I do remember reading on TTORA that for 08s or 09s you can read tranny temp doing the X-guage thing.

  18. Sep 3, 2010 at 10:58 PM
    #18
    tacopyro

    tacopyro Forever learning...

    Joined:
    Sep 3, 2010
    Member:
    #42664
    Messages:
    60
    Gender:
    Male
    SoCal
    Vehicle:
    01 Taco Pre SR5 V6 - 4WD conversion planning
    Roll n Lock Cover and Stainless Step sides. New Mods. AFE Air Filter, PS Mag-Filter, Bilstein HD rear and 5100s Front. Michelins LTX MS2. Taurus E-Fan with FK50. Tundra Brake Upgrade. External Tranny Cooler. HO-Alt CS144 Mod, OMD Leaf Springs. Bull Bar. Future Mods. 4x4 conversion planning / purchase stages. I Love my Taco!
    Hi! I'm a noob on the forums.
    just to share, I have a first gen i think. (2000 Prerunner 2wd) and i have SCII. i added what seems to be a code to monitor Transmissions Temp. it seems like it is since it closely matches the water temp and really goes up when i am pulling a load. matches also the water temp in the morning at startup but climbs faster than the water temp when i am underway. its a ISO code i believe as opposed to CAN.
    been using it for the last few months and am convinced that its the Tranny temp i am monitoring...

    really new here. probably my 2nd post this one.

    Hope that helps.

  19. Sep 3, 2010 at 11:47 PM
    #19
    EL ROJO

    EL ROJO B==D~~

    Joined:
    Jun 22, 2010
    Member:
    #39302
    Messages:
    5,893
    Gender:
    Male
    First Name:
    Cory
    Camarillo
    Just ordered the ultragauge or whatever that group by is. Was hoping it would be able to pull tyranny temp. All well.

  20. Sep 3, 2010 at 11:48 PM
    #20
    zero4

    zero4 [OP] Metal Cutter

    Joined:
    Sep 10, 2006
    Member:
    #31
    Messages:
    443
    Gender:
    Male
    First Name:
    Will
    Northridge, CA
    Vehicle:
    01' DCab 3.4L TRD
    Donahoe CO, Donahoe Rear Resi, Deaver J59, 16" Pro Comp, 33" BFG AT, Hayden Trans Oil Cooler, Oil Filter Relocator, FM 40, ES Bushings, Beefed CB Drop, Deckplate, K&N Drop-In, DO Bed Bar, Cobra 75 WXST, Firestik Firefly, Philips D1R, Clarion Remote Start, Husky Liners
    Nope, the UG definitely won't do it.

To Top
